Product type	Battery jumper cable
Brand	Perel
Model	ABC25AN
Cable section	25 mm²
Cable length	3.5 m
Maximum current	350 A
Compatible voltage	12 V - 24 V
Conductor material	Copper-aluminum (Cu-Al)
Clamp type	Insulated clamps
Standards	Compliant with TÜV/GS, DIN 72553:1994
Recommended use	Petrol vehicles (max. 5500 cc) or diesel vehicles (max. 3000 cc)
Included accessories	Reusable storage bag
Approximate weight	1.5 kg
Maintenance	Clean the clamps with a dry cloth. Store in the bag after use.
Safety	Wear eye protection. Avoid flames, sparks, and cigarettes near the battery. Do not connect to the negative terminal of the disabled vehicle.
Repairability	Repair only by a qualified technician. Spare parts not specified.
Warranty	24 months (consumer), Velleman Group NV conditions

Frequently Asked Questions - ABC25AN Perel

How to use the Perel ABC25AN jumper cables?

First connect the red cable (+) to the positive terminal of the discharged battery, then to the positive terminal of the booster battery. Then connect the black cable (-) to the negative terminal of the booster battery, then to a metal ground on the disabled vehicle (engine block), away from the battery. Start the booster vehicle, then the disabled vehicle. Disconnect in reverse order.

How to connect the cables on a vehicle with positive ground?

In this case, reverse the polarity: first connect the black cable (-) to the negative terminal of the discharged battery, then to the negative terminal of the booster battery. Then connect the red cable (+) to the positive terminal of the booster battery, then to the engine block of the disabled vehicle (away from the battery).

What safety precautions should I take?

Always wear eye protection. Avoid any flame or spark near the battery. Do not smoke. Ensure that the vehicles are not touching and both electrical systems are off. Check that the batteries have the same voltage (12 V or 24 V). Use a damp cloth on the vent caps.

What is the maximum capacity of the ABC25AN cable?

The cable supports a maximum current of 350 A, corresponding to a 25 mm² section. It is suitable for petrol engines up to 5500 cc or diesel up to 3000 cc.

Is the Perel ABC25AN cable suitable for diesel engines?

Yes, it is suitable for diesel engines up to 3000 cc. For petrol engines, it is suitable up to 5500 cc.

What to do if the engine does not start after several attempts?

Do not attempt to start for more than 10 to 15 seconds at a time. Wait 1 minute between attempts. If the engine does not start after several tries, the problem may be mechanical or electrical, and not battery-related. Consult a qualified technician.

How to maintain the jumper cables?

After use, clean the clamps with a dry cloth to remove any corrosion or dirt. Store the cables in the provided bag, in a dry place away from humidity.

What is the length of the ABC25AN cable?

The cable is 3.5 meters long, allowing easy connection between two vehicles.

Can I use this cable for 24 V batteries?

Yes, the cable is compatible with 12 V and 24 V batteries. Ensure that both batteries have the same voltage.

What does the warranty of the Perel ABC25AN cover?

The consumer warranty is 24 months against manufacturing defects. It does not cover damage due to incorrect use, normal wear (clamps, cables), or unauthorized modifications. Consult the full terms of Velleman Group NV.

USER MANUAL ABC25AN Perel

ABC16AN ABC25AN ABC16ALN

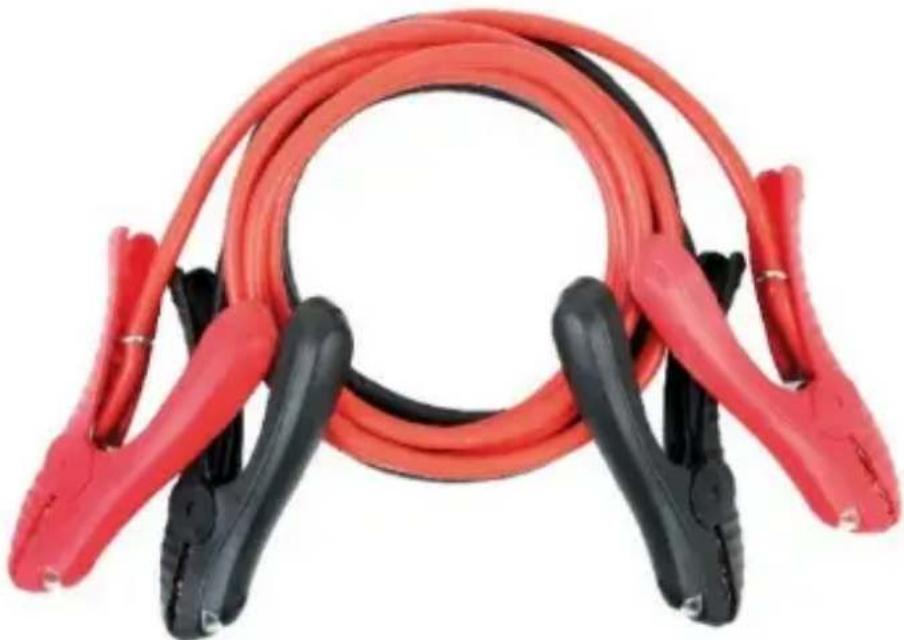

JUMPER CABLES STARTKABEL CÂBLE DE DÉMARRAGE PINZAS DE ARRANQUE STARTHILFEKABEL CABOS DE BATERIA

Two red and black clamps with coiled orange cables, no visible text or symbols

USER MANUAL 3 GEBRUIKERSHANDLEIDING 6 MODE D'EMPLOI 10 MANUAL DEL USUARIO 14 BEDIENUNGSANLEITUNG 18 MANUAL DO UTILIZADOR

22

CE

ABC16AN/ABC25AN/ABC16ALN

USER MANUAL

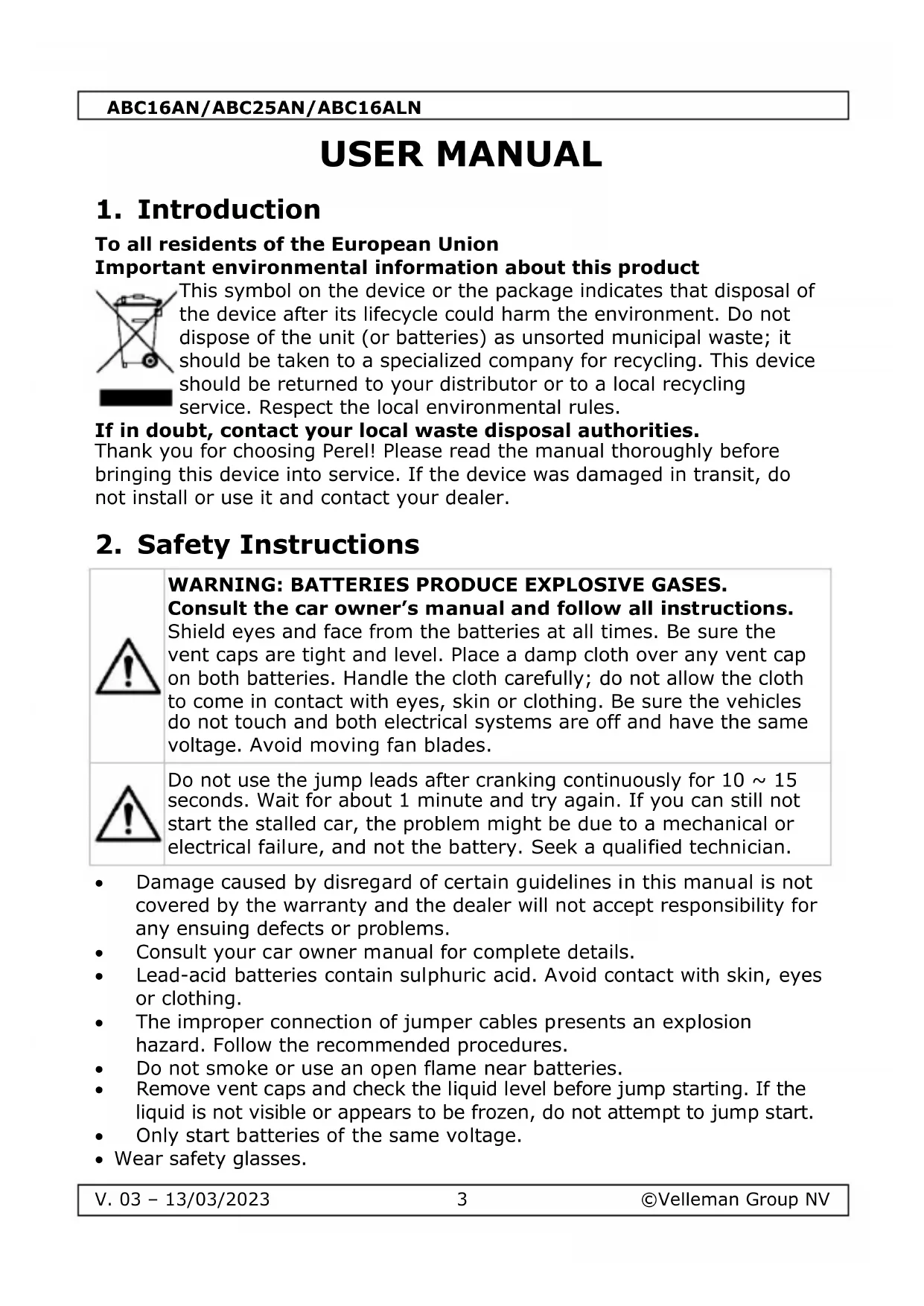

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

WARNING: BATTERIES PRODUCE EXPLOSIVE GASES. Consult the car owner's manual and follow all instructions.

Shield eyes and face from the batteries at all times. Be sure the vent caps are tight and level. Place a damp cloth over any vent cap on both batteries. Handle the cloth carefully; do not allow the cloth to come in contact with eyes, skin or clothing. Be sure the vehicles do not touch and both electrical systems are off and have the same voltage. Avoid moving fan blades.

Do not use the jump leads after cranking continuously for 10 \~ 15 seconds. Wait for about 1 minute and try again. If you can still not start the stalled car, the problem might be due to a mechanical or electrical failure, and not the battery. Seek a qualified technician.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Consult your car owner manual for complete details.
• Lead-acid batteries contain sulphuric acid. Avoid contact with skin, eyes or clothing.
• The improper connection of jumper cables presents an explosion hazard. Follow the recommended procedures.
• Do not smoke or use an open flame near batteries.
• Remove vent caps and check the liquid level before jump starting. If the liquid is not visible or appears to be frozen, do not attempt to jump start.
  • Only start batteries of the same voltage.
• Wear safety glasses.

3. General Guidelines

Refer to the Velleman Group NV® Service and Quality Warranty on the last pages of this manual.

4. Features

• for all vehicles 12 V \~ 24 V
- with petrol engine (max. 2500 cc) (ABC16AN/ABC16ALN)
o with petrol (max. 5500 cc) or diesel engine (max. 3000 cc) (ABC25AN)
• fully insulated full contact safety clamps
• copper-aluminium technology
• TÜV/GS approved, complies with DIN 72553:1994
• supplied in re-useable storage bag
- corresponds with the conductance of a traditional 16 ~mm^2 / 25 ~mm^2 copper jumper cable
• LED-lighted clamps (ABC16ALN only)

5. Operation

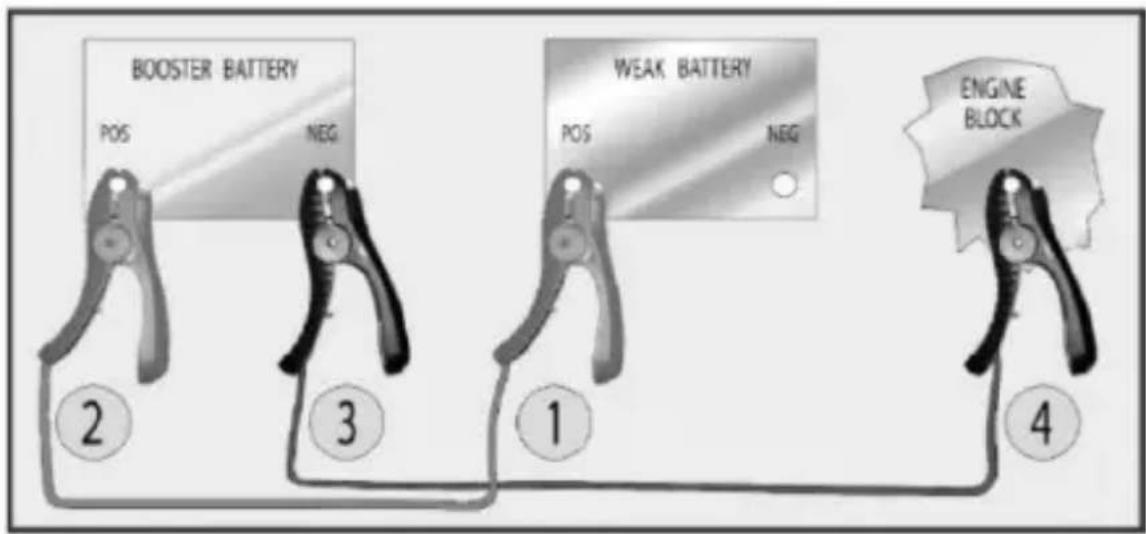

5.1 Vehicle with Grounded Negative Post

1. Connect the positive cable (+, red) to the positive terminal of the discharged battery.
2. Connect the other end to the positive terminal of the booster battery.
3. Connect the negative cable (-, black) to the negative terminal of the booster battery.
4. Connect the other end to the engine block of the stalled vehicle, away from the battery. Stand back and do not connect to the negative post!
5. Start the booster vehicle and then the stalled vehicle.
6. Disconnect the cables in reverse order. Keep both running for a few minutes.

BOOSTER BATTERY POS NEG WEAK BATTERY POS NEG ENGINE BLOCK ② ③ ① ④

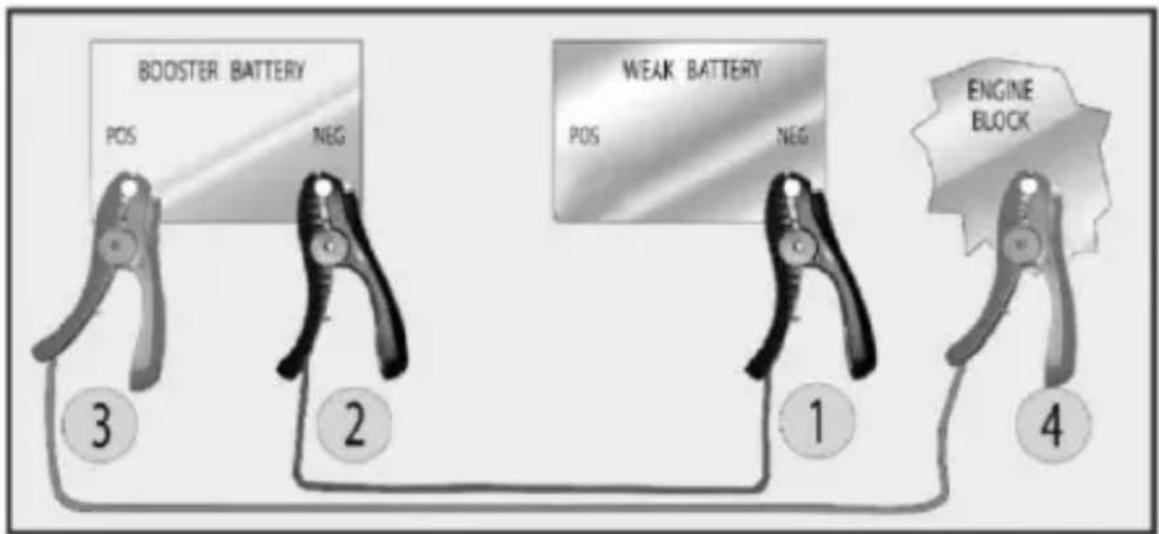

5.2 Vehicle with Grounded Positive Post

1. Connect the negative cable (-, black) to the negative terminal of the discharged battery.
2. Connect the other end to the negative terminal of the booster battery.
3. Connect the positive cable (+, red) to the positive terminal of the booster battery.
4. Connect the other end to the engine block of the stalled vehicle, away from the battery. Stand back and do not connect to the negative post!
5. Start the booster vehicle and then the stalled vehicle.
6. Disconnect the cables in reverse order. Keep both running for a few minutes.

6. Technical Specifications

	ABC16AN/ABC16ALN	ABC25AN
cable section	16 mm ^2	25 mm ^2
capacity	max. 220 A	max. 350 A
length	3 m	3.5 m

Use this device with original accessories only. Velleman Group NV cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group NV. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

ABC16AN/ABC25AN/ABC16ALN

ABC16AN/ABC25AN/ABC16ALN

ABC16AN/ABC25AN/ABC16ALN

ABC16AN/ABC25AN/ABC16ALN

ABC16AN/ABC25AN/ABC16ALN

ABC16AN/ABC25AN/ABC16ALN

Velleman Group NV® Service and Quality Warranty

Since its foundation in 1972, Velleman Group NV® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman Group NV® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman Group NV®.

- Articles to be repaired must be delivered to your Velleman Group NV® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
