USER MANUAL Charge force powerstation Mophie

charge force powerstation

USER MANUAL

English 04

French 19

Italian 36

German 52

Spanish 69

Portuguese 86

Russian 103

Turkish 121

Japanese 137

Korean 151

Simplified Chinese 166

Traditional Chinese 179

EN

Welcome

Thank you for purchasing the mophie charge force powerstation universal battery. Your charge force powerstation battery is a compact yet powerful mobile charging solution for mophie cases featuring charge force wireless power as well as other Qi-compatible wireless devices, and it will also charge tablets, smartphones or other USB devices via its USB port. With the charge force powerstation battery, charging couldn't be any easier—simply set your mophie case with charge force wireless power or other Qi-enabled wireless device on top of the charge force powerstation battery.

Package Contains

• charge force powerstation universal battery
• Micro-USB cable
• Quick-start guide

Features

Here's a rundown of why your charge force powerstation battery is so great:

- High-density, high-output universal battery charges at fast speeds—up to 2.1 amps via the USB port.

- Wireless power—place a compatible device on the charge force powerstation battery and press the status indicator button to begin wireless charging.

• USB output port lets you charge wired devices and wireless devices at the same time.
• Priority+ pass-through charging provides power to a charging device first before the charge force powerstation battery starts to recharge.
• Track battery power at a glance with the integrated four-light LED status indicator. You can keep tabs on charging status and current battery life. Know before you go!
• Rechargeable for over 500 full cycles. Our battery is built to last so you can do more, longer.
• mophie's smart adaptive charging technology identifies your connected device and always delivers the fastest, most efficient charging speeds available.
• Digital Power Management circuitry provides built-in short-circuit, overcharge and temperature protection. Safety First!

Compatibility

The mophie charge force powerstation universal battery will wirelessly charge any mophie case with charge force wireless power as well as any other Qi-compatible wireless device. It also has a USB charging port that will charge most popular smartphones, tablets, wearables and other USB devices.

- If you experience any issues with charging your particular device, ensure that the charge force powerstation battery is fully charged and check the FAQ section on this website.

As always, no matter what device you have, carefully read through the Warning section in this manual and in the quick-start guide included with your charge force powerstation battery before using it.

Charging Your Device Using Your charge force powerstation Battery

IMPORTANT: Before using your charge force powerstation battery for the first time, fully charge it (so that pressing the charge status button lights all 4 status LEDs).

Wireless charging

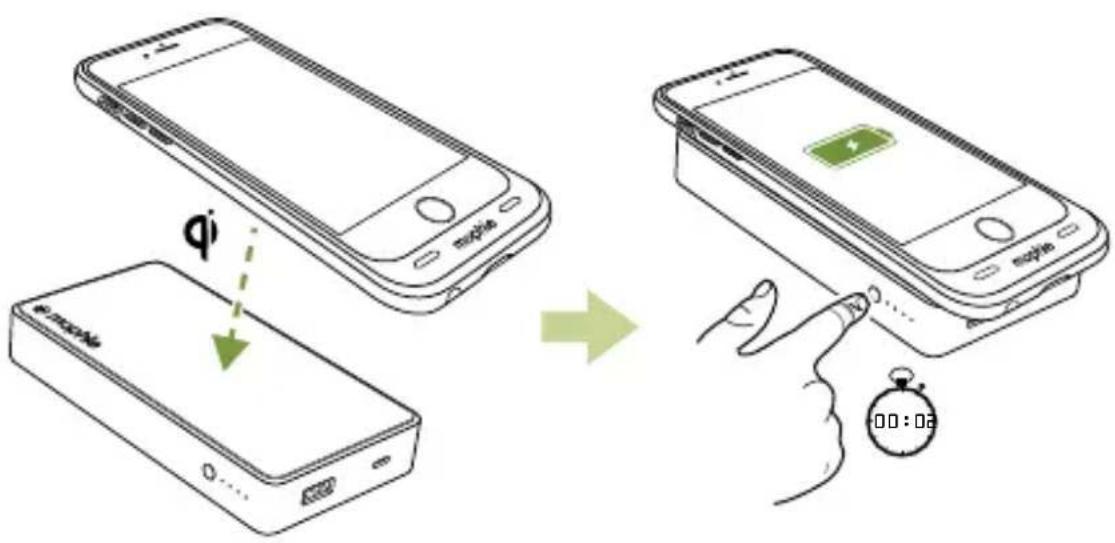

1. Place your mophie case with charge force wireless power or other Qi-enabled device on the charge force powerstation battery as shown in the illustration below.

Diagram illustrating the process of adding a device to a smartphone, showing transformation from device to app icon and time.

Make sure that your device is aligned on the charge force powerstation battery as shown above. (mophie cases with charge force wireless power will automatically align for a proper charge.)

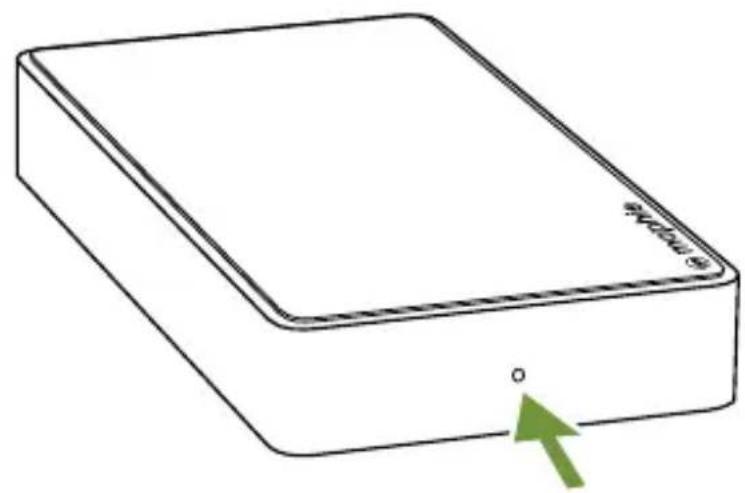

1. Press the status button for 2 seconds to begin charging. The charging LED (shown in the illustration below) will illuminate to indicate that the device is properly charging.

Line drawing of a rectangular electronic device with a green arrow pointing to its side (no text or symbols)

IMPORTANT: If the charging LED flashes on and off, it means that the wireless device is not charging properly. Make sure the device is properly aligned on the charge force powerstation battery as shown in the illustration for Step 1.

Wired charging

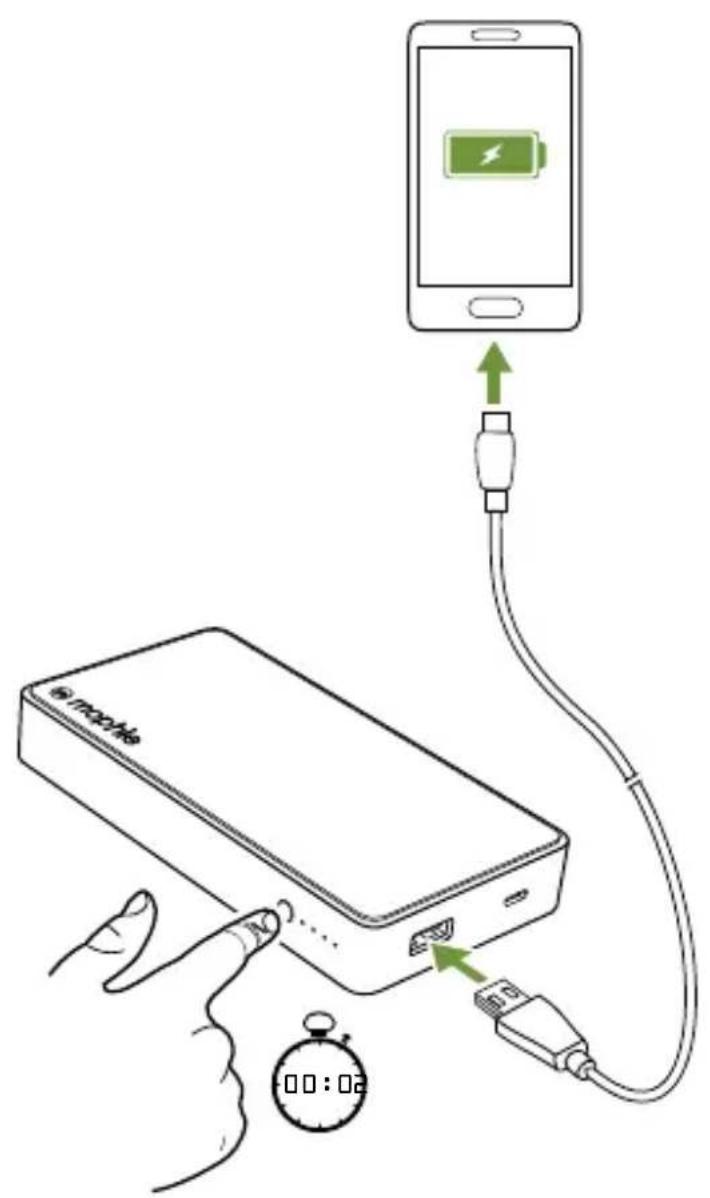

Connect the supplied USB cable (or the cable that came with your device) to the charge force powerstation battery's USB port and to your device. Press the status button for 2 seconds to begin charging.

Diagram showing a mobile power bank connected to a smartphone with battery, connected via USB cable to a stopwatch and hand pointing to the device.

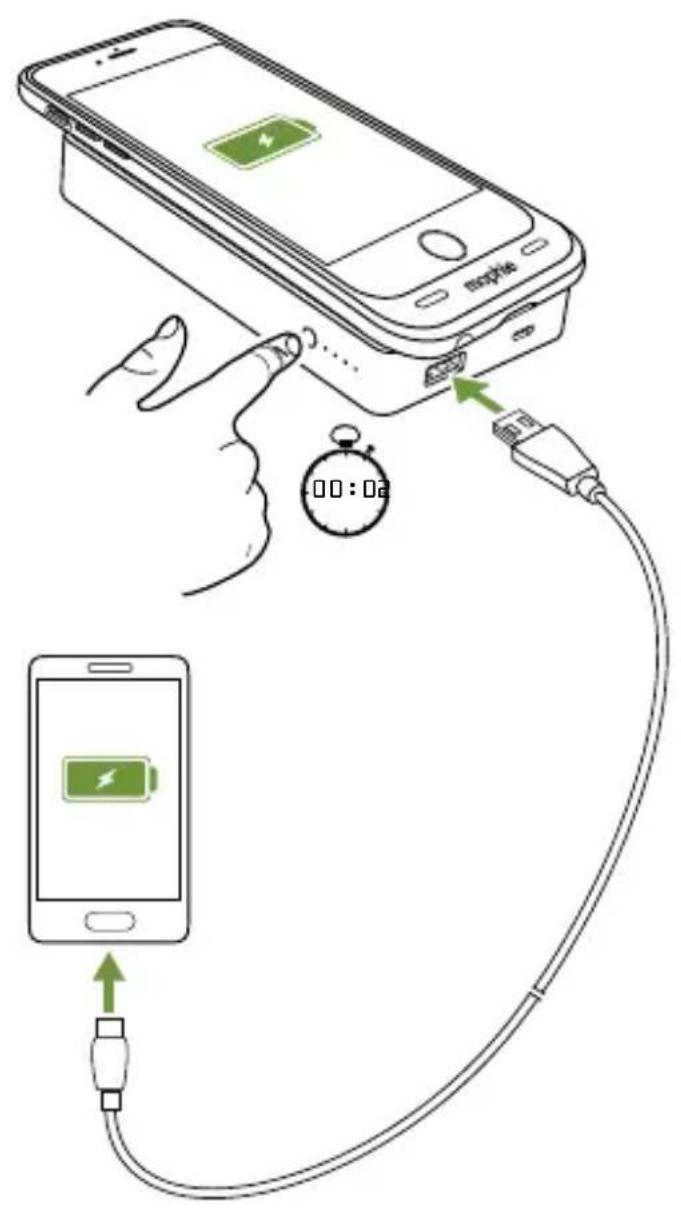

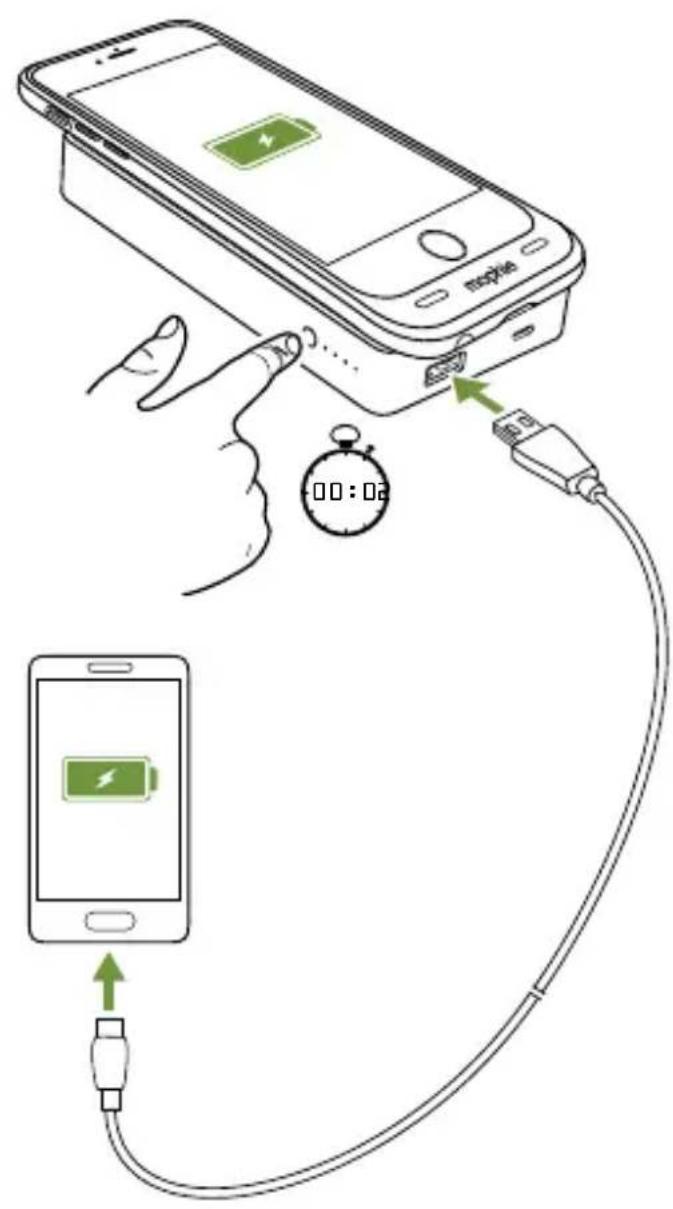

You can charge wireless and wired devices at the same time.

Diagram illustrating smartphone battery charging process with hand, stopwatch, and connected cable showing battery status

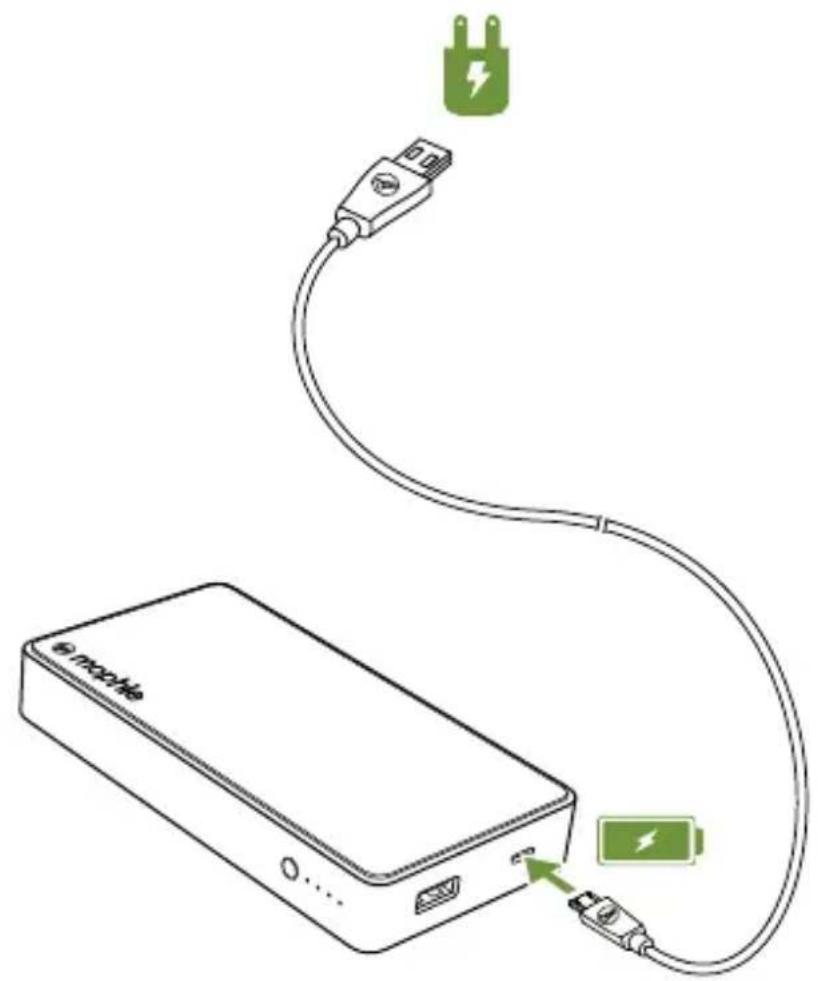

Recharging Your charge force powerstation Battery To recharge your charge force powerstation battery, use the supplied USB cable to connect its micro-USB port to a USB wall charging adapter (such as the one included with your device).

NOTE: For best results, do not connect the charge force powerstation battery to a computer's USB port. We recommend using a wall charging adapter with at least a 1.5 amp output.

Line drawing of a portable electronic device connected to a battery via cable, with a green plug icon above (no text or symbols on the diagram itself)

Priority+ Pass-Through Charging

When you're recharging your powerstation battery, Priority+ pass-through charging provides power to a wireless device first before the powerstation battery starts to recharge.

Checking Your charge force powerstation Battery's Charging Status

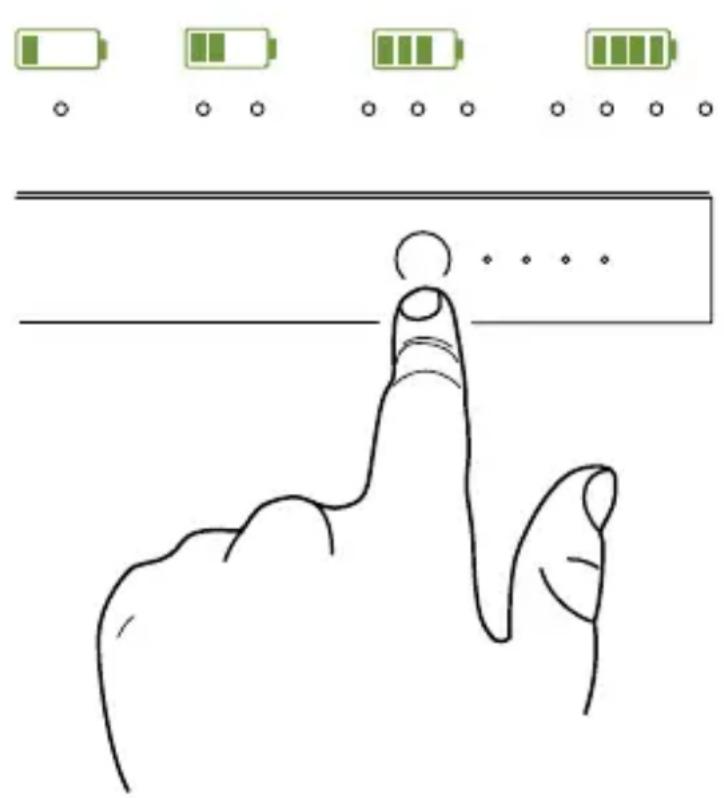

Momentarily press the status button on your charge force powerstation battery and the status LEDs will indicate its charge level. Four LEDs means that the charge force powerstation battery is fully charged, while one LED means that it's almost empty. Know before you go!

Diagram showing battery charging process with three battery icons and a hand gesture pointing to a progress bar

Taking Care Of Your charge force powerstation Battery

• Keep your charge force powerstation battery dry and away from moisture and corrosive materials.
• Do not clean your charge force powerstation battery with harsh chemicals, soaps or detergents. Just wipe the with a soft, water-dampened cloth.
• Make sure the charge force powerstation battery's USB ports do not become contaminated with lint or other debris. Use a canned-air type of product periodically to ensure that the port openings are clear.
• Recharge your charge force powerstation battery once every three months when not in use. If you plan on putting it away, fully charge it first (so that pressing the status button lights all 4 charge status LEDs).

Warranty

At mophie, we are dedicated to making the best quality products we can. To back this up, this product is warranted for 2 years from date of purchase. This warranty does not affect any statutory rights that you may be entitled to. Keep a copy of your purchase receipt as proof of purchase. Be sure to register your product at mophie.com. Failure to register your product and/or provide proof of purchase may void the warranty.

Exclusions & Limitations

Except for the limited warranty expressly set forth or to the extent restricted or prohibited by applicable law, mophie expressly disclaims any and all other warranties express or implied, including any warranty of quality, merchantability, or fitness for a particular purpose, and you specifically agree that mophie shall not be liable for any special, incidental, indirect, punitive, or consequential damages for breach of any warranty of any type on any mophie product. In addition to and without limiting the generality of the foregoing disclaimers, the limited warranty does not, under any circumstances, cover the replacement or cost of any electronic device or personal property inside or outside of the mophie product.

Customer Service

Telephone: 1-888-8mophie

International: [phone]

Web: www.mophie.com/cs

Warning

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, for which damages you (“Purchaser”), and not mophie llc (“Manufacturer”) are responsible.

Before using your charge force powerstation battery for the first time, fully charge it (so that pressing the charge status button lights all 4 charge status LEDs).

Do not store device in high-temperature environment, including heat caused by intense sunlight or other forms of heat. Do not place device in fire or other excessively hot environments.

Be cautious of excessive drops, bumps, abrasions, or other impacts to this device. If there is any damage to the device such as dents, punctures, tears, deformities, or corrosion due to any cause, discontinue use. Contact Manufacturer or dispose of it in an appropriate manner at your local battery-recycling center.

The charge force powerstation battery should be operated only in open-air conditions. It should not be operated in an enclosed, unventilated space such as a carrying bag, pocket or purse. Failure to follow these instructions may cause damage to the charge force powerstation battery by overheating.

Do not disassemble this device or attempt to re-purpose or modify it in any manner.

Do not attempt to charge this device using any method, apparatus, or connection other than the device's USB connector. For questions or instructions for the various ways to charge the device refer to the Charging Your charge force powerstation Battery section of this manual.

Do not attempt to replace any part of this device.
If this device is intended by Purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use. Failure to do so is sole responsibility of purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.
All products have gone through a thorough quality assurance inspection. If you find that your device is excessively hot, is emitting odor, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Manufacturer.
Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful under state and federal environmental laws and regulations. Always take used batteries to your local battery-recycling center.
This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

WARNING! This product contains magnets. To reduce the risk of interference with other electrical equipment, consult your doctor and/or device manufacturer before using this product if you have a pacemaker or other implanted electrical device.

Legal

This product is meant for use only in conjunction with the appropriate device. Please consult your device packaging to determine whether this product is compatible with your particular device. Manufacturer is not responsible for any damages to any device incurred through the use of this product.

Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than the appropriate device for which this product is designed. Manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this product as outlined above. If you are responsible for product use with an unintended device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third part(ies).

mophie, powerstation, charge force, Stay Powerful, the five-circles design, and the mophie logo are trademarks of mophie inc. Patents: mophie.com/patents.

This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.

CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device must be used with certified peripherals and shielded cables. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may result in interference to radio or reception.

MODIFICATION: Any changes or modifications of this device could void the warranty.

FR

Bienvenue

Diagram illustrating the process of inserting a device into a mobile phone, showing transformation from device to battery and hand signals.

Simple line drawing of a rectangular electronic device with a green arrow pointing to its side (no text or symbols)

Diagram showing a mobile power bank connected to a smartphone via a USB cable, with a stopwatch indicating time.

Diagram illustrating smartphone charging process with battery, time dial, and USB cable connection

Line drawing of an e Luxembourg electronic device connected via a cable to a battery, with a green power plug icon above (no text or symbols on the diagram itself)

Diagram showing a hand pressing down on a battery with three charging cells above it, illustrating battery charging process.

Entretien De Votre Batterie charge force powerstation

Simple line drawing of a rectangular electronic device with a green arrow pointing to its base (no text or symbols)

Diagram showing a mobile power bank connected to a smartphone via a battery, with a stopwatch indicating time.

Diagram illustrating the connection between a smartphone and a device, showing battery charging, time stamp, and connected cable.

Line drawing of a mobile power bank connected via cable to a battery, with a green plug icon above (no text or symbols on the diagram itself)

Diagram showing a hand pressing a button with battery icons above it, illustrating a basic battery usage process.

Diagram illustrating the process of battery charging, showing steps from phone to app and a hand recording time.

Simple line drawing of a rectangular electronic device with a green arrow pointing to its base (no text or symbols)

Diagram showing a mobile power bank connected to a smartphone with battery, connected via USB cable to a hand pointing at a stopwatch.

Diagram illustrating the connection between a smartphone and a device, showing battery charging, time stamp, and connected cable.

Laden Des charge force powerstation-Akkus

Diagram of a mobile power bank connected via cable to a battery, showing charging and discharging (no text or symbols)

Pass-Through-Ladevorgang Priority+

Diagram showing a hand pressing a button with battery icons above, indicating a function or interface.

Pflege Des charge force powerstation-Akkus

Simple line drawing of a rectangular electronic device with a green arrow pointing to its base (no text or symbols)

Diagram showing a mobile power bank connected to a smartphone with battery, connected via USB cable to a stopwatch for time.

Diagram illustrating the connection between a smartphone and a battery, showing battery charging, time stamp, and connected cable.

Diagram of a mobile power bank connected via cable to a battery, with a green charging plug icon above (no text or symbols on the diagram itself)

Diagram showing a hand pressing a button with battery icons above it, indicating a function or interface.

Diagram illustrating the process of battery charging, showing steps from phone to battery connected via a stopwatch.

Simple line drawing of a rectangular electronic device with a green arrow pointing to its base (no text or symbols)

Diagram showing a mobile power bank connected to a smartphone via USB cable, with a hand pointing to the device and a stopwatch indicating time.

Diagram illustrating smartphone charging process with battery, switch, and time dial indicator

Line drawing of a mobile power bank connected to a battery via cable, with a green battery icon above (no text or symbols on the diagram itself)

Diagram showing a hand pressing a button with battery icons above, illustrating a basic electrical or electronic circuit setup.

Cuidando Da Sua Bateria charge force powerstation

Simple line drawing of a rectangular electronic device with a green arrow pointing to its base (no text or symbols)

Diagram showing a device connected to a smartphone with battery, showing a hand pointing at the device and a stopwatch indicating time.

Diagram illustrating smartphone charging process with battery, time dial, and USB cable connection

Line drawing of a mobile power bank connected via cable to a battery, with a green lightning bolt symbol above (no text or labels)

Diagram showing a hand pressing down on a battery with three battery icons above it, illustrating battery status or status.

Diagram illustrating the process of device scanning with a hand holding a stopwatch, showing transformation from an Apple to a smartphone.

Line drawing of a rectangular electronic device with a green arrow pointing to its side (no text or symbols)

Diagram showing a mobile power bank connected to a smartphone via a battery, with a stopwatch indicating time.

Diagram illustrating the connection between a smartphone and a device via a battery, showing a hand interacting with the device and a stopwatch indicating 00:02.

Line drawing of a portable electronic device connected to a battery via cable, with a green battery icon above (no text or symbols)

Diagram showing a hand pressing down on a battery with three charging cells above it, illustrating battery charging process.

charge force powerstation Bataryanizin Bakimi

Simple line drawing of a rectangular electronic device with a green arrow pointing to its base (no text or symbols)

Diagram showing a smartphone connected to a power bank via USB cable, with a hand pointing to the device and a stopwatch indicating time.

Diagram illustrating smartphone charging process with battery, time dial, and USB cable connection

Line drawing of an e-mail battery connected via cable to a charging station, with a green battery icon and power plug symbol (no text labels)

Priority+パススルー充電

Diagram showing a hand pressing a button with battery icons above, illustrating battery status or usage process.

Diagram illustrating the process of inserting a device into a smartphone, showing transformation from an Apple logo to a battery.

Line drawing of a rectangular electronic device with a label 'RIOZU' and an arrow pointing to its side (no other text or symbols)

Diagram showing a hand inserting a device into a smartphone, with a stopwatch and battery connection labeled '00:02'.

Diagram illustrating smartphone charging process with battery, time dial, and USB cable connection

Diagram of an electronic device connected via a cable with a battery icon (no text or symbols)

Diagram showing a hand pressing a button with battery icons above it, illustrating a basic electrical or electronic circuit setup.

mophie, powerstation, charge force, Stay Powerful,

Diagram illustrating the process of adding a device to a smartphone, showing transformation from an Apple logo to a battery icon and a stopwatch.

Line drawing of a rectangular electronic device with a green arrow pointing to its base (no text or symbols)

Diagram showing a hand inserting a device into a smartphone, with a stopwatch and battery connection labeled '00:00'.

您可以同时为无线及有线设备充电。

Diagram illustrating smartphone charging process with battery, time dial, and connected cable, showing hand interaction and battery status.

为charge force powerstation电池再充电

Line drawing of an e-book device connected to a battery via cable, with a green power plug icon above (no text or symbols on the diagram itself)

优先级+直通充电方式

Diagram showing a hand pressing a button with battery icons above it, illustrating a basic electrical or digital interface setup.

护理charge force powerstation电池

Simple line drawing of a rectangular electronic device with a green arrow pointing to its base (no text or symbols)

Diagram showing a smartphone connected to a power bank via a USB cable, with a hand pointing at the device and a stopwatch indicating time.

您可以同時為無線及有線設備充電。

Diagram illustrating smartphone charging process with battery, time dial, and USB cable connection

Line drawing of a mobile power bank connected to a battery via cable, with a green lightning bolt symbol above (no text or labels)

優先級+直通充電方式

Diagram showing battery charging process with three battery icons above a finger pointing to a status bar and dots, illustrating battery charging behavior.

護理charge force powerstation電池
