USER MANUAL X370H37037 Neoxeo

Universal battery pack

Batterie Universelle

2500mAh

neoxeo®

English See details of Warranty in English section. page 2

The warranty conditions are as follow:

1. a warranty of 2 years from the date of purchase is extended to this product.
   In the event of a warranty claim, the date of purchase must be proven by presenting proof of purchase or the invoice.
2. During the warranty period, any hidden defects are automatically covered at no charge by the warranty.
3. The following are not covered by the warranty:

A: any damages due to improper use, for example, failure to observe the operating instructions.
B: any damages due to reconditioning or repairs made by the purchaser or by unauthorised third parties.
C: any parts subject to normal wear, such as batteries.

1. We assume no liability for consequential damages caused directly or indirectly by the device, including when the damage caused to the device is covered by the warranty.

Never open or repair the device yourself. Do not use this device in a damp environment. Clean the device using a dry cloth.

This product is in compliance with the essential requirements and other relevant provisions of applicable EU directives. The declaration of conformity (DoC) is available upon request by sending a request to the address given at the end of Instruction Manual.

2

Thank you to have chosen the NEOXEO quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

Safety Precautions:

Warning! Make sure that all users who operate this product read and follow this Instruction Guide. Failure to read and follow the safety information before using may result in serious or fatal injury and / or property damage.

• This product is suitable for use only with USB - Compatible and USB plug type compatible devices. Using this product with other electronic devices may result in serious or fatal injury and / or property damage.
• To avoid potential property damage, disconnect input power to this product when it is not in use.
• Do not operate this product near a heat source or heat vent, or in direct sunlight. The adaptor should be used in temperature between 5 - 35 degrees Celsius.
• Keep this product dry. Direct contact of this product to moisture may lead to electrical shock, causing serious or fatal injury and / or property damage.
  To Keep away from children, this is not a toy.
• Use this unit only for its designed use according to this instruction manual.
• Unplug this unit during lightning storm.

Technical specification

• Battery type: Lithium -polymer
• Power Capacity: 2500mAh
• Input: 5V/1A
  Output: 5V/1A
• Charging LED indicator
• Included:1 USB / micro USB cable / 1 micro USB/ USBA adaptor
  Weight: 60g
• Product dimension: 6 [D] × 63 [W] × 96 [L] mm

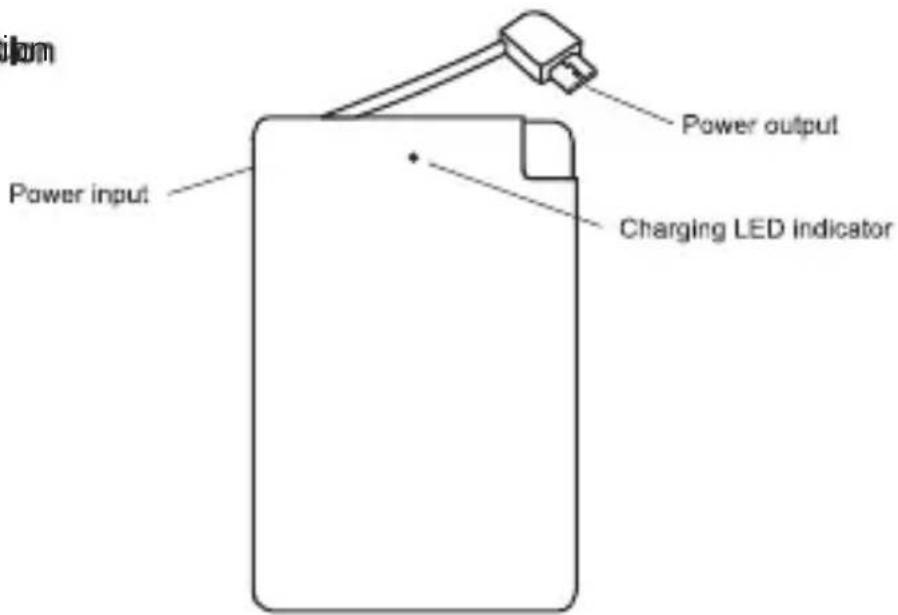

Product View Description

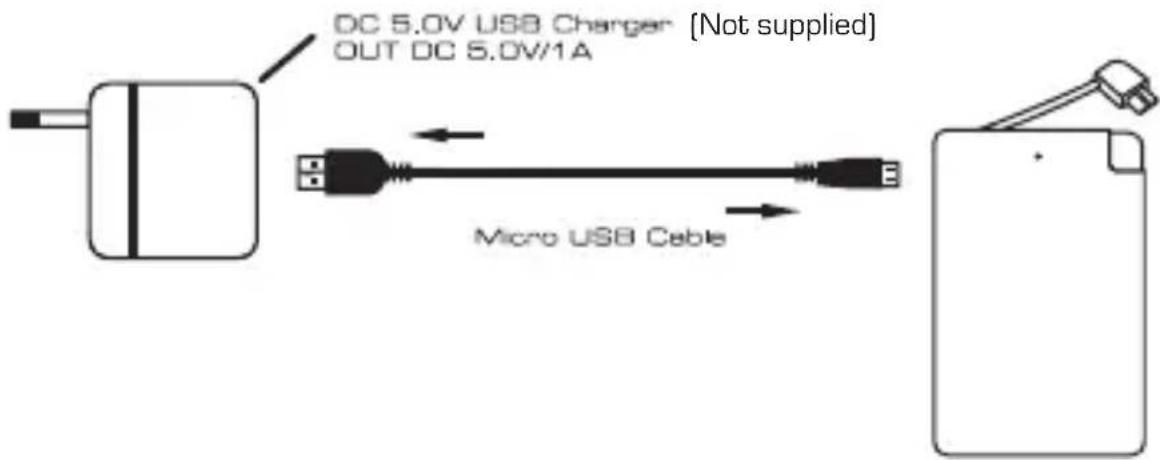

Charging your powerbank (Charging mode)

You should charge your powerbank via USB DC 5.0V adaptor.

1. Connect the micro USB connector of the seperate cable to the power input of powerbank.
2. Connect the other end of the cable to the USB plug of Wall/Car adaptor.
   3.When the powerbank is in charging mode, the charging LED indicator will light in red.
3. Once the red LED change to BLUE, the charging process is finished.

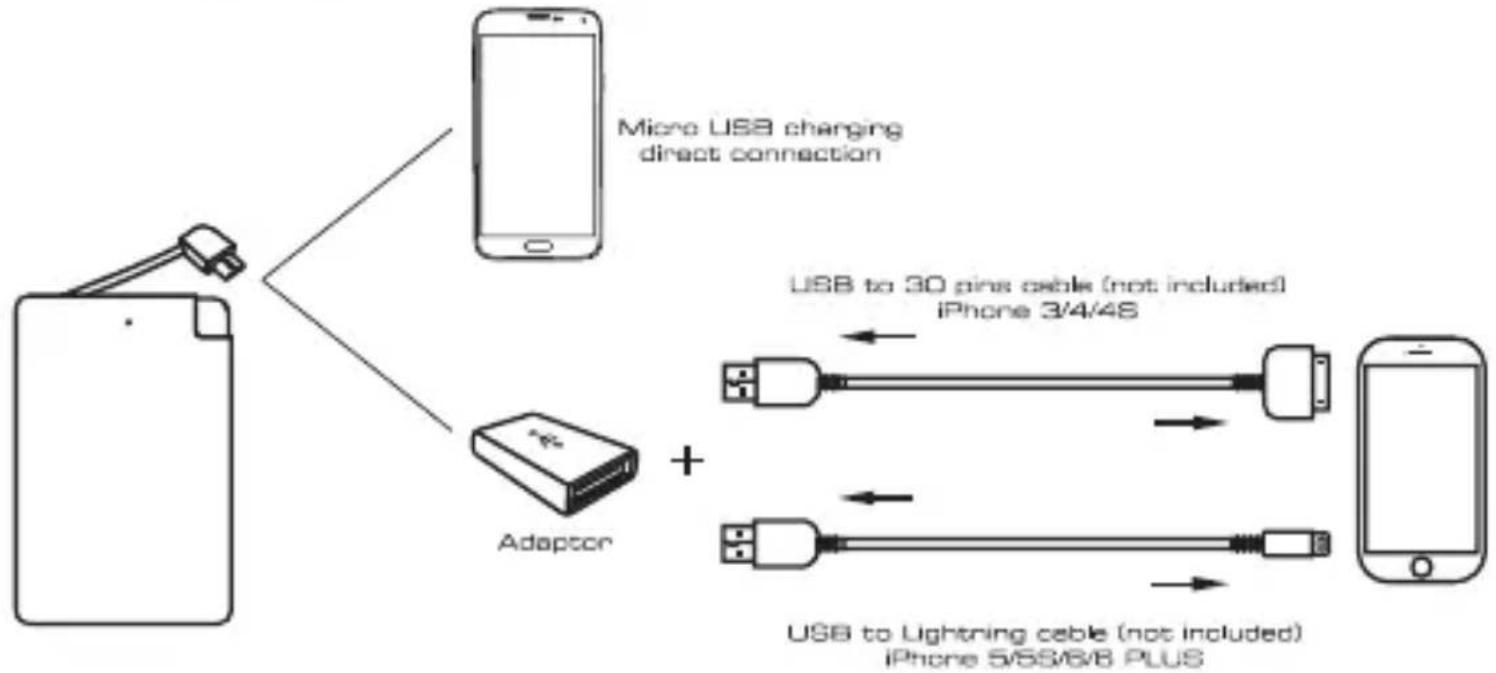

Charging your digital device with your powerbank.

1. Use the attached micro USB cable from the powerbank, you can charge your micro USB smartphone directly
2. You can use the provided micro USB/ USB-A adaptor to connect the powerbank to any proprietary USB cable which has been delivered with your digital device. i.e 30 pins or lightning USB cable for Apple, etc...

3- Connect the micro USB/USB-A adaptor and the attached mirco USB cable of the powerbank.
4- Connect the relevant connector to your device. (at the other end of your charging cable)
5- The charge will start automatically

Charging tip :

Switching off your device during charging, which is not mandatory, will provide a better "re-fuel" efficiency.

The fully charge capability depends on your digital device power capacity

Maintenance

Keep your power bank operating to its fullest potential, by following the below steps:

• Re-charge your power bank once every three months when it is not in use.
• Keep the power bank away from any moist environment and corrosive material.
• Never wash the power bank with any chemicals, soaps or detergents.

iPhone", "Apple" are trademark of Apple Inc., registered in the U.S. and other countries.

DISCLAIMER

Updates to hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

DISPOSAL

As such we urge you to follow the correct disposal procedure for the product, packaging materials and if applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials are recycled in a manner that protects health and the environment.

You must follow laws and regulations about disposal. Waste electrical products and batteries must be disposed of separately from household waste when the product reaches the end of its life.

Contact the store where you bought the product and your local authority to learn about disposal and recycling.

The batteries must be disposed of at your local recycling point. See the operating instructions to find out how to remove the batteries for disposal.

We apologise for any inconvenience caused by minor inconsistencies in the operating instructions, which may occur as a result of product improvement and development.

The symbol means that the unit complies with European safety and electrical interference directives.

neoxeo

NeoXeo-UFP UK Enterprise House, Roysdale Way Euroway

Trading Estate Bradford, West Yorkshire - BD4 6SE

Email: [e-mail]

CONDITIONS DE GARANTE

Specifications Techniques
