PowerPump2200 - Power bank NGS - Free user manual and instructions

Product Type	Portable Battery
Brand	NGS
Model	PowerPump2200
Battery Capacity	2200 mAh
Battery Type	Lithium-ion
Input (charging)	Micro USB, 5V/500mA
Output (charging device)	USB, 5V/1A
Conversion Efficiency	Greater than 80%
Charging Time	6 hours
Charge Cycles	More than 500 cycles
Input Voltage	5V
Output Voltage	5V
Input Current	500mA
Output Current	1A
Protection	Overcharge, short-circuit
Approximate Dimensions	10 x 4 x 2 cm
Approximate Weight	100 g
LED Indicators	Red (charging), Blue (full battery)
Included Cable	Yes, micro USB cable
Recommended Use	Recharge every 2 months if unused
Cleaning	Do not use harsh chemicals, clean with a dry cloth
Storage	Dry place, away from moisture
Safety	Do not disassemble, expose to water or fire
Compliance	Directive 1999/5/EC
Recycling	Do not dispose with household waste, take to recycling center

Frequently Asked Questions - PowerPump2200 NGS

How to charge the internal battery of the PowerPump2200?

Plug the included micro USB cable into the battery's micro USB port and into a USB charger (5V/500mA). The red light indicates charging, blue when full.

How long does it take to fully charge the battery?

Approximately 6 hours with a 5V/500mA charger.

Can I charge my smartphone with this battery?

Yes, connect your phone via a suitable USB cable, press the switch. Output is 5V/1A, compatible with most smartphones.

What do the LED indicators mean?

Steady red light: charging in progress. Steady blue light: fully charged. When charging a device, the light stays on.

How do I know when the battery is fully charged?

The light changes from red to blue when charging is complete.

Does the battery have overcharge protection?

Yes, it has overcharge protection to prevent internal damage.

How many charge cycles can I expect?

More than 500 charge/discharge cycles before capacity significantly decreases.

How to maintain the battery if not in use?

Recharge it at least once every two months. Store it in a dry place, away from moisture and extreme temperatures.

Can I use a car charger to recharge the battery?

Yes, you can use a car charger with a 5V/500mA USB port.

What to do at the end of the product's life?

Do not dispose of the battery with household waste. Dispose of it at an appropriate recycling point (waste disposal center). In accordance with the WEEE directive.

USER MANUAL PowerPump2200 NGS

for Tablets & Phones

NGS.

Table6phones

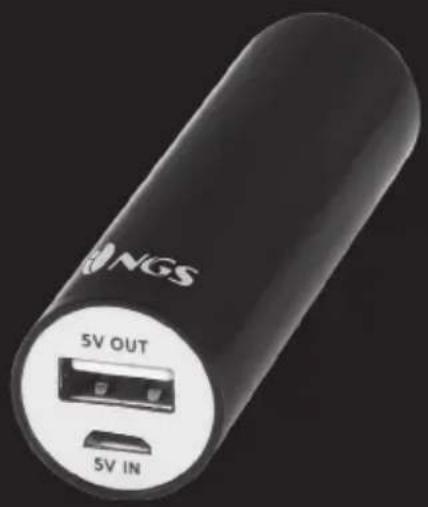

POWERPUMP 2200

USER'S MANUAL

WWW.NGS.EU

ENGLISH | FRANÇAIS | ESPÁNOL | DEUTSCH | ITALIANO | PORTUGUES | POLSKI | EAAHNIKA

USER'S MANUAL

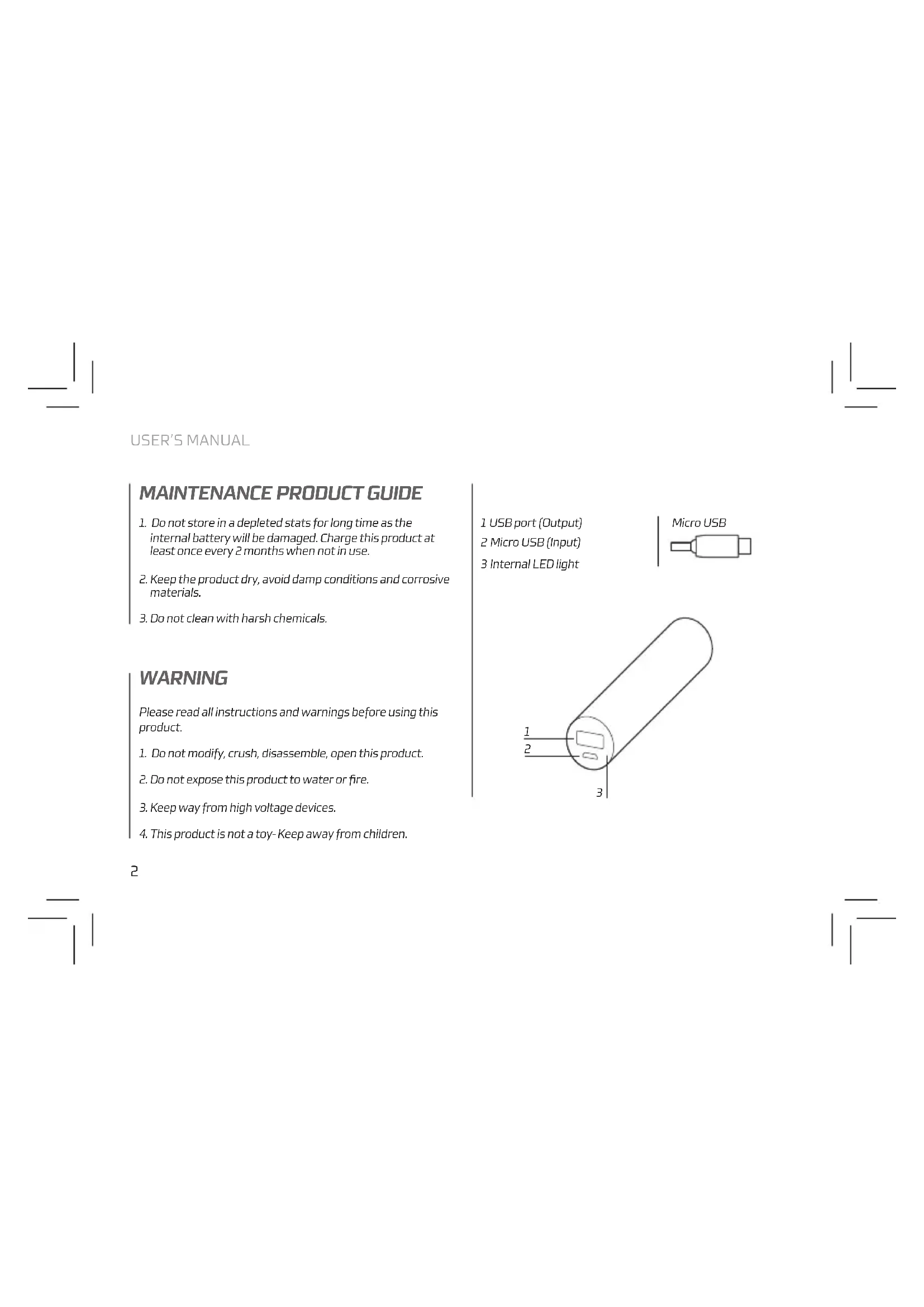

MAINTENANCE PRODUCT GUIDE

1. Do not store in a depleted stats for long time as the internal battery will be damaged. Charge this product at least once every 2 months when not in use.
2. Keep the product dry, avoid damp conditions and corrosive materials.
3. Do not clean with harsh chemicals.

WARNING

Please read all instructions and warnings before using this product.

1. Do not modify, crush, disassemble, open this product.
2. Do not expose this product to water or fire.
3. Keep way from high voltage devices.
4. This product is not a toy-Keep away from children.

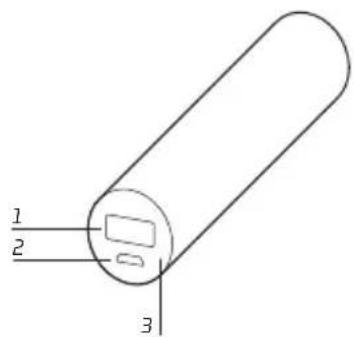

1 USB port (Output)
2 Micro USB (Input)
3 Internal LED light

Micro USB

ENGLISH

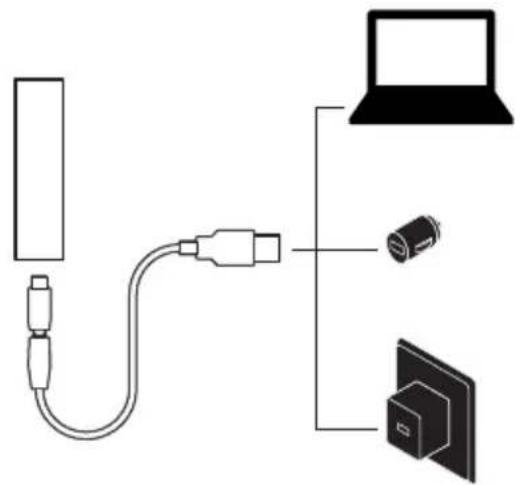

CHARGING INTERNAL BATTERY

1. Please connect the mobile charger using the USB cable supplied via the micro USB port to a AC adaptor, Car charger, PC, Laptop or other USB device.

1. Charging will start automatically.
2. A red LED light will show when charging.
3. A blue LED light will show when battery is fully charged.

Note: Over-charge protection will prevents damage to the internal battery.

USER'S MANUAL

CHARGING YOUR MOBILE DEVICE

1. Please connect your mobile device to the product via the USB cable and the correct connector for your device.
2. The charge will start automatically.
3. When your mobile device is fully charged, the product will stop charging automatically.

ENGLISH

SPECIFICATION

Input 5V/500mA

Output 5V/1A

Capacity 2200mAh

Dimension 85x25x25mm

Weight 55g

Battery type Lithium ion

Conversion efficiency Above 80%

Charging time 6 hours

Battery life More than 500 times

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

HEREBY, LURBE GRUP S.A, DECLARS THAT THIS CHARGER IS IN COMPLIANCE WITH THE ESSENTIAL REQUIREMENTS AND OTHER RELEVANT PROVISIONS OF DIRECTIVE 1999/5/EC.

MANUEL DE L'UTILISATEUR

MAINTENANCE GUIDE DE L'ÉQUIPEMENT

Dimensions 85x25x25mm

Poids 55g

Anto00n metatponnc Ynpbaive to 80%

XpOvoc φopTnC 6 wpc

Δiapkeia Tnc,muataipac NaW ano 500 kuklouc optieowv

Av oElambda npaaotei n avadyn anoppipsnc tou npoiovtoc,lambdae utoy:

Iwca anoBlaeta nAektpovikuw npoiovtwv dev einnpenei tva anoppittovra iu me ta oikiaka atoppiuata. Avakukawote to otic diaheoiec ykataotaoic.

Anotatheite otic apuodiec Tomikec Apxec n otov eunopiko avntnpoawto yia npoopopiecs oxetikai me Tnv ovakukwan.

(Odnyia nepi antoppiync HLeKtpovikwv KAI HLeKtpikwv SuOKeuWv)

AIA TOY IAPONTO H LURBE GRUP S.A. AHAQNEI
PIOI TO FOPTIETHE PAHOI TIE STIOXIELAEI
IPODIAI PADEKAI THPEI KAGE ANH DIATAEHI
POY TIGETAI EDPAMOTIH OPIZETAI AITO THN OADHIA 1999/5/EK
