HC300B - Food Processor Applica - Free user manual and instructions

Product type	Food processor (electric chopper)
Brand	Applica (licensed by Black+Decker)
Model	HC300B
Color	White (probably)
Power	120 V ~, 60 Hz (polarized plug)
Bowl capacity	Maximum 500 ml (2 cups) for solid foods
Bowl material	Glass
Blade material	Stainless steel
Main functions	Pulse chopping
Maximum continuous use time	1 minute
Safety	Lid locking device, sharp blades, polarized plug
Care and cleaning	Bowl, lid and blades dishwasher safe (top rack) or soapy water; base wiped with a damp cloth
Available spare parts	Lid (HC300-01), gasket (HC300-04), blades (HC300-02), bowl (HC300-03)
Repairability	Tamper-proof screw, no user-serviceable parts; contact customer service
Warranty	2-year limited (United States and Canada)
Use	Household use only
Included accessories	Lid with oil opening, bowl, blades, base

Frequently Asked Questions - HC300B Applica

What foods can I chop with the HC300B food processor?

You can chop bread (fresh, toasted, or stale), canned or cooked fruits and vegetables, shelled nuts, cookies, crackers, parsley and other herbs, and chocolate squares or chips.

How do I use the HC300B chopper?

Place the bowl on the base, insert the blades onto the central shaft, add food, secure the lid, plug in and press the pulse button. Do not exceed 1 minute of continuous operation.

Can I clean the parts in the dishwasher?

Yes, the bowl, lid and blades are dishwasher safe, but only on the top rack. The base should be wiped with a damp cloth.

What if the chopper does not work?

Check that the bowl is properly seated on the base and the lid is locked. Make sure the appliance is plugged in. If the problem persists, contact customer service at 1-800-231-9786.

What is the maximum bowl capacity?

For solid foods like nuts or cookies, the maximum capacity is 500 ml (2 cups). For liquids, use the oil opening.

Are the blades removable?

Yes, the blades (part HC300-02) can be removed for cleaning. Handle them carefully as they are sharp.

Can I use an extension cord with the chopper?

Yes, you can use an extension cord as long as its gauge is at least equal to that of the appliance and the cord does not hang over the counter to avoid tripping hazards.

How do I get replacement parts?

You can order spare parts (lid, gasket, blades, bowl) by contacting the Parts and Accessories Department at 1-800-738-0245.

What if the cord is damaged?

The cord cannot be replaced. If the cord is damaged, the appliance must be replaced. Contact customer service at 1-800-231-9786.

Is the appliance under warranty?

Yes, the HC300B chopper has a 2-year limited warranty from the date of purchase, valid only in the United States and Canada. Keep your proof of purchase.

USER MANUAL HC300B Applica

Exterior view of a black and white kitchen blender with clear glass casing (no text or symbols visible)

Customer Care Line: 1-800-231-9786

For online customer service:

www.prodprotect.com/applica

Close-up of a glass bowl filled with chopped, irregularly shaped food items (no text or symbols visible)

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions.
• To protect against risk of electrical shock do not immerse cord, plugs or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from wall outlet when not in use, before putting on or taking off parts and before cleaning.
• Avoid contacting moving parts.
• Do not operate appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact Consumer Support at the toll-free number listed in the warranty section. This appliance has important markings on the plug blade. The attachment plug or entire cordset (if plug is molded onto cord) is not suitable for replacement. If damaged, the appliance must be replaced.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
• Do not use outdoors.

• Do not let cord hang over edge of table or counter.

• Blade is sharp. Handle carefully.

• Do not open the cover until blades stop.
• Keep hands and utensils away from moving blades while chopping food to prevent possibility of severe personal injury or damage to the food chopper. A scraper may be used but must be used only when the food chopper is not running.
• To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place.
• Be certain cover is locked securely in place before operating appliance.
• Do not attempt to defeat the cover interlock mechanism.
• Do not use appliance for other than intended use.
• Do not let cord contact hot surface, including the stove.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V models only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
b) Extension cords are available and may be used if care is exercised in their use.
c) If an extension cord is used:

1) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance; and

2) The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

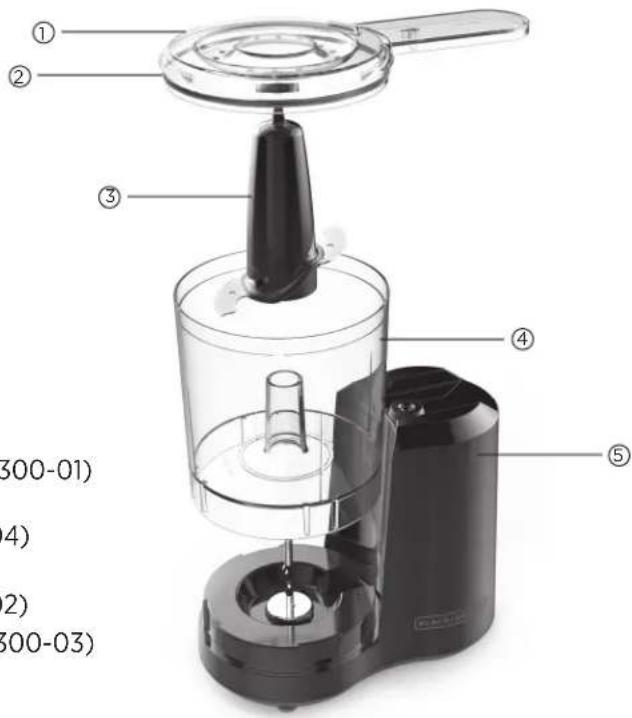

PARTS AND FEATURES

1. Cover (Part # HC300-01)
2. CoverSeal (Part # HC300-04)
3. Bladeassembly (Part # HC300-02)
4. Bowl (Part # HC300-03)
5. Base

Product may vary slightly from what is illustr

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Remove and save literature.
• Please go to www.prodprotect.com/applica to register your warranty.
• Wash all removable parts.

Caution: Do not plug chopper into outlet until fully assembled.

HOW TO USE

Close-up of a black and white ceramic kitchen brush with a downward arrow indicating compression (no text or symbols visible)

Place the bowl onto the base, fitting the tabs on the base of the bowl into the slots on the base.

Diagram showing a black conical object being lifted by a downward arrow, above a container with liquid (no text or symbols)

Place the blade assembly into the bowl, over the center shaft. Rotate the blade until it rests on the bottom of the bowl.

Top-down view of a mechanical component with concentric rings and a small protrusion (no visible text or symbols)

Place food to be processed in the bowl. Fit the lid on the bowl, making sure the seal is secure. Once assembled, plug the chopper into an outlet.

Close-up of a hand pressing a small object into a container with a lid, no visible text or symbols

Press the textured area on the tab to pulse. Do not remove cover until blade has stopped running.

Close-up of a hand holding a small electronic device with an upward arrow, no visible text or symbols

Lift cover from bowl. Lift bowl from base. Carefully remove the blade assembly.

NOTES:

• Before first use, wash lid, bowl, and blade in hot, soapy water or in the dishwasher (top rack only).
• Use the chopper with a pulsing action. Avoid running the motor continuously for periods over 1 minute. The longer the continuous pulse, the finer the texture. For coarsely chopped foods, use short pulses.
  • To slowly add liquids, use the oil holes on the top of the cover.

CAUTION:

- Blade is sharp; handle carefully.

CHOPPING GUIDE

Bread: fresh, toasted, or stale	Fruits and Vegetables: canned or cooked	Nuts: with shells removed	Cookies, Crackers	Parsley and other leafy herbs	Chocolate Squares or Chips
Process 1 to 2 slices at a time, torn or broken into several pieces. Pulse at 5-second intervals to desired texture.	Drain up to 1 can, (16 oz.). Pulse at 5-second intervals to desired texture.	Process up to 2 cups of nuts at a time, at 5-second intervals to desired texture.	Process 6-12 cookies (about 2 cups)	Remove stems. Process up to 2 cups of herbs at 5-second intervals to desired texture.	Process 2 squares (1 oz.) of broken baking chocolate to desired texture.

CLEANING

• Wash bowl, lid, and blade assembly with hot, soapy water or in the dishwasher (top rack only).
• Wipe the base clean with a damp cloth or sponge. Do not immerse base in water.

Note:

Always unplug the chopper before assembling, disassembling, and cleaning.

Note:

Do not use any scouring pads or abrasive cleansers to clean any parts.

WARRANTY AND CUSTOMER SERVICE INFORMATION

Two-Year Limited Warranty

(Applies only in the United States and Canada)

For service, repair or any questions regarding your appliance, call the appropriate 800 number listed within this section.

Please DO NOT return the product to the place of purchase.

Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

What does it cover?

- Any defect in material or workmanship provided; however, Spectrum Brands Inc's liability will not exceed the purchase price of product.

For how long?

- Two years from the date of original purchase with proof of purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
- Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
- Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.
