USER MANUAL CB 1278 BOMANN

oven is ingeschakeld.

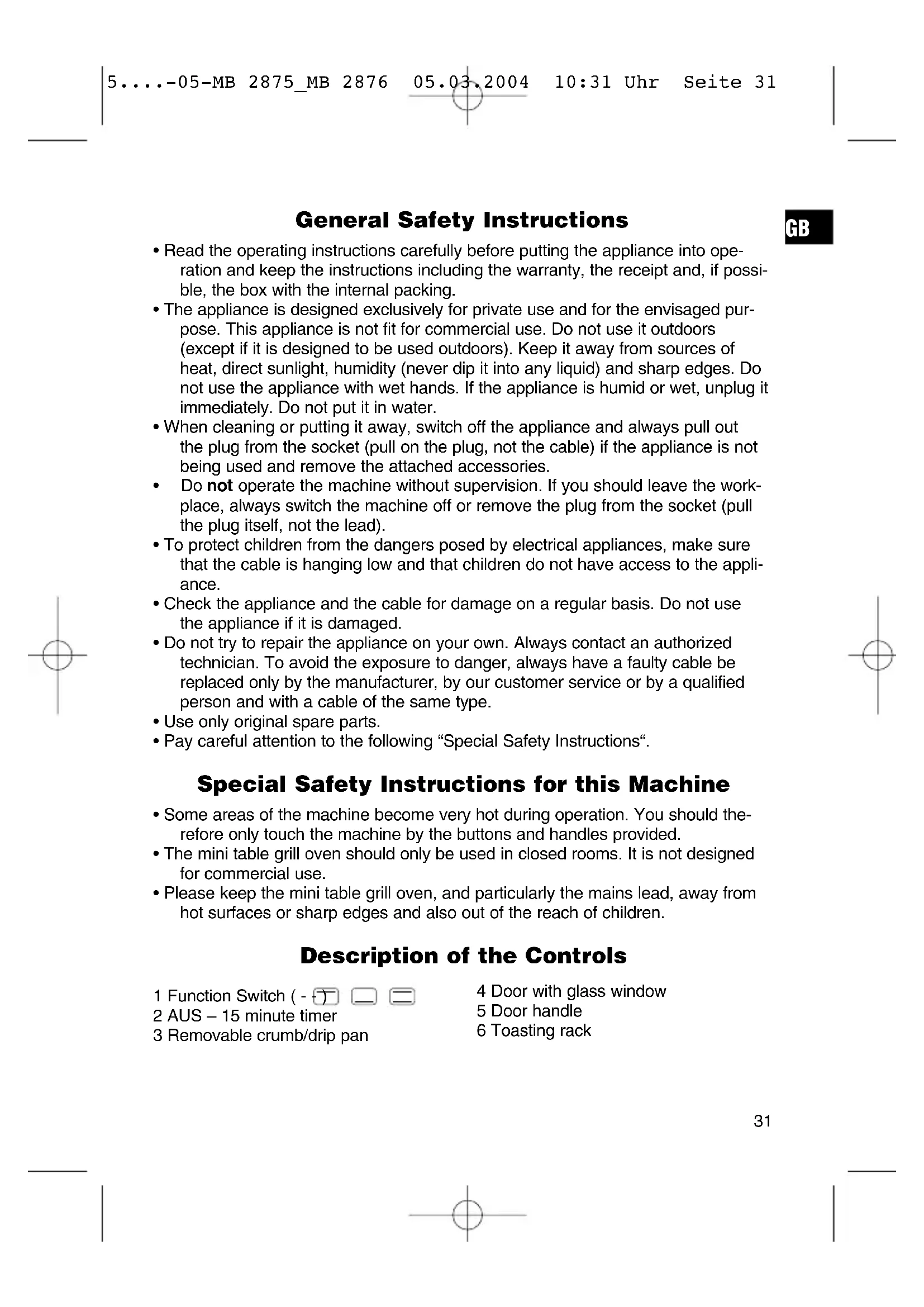

• Read the operating instructions carefully before putting the appliance into ope- ration and keep the instructions including the warranty, the receipt and, if possi- ble, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged pur- pose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the work- place, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appli- ance.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions“. Special Safety Instructions for this Machine

• Some areas of the machine become very hot during operation. You should the- refore only touch the machine by the buttons and handles provided.

• The mini table grill oven should only be used in closed rooms. It is not designed for commercial use.

• Please keep the mini table grill oven, and particularly the mains lead, away from hot surfaces or sharp edges and also out of the reach of children. Description of the Controls

1. The timer must be switched to the AUS/OFF position.

2. Open the door and place the food either directly on the grill (e.g. toast) or on

the baking tin supplied (e.g. meat). If you would like to use other tableware, please ensure that this is sufficiently heat-resistant.

3. Close the oven door.

4. Set the required heating with the upper knob (top or bottom heating or both

5. Use the lower knob (timer) to set the desired cooking time. Please see the table

in these instructions for reference values.

6. The control lamp above the timer lights up and shows that the machine is now

7. After the set time has expired, the machine automatically switches off and a

short ringing is heard. The control lamp goes off. The timer can continue for a short time (ticking sounds).

8. If you would like to terminate the heating process prematurely, simply turn the

button of the timer to the left to the "OFF" position.

9. If the cooking time is to be set to less than three minutes, please first set the

timer to approximately 10 minutes and then to 3 minutes, for example.

10. In the case of short cooking times (under 5 minutes) it is recommended that the

oven is preheated briefly (approximately 3 minutes) without food.

11. When the oven is switched off, you can open the door again and take out the food

(Warning - this is hot!). For your safety you should use a cloth or similar object. Recommended Toasting Times Cooked Food Quantity/No. Cooking Time Sandwiches 2 – 3 2 – 3 minutes Toast 2 – 3 slices 2 – 3 minutes Bacon 4 slices 5 – 10 minutes Ham slices 3 – 4 slices 7 – 12 minutes Hamburger 2 – 3 slices 8 – 10 minutes Pork cutlets 2 12 – 14 minutes Fish fillet 1 – 2 slices 10 – 12 minutes Sausage/hotdogs 3 – 4 10 – 12 minutes Beef steaks 2 slices, approx. 2 cm thick 12 – 14 minutes Lamb cutlets 2 – 3 11 – 14 minutes Chicken 1 half 15 – 20 minutes

• These times are only estimates and may vary depending on circumstances.

• The times refer to operation with both heating elements at the same time (top and bottom heat).

• For other uses (e.g. browning on top) you can of course switch on only one heating element (e.g. top heat).

5....-05-MB 2875_MB 2876 05.03.2004 10:31 Uhr Seite 32• The required cooking times may vary greatly so that you should adjust them according to experience. How to clean

1. Please remove the mains plug.

2. ONLY clean the machine after it has cooled down.

3. Wipe surfaces and quartz heating rods with a dry, soft cloth.

4. Crumbs and other residues are removed by pulling out the collection dish.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascriba- ble to material or manufacturing defects will be eliminated free of charge by repai- ring or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
