USER MANUAL TA 1802 CB BOMANN

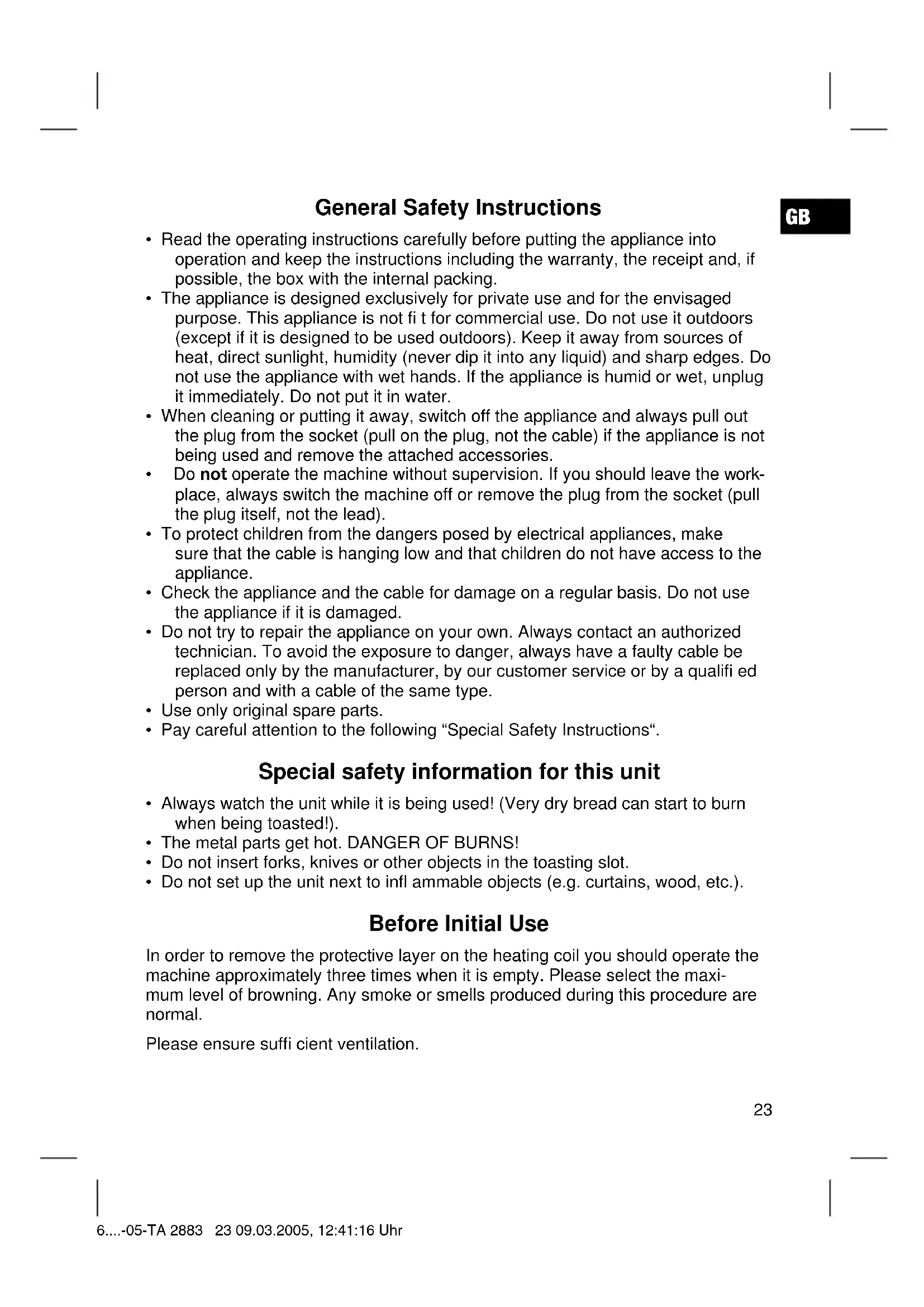

General Safety Instructions

GB

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety information for this unit

• Always watch the unit while it is being used! (Very dry bread can start to burn when being toasted!).
  The metal parts get hot. DANGER OF BURNS!
• Do not insert forks, knives or other objects in the toasting slot.
• Do not set up the unit next to infl ammable objects (e.g. curtains, wood, etc.).

Before Initial Use

In order to remove the protective layer on the heating coil you should operate the machine approximately three times when it is empty. Please select the maximum level of browning. Any smoke or smells produced during this procedure are normal.

Please ensure sufficient ventilation.

GB

Operation

1. Only connect the unit to a properly installed and earthed power socket (230 volts, 50 Hz).
2. Adjust the degree of browning on the selector switch as required between the lightest level 1 and the darkest level 7. If you are not sure start with a lower setting. (The mark on the selector switch shows you the setting).
3. Insert the slices of bread in the toasting slot and lower the slide with the lever until it snaps into place.
4. The appliance starts the toasting. When the set level of browning is reached, the appliance switches off automatically. The slide pops up automatically.
5. The appliance has a heat-insulated „cool-touch“ housing. During operation the exposed metal parts become hot. Please allow the device to cool down before storing it away.

Note: To make it easier to remove the toast, please lift the carriage lever slightly (lifting function).

To use the desired special function, press the relevant key, after pressing down the lever:

Heating or thawing: the relevant LED indicates the function.

Thawing t o thaw and toast deep-frozen bread.

Warming to warm bread already toasted.

Stop to stop toasting in advance.

Removable

toasting attachment: for the toasting of bread rolls.

Note: Do not overload the roasting attachment! Only one roll or piece of bread of comparable weight should be placed on top.

Cleaning

• Pull the mains plug out of the mains socket before you clean the unit and allow the unit to cool down.
• Only use a slightly damp cloth to clean the outside of the unit.
• Do not use abrasive or aggressive cleaners.
• Remove the crumb tray from the slot, remove the crumbs and insert the tray again.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

GB

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

PL

TapaHTnHoe 6aTeJIbCTBO

TapaHTnHbI cPOK Ha TeppntOpn PocChiCKo Φeepaun yCTaHaBnBaETcnoHOMOHyIMn IpeDCTaBtTeJIaMn.

Kaccobby qek ABJIeTcra paHTnHbIM TaHOH. Be3 Hero HeBO3MOKeH 6ecnNaTHbI peMOHT nnn 3aMeHa n3dennia.

B cnyuae Bo3HKnHOBxHHn npnteH3n NO rapaHTn, npeDbRbTE n3dene B noJHOKOMnKeTAtu, C opunHaJIbHO ynaKOBKO n KaCCOBbIM YekOM ToproBOI TOUke, npoDaBwe 3TO n3dene.

*）DepeKtI npHaJekHOCTe He clyjKAT npuHOn JIA ABOTMaTHueCKo 3aMeHb BCero n3dEINB. B 3TOM cnyae no3BOHnTe Ham, noKaanycta, no Tropyey IHHN! Pa36ntbIe CteKJIHHbIe I NOLOMaHbIe INaCTMaCCOBbIe DeTaJIb BO3MeaTOTCa TOlbKO 3a DOONHHTeMbHyO ONLatY!

DeΦeKtBi n3HaUHbAembIX npHnAdJIeKHOCTe NII TpyuXcra DeTaIeN (HaNPmep KOHTaKTbIe 5ETKN MOTOPOB, CMEcHTeNbHbIe KpIOKn, PnpBOdHbIe peMHN, 3aNaChbIe NylbTbi ynpabLeHn, 3aNaChbIe 3y6HbIe 5eTKN, NIIbHbIe NOJTHa I.T.D.), a TaKKe YnCTKa, TexO6CnyKbAHne NII 3aMeHa TpyuXcra DeTaIeN He NOnaDaIOT nOD rapaHTnO, n OToTMy npoBOdTcR 3a OTdeJIbHyO ONlaTy!

IapaHTnTepaETc npBCKpbITn n3dJIeNn NOCTOPOHHmN IuaMn.

Pocne rapaHTn

Iocne OKOHuaHn Cpoka rapaHTn, peMOHT n3denn npOn3BOoNTc 3a ONnATy, COOTBeTCTByIOUIMM MaCTepCKmN nn NyHKtAmC cepBucHO O6cLyXnBaHn.

Technische Daten

Modell: TA 1802 CB

Bemessungsspannung/

-frequenz: 230V 50Hz
