USER MANUAL Forzaspira AG100 POLTI

AFETY WARNINGS battery use / battery charge

• The appliance is only to be used with the power supply unit provided with the ap- pliance.

• During the recharge the ap- pliance must only be sup- plied at safety extra low vol- tage corresponding to the marking on the appliance.

• Before connecting the bat- tery charger make sure that the mains voltage corre- sponds to that indicated on the plate data.

• If the battery charger is left unused, always disconnect it from the mains.

• The battery charger is used to charge the batteries located inside the appliance. Do not use the appliance with the battery charger connected.

pliances must not be repla- ced by the user, but by the Polti authorized repairing center.

• The battery must be remo- ved from the appliance befo- re it is scrapped.

• The appliance must be di- sconnected from the supply mains when removing the battery.

• The battery is to be dispo- sed of safely and fulfilling all requirements by EU Direc- tive 2012/19/EU relating end-life of electrical and electronic (WEEE Direc- tive)". AVERTISSEMENTS EN

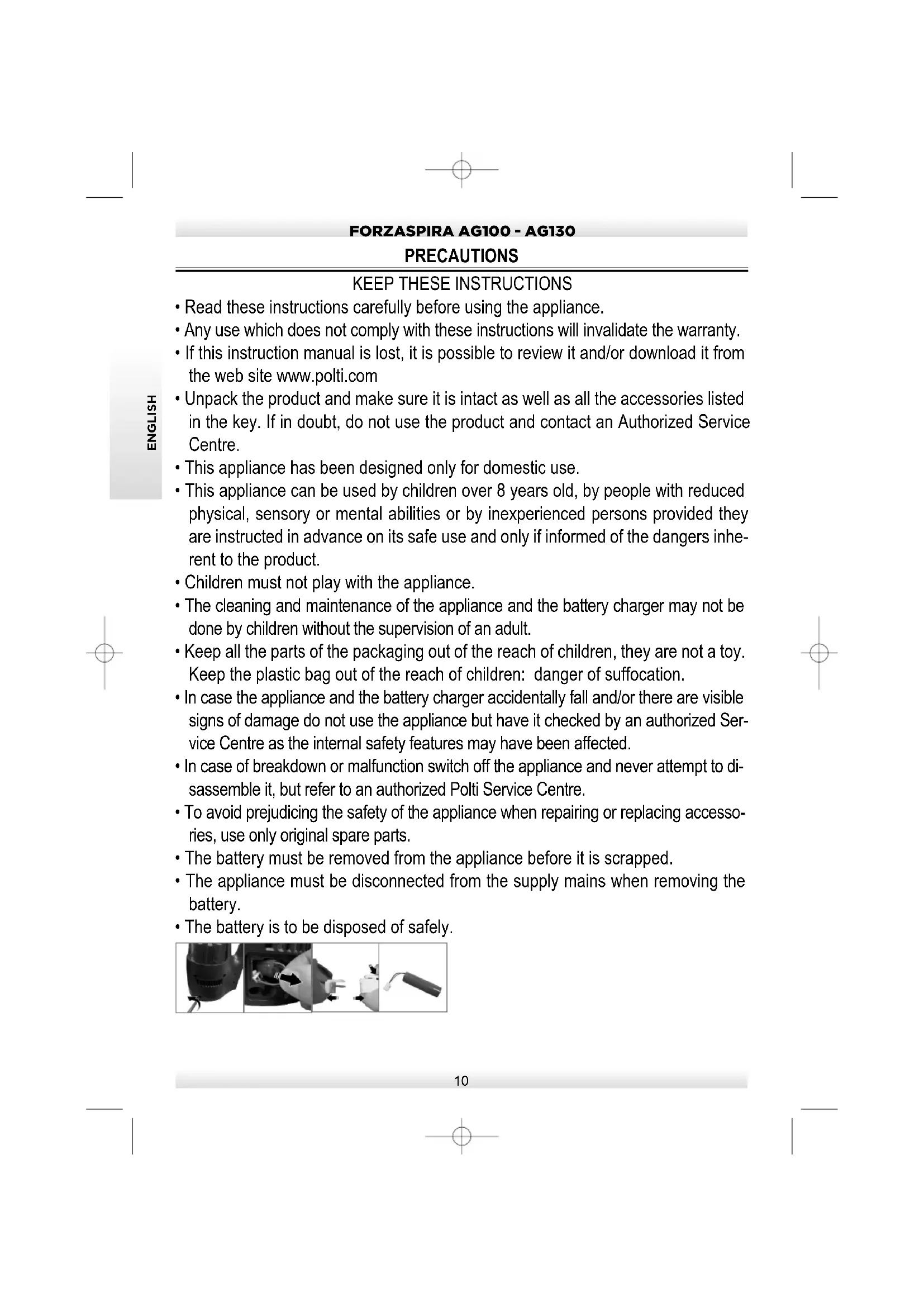

KEEP THESE INSTRUCTIONS

• Read these instructions carefully before using the appliance.

• Any use which does not comply with these instructions will invalidate the warranty.

• If this instruction manual is lost, it is possible to review it and/or download it from the web site www.polti.com

• Unpack the product and make sure it is intact as well as all the accessories listed in the key. If in doubt, do not use the product and contact an Authorized Service Centre.

• This appliance has been designed only for domestic use.

• This appliance can be used by children over 8 years old, by people with reduced physical, sensory or mental abilities or by inexperienced persons provided they are instructed in advance on its safe use and only if informed of the dangers inhe- rent to the product.

• Children must not play with the appliance.

• The cleaning and maintenance of the appliance and the battery charger may not be done by children without the supervision of an adult.

• Keep all the parts of the packaging out of the reach of children, they are not a toy. Keep the plastic bag out of the reach of children: danger of suffocation.

• In case the appliance and the battery charger accidentally fall and/or there are visible signs of damage do not use the appliance but have it checked by an authorized Ser- vice Centre as the internal safety features may have been affected.

• In case of breakdown or malfunction switch off the appliance and never attempt to di- sassemble it, but refer to an authorized Polti Service Centre.

• To avoid prejudicing the safety of the appliance when repairing or replacing accesso- ries, use only original spare parts.

• The battery must be removed from the appliance before it is scrapped.

• The appliance must be disconnected from the supply mains when removing the battery.

• The battery is to be disposed of safely.FORZASPIRA AG100 - AG130

ENGLISH SAFETY WARNINGS: Risk of electric shock and/or short circuit: - The battery charger is used to charge the batteries located inside the appliance. Do not use the appliance with the battery charger connected. - The wiring system to which the battery charger is connected must always comply with the laws in force. - Before connecting the battery charger make sure that the mains voltage corre- sponds to that indicated on the plate data. - If the battery charger is left unused, always disconnect it from the mains. - Before performing any maintenance operation, always turn the equipment off. - Do not pull the battery charger power cable out of the socket, but grasp the plug itself to avoid damage to the socket. - Do not allow the power cable of the battery charger to be twisted, crushed, stret- ched, or come into contact with sharp or hot surfaces. - Do not use the battery charger if the power cable or other important parts of the appliance are damaged. Instead, contact an authorised service centre. - If the battery charger with its relative cable is visibly damaged, replace it imme- diately with a Polti original spare part. Never under any circumstance try to repair it. - Do not use electric extension leads that are not authorized by the manufacturer, as they may cause damage or fire. - Never touch the battery charger with wet hands or feet in particular when the ca- ble is plugged into the mains. - Do not use the battery charger when barefoot. - Do not use the battery charger near washbasins, bathtubs, showers or contai- ners full of water. - Never immerse the appliance, the cable or the plugs in water or another liquid.FORZASPIRA AG100 - AG130

ENGLISH SAFETY WARNINGS: Risk of injuries and correct use of the appliance: - This appliance has been designed only for domestic use. - Use of the appliance in places where there is a danger of explosions and fire is prohibited. - Use this appliance for cleaning and drying smooth surfaces such as glass, tiles and mirrors. - Only use with water and possibly a non-foaming glass detergent commonly avai- lable on the market. - Do not use to vacuum large quantities of water. - Do not use as a vacuum cleaner. - Do not vacuum explosive or corrosive products, those that burn or are hazardous to one’s health, irritant, lethal, toxic or foam producing. - Do not suck up burning or incandescent objects such as embers, ash or other ma- terial in which combustion is taking place. - Never leave the appliance exposed to the weather. - Do not place the appliance near live elements, electric stoves or any other source of heat. - Do not expose the appliance to temperatures under 0°C or over 40°C - Press the buttons only with a finger, without excessive force and avoid using a pointed object such as a pen. - Do not obstruct or insert objects into the ventilation slots. - Do not point and spray the jet into the eyes. - Do not spray on devices that have electric components such as for examples in- side ovens. - Before using the product and the cloth on delicate surfaces do a test on a hidden point.FORZASPIRA AG100 - AG130

ENGLISH This unit conforms with EC-directives 2004/108/CE (EMC) and 2006/95/CE (low volta- ge). Polti S.p.A. reserves the right to change equipment or accessory specification without prior notice. Read these instructions carefully before using the appliance. KEY A) Window cleaning frame release buttons B) 28 cm window cleaning frame C) Tank release button D) Operating / recharge LED E) ON/OFF switch F) Recharge socket G) Machine body H) Tank emptying stopper

I1) Tank I2) Tank stopper w/filter J) Power supply K) Cloth (*) L) Vaporiser (*) L1) Sprayer L2) Bottle M) Fastening ring (*) N) Cloth support (*) O) 17 cm small window cleaning frame (*) (*) Only for Model AG130. Congratulations on your purchase and welcome to the Polti world of cleaning. We know how important it is to be able to depend on a reliable appliance for every day clea- ning, that is why your product has been designed to let you experience efficient as well as quick, fast cleaning. Effective suction and the easy, intuitive use make your appliance the ideal assistant. Please also visit our website www.polti.com, where you can find all the information and advice neces- sary to better use the product, and where you can register your newly purchased product to receive exclusive benefits.FORZASPIRA AG100 - AG130

CORRECT USE OF THE PRODUCT

This appliance is intended for home use for cleaning damp, smooth surfaces such as win- dows, mirrors or tiles, in accordance with the in- structions provided in this manual. Please read these instructions carefully and keep them for future reference. Polti declines liability for any damage or accident derived from any use of this ap- pliance which does not comply with the in- structions contained in this booklet. ATTENTION Directive 2002/96/EC (Waste Electrical and Electronic Equipment - WEEE): information for users This product complies with EU Directive 2002/96/EC. The crossed-out wastebasket sym- bol on the appliance means that at the end of its useful lifespan, the pro- duct must be disposed of separately from ordinary household wastes. The user is responsible for delivering the ap- pliance to an appropriate collection facility at the end of its useful lifespan. Appropriate separate collection to permit recycling, treatment and environmentally compatible disposal helps prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. For more information on available collection facilities, contact your local waste collection service or the shop where you bought this appliance. UNPACKING ♦ Remove the appliance from the packaging, checking that the product is whole and that all the parts are there. CHARGING APPLIANCE The appliance is not supplied with the battery charged, therefore please charge the product before use. To charge the appliance, proceed as follows: ♦ Connect the power supply plug (J) to the special socket (F) of the appliance. ♦ Insert the power supply plug (J) to a suita- ble power socket. ♦ The charging / operating LED (D) will start flashing red. When the LED (D) turns a steady green (after about 2 1/2 hours), the appliance is charged and ready for use. Note: - When the battery is discharged, the ap- pliance will stop working and the LED (D) will be off. - A full battery recharge makes it possible to clean up to 80 m2 of surface. VAPORISER (L) (*) ASSEMBLY ♦ Unscrew the sprayer (L1) from the bottle (L2). ♦ Insert the washing support (N) into the sprayer (L1) and lock it with the fastening ring (M) (Fig. 7 - 8 - 9). ♦ Insert the cloth (K) and lock it with the Vel- cro (Fig. 10). FILLING ♦ Fill the bottle (L2) with water and possibly non-foaming glass detergent that is com- monly available on the market. ♦ Tighten the sprayer (L1) including the wa- shing support with the cloth, to the bottle. USE ♦ Spray the surface to be cleaned and cleanse with the cloth. ♦ Run the appliance over the area as shown in the Chapter “Use”. (*) Only for Model AG130.FORZASPIRA AG100 - AG130

ENGLISH USE ♦ Assemble the 28 cm window cleaning frame. (B) or the small 17 cm window clea- ning frame (O)*, based on the size of the surface to be cleaned, to the base until it is hooked (Fig. 2). ♦ Clean the window. ♦ Turn on the appliance by moving the switch forward (E) (Fig. 3). The operating/recharge (D) LED will turn on. ♦ Place the window cleaning frame on the up- per part of the window and using a slight pressure move downward (Fig. 4). ♦ Once the cleaning operation is finished, turn off the appliance by moving the switch backward (E). (*) Only for Model AG130.

EMPTYING THE DIRT COLLECTION

TANK When the Max level of dirty water is reached in the tank (I), it must be emptied as follows: ♦ Turn the appliance off. ♦ Pull the tank stopper (H) (Fig. 5). ♦ Tilt the tank so that the dirty water can come out (Fig. 6). ♦ Replace the tank stopper. ♦ Resume cleaning operations.

WARNING: If the maximum filling level is

exceeded, small quantities of water can leak out of the ventilation slots. Always empty the tank before the maximum filling level is reached.

CARE OF YOUR APPLIANCE

• Before performing any maintenance operation, make sure that the appliance is off and/or disconnected from the mains.

• To clean the body of the appliance, simply use a moist cloth. Do not use solvents or detergents which may harm the body mate- rial.

• The cloths provided can be washed by fol- lowing the instructions included on the label.

CLEANING OF THE WINDOW CLEANING

♦ Release the window cleaning frame and re- move it from the base (Fig. 11). ♦ Rinse the frame (B) - (O)* under running water and let it dry. (*) Only for Model AG130. CLEANING THE TANK UNIT (J) ♦ Remove the tank unit (I) (Fig.12), empty it (see paragraph “Empty water from tank”). Unscrew the tank stopper w/filter (I2) and squeeze it (Fig. 13), after which rinse all the components under running water and let them dry. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The appliance won’t turn on Battery discharged ON/OFF switch (E) is turned off Charge the appliance Turn on the ON/OFF switch (E).FORZASPIRA AG100 - AG130

ENGLISH WARRANTY This appliance is for domestic use only and is guaranteed for two years from the date of pur- chase against any defects present at the time the goods are handed over; the date of pur- chase must be proven via a proof of purchase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompa- nied by proof of purchase. This warranty does not affect the consumer ri- ghts deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights whi- ch the consumer should uphold with respect to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warran- ties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free re- pair of a product with a manufacturing or fac- tory defect and, therefore, the client is not lia- ble to pay for any work or materials. In case of irreparable defects, Polti may repla- ce the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Cen- tres with proof of purchase from the seller va- lid for tax purposes and bearing the date of purchase of the product. Without proof of pur- chase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole dura- tion of the warranty.

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruction book- let, an integral part of the product sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-origi- nal Polti parts, and repairs or modifica- tions performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, battery, etc.) da- maged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of mainte- nance/cleaning according to the manufac- turer’s instructions.

• Assembly of non-original Polti accesso- ries or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this ma- nual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instruc- tions indicated in this instruction booklet, re- garding warnings for use and product mainte- nance. To see the up-to-date list of the Polti Authorised Service Centres, visit the web- site www.polti.comFORZASPIRA AG100 - AG130
