USER MANUAL GHDP 3730 EINHELL

1. Safety regulations

2. Layout and items supplied

5. Before starting the equipment

8. Cleaning, maintenance and ordering of spare parts

9. Disposal and recycling

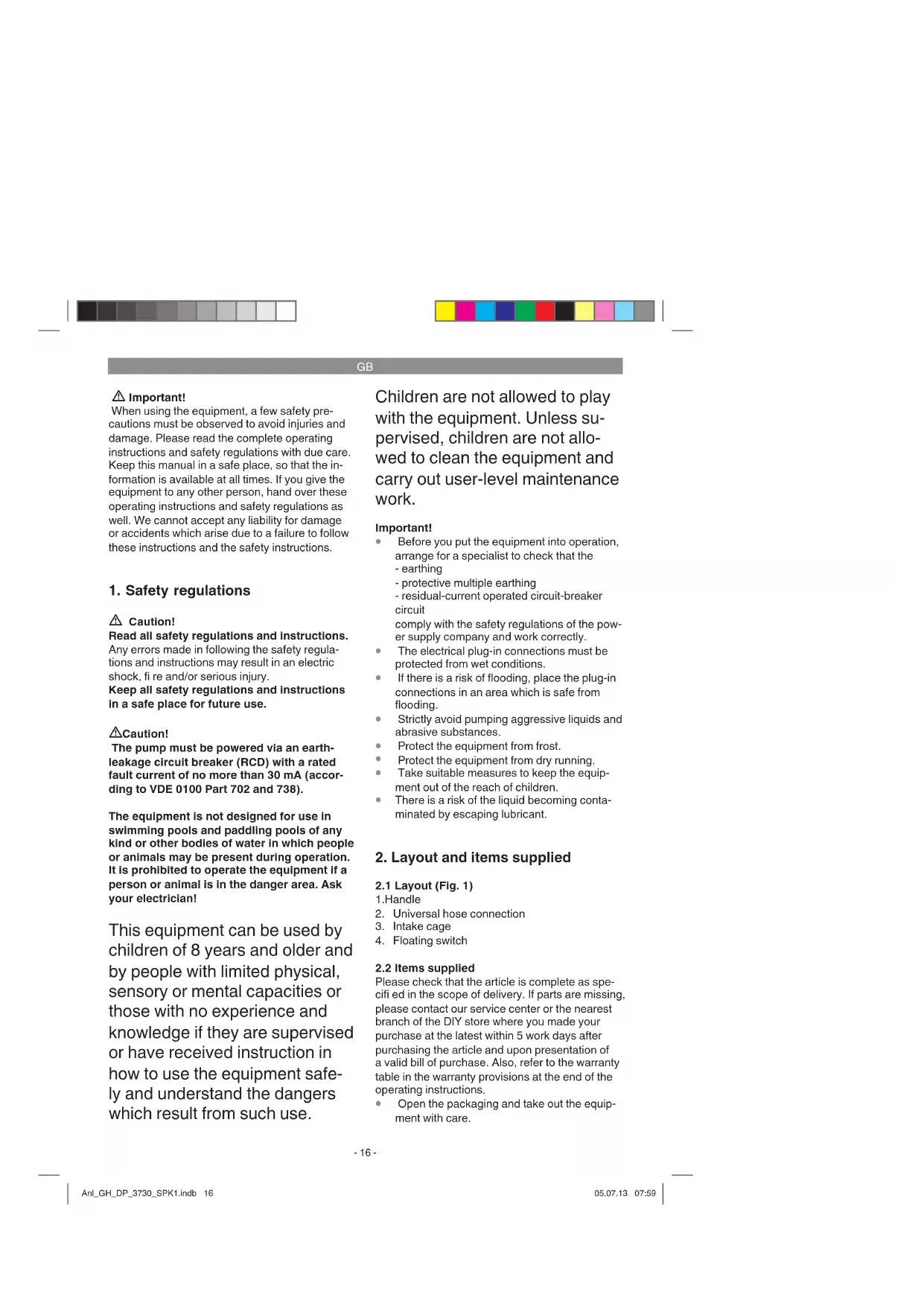

Important! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Caution! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Caution! The pump must be powered via an earth- leakage circuit breaker (RCD) with a rated fault current of no more than 30 mA (accor- ding to VDE 0100 Part 702 and 738). The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician! This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safe- ly and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless su- pervised, children are not allo- wed to clean the equipment and carry out user-level maintenance work. Important!

Before you put the equipment into operation, arrange for a specialist to check that the - earthing - protective multiple earthing - residual-current operated circuit-breaker circuit comply with the safety regulations of the pow- er supply company and work correctly.

The electrical plug-in connections must be protected from wet conditions.

If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.

Strictly avoid pumping aggressive liquids and abrasive substances.

Protect the equipment from frost.

Protect the equipment from dry running.

Take suitable measures to keep the equip- ment out of the reach of children.

There is a risk of the liquid becoming conta- minated by escaping lubricant.

2. Layout and items supplied

2. Universal hose connection

Please check that the article is complete as spe- cifi ed in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Important! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Original operating instructions

The equipment you have purchased is designed to pump water with a maximum temperature of 35 °C. This equipment must never be used for other liquids, especially engine fuels, cleaning agents and other chemically-based products! Before you use the pump, clarify any possible special conditions which need to be fulfi lled for the installation! For example, additional safety measures may be needed if damage to property could result from a power failure, soiling or a de- fective gasket. Examples of such safety measures: Pumps run- ning in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements. Be sure to consult a professional plumber if you have any doubt. The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools! If you want to use the equipment in bodies of wa- ter with a natural, muddy bottom, place the equip- ment in a slightly elevated position, e.g. on bricks. The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment’s anticipated life will be greatly shortened because the equipment was not designed for continuous loading. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Before starting the equipment

The equipment can be installed either:

Stationary with rigid tubing

Stationary with a flexible hose line Note: The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or tubes are connected, the pumping rate will be reduced. If the universal hose connection (Fig. 1/ Item 2) is used, it should be shortened (as shown in Fig. 3) to the connection actually used in order not to reduce the pumping rate unnecessarily. Flexible hoses must be fastened to the universal hose connection with a hose clip (not included in the scope of supply). Note! When installing, never hang the equipment by the discharge line or by the power cable. The equip- ment must be hung up with the provided carry Anl_GH_DP_3730_SPK1.indb 17Anl_GH_DP_3730_SPK1.indb 17 05.07.13 07:5905.07.13 07:59GB

handle or it must rest on the bottom of the shaft. To ensure that the equipment works properly, the bottom of the shaft always must be free of sludge and other accumulations of dirt. If the water level is too low, the sludge in the shaft can quickly dry out and hinder the equipment from starting. It is necessary therefore to check the equipment regu- larly (carry out trial start-ups). Note: The pump shaft should measure at least 50 x 50 x 50 cm so that the fl oating switch can move freely.

5.2 Mains connection

The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230 V ~ 50 Hz. Make sure that the socket-outlet is suffi ciently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation. Important! To rule out danger, this work must be left strictly to a specialist electrician or Customer Service.

You can put the equipment into operation after you have thoroughly read the installation and ope- rating instructions. Pay attention to the following points:

Make sure that the equipment is set up secu- rely.

Check that the discharge line is fitted correct- ly.

Make sure that the electrical connection is 230 V ~ 50 Hz.

Check that the electrical socket-outlet is in good working order.

Make sure that no moisture or water can ever reach the power connection.

Make sure that the equipment does not run dry. Setting the ON/OFF switching point: The ON/OFF switching point of the fl oating switch can be adjusted by shifting the fl oating switch in the fl oating switch notched holder (Fig. 2/Item 5). Check the following points before putting the equipment into operation:

The floating switch must be fitted so that the switching point height: ON and the switch point height: OFF can be reached easily and with little force. Check this by placing the equipment in a container filled with water and carefully raising and lowering the floating switch with your hand. You can then see whe- ther the equipment switches on and off.

Make sure that the distance between the floa- ting switch head and the cable holder is not too small. If the distance is too small, there is no guarantee that the equipment will work correctly.

When adjusting the floating switch, make sure that the floating switch does not touch the bottom before the equipment is switched off. Important! Risk of dry running. Manual operation: Mount the fl oating switch as illustrated in Figure 1. The equipment will then run continuously. To pre- vent dry running, this operating mode is allowed only under supervision. The equipment must be switched off (pull out the power plug) as soon as no more water is emitted from the discharge line.

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger. Anl_GH_DP_3730_SPK1.indb 18Anl_GH_DP_3730_SPK1.indb 18 05.07.13 07:5905.07.13 07:59GB

8. Cleaning, maintenance and

ordering of spare parts Unplug the power plug prior to any maintenance work.

For mobile applications, the equipment should be cleaned with clear water after every usage.

For stationary installation, it is recommended that you check the floating switch for proper functioning every three months.

Use a water jet to remove any lint or fibrous particles that may have become trapped in the housing.

Remove sludge from the shaft bottom and clean the shaft walls every 3 months.

Use clear water to remove deposits from the floating switch.

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage tempe- rature is between 5 and 30 °C. Store the electric tool in its original packaging. Anl_GH_DP_3730_SPK1.indb 19Anl_GH_DP_3730_SPK1.indb 19 05.07.13 08:0005.07.13 08:00GB

Faults Cause Remedy The equipment does not start - Power supply not connected - Floating switch does trigger - Check power supply - Raise position of fl oating switch The equipment does not pump - Intake sieve clogged - Discharge hose kinked - Clean intake sieve with water jet - Unkink the hose The equipment does not cut out - Floating switch cannot sink - Place equipment correctly on shaft bottom Insuffi cient pumping rate - Intake sieve clogged - Performance reduced due to heavi- ly contaminated and abrasive water impurities - Clean intake sieve - Clean equipment and replace wear parts The equipment swit- ches off after briefl y running - Motor circuit-breaker switches the equipment off due to excessive wa- ter contamination - Water temperature too high; motor circuit-breaker switches the equip- ment off - Unplug power plug and clean equipment and shaft - Ensure that maximum permissible water temperature (35 °C) is not exceeded Anl_GH_DP_3730_SPK1.indb 20Anl_GH_DP_3730_SPK1.indb 20 05.07.13 08:0005.07.13 08:00GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_GH_DP_3730_SPK1.indb 21Anl_GH_DP_3730_SPK1.indb 21 05.07.13 08:0005.07.13 08:00GB

Warranty provisions iSC GmbH or the DIY store where you made you purchase guarantees the repair of defects or replace- ment of the equipment in accordance with the overview below. Statutory guarantee claims are unaff ec- ted. Category Example Warranty Defect with regard to material or construction 24 months Wear parts* Impeller 6 months Consumables* Warranty only in case of an im- mediate defect (24 hours after purchase / date on the bill) Missing parts 5 work days

• Not necessarily included in the scope of delivery! For consumables, wear parts and missing parts iSC GmbH guarantees the correction of defects or a new delivery only if the defect is reported within 24 hours (consumables), 5 work days (missing parts) or 6 months (wear parts) after purchase and the purchase date is verifi ed with the bill. In case of defects concerning the material or construction, we kindly request you to submit the equip- ment together with the fully completed warranty card supplied with the equipment. It is important that you enter an exact description of the defect. To do so, answer the following questions:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_GH_DP_3730_SPK1.indb 22Anl_GH_DP_3730_SPK1.indb 22 05.07.13 08:0005.07.13 08:00GB

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to off er our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not aff ect your statutory warranty

rights. We do not charge you for this guarantee.

2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restric-

ted to the rectifi cation of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), eff ects of force or external infl uences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rende- red null and void if any attempt is made to tamper with the device.

3. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guaran-

tee claims should be submitted before the end of the guarantee period within two weeks of the de- fect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the gua- rantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies when an on-site service is used.

4. In order to assert your guarantee claim, please send your defective device postage-free to the

address shown below. Please enclose either the original or a copy of your sales receipt or ano- ther dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as pos- sible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts/consumables and missing parts as set forth in the warranty conditions in these operating instructions. Anl_GH_DP_3730_SPK1.indb 23Anl_GH_DP_3730_SPK1.indb 23 05.07.13 08:0005.07.13 08:00F

only under supervision. The equipment must be switched off (pull out the power plug) as soon as no more water is emitted from the discharge line.

= dB (A); guaranteed L
