USER MANUAL Voyager BT 15 ELTAX

Thank you for purchasing an Eltax product. To fully exert the function of this product, we suggest you to read the instruction manual carefully before using it. Please keep this instruction manual for further reference.

(2) Battery charge indicator : Charge (Green light): battery in charge Short (Red light): battery is low and needs to be charged Normal (Blue light): battery ok

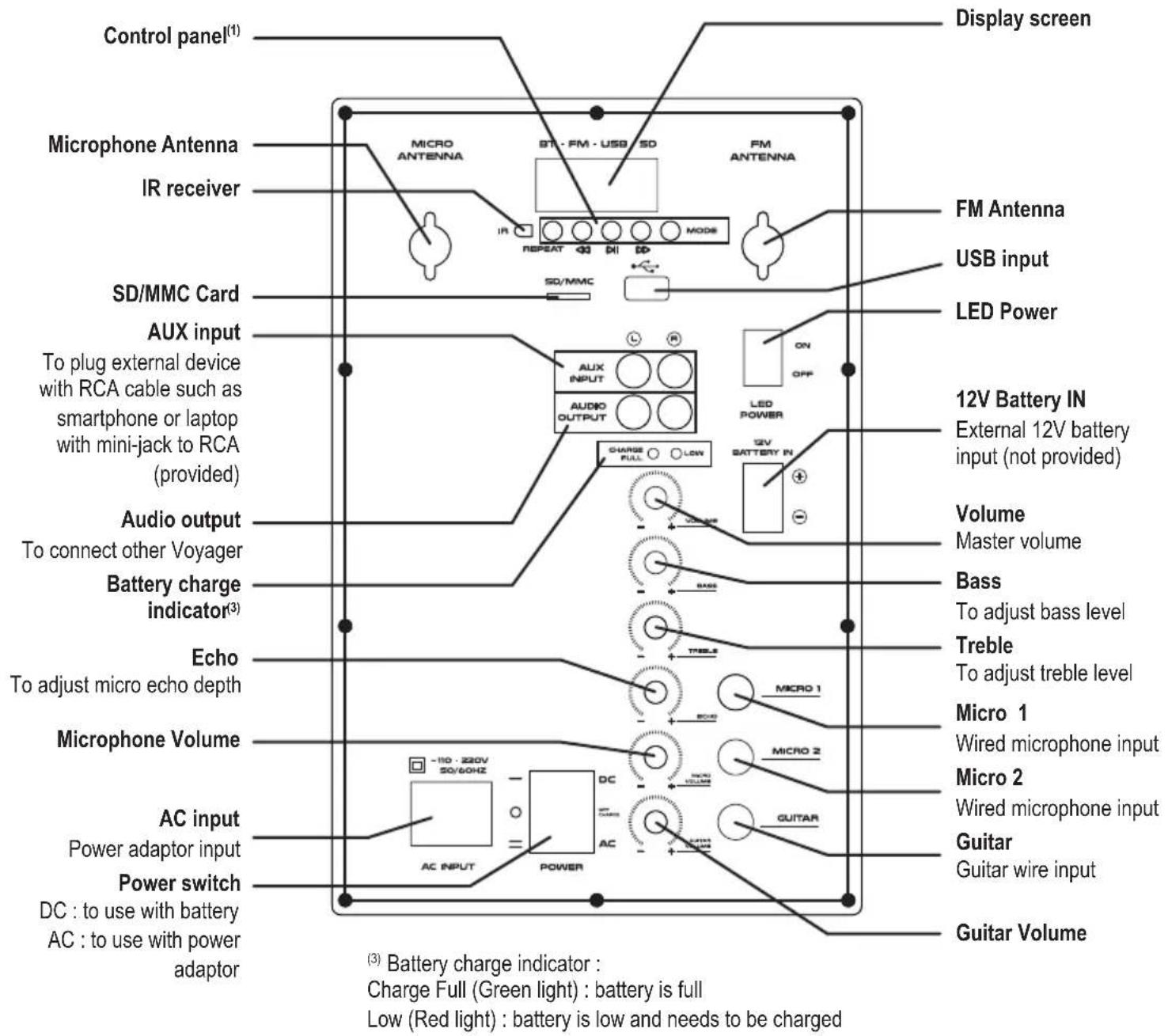

Voyager BT15

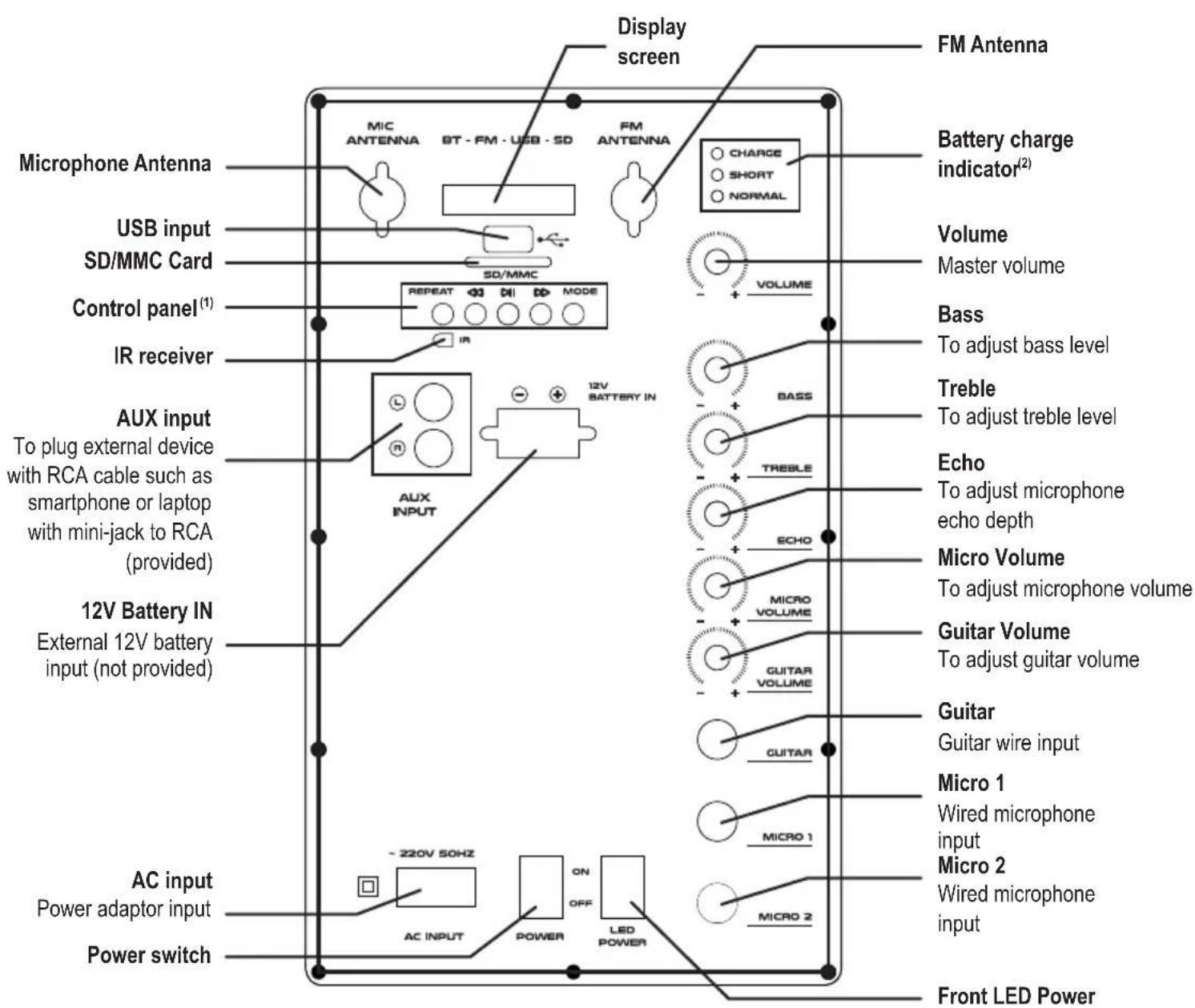

(1) CONTROL PANEL

Play/pause
Stop

Press and release to select the previous song / Press and hold for more than 3 seconds for VOL- function
Press and release to select the next song / Press and hold for more than 3 seconds for VOL+ function

MODE : Select and switch between BT, AUX and FM inputs (note : USB and SD are automatically detected).

BATTERY

• Please charge the battery before using the Voyager BT outdoor (charging time : 8-10 hours). More charging time can damage the battery and significantly reduce its lifetime.
• When the battery is out of charge after being used for a short time, please charge the built-in battery.
• If you don't use the Voyager BT for a long time, please charge the battery every six months, to avoid the invalidity of the battery.

MP3

• If you want to use the MP3 function, please format your USB disk as FAT-32 format on your computer first.
• Please note that the Voyager BT will play the files according to the sequence on the USB disk. If you want to play a specific sequence, you need to arrange the sequence as you want on the USB disk first.

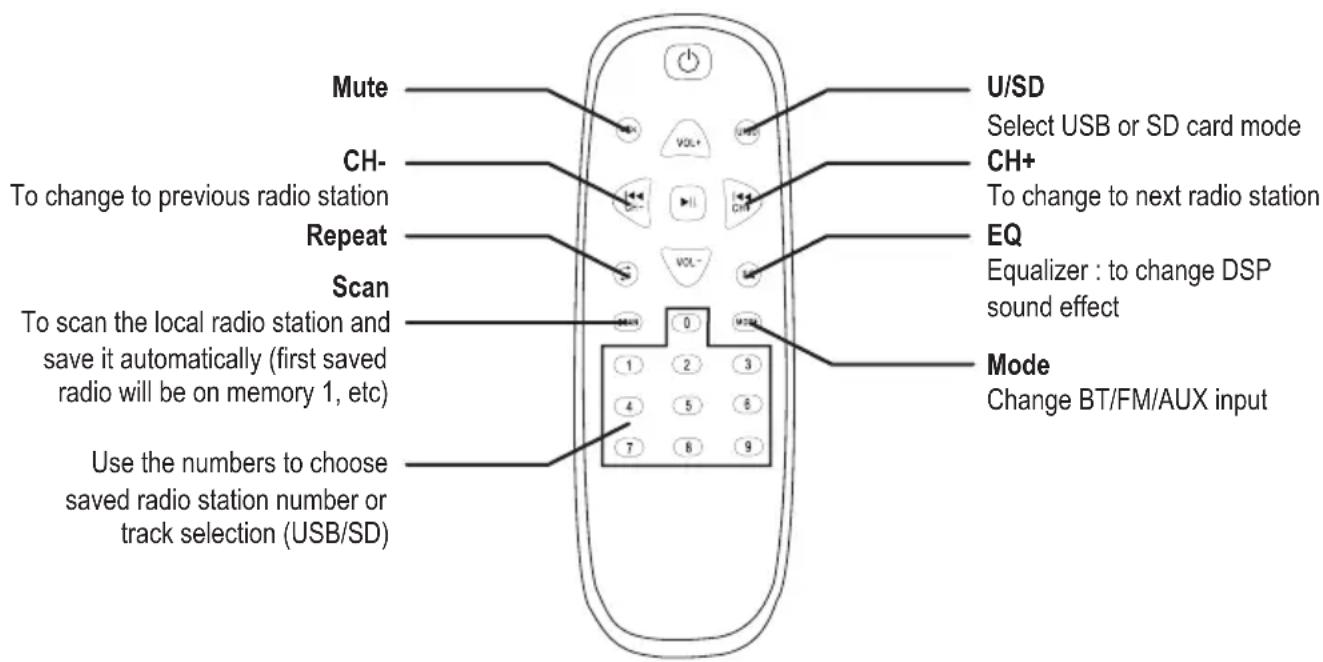

Remote control

Wireless microphone

• Correctly install the battery.
• Turn the power switch to «ON». If the indicator LED does not flash or always lights, please check the battery. Battery voltage may be insufficient, or the polarity is installed oppositely.
• Before using wireless microphone, please extend the rod antenna and make it vertically upward to ensure better reception.
• Adjust the microphone volume on the Voyager BT according to the sound volume when singing.
• Keep away the receiving antenna from metal surface, wall or other obstacles, as it can significantly reduce the signal.
• The effective using distance of wireless microphone is within 30 meters. When the battery is low, or if there are too many interferences, the using distance will be shortened accordingly.
  To enjoy the best singing effect, the distance between mouth and microphone shall be 5-15cm, and the best angle is 45 degrees.
• When the battery is low, the indicator LED will light. Please change the battery in time in order not to affect the singing effect.
• Please keep away the microphone from the speaker to avoid Larsen effect.
• If you have purchased more than two sets of Voyager BT with wireless microphones and intend to use them together, please select the varieties in different standard frequencies. If the frequency is identical, two Voyager BT can not be used until they are separated from each other for 100 meters, so as to avoid mutual interference and other troubles.

NB : frequencies are indicated in the battery slot.

Voyager BT12

Battery: 12V/4.5Ah Neodymium acid battery

Battery life : 6 hours

Alimentation included (220V-50Hz)

Dimensions (WxHxD) : 350 x 565 (825 with handle) x 320 mm

Weight : 10,5 kg

All specifications are subject to change without notice.

VOYAGER BT15

Power:450W

Sensitivity: 99dB/W/m

Battery: 12V/4.5Ah Neodymium acid battery

Battery life : 6 hours

Alimentation included (220V-50Hz)

Dimensions (WxHxD) : 480 x 735 (950 with handle) x 420 mm

Weight : 15 kg

Caractéristiques

VOYAGERBT12

Puissance : 350W
