Sonicare HealthyWhite HX6780 - Brosse a dents PHILIPS - Free user manual and instructions

USER MANUAL Sonicare HealthyWhite HX6780 PHILIPS

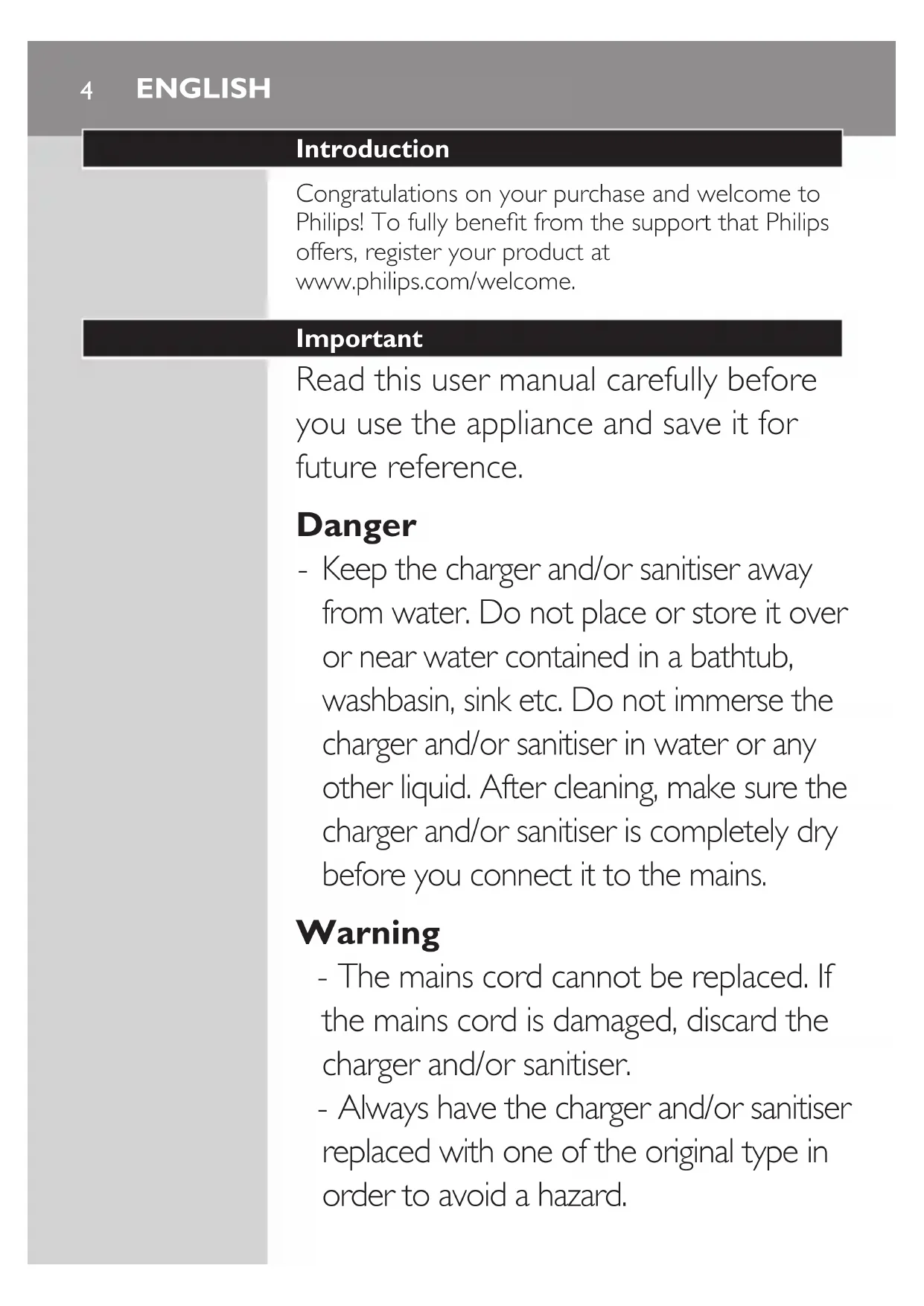

Sonicare FlexCare Platinum1Sonicare FlexCare Platinum ENGLISH 4 DEUTSCH 22 ESPAÑOL 44 FRANÇAIS 64 ITALIANO 82 NEDERLANDS 103 PORTUGUÊS 1254 Introduction Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips offers, register your product at www.philips.com/welcome. Important Read this user manual carefully before you use the appliance and save it for future reference. Danger

Keep the charger and/or sanitiser away from water. Do not place or store it over or near water contained in a bathtub, washbasin, sink etc. Do not immerse the charger and/or sanitiser in water or any other liquid. After cleaning, make sure the charger and/or sanitiser is completely dry before you connect it to the mains. Warning - The mains cord cannot be replaced. If the mains cord is damaged, discard the charger and/or sanitiser. - Always have the charger and/or sanitiser replaced with one of the original type in order to avoid a hazard. ENGLISH- Do not use the charger and/or sanitiser outdoors or near heated surfaces. Do not operate the sanitiser where aerosol (spray) products are being used or where oxygen is being administered. - If the appliance is damaged in any way (brush head, toothbrush handle, charger and/or sanitiser), stop using it. This appliance contains no serviceable parts. If the appliance is damaged, contact the Customer Care Centre in your country (see chapter ‘Guarantee & service’). - This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. EngliSh 5- Children shall not play with the appliance. - Discontinue use of the sanitiser if the UV light bulb remains on when the door is open. UV light can be harmful to the human eye and skin. Keep the sanitiser out of the reach of children at all times. Caution - Do not clean the brush head, the handle, the charger, the charger cover and/or the sanitiser in the dishwasher. - If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use the toothbrush. - Consult your dentist if excessive bleeding occurs after using this toothbrush or if bleeding continues to occur after 1 week of use. Also consult your dentist if you experience discomfort or pain when you use the Sonicare. ENGLISH6- The Sonicare toothbrush complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device, contact your physician or the device manufacturer of the implanted device prior to use. - If you have medical concerns, consult your doctor before you use the Sonicare. - This appliance has only been designed for cleaning teeth, gums and tongue. Do not use it for any other purpose. Stop using the appliance and contact your doctor if you experience any discomfort or pain. - The Sonicare toothbrush is a personal care device and is not intended for use on multiple patients in a dental practice or institution. - Stop using a brush head with crushed or bent bristles. Replace the brush head every 3 months or sooner if signs of wear appear. EngliSh 7- Do not use other brush heads than the ones recommended by the manufacturer. - If your toothpaste contains peroxide, baking soda or bicarbonate (common in whitening toothpastes), thoroughly clean the brush head with soap and water after each use. This prevents possible cracking of the plastic. - Do not insert objects into the air openings of the sanitiser or block these air openings by placing it on a soft surface or in a position or location where objects will block these openings examples of objects: magazine, tissue paper and hair. - The UV light bulb is hot during and immediately after the sanitising cycle. Do not touch the UV light bulb when it is hot. - Do not operate the sanitiser without the protective screen in place to avoid contact with a hot bulb. EngliSh8- If the sanitiser has been used for 3 consecutive UV clean cycles (i.e. 3 times in a row), switch it off for at least 30 minutes before ou start another UV clean cycle. Electromagnetic elds (EMF) This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientic evidence available today. General description (Fig. 1) 1 Hygienic travel cap 2 Brush head with unique identier 3 Handle 4 Power on/off button 5 Intensity level indicator 6 Intensity level button (+ and -) 7 Brushing modes 8 Mode button 9 Battery level indicator 10 UV sanitiser and base with integrated charger and cord wrap (specic types only) - Not shown: UV light bulb - Not shown: Sanitiser drip tray - Not shown: Protective screen for UV light bulb EngliSh 911 Mains cord with plug 12 Deluxe charger (specic types only) 13 Charger cover with brush head holders and base with cord wrap 14 Travel charger - Not shown: Travel case Note: The contents of the box may vary based on the type purchased. Preparing for use Attaching the brush head 1 Align the front of the brush head with the front of the handle. 2 Firmly press the brush head down onto the metal shaft until it stops. Note: Sonicare Platinum brush heads come with easily identiable icons to identify your brush head. Charging the appliance 1 Put the plug of the charger or sanitiser in a wall socket. 2 Place the handle on the charger. , The ashing light of the battery level indicator shows that the toothbrush is charging. Note: It takes at least 24 hours to fully charge the battery. Using the appliance Brushing instructions 1 Wet the bristles and apply a small amount of toothpaste. ENGLISH102 Place the toothbrush bristles against the teeth at a slight angle towards the gumline. 3 Press the power on/off button to switch on the Sonicare. 4 Apply light pressure to maximise Sonicare’s effectiveness and let the Sonicare toothbrush do the brushing for you. Do not scrub.

Gently move the brush head slowly across the teeth in a small back and forth motion so the longer bristles reach between your teeth. Continue this motion throughout your brushing cycle. Note: To make sure you brush evenly throughout the mouth, divide your mouth into 4 sections using the Quadpacer feature (see chapter ‘Features’). 6 Brush each section for 30 seconds for a total brushing time of 2 minutes. Start with section 1 (outside top teeth) and then brush section 2 (inside top teeth). Continue with section 3 (outside bottom teeth) and nally brush

section 4 (inside bottom teeth).

Note: After you have completed the brushing cycle, you can spend additional time brushing the chewing surfaces of your teeth and areas where staining occurs. You may also brush your tongue, with the toothbrush switched on or off, as you prefer. The Sonicare is safe to use on: - Braces (brush heads may wear out more quickly when used on braces) - Dental restorations (llings, crowns, veneers, implants) EngliSh 11Brushing modes 1 Clean: The ultimate in plaque removal (default mode). 2 White: 2 minutes to remove surface stains and 30 seconds to brighten and polish your front teeth. 3 Gum care: Combines the Clean mode with an additional minute to gently stimulate and massage gums to improve gum health. The Sonicare comes with the Clean mode activated. Note: When the toothbrush is switched on, you cannot toggle between modes. 1 Before you switch on the Sonicare, press the mode button to toggle between modes. , The selected brushing mode lights up. , Once a brushing mode has been selected, it remains active until another brushing mode is selected. Note: When the Sonicare is used in clinical studies, the default 2-minute Clean mode must be selected. The handle has to be fully charged and the Easy-start feature must be deactivated. Intensity levels per mode - Low: 1 LED indicator light - Medium: 2 LED indicator lights - High: 3 LED indicator lights Note: to adjust the intensity level to the next higher or lower level, you can press the + button to increase intensity or the - button to decrease intensity at any time during the brushing cycle. ENGLISH12Pressure Sensor A change in vibration (and a slight change in sound) alerts you when you apply too much pressure while brushing. See chapter ‘Features’. Battery status (when handle is not on charger) - 1 yellow LED indicates a low charge. - 3 green LEDs indicate a full charge. Note: If you hear a long beep and the yellow LED of the battery level indicator ashes, the rechargeable battery is empty and the Sonicare switches off. Place the handle on the charger to recharge it. Note: To keep the battery fully charged at all times, you can keep the Sonicare on the charger when you are not using it. Features Pressure Sensor This Sonicare comes with the Pressure Sensor feature activated. The Pressure Sensor works in all 3 modes and at all 3 intensity levels. To deactivate or reactivate the Pressure Sensor feature: 1 Place the handle with a brush head attached on the plugged-in charger or sanitiser. 2 Press and hold the power button and the mode button for 2 seconds. , You hear 1 beep to indicate that the Pressure Sensor has been deactivated. , You hear 2 beeps to indicate that the Pressure Sensor has been activated. EngliSh 13Quadpacer

The Quadpacer is an interval timer that has a short beep and pause to remind you to brush the 4 sections of your mouth. Depending on the brushing mode you have selected, the Quadpacer beeps at different intervals during the brushing cycle. The Quadpacer works in all 3 modes and at all 3 intensity levels. The Quadpacer feature on this Sonicare has been activated. To deactivate or reactivate the Quadpacer feature: 1 Place the handle with a brush head attached on the plugged-in charger or sanitiser. 2 Press and hold the mode button for 2 seconds. , You hear 1 beep to indicate that the Quadpacer has been deactivated. , You hear 2 beeps to indicate that the Quadpacer has been activated. Smartimer The Smartimer indicates that your brushing cycle is complete when it automatically switches off the toothbrush at the end of the brushing cycle. Dentists recommend brushing at least 2 minutes twice a day. Easy-start The Easy-start feature gently increases power over the rst 14 brushings to let you get used to brushing with the Sonicare. The Easy-start feature only works in the Clean mode and at the High intensity level. This Sonicare comes with the Easy-start feature deactivated. To activate or deactivate the Easy-start feature: 1 Attach your brush head to the handle. ENGLISH142 Place the handle on the plugged-in charger or sanitiser. 3 Activate or deactivate Easy-start: , To activate Easy-start: Press and hold the power on/off button for 2 seconds. You hear 2 beeps to indicate that the Easy-start feature has been activated. , To deactivate Easy-start: Press and hold the power on/off button for 2 seconds. You hear 1 beep to indicate that the Easy-start feature has been deactivated. Note: Each of the rst 14 brushings must be at least 1 minute in length to properly move through the Easy-start ramp-up cycle. Note: Using the Easy-start feature beyond the initial ramp-up period is not recommended and reduces Sonicare’s effectiveness in removing plaque. Cord wrap on charger (specic types only) If your Sonicare includes the charger cover and base, the travel charger is pre-installed inside the cover. 1 To separate the charger cover from the charger base, press the two gray snap bars on the charger base and pull the white charger cover upwards. 2 Wrap excess mains cord around the gray charger base as shown in the picture. Be sure to wrap the cord on the inside of the two snap levers. Guide the cord through the small groove in the back of the charger base. EngliSh 153 To reattach the charger cover, press it down over the charger base until it snaps into place. Tip: For extra convenience during travel, you can remove the travel charger and use it without the charger cover and charger base. Sanitising (specic types only) - With the UV sanitiser you can clean your brush head after every use. Unplug the sanitiser, discontinue use and call Consumer Care if: - The UV light bulb remains on when the door is open. - The window is broken or missing from the sanitiser. - The sanitiser gives off smoke or a burning smell while it is operating. Note: UV light can be harmful to the human eye and skin. The Sanitiser should be kept out of reach of children at all times. 1 After brushing, rinse the brush head and shake off excess water. Do not place the travel cap on the brush head during sanitisation. 2 Place your nger in the door recess on top of the sanitiser and pull open the door. 3 Place the brush head on one of the 2 pegs in the sanitiser with the bristles facing the light bulb. Note: Only clean Sonicare snap-on brush heads in the sanitiser. Note: Do not clean Sonicare for Kids brush heads in the sanitiser. EngliSh164 Put the plug in a wall socket. 5 Close the door and press the green power on/off button once to select the UV clean cycle. Note: You can only switch on the sanitiser if the door is properly closed. Note: The sanitiser stops if you open the door during the sanitising cycle. Note: The sanitiser operates for 10 minutes and then automatically switches off. , The sanitiser is in operation when the light glows through the window. Cleaning Do not clean the brush head, handle, travel charger, charger cover and the UV sanitiser in the dishwasher. Toothbrush handle 1 Remove the brush head and rinse the metal shaft area with warm water. Do not push on the rubber seal on the metal shaft with sharp objects, as this may cause damage. 2 Use a damp cloth to wipe the entire surface of the handle. Brush head 1 Rinse the brush head and bristles after each use. 2 Remove the brush head from the handle and rinse the brush head connection at least once a week with warm water. ENGLISH 17Deluxe charger (specic types only)
