USER MANUAL CVN122B LA SOMMELIERE

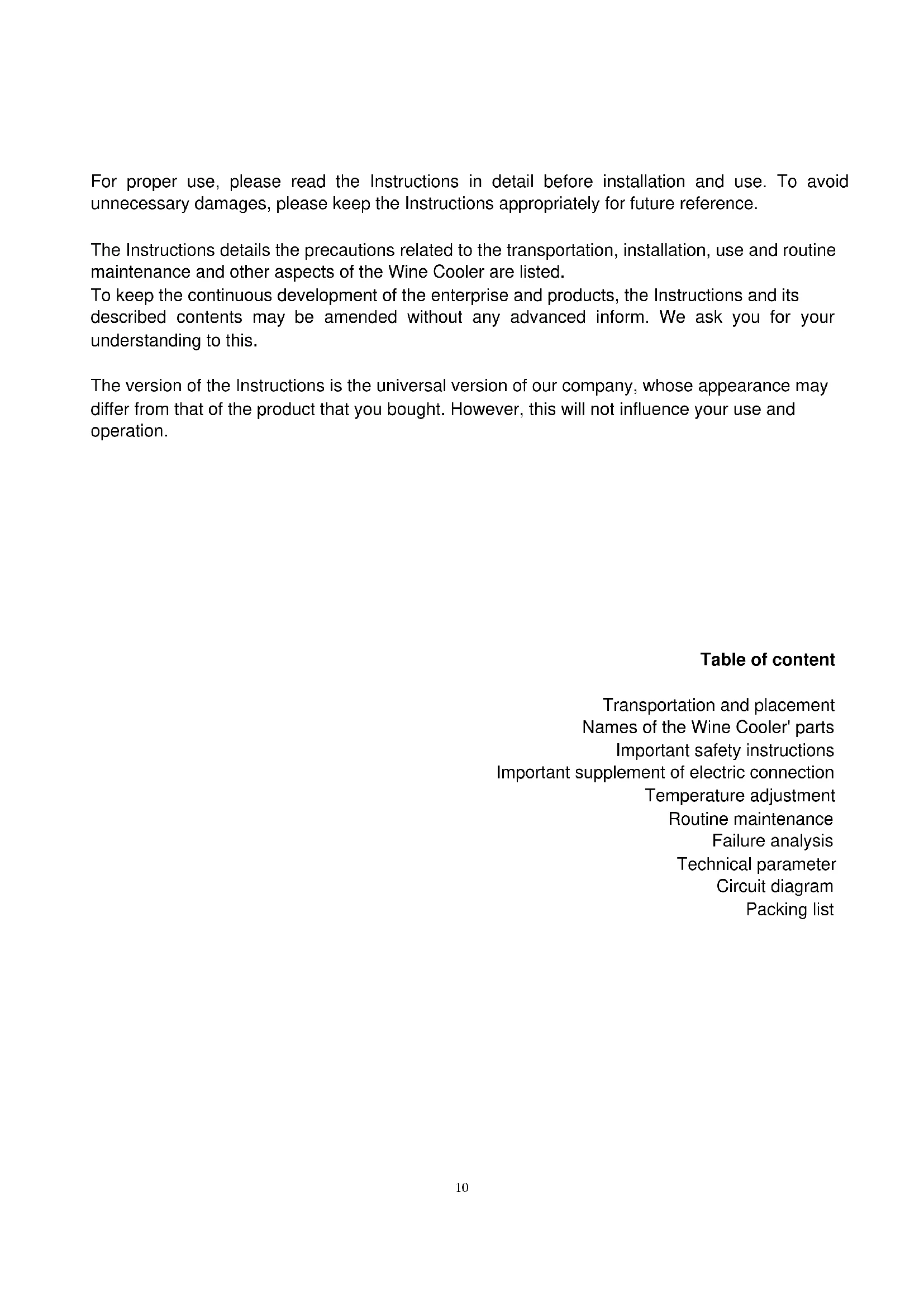

For proper use, please read the Instructions in detail before installation and use. To avoid unnecessary damages, please keep the Instructions appropriately for future reference. The Instructions details the precautions related to the transportation, installation, use and routine maintenance and other aspects of the Wine Cooler are listed. To keep the continuous development of the enterprise and products, the Instructions and its described contents may be amended without any advanced inform. We ask you for your understanding to this. The version of the Instructions is the universal version of our company, whose appearance may differ from that of the product that you bought. However, this will not influence your use and operation.

Table of content Transportation and placement Names of the Wine Cooler' parts Important safety instructions Important supplement of electric connection Temperature adjustment Routine maintenance Failure analysis Technical parameter Circuit diagram Packing list11

Transportation and placement

Open the door and check whether the interior is complete (wall, stand, control panel and so on). When transporting and installing the Wine Cooler, attentions should be paid to:

1. Do not place the Wine Cooler in a too moist place (laundry for example), and keep it away

2. Ensure the Wine Cooler is located on a solid and flat ground

3. Ensure the Wine Cooler is paced on a stable level surface

4. Ensure the ventilation conditions around the Wine Cooler

5. Never pad the foam package of the Wine Cooler at the base of it

6. Ensure the stability of the Wine Cooler by adjusting the adjusting feet if it is a little unstable.

Before the Wine Cooler is switched on at first time, you should wait for 48 hours to allow the refrigeration agent in the Cooler become stable.

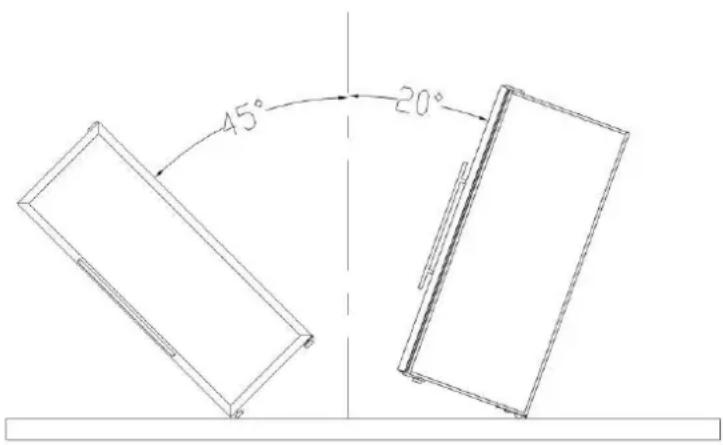

Note: if you have to move the Wine Cooler, the tilt angle should not be more than 45°, and the tilt angle toward back direction should not be more than 20°, as shown in the figure:12 Names of the Wine Cooler' parts

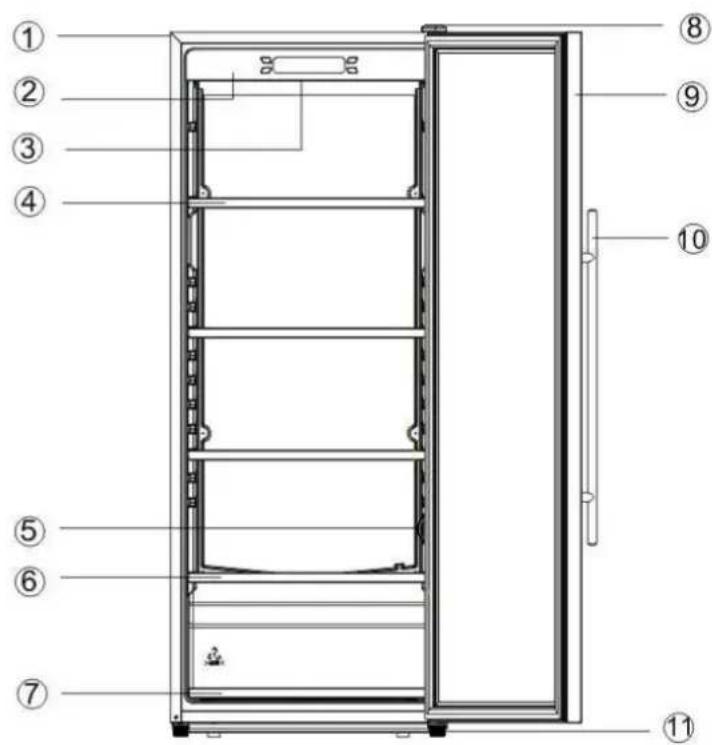

1 Body 2 Control panel 3 Fan 4 Upper shelf 5 Tank temperature probe 6 Middle shelf 7 Bottom shelf 8 Door hinge cover 9 Glass door 10 Handle 11 Cabinet adjusting Leg Special attention:

1. When in operation, please do not cover the Fan or Air outlet with anything.

2. When the temperature in the Wine Cooler differs too much with that of the environment or

the ambient humidity is too high, there may be water mist on the glass door, which is a normal phenomenon. You should just wipe it with dry cloth.

3. If you do not like the film on the sides of the product, you can rip it away.13

Important safety instructions

Please pay attention to the following conditions: When using the Wine Cooler, you should observe some basic preventive measures all the time, including:

1. According to the descriptions of the Instructions, use the Wine Cooler as required

2. Never close the machine by directly drawing off the power plug when using the Wine Cooler

3. The max bearing on the Wine Cooler's shelf is 30Kg. Please do not place objects over 30Kg

4. Never patch or use the power cord with cracks or obvious defects on its ends

5. Do not use extended cord

6. Never allow children climb to the neighbourhood of the Wine Cooler, sit or stand in the Cooler

or hang on the Wine Cooler's stand, or otherwise, the Wine Cooler may be damaged and they may be wounded

7. Never place objects on the top of the Wine Cooler

Before throwing away the scrapped Wine Cooler, you have to:

1. Remove the glass door

2. Put the shelf in proper place where children cannot reach

Special warning: . The product is a wine cooler, which is forbidden to store inflammable, explosive, erosive, poisonous, radiant objects and other dangerous articles. . Please draw off the power plug if the Wine Cooler will not be used for a long time. This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance is intended to be used exclusively for the storage of wine. Note: Because the R600a is inflammable and explosive, the products with R600a as the refrigeration agent must be repaired by professionals in approved maintenance points, if their refrigerating systems need to be repaired. Private disassembly and damages on refrigerating pipes are strictly forbidden. Because the refrigeration agent is inflammable and explosive and the heat-insulating material is cyclopentane, proper measures should be adopted to discard them for safety and environmental protection.14 Important safety instructions

Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Important supplement of electric connection

For your safety, the Wine Cooler should be grounded properly. The power cord for the Wine Cooler is provided with a satisfactory plug, which should be equipped with a grounding socket meeting the standard. Whether the socket is grounded should be judged by professionals. If there is something unclear about the socket, you should replace it with a new grounding one. If the power cord is damaged, you should ask a qualified electrician to replace it to avoid dangers.

If there is no ground connection on the socket, you should prepare a proper grounded socket. If the plug does not match with the socket, you should find a suitable one. Please note: you should find a qualified electrician to check the new cord and plug.15

Temperature adjustment

Operating Instructions 1: The key is for unlock and temp. –increasing set key for the storage temp. in the cabinet. In the non-locking state, the temp. will increase1℃ by each click, the highest setting is 18℃ 2: The key is for lock and temp. –decreasing set key for the storage temp. in the cabinet. In the non-locking state, the temp. will decrease 1℃ by each click, the lowest setting is 5℃ 3: The key is for the lamp. In the non-locked state, click it, light on, click again, light off, followed by recycling. 4: The key is the conversion button for Fahrenheit and Celsius temperature. The factory default is Celsius, in a non-locked state, it will convert to Fahrenheit by short click, click again, it will be Celsius, followed by recycling. 5: When it powered on the first time, the digital screen "Set" and "Display" lit simultaneously, the desired storage temp. in the left display window can be set by pressing the keys , it displays the actual environment temperature in the right display window. After setting ,the system defaults that the measured temperature display window off after 30s, if the measured temperature needs to be queried, it can be displayed by pressing any key, then It enter the default state after 30s automatically. 6: is the indication that the machine enters low temperature starting status. When there is no device for heating start in low-temperature, this item is meaningless. 7: is the instruction for the operation of the compressor. When the compressor starts to work, the light on; when the compressor stops working, the lights off.16 8: is unlock indicator. Press the key 3.5 seconds to achieve. is lock indicator. Press the key 3.5 seconds to achieve. 9: Press the keys and 3.5S simultaneously, the system will shut down and be in standby mode, all display off, all outputs off; There is no respond by press the other button at this time, it will restore by long-press it again . 10: Error code display. Opening circuit for NTC in the cabinet, "E3"will be showed on the left; short circuit, "E4" will be showed on the left; Note: All the operations should be carried out under the light of the unlock key on. Routine maintenance Wine Cooler is easy to be used. It is approved to be safe and reliable. As long as you maintain and clean it according to the following manner, it is durable and can make you content. —Please cut the power when cleaning the Wine Cooler. Wipe the machine with soft cloth that is wetted by the warm water with proper amount of neutral detergent, and then mop it clean with clean water. —Sulphur detergent, petrol, hot water and the like should be avoid to be used to clean the Wine Cooler, or the plastic parts may be deformed or damaged. —If the Wine Cooler will not be used for a long time, the power plug should be drawn off and the inner chamber should be cleaned. When the chamber is dry enough, the door can be closed. Energy-saving Notice:

1. Open door as little as possible in the course of using it

2. Shorten the time as much as possible while opening the drinks cabinet

3. Make both sides of the drinks cabinet as far away from the wall as possible, which

enables the circulation of the air and strengthens the cooling effect

4. A good arrangement of wine bottles, which create a good circulation of the inner air in

5. Do not place any goods on the top of the drinks cabinet17

The compressor does not shut automatically.

1. Whether the objects put in the chamber at a time are too many? (If the objects put in the

chamber at a time are too many, the compressor will run continuously for several hours and return to the shutdown state after these objects are cool enough.)

2. Whether the times of opening the door of the Wine Cooler are too frequent or too long?

1. Whether the Wine Cooler is located on a stable level surface?

2. Whether the Wine Cooler is placed placidly?

3. Whether the Wine Cooler is contacted with surrounding objects?

4. Whether the voltage is stable?

5. Whether there are sources of resonant excitation nearby the Wine Cooler?

The refrigeration is bad.

1. Whether the temperature is adjusted to be the proper one?

2. Whether the Wine Cooler is close to heat sources or directly exposed to sunshine?

3.Whether there is enough room surround the Wine Cooler?

4. Whether too many or too heat objects are placed in?

5. Whether the times of opening the door are too frequent or too long?

Do not refrigerate completely.

1. Whether the power plug is loose or dropped?

2. Whether the voltage is normal?

3. Whether the power fuse is break?

4. Whether the power is down?

5. Whether the set temperature is higher than that of the chamber?

Failure analysis They are not the failure symptoms:

1. When the compressor is working, the surface temperature can reach 80~90℃.

2. Sometimes, you can hear the bicker in the Wine Cooler, which is the sound of refrigerating

agent flowing in the refrigeration system.

3. When the ambient humidity is too high, there may be condensation phenomenon on the

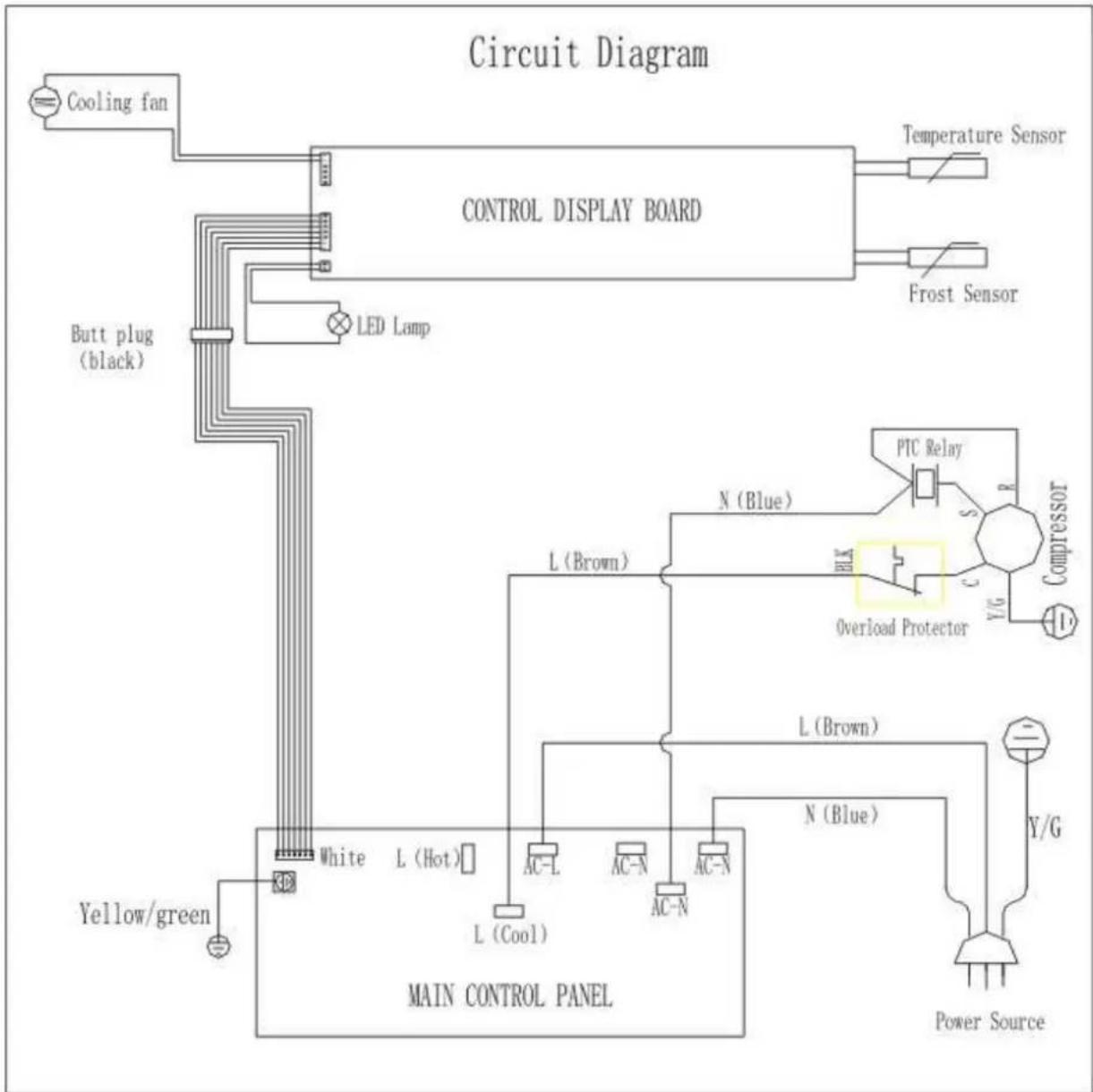

surface of the Wine Cooler. Wipe it with soft cloth. Note: if the methods of examination after the treatment, your wine storage cabinet does not work properly, please contact the local authorized repair department.18 Due to the product improvement, the product you used may be not the completely same with the data in the Instructions. Please follow the nameplate of the product. Circuit diagram

WARNING: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the

structure for building-in.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,

other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

Refrigerator with one or more fresh-food storage compartments

Refrigerator-cellar, Cellar and Wine storage appliances

Refrigerator-chiller and Refrigerator with a 0-star compartment

Refrigerator with a one-star compartment

Refrigerator with a two-star compartment

Refrigerator with a three-star compartment
