USER MANUAL LS34.2Z LA SOMMELIERE

Dual zone wine cellar

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

For your own safety and for the proper utilisation of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. Keep these recommendations close to the appliance, for future reference, and ensure that the document is transferred with the appliance, if it is sold or in the case of moving. This will ensure optimum operation of the appliance.

To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the case of operating/handling errors concerning the appliance.

Safety of children and other vulnerable persons

• This appliance may be used by children aged 8 years and above, and by persons who are physically, sensorially or mentally handicapped, or who have not learned to use the appliance, providing they are supervised by a person familiar with the appliance and who is aware of the risks involved. Children should not be allowed to play with the appliance. User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.
• Keep all packaging out of the reach of children, as there is a risk of suffocation.
• If you decide to scrap the appliance, disconnect it from the wall socket, cut the connection cable (as close to the appliance as possible) and remove the door, in order to prevent children playing with it, with the resulting risk of electric shock or being trapped inside.
• If an appliance with a magnetic door seal is being replaced by another appliance with a latch on the door or on the seal, ensure that the latch is disabled before selling or scrapping the old appliance. This will prevent the appliance from being transformed into a trap for children.
• Keep the appliance and its power cable out of reach of children less than 8 years old.

General safety

• CAUTION — This appliance is designed for home use.
• CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they could leak or release fluids.
• CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a qualified retailer, in order to avoid any risk of electric shock.
• CAUTION — Keep the ventilation openings well open and ensure that air can circulate, especially if the appliance is recessed into a wall.
• CAUTION — Do not damage the refrigerating circuit.
• CAUTION — Do not use electrical appliances inside the compartment, unless they are tolerated by the manufacturer.

Refrigerating fluid

The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable.

Caution: Fire risk

If the refrigerating circuit is damaged:

• Avoid open flames or any source of combustion.
• Ensure that the room in which the appliance is installed is well ventilated.

It is dangerous to change the specification of the appliance in any way whatsoever.

Damage to the power cable may cause a short circuit and/or electric shock.

Electrical safety

• We decline any liability in respect of incidents caused by poor electrical installation.

• Do not extend the power cable. Do not use an extension cable, or adapter, or multi-way socket.

• Check that the wall socket is not damaged. A wall socket in poor condition may cause the appliance to overheat and explode.

• Check that the wall socket used for the appliance is properly accessible.

• Never pull on the main power cable.

• Ensure that the appliance is always electrically earthed.

• If the wall socket is loose, do not connect the cable, as there is a risk of electric shock or fire.

• Do not use the appliance if the interior lighting cover is not installed.

• Disconnect the appliance before replacing the lighting bulb.

• The appliance operates on a single phase 220 240V / 50Hz power supply. The appliance must be connected to an earthed wall socket, in accordance with applicable recommendations.

• Do not attempt to replace a damaged power cable, contact your after-sales service.

• The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician.

Daily utilisation

• Do not store inflammable substances or fluids inside the appliance. This would create a risk of explosion.

• Do not operate other electrical equipment inside the appliance (mixers, whirling rotor for ice cream, etc.).

• When disconnecting the appliance, grip the plug firmly and do not pull on the cable.

• Do not expose the appliance to direct sunlight.

• Keep the appliance away from candles, luminaires and open flames, in order to avoid fire risk.

• This appliance is only designed for the wine storage and beverage.
• The appliance is heavy. Be careful when moving it.
• If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.
• Do not lean or climb on the appliance or its elements.
• In order to avoid falling objects and to prevent damage to the appliance, do not overload the compartments of the appliance.

Caution! Cleaning and servicing

• Before carrying out servicing, switch off the power supply and disconnect the appliance.
• When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.
• Do not use sharp or pointed objects to remove ice. Use a plastic scraper.

Important information concerning installation!

• To ensure proper electrical connection, follow the recommendations given in the present manual.
• Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.
• It is recommended that the appliance be allowed to settle for at least 4 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.
• Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided.

• In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.

• The appliance should not be placed close to radiators or cooking hot plates or gas rings.

• Check that electrical sockets remain accessible when the appliance is installed.

POWER SAVING

To limit the electricity consumption of your appliance:

• Install it in an appropriate place (see "Installing your appliance").
• Leave the doors open as little time as possible.
• Do not put food that is still hot into the appliance.
• To ensure that the appliance operates properly, clean the condenser regularly (see "Routine servicing of your appliance").
• Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

Trouble shooting

• Any electrical work should be carried out by a qualified and skilled technician.
• The appliance should be repaired by an accredited repair centre, using only manufacturer's original spare parts.

The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other utilisation.

R600a

Safety instructions

Caution: Do not obstruct the ventilation grills on the appliance.

Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance.

Caution: Do not damage the refrigerating circuit in the appliance.

Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification plate.

Caution: Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance meets the requirements of all applicable European directives and their amendments, and notably complies with the following standards:

1907/2006 (REACH)

2011/65/EU (ROHS)

2006/95/EC relating to electrical safety

2004/108/EC relating to electro-magnetic compatibility

2008/48 relating to electro-magnetic fields

2010/30 and 1060/2010 relating to energy labels

2005/32/EC relating to eco-design requirements

PROTECTION OF THE ENVIRONMENT

The packaging materials with this appliance may be recycled.

Contribute to their recycling and to the protection of the environment by depositing them in the specific municipal containers provided for this purpose.

Your appliance also contains many materials that can be recycled. It therefore bears the logo that informs you that scrapped appliances should not be mixed with other waste. Thus, the appliance will be recycled by the manufacturer, under optimum conditions, in compliance with European directive 2002/96/EC relating to Waste Electrical and Electronic Equipment. Contact your local municipal offices or your retailer, to identify the nearest collection points for scrapped appliances. Thank you for helping to protect the environment.

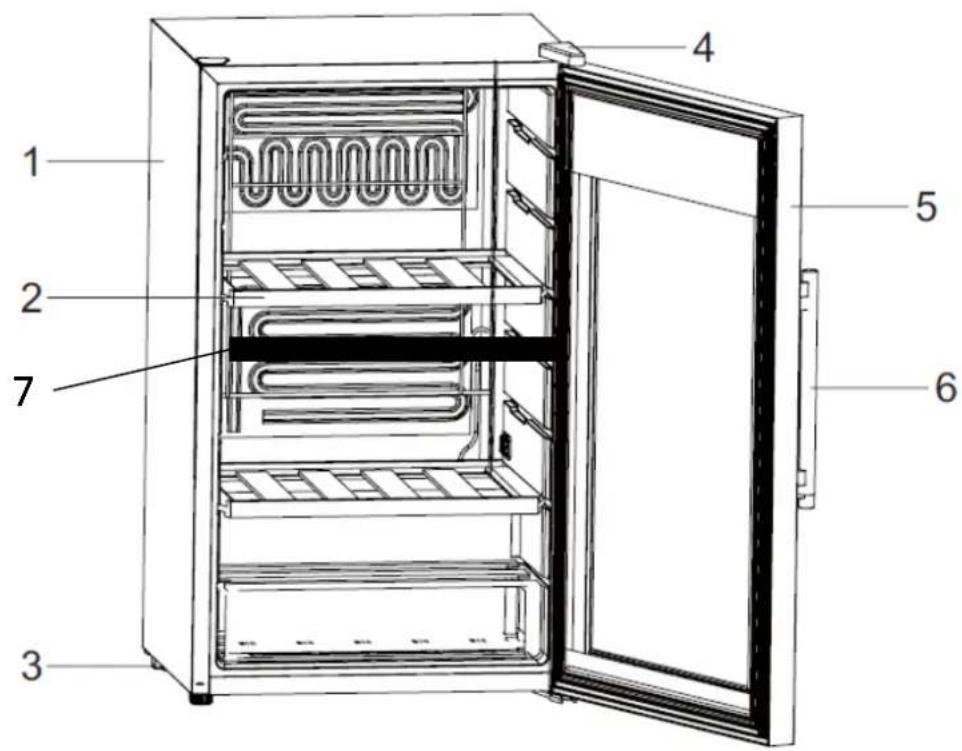

PARTS & FEATURES

1:BODY
2:SHELVES
3:FEET
4:HINGE
5:GLASS DOOR
6:HANDLE
7.SEPARATION ZONE

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

·Read all instructions before using the cellar. ·DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will "just sit in the garage a few days". ·Before you throw away your old cellar: Take off the door. Leave the shelves in place so that children may not easily climb inside. ·Never allow children to operate, play with, or crawl inside the appliance. ·Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. ·Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. ·Do not repair or replace any part of the cellar or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type. -Save these instructions-

INSTALLATION INSTRUCTIONS

> Before Using Your cellar

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts: 3 wooden shelves and 1 wooden bottom support
• Clean the interior surface with lukewarm water using a soft cloth.

> Installation of Your cellar

This cellar is designed to be free standing installation only, it's better not built in.
- Place your cellar on a surface that is strong enough to support it when it is fully loaded.
- Allow 5 inches of space between the back and sides of the cellar, which allows the proper air circulation to cool the heat sink.
- Locate the cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
- This cellar uses superconductor refrigeration technology (no compressor) and is not designed for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a maximum of 30 degrees below the ambient temperature.
- Avoid locating the unit in moist areas.
- Plug the cellar into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.
After plugging the cellar into a wall outlet, allow the unit to cool down for 2-3 hours before placing any items in the compartment.

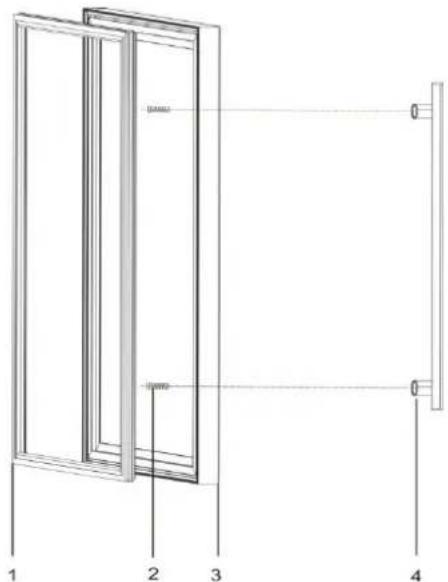

> Installation of the handle

1. GASKET
2. SCREW
3. DOOR

4. HANDLE

5. OPEN THE DOOR

6. TAKE OUT A PART OF GASKET
7. ALIGN THE TWO HOLES OF THE HANDLE WITH THE HOLE ON THE DOOR
8. INSTALL THE TWO SCREWS
9. FINISHED

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

This appliance should be properly grounded for your safety.

This appliance requires a standard 220 Volt AC / 50Hz electrical ground outlet. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

OPERATING YOUR CELLAR

It is recommended you install the cellar in a place where the ambient temperature is between 16 and 32^ . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 8^ - 18^ / 46^ - 65^ may not be reached.

Temperature Ranges For Your cellar

Upper temperature range	5-14°C
Upper temperature range	12-18°C

Control panel lock

Your wine cooler is equipped with an automatic control panel lock function. This function will prevent any unwanted changes to your temperature or power settings. The lock function will activate automatically 12 seconds after the last time a button is pushed on the control panel.

To unlock the control panel lock, press and hold both the and buttons for 3 seconds the control panel will beep and blink once indicating that the control panel is active and the settings can be changed. You must unlock the control panel every time you want to set the temperature, change the display setting ( ^ - ^ ) and turn on or off the light.

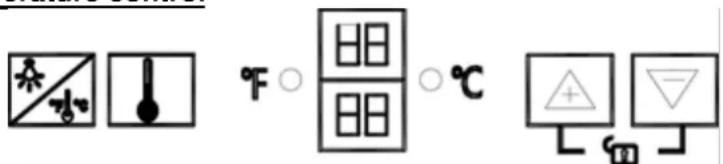

Setting the temperature control

You can select temperature display setting from Fahrenheit to Celsius degree by holding the button for 3 seconds. Fahrenheit or Celsius degrees indicator will appear in green color in the temperature display window.

The temperature range of lower zone is 12^ - 18^ (54-65°F) which is suitable for storing white and red wines. The temperature range of upper zone is 5^ - 14^ (41-57°F) which is suitable for storing sparkling and white wines.

If you desire to change the temperature, set the temperature as you desire by touching the button. Touch the button once to select the lower zone and once more to select the upper zone. The numbers in the display window will flash. The temperature that you desire to set will increase 1^ or 1^ if you touch the button once; on the contrary the temperature will decrease 1^ or 1^ if you touch the button once.

When you store mostly red wines, the temperature which you control by touching the above two buttons need to be set at 15^ - 18^ (59°C-65°F).

When you store mostly white wines, the temperature needs to be set at 9^ - 14^ (48^ - 57^) When you store mostly sparkling wines, the temperature needs to be set at 5^ - 8^ (41^ - 46^)

The temperature inside the unit will be appeared in blue color in the display window.

NOTE: If the unit is unplugged, if the power is lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the wine cooler will not start.

When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine cooler is running for a few hours everything will be back to normal.

Interior light

To turn the interior light ON or OFF, press the button. The light will be turned off automatically if it remains ON for 10 minutes. To turn it on again, press the button again and the light will turn back on.

CARE AND MAINTENANCE

> Cleaning Your cellar

• UNPLUG the cellar, and remove all items including shelves.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

CAUTION

Failure to unplug the cellar could result in electrical shock or personal injury.

Power Failure

• Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

> Moving Your cellar

• Remove all products.
• Securely tape down all loose items (shelves) inside your appliance.
• Tape the door shut.
• Protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

• The cellar should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• One characteristic of superconductor units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for this type of unit.

> Change the LED light

Please contact the after sales of you seller

PROBLEMS WITH YOUR CELLAR?

You can solve many common cellar problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Cellar does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Control panel is locked	Push the ④ and ⑦ button simultaneously for 3 seconds to unlock the control panel.Wait for beep sound.
The cellar is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The cellar does not have the correct clearances.Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The light button is “OFF”.
Vibrations.	Check to assure that the cellar is level.
The door will not close properly.	The cellar is not level.The door was not properly installed.The gasket is dirty.The shelves are out of position.
Désignation
Marque / Trade mark/marke	LA SOMMELIERE
Référence du modele / Model reference/ Modellreference	LS34.2Z
Catégorie du modele d'appareil de réfrigération / Category of the household refrigerating appliance model/ Kategorie des Kühlgérätsmodells	2
Classe d'efficacité energetique / Energy efficiency class/ Energieeefizienzklasse	D
Consommation d'énergie en kwh/an/ energy consumption (kwh/year)/ Energieverbrauch	278
Consommation d'énergie calculée sur la base du résultat obtenu pour 24 heures dans des conditions d'essai normalisées. La consommation d'énergie réelle dépend des conditions d'utilisation et de l'emplacement de l'appareil. / Energy based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located./ Energieverbrauch von pro Jahr gegrundet auf das erreichtes Ergebnis für 24 Stunden in genormten Testbedingungen. Der tatsächliche Stromverbrauch hangt von den Benutzungsbedingungen und der Stelle des Geräts ab.
Volume utile total / Total storage volume/ Gesamter Nutzinhalt	34 BOUTEILLES (bordelaises légères)
Température de stockage la plus froide / Coldest storage temperature/ Kälteste Lagerungstemperatur	5°C
Classe climatique: « N » / Climate class: 'N Cét appeil est donc pouy être utilisé à une température ambiente comprise entre "16" [température la plus BASSE] °C et "32" [température la plus haute] °C. / This appliance is intended to be used at an ambient temperature between "16" [lowest temperature] °C and "32" [highest temperature] °C / Dieses Gerät wurde konzipiert, um bei einer Raumtemperatur zwischen "16" [niedrigste Temperatur] °C und "32" [höchste Temperatur] °C benutzt zu werden.
Émissions acoustiques dans l'air / Airborne acoustical noise emissions/ Luftschallemission	42 DB (A)
Intégrable / Built-in / Einbaubar	NON

Catégories d'appareils de réfrigération menagers	Household refrigerating appliances categories	Kategorie von den Haushaltskühlgäraten
1. Réfrigerateur comportant un ou plusieurs compartments de stockage de denrées alimentaires fraîches	1. Refrigerator with one or more fresh-food storage compartments	1. Kühlschrank mit einem oder mehrere Lagerungsfächer für frische Lebensmittel
2. Réfrigerateur avec compartment cave, cave et apparéil de stockage du vin	2. Refrigerator-cellar, Cellar and Wine storage appliances	2. Kühlschrank mit einem Fach für den Wein, Weinkühler und Gerät für die Weinlagerung
3. Réfrigerateur avec comportment pour denrées hautement périssables et réfrigerateur avec comportment sans étoile	3. Refrigerator-chiller and Refrigerator with a 0-star compartment	3. Kühlschrank mit einem Fach für sehr leichtverderbliche Lebensmittel und Kühlschrank mit einem Fach ohne Stern
4. Réfrigerateur avec comportment «une étoile»	4. Refrigerator with a one-star compartment	4. Kühlschrank mit einem Ein-Sterne-Fach
5. Réfrigerateur avec comportment «deux étoiles»	5. Refrigerator with a two-star compartment	5. Kühlschrank mit einem Zwei-Sterne-Fach
6. Réfrigerateur avec comportment «trois étoiles»	6. Refrigerator with a three-star compartment	6. Kühlschrank mit einem Drei-Sterne-Fach
7. Réfrigerateur-congélateur	7. Refrigerator-freezer	7. Kühlschrank-Gefrierschrank
8. Congélateur armoire	8. Upright freezer	8. Gefrierschrank
9. Congélateur coffre	9. Chest freezer	9. Gefriertrühe
10. Appareils de réfrigération polyvalents et de type autre	10. Multi-use and other refrigerating appliances	10. Mehrzweckkühlgéräte und andere Kühlgéräte

La Sommelière Int.

143 boulevard Pierre Lefauchex

72230 Arnage - France.
