USER MANUAL TR3V181 LA SOMMELIERE

Technical diagram of a refrigerator with numbered components and labeled parts

Diagram of a refrigerator internal structure with numbered compartments and labeled storage areas

SET LOWER CHAMBER °C °F RUN UPPER CHAMBER °C °F SET LIGHT °C/°F ON/OFF

LIGHT °F/°C SET LOWER CHAMBER MIDDLE CHAMBER + = ON/OFF 88 °C *F 88

Technical line drawing of a multi-level rack cabinet or storage unit (no text or symbols)

Technical diagram showing four layout arrangements with numbered compartments and labeled components, likely for architectural or mechanical design.

Pure technical line drawing of a grid layout without any text, numbers, or symbols

Isometric line drawing of a grid of cylindrical objects arranged in three rows (no text or symbols)

Diagram showing numbered vertical columns with horizontal lines and a numbered top section, likely representing a schematic or layout.

mall s1

Simple line drawing of a rectangular frame with mounting holes and a small circular mark, labeled 'Figure 6' (no text or symbols on the diagram itself)

Figure 7

Figure 8

Figure 9 Figure 10 Figure 11

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location. Do not move your Cabinet while loaded with wine. You might distort the body. The wine Cooler should be installed in a suitable place in order to avoid Touching the compressor with the hand.
• If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a similarly qualified person in order to avoid a hazard.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the Wine Cooler.DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine Cooler: Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Wine Cooler

• Remove the exterior and interior packing.
• Before connecting the Wine Cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Wine Cooler

• This appliance is designed to be for free standing installation or built-in (fully recessed) (Refer to sticker location the back of this appliance).
• Place your Wine Cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine Cooler, adjust the front leveling leg at the bottom of the Wine Cooler.

- Locate the Wine Cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

- Avoid locating the unit in moist areas.

- Plug the Wine Cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

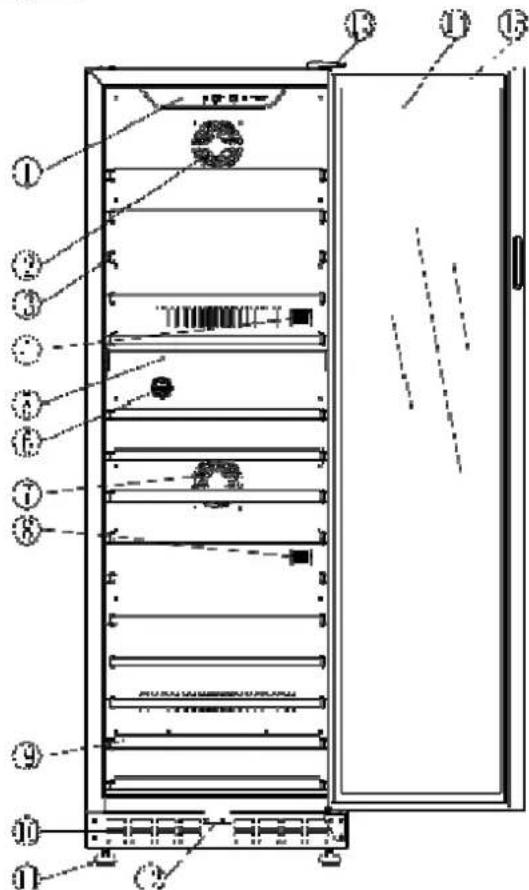

TR2V121 series structure diagram:

Technical diagram of a server rack cabinet with numbered components and labeled parts

(1)Control Panel (2)Ventilation Fan (3)Full Wooden Shelf (4)Sensor (5)Baffle Plate (6)Active Carbon Filter (7)Ventilation Fan (8)Sensor (9)Small size wooden Shelf (10)Ventilation Base (11)Adjustable Feet (12)Latch Hook (13) Upper Hinge (14)Glass door (15)Door Seal

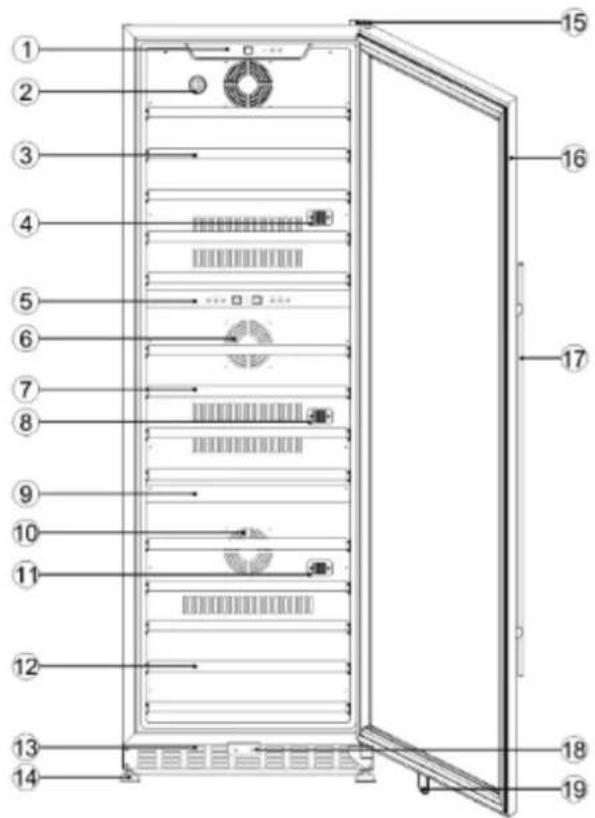

Diagram of a refrigerator internal structure with numbered compartments and labeled storage areas

(1)Control Panel (2)Active Carbon Filter (3)Big Wooden Shelf (4)Sensor (5)Baffle Plate(6) Middle Ventilation Fan (7)Big Wooden Shelf (8)Sensor (9) Baffle Plate (10)Lower Ventilation Fan (11)Sensor(12) Small Wooden shelf(13) Ventilation Base (14) Adjustable Feet (15)Upper Hinge (16) Door Seal (17)Glass door(18) Lock Keeper (19)Lock Hook

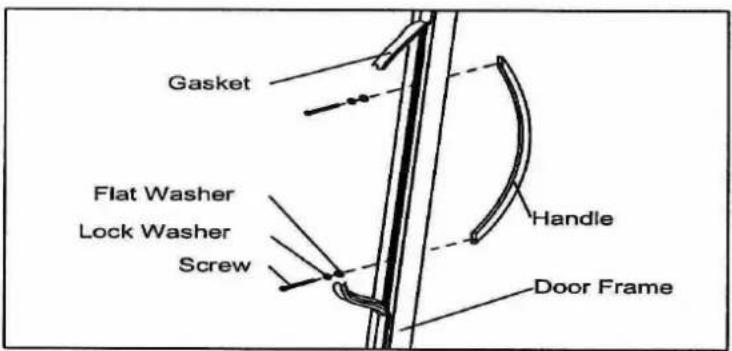

Installing Stainless Steel Handle

This wine cooler includes a stainless steel handle that is required to operate this unit. To install the handle please follow the below instruction:

Pull away the door gasket in the area where the handle is to be installed – you can see two designated holes for handle installation. The gasket is easily displaced by hand, no tools are necessary.

Install the handle tightly as shown below with the two screws. Lock washers and flat washers provided. (DO NOT over tighten as this will cause damage to the handle assembly and stainless steel surface of glass door).

Replace the door gasket to its original position.

Gasket Flat Washer Lock Washer Screw Handle Door Frame

The Wine Cooler should be placed in where the ambient temperature is between 40-95 degrees Fahrenheit(5-35°C). If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees Fahrenheit (5-18°C) may not be reached.

The above temperatures may fluctuate depending on whether or not the interior bulb is ON or OFF or whether the bottles are located on the upper/middle or lower section.

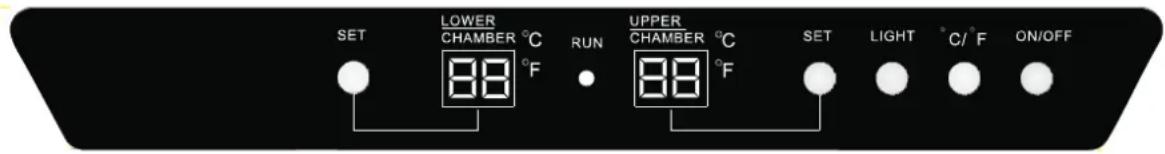

TR2V121Control Panel:

SET LOWER CHAMBER °C °F RUN UPPER CHAMBER °C °F SET LIGHT °C/°F ON/OFF

◎ Display Windows

- RUN light: Indicator light of compressor working. While the compressor operating, the red light is on. While it stops operating, the red light is off.

- UPPER CHAMBER: Display of the actual temperature of the upper chamber. The range is 0°C\~37°C or 32°F\~99°F.

- LOWER CHAMBER: Display of the actual temperature of the lower chamber; The range is 0°C\~37°C or 32°F\~99°F.

- °C°F light: When the °C light is on, it indicates Celsius temperature; When the °F light is on, it indicates Fahrenheit temperature.

◎ Button Operation

- SET Button of the upper chamber: Temperature setting button; Once you press the button, the temperature increase 1°C or 1°F. Setting range is between 5°C\~12°C or 41°F\~54°F.

- SET Button of the lower chamber: Temperature setting button; Once you press the button, the temperature increase 1°C or 1°F. Setting range is between 12°C\~22°C or 12°C-18°C according to your model, or 54°F\~72°F.

- LIGHT Button: Cabinet light control button; Note: Once the light is turned on, it will automatically off after 10 minutes all out of protecting the wines inside.

• °C/°F Button: Celsius and Fahrenheit conversion button;
• ON/OFF button: Power on and off button; Press the button, it starts; press it again, it stops.

Note: This series of wine coolers has its delay protection function. The compressor will start to work about 3 to 5 minutes after it is power connected or powered off. Please use the wine cooler under the N type of climate. The temperature inside the cabinet will fluctuate and influence the refrigerating effect if the surrounding temperature is too high or too cold.

TR3V181 Control Panel :

88 RUN + -

(Upper Control Panel)

◎ Display Windows

- RUN light: Indicator light of compressor working. While the compressor operating, the red light is on. While it stops operating, the red light is off.

◎ Button Operation

- SET Button: Temperature setting button; Once you press the button, the temperature increase 1°C or 1°F. Setting range is between 5°C\~22°C or 12°C-18°C according to your model or 41°F\~72°F.

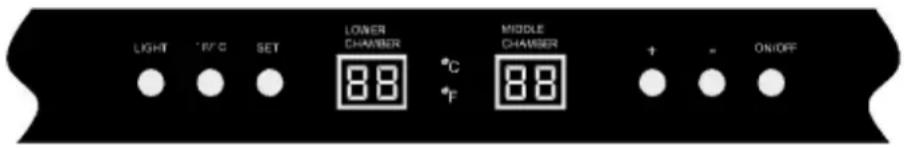

LIGHT 10°C SET LOWER CHAMBER MIDDLE CHAMBER + ON/OFF 88 °C °F 88

(Lower Control Panel)

◎ Display Windows

- RUN light: Indicator light of compressor working. While the compressor operating, the red light is on. While it stops operating, the red light is off.

- UPPER CHAMBER: Display of the actual temperature of the upper chamber. The range is 0°C\~37°C or 32°F\~99°F.

- LOWER CHAMBER: Display of the actual temperature of the lower chamber; The range is 0°C\~37°C or 32°F\~99°F.

- °C°F light: When the °C light is on, it indicates Celsius temperature; When the °F light is on, it indicates Fahrenheit temperature.

◎ Button Operation

• SET Button of the upper chamber: Temperature setting button; Once you press the button, the temperature increase 1°C or 1°F. Setting range is between 5°C\~12°C or 41°F\~54°F.
• SET Button of the lower chamber: Temperature setting button; Once you press the button, the temperature increase 1°C or 1°F. Setting range is between 12°C\~22°C or 12°C-18°C according to your model, or 54°F\~72°F.
• LIGHT Button: Cabinet light control button; Note: Once the light is turned on, it will automatically off after 10 minutes all out of protecting the wines inside.
• °C/°F Button: Celsius and Fahrenheit conversion button;
• ON/OFF button: Power on and off button; Press the button, it starts; press it again, it stops.

Note: This series of wine coolers has its delay protection function. The compressor will start to work about 3 to 5 minutes after it is power connected or powered off. Please use the wine cooler under the N type of climate. The temperature inside the cabinet will fluctuate and influence the refrigerating effect if the surrounding temperature is too high or too cold.

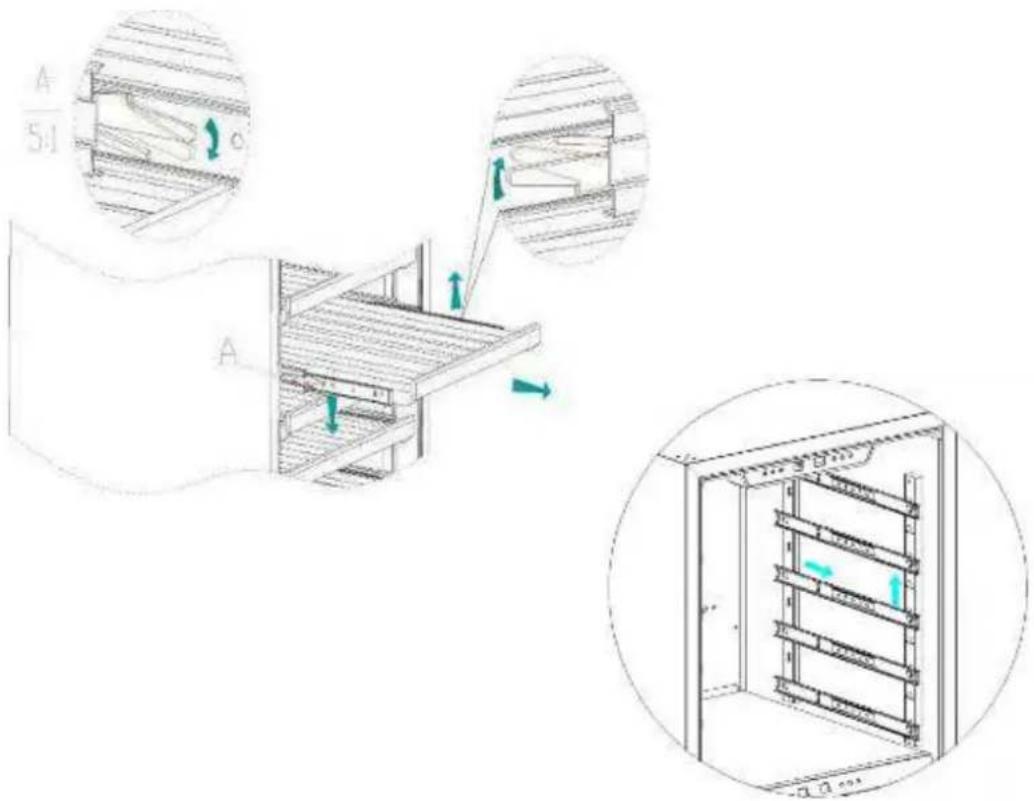

Shelf Change

Do as the following shows if needing to pull out or change the shelves;

Technical diagram showing structural changes in a storage or rack system with labeled components and directional arrows

Firstly take out all the wines from the shelves and pull shelf out to the limit. Then press down the left limit of sliding rail and meanwhile press up the right one, pull the shelves out at this time. It could be easily pulled out if doing the three steps (Press down left limit, press up the right one and pulling out) at the same time.

Secondly Push-up the sliding rail, make the front hook out of the shelf bracket, then just need pull the sliding rail outward. It could be easily pulled out the shelf bracket as this . On opposite steps for installation

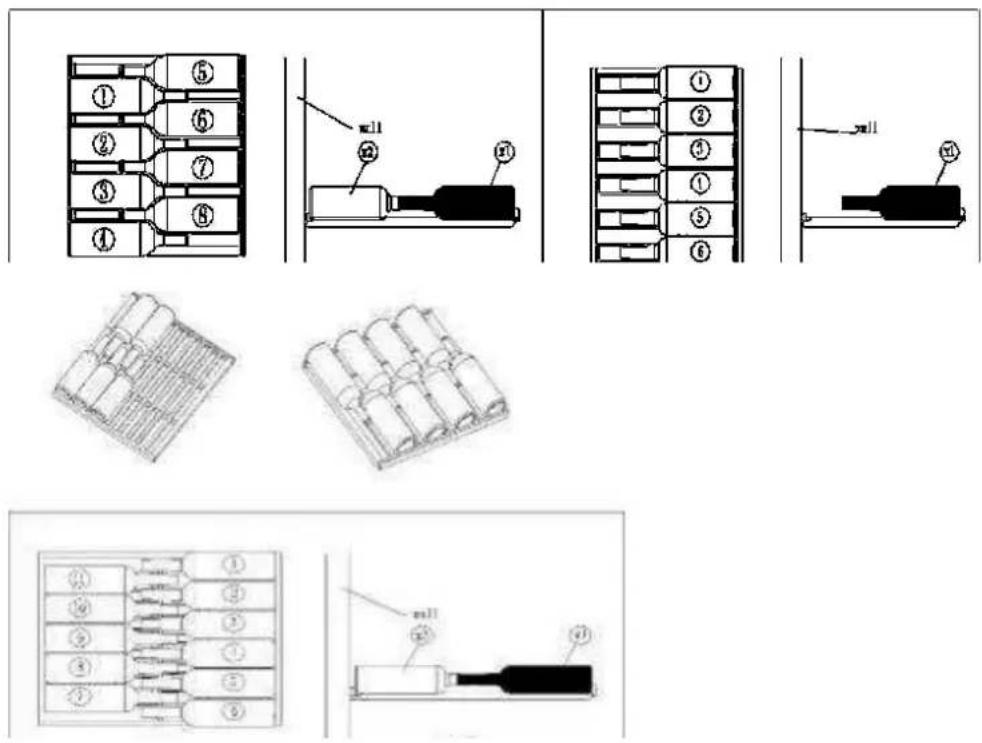

- Placement and storage of wines

Several common layouts of wines:

Your cabinet was designed to store a maximum number of bottles in total security.

The wines are kindly advised to layout equally.

The best temperature for red wines is 11-18°C; For white wines is 6-12°C;

The temperature range of our wine coolers could set between 5-22°C or 12°C-18°C according to your model.

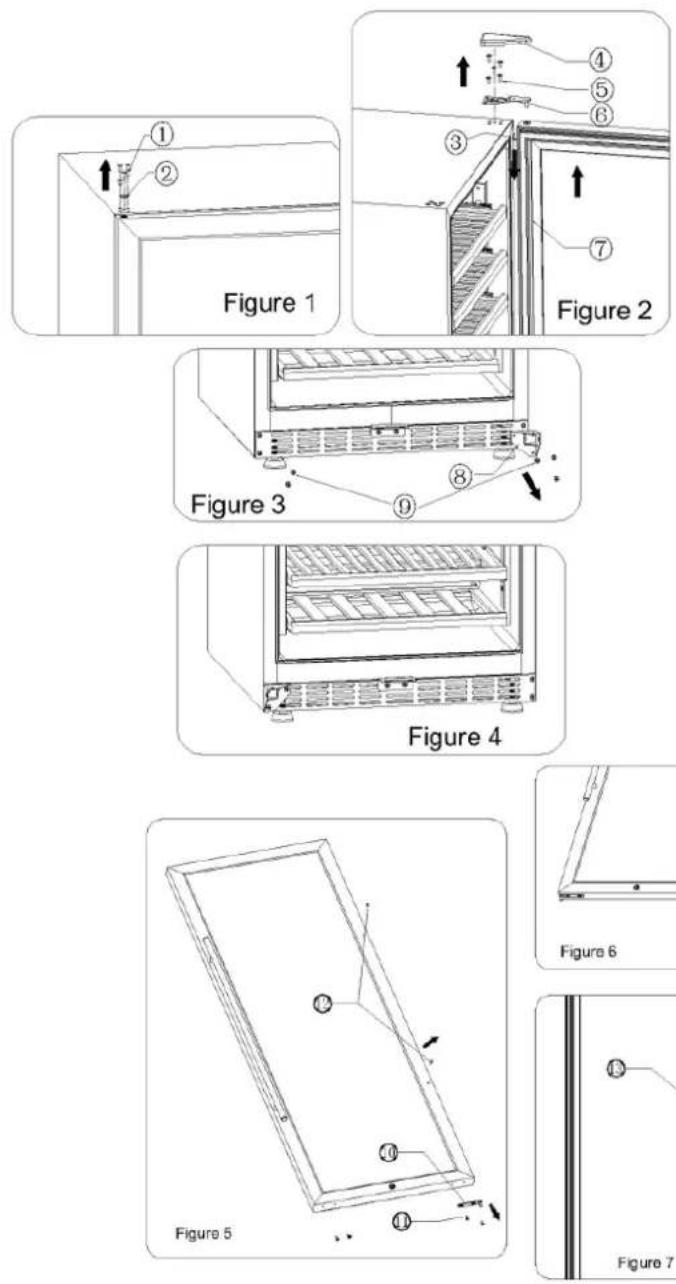

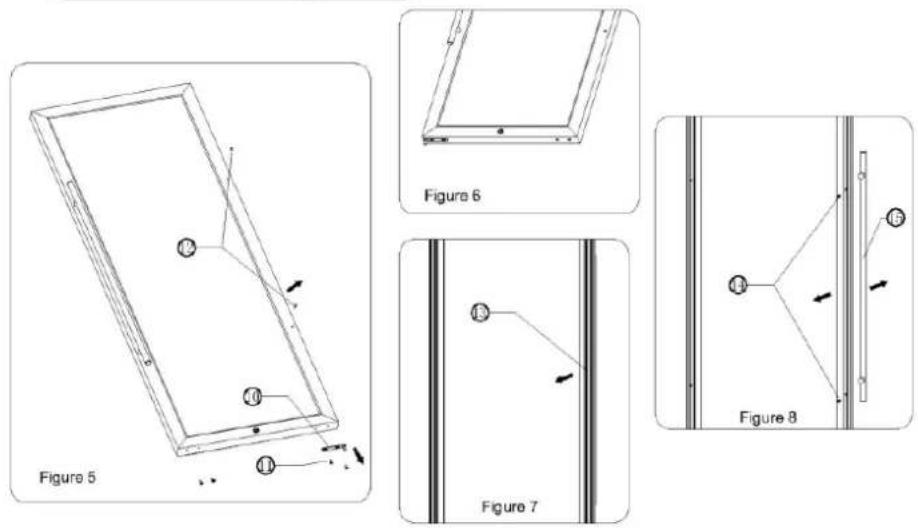

◎ Reversing the door swing of your appliance

The unit is delivered to you with the door opening from the left side (hinge on right side). The door of this appliance is capable of opening from either the left or right side. To reverse the door swing of your cooler and open from the right side, please follow the instructions and diagram as follows.

Figure 5 Figure 6 Figure 7 Figure 8

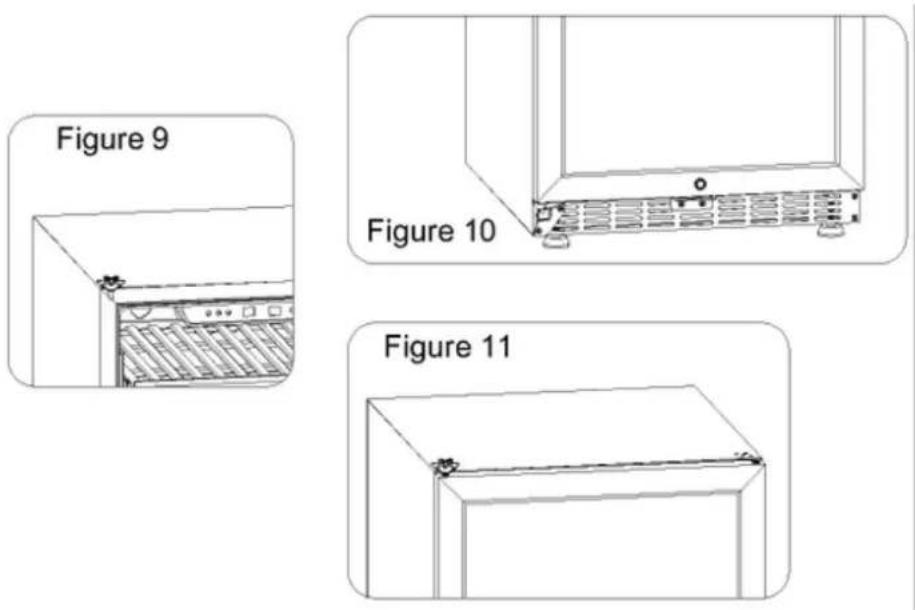

Figure 9 Figure 10 Figure 11

NOTE: All parts removed must be saved to allow the door swing to be reversed

1. Use the sharp tools to pry open the decoration nail on the top of the cabinet and the cap of door spindle carefully. (Fig 1)
2. Open the door to an angle, unscrew the screw of the door hinges cover, remove the cover of the upper door hinge; then unscrew all the screws on the upper door hinge. Be careful to hold the glass door firmly after removing the screw and take off the door.

(Fig 2)

1. Remove the screw of lower door hinge and the left side screw of the front vent (Fig 3); and then install the lower door hinge at the designated position on the opposite side (Fig 4).
2. Remove the screw of door handle, then remove the bottom screw of left side of the door and remove the lower supporter of the door.(Fig 5); Install the lower support of the door to the opposite side.(Fig 6).

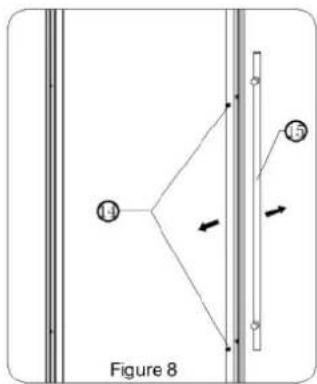

3. Pull open middle section of the door gasket, then it will come out the handle screw hole.(Fig 7); remove the handle and install it on the opposite side.(Fig 8)
4. Install the upper door hinge to the opposite side and tighten the screws. (Fig 9)
5. Set glass door shaft to aim the shaft of lower door hinge (Fig 10); and then aim the upper door hinge (Fig 11); adjust the door and the cabinet is aligned and leveled, then tighten all the lock screws.
   You also can call customer service for reversal instructions if it is necessary.

Door Lock

Your unit is provided with a lock and key combination.

The keys are located inside the plastic bag that contains the User's Guide. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.

Temperature Alarm

When the temperature of the cabinet higher than 26°C, The control panel will display "HH"; When the temperature of the cabinet is lower than 0 °C, The control panel will display "LL".

CARE AND MAINTENANCE

➢ Cleaning Your Wine Cooler

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

➢ Vacation Time

• Short vacations: Leave the Wine Cooler operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Wine Cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

- The Wine Cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

PROBLEMS WITH YOUR WINE COOLER?

You can solve many common Wine Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine Cooler does not operate.	Not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough. Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
Turns on and off frequently. The room temperature is hotter than normal.A large amount of contents has been added to the wine cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is “OFF”.
Vibrations. Check to assure that the Wine Cooler is level.
The Wine Cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine Cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine Cooler is not level.
The door will not close properly.	The Wine Cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.
