TRV2402Z - Fridge LA SOMMELIERE - Free user manual and instructions

Product Type	Wine cellar (wine refrigerator)
Brand	La Sommelière
Model	TRV2402Z
Approximate capacity	24 bottles
Dimensions (H x W x D)	82 x 60 x 50 cm
Weight	35 kg
Electrical supply	220-240 V, 50 Hz
Climate class	N (ambient temperature 16°C to 32°C)
Annual energy consumption	Approximately 150 kWh/year
Noise level	Approximately 40 dB
Number of temperature zones	2 zones (upper and lower)
Temperature range	5°C to 20°C (adjustable)
Lighting	Interior LED, permanent or on door opening
Active carbon filter	Yes, annual replacement
Shelf type	Sliding wooden shelves on adjustable supports
Door	Reversible glass door (except full door models with lock)
Door reversibility	Yes, possible from right to left
Alarms	Door open, abnormal temperature, circuit fault, filter change, low humidity
Hygrometry display	Yes, humidity level displayed on request
Winter function (heating)	Yes, maintains temperature if ambient is colder
Adjustable feet	Yes, for leveling
Maintenance	Dust the condenser twice a year; change the carbon filter every year
Repairability	Contact the distributor or after-sales service technician; do not repair yourself
Safety	Keys out of reach of children; do not let children climb

Frequently Asked Questions - TRV2402Z LA SOMMELIERE

How do I adjust the temperature of my La Sommelière TRV2402Z wine cellar?

Press the Set button to select the zone (upper or lower). The temperature flashes, use the + or - buttons to adjust, then press Set to confirm. Wait 8 seconds for the display to return to the actual temperature.

What to do if the temperature alarm goes off?

The audible alarm sounds every 10 seconds if the temperature is abnormal. Press any key (+, - or Set) to stop the alarm. Check that the door is closed properly and that the cellar is not in direct sunlight or near a heat source.

How do I change the active carbon filter?

The carbon filter is located in the ventilation opening at the top of the cellar. Remove the old filter and insert the new one. After replacement, press the Set button for 5 seconds to reset the lifespan. The filter must be changed every year.

Why is my wine cellar not cooling enough?

Check that the set temperature is not too high. Ensure the door closes properly and the gasket is not damaged. If the problem persists, clean the condenser (at the back) and leave at least 8 cm of space between the wall and the appliance for proper ventilation.

Can I reverse the door opening direction?

Yes, on most models (except full door with lock). Follow the steps: remove the plugs, unscrew the top hinge, remove the door, reverse the closing clip and door pivot, then reassemble. Refer to the manual for detailed diagrams.

What does the flashing symbol mean?

The symbol can indicate several alarms: door open (>15 min), abnormal temperature, hot/cold circuit fault, or carbon filter needs changing. Consult the manual to identify the exact symbol.

How do I turn on the LED lighting permanently?

Press the Set button for 5 seconds. The display shows EcL. If E_cl appears, the lighting only turns on when the door opens. If only _cl appears, the lighting is permanent. Use the + or - buttons to change the mode, then press Set to confirm.

How do I display the humidity level in the cellar?

Press the + and - buttons simultaneously for 5 seconds. The screen then displays the relative humidity percentage. The display returns to the temperature after a few seconds.

What to do if the compressor does not start?

Check that the appliance is plugged in and the circuit breaker has not tripped. After powering on, the compressor may take up to 3 minutes to start. If nothing happens, contact after-sales service.

How do I maintain my wine cellar?

Dust the condenser at the back at least twice a year. Change the carbon filter every year. Clean the interior with a soft cloth and soapy water. Never use steam cleaners or abrasive products.

USER MANUAL TRV2402Z LA SOMMELIERE

This product is only for wine storage

1. Cabinet case

2. Control and adjustment panel

3. LED lights

4. Carbon filter

5.Wooden shelf

7.adiabatic board

1. adiabatic bar

2. Bottom grid

3. Plinth

4. Adjustable leveling

12.Hinge

1. Glass door

2. Temperature probes

3. Shelf bracing hook

4. Bottom pivot guide

Note: If your product is without lock, there is no closing clip (6)

2. PLACE YOUR CABINET

(6) When moving your wine cabinet, do not incline it more than 45^ , and always toward side where the power lead is located.
(7) In order to reduce the working time and save power, place your cabinet at where the temperature is between 5^ 38^ , and there should be space to allow air to flow around the cabinet, so the heat produced by condenser can be eliminated in time. Leaving a space of at least 8cm between the wall and the back of your wine cabinet. Please keep your wine cabinet away from other domestic appliances like fridge, electric welding machine to avoid interference.
(8) Away from heat source.
(9) Place at proper humidity location. Not too wet (wash room, utility room, etc.). Never place your wine cabinet in a location liable to flooding.
(10) Be on a flat solid floor. Gently incline the wine cabinet backwards in order to adjust the front feet (screw adjustment) so that your wine cabinet stands at perfect level.

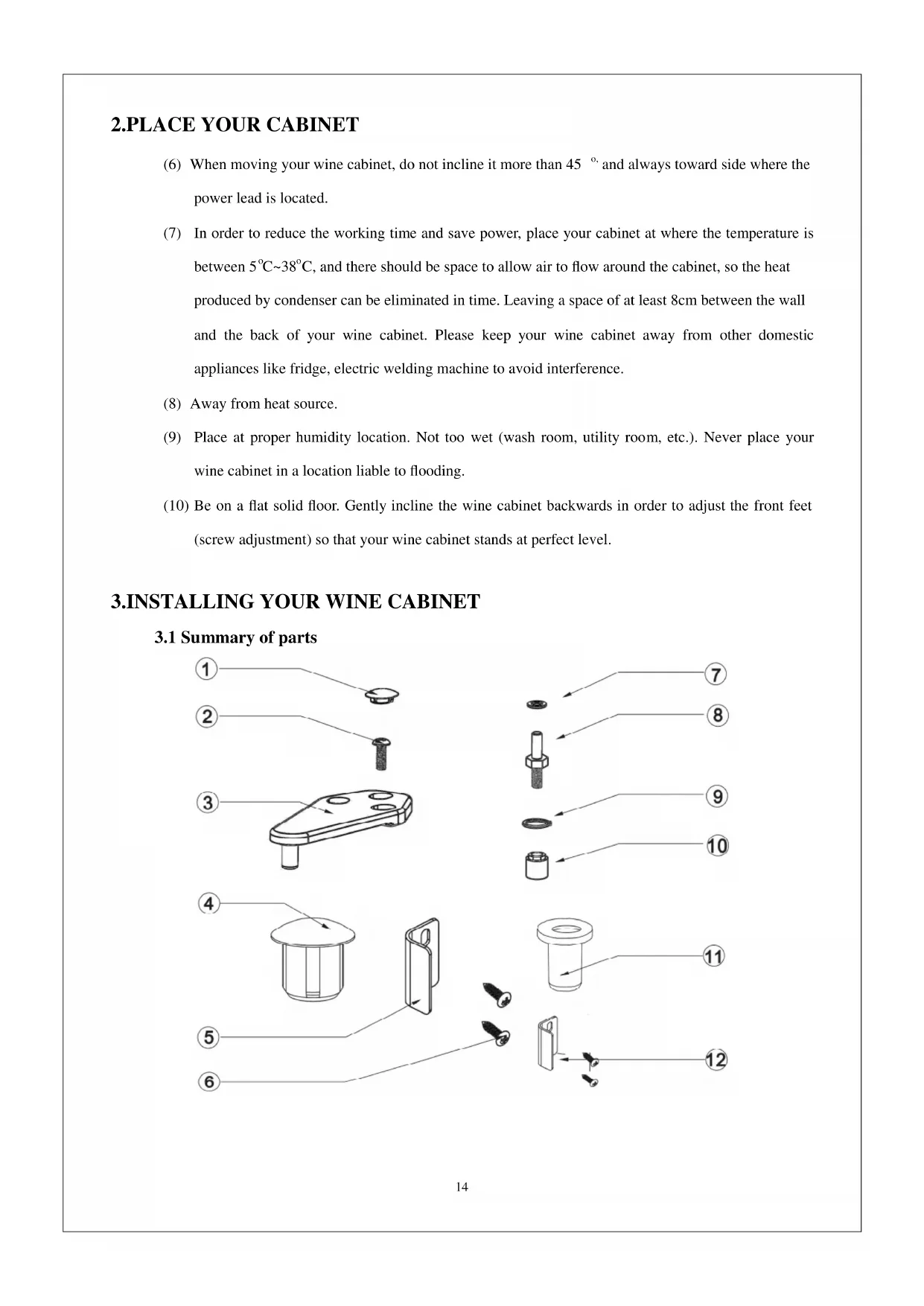

3.INSTALLING YOUR WINE CABINET

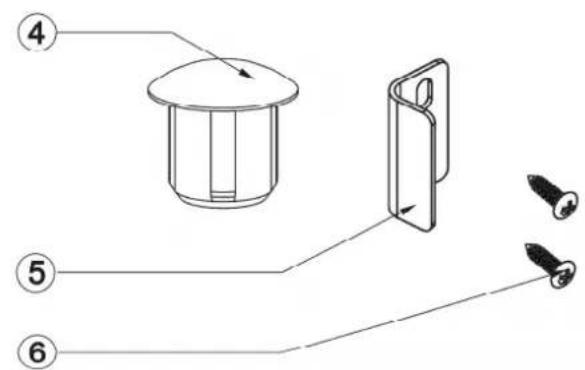

3.1 Summary of parts

1. Grommet

2. Screw

3. Top hinge

4.Grommet

1. Closing clip

2. Phillips screw

3. Washer

4. Door pivot guide

5. Washer

6. Hinge nut 11. Pivot

7. Grommet

8. Handle of door

9. Chamfer head screw

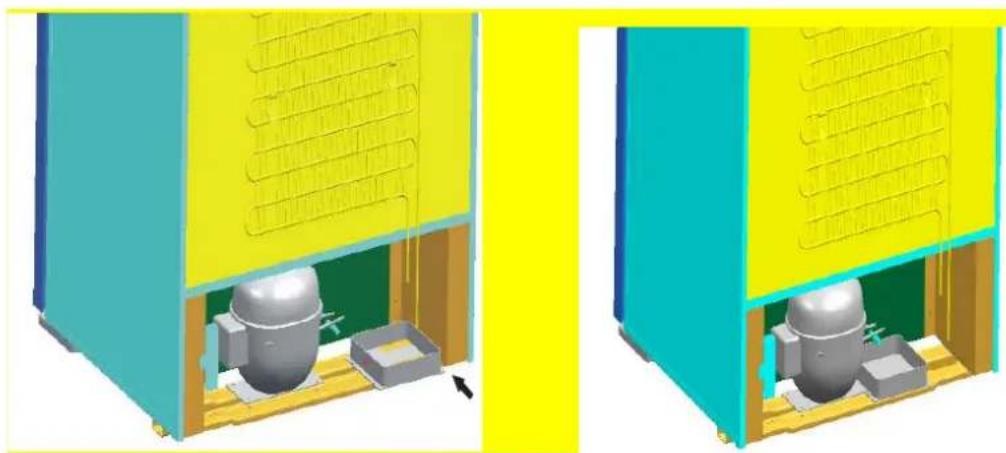

3.2 Installing the drip tray

Install the drip tray on the compressor support at the back of the cabinet, locating it under the small pipe protruding from the housing, the lower part of the tank being placed under this pipe. See diagram below:

Installing the drip tray

3.3 Installing the carbon filter

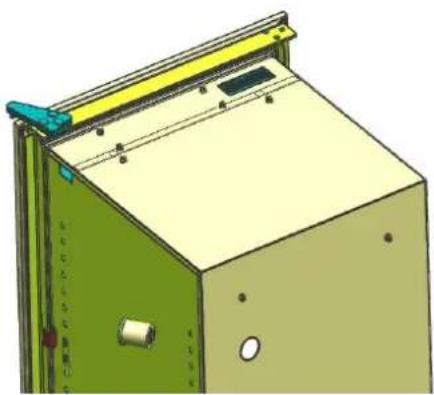

Install the carbon filter, which you will find inside your cabinets, by placing it in the air circulation hole located on the top inside the cabinet. The carbon filter can be used for one year, please change it thereafter. Contact your local distributor for new carbon filter. Please remove the used carbon filter before inserting the new one.

3.4 Installing the handle of door

You can find a handle and two chamfer head screws in your accessories box .Following a diagram below you can fix the handle on the door.

Installing the handle of door

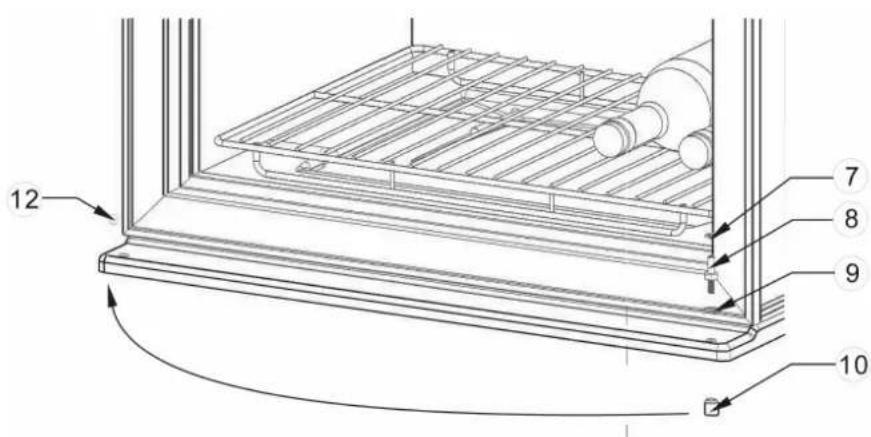

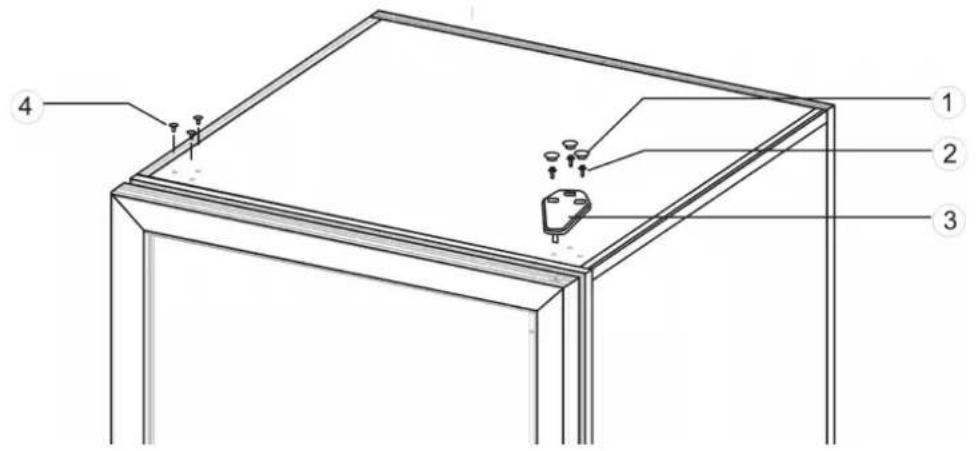

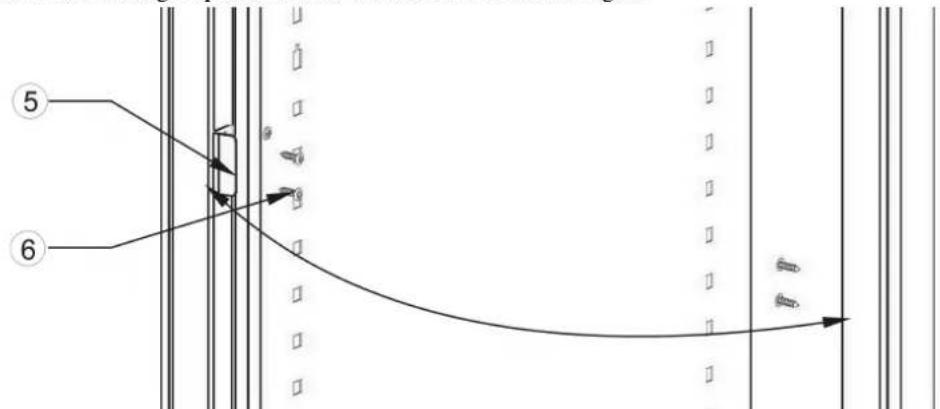

3.5 Alternative hanging of the door (excepted full door with lock)

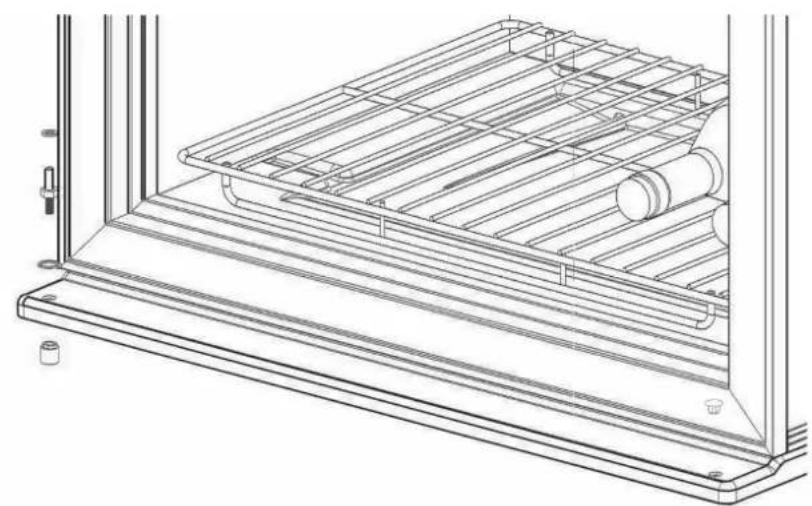

The door is set to be hinged right at purchase; you can change it to left. To do this, proceed as follows:

(8) Close the door.

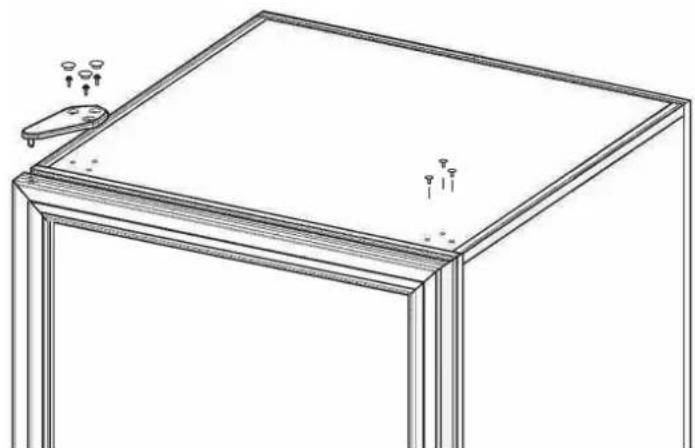

(9) Remove the grommets gently using a fine blade, loosen the screws and remove the upper hinge.

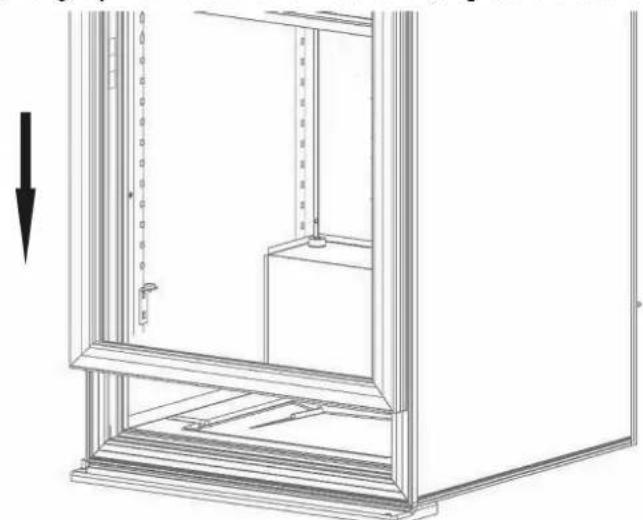

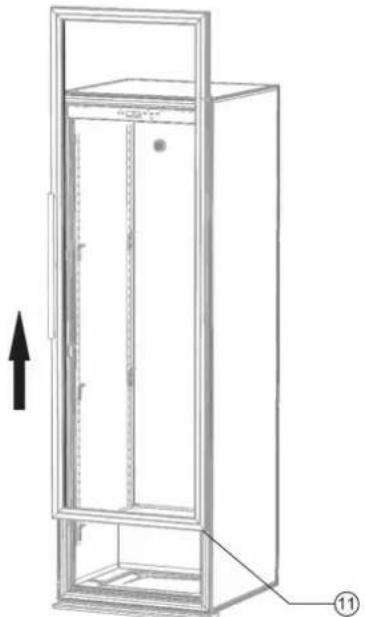

(10) Remove the door from the case by opening it slightly and then lifting.

(11) Unscrew the closing clip on the left, and then fix it on the right.

(12) Remove the grommet on the right, unscrew the door pivot guide with the washer, and then tighten nit onto the same part on the opposite side.

(13) Turn the door 180^ , slightly lift the door and move down, replace the door on its pivot guide.

(14) Relocate the hinge, using the screws in such a way so that the door is parallel with the case. Replace the grommets.

Important : Please note that models with full doors and lock are not reversible contrary to glass door models, with or without lock, and full door without lock.

3.6 Installing the shelves

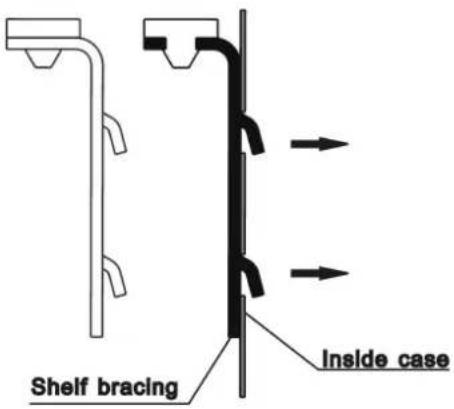

3.6.1 Installing the shelf bracing

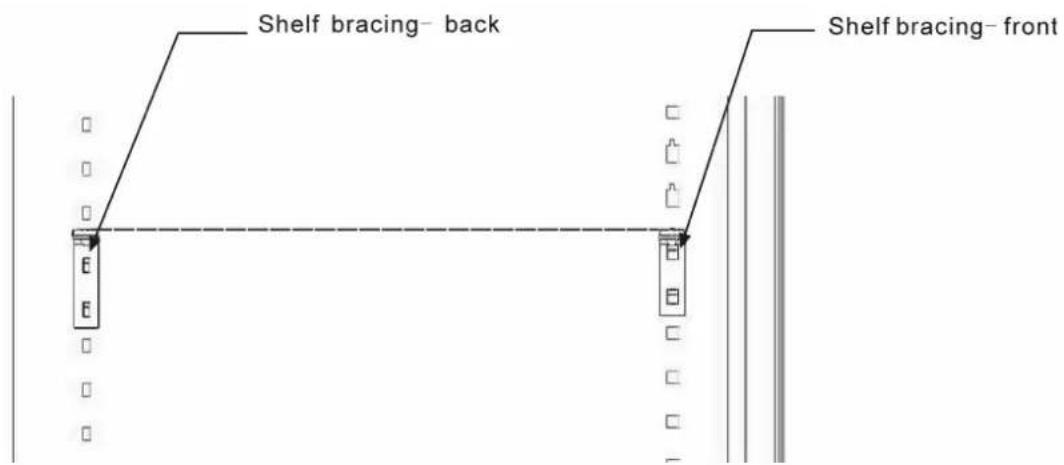

Shelf bracing should be installed before placing the shelves, the process see diagram below. Putting the shelf bracing hook in the hole inside the case and press down, this allows the shelf bracing to be hitched firmly inside the case. There are front and back shelf bracings, the longer one is back shelf bracing, should be fixed with the hook on the back inside the case; another type is front shelf bracing, should be fixed with the hook on the front inside the case. The two shelf bracings should be at the same level to keep the shelf stay at a perfect position.

Two dumpy wires in front of the shelf should lock the shelf on the shelf bracing

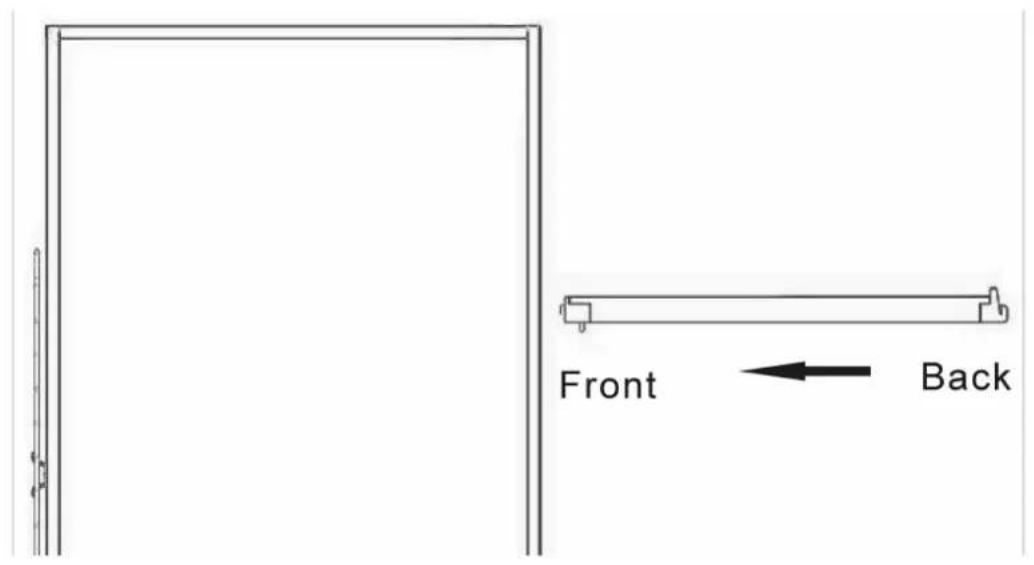

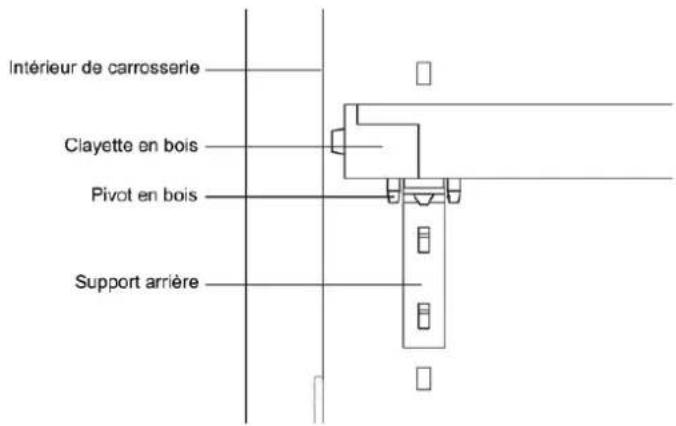

3.6.3 Installing the wooden shelf

See diagram below to install your wooden shelf. Put the shelf on the shelf bracing with the front going first. Make sure the wooden pin should be after the back shelf bracing hook. See diagram below.

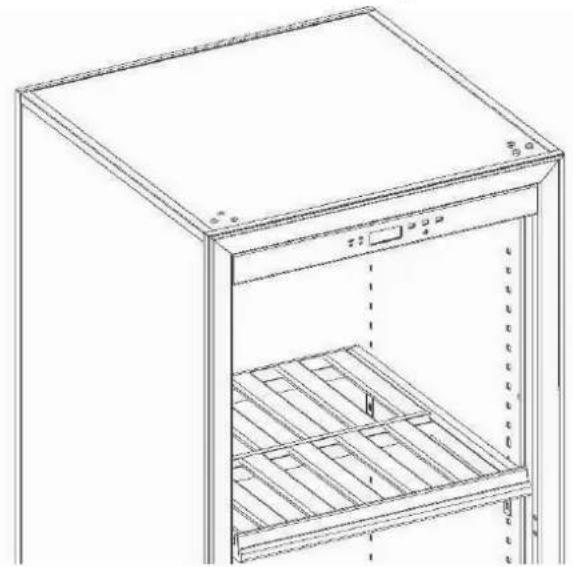

Wooden shelf installing direction

Wooden shelf installing layout

Position of wooden pin and back shelf bracing

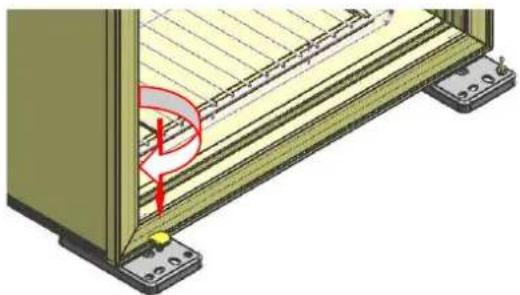

3.7 The installation of door base support

When replacing the reversible door, should change the installation direction of the base support; rotating pull up at the same time the base support can be removed; spin down at the same time the base support can be fixed.

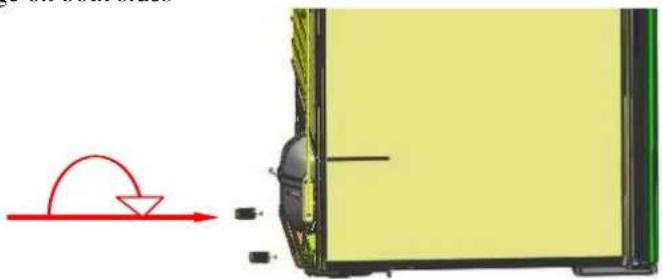

3.8 The installation of the wall separate screws

When the back side of wine cellar placed against the wall, should need to install the wall separate screws. As shown, the wall separate screws were installed in the flange on both sides of compressors pallet.

4.1 Control and adjustment

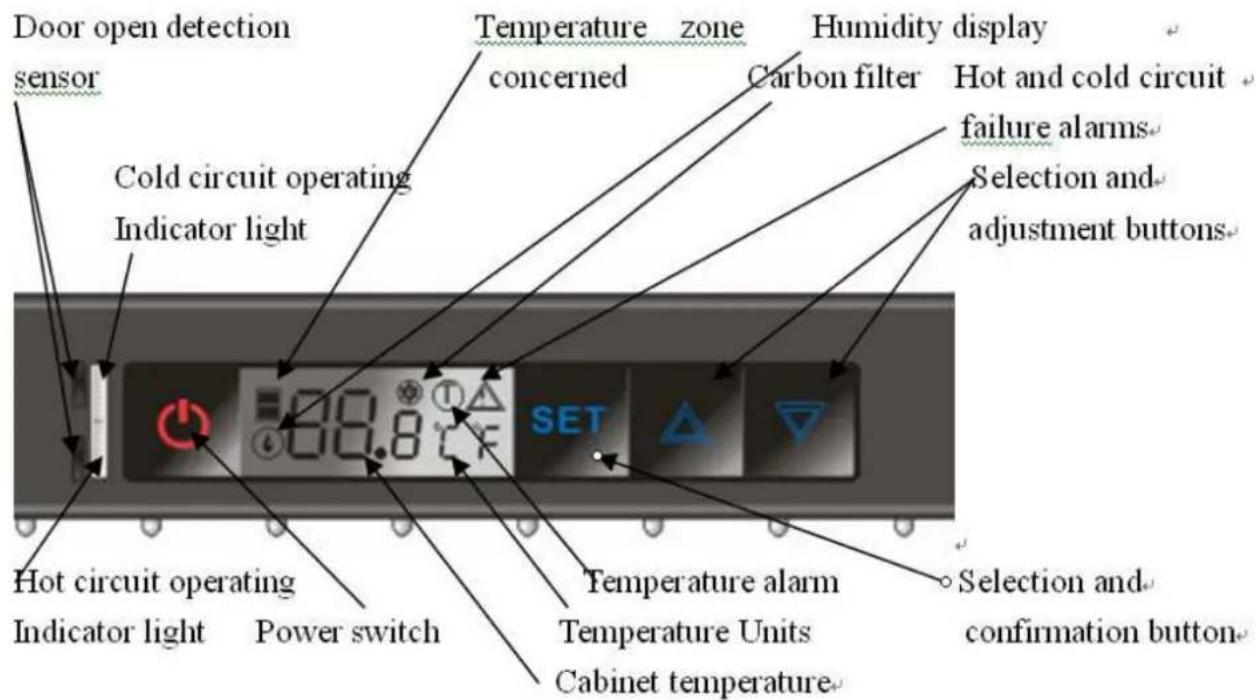

4.1.1 Control panel description

4.1.2 Temperature settings

(1) Upon temperature zone on the display broad with the symbol "indicates, under temperature zone on the display broad with the symbol "indicates.

(2) Press SET, the display start to flash, then press or to adjust temperature of one zone. Press again that the display (flashing) display other zone set temperature, then press or to adjust temperature of another zone. 8 seconds if no operation, display board will display real-time temperature.

(3) The button is disabled without pressing. Press and hold down for 5 seconds to display the life of carbon filter (unit: day). Otherwise the display automatically returns to the temperature display after 15 seconds.

Note: Don't press when displaying the life of carbon filter, or the number of life will be disordered.

(4) The button is disabled without pressing. Press and hold down for 5 seconds to display the two LED mode: ① Stay on mode, displaying symbol “Ecl” ② When door opens, displaying symbol “Ecl”. Press to choose LED mode, then press when confirm. Otherwise the display automatically returns to the temperature display after 15 seconds.

(5) Press and hold for 5 seconds, all output will be cut off including the display and LED. Gently press to restore all output.
(6)press and together at sometime, humidity values will be displayed on the display panel, after 5 seconds, the display should be returned to the original layout automatically.

4.1.3 Alarm explanation

"Door open" alarm: will flash when door is open for more than 15 minutes and your will hear the buzzer ring three times every 30 seconds. Buzzer will stop automatically after 3 minutes.

"Invalidation of carbon filter" alarm: When the carbon filter is disabled, will flash and the buzzer will ring. Change the carbon filter and press for 5 seconds, then the life of new carbon filter will display when pressing SET

4.1.4 Humidity alarm display

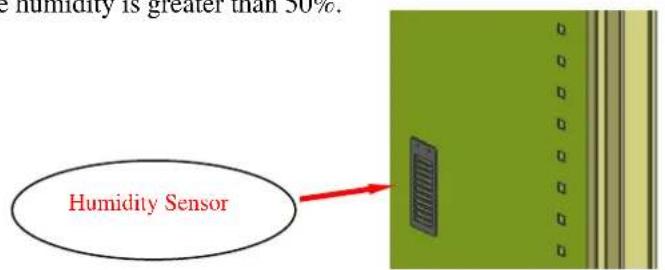

When the relative humidity values less than 50% more than 72 hours, the display symbol “ ” will flash. The symol should lifting flash until the humidity is greater than 50% .

4.1.5 Operating faults

Temperature: will flash when the temperature excess the limit between -30 ^ C and 60^ . Buzzer will ring every 10 seconds until pressing or

Hot and cold circuits: will flash when there is fault about hot and cold circuits, buzzer will ring every 10 seconds until pressing or.

4.1.6 Winter position: How does it work?

1. When the setting temperature is lower than the internal temperature of the cabinet, the machine will start to work and refrigeration. The cold circuit operating indicator light will be on (green color)
2. When the setting temperature is higher than the internal temperature of the cabinet, the machine will stop working and stop the cooling, heating wire will begin to work to maintain cabinet temperature equilibrium. Machines' work or stop without any environmental temperature. The hot circuit operating indicator light will be on (red color).

5. Attention

(13) After unpacking your cabinet, take the discarded packaging, the majority of which is recyclable, to a refuse collection point.
(14) Do not wipe the back of wine cabinet with wet cloth.
(15) Do not place electric appliance or food on top of the cabinet.
(16) Not for outdoor use.
(17) Clean the dust on the rear condenser at least twice a year.
(18) The compressor start working 3 minutes after switching on the power. If the compressor does not start immediately, it does not mean faulty.
(19) Switch off the power and take out the power lead before moving the wine cabinet. Take out all bottles before moving.
(20) Do not keep the door open any longer than necessary.
(21) Do not allow children to climb, sit on, stand on or hang from the shelves of the wine cabinet. They could damage the wine cabinet and cause themselves serious injury.
(22) Take care to keep keys out of reach of children in order to avoid them locking themselves in the cabinet.
(22)Do not try to repair any damaged wire or electric components. Contact your distributor or service agent.

6. Simple problem analyses

Problem Problem	analyses Resolve method
Compressor not working	Power not connected Check the power
	Power lead or wire damaged Contact distributor or service agent
	Fuse broken Change fuse
	Internal circuit fault Contact distributor or service agent
	Power supply off Check if power cut
	In heating process Common phenomena. When the temperature inside cabinet is lower than that you set, the cabinet will be heated automatically
Compressor noisy or frequently on or off	Power supply not stable Switch off the power, restart 3 minutes later
	Cabinet not on flat floor Adjust front feet until perfect level
Not cold enough Temperature set too high Check temperature, reset it
			Door open too long or too often Only open when necessary
			Door seal damaged	Contact your distributor or service agent
LED do not light	Electric circuit problem	Contact your distributor or service agent
	LED damaged	Contact your distributor or service agent
Can not close door properly	Cabinet not on level	Adjust front feet until perfect level
	Door installation incorrect after change hanging side	See Alternative hanging of door and install it correctly
	Shelf extend out of the case	Put the shelf back to right position

Setting temperature and measured temperature may be different (2 or 3^ ). This is normal, the reason can be temperature sensor position or external conditions

C

La Sommelière Int.
