USER MANUAL RT242202 GAGGENAU

5 Anzeige cold, fresh and freezer

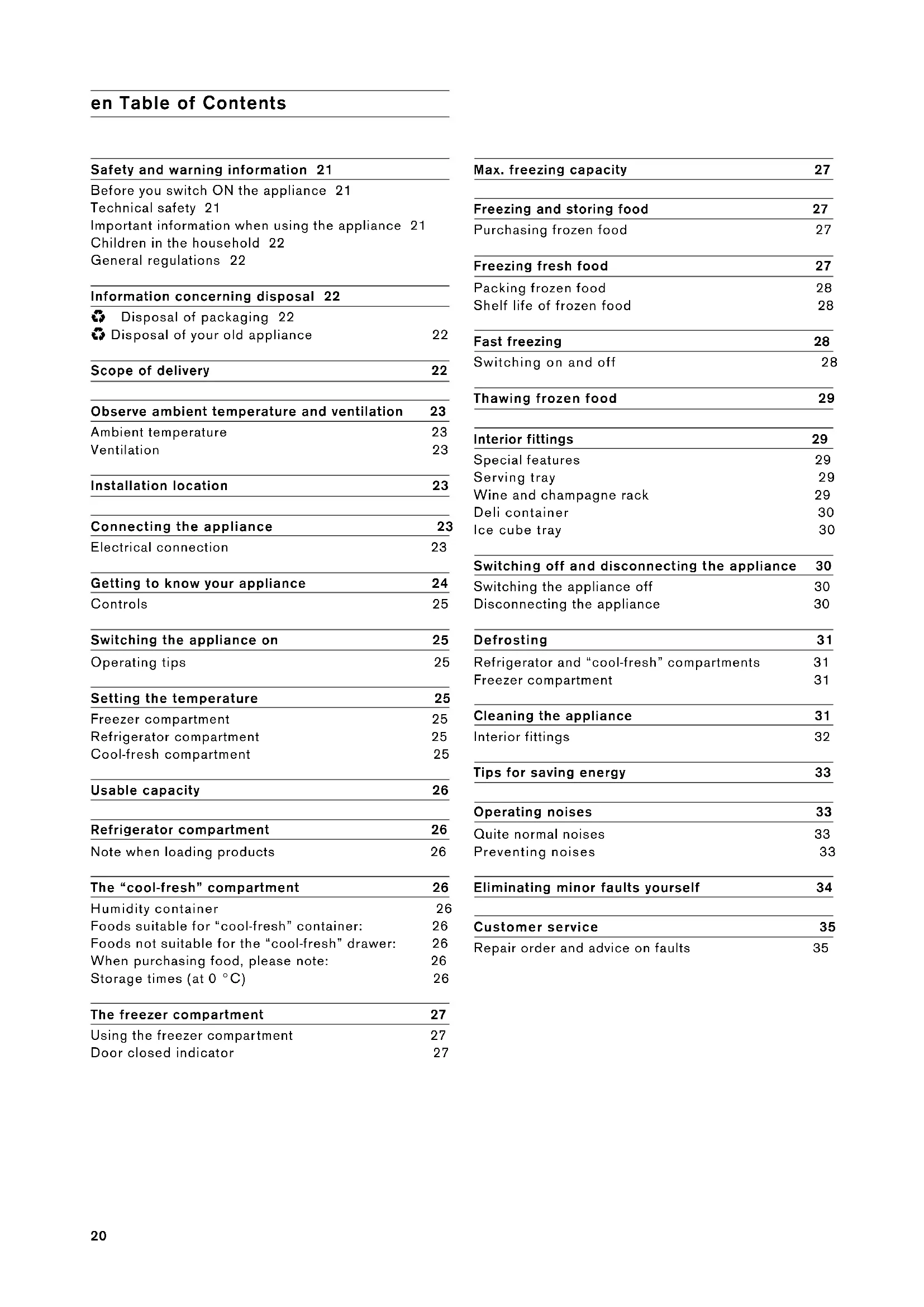

Safety and warning information 21

Before you switch ON the appliance 21

Technical safety 21

Important information when using the appliance 21

Children in the household 22

General regulations 22

Information concerning disposal 22

Disposal of packaging 22

Disposal of your old appliance 22

Scope of delivery 22

Observe ambient temperature and ventilation 23

Ambient temperature 23

Ventilation 23

Installation location 23

Connecting the appliance 23

Electrical connection 23

Getting to know your appliance 24

Controls 25

Switching the appliance on 25

Operating tips 25

Setting the temperature 25

Freezer compartment 25

Refrigerator compartment 25

Cool-fresh compartment 25

Usable capacity 26

Refrigerator compartment 26

Note when loading products 26

The "cool-fresh" compartment 26

Humidity container 26

Foods suitable for "cool-fresh" container: 26

Foods not suitable for the "cool-fresh" drawer: 26

When purchasing food, please note: 26

Storage times (at 0^ ) 26

The freezer compartment 27

Using the freezer compartment 27

Door closed indicator 27

Max. freezing capacity 27

Freezing and storing food 27

Purchasing frozen food 27

Freezing fresh food 27

Packing frozen food 28

Shelf life of frozen food 28

Fast freezing 28

Switching on and off 28

Thawing frozen food 29

Interior fittings 29

Special features 29

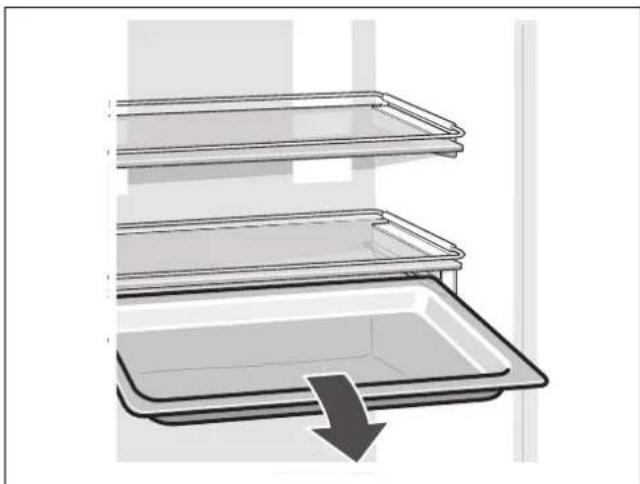

Serving tray 29

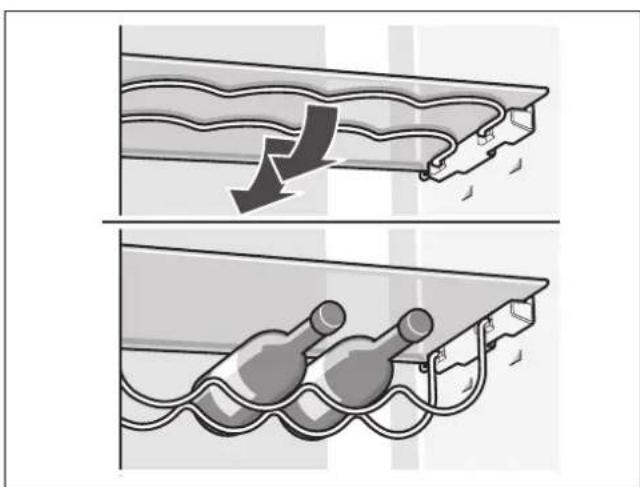

Wine and champagne rack 29

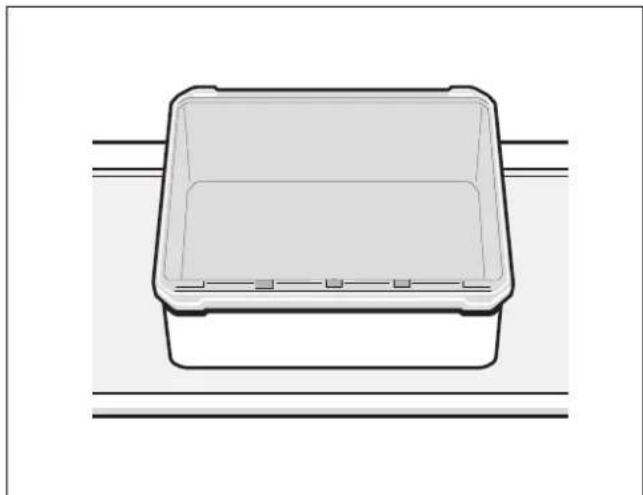

Delicontainer 30

Ice cube tray 30

Switching off and disconnecting the appliance 30

Switching the appliance off 30

Disconnecting the appliance 30

Defrosting 31

Refrigerator and "cool-fresh" compartments 31

Freezer compartment 31

Cleaning the appliance 31

Interior fittings 32

Tips for saving energy 33

Operating noises 33

Quite normal noises 33

Preventing noises 33

Eliminating minor faults yourself 34

Customer service 35

Repair order and advice on faults 35

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

Technical safety

This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

If damage has occurred

• Keep naked flames and/or ignition sources away from the appliance,
• thoroughly ventilate the room for several minutes,
• switch off the appliance and pull out the mains plug,
  inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.

The room must be at least 1m^3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

A extension cable may be purchased from customer service only.

Important information when using the appliance

• Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Risk of explosion!
• Never use a steam cleaner to defrost or clean the appliance! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
• Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries.
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!
• Do not stand on or lean heavily against base of appliance, drawers or doors, etc
  Before defrosting and cleaning the appliance, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging the cable.
  Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position.
• Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
• Never cover or block the ventilation openings for the appliance.
• People (children incl.) who have limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions.
• Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode!
• Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns!
• Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!

Children in the household

• Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
• Do not allow children to play with the appliance!
  If the appliance features a lock: keep the key out of the reach of children!

General regulations

The appliance is suitable

for refrigerating and freezing food,
for making ice.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EU Directive 2004/108/EC.

The refrigeration circuit has been checked for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment - WEEE. The directive specifies the framework for an EU-wide valid return and re-use of old appliances.

Warning

Redundant appliances

1. Pull out the mains plug.
2. Cut off the power cord and discard with the mains plug.
3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!
4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

Built-in appliance
- Interior fittings (depending on model)
- Operating instructions
- Installation manual
- Customer service booklet
Warranty enclosure
Information on the energy consumption and noises
- Bag containing installation materials

Observe ambient temperature and ventilation

Ambient temperature

The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following room temperatures.

Climate class Permitted ambient temperature

SN +10 °C to 32 °C

N +16 °C to 32 °C

ST +16 °C to 38 °C

T +16 °C to 43 °C

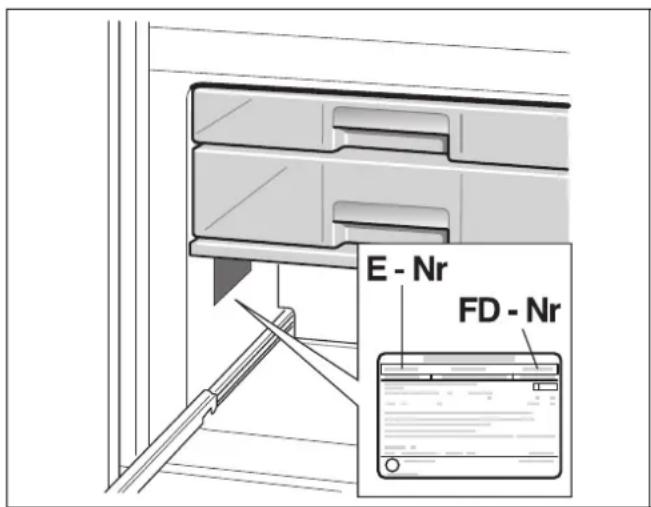

The climate class can be found on the rating plate.

Note

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5^ .

Ventilation

The air on the rear panel of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigeration unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

3 cm to electric or gas cookers.
- 30~cm to an oil or coal-fired cooker.

Connecting the appliance

After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter "Cleaning the appliance").

Electrical connection

The socket must be near the appliance and also freely accessible following installation of the appliance.

The appliance complies with the protection class I. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.

For appliances operated in non-European countries, check whether the stated voltage and current type match the values of your mains supply match the values of the mains supply. These specifications can be found on the rating plate.

Warning

Never connect the appliance to electronic energy saver plugs. Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

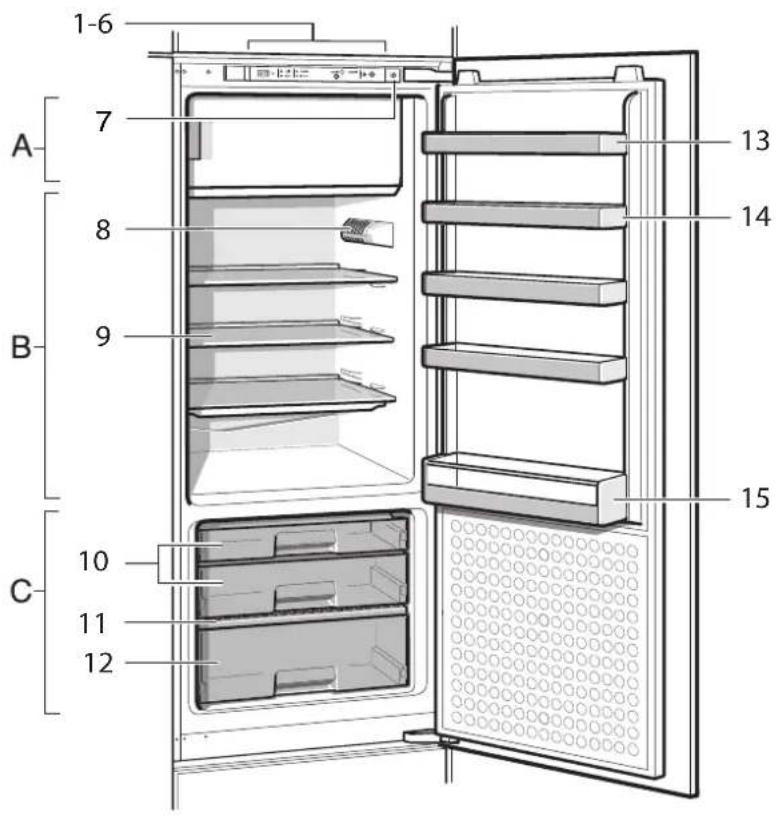

Getting to know your appliance

These operating instructions refer to several models.

The features of the models may vary.

The diagrams may differ.

1-6 Controls
7 L i g h t s w i t c h
8 L i g h t
9 Glass shelf in the refrigerator compartment
10 "Cool-fresh" container
11 Humidity filter
12 Humidity container
13 Egg rack
14 Shelf for tubes and small tins
15 Shelf for large bottles

A F r e e z e r s e c t i o n

B Refrigerator compartment
C Cool-fresh compartment

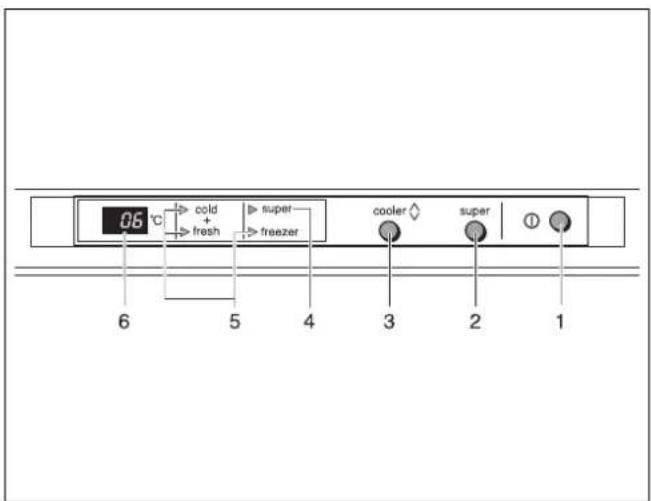

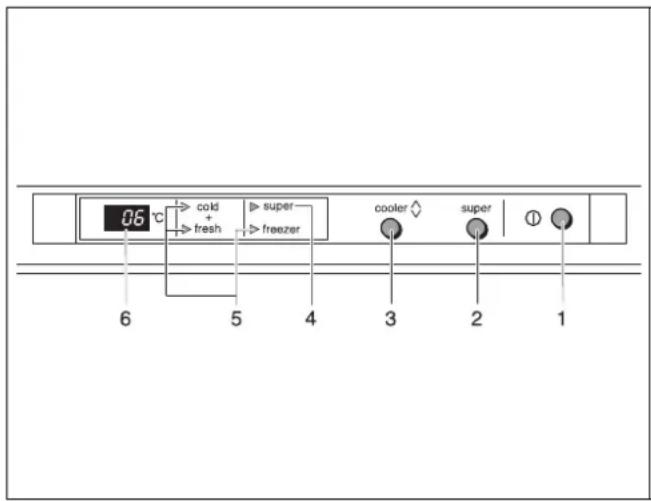

Controls

1 On/Off button

Serves to switch the whole appliance on and off.

2 Fast button

Switches fast freezing on and off.

3 Temperature selection button

The required temperature is set with this button.

4 Display fast freezing

Illuminates when fast freezing is on.

5 cold, fresh and freezer display

The displays are lit when the appliance is in operation.

6 Temperature display refrigerator compartment

• Indicates the set temperature of the refrigerator compartment.
• Indicates "SU" when super freezing is switched on.

Switching the appliance on

Switch on the appliance with the On/Off button 1 (see appliance overview).

The temperature display 6 indicates the set temperature. Displays 5 "cold+fresh" and "freezer" come on.

The appliance starts to cool, the light is switched on when the door is open.

We recommend a setting of +4^ .

Perishable food should not be stored above +4^ .

Operating tips

After the appliance has been switched on, it may take several hours until the set temperatures have been reached. Do not put any food in the appliance beforehand.
The temperature in the freezer compartment depends on the temperature in the refrigerator compartment. Warmer refrigerator compartment temperatures also cause warmer freezer compartment temperatures.
- While the refrigeration unit is running, water droplets or a thin layer of ice may form at the rear panel of the refrigerator. This is nothing unusual. It is not necessary to scrape off the frost or wipe off the water droplets. The rear panel defrosts automatically. The condensation flows into the evaporation area of the appliance via the condensation channels and the drainage hole.
The partition in the lower "cool-fresh" container is required for functional reasons and should not be removed. The temperature behind the partition is lower than in the front area of the container.

Setting the temperature

Freezer compartment

The temperature in the freezer compartment depends on the temperature in the refrigerator compartment.

Refrigerator compartment

The temperature can be set from +3^ to +8^

Keep pressing temperature setting button 3 until the required refrigerator compartment temperature is set. The value last selected is saved.

The set temperature is indicated on display 6.

Cool-fresh compartment

The temperature in the "cool-fresh" compartment Chas been set to almost 0^ at the factory and should not be changed if at all possible.

If frost forms on the refrigerated food, the temperature can be increased (see chapter "Eliminating minor faults yourself").

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate (see diagram at chapter "Customer service").

Refrigerator compartment

The refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk, hard cheese, fruit and vegetables sensitive to cold as well as tropical fruit.

Note when loading products

• Wrap or cover food before placing in the appliance. This will retain the aroma, colour and freshness of the food. In addition, flavours will not be transferred between foods and the plastic parts will not become discoloured.
• Allow warm food and drinks to cool down before placing in the appliance.

Note

Avoid contact between food and rear panel. Otherwise the air circulation will be impaired. Food or packaging could freeze to the rear panel.

The "cool-fresh" compartment

The temperature in the cool-fresh compartment(see appliance overview) is about 0^ . The low temperature and the optimum moisture provide ideal storage conditions for fresh food.

Food can be kept fresh up to three times longer in the "cool-fresh" compartment than in the normal cooling zone - for even longer freshness, nutrient retention and flavour.

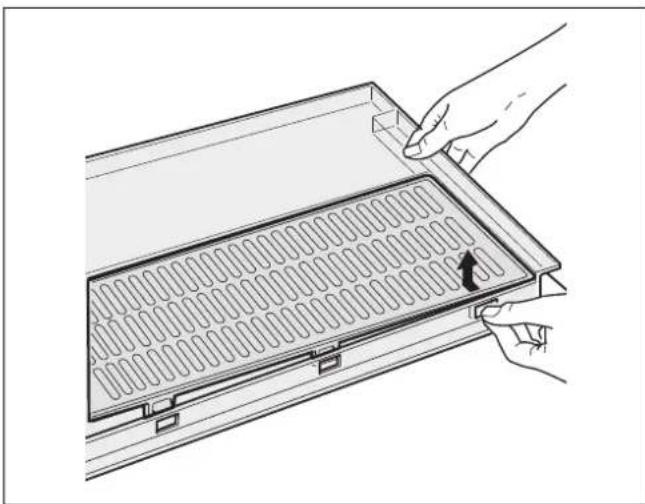

Humidity container

The humidity container 12 is covered with a special filter which optimises retention of the air humidity in the storage compartment. As a result, there is up to 95% air humidity in the humidity container, depending on the amount of products put in. This storage climate offers ideal conditions for fresh fruit, salad greens, vegetables, herbs and mushrooms.

Foods suitable for "cool-fresh" container:

In the "cool-fresh" container 10:

Fish, seafood, meat, sausage, dairy products, ready meals.

In the humidity container 12:

Vegetables (e.g. carrots, asparagus, celery, leeks, beetroot, mushrooms, brassicas such as broccoli, cauliflower, Brussels sprouts, kohlrabi)
- Salad greens (e.g. lamb's lettuce, iceberg lettuce, chicory, lettuce)
Herbs (e.g. dill, parsley, chives, basil)
Fruit (types insensitive to cold, e.g. apples, peaches, berries, grapes)

Foods not suitable for the "coolfresh" drawer:

Fruit and vegetables sensitive to cold (e.g.: tropical fruit such as pineapples, bananas, papaya, citrus fruits, melons as well as tomatoes, aubergines, zucchini, capsicums, cucumbers, potatoes).

The ideal storage location for these foods is the refrigerator compartment.

When purchasing food, please note:

The "purchase freshness" is important for the shelf-life of your food.

In principle, the fresher the produce when placed in the "cool-fresh" compartment, the longer it stays fresh.

Therefore, when buying food, always pay attention to the degree of freshness.

Observe the best-before date specified by the manufacturer for ready products and bottled products.

Storage times (at 0^ )

Depending on the initial quality

Fresh fish, seafood up to 3 days

Poultry, meat (boiled/fried) up to 5 days

Beef, pork, lamb, sausage (cold up to 7 days meat)

Smoked fish, broccoli up to 14 days

Salad greens, fennel, apricots, up to 21 days plums

Soft cheese, yoghurt, quark, up to 30 days buttermilk, cauliflower

The freezer compartment

Using the freezer compartment

To store deep-frozen food.
To make ice cubes.
To freeze small quantities of food.

Note

Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!

The freezer compartment door engages audibly.

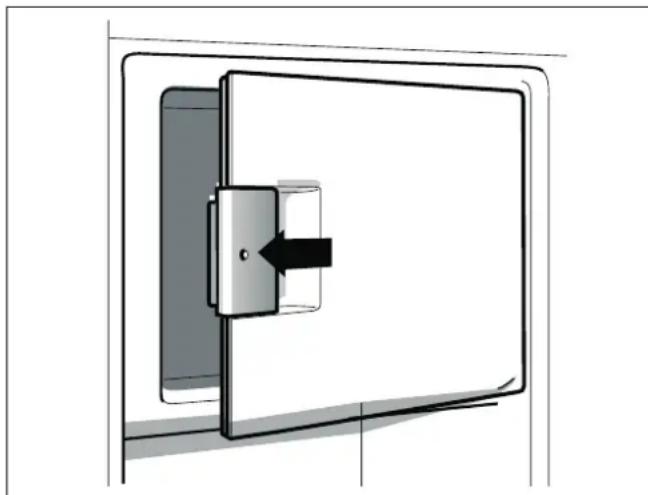

Door closed indicator

(not all models)

The "close" display indicates whether the freezer compartment door has been closed properly:

red display: the freezer compartment door is open
- white display: the freezer compartment door is closed

Max. freezing capacity

Information about the max. freezing capacity within 24 hours can be found on the rating plate (see diagram at chapter "Customer service").

Freezing and storing food

Purchasing frozen food

• Packaging must not be damaged.
  Use by the "use by" date.
• Temperature in the supermarket freezer must be -18^ or lower.
• If possible, transport deep-frozen food in a cool bag and place quickly in the freezer compartment.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

Literature on freezing and blanching can be found in bookshops.

Note

Keep food which is to be frozen away from food which is already frozen.

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, souffles and desserts.
The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place in airtight containers.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and date of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Unsuitable packaging:

Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.

Items suitable for sealing packaged food:

Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.

Bags and tubular film made of polyethylene can be sealed with a film heat sealer.

Shelf life of frozen food

Depends on the type of food.

At a temperature of -18^

Fish, sausage, ready meals and cakes and pastries: up to 6 months
- Cheese, poultry and meat: up to 8 months
Vegetables and fruit: up to 12 months

Fast freezing

Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.

To prevent an undesirable temperature rise when placing fresh food in the freezer compartment, switch on fast freezing several hours beforehand.

If the max. freezing capacity is to be used, fast freezing must be switched on for 6 hours before the fresh produce is placed in the freezer compartment.

Smaller quantities of food can be frozen without fast freezing.

Note

When fast freezing is switched on, increased operating noises may occur.

Switching on and off

Press the "fast" button 2.

When fast freezing is switched on, "SU" is indicated on the temperature display 6 and the display 4 "super" is lit.

Fast freezing automatically switches off after approx. 24 hours.

Note

During fast freezing the refrigerator compartment is chilled slightly more.

Thawing frozen food

Depending on the type and application, select one of the following options:

at room temperature
- in the refrigerator
in an electric oven, with/without fan assisted hot-air
in the microwave

Caution

Do not refreeze food which is beginning to thaw or which has already thawed. It can only be refrozen when it has been used to prepare a ready meal (boiled or fried).

No longer store the frozen produce for the max. storage period.

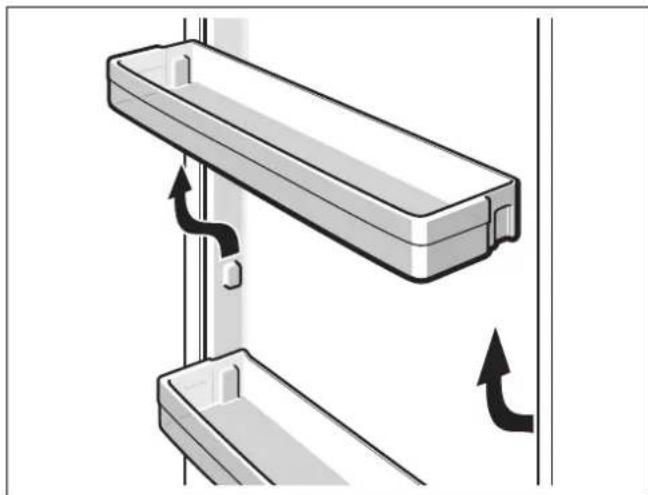

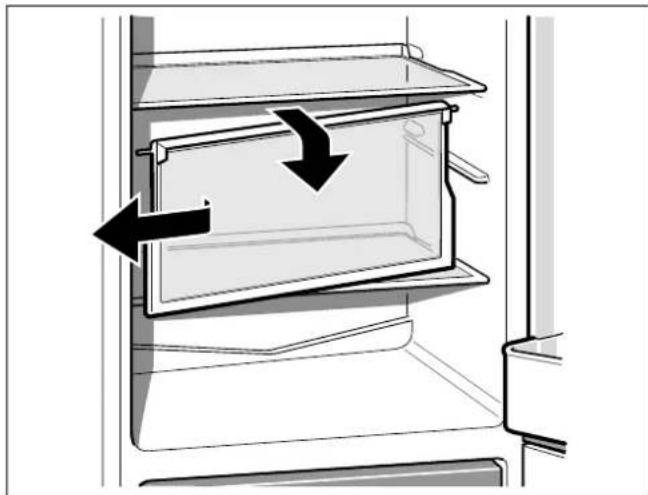

Interior fittings

You can reposition the shelves inside the appliance and the door shelves as required:

Pull shelf forwards, lower and swing out to the side.

• Lift the door shelf and remove.

Special features

(not all models)

Serving tray

Wine and champagne rack

Bottles can be stored securely in the wine and champagne rack. If the space is required for other food, the metal frame can be folded up.

Deli container

The cover of the deli container can be turned over; this allows sealed or ventilated storage of the food.

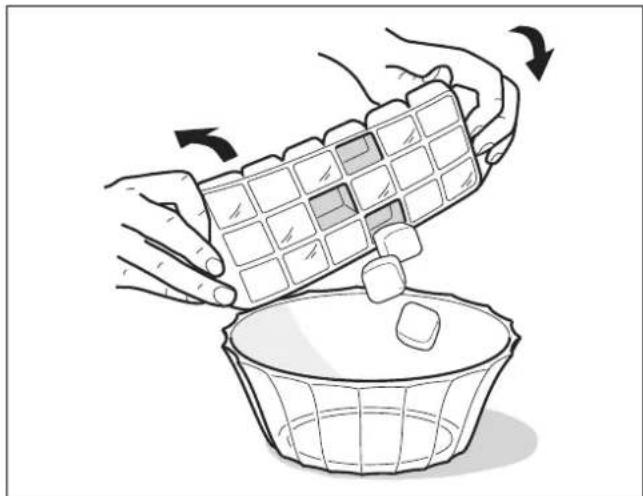

Ice cube tray

Fill the ice cube tray 3 / 4 full of water and place in the freezer compartment.

If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).

To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.

Switching off and disconnecting the appliance

Switching the appliance off

Press the On/Off button 1.

Temperature display goes out, refrigeration unit switches off.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Switch off the appliance.
2. Pull out mains plug or switch off fuse.
3. Clean the appliance.
4. Leave the appliance door open.

Defrosting

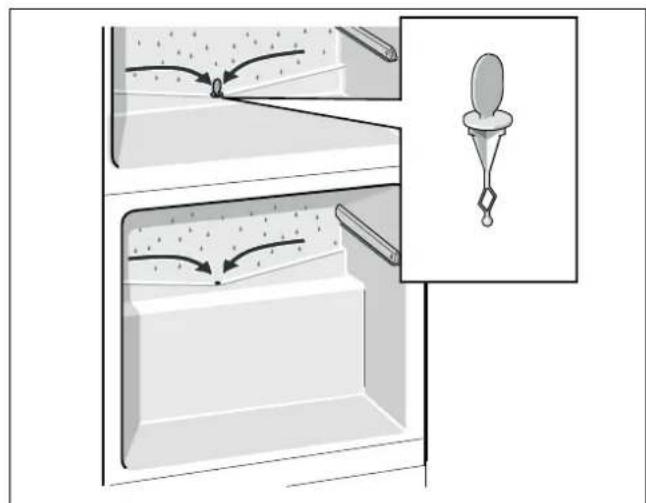

Refrigerator and "cool-fresh" compartments

Defrosting is actuated automatically.

While the refrigeration unit is running, water droplets or hoarfrost form at the rear panel of the refrigerator compartment. This is nothing unusual. It is not necessary to wipe off the water droplets or hoarfrost. The rear panel defrosts automatically. The condensation drains off into the condensation channel. From there the condensation drains off down the condensation channels to the refrigeration unit where it evaporates.

Note

Keep the condensation channel and drainage hole clean, so the condensation can drain off.

Freezer compartment

The freezer compartment does not defrost automatically. A layer of hoarfrost in the freezer compartment will impair refrigeration of the frozen food and increase power consumption. Regularly defrost the freezer compartment.

Caution

Do not scrape off hoarfrost or ice with a knife or pointed object. You could damage the refrigerant tubes. Leaking refrigerant may ignite or cause eye injuries.

Proceed as follows:

Note

Approx. 4 hours before defrosting the appliance, switch on super freezing so that the food drops to a very low temperature and can therefore be stored at room temperature for a longer period.

1. Remove the frozen food and place temporarily in a cool location.
2. Switch the appliance off.
3. Pull out the mains plug or remove the fuse.
4. To accelerate the defrosting process, place a pan of hot water on a trivet in the freezer compartment.
5. Wipe up condensation with a cloth or sponge.
6. Wipe dry the freezer compartment.
7. Switch the appliance on again.
8. Put the frozen food back in the freezer compartment.

Cleaning the appliance

#

Caution

• Do not use abrasive or acidic cleaning agents and solvents.
  Do not use scouring or abrasive sponges. The metallic surfaces could corrode.
• Never clean shelves and containers in the dishwasher. The parts may become deformed!

Proceed as follows:

1. Before cleaning: Switch the appliance off.
2. Pull out the mains plug or switch off the fuse.
3. Take out the frozen food and store in a cool location.
4. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.
5. Wipe the door seal with clear water only and then wipe dry thoroughly.
6. Rinsing water must not run through the drainage hole into the evaporation area.
7. After cleaning reconnect and switch the appliance back on.
8. Put the frozen food back in the freezer compartment.

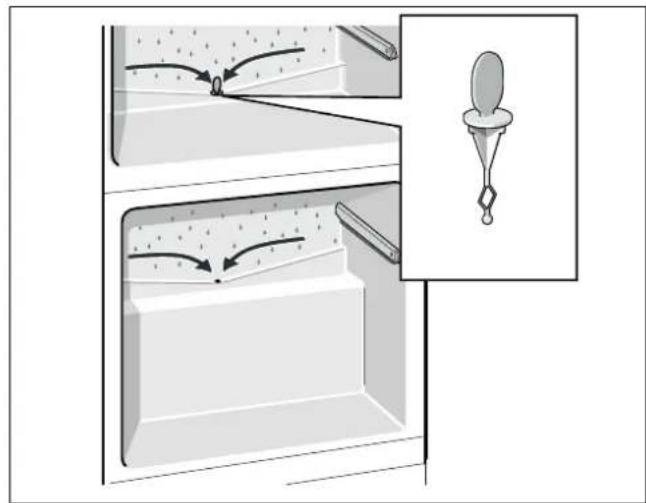

Notes

Regularly clean the condensation channel and drainage hole with a cotton bud or similar implement to ensure that the condensation can drain.
After cleaning, the stopper must be re-inserted into the drainage hole of the refrigerator compartment for functional reasons.

Interior fittings

All variable parts of the appliance can be taken out for cleaning.

Take out glass shelves

Lift the glass shelves, pull forwards, lower and swing out to the side.

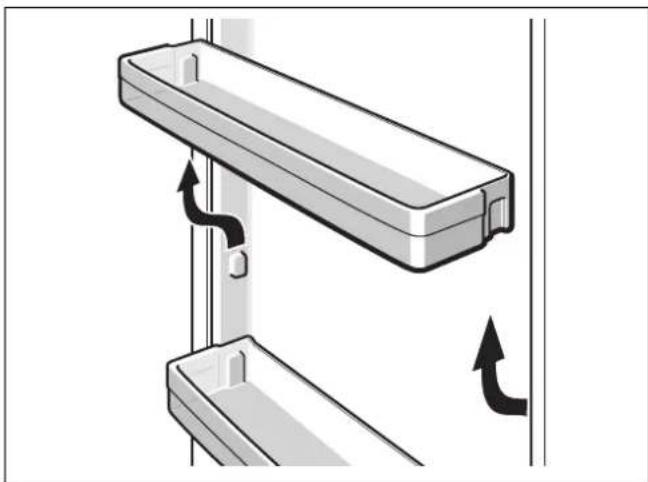

Take out shelves in the door

Lift shelves upwards and take out.

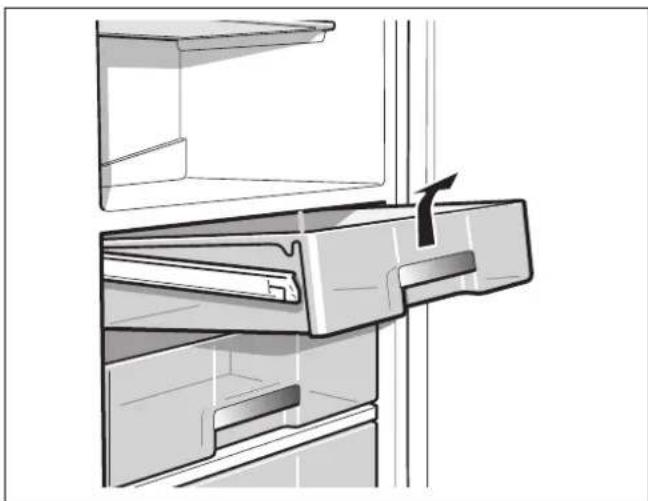

Removing the container

Pull out the container all the way and lift to detach it.

To insert the container, place on the telescopic rails and push into the appliance. Attach the container by pressing it down.

Taking out the humidity filter

The humidity filter over the humidity container can be taken out for cleaning. To do this, first take out the humidity container and pull out the humidity filter. Lift off the filter cover and take out the filter. Clean in lukewarm water, leave to dry and re-assemble.

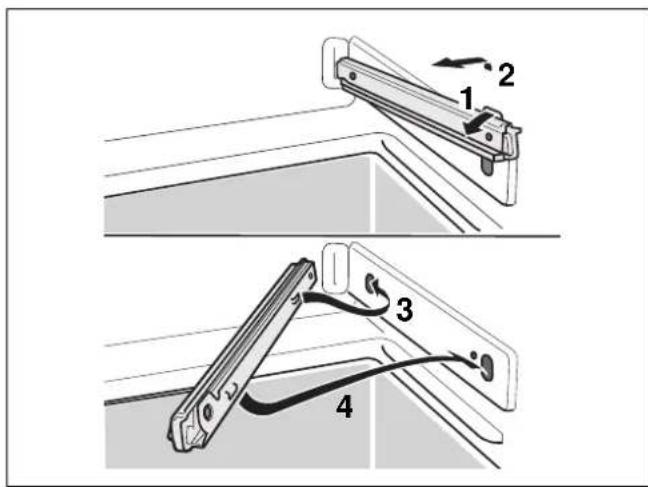

Installing extension rails

1. To remove the extension rails, bend slightly at the front in the direction of the arrow.
2. Lift extension rail and detach from the mounting.
3. To install the extension rail, insert into the rear opening.
4. Insert extension rail into the front opening and engage downwards.

Tips for saving energy

Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker). If required, use an insulating plate.
- Allow warm food and drinks to cool down before placing in the appliance!
- When thawing frozen products, place them in the refrigerator. Use the coldness of the frozen food to cool food.
- Open the appliance as briefly as possible.
Regularly defrost the freezer compartment to remove the layer of frost! A layer of hoarfrost will impair refrigeration of the frozen food and increase power consumption.
- Ensure that the freezer compartment door has been closed properly.
Occasionally clean the rear of the appliance with a vacuum cleaner or paint brush to prevent an increased power consumption.

Operating noises

Quite normal noises

Droning

Motors are running (e.g. refrigerating units, fan).

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Clicking

Motor, switches or solenoid valves are switching on/off.

Preventing noises

The appliance is not level

Please align the appliance with a spirit level. If required, place something underneath.

The appliance is not free-standing

Please move the appliance away from adjacent units or appliances.

Containers or storage areas wobble or stick

Please check the removable parts and re-insert them correctly if required.

Bottles or receptacles are touching each other

Move the bottles or receptacles slightly away from each other.

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice - even if the appliance is still under guarantee!

Fault Possible cause Remedial action
Temperature differs greatly from the set value.		In some cases it is adequate to switch off the appliance for 5 minutes.If the temperature is too high wait a few hours and check whether the temperature has approached the set value.If the temperature is too low check the temperature again the next day.
The light does not work.	The bulb B is defective.	Replace bulb.1. Switch the appliance off.2. Pull out mains plug or switch off fuse.3. Slide cover forwards and remove.4. Change the bulb.(Replacement bulb: 220-240 V a.c., E14 bulb holder, see defective bulb for wattage.)
	Light switch A is jammed. Check whether it can be moved.
The frozen food is frozen solid.		Loosen frozen food with a blunt object. Do not use a knife or pointed object.
There is a thick layer of frost in the freezer compartment.		Defrosting the freezer compartment (see chapter Defrosting). Always ensure that the freezer compartment door is closed properly.
Floor of the refrigerator compartment is wet.	The condensation channel or drainage hole are blocked.	Clean the condensation channel and the drainage hole. See chapter Cleaning the appliance.
The temperature in the refrigerator compartment is too cold.	Freezer compartment door is open. Close the freezer compartment door. The freezer compartment door engages audibly.
	Temperature has been set too low. Increase the temperature.
	Fast freezing is switched on. Switch off fast freezing.
The refrigeration unit is switching on more frequently and for longer.	Frequent opening of the appliance or the freezer compartment door.	Do not open the appliance unnecessarily.
	The ventilation openings have been covered.	Remove obstacles.
	Large quantities of fresh food are being frozen.	Do not exceed max. freezing capacity.
Appliance has no refrigeration capacity.	Appliance has been switched off. Press the On/Off button.
	Power failure. Check whether the power is on.
The light does not work.	The fuse has been switched off. Check the fuse.
The display does not illuminate.	The mains plug has not been inserted properly.	Check whether the mains plug is secure.
The cool-fresh compartment is too warm.	The fixed setting has been set too high or too low (e.g. if there is frost in the "cool-fresh" compartment).	The temperature in the cool-fresh compartment can be set warmer and/or colder.
		Setting the temperature:
		1. Switch off the appliance with the On/Off button 1. 2. Simultaneously press On/Off button 1 and temperature setting button 3 for 1-2 seconds until "88" flashes on the temperature display 6. 3. Keep pressing temperature setting button 3 until the required temperature is displayed. After one minute, the set temperature is saved.

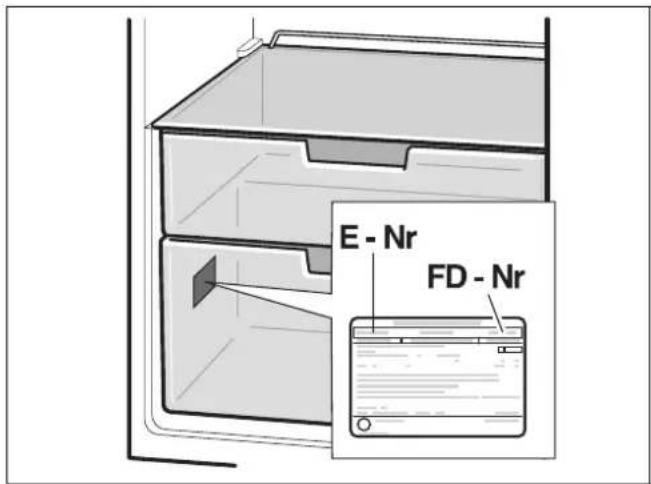

Customer service

Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD-Nr.).

These specifications can be found on the rating plate.

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

GB 0844 8928988 Calls from a BT

landline will be charged at up to 3 p e n c e p e r minute. A call set-up fee of up to 6 pence may apply.

IE 014502655

US 8774424436 toll-free

Compartment fraicheur 42

Contenance utile 42

Compartment congélateur

Compartment fraîcheur

Le compartmentengélateur

Compartment congélateur

Le compartment

5 Spie cold, fresh e freezer
