CLS160 - Fridge CLIMADIFF - Free user manual and instructions

Product type	Wine cellar / Wine refrigerator
Brand	Climadiff
Model	CLS160
Power supply	220-240 V, 50 Hz
Refrigerant	R600a (isobutane)
Climate class	N, SN (ambient temperature 10°C to 32°C)
Installation type	Free-standing
Temperature range	5°C to 18°C
Defrost	Automatic
Interior lighting	LED
Anti-UV function	Yes (UV filter on glass door)
Anti-vibration system	Dampers (silent blocks) and polyurethane foam
Lock	Yes (model CLS160)
Control panel	Digital with automatic lock
Shelf material	Coated steel
Door gasket	Magnetic
Approximate capacity	Up to 160 bottles (depending on format)
Maintenance and cleaning	Unplug before cleaning; use warm water and mild detergent; do not use solvents or abrasives
Safety	Child lock on panel; do not store flammable substances; do not damage refrigerant circuit
Spare parts and repairability	Contact an authorized service; use original parts
General information	User manual available for download; manufacturer: CLIMADIFF S.A., 143 Boulevard Pierre Lefaucheux, 72230 Arnage, France

Frequently Asked Questions - CLS160 CLIMADIFF

What to do if the wine cellar does not start?

Check that the plug is properly connected, that the on/off button is not in the off position, and that the fuse has not blown. If the problem persists, contact after-sales service.

How to adjust the temperature of the cellar?

Use the + and - buttons (keys 6 and 7) to select the desired temperature between 5°C and 18°C. Each press changes the temperature by 1°C. The default temperature is 12°C.

Why is the cellar not cooling enough?

Check that the selected temperature is correct, that the ambient temperature is within the allowed range (10°C to 32°C), that the door is not opened too often, that it closes properly, and that the seal is airtight.

How to defrost the cellar?

Defrosting is automatic: during the cooling cycle stop, the refrigerated surfaces defrost and the water is drained to an evaporation tray. No manual action is necessary.

What to do in case of power outage?

A power outage of 1 to 2 hours does not affect temperatures. Minimize door openings. For a long outage, protect your bottles. After restoration, wait 3 to 5 minutes before restarting to protect the compressor.

How to clean the cellar?

Unplug the appliance. Clean the interior and exterior with a soft cloth and warm water mixed with a mild detergent. Rinse with clean water and dry completely. Do not use solvents or abrasive products.

The door does not close properly, what to do?

Check that the cellar is level (adjust the feet), that the door gasket is clean and in good condition, that the shelves are positioned correctly, and that no object prevents closing.

Why is the cellar making noise?

Noises from water or refrigerant gas circulation are normal. Wall contractions may cause popping sounds. Ensure the cellar is level and not touching walls.

The light does not work, what to check?

Check that the plug is connected, that the fuse has not blown, that the light button is in the on position, and if the LED is defective, contact after-sales service.

How to lock the control panel?

The panel locks automatically after 2 minutes of inactivity. To unlock, press the lock key. The left buttons remain active even when locked.

USER MANUAL CLS160 CLIMADIFF

Black double-chamber refrigerator with digital display and matching shelves (no visible text or symbols)

CLS130-CLS160

GB - USE INSTRUCTIONS NL - HANDLEIDING

p 19

p 52

1. CARROSSERIE 5. SUPPORT DE LA PORTE VITREE
2. CLAYETTES 6. CLAYETTES BAR
3. BASE DU COMPRESSEUR 7. JOINT MAGNETIQUE
4. PIEDS 8. CHARNIERE

2° CARACTERISTIQUES TECHNIQUES

Technical line drawing of a mechanical assembly with cross-sectional views (no text or symbols)

Illustration of multiple wine bottles with green and blue colors, some labeled with white tags, shown in 3D perspective without any text or symbols.

Two green plastic bottles with red caps, connected by a white gap (no text or symbols visible)

Three identical bottles with green and red labels, arranged in a triangular pattern (no text or symbols)

Before use, please read and follow the safety rules and operating instructions in this manual.

Firstly, we would like to thank you for choosing CLIMADIFF and hope that this appliance will fully live up to your expectations.

This appliance enables you to store your bottles or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range.

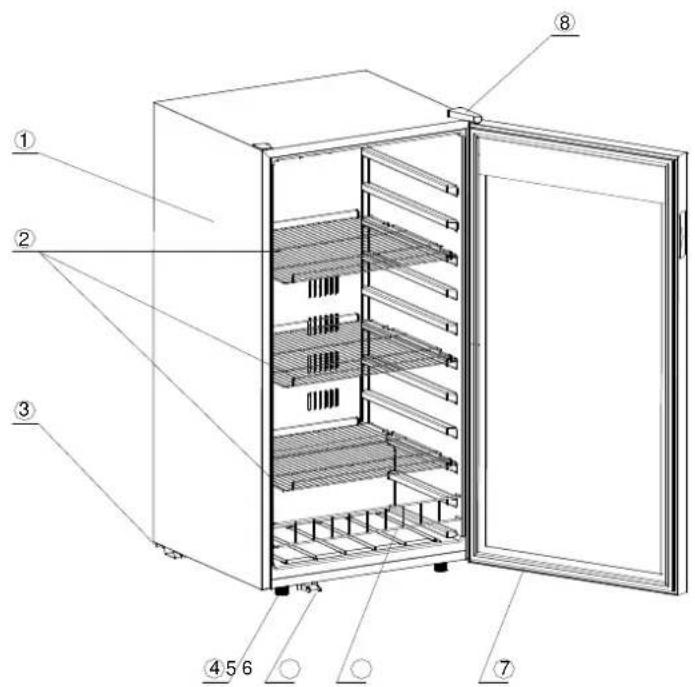

1. DESCRIPTION OF THE APPLIANCE

1 BODY 5. GLASS DOOR SUPPORT
2 SHELVES 6. SHELVES WITH BARS
3 COMPRESSOR BASE 7. MAGNETIC SEAL
4 FEET 8. HINGE

2. TECHNICAL CHARACTERISTICS

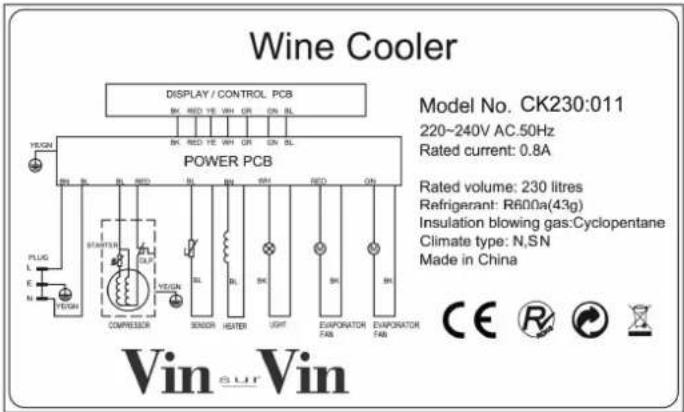

Below is an example of the nameplate:

The name plate attached to the inside or rear of the appliance (depending on the model) includes all the information specific to your wine cellar.

We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.)

Empty rectangular frame with no text, symbols, or content inside

Once it is installed and loaded, access to it is not so easy.

IMPORTANT NOTE: No assistance can be provided without this information.

3. GENERAL SAFETY INSTRUCTIONS

For your own safety and for the proper utilisation of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. Keep these recommendations close to the appliance, for future reference, and ensure that the document is transferred with the appliance, if it is sold or in the case of moving. This will ensure optimum operation of the appliance.

To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the case of operating/handling errors concerning the appliance.

Safety of children and other vulnerable persons

- This appliance may be used by children aged 8 years and above, and by persons who are physically, sensorially or mentally handicapped, or who have not learned to use the appliance, providing they are supervised by a person familiar with the appliance and who is aware of the risks involved. Children should not be allowed to play with the appliance. User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.

- Keep all packaging out of the reach of children, as there is a risk of suffocation.

- If you decide to scrap the appliance, disconnect it from the wall socket, cut the connection cable (as close to the appliance as possible) and remove the door, in order to prevent children playing with it, with the resulting risk of electric shock or being trapped inside.

- If an appliance with a magnetic door seal is being replaced by another appliance with a latch on the door or on the seal, ensure that the latch is disabled before selling or scrapping the old appliance. This will prevent the appliance from being transformed into a trap for children.

- Keep the appliance and its power cable out of reach of children less than 8 years old.

General safety

- CAUTION — This appliance is designed for home use.

- CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they could leak or release fluids.

- CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a qualified retailer, in order to avoid any risk of electric shock.

• CAUTION — Keep the ventilation openings well open and ensure that air can circulate, especially if the appliance is recessed into a wall.
• CAUTION — Do not damage the refrigerating circuit.
• CAUTION — Do not use electrical appliances inside the compartment, unless they are tolerated by the manufacturer.
• CAUTION — The refrigerating and insulating systems contain inflammable gases. When the appliance is scrapped, it should be deposited at an accredited collection centre. Do not expose the appliance to fire.

Refrigerating fluid

The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable.

Caution: Fire risk

If the refrigerating circuit is damaged:

• Avoid open flames or any source of combustion.
• Ensure that the room in which the appliance is installed is well ventilated.

It is dangerous to change the specification of the appliance in any way whatsoever.

Damage to the power cable may cause a short circuit and/or electric shock.

Electrical safety

• We decline any liability in respect of incidents caused by poor electrical installation.
• Do not extend the power cable. Do not use an extension cable, or adapter, or multi-way socket.
• Check that the wall socket is not damaged. A wall socket in poor condition may cause the appliance to overheat and explode.

• Check that the wall socket used for the appliance is properly accessible.

• Never pull on the main power cable.

• Ensure that the appliance is always electrically earthed.
• If the wall socket is loose, do not connect the cable, as there is a risk of electric shock or fire.
• Do not use the appliance if the interior lighting cover is not installed.
• Disconnect the appliance before replacing the lighting bulb.
• The appliance operates on a single phase 220\~240 V / 50 Hz power supply. The appliance must be connected to an earthed wall socket, in accordance with applicable recommendations.
• Do not attempt to replace a damaged power cable, contact your after-sales service.
• The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician.

Daily utilisation

• Do not store inflammable substances or fluids inside the appliance. This would create a risk of explosion.
• Do not operate other electrical equipment inside the appliance (mixers, whirling rotor for ice cream, etc.).
• When disconnecting the appliance, grip the plug firmly and do not pull on the cable.
• Do not expose the appliance to direct sunlight.
• Keep the appliance away from candles, luminaires and open flames, in order to avoid fire risk.
  • This appliance is only designed to store wines and drinks.
  • The appliance is heavy. Be careful when moving it.
• If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.
• Do not lean or climb on the appliance or its elements.
• In order to avoid falling objects and to prevent damage to the appliance, do not overload the compartments of the appliance.

Caution! Cleaning and servicing

• Before carrying out servicing, switch off the power supply and disconnect the appliance.
• When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.
• Do not use sharp or pointed objects to remove ice. Use a plastic scraper.

Important information concerning installation!

• To ensure proper electrical connection, follow the recommendations given in the present manual.
• Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.
• It is recommended that the appliance be allowed to settle for at least 4 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.
• Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided.
• In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.
• The appliance should not be placed close to radiators or cooking hot plates or gas rings.
• Check that electrical sockets remain accessible when the appliance is installed.

POWER SAVING

To limit the electricity consumption of your appliance:

- Install it in an appropriate place (see "Installing your appliance").

- Leave the doors open as little time as possible.

- To ensure that the appliance operates properly, clean the condenser regularly (see “Routine servicing of your appliance”).

- Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

Trouble shooting

• Any electrical work should be carried out by a qualified and skilled technician.
• The appliance should be repaired by an accredited repair centre, using only manufacturer's original spare parts.

The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other utilisation.

R600a

Safety instructions

Caution: Do not obstruct the ventilation grills on the appliance.

Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance.

Caution: Do not damage the refrigerating circuit in the appliance.

Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification plate.

Caution: Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance meets the requirements of all applicable European directives and their amendments, and notably complies with the following standards:

1907/2006 (REACH)

2011/65/EU (ROHS)

2006/95/EC relating to electrical safety

2004/108/EC relating to electro-magnetic compatibility

2008/48 relating to electro-magnetic fields

2010/30 and 1060/2010 relating to energy labels

CE

4. INSTALLATION INSTRUCTIONS

Before using your wine cellar

• Remove inner and outer packaging.
• Before connecting the cellar to the electrical socket, leave it in position for 24 hours. This will reduce the possibility of malfunction of the refrigeration circuit due to transport.
• Clean the inside using a soft cloth and lukewarm water.

Using your wine cellar:

Your wine cellar must be positioned in a room with an ambient temperature between 0 and +32°C.

If the ambient temperature is higher or lower, the performance of your appliance may be affected and it may not be possible to obtain temperatures between 5 and 18 degrees.

Installing your wine cellar

• This wine cellar is designed for free-standing installation.
• Position it in a place with sufficient strength to support its weight when loaded. To ensure that it is level, adjust the height of the feet underneath.
• To get the best from your appliance with the lowest energy consumption, do not place the appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a room which is too cold.
• Connect the cellar to a single socket, leaving a 10 mm gap between the back of the cellar and the wall. Be careful to support it, so that your wine cellar is perfectly level. (The use of a spirit level is recommended). This will prevent any movement due to instability, generating noise and vibration, and will ensure that the door seals perfectly.

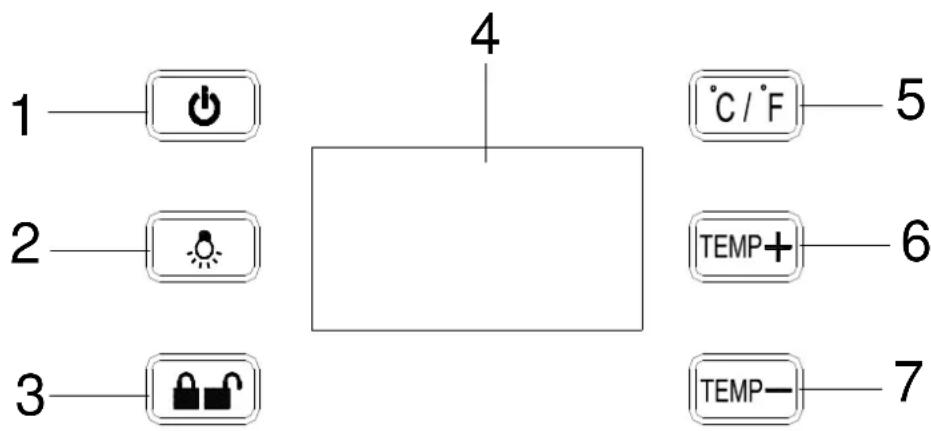

Control panel

6- On/Off switch
7- Lighting control button
8- Control panel lock/unlock button
9- LCD display
10- Celsius/Fahrenheit selection button
6 and 7 - Temperature control buttons.

Temperature selection

• You can choose the desired temperature in the compartment by pressing buttons 6 and 7. The temperature selected will increase/decrease by 1^ with each press of the buttons.
  The temperature can be selected within a range of 5 to 18°C.
• In the event of a power cut, all previously selected temperatures settings will be deleted and re-initialised to the factory-programmed temperature of 12°C.

5. EQUIPMENT

The climate control system

According to advice from specialists, the ideal temperature for storing wine is around 12^ C, within a bracket of 10 to 14^ C. Do not confuse this with service temperature, which varies between 5 and 18^ C, depending on the specific nature of the wine.

It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden variations in temperature by ensuring the close control of a constant average temperature.

The anti-vibration system:

The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to your wines.

The anti-UV system (CLS160 only):

Light accelerates the aging of wine. In our solid door cellars, your wines are naturally protected, on condition, of course, that the door is not opened too often. This glass-door model has been specially treated and filters out harmful ultraviolet rays.

Defrosting:

Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance's refrigerated surfaces are defrosted automatically. The defrost water is channelled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray.

Locking the control panel:

Your cellar is equipped with a safety lock for the control panel buttons.

If no adjustment is made for 2 minutes, the panel locks automatically and the buttons to the right of the display are deactivated. The buttons on the left of the display remain active. To unlock your cellar, simply press the "padlock" button.

Lock (CLS160 only):

Only the CLS160 has a lock.

Shelves

• To prevent damage to the door seal, ensure that the door is fully open before pulling out the shelves to add or remove bottles.
• For easier access to the contents of the shelves, slide the shelf out approximately one third of the way. The shelves are, however, fitted with a stop to prevent the bottles falling out.

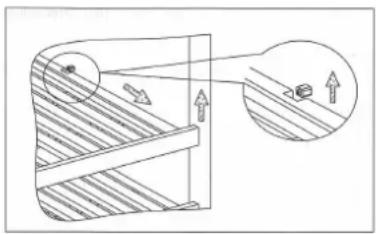

• To remove a shelf: pull it out until the cut-outs on the rack (right and left) are positioned under the side stops (square black plastic part). Lift up and pull outwards.

Technical diagram of a mechanical component with cross-sectional view and directional arrows (no text or labels)

Enhanced safety:

Since this range of appliances is intended for storing items of value, we have been careful to select quality components and to design suitable manufacturing techniques to ensure optimum safety in operation.

6. LOADING

The maximum recommended loading quantities for bottles are given as guidelines and are indicative only; they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator expressed in litres).

They correspond to tests conducted with a standard bottle: the standard "75 cl light Bordeaux" bottle - standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height.

In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday cellar management limits its capacity. You will therefore probably load the appliance a little less than the recommended maximum.

How to fill and maintain your wine cellar:

Types of bottle:

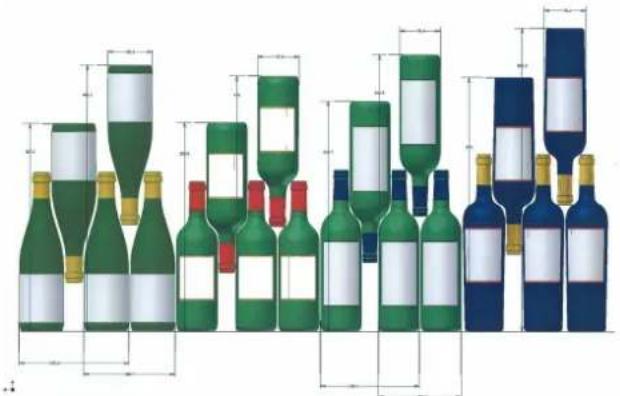

Illustration of multiple wine bottles with green and blue colors, some labeled with white tags, shown in dimension lines (no text or symbols)

We see here 4 kinds of 75 cl wine bottles: Burgundy and Bordeaux wine bottles of different dimensions.

There are many others of all shapes and sizes.

You will note the storage differences depending on bottle heights, diameters and alternating position method.

For example, if a wine cellar is loaded only with Burgundy wine bottles, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux bottles.

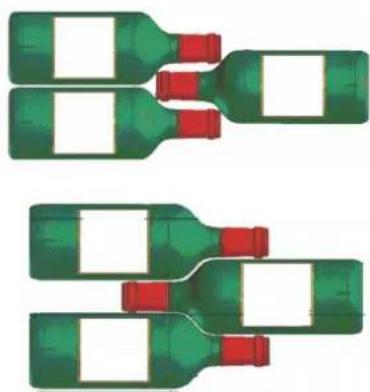

Methods of alternating:

Top-to-bottom neck-to-neck: For the CLS160

Note the difference in depth...

Top-to-bottom neck between bottle bodies: For the CLS130

Two identical green plastic bottles with red caps, arranged in a row (no text or symbols visible)

Examples of serving temperatures: (to be observed when tasting, in order to avoid missing out on the rich aromas of your wines!)

Opinions vary, and the ambient temperature too, but many people agree on the following:

Prestigious Bordeaux wines – Reds	16 – 17°C
Prestigious Burgundy wines – Reds	15 – 16°C
Prestigious dry white vintages	14 – 16°C
Light, young, fruity reds	11 – 12°C
Provence rosés, primeur wines	10 – 12°C
Dry whites and vin de pays reds	10 – 12°C
Vin de pays whites	8 – 10°C
Champagnes	7 – 8°C
Sweet wines	6°C

7. MAINTENANCE

Before cleaning your appliance (something to be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.

Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives.

Wash the plastic coating on the steel shelves with a mild detergent solution and then dry with a soft cloth. Wooden shelves require no particular maintenance.

When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature. The cold will kills any odours.

8. STORING YOUR WINE CELLAR

If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:

• Remove all bottles from the appliance
• Unplug the appliance
• Thoroughly clean the inside and outside of the appliance
• Leave the door open to prevent condensation, unpleasant odours and mould.

9. WHAT TO DO IN THE EVENT OF A POWER CUT

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature in your cellar. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

• If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before re-starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the temperature requires).
• When switching on for the first time or following a prolonged shutdown, it is possible that when re-starting, the temperatures selected and those displayed are not the same. This is normal. It will take a few hours before they stabilise.

10. IF YOU NEED TO MOVE YOUR WINE CELLAR

First, disconnect your cellar.

Remove all bottles and secure any loose parts.

To avoid damaging the levelling screws on the feet, screw them tightly into the base.

Move the appliance in an upright position (preferably) or note the direction in which the appliance may be laid down by looking at its packaging.

11. IN THE EVENT OF A BREAKDOWN

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• the appliance is properly plugged in;
• there is not a power cut in progress;
• the breakdown is not one of those described in the table at the end of this manual.

IMPORTANT:

If the mains cable supplied is damaged, it must be replaced by the manufacturer, a centre approved by the brand or by the retailer. In all cases, it must be replaced by qualified personnel, so as to avoid any risk of injury.

IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.

CAUTION!

Unplug the appliance before carrying out any maintenance or repair work.

12. PROBLEMS AND SOLUTIONS

You can solve many simple problems with your wine cellar yourself, thus avoiding having to contact your after-sales department. Try the following suggestions.

PROBLEM	POSSIBLE CAUSES
The cellar will not start.	It is not plugged in.The on/off button is in the off position.The fuse in your electrical installation has blown.
The cellar does not cool sufficiently. Check the temperature selected.The external temperature is beyond the cellar's operating temperature.The cellar is opened too often.The door is not properly closed.The door seal is not sealing correctly.
The compressor starts and stops frequently. The external temperature is high.A large quantity of bottles has been put into the cellar.The cellar is opened frequently.The door is not properly closed.The cellar has not been correctly set.The door seal is not sealing correctly.
The light does not operate.	The cellar is not plugged in.The fuse in your electrical installation has blown.The LED is not working.The light switch is off.
Vibration.	Check and ensure that the cellar is level.
The cellar makes a lot of noise.	A noise resembling circulating water is produced by the coolant gas and this is normal.At the end of a cooling cycle, you can hear the noise of water circulating.Expansion and contraction of the internal walls may cause a cracking sound.The cellar is not level.
The door does not close correctly.	The cellar is not level.The door seal is dirty or damaged.The shelves are not positioned correctly.A part of the contents is preventing the door from closing.

13. ENVIRONMENT

This product complies with EU WEEE Directive 2002/96/EC.

The crossed-out waste bin symbol on this appliance means that, at the end of its life, the appliance should be recycled separately from other domestic waste.

It should therefore be disposed of at a selective collection centre for electrical and/or electronic appliances or, if you are buying an equivalent product, by the retailer of the new product. The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful life. Selective and appropriate collection for the recycling of no-longer-used appliances and their disposal and destruction in an environmentally friendly manner helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about available collection systems, contact your local waste collection organisation or the retail outlet where you bought the product.

14. WARNING

Since we make continuous improvements to our products, we reserve the right to modify technical characteristics without notice.

Warranties for CLIMADIFF brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary warranty.

CLIMADIFF cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

APPENDIX 1

Model Brand: Climadiff	Reference: CLS130Domestic refrigeration appliance category: 2
Supply 220-240 V, 50 Hz
Dimensions (L x D x H cm)	59.5 x 59 x 121.5
Weight (kg) 51 kg
Energy efficiency class C
Annual energy consumption (AEC) Energy consumption 259 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres) 230 L
Defrosting Automatic
Climate class Climate class: N, SN	This appliance is designed to be used at an ambient temperature of between 10°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW 40 dB
Installation type Free standing

This appliance is intended exclusively for the storage of wine.

APPENDIX 2

Model Brand: Climadiff	Reference: CLS160Domestic refrigeration appliance category: 2
Supply 220-240 V, 50 Hz
Dimensions (L x D x H cm)	59.5 x 69 x 131.5
Weight (kg) 61.6 Kg
Energy efficiency class D
Annual energy consumption (AEC) Energy consumption 292 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres) 300 L
Defrosting Automatic
Climate class Climate class: N, SN	This appliance is designed to be used at an ambient temperature of between 10°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW 42 dB
Installation type Free standing

This appliance is intended exclusively for the storage of wine.

CLIMADIFF S.A.

Technical diagram of a mechanical assembly with cross-sections and directional arrows (no text or labels)

Illustration of multiple wine bottles with green and blue labels, shown in 3D perspective without any text or symbols.

Two green plastic bottles with red caps, connected by a white connector (no text or symbols visible)

Three identical bottles with red handles, arranged in a zigzag pattern (no text or symbols visible)

9° WAS TUN BEI STROMAUSFÄLLEN?

1° BESCHRIJVING VAN HET APPARAAT

1 BUITENKANT

1. STEUN VAN DE GLASDEUR

2 OPLEGPLANKEN

1. STAAF OPLEGPLANKEN

3 BASIS VAN DE COMPRESSOR

1. MAGNETISCHE KOPPELING

4 POOTJES

1. SCHARNIER

Technical diagram of a mechanical assembly with cross-sectional views and directional arrows (no text or labels)

Illustration of various wine bottles with green and blue colors, some labeled with white tags, shown in a grid layout (no text or symbols present)

Two green plastic bottles with red connectors, no text or symbols visible

Three green wine bottles with red caps, arranged in a row (no text or symbols visible)

Technical diagram of a mechanical assembly with cross-sectional views and directional arrows (no text or labels)

Mayor seguridad:

Illustration of various wine bottles with green and blue colors, some outlined for scale (no text or symbols)

7° MANTENIMIENTO
