Product type	Serving wine cellar
Brand	Climadiff
Model	VSV27
Useful volume	70 L
Dimensions (W x D x H)	45 x 52.5 x 73 cm
Net weight	20.3 kg
Power supply	220-240 V, 50 Hz
Annual energy consumption	325 kWh/year
Energy class	E
Recommended ambient temperature	16 °C to 32 °C
Internal temperature range	14 °C to 18 °C
Defrost type	Automatic
Noise level	39 dB(A)
Installation type	Freestanding
Interior lighting	LED with switch
Temperature adjustment	Thermostatic knob
Door	Glass door with magnetic seal
Shelves	Wood or steel depending on model
Adjustable feet	Yes
Grounding	Required
Refrigerant	Cyclopentane (insulating foam)

Frequently Asked Questions - VSV27 CLIMADIFF

How to adjust the temperature of my Climadiff VSV27 wine cellar?

Use the adjustment knob located at the top right of the appliance. Set it to Max for 2 hours during first use, then gradually adjust to reach the desired temperature between 14°C and 18°C.

What to do if the appliance does not cool enough?

Check that the ambient temperature is between 16°C and 32°C. Make sure the door is properly closed, the seal is in good condition, and the appliance is not exposed to a heat source. Readjust the thermostat if necessary.

How to clean my wine cellar?

Unplug the appliance. Clean the interior and exterior with a soft cloth dampened with warm water and mild detergent. Rinse with clean water and dry completely before reconnecting. Never use solvents or abrasives.

What to do in case of a power outage?

A power outage of 1 to 2 hours does not affect temperatures. Avoid opening the door. For a prolonged outage, protect your bottles by moving them to a cool place.

How to move the VSV27 wine cellar?

Remove all bottles and secure any moving parts. Screw the adjustable feet all the way in. Move the appliance in an upright position if possible. If you must lay it down, follow the direction indicated on the packaging.

The door does not close properly, what to do?

Check the leveling of the appliance by adjusting the feet. Make sure the door seal is not damaged and is properly in place. If the door has been reversed, check the assembly.

The interior LED lighting does not work, what to do?

Contact customer service as replacing the LED requires the intervention of a qualified professional.

Why is my appliance making noise?

Check that the appliance is level and that no objects (packaging, paper) are stuck inside. Normal noise can come from the fan or the compressor.

What types of bottles can I store in this wine cellar?

This wine cellar is designed for serving wine at a temperature of 14°C to 18°C. It is suitable for wine bottles, but not for fresh food.

Where to find the rating plate of my appliance?

The rating plate is located inside or at the back of the appliance. It indicates the serial number, voltage, power, and other technical information needed for any service.

USER MANUAL VSV27 CLIMADIFF

Black refrigerator with glass doors showing wavy insulation rack (no text or symbols visible)

VSV5 VSV27

GB - USE INSTRUCTIONS

NL - HANDLEIDING

12

32

Before use, please read and follow the safety rules and operating instructions in this manual.

Firstly, we would like to thank you for purchasing a CLIMADIFF product and hope that this appliance fully lives up to your expectations.

This appliance enables you to either preserve your foods or bring them to serving temperature.

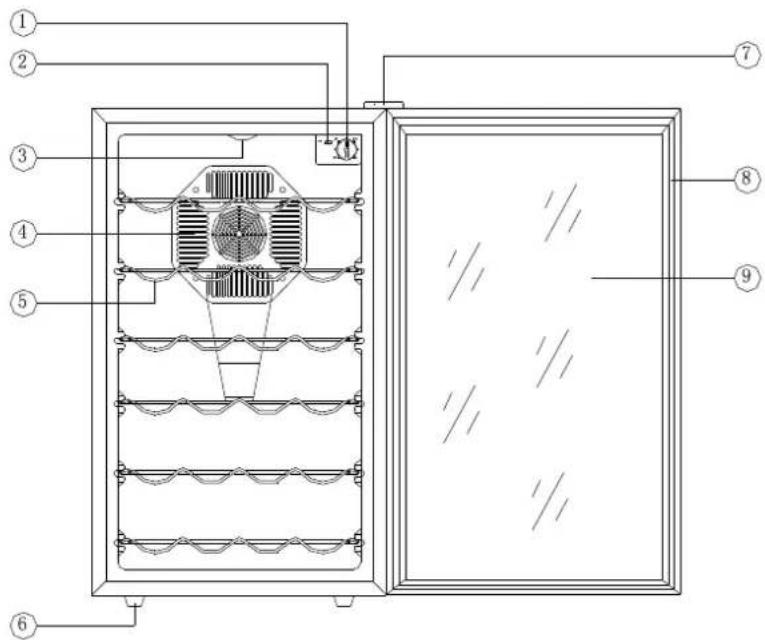

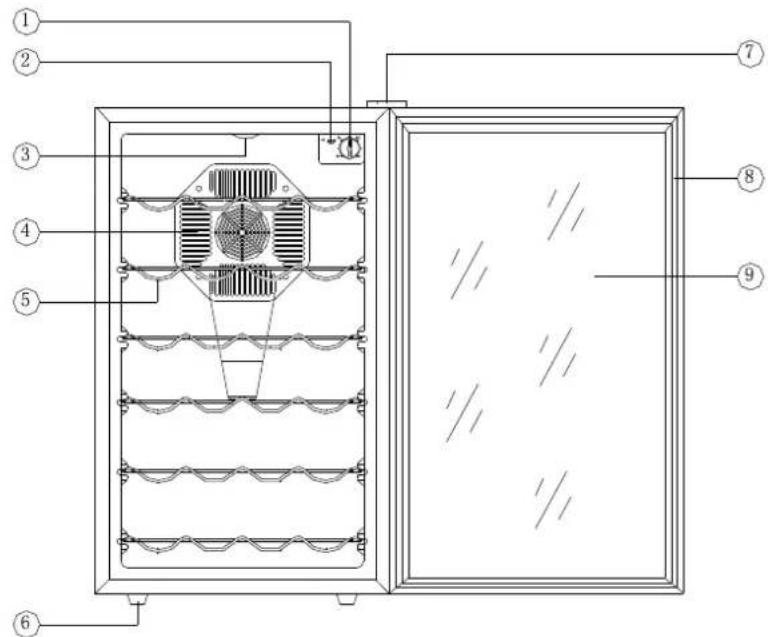

DESCRIPTION OF THE APPLIANCE

1. Temperature adjustment button
2. Interior lighting switch
3. LED interior lighting
4. Fan cover
5. Wine bottle tray
6. Foot
7. Hinge cover
8. Magnetic door seal
9. Glass door

2. TECHNICAL CHARACTERISTICS

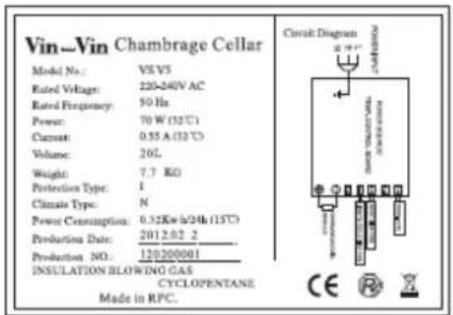

Below is an example of the nameplate:

The nameplate attached to the inside or rear of the appliance (depending on the model) includes all the information specific to your appliance.

We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.)

Empty rectangular frame with no text, symbols, or content inside

Once the appliance is installed and loaded, access to it is not so easy.

CAUTION: No assistance can be provided without this information.

3. SAFETY

Before you use your appliance for the first time, please read this user manual carefully. Store it carefully so that you can refer to it in future, if necessary.

Generally speaking, your appliance must be maintained by a qualified professional.

This appliance is designed exclusively for domestic use and is intended for the storage of special food and drink products at a storage temperature higher than that of a storage compartment for fresh products. Under no circumstances is it intended to keep food products fresh.

Make sure that your electrical installation's voltage corresponds to that on the appliance's nameplate; the appliance must be connected to an approved, earthed system. Incorrect repairs or connections can cause safety hazards. Have your electrical installation checked by a professional, if you are in any doubt.

This unit must be correctly connected to an earthed socket for your protection. Do not cut off or remove the earth wire on the mains cable supplied.

For safety reasons, do not use an electrical extension cable.

If your appliance is damaged (e.g. a major impact) or suffers harm (power surge due to lightning, flood, fire), it may be dangerous to use. Disconnect the mains plug and have the appliance checked by an approved professional repairer.

To prevent any danger, do not replace a damaged mains cable yourself. Contact your retailer, an approved service centre or professional repairer.

This appliance must be positioned such that the mains socket is accessible. Do not move the appliance once it is full: you might distort its body beyond repair. The electrical parts must not be directly accessible.

• Keep children away from the appliance.
• Do not use this appliance outdoors.

In the event that liquid is accidentally spilled (broken bottle, etc.) on electrical components (motor, etc.), disconnect the mains plug immediately.

To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands.

Keep the appliance away from any source of heat and out of direct sunlight.

Do not allow the mains cable to hang from a table or be in contact with sharp edges or hot surfaces.

Do not pull on the mains cable - take hold of the plug to disconnect the appliance.

Ensure that the area where your appliance is positioned can support its weight when loaded (a 75 cl bottle weighs approximately 1.3 kg).

Your cellar must be placed on a flat surface. If you have to position it on a rug or carpet, place a support underneath.

This appliance is not intended for use by people (particularly children) with diminished physical, sensory or mental capacities, or by people lacking experience or knowledge of such appliances, unless they are supervised by or have received instruction regarding use of the appliance from a person who is responsible for their safety.

Do not allow children to play with the appliance. Abandoned appliances are always dangerous.

Disconnect the device before performing any servicing or cleaning operation (disconnect the mains plug or trip the corresponding circuit breaker, depending on the model).

Never clean the appliance with inflammable products.

Do not store or spray any gas or inflammable liquid close to the appliance.

Prior to disposing of your appliance at a specific recycling site, remove the door but leave the shelves in place in such a way as to make it difficult for children to climb inside.

Climadiff disclaims any liability for damage resulting from failure to comply with connection or use instructions.

The appliance meets the requirements of the following European Directives:

2006/95/EC on electrical safety

2004/108/EC on electromagnetic compatibility

CE

4. INSTALLATION INSTRUCTIONS

Before using your temperature control cellar

Remove the inner and outer packaging.

Clean the inside using a soft cloth and lukewarm water.

Using your temperature control cellar:

The appliance must be positioned in a room with an ambient temperature within a range of 20 to 25°C.

If the ambient temperature is higher or lower, the performance of your appliance may be affected and it may not be possible to obtain temperatures between 14 and 18 degrees.

Installing your temperature control cellar

This appliance is designed for free-standing installation.

Position it in a place with sufficient strength to support its weight when loaded. To ensure that it is level, adjust the height of the feet underneath.

To get the best from your appliance with the lowest energy consumption, do not place the appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a room which is too cold.

Connect the temperature control cellar to a single socket, leaving a 10 cm gap between the back of the appliance and the wall. Be careful to support it, so that it is perfectly level. (Use of a spirit level is recommended). This will prevent any movement due to instability, causing noise and vibration, and will ensure that the door seals perfectly.

Selecting the temperature

Set the required temperature using the adjustment button on the top right of the appliance. When the appliance is switched on for the first time, set the thermostat to the "Max" position for 2 hours, then adjust the temperature, using the thermostat.

5. MAINTENANCE

Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.

Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives.

Wash the plastic coating on the steel shelves with a mild detergent solution and then dry with a soft cloth. Wooden shelves require no particular maintenance.

When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odours.

6. STORING YOUR TEMPERATURE CONTROL CELLAR

If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:

• Remove all bottles from the appliance
• Unplug the appliance
• Thoroughly clean the inside and outside of the appliance
• Leave the door open to prevent condensation, unpleasant odours and mould.

7. WHAT TO DO IN THE EVENT OF A POWER CUT

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature inside your appliance. To protect your drinks during power cuts, remember to open the door as little as possible. For long duration power cuts, take necessary steps to protect your drinks.

8. IF YOU NEED TO MOVE YOUR TEMPERATURE CONTROL CELLAR

Remove all bottles inside and secure movable components.

To avoid damaging the levelling screws on the feet, screw them tightly into the base.

Move the appliance in an upright position (preferably) or take note of the direction in which the appliance may be laid down by looking at its packaging.

9. IN THE EVENT OF A BREAKDOWN

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• the appliance is properly plugged in;
• there is not a power cut in progress;
• the breakdown is not one of those described in the table at the end of this manual.

IMPORTANT:

If the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury.

IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.

CAUTION!

Unplug the appliance before carrying out any maintenance or repair work.

10. PROBLEMS AND SOLUTIONS

You can solve many simple problems with your temperature control cellar, thus avoiding having to contact your after-sales department. Try the following suggestions.

PROBLEM	POSSIBLE CAUSE
Appliance not running	Check the voltage of the installationCheck your circuit breakerA fuse has blown
Not cold enough	Check the temperatures setThe ambient temperature means that the temperatures need to be adjustedThe door is being opened too frequentlyThe door is not properly closedThe door seal is not sealing correctlyInsufficient free space around the appliance
No interior light	Contact your after-sales department
The appliance seems unusually noisy	Check that the appliance is levelCheck that a piece of paper or part of the packaging has not remained trapped inside
The door does not close correctly	Check that the appliance is levelThe doors have been reversed and incorrectly fittedThe seal is in a poor conditionThe feet have “moved”
The LED does not light	The control panel is defectivePrinted circuit board problemMains plug problemIn such cases call a qualified professional
LED display error	Poor display qualityTemperature does not displayIn such cases call a qualified professional
The fans are not running	Control panel to be replaced by a qualified professional

11. ENVIRONMENT

This product complies with EU Directive 2002/96/EEC.

The crossed-out waste bin symbol on this appliance means that, at the end of its life, it should be recycled separately from other domestic waste.

It should therefore be disposed of at a selective collection centre for electrical and or electronic appliances or, if you are buying an equivalent product, by the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about available collection systems, contact your local waste collection organisation or the retail outlet where you bought the appliance.

12. WARNING

As we continuously improve our products, we reserve the right to modify technical characteristics without notice.

Warranties for CLIMADIFF brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

CLIMADIFF cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

APPENDIX 1

Model	Brand: VIN SUR VINProduct code: VSV5Domestic refrigeration appliance category: 10
Supply	220-240 V, 50 Hz
Dimensions (L x D x H cm)	24.6X50.3X37.5
Weight (kg)	7.7
Energy efficiency class	A
Annual energy consumption (AEC)	Energy consumption 118 kWh per year calculated on the basis of results obtained over 24 hours under standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres)	20
Defrosting	Automatic defrost
Climate class:	Climate class: NThis appliance is designed to be used at an ambient temperature between 16°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW	25dB
Installation type	Free standing

APPENDIX 2

Model	Brand: VIN SUR VINProduct code: VSV27Domestic refrigeration appliance category: 10
Supply	220-240 V, 50 Hz
Dimensions (L x D x H cm)	45X52.5X73
Weight (kg)	20.3
Energy efficiency class	E
Annual energy consumption (AEC)	Energy consumption 325 kWh per year calculated on the basis of results obtained over 24 hours under standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres)	70
Defrosting	Automatic defrost
Climate class:	Climate class: NThis appliance is designed to be used at an ambient temperature between 16°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW	39dB
Installation type	Free standing
