USER MANUAL CD679550 CONSTRUCTA

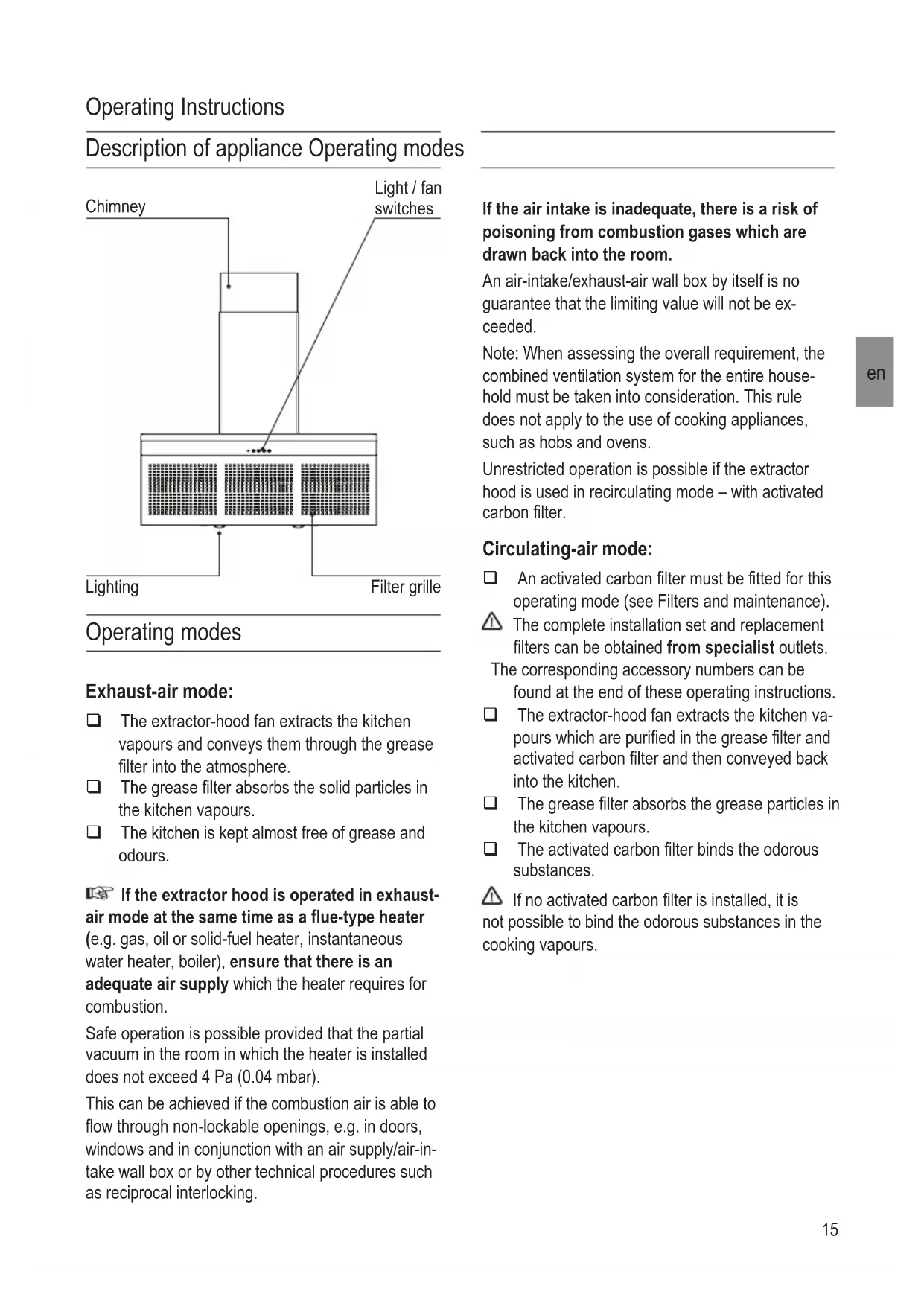

Description of appliance Operating modes If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be ex- ceeded. Note: When assessing the overall requirement, the combined ventilation system for the entire house- hold must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens. Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon lter. Circulating-air mode: qAn activated carbon lter must be tted for this operating mode (see Filters and maintenance). The complete installation set and replacement lters can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions. qThe extractor-hood fan extracts the kitchen va- pours which are puried in the grease lter and activated carbon lter and then conveyed back into the kitchen. qThe grease lter absorbs the grease particles in the kitchen vapours. qThe activated carbon lter binds the odorous substances. If no activated carbon lter is installed, it is not possible to bind the odorous substances in the cooking vapours. Lighting Light / fan switches Filter grille Chimney Operating modes Exhaust-air mode: qThe extractor-hood fan extracts the kitchen vapours and conveys them through the grease lter into the atmosphere. qThe grease lter absorbs the solid particles in the kitchen vapours. qThe kitchen is kept almost free of grease and odours. If the extractor hood is operated in exhaust- air mode at the same time as a ue-type heater (e.g. gas, oil or solid-fuel heater, instantaneous water heater, boiler), ensure that there is an adequate air supply which the heater requires for combustion. Safe operation is possible provided that the partial vacuum in the room in which the heater is installed does not exceed 4 Pa (0.04 mbar). This can be achieved if the combustion air is able to ow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-in- take wall box or by other technical procedures such as reciprocal interlocking. Operating Instructions16

Before using for the rst time Important notes: qThe Instructions for Use apply to several ver- sions of this appliance. Accordingly, you may nd descriptions of individual features that do not apply to your specic appliance. qThis extractor hood complies with all relevant safety regulations. Repairs should be carried out by qualied tech- nicians only. Improper repairs may put the user at con- siderable risk. qBefore using your appliance for the rst time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance. qPlease retain the operating and installation instructions for a subsequent owner. qThis appliance is labelled in accordance with European Directive 2002/96/EG con- cerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Gas hobs / gas cookers Do not use all the gas hotplates simultane- ously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

Do not operate more than 2 gas cooking areas simultaneously over a period of max. 15 minutes at maximum thermal load. Due to the effect of the heat there is a risk of burns if the surfaces of the housing are touched. qNote that one large burner of more than 5 kW (Wok) is equivalent to the power of 2 gas burn- ers. qNever operate a gas cooking area without a cooking utensil on it. Regulate the ame in such a way that it does not project over the cooking utensil.” Safety instructions Do not ambé food directly under the extractor hood. Risk of grease lter catching re due to ames. The hotplates must always be covered with a utensil. Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions). Do not use the appliance if damaged. The appliance is not intended for use by young children or inrmed persons without supervision. Young children should be supervised to ensure they do not play with the appliance. If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualied person in order to prevent serious injury to the user. The appliance may be connected to the mains by a qualied technician only. Dispose of packaging materials properly (see Installation instructions). This extractor hood is designed for domestic use only. Light bulbs must always be tted when the ex- tractor hood is in use.17

Operating the extractor hood The most effective method of removing vapours produced during cooking is to: qSwitch the ventilator ON as soon as you begin cooking. qSwitch the ventilator OFF a few minutes after you have nished cooking. Key Function

Switches the extractor motor on and off at low speed.

Switches the lighting system on and off.

Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading. Never operate the extractor hood without a grease lter. Overheated fat or oil can easily catch re. If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended. Carefully clean the extractor hood before switch- ing on for the rst time. Never allow children to play with the appliance. Do not let adults or children operate the appliance unsupervised: – if they are mentally or physically unable to use the appliance safely and correctly, – if they don’t have the knowledge and experi- ence to use the appliance safely and correctly.18

Filters and maintenance qUnhook the security chain by opening the shackle, then lift the grid upward. qRemove the lters one by one. qAny kind of bending of the lters has to be avoided when washing them. Before tting them again into the hood make sure that they are completely dry. (The colour of the lter sur- face may change throughout the time but this has no inuence to the lter efciency). qPut the clean lters back on the Grid in its place qHook the security chain and put back the Grid onto the hood Grease lters: Metal-mesh lters are used to trap the grease particles in the cooking vapours. The lter mats are made from noncombustible metal. Caution: As the lter becomes more and more saturated with grease, there is an increased risk of re and the function of the extractor hood may be impaired. Important: By cleaning the metal grease lters at appropriate intervals, the possibility of them catching re as a re- sult of a build-up of heat such as occurs when deep- fat frying or roasting is taking place, is reduced. Filters can be washed in the dish machine. They need to be washed every 2 month, or even more frequently in case of particularly intensive use of the hood. Removing and inserting metal self- supporting grease lters qFirst unhook the lter-holding Grid by pressing to the top to make it open. To open the Grid, push strongly on the points indicated by the stickers.

Activated carbon lter: For neutralizing odours in recirculating mode. Caution: As the lter becomes more and more saturated with grease, there is an increased risk of re and the function of the hood may be impaired. Important: Change the activated carbon lter promptly to pre- vent the risk of re from the accumulation of heat when deep-fat frying or roasting. These lters are not washable and cannot be regen- erated, and must be replaced approximately every year of operation, or more frequently with heavy usage. Replacing the activated carbon lter qUnhook the lter-holding grid (see “Removing and inserting metal self- supporting grease lters”). qRemove the saturated activated carbon lter by releas-ing the xing hooks. qFit the new lter by hooking it into its seating. qHook the lter-holding grid (see “Removing and inserting metal self- supporting grease lters”). Disposal of the old activated carbon lter: qActivated carbon lters do not contain any harmful substances. They can be disposed of as residual waste. Filters and maintenance20

Cleaning and care Isolate the extractor hood by pulling out the mains plug or switching off the fuse. qWhen cleaning the grease lters, remove grease deposits from accessible parts of the housing. This prevents the risk of re and en- sures that the extractor hood continues operat- ing at maximum efciency. qClean the extractor hood with a hot soap solu- tion or a mild window cleaner. qDo not scrape off dried-on dirt but wipe off with a damp cloth. qDo not use scouring agents or abrasive spong- es. qNote: Do not use alcohol (spirit) on plastic sur- faces, as dull marks may appear. Caution: Ensure that the kitchen is adequately ventilated. Avoid naked ames! Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating but- tons. Stainless steel surfaces: qUse a mild non-abrasive stainless steel cleaner. qClean the surface in the same direction as it has been ground and polished. Do not use any of the following to clean stain- less steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride! Aluminium and plastic surfaces: qUse a soft, non-linting window cloth or micro- bre cloth. qDo not use dry cloths. qUse a mild window cleaning agent. qDo not use aggressive, acidic or caustic clean- ers. qDo not use abrasive agents. Replacing the light bulbs

1. Switch off the extractor hood and pull out the

mains plug or switch off the electricity supply at the fuse box. When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

2. With the aid of a screwdriver pull out the bulbs

or, if it is not easy, remove the 2 screws xing the Lighting support, and pull it out of from the Hood.

4. Replace the Support, xing it in place with the

two screws removed as above.

5. Restore the power by inserting the mains plug

or switching on the fuse. Note: If the light does not function, check that the bulbs have been inserted correctly. If you encounter a problem If you have any questions or if a fault occurs, please call Customer Service. (See list of Customer Service representatives). When you call, please quote the following: E-Nr. FD Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the lter frame has been detached. The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.21

Installation Instructions: Important information Additional information concerning gas cookers: When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Ger- many: Technische Regeln Gasinstallation TRGI). Always comply with the currently valid regula- tions and installation instructions supplied by the gas appliance manufacturer. Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm. Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 460 mm. Old appliances are not worthless rubbish. Valu- able raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable. You received your new appliance in a protective shipping carton. All packaging materials are environ- mentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner. Please ask your dealer or inquire at your local au- thority about current means of disposal. The extractor hood can be used in exhaust air or circulating air mode. Always mount the extractor hood over the cen- tre of the hob. Minimum distance between electric hob and bottom edge of extractor hood: 460 mm. The extractor hood must not be installed over a solid fuel cooker – a potential re hazard (e.g. y- ing sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed. The smaller the gap between the extractor hood and hotplates, the greater the likelihood that drop- lets will form on the underside of the extractor hood.22

Prior to installation The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open. Exhaust air should neither be directed into a smoke or exhaust ue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or replaces are also located. Exhaust air may be discharged in accordance with ofcial and statutory regulations only (e.g. national building regulations). Local authority regulations must be observed when discharging air into smoke or exhaust ues that are not otherwise in use. When the extractor hood is operated in exhaust- air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-red heaters, continuous- ow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion. Safe operation is possible provided that the under- pressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar). This can be achieved if combustion air can ow through non-lockable openings, e.g. in doors, win- dows and via the airintake/ exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be ex- ceeded. Note: When assessing the overall requirement, the combined ventilation system for the entire house- hold must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens. If the exhaust air is going to be discharged into the open, a telescopic wall box should be tted into the outside wall. For optimum extractor hood efciency: qShort, smooth air exhaust pipe. qAs few bends in the pipe as possible. qDiameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise. The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework. Exhaust-air mode

Prior to installation qRound pipes: We recommend Internal diameter: 150 mm (at least 120 mm). qFlat ducts must have an internal crosssection that equates to that of round pipes. There should be no sharp bends. ø 120 mm approx. 113 cm

qIf pipes have different diameters: Insert seal- ing strip. qFor exhaust-air mode, ensure that there is an adequate supply of fresh air. Connecting a Ø 150 mm exhaust-air pipe: qMount the pipe directly onto the air outlet on the hood. Connecting a Ø 120 mm exhaust-air pipe: qAttach the reducing con- nector directly to the air pipe. qAttach the exhaust-air pipe to the reducing con- nector. Circulating-air mode qWith activated carbon lter if exhaust-air mode is not possible. The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these oper- ating instructions. Electrical connection

WARNING: THIS APPLIANCE MUST BE

EARTHED IMPORTANT: Fitting a Different Plug: The wires in the mains lead are coloured in accord- ance with the following code: Green and Yellow – Earth Blue – Neutral Brown – Live If you t your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals. This is what you have to do:

1. Connect the green and yellow (Earth) wire to

the terminal in the plug marked ‘E’ or with the symbol ( ), or coloured green or green and yel- low.

2. Connect the blue (Neutral) wire to the terminal

in the plug marked ‘N’ or coloured black.

3. Connect the brown (Live) wire to the terminal

marked ‘L’, or coloured red. The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations. If possible, site the earthed socket directly behind the chimney panelling. qThe earthed socket should be connected via its own circuit. qIf the earthed socket is no longer accessible fol- lowing installation of the extractor hood, ensure that there is a permanently installed disconnec- tor. If it is necessary to wire the extractor hood di- rectly into the mains: The extractor hood should only be connected to the electricity supply by a properly qualied electrician. A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors. If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualied person in order to prevent serious injury to the user. Preparing the wall qThe wall must be at and perpendicular. qEnsure that the wall is capable of providing a rm hold for mounting screws and plugs. Weight in kg: 20. We reserve the right to construction changes within the context of technical development.24

Electrical connection Electrical data: Are to be found on the name plate inside the appli- ance after removal of the lterframe. Before undertaking any repairs, always disconnect the extractor hood from the electricity supply. Length of the connecting cable: 1.30 m. This extractor hood corresponds to EC regulations concerning RF interference suppression. Installation

1. Draw a line on the wall from the ceiling to the

lower edge of the hood at the centre of the lo- cation where the hood is going to be mounted.

2. Use the template or following the picture to

mark the points (A-B-C) on the wall where the screws will be mounted. Ensure that the minimum distance between the hob and the extractor hood is maintained 460 mm for the gas hob and electric hod

3. Drill ø 8 mm holes A and B for the extractor

hood. Drill ø 8 mm holes C for the chimney brackets.

4. Insert plugs 11 into the holes A,B and C so that

they are ush with the wall.

6. Insert not totally the screw into the holes A.

Mounting the hood body

7. Before attaching the hood body, tighten the two

screws Vr located on the hood body mounting points.

8. Hook the hood body onto the screws 12a into

9. Fully tighten support screws 12a.

10. Adjust screws Vr to level the hood body.

11. Tighten the safety screw 11 in holes B.

Installation Note: Take into account any special accessories that are going to be tted. qRemove charcoal lters, if present. min. 460 Elektro Gas*

Connection in Ducting Version When installing the ducting version, connect the hood to the chimney using either a exible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer. qTo install a ø 120 mm air exhaust connection, insert the reducer ange 9 on the hood body outlet. qFix the pipe in position using sufcient pipe clamps (not supplied).

Connection in Recirculation Version All the items named in this procedure are included in the recirculation kit. The correspond-ing accessory numbers can be found at the end of these operating instructions. qPut connection 15 into the connection support 7.3, previously x with the upper bracket sup-port chimne 7.2.1, and secure with a screw.qInsert the connection extension pieces laterally 14.1 in connection 15.qMake sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.qConnect the air outlet connection 15 to the hood body outlet using either a pipe ø 150 mm. qUse the jubilee clips 25 to ensure a x connec- tion between pipe and hood outlet and between pipe and connection (15).qEnsure that the activated charcoal lters have been inserted.(see parag. “Activated carbon lter” in Filters and Maintenance chapter) Installation

Chimney assembly Upper Chimney qSlightly widen the two sides of the upper Chim- ney and hook them behind the brackets 7.2.1, making sure that they are well seated. qSecure the sides to the brackets using the 4 screws 12c supplied. qMake sure that the outlet of the extensions pieces is aligned with the chimney outlets. Lower Chimney qSlightly widen the two sides of the Chimney and hook them between the upper Chimney and the wall, making sure that they are well seated. qFix the lower part laterally to the hood body us- ing the 2 screws 12c supplied. Installation27
