Product type	Refrigerator (wine cellar)
Brand	Boretti
Model	BWK45 IX
Capacity	24 bottles
Dimensions (W x H x D)	60 x 44.8 x 55 cm
Net weight	30.5 kg
Gross weight	35.5 kg
Supply voltage	115-240 V, 50-60 Hz
Nominal power	120 W
Current	0.80 A
Energy consumption	0.9 kWh/24h
Temperature range	Adjustable from 5 to 20 °C
Lighting	1 x 6 W
Number of shelves	3 wooden shelves
Installation type	Built-in
Ventilation space	At least 50 mm
Maintenance	Unplug before cleaning, use a soft cloth
Repairability	Spare parts available via authorized service
Included accessories	3 wooden shelves

Frequently Asked Questions - BWK45 IX BORETTI

How to install the Boretti BWK45 IX refrigerator?

Place the appliance in a well-ventilated area, away from humidity and heat sources. Maintain a ventilation gap of at least 50 mm around the appliance. Before plugging in, let it rest upright for at least 3 hours. Make sure the electrical outlet is compliant and grounded.

How to adjust the internal temperature?

Press the adjustment button for about one second (see dashboard). The temperature indicator flashes. Use the + or - buttons to select the desired temperature. Wait 5 seconds to confirm. The default optimal temperature is 15 °C.

How many bottles can I store in this model?

This model can hold up to 24 bottles in standard configuration (Bordeaux or mixed types), using the 3 shelves and the floor. For champagne bottles, up to 9 bottles maximum.

How to clean the interior of the refrigerator?

Before cleaning, always unplug the appliance. Use a soft cloth and warm soapy water. Rinse and dry thoroughly. Never use abrasive products or solvents.

What to do if the compressor does not start?

First check that the plug is properly connected and the outlet works (test with another appliance). If the problem persists, contact authorized service. Do not attempt to repair yourself.

How to change the light bulb?

The bulb replacement must be carried out by an authorized service center. Do not attempt to do it yourself, as the appliance contains sensitive electrical components.

Can I store champagne bottles?

Yes. Place a maximum of 5 champagne bottles on the floor. To store more, remove the 3rd shelf and store up to 4 additional bottles by arranging them upside down above the floor bottles, for a total of 9 bottles.

How to remove the wooden shelves?

Only remove the shelves when they are empty. The shelves are not sliding; pull them gently outward. They can be removed for easy cleaning.

What is the power consumption of this appliance?

The power consumption is 0.9 kWh per 24 hours. This corresponds to a nominal power of 120 W.

What to do in case of a short power cut?

A short power cut does not affect wine preservation. However, if the anomaly persists, it can be damaging. Contact service if the problem does not resolve.

USER MANUAL BWK45 IX BORETTI

Exterior view of a modern office building (no signage)

VOORWOORD

Grid of circular objects arranged in three rows within a rectangular frame (no text or symbols)

Standaard 24 fl essen (100% liggend) 3 schappen

Isometric line drawing of a rectangular metal frame with horizontal slats (no text or symbols)

Champagnefl essen bewaren

Grid of 25 circular objects arranged in a 3x4 pattern within a square frame (no text or symbols)

Conservering 28 fl essen (100% liggend) 1 schap

Grid of circular objects arranged in two rows within a rectangular frame (no text or symbols visible)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Avant-propos

Compartment Vieillissement Clayettes Plaquette

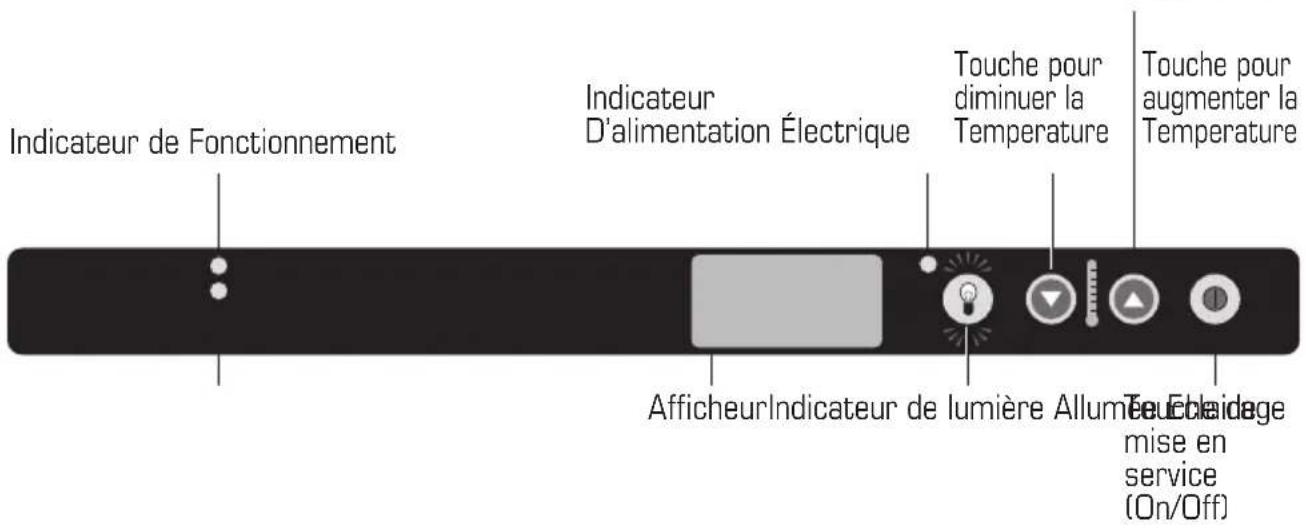

Tableau de bord

Touche de

programmation

Température

Grid of circular objects arranged in three rows within a rectangular frame (no text or symbols)

Standard 24 Bouteilles

Grid of 25 circular objects arranged in a 3x4 pattern, no text or symbols visible

Conservation 28 Bouteilles

Isometric line drawing of a rectangular metal frame with horizontal slats (no text or symbols)

Grid of circular objects arranged in two rows within a rectangular frame (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Introducción

Grid of circular objects arranged in three rows within a rectangular frame (no text or symbols)

Grid of 25 circular objects arranged in a square pattern, no text or symbols visible

Isometric line drawing of a rectangular metal grate or rack structure (no text or symbols)

3D rendering of a multi-tiered storage unit with circular compartments (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing prohibition or restriction (no text present)

Introduction

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

Table of Contents

Features

Warnings 28

Technical data 28

Installation

Positioning and connecting 29

Description of the device

Overview 30

Control panel 30

Starting up and using

Aging compartments 31

Manual temperature setting 31

Taking out the wooden shelves 31

Storing the bottles

Storing 32

Maintenance and troubleshooting

Maintenance and care 33

Troubleshooting 33

Features Data sheet

Notices

- Remember to keep this booklet so you can refer to it at any time. In case of sale, transfer or should you move, remember to keep it together with the device.

- Read the instructions carefully: there is important information about installation, use and safety.

- To prevent danger stemming from instability of the device, you must fasten it in place, following the assembly instructions strictly.

- Whenever moving or transporting the device, keep it in a vertical position.

- The beverage centre must not be used by children or invalids, without supervision by an adult or a tutor, in order to prevent the cellar from being used improperly.

- Children may use the beverage centre only if supervised by an adult, in order to prevent them from playing with the cellar.

- After installing the device, the power cable and socket must be easy to reach.

- Keep the ventilation openings on the casing of the device free.

- Do not use mechanical devices, or any means not suggested by the manufacturer, to speed up defrosting.

- Do not damage the coolant circuit.

- Contact the after sales service to replace the neon.

- The cable must not be bent or crushed.

- The cable must be checked on a routine basis and replaced only by authorised technicians.

- The power supply cable is of a Y type. Contact the after sales service to replace it.

- Do not use electrical equipment inside the food compartments, unless they are of a kind suggested by the manufacturer.

- The Manufacturer shall not be liable if any of the above rules are not complied with.

Model built-in 24 homme cellar

Temperatures 1 Zone

Dimensions width cm 60

length cm 44,8

depth cm 55

Weight** 30,5 Kg

Weight 35,5 kg

Power 120 W

Current 0,80 A

Lamp 1 x 6 W

Consumption 0,9 kWh / 24h

Voltage* 115 - 240 V

Frequency Hz* 50 - 60

* These values may change in different countries. In order to find the specific features of your device, check the product features plate.

** When the device is empty.

Installation

Positioning and connection

Unpacking

1 Unpack the device immediately and make sure it has not been damaged during transport. Should it be damaged, do not connect, and get in touch with the Dealer.
2 Carefully remove the protections and the adhesives, open the door and make sure all the components are present.
3 Take out the power supply cable.

Positioning

1 Position the device in a well ventilated area, not damp and free (avoid cabinets with closed walls).
2 Keep the device away from heat sources.
3 Make sure the minimum distances between the device and the walls of the room where it is placed are kept, in order to ensure perfect ventilation of the device.

See figure.

Wiring connection

After transport, stand the device vertically, and wait for at least 3 hours before connecting it to the wiring system. Before putting the plug into the power socket, make sure that:

• the socket is earthed and according to legal regulations;
• the socket is able to hold up to the maximum power load of the machine, indicated on the Data Sheet table or on the feature plate to the bottom right (see Description of the device);
• the power supply voltage falls within the range indicated on the Data Sheet table or on the feature plate to the bottom right (see Description of the device);
• the power socket is compatible with the plug of the device. Otherwise, replace the socket or the plug; do not use extensions or multiple sockets.

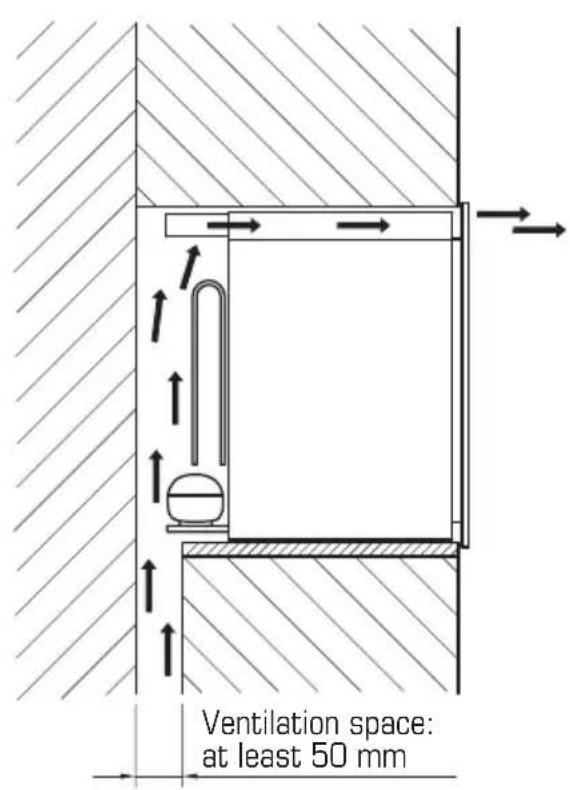

Ventilation space: at least 50 mm

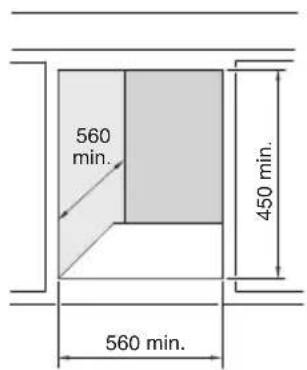

Dimensions of the compartment

Dimensions of the cellar
Furniture side area

Product Description

Interior Parts
Control pannel Leaf glass

Bottle ageing compartment Shelves Data plate

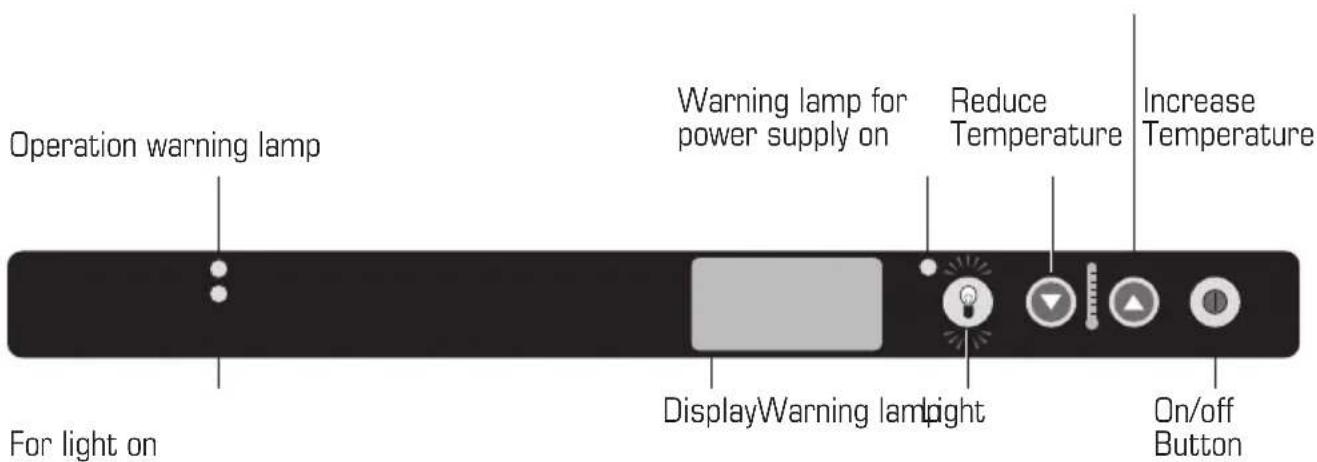

Control Panel

Temperature

Setting button

Operation warning lamp Warning lamp for power supply on Reduce Temperature Increase Temperature For light on Display Warning lamp light On/off Button

Using the wine cellar

Bottle ageing compartment

The ageing compartment's main function is that of guaranteeing that your wines are preserved in optimal conditions.

The wine cellar's temperature was factory pre-set at 15^ , a temperature that is considered optimal for most wines.

Wine has a complex nature and it derives from a long and slow process. In order to best express its attributes, very specific conditions are necessary.

All wines are preserved at the same temperature, but, depending on their different characteristics, wines are served and tasted at very different temperatures.

Therefore, just as for manufacturers' wine cellars, for your new appliance, the absolute temperature value is not important for preserving your wine. Rather, the constant temperature through time is important. Wine preservation is ideal at any temperature, as long as that temperature does not vary.

Manual temperature control

Should you need to adjust the temperature inside the

wine cellar, follow the instructions below:

1. When you plug in your wine cellar, the display shows the temperature that has been set
2. Press the ▲ button (see Control Panel) for one second. The temperature will begin to blink.
3. Press the ▲ or ▼ buttons until you reach the desired temperature.
4. Wait 5 seconds for the temperature to stop blinking.
5. Wait until the wine cellar reaches its temperature before you place the wine bottles inside.

The inside light does not go on (or it goes off temporarily) when the inside temperature goes over 24^ C. This allows you to reach the pre-set temperature more quickly.

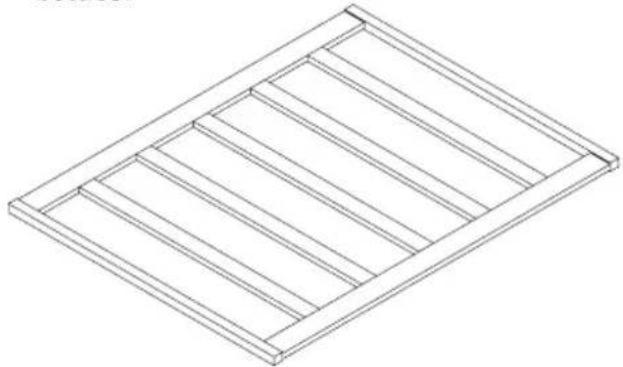

Taking out the wooden shelves

WARNING:

The wooden shelves are not sliding. Do not take them out when loaded with bottles, to prevent the risk of the bottles breaking.

You can take the shelves out for cleaning only when they are not loaded with any bottles.

Stocking the wine bottles

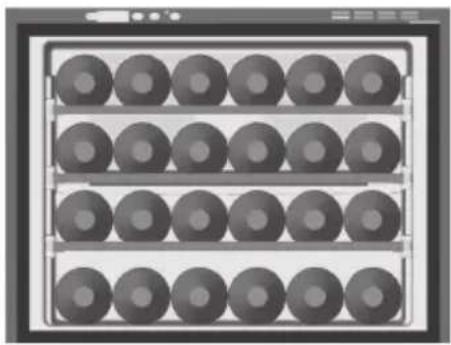

Standard 24-bottle stock

The 24-bottle stock (for standard, mixed, and renana bottles) is recommended for wines that need to be visible and easily removed.

Grid of circular objects arranged in three rows within a rectangular frame (no text or symbols)

Standard 24 Bottles (100% lying down) 3 shelves

Position each bottle into the slots on the 3 wooden shelves. 6 bottles can be placed on the bottom of the wine cellar.

We suggest placing the longer bottles (Rhine wine type) at the cellar base. The base is suitable for hosting larger bottles.

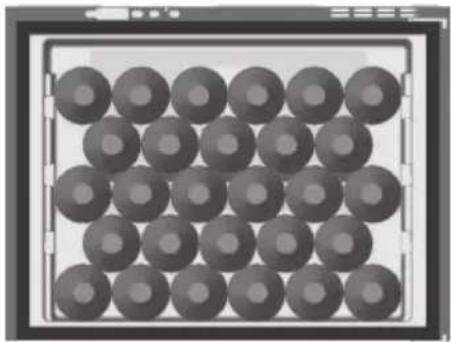

Grid of 25 circular objects arranged in a 3x4 pattern within a square frame (no text or symbols)

Preservation 28 Bottles (100% lying down) 1 shelf

- The wooden shelf can safely hold up to 22 bottles.

Isometric line drawing of a rectangular metal grate or rack structure (no text or symbols)

Champagne bottle stock

Champagne bottles are larger than standard bottles.

They must be placed onto the base of the wine cellar, which can hold up to 5.

If you want to stock more than 5 Champagne bottles in your wine cellar, remove the 3th shelf and stock the bottles in two rows (placing the bottles in the second row between those on the bottom row). This will hold up to 9 bottles.

Grid of circular objects arranged in two rows within a rectangular frame (no text or symbols visible)

Maintenance and troubleshooting

Care and maintenance

Disconnecting the wine cellar

During cleaning and maintenance, it is imperative that you unplug the wine cellar.

Troubleshooting

If you notice that your wine cellar is not working properly, check with the following list before you call your Service Centre.

Problem Possible causes/solutions

The compressor does not work • The plug is not plugged into the wall-outlet or not enough to make contact. Or, there could be a power failure in your home.

- The wall-outlet is not in working order. Plug the wine cellar into another wall-outlet to check.

The compressor never stops • Contact the Service Centre Indel B

• Any work that is done to the wine cellar should be performed by your authorized local Service Centre Indel B.
• Short term faults, such as power failure, will not compromise the wines. It is only when working faults are left unsettled for a long time that the wine may suffer.

Environmental Regulations

Should you wish to discard the machine for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)
