SA2133 - Croque monsieur clip TRISTAR - Free user manual and instructions

Product type	Sandwich press
Brand	TriStar
Model	SA2133
Rated voltage	220-240 V AC, 50 Hz
Indicator lights	Green light (ready) and red light (heating)
Safety lock	Yes, to lock the cooking plates
Plate coating	Non-stick
Number of sandwiches	1 at a time (standard size)
Indicative cooking time	2 to 3 minutes
Outer material	Heat-resistant plastic
Cleaning the plates	Damp cloth or soft brush
Cleaning the exterior	Damp cloth
Prohibited cleaning products	Abrasive cleaners, scouring pads, steel wool
Dishwasher compatibility	No, do not immerse
Warranty	24 months from date of purchase
Intended use	Household use only
Safety	Hot surface - do not touch, do not use outdoors
Recycling	Do not dispose of with household waste, take to recycling center

Frequently Asked Questions - SA2133 TRISTAR

How to use the TriStar SA2133 sandwich press for the first time?

Lightly lubricate the non-stick plates with oil or butter, plug in the appliance and let it heat up closed empty for about 5 minutes. Some odor or smoke may be released, this is normal.

How long does it take to cook a croque-monsieur?

The cooking time is about 2 to 3 minutes. Adjust according to the ingredients used.

How to clean the appliance after use?

Unplug the appliance and let it cool down open. Clean the plates with a damp cloth or soft brush, and the exterior with a damp cloth. Never use abrasive cleaners or steel wool. Do not immerse the appliance in water and do not put it in the dishwasher.

What to do if the indicator lights do not turn on?

Check that the appliance is properly plugged in and that the mains socket works. If the problem persists, contact after-sales service.

Can I use metal utensils on the plates?

No, to avoid damaging the non-stick coating, use only wooden, silicone, or heat-resistant plastic utensils.

The appliance emits smoke during first use, is this normal?

Yes, it is normal. The appliance may emit odor and smoke during initial heating due to initial lubrication. Let it heat up empty for 5 minutes.

What electrical voltage is required for the TriStar SA2133?

The rated voltage is 220-240 V AC, 50 Hz. Make sure your mains socket matches.

Can I leave the appliance unattended while it heats up?

No, the appliance must be constantly supervised, especially when it is on or hot. Do not leave it unattended by an adult.

How should I dispose of the appliance at the end of its life?

Do not dispose of it with household waste. Take it to a recycling center for waste electrical and electronic equipment (WEEE) in accordance with European directive 2002/96/EC.

What to do in case of breakdown during the warranty period?

Return the complete appliance in its original packaging with the purchase receipt to your retailer. The 24-month warranty covers material and manufacturing defects. For damaged accessories, contact after-sales service.

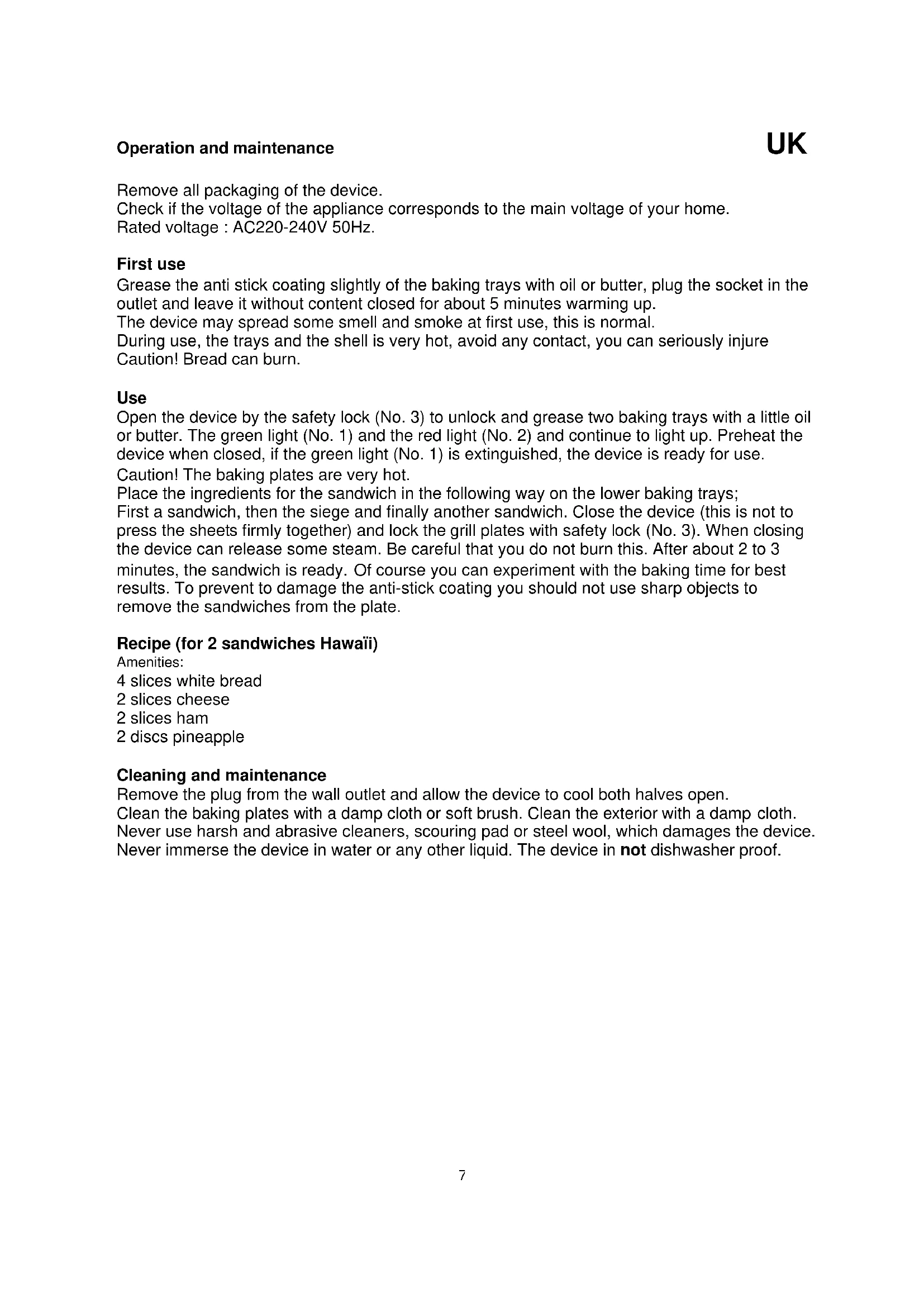

USER MANUAL SA2133 TRISTAR

Operation and maintenance

Remove all packaging of the device.

Check if the voltage of the appliance corresponds to the main voltage of your home.

Rated voltage: AC220-240V 50Hz.

First use

Grease the anti stick coating slightly of the baking trays with oil or butter, plug the socket in the outlet and leave it without content closed for about 5 minutes warming up.

The device may spread some smell and smoke at first use, this is normal.

During use, the trays and the shell is very hot, avoid any contact, you can seriously injure. Caution! Bread can burn.

Use

Open the device by the safety lock (No. 3) to unlock and grease two baking trays with a little oil or butter. The green light (No. 1) and the red light (No. 2) and continue to light up. Preheat the device when closed, if the green light (No. 1) is extinguished, the device is ready for use.

Caution! The baking plates are very hot.

Place the ingredients for the sandwich in the following way on the lower baking trays;

First a sandwich, then the siege and finally another sandwich. Close the device (this is not to press the sheets firmly together) and lock the grill plates with safety lock (No. 3). When closing the device can release some steam. Be careful that you do not burn this. After about 2 to 3 minutes, the sandwich is ready. Of course you can experiment with the baking time for best results. To prevent to damage the anti-stick coating you should not use sharp objects to remove the sandwiches from the plate.

Recipe (for 2 sandwiches Hawaii)

Amenities:

4 slices white bread
2 slices cheese
2 slices ham
2 discs pineapple

Cleaning and maintenance

Remove the plug from the wall outlet and allow the device to cool both halves open.

Clean the baking plates with a damp cloth or soft brush. Clean the exterior with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device. Never immerse the device in water or any other liquid. The device in not dishwasher proof.

IMPORTANT SAFEGUARDS

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.
• Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have.
• Do not use outdoors, or on or near direct heat sources
• Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc.
• This appliance is for household use only and only for the purpose it is made for.
• The appliance must be placed on a stable, level surface.
• This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee

• The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt).
• During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
• Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
• If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

m = 311 ;

Recept (for 2 Hawaii-mackor)

Proportioner:
4 skivor vitt brod
2 ostskivor
2 skinkskivor
2 ananasringar
