USER MANUAL LBE68 Ariston Thermo

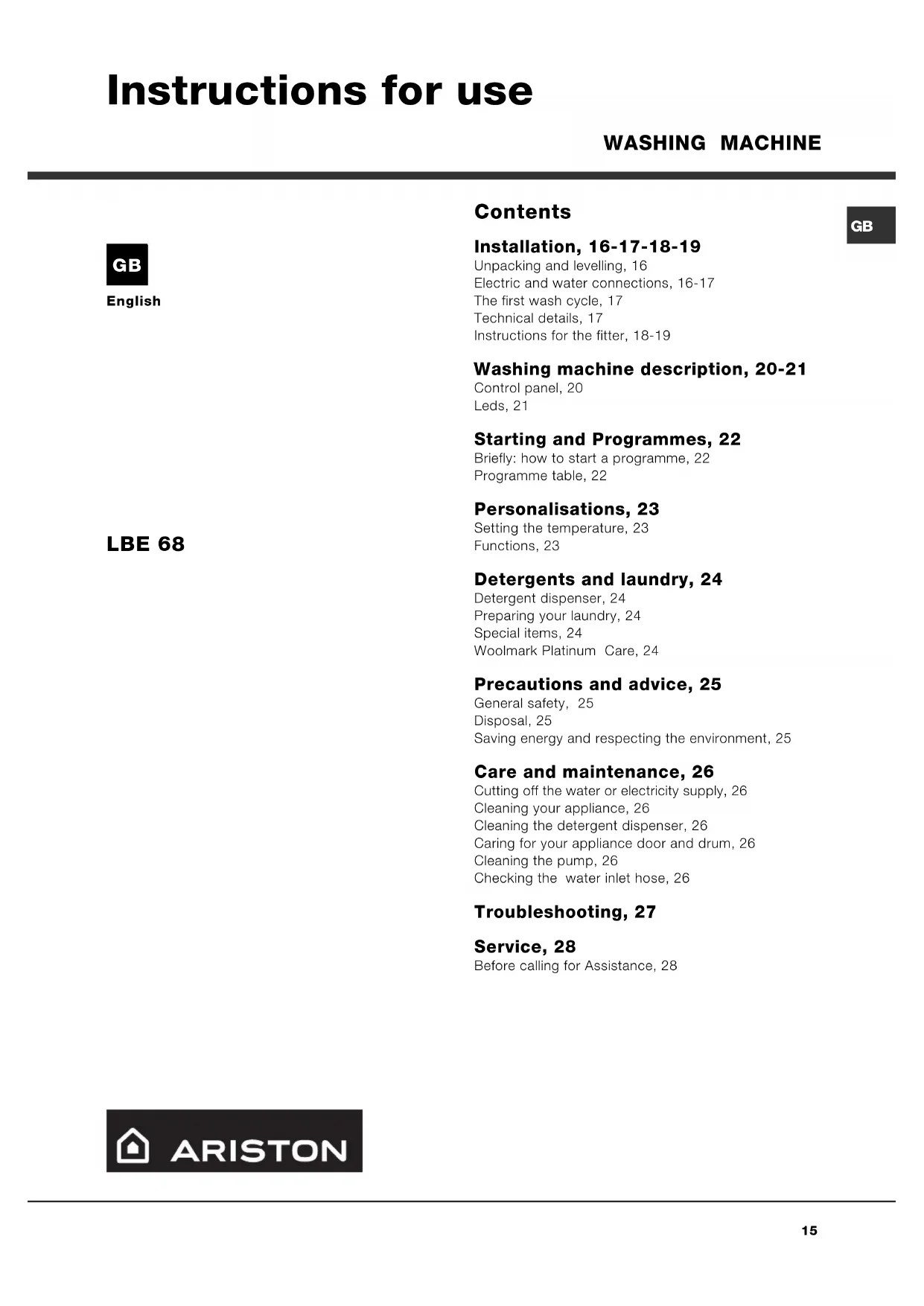

English Contents Installation, 16-17-18-19 Unpacking and levelling, 16 Electric and water connections, 16-17 The first wash cycle, 17 Technical details, 17 Instructions for the fitter, 18-19 Washing machine description, 20-21 Control panel, 20 Leds, 21 Starting and Programmes, 22 Briefly: how to start a programme, 22 Programme table, 22 Personalisations, 23 Setting the temperature, 23 Functions, 23 Detergents and laundry, 24 Detergent dispenser, 24 Preparing your laundry, 24 Special items, 24 Woolmark Platinum Care, 24 Precautions and advice, 25 General safety, 25 Disposal, 25 Saving energy and respecting the environment, 25 Care and maintenance, 26 Cutting off the water or electricity supply, 26 Cleaning your appliance, 26 Cleaning the detergent dispenser, 26 Caring for your appliance door and drum, 26 Cleaning the pump, 26 Checking the water inlet hose, 26 Troubleshooting, 27 Service, 28 Before calling for Assistance, 28 WASHING MACHINE LBE 68 Instructions for use GB16

Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. Read these instructions carefully: they contain vital information on installation, use and safety. Unpacking and levelling Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has been

damaged during transport. If this is the case, do not install it and contact your retailer.

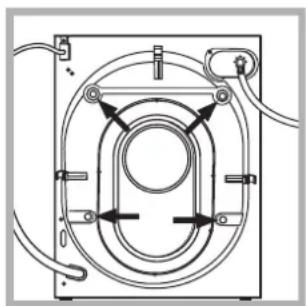

protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the

washing machine needs to be moved to another location. Packaging materials are not children's toys. Levelling

1. Install the washing machine on a flat sturdy floor,

without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, compen- sate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Electric and water connections Connecting the water inlet hose

1. Insert seal A into the

end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

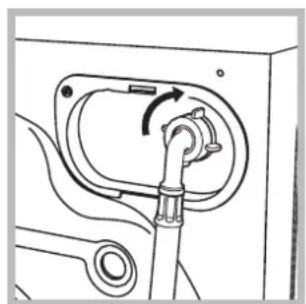

2. Connect the other end

of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the

hose. The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman. Installation A17

Connecting the drain hose Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor; alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater. We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Electric connection Before plugging the appliance into the mains socket, make sure that: the socket is earthed and in compliance with the applicable law; the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right); the supply voltage is included within the values i ndicated on the Technical details table (on the right); the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug. The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms. When the washing machine is installed, the mains socket must be within easy reach. Do not use extensions or multiple sockets. The power supply cable must never be bent or dangerously compressed. The power supply cable must only be replaced by an authorised serviceman. Warning! The company denies all liability if and when these norms are not respected. The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle. ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Technical details ModelLBE 68Dimensions59.5 cm wide81,5 cm high54 cm deepCapacityfrom 1 to 5 kgElectricconnectionsvoltage 220/230 Volts 50 Hzmaximum absorbed power 1850 WWaterconnectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 46 litresSpin speedup to 600 rpmControlprogrammesaccording toIEC456 directiveprogramme 3; temperature 60°C;run with a load of 5 kg.This appliance is compliant with thefollowing European CommunityDirectives:- 73/23/CEE of 19/02/73 (LowVoltage) and subsequent amendments- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) andsubsequent amendments- 2002/96/CE18

Instructions for the fitter Mounting the wooden panel onto the door and inserting the machine into cabinets: In the case where the machine must be shipped for final installation after the wooden panel has been mounted, we suggest leaving it in its original packaging. The packaging was designed to make it possible to mount the wooden panel onto the machine without removing it completely (see figures below). The wooden panel that covers the face of the machine must not be less than 18 mm in thickness and can be hinged on either the right or left. For the sake of practicality when using the machine, we recommend that the panel be hinged on the same side as the door for the machine itself - the left.

Tur seite Door Mounting Accessories (Fig. 1-2-3-4-5). Fig. 1 N° 2 Hinges N° 1 Magnet N° 1 Magnet plate N° 1 Rubber plug N° 2 Hinge Supports N° 1 Spacer Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 4/B - No. 6 type A self-threading screws, l =13 mm. - No. 2 type B metric, countersunk screws, l =25; for fastening the magnet plate to the cabinet. - No. 4 type C metric screws, l =15 mm; for mounting the hinge supports to the cabinet. - No. 4 type D metric screws, l =7 mm; for mounting the hinges on the supports. Mounting the Parts onto the Face of the Machine. - Mount the hinge supports onto the face of the machine, positioning the hole indicated by the arrow in fig. 1 towards the inside of the face and using the type C screws. - Mount the magnetic plate on the opposite side, at the top, using the two type B screws. - Place the spacer illustrated in fig. 4/B between the appliance front and the magnet receiver.19

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description Using the Drilling Template. - To trace the positions of the holes on the left-hand side of the panel, align the drilling template to the top left side of the panel using the lines traced on the extremities as a reference. - To trace the positions of the holes on the right-hand side of the panel, align the drilling template to the top right side of the panel. - Use an appropriately sized router to mill the holes for the two hinges, the rubber plug and the magnet. Mounding the Parts onto the Wooden Panel (Door). - Insert the hinges into the holes (the movable part of the hinge must be positioned facing away from the panel) and fasten them with the 4 type A screws. - Insert the magnet into the top hole on the opposite side of the hinges and fasten it with the two type B screws. - Insert the rubber plug into the bottom hole. The panel is now ready to be mounted onto the machine. Mounting the Panel into the machine. Insert the nib of the hinge (indicated by the arrow in fig. 2) into the hole for the hinge and push the panel towards the front of the machine. Fasten the two hinges with the type D screws. Fastening the plinth guide. If the machine is installed at the end of a set of modular cabinets, mount either one or both of the guides for the base molding (as shown in fig. 8). Adjust them for depth based on the position of the base molding, and, if necessary, fasten the base to the guides (fig. 9). This is how to assemble the plinth guide (fig. 8): Fasten angle P using screw R, insert plinth guide Q into the special slot and once it is in the desired position, lock it in place using angle P and screw R. Inserting the machine into the Cabinet. - Push the machine into the opening, aligning it with the cabinets (fig. 6). - Regulate the adjustable feet to raise the machine to the appropriate height. - To adjust the position of the wooden panel in both the vertical and horizontal directions, use the C and D screws, as shown in fig. 7. Important: close the lower part of the appliance front by ensuring that the plinth rests against the floor. Fig. 8 Fig. 9 Accessories provided for the height adjustment. The following can be found inside the polystyrene lid (fig. 10): 2 crossbars (G), 1 strip (M) the following can be found inside the appliance drum: 4 additional feet (H), 4 screws (I), 4 screws (R), 4 nuts (L), 2 plinth guides (Q) Adjusting the appliance height. The height of the appliance can be adjusted (from 815 mm to 835 mm), by turning the 4 feet. Should you require the appliance to be placed higher than the above height, you need to use the following accessories to raise it to up to 870 mm: the two crossbars (G); the 4 feet (H); the 4 screws (I); the 4 nuts (L) then perform the following operations (fig. 11): remove the 4 original feet, place a crossbar G at the front of the appliance, fastening it in place using screws I (screwing them in where the original feet were) then insert the new feet H. Repeat the same operation at the back of the appliance. Now adjust feet H to raise or lower the appliance from 835 mm to 870 mm. Once you have reached the desired height, lock nuts L onto crossbar G. To adjust the appliance to a height between 870 mm and 900 mm, you need to mount strip M, adjusting feet H to the required height. Insert the strip as follows: loosen the three screws N situated at the front of the Top cover of the appliance, insert strip M as shown in fig. 12, then fasten screws N.

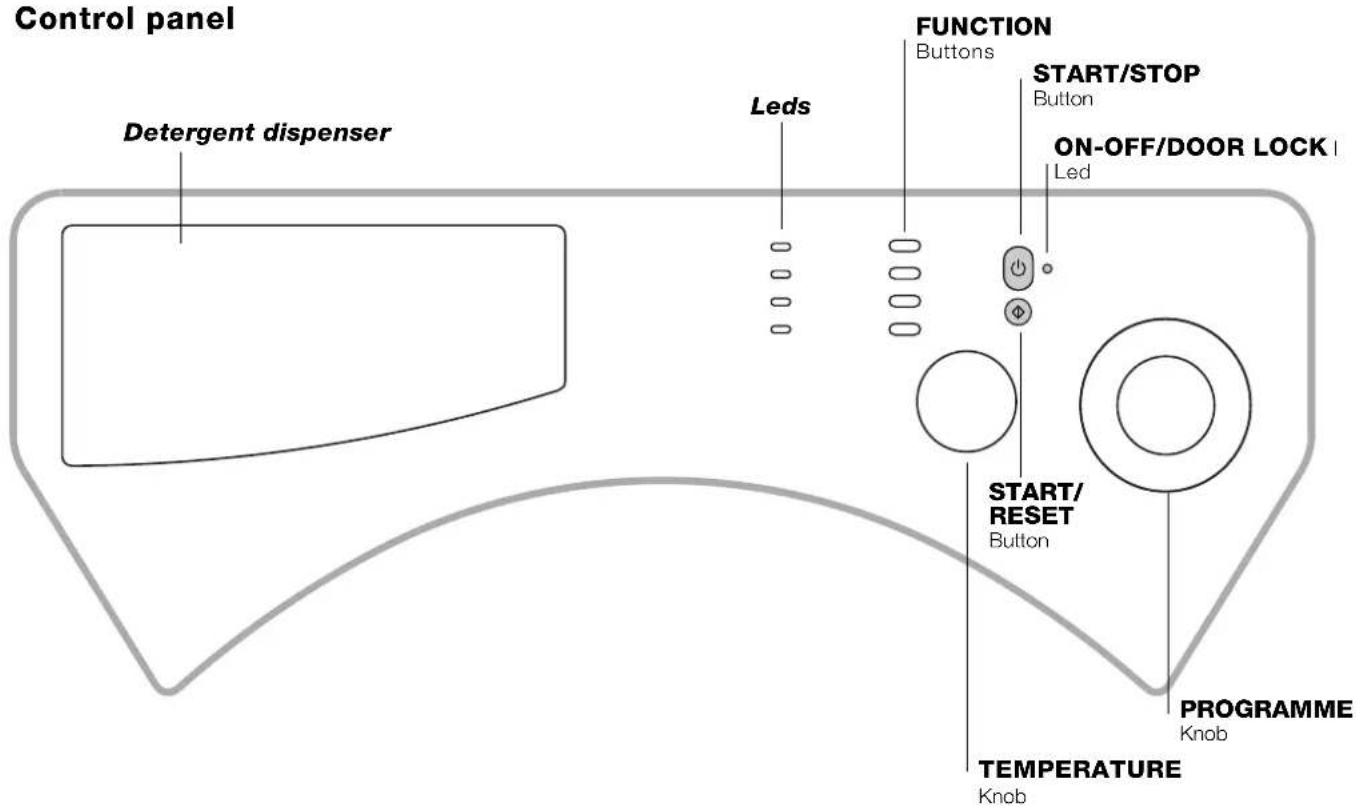

Led Detergent dispenser: to add detergent and fabric softener (see page 24). LEDS: to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 21). FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on. TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 23). START/STOP button: to turn the washing machine on and off. START/RESET button: to start the programmes or cancel any incorrect settings. ON-OFF/DOOR LOCK Led: to find out whether the washing machine is on and if the appliance door can be opened (see page 21). PROGRAMME knob: to select the wash programmes. The retractable control knob: press the centre of the knob for it to pop out. The knob stays still during the cycle.21

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description ON-OFF/DOOR LOCK led: If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door. The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates there is an abnormality. Call for Technical Assistance. Cycle phase under way: During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way: Prewash Wash Rinse Spin cycle Note: during draining, the LED corresponding to the Spin cycle phase will be turned on. Function buttons The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled. Leds The LEDS provide important information. This is what they can tell you: Delay set: If the Delay Timer function has been enabled (see page. 23), once you have started the programme, the LED corresponding to the delay set will begin to flash: As time passes, the remaining delay will be displayed, and the corresponding LED will flash: Once the set delay is complete, the flashing LED will turn off and the programme set will start.22

Type of fabric and degree of soilProgram- mes Wash temperat.DetergentFabricsoftenerCyclelength(minutes)Description of wash cycle Pre- wash Wash CottonsExtremely soiled whites(sheets, tablecloths, etc.) 90°C 137Pre-wash, wash cycle, rinse cycles,intermediate and final spin cyclesExtremely soiled whites(sheets, tablecloths, etc.) 90°C 120Wash cycle, rinse cycles, intermediateand final spin cyclesHeavily soiled whites and fastcolours 60°C 105Wash cycle, rinse cycles, intermediateand final spin cyclesSlightly soiled whites and delicatecolours (shirts, jumpers, etc.) 40°C 72Wash cycle, rinse cycles, intermediateand final spin cyclesSlightly soiled delicate colours 30°C 65Wash cycle, rinse cycles, intermediateand final spin cyclesSyntheticsHeavily soiled fast colours(baby linen, etc.) 60°C 77Wash cycle, rinse cycles, anti-crease ordelicate spin cycleFast colours (all types of slightlysoiled garments) 40°C 62Wash cycle, rinse cycles, anti-crease ordelicate spin cycleHeavily soiled fast colours(baby linen, etc.) 50°C 73Wash cycle, rinse cycles, anti-crease ordelicate spin cycleDelicate colours (all types ofslightly soiled garments) 40°C 58Wash cycle, rinse cycles, anti-crease ordelicate spin cycleDelicate colours (all types ofslightly soiled garments) 30°C 30Wash cycle, rinse cycles and delicatespin cycl Delicates Wool

40°C 50Wash cycle, rinse cycles and delicatespin cycleVery delicate fabrics(curtains, silk, viscose, etc.) 30°C 45Wash cycle, rinse cycles, anti-crease ordraining cyclePARTIAL PROGRAMMESRinse Rinse cycles and spin cycleDelicate rinse cycle Rinse cycles, anti-crease or drainingSpin cycle Draining and heavy duty spin cycleDelicate spin cycle Draining and delicate spin cycleDraining Draining Starting and Programmes Programme table Notes For the description of the Anti-crease function, please see page 23. The information contained in the table is purely indicative. Special programme Daily 30' (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent. Briefly: starting a programme

1. Switch the washing machine on by pressing button .

All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine and

shut the appliance door.

3. Set the PROGRAMME knob to the programme

5. Add the detergent and any fabric softener (see

6. Start he programme by pressing the START/RESET

button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.

7. When the programme is finished, the ON-OFF/

DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button

Function Effect Comments Enabled with programmes: Delay Timer Delays the start of the wash by up to 9 hours. Press the button repeatedly until the LED corresponding to the desired delay is turned on. The fifth time the button is pressed, the function will be disabled. N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it. All Super Wash Allows for an impeccable wash, visibly whiter than a standard Class A wash. This function is incompatible with the RAPID function. 1, 2, 3, 4, 5, 6, 7, 8 Rapid Cuts the duration of the wash cycle by 30%. This function is incompatible with the SUPER WASH function. 1, 2, 3, 4, 5, 6, 7, 8 Spin exclusion The washing machine will not carry out a spin cycle, but rather a drum spin at medium speed to assist water draining. We recommend that you use it when washing garments which are difficult to iron. All programmes except for 11 and draining. ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description Personalisations Setting the temperature Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 22). The temperature can be lowered, or even set to a cold wash (

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set. Anti-crease This function interrupts the wash programme, and the washing is left to soak in water before the appliance is drained. It is enabled in programmes 6 - 7 - 8 - 11 and Delicate rinse cycle. To conclude the cycle, press the START/RESET button. To run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button.24

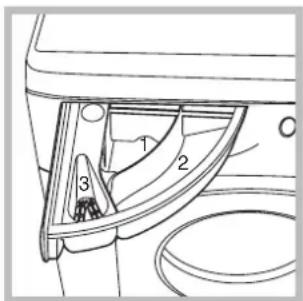

Detergent dispenser Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. Open up the detergent dispenser and pour in the detergent and fabric softener, as follows. compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid) Liquid detergent should only be poured in immediately prior to the wash cycle start. compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow from the grid. Do not use hand wash detergent because it may form too much foam. Preparing your laundry Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites. Empty all pockets and check for loose buttons. Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g Special items Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg. Woolmark Platinum Care As gentle as a hand wash. Ariston sets a new standard of superior performance that has been endorsed by The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.0303): Set programme 10 for all "Hand wash" garments, using the appropriate detergent. Detergents and laundry

Precautions and advice ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully. General safety This appliance has been designed for non- professional, household use and its functions must not be changed. This washing machine should only be used by adults and in accordance with the instructions provided in this manual. Never touch the washing machine when barefoot or with wet or damp hands or feet. Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself. Do not open the detergent dispenser while the appliance is in operation. Do not touch the drain water as it could reach very high temperatures. Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings. In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs. Always keep children well away from the appliance while in operation. The appliance door tends to get quite hot during the wash cycle. Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Before loading your laundry into the washing machine, make sure the drum is empty. Disposal Disposing of the packaging material: observe local regulations, so the packaging can be re-used. The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Saving energy and respecting the environment Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment. Saving on detergent, water, energy and time To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy. The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 23) helps to organise your wash cycles accordingly. If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.26

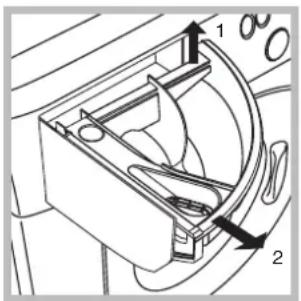

Care and maintenance Cutting off the water or electricity supply Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks. Unplug your appliance when cleaning it and during all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently. Caring for your appliance door and drum Always leave the appliance door ajar to prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. Never use hoses that have already been used.

Your washing machine could fail to work. Before calling for Assistance (see page 28), make sure the problem can't easily be solved by consulting the following list. Troubleshooting Problem The washing machine won't start. The wash cycle won't start. The washing machine fails to load water. The washing machine continuously loads and unloads water. The washing machine does not drain or spin. The washing machine vibrates too much during the spin cycle. The washing machine leaks. The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED. There is too much foam. Possible causes/Solution: The appliance is not plugged into the socket, or not enough to make contact. There has been a power failure. The appliance door is not shut properly. The button has not been pressed. The START/RESET button has not been pressed. The water tap is not turned on. A delayed start has been set (using the Delay Timer, see page 23). The water inlet hose is not connected to the tap. The hose is bent. The water tap is not turned on. There is a water shortage. The water pressure is insufficient. The START/RESET button has not been pressed. The drain hose is not fitted between 65 and 100 cm from the floor (see page 17). The free end of the hose is underwater (see page 17). The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops. The programme does not foresee the draining: some programmes require enabling the draining manually (see page 22). The Anti-crease function is enabled: to complete the programme, press the START/RESET button (see page 23). The drain hose is bent (see page 17). The drain duct is clogged. The drum was not unblocked correctly during installation (see page 16). The washing machine is not level (see page 16). The washing machine is closed in between furniture cabinets and the wall (see page 16). The water inlet hose is not screwed on correctly (see page 16). The detergent dispenser is obstructed (to clean it, see page 26). The drain hose is not secured properly (see page 17). Call for Assistance because this means there is an abnormality. The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). You used too much detergent. ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description28

Before calling for Assistance: Check whether you can solve the problem on your own (see page 27); Restart the programme to check whether the problem has been solved; If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate. Always request the assistance of authorised servicemen. Notify the operator of: the type of problem; the appliance model (Mod.); the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine. Service Service29
