Product type	Milk frother
Brand	SilverCrest
Model	SMA 550 A1
Power supply	220-240 V ~, 50 Hz
Rated power	450 - 550 W
Main functions	Heat milk, froth milk
Included accessories	Pitcher, base, 3 beaters (2 for heating and frothing, 1 for heating), instruction manual
Safety	Automatic shut-off at end of cycle, shut-off if pitcher is removed from base, splash protection
Cleaning	Removable parts hand washable; do not immerse base; do not use in dishwasher
Pitcher material	Heat-resistant plastic
Beater type	Beater for heating only, beater for heating and frothing
Indicator light	Integrated in the on/off button, flashes at end of cycle
Milk capacity (max)	MAX mark on pitcher (approx. 250 ml for foam)
Warranty	3 years
After-sales service France	0800 919270
After-sales service Switzerland	0842 665566
Manufacturer / Importer	KOMPERNASS GMBH, Burgstrasse 21, 44867 Bochum, Germany
IAN number	75438

Frequently Asked Questions - SMA 550 A1 SILVERCREST

How to froth milk with the SMA 550 A1?

Use the heating and frothing beater (double spiral). Fill the pitcher up to the lower MAX mark, close the lid, place on the base and press the on/off button. The appliance stops automatically when the foam is ready. Let it rest for 30 seconds before serving.

What type of milk is recommended for good foam?

Cow's milk with a fat content of 1.5% or 3.5% gives the best results. Cold milk froths better than warm milk. Avoid plant-based milks (soy, almond) which froth poorly or may overflow.

How to clean the milk frother?

Unplug the appliance and let it cool down. Remove the beater and the sealing ring from the lid. Wash all removable parts by hand with hot water and a little dish soap. Do not put in the dishwasher. Clean the base with a damp cloth.

What to do if the appliance does not turn on?

Check that the power plug is properly inserted and that the base is dry. If the pitcher is not correctly placed on the base, the appliance will not start. If the indicator light flashes, wait for the appliance to cool down (approx. 2 minutes). If the problem persists, contact after-sales service.

What is the difference between the two types of beaters?

The heating beater (single spiral) is used only to heat milk without foam. The heating and frothing beater (double spiral) can both heat and froth. Both beaters are supplied; one of each type is included.

How long does it take to heat or froth milk?

The time depends on the quantity and initial temperature. Generally, heating to 60-65°C takes about 2 to 4 minutes. Foam is ready in 3 to 5 minutes. The appliance stops automatically. Wait 2 minutes between two uses to avoid overheating.

Can I use the frother for something other than milk?

No, the appliance is designed only for cow's milk. Do not use it for other liquids (water, chocolate, soups) as this could damage the appliance or cause overflow.

What to do if the milk does not froth?

Make sure you have installed the heating and frothing beater (double spiral) and not the heating-only beater. Also check that you have not exceeded the MAX mark. Use cold milk with at least 1.5% fat content.

The indicator light flashes, what does that mean?

The flashing for about 30 seconds indicates the end of the cycle (heating or frothing finished). If the flashing persists, the appliance may need to cool down. Unplug and wait 2 minutes before using again.

How to store the milk frother?

Let the appliance cool down completely. Wind the cable around the cable winder under the base. Store unused beaters in the beater holder of the pitcher or in a dry place. Keep the appliance in a dry and dust-free location.

USER MANUAL SMA 550 A1 SILVERCREST

PDF online www.lidl-service.com

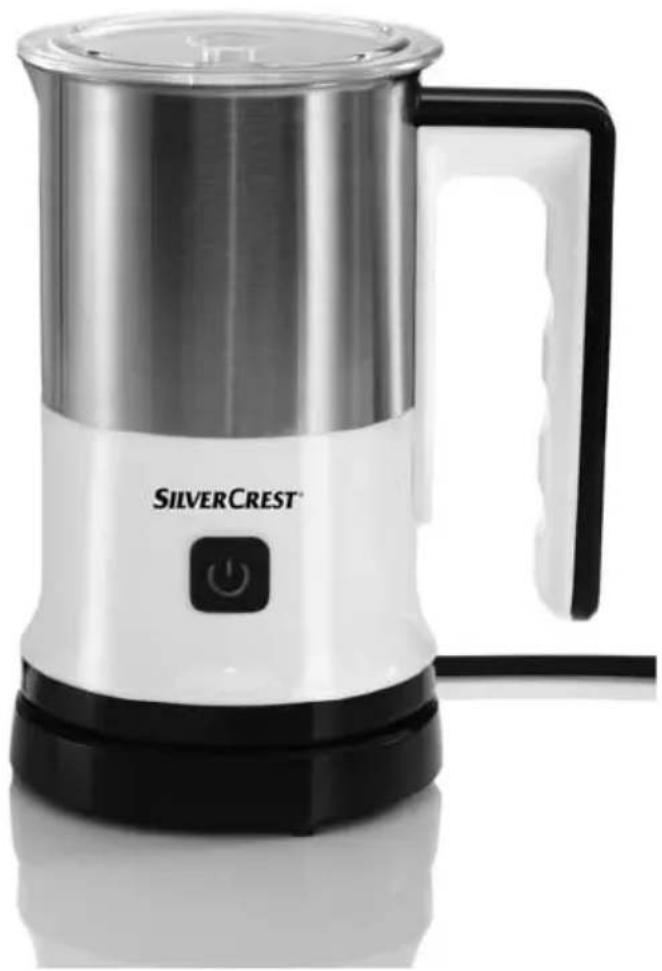

Silver Crest milk tea maker with black handle and white body, no visible text or symbols on device body

MILCHAUFSCHÄUMER SMA 550 A1

DE AT CH

MILCHAUFSCHÄUMER

Bedienungsanleitung

IT CH

MONTALATTE

Operating instructions

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Exploded view diagram of a smart water heater with numbered parts for identification

Inhaltsverzeichnis

Einführung 2

Urheberrecht 2

Description of the appliance 39

Technical data 39

Safety instructions 40

Preparation....41

Unpacking 41

Disposal of the packaging....41

Operation 42

Heating milk 42

Frothing milk. 43

Using milk froth 44

Italian-style cappuccino....44

Marocchino 44

Vienna Melange 44

Cleaning and Care 45

Storage 46

Troubleshooting 46

Disposal of the appliance 46

Notes on the EC Declaration of Conformity 47

Importer 47

Warranty 47

Service 48

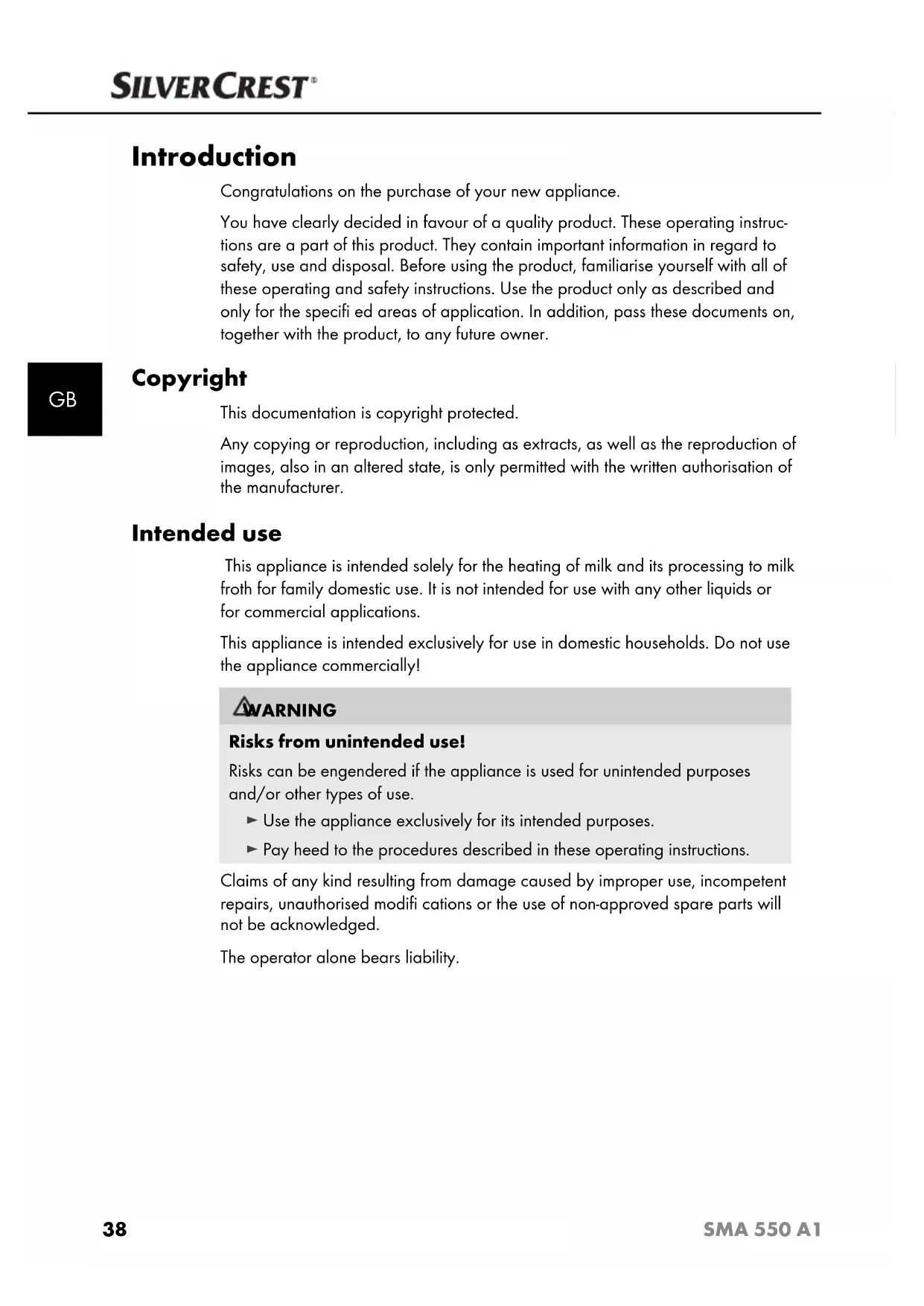

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

GB

Copyright

This documentation is copyright protected.

Any copying or reproduction, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This appliance is intended solely for the heating of milk and its processing to milk froth for family domestic use. It is not intended for use with any other liquids or for commercial applications.

This appliance is intended exclusively for use in domestic households. Do not use the appliance commercially!

WARNING

Risks from unintended use!

Risks can be engendered if the appliance is used for unintended purposes and/or other types of use.

▶ Use the appliance exclusively for its intended purposes.
▶ Pay heed to the procedures described in these operating instructions.

Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorised modifications or the use of non-approved spare parts will not be acknowledged.

The operator alone bears liability.

Items supplied

The appliance is delivered with the following components as standard:

• Milk Frother (Carafe)
• Plinth
  ● 3 Whisks (2 x whisks for heating and frothing, 1 x whisk for heating)
• Operating instructions

NOTICE

▶ Check the contents to ensure that everything is present and for signs of visible damage.
▶ If the contents are incomplete, or have been damaged due to defective packaging or transportation, contact the Service Hotline (see chapter Service).

Description of the appliance

1 Lid
② Whisk holder
③ Sealing ring
4 Whisk for heating and frothing
5 Start/Stop button with integrated indicator lamp
6Plinth
⑦ Cable winder
8 Whisk for heating

Technical data

Voltage supply 220 - 240 V

\~, 50 Hz

Nominal power rating 450 - 550 W

Safety instructions

DANGER - RISK OF ELECTRICAL SHOCK!

▶ Ensure that the plinth with the electrical connections NEVER comes into contact with water! Allow the plinth to dry completely should it ever get wet accidentally.
▶ Use the appliance only with the supplied plinth.
▶ Ensure that during operation the power cable will never get wet or damp. Lay it so that it cannot be trapped or damaged in any manner.
▶ Arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or by our Customer Service Department.
▶ Before use check the appliance for visible external damage. Do not put into operation an appliance that is damaged or has been dropped..
▶ Repairs should only be carried out by authorised specialist companies or by the Customer Service Department. Incompetent repairs can result in significant risks for the user. In addition, warranty claims become void.

WARNING - RISK OF PHYSICAL INJURY!

▶ Before you change accessories, disconnect the appliance from the mains power socket.. This prevents an unintentional starting of the appliance.
The appliance becomes hot during operation. Therefore, only grasp it by the handle.
▶ Ensure that the appliance is stable and vertical before switching it on. Otherwise, the appliance may tip over and spill the hot milk out.
▶ Do not touch the rotating parts during operation!
This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
▶ Children should be supervised to ensure that they do not play with the appliance.

WARNING - PROPERTY DAMAGE!

▶ Do not use an external time switch or separate remote control system to operate the appliance.
▶ Never leave the appliance unattended during operation.
▶ Ensure that the appliance, the power cable or the plug do not come into contact with sources of heat, such as hot plates or open flames.
▶ NEVER operate the appliance when it is empty. The appliance could be irreparably damaged!

Preparation

Unpacking

Remove all parts of the appliance and these operating instructions from the carton.
◆ Remove all packing material.
Clean the appliance as described in the section „Cleaning and Care“.

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.

NOTICE

▶ If possible preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can package the appliance ideally for its return.

Operation

DANGER - RISK OF ELECTRICAL SHOCK!

▶ NEVER place the electrical plinth ⓘ in the vicinity of water - potentially fatal from electric shock!

WARNING - RISK OF PHYSICAL INJURY!

- For safety reasons you should not open the lid ① while the appliance is in operation. There is a risk of being scalded. - Always use fresh milk. Do not consume milk that has been standing in the carafe for some time.

NOTICE

If you lift the carafe off the plinth ⑥ during the preparation process, the appliance will stop. You will have to start the preparation process again by pressing the Start/Stop button ⑤.

Heating milk

1) Place the whisk for heating ⑧ onto the drive shaft inside the carafe. One of the whisks ④ not required can be clamped and stored in the whisk holder ②. Keep the other unused whisk ④ in a clean, dry place, for example in a cutlery drawer.
2) Take the carafe from the plinth ⑥ and pour the milk in. Thereby, fill it with as much milk as is needed so that at least the minimum mark inside the carafe is reached. However, never fill it with milk beyond the upper MAX-marking (○). If you do, the appliance may overflow.
3) Place the carafe on the plinth ⑥.
4) Put the lid ① on.
5) Press the Start/Stop button ⑤. The integrated indicator lamp glows. The whisk for heating ⑧ starts to rotate and thereby heats the milk uniformly.
6) The appliance switches off and the integrated indicator lamp glows for about 30 seconds as soon as the milk is heated to about 60 - 65°C.

NOTICE

▶ If you want to stop the preparation process before completion, press the Start/Stop button ⑤. If you press the Start/Stop button ⑤ again, the preparation process will continue.

7) Take the lid off ① and pour the hot milk into the desired container. Wait about 2 minutes before you heat up another portion of milk.

Frothing milk

Tips for the milk froth

■ Froth only cow's milk with this appliance. Other types of milk can be frothed only subject to limitations, or can cause the appliance to overflow.

■ Low fat or skimmed milk does not burn on as easily as whole milk, however, a too low fat content contributes to the risk that the milk will not be well frothed. Therefore, when possible use a milk with 3.5% or 1.5% fat content.

■ Well-cooled milk can be better frothed than less cold.

■ Do not froth the milk a second time, otherwise it may burn on.

Leave frothed milk to stand for about 30 seconds before you put the foam onto cappuccino, espresso, etc. Then the larger bubbles burst and the more liquid milk sinks to the bottom. You can then use the fine foam.

Producing frothed milk

1) Place the whisk for heating and frothing ④ onto the drive shaft inside the carafe. The whisk ⑧ not required can be clamped and stored in the whisk holder ②. The other whisk for heating and frothing ④ you can store in a dry and clean place.

2) Take the carafe from the plinth ⑥ and pour the milk in. Thereby, fill it with as much milk as is needed so that at least the minimum mark inside the carafe is reached. However, never fill it with milk beyond the upper MAX-marking ⑦) If you do, the appliance may overflow. When frothing, the milk volume multiplies itself manyfold!

3) Place the carafe on the plinth ⑥.

4) Put the lid ① on.

5) Press the Start/Stop button ⑤. The integrated indicator lamp glows. The whisk for heating and frothing ④ begins to rotate, it heats the milk and froths it.

6) The appliance switches off and the integrated indicator lamp glows for about 30 seconds as soon as the milk is frothed.

NOTICE

▶ If you want to stop the preparation process before completion, press the Start/Stop button ⑤. If you press the Start/Stop button ⑤ again, the preparation process will continue.

7) Wait about 30 seconds. In this time the still liquid milk flows to the bottom.

8) Remove the lid ① and pour the milk froth into the desired container to make, for example, a cappuccino.

Wait about 2 minutes before you heat up another portion of milk.

Using milk froth

You can use the milk froth for various drink variations:

Italian-style cappuccino

■ Pour an espresso (about 25 - 30 ml) into an approx. 120 - 180 ml cup.
■ Then pour milk froth onto it until the cup is filled to the brim.

Marocchino

■ Melt about a teaspoon of milk chocolate.
■ Spread the melted chocolate onto the inside wall of a glass and pour an espresso in.
■ Add 3 - 4 teaspoons of frothed milk and then sprinkle it with cocoa powder.

Vienna Melange

■ Pour about 125 ml of strong black coff ee into a mocha coff ee cup.
■ Froth up about 110 ml of milk and add as much milk froth as is needed to fill the cup to just below the rim.
■ Depending on personal taste, you can add a little sugar.

Cleaning and Care

DANGER - RISK OF ELECTRICAL SHOCK!

▶ Before cleaning it, disconnect the plug from the mains power socket! Otherwise there is the risk of receiving an electric shock!
▶ NEVER open any housing parts. There are no user-serviceable elements inside. When the housing is open, there is the risk of receiving a potentially fatal electrical shock.

NEVER immerse the appliance in water or other liquids! This would bring about the risk of a potentially fatal electric shock upon the next use of the appliance should moisture be present in the voltage conducting elements.

WARNING - RISK OF PHYSICAL INJURY!

▶ Let the appliance cool down before cleaning it. Risk of burns!

WARNING - PROPERTY DAMAGE!

Do not clean the appliance or parts of it in the dishwasher! If you do so, the appliance will be damaged beyond repair.

▶ Do not use abrasive or caustic cleaning agents. These can attack the surface and damage it beyond repair.

NOTICE

▶ Ideally, clean the appliance directly after cooling, so that milk residues can not dry onto it.

For the first coarse cleaning put some water and a little mild detergent into the carafe (the whisk used 4/8 is still fitted). Thereby, pay heed to the MIN and MAX - markings.

Start the appliance so that the whisk ploughs ④/⑧ through the water. Afterwards, rinse the appliance out with copious clean water.

For a thorough cleaning, proceed as follows:

■ Remove the whisk ④/⑧ from the appliance to clean it and clean the inside of the appliance with warm water. Add a little detergent. Wipe the interior with a soft cloth or sponge. Pay special attention to the area around the drive shaft. Afterwards, rinse the appliance out with copious clean water.

Pull the sealing ring ③ off of the lid ① and clean both parts in mild soapy water. Remove detergent residues with clean water and dry both parts well. Push the sealing ring ③ back onto the lid ①, so that the outwardly facing sealing lip is located at the bottom of the lid ① and the inwardly facing sealing lip engages in the groove of the lid ①.

- Clean the whisks ④/⑧ in mild soapy water and then rinse them well with clean water.

- Clean all exterior surfaces, the plinth ⑥ and the power cable with a damp cloth. In all cases, dry the appliance well before using it again. For stubborn soiling use a mild detergent on the cloth. Ensure that there are no detergent residues located on and in the appliance before taking it back into service.

Storage

■ Let the appliance cool down completely before putting it into storage.

Wrap the power cable around the cable winder ⑦ under the plinth ⑥.

■ Store the appliance at a dry location.

Troubleshooting

Malfunction Cause Remedy
The appliance does not work.	The plug is not connected into the mains power socket.	Connect the plug into a mains power socket.
	The appliance is not switched on.	Switch the appliance on.
	The appliance is defective.	Contact Customer Services.
	The appliance is still too hot.	Let the appliance cool down.
The milk is not being frothed.	The false whisk 8 is fitted in the appliance.	Fit the whisk for heating and frothing 4.

Disposal of the appliance

Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Notes on the EC Declaration of Conformity

With regard to conformity with essential requirements and other relevant provisions, this appliance complies with the guidelines of the Electromagnetic Compatibility Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

The complete original Declaration of Conformity can be obtained from the importer.

CE

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Warranty

You receive a 3-year warranty for this appliance as of the purchase date. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, not for transport damages, wearing parts or for damage to fragile components, e.g. switches.

This product is for domestic use only and is not intended for commercial use. The warranty becomes void in cases of abusive and improper handling, use of force and internal modifications not carried out by our authorised Service Centre.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail] IAN 75438

GB

KOMPERNASS GMBH

Burgstraße 21

D-44867 Bochum

www.kompernass.com
