USER MANUAL SMZ 260 F1 SILVERCREST

, 50 Hz Nominal power: 260 W CO Time: 1 Minute Protection class: II / Capacity blender jug: 500 ml Max. capacity: - Foodstuffs: up to the 350 ml marking - Liquids: 200 ml CO Time The C.O. Time (Continuous Operation) details how long an appliance may be used without the motor overheating and being damaged. After the appliance has run for for this period it must be switched off until the motor has cooled itself down. IB_97737_SMZ260F1_FI_SE_DK_BE 14.02.2014 13:45 Uhr Seite 2- 3 - Safety Instructions Risk of electic shock!

• Connect the universal food processor only to properly installed power sockets with a mains voltage of 220 - 240 V and 50 Hz.

• To avoid potentially fatal risks, arrange for a defective power plug and/or cable to be replaced at once by qualified technicians or our Customer Service Department.

• Unplug the universal food processor from the socket if you notice any faulty operation and when you decide to clean it.

• Always remove the power cable from the socket by pulling on the plug, do not pull on the cable itself.

• Do not crease or crimp the power cable and place the power cable in such a way to prevent anyone from stepping or tripping over it. Do not submerse the motor block of the universal food processor in liquids at any time and do not permit liquids to penetrate into the housing of the motor block.

• NEVER subject the appliance to moisture and do not use it outdoors. If by chance liquids do enter into the housing, unplug the appliance from the power socket immediately and have it repaired by a qualified technician.

• Never grasp the universal food processor, the power cable or the plug with wet hands.

• Should the power cable or motor block become damaged, arrange for the uni- versal food processor to be repaired by a qualified specialist before using it again. Do not open the motor block housing of the universal food processor. Should you do so, appliance safety can no longer be assured and the warranty becomes void.

• Separate your universal food processor from the mains supply immediately after use. The appliance is completely free of electrical power only when you unplug it. Risk of personal injury!

• Before changing accessories or additional parts that are in motion during ope- ration, the appliance must be switched off and disconnected from mains power.

• Never use the appliance for purposes other than those described in these instructions.

• Take care when emptying the bowl! The blade is very sharp!

• Take care when cleaning the appliance! The blade is very sharp! IB_97737_SMZ260F1_FI_SE_DK_BE 14.02.2014 13:45 Uhr Seite 3- 4 -

• The appliance should always be disconnected from the mains when not super- vised and before assembly, disassembly or cleaning.

• This appliance shall not be used by children.

• The appliance and its connecting cable must be kept away from children.

• This appliance may be used by people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in how to use the appliance safely and have under- stood the potential risks.

• Children must not play with the device.

• Children should be supervised to ensure that they do not play with the appliance.

• Handle the extremely sharp blade with caution, it can cause injuries. Reassem- ble the universal food processor after using and cleaning it so that you do not in- jure yourself with the blade. Keep the blade out of the reach of children.

• Never attempt to remove foodstuffs from the vessel as long as the blade is still running. Risk of serious injury!

• Before removing the motor block, wait until the knife has stopped rotating. NEVER try to grasp the still rotating knife blade! Risk of serious injury! Risk of fire!

• Do not run the universal food processor for more than 1 minute at a time. After this period allow it to cool down. Attention!

• Pay heed to the table of filling quantities in the chapter "Chopping". If you do not, there is a risk of soiling due to content being squeezed out.

• Do NOT clean the motor block in the dish-washer, doing so would damage it.

• Never fill the appliance with hot liquids! Otherwise the appliance could be damaged! IB_97737_SMZ260F1_FI_SE_DK_BE 14.02.2014 13:45 Uhr Seite 4- 5 - Chopping Note Before using the appliance for the first time, clean it thoroughly as per the instructions given in the chapter "Cleaning". ➩ Place the bowl 6 in the appliance base 9. ➩ Place the blade holder 5 with the knife 7 on the mounting 8. ➩ Prepare the items to be processed by cutting large pieces to a size that will fit in the bowl 6. ➩ Place the food to be processed in the bowl 6. Thereby, take note of the following table: Foodstuff Filling quantity Processing time Speed Salami 130 g 3 x 5 secs. Turbo Cheese (Gouda, young, refrigerator temperature) 100 g 4 x 15 secs. Turbo Onions Garlic 100 g pulsating Turbo Carrots 100 g 3 x 5 secs. Normal Dried fruit 130 g 4 x 15 secs. Turbo Almonds 50 g coarse: 1 x 10 secs. middle: 2 x 10 secs. fine: 3 x 10 secs. Turbo Eggs (hard boiled) 150 g 2 x 4 secs. Turbo Walnuts 50 g 2 x 8 secs. Turbo Ice cubes 100 g pulsating Turbo ➩ Close the bowl 6 with the lid 4: Place it on the bowl 6 so that the lugs on the lid 4 engage in the slots on the bowl 6. Then turn the lid 4 so that the lugs slide under the slots and the lid 4 locks into place. ➩ Place the motor block 2 on the lid collar 3. ➩ Press the motor block 2 downwards, as shown in Figure B. The motor starts with the normal operating speed. ➩ To make use of the higher processing speed "Turbo", press, in addition to the motor block 2, the turbo button 1 and keep it pressed down, as shown in Figure C. Note Should larger pieces of the contents collect on the wall of the bowl while processing, lift the motor block 2 from the lid collar 3. Shake the bowl 6 vigorously and then continue with the processing. Before the processing, particularly hard foods must be cut into smaller pieces (about 2cm). Otherwise, the motor could block. With hard foodstuffs select a pulsating processing. For this, press the turbo button 1 repeatedly for a short time (in addition to the motor block 2). Should the foodstuff not be com- pletely pulverised, you can either cut it into smaller pieces or lift the motor block 2 from the lid col- lar 3. Shake the bowl 6 vigorously and then con- tinue with the processing. ➩ When the contents have been sufficiently chopped, release the motor block 2 and, if necessary, the turbo button 1. ➩ Unplug the power cable from the socket. IB_97737_SMZ260F1_FI_SE_DK_BE 14.02.2014 13:45 Uhr Seite 5- 6 - Risk of personal injury! Never attempt to remove food from the bowl 6 when the blade 7 is still in motion. Contents could shoot out and make a mess. ➩ Wait until the blade 7 has stopped rotating. ➩ Lift the motor block 2 from the lid collar 3. ➩ Remove the lid 4. Risk of personal injury! To avoid injuries, exercise caution when handling the extremely sharp blade 7. Keep the blade 7 out of the reach of children. ➩ Carefully pull the blade holder 5 with the knife 7 out of the bowl 6. ➩ Remove the contents. Note Due to the grinding of hard and abrasive foodstuffs, the bowl 6 can take on a dull appearance over time. This is normal and does not influence the functioning of the appliance. Tip After you have finished processing the foodstuffs, you can use the appliance base

as a cover for the bowl

, this will help to keep the foodstuff fresh for longer. ➩ Remove the motor block 2 and the lid 4 from the bowl

The blade retainer 5 with the blade 7 can, if you wish, remain in the bowl

➩ Loosen the appliance base

from the undersi- de of the bowl

. You can now place applian- ce base

so that it seals the bowl

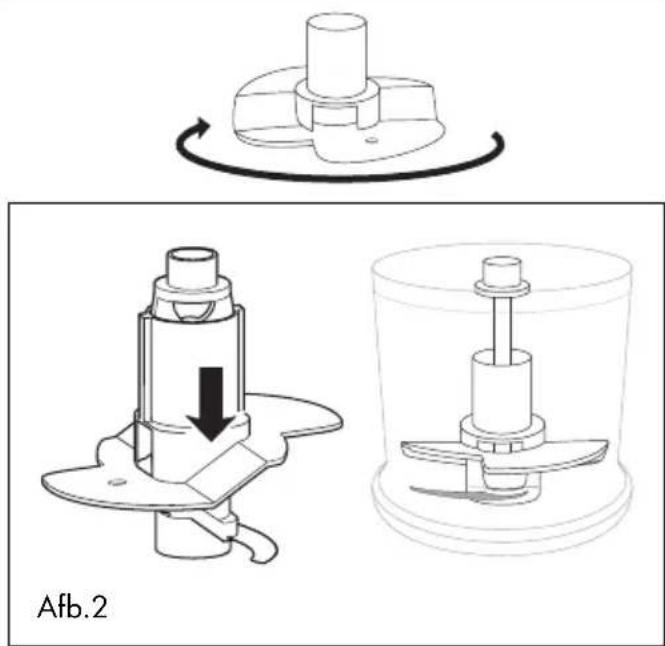

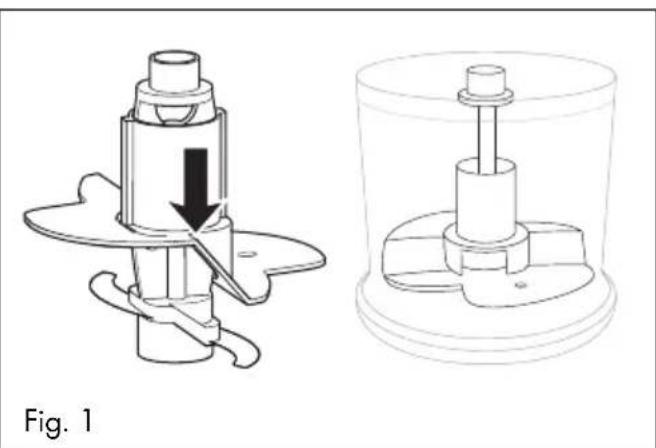

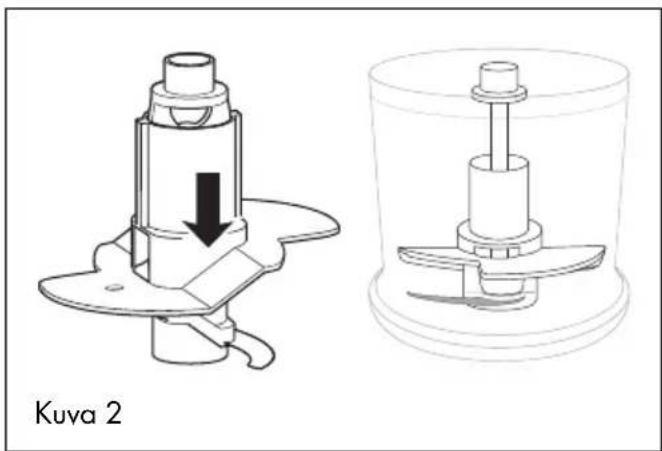

Beating cream Using the whisk attachment 0, you can also whip cream with this appliance: ➩ Place the bowl 6 in the appliance base 9. ➩ Push the whisk attachment 0 onto the blade hol- der 5: For 100ml of cream, place it on the blade holder so that the whisk attachment 0 rests on the two blades and engages (Fig. 1). For 200ml of cream, turn the whisk attachment 0 vertically through 180°, so that it rests on only one blade and engages (Fig. 2). It then ploughs higher through the cream: ➩ Attach the blade holder 5 together with the whisk attachment 0 onto the mounting 8. Fig. 1 Fig. 2 IB_97737_SMZ260F1_FI_SE_DK_BE 14.02.2014 13:45 Uhr Seite 6- 7 - ➩ Pour the cream in. ➩ Close the bowl 6 with the lid 4: Place it on the bowl 6 so that the lugs on the lid 4 engage in the slots on the bowl 6. Turn the lid 4 so that the lugs slide into the guides below. ➩ Place the motor block 2 on the lid collar 3. ➩ Press the motor block 2 downwards , as shown in Figure B. The motor starts with the normal ope- rating speed. Note To whip cream optimally, it should be well chilled before being whipped (max 8°C / refrigerator tem- perature). For 100ml of cream we recommend a whipping time of 30 seconds at normal speed. For 200 ml of cream we recommend a whipping time of 30 - 50 seconds at normal speed. Due to various factors, for example the fat content of the cream or the outdoor temperature, the whip- ping time can however vary! Observe the cream whilst whipping it and adjust the processing time to your requirements. Cleaning Risk of electric shock! Always remove the plug from the mains power sok- ket before cleaning the appliance. Under no circum- stances may the appliance be immersed in water or held under running water during cleaning. Risk of personal injury! To avoid injuries, exercise caution when handling the extremely sharp blade 7. Reassemble the universal food processor after using and cleaning it so that you do not injure yourself on the exposed blade 7. Keep the blade 7 out of the reach of children. Attention! Do not clean the motor block 2 in the dish-washer as doing so would damage it. ➩ Unplug the power cable from the socket. ➩ Clean the motor block 2 and the blade holder 5 with the blade 7 by using a well pressed-out sponge. ➩ Clean the bowl 6, the whisk attachment 0, the lid 4 and the appliance base 9 under running water and use a tea-towel to dry them well. ➩ Alternatively, you can wash all components, EXCEPT the motor block 2, in the dish-washer. If possible, place the parts in the top basket of the dishwasher. Ensure that the parts are not trapped in any way.. Troubleshooting Symptom: The appliance will not switch on. Possible cause and remedy:

• A domestic electrical fuse is defect. Check the fuses and replace them if necessary.

• The power socket is defective. Try another power socket.

• The universal food processor is possibly defective. Check the power cable and the power plug for damages. Have the appliance checked by a qualified technician. IB_97737_SMZ260F1_FI_SE_DK_BE 14.02.2014 13:45 Uhr Seite 7- 8 - Disposal Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU. Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. Dispose of all packaging materials in an environmentally friendly manner. Importer
