Product type	Espresso coffee machine
Brand	KALORIK
Model	KA EXP 5
Power supply	220-240 V ~ 50/60 Hz
Coffee type	Ground coffee for espresso
Included filters	1-cup filter and 2-cup filter
Steam function	Yes, steam nozzle for cappuccino
Drip tray	Yes, with removable drip tray
Indicator lights	Red light (power) and yellow light (heating)
Water tank	Removable
Filter locking mechanism	Yes
Removable steam nozzle	Yes
Measuring spoon	Included
Number of cups	1 or 2 cups
Safety	Unplug before cleaning, do not immerse, stable surface
Maintenance	Clean removable parts with warm soapy water
First use	3 mandatory flushes before use

Frequently Asked Questions - KA EXP 5 KALORIK

How to prepare an espresso with the KA EXP 5?

Insert the appropriate filter (1 or 2 cups) into the filter holder, fill with ground espresso coffee and tamp. Attach the filter holder to the outlet. Place the cups under the drip tray. Turn the switch on, wait for the yellow light to turn off, then turn the selector to the coffee position (pump). Once the cups are filled, turn the selector back to 0.

How to prepare a cappuccino?

First prepare the espresso, leaving some room in the cup. Pour cold milk into a heat-resistant container, fully immerse the steam nozzle in the milk. Turn the selector to the steam position. When the milk is frothy, turn the selector back to 'STAND BY'. Pour the foam over the coffee.

What to do before first use?

Remove all packaging. Clean the removable parts with warm soapy water and rinse. Then perform 3 complete cycles (full tanks) with only water to rinse the pipes.

How to clean the machine after use?

Turn off the appliance and unplug it. Clean the filter holder and filter with warm soapy water. You can use steam to descale. Wipe the exterior surfaces with a damp cloth. Never use abrasive cleaners. Regularly empty the drip tray.

Why does the pump make noise at the start?

This is normal. The pump is noisier at startup than when water starts to flow. A few seconds later, the noise decreases.

How to use the steam nozzle?

Set the selector to 'STAND BY', immerse the nozzle in the milk, then turn the selector to the steam position. The pump operates in bursts (normal). When the milk is heated and frothy, turn the selector back to 'STAND BY'. Clean the nozzle after use.

What to do if coffee does not flow?

Check that the water tank has enough water, that the filter is not over-tamped or clogged, and that the filter holder is properly locked. Make sure the selector is in the correct position and that the appliance is hot (yellow light off).

How to empty the drip tray?

The drip tray is located under the grid. A red indicator shows the level. To empty it, remove it by pulling the side tabs, empty it, then put it back.

How much ground coffee to use?

Fill the filter completely with ground espresso coffee, then tamp with the measuring spoon. The amount can vary according to taste.

Can I use ground coffee other than espresso?

It is recommended to use ground espresso coffee for optimal results. A grind that is too fine or too coarse may clog the filter or alter the taste.

USER MANUAL KA EXP 5 KALORIK

D

1. Vent

2. Function switch

3. Red pilot light power

4. ON/OFF switch

5. Yellow pilot light heating

6. Removable water tank

7. Steam nozzle

8. Drain

9. Removable collecting tank

10. Filter 1 cup

11. Filter 2 cups

12. Filter locking device

13. Filter holder

14. Measuring spoon

F

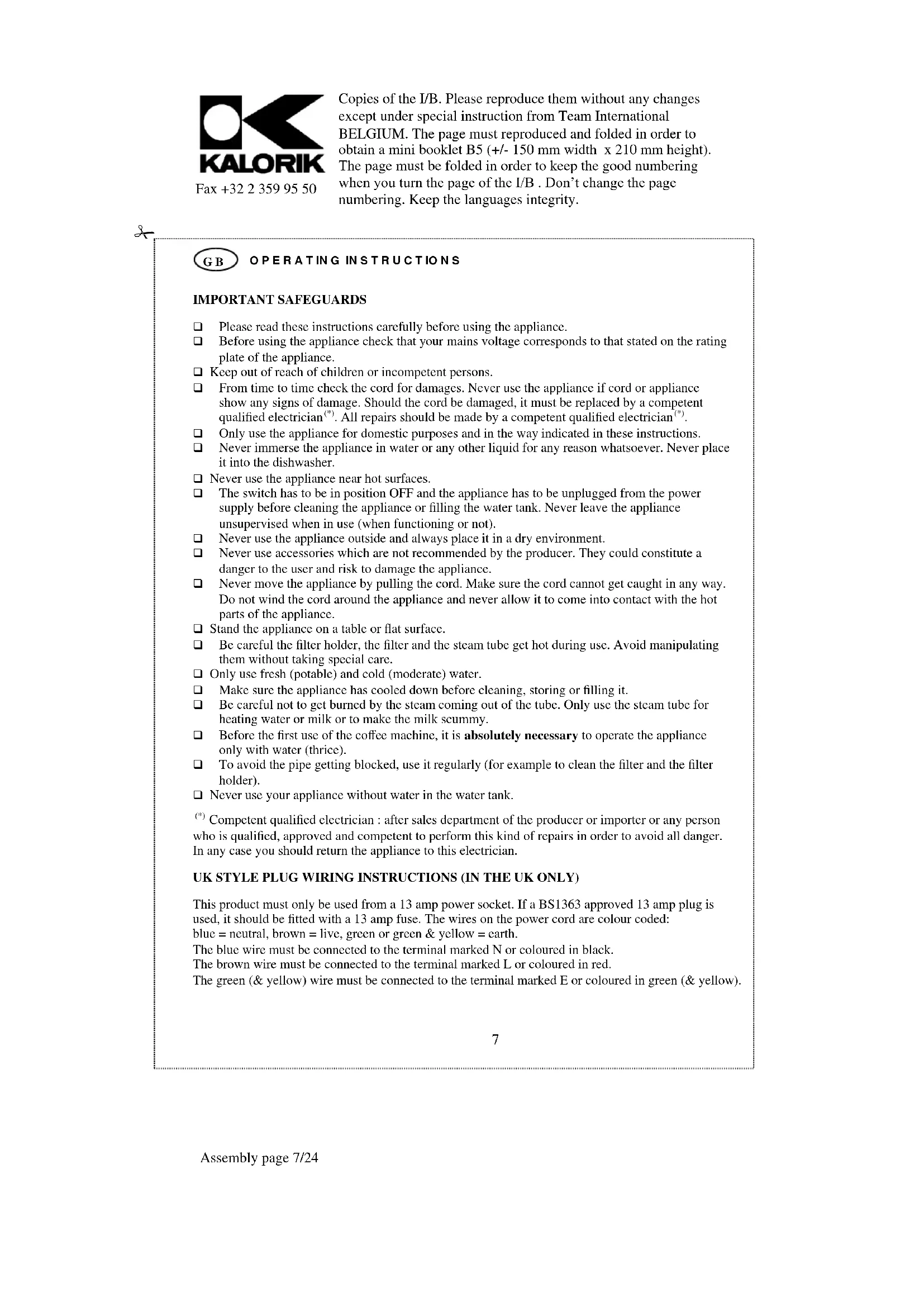

☐ Please read these instructions carefully before using the appliance.
Before using the appliance check that your mains voltage corresponds to that stated on the rating plate of the appliance.
□ Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician ⁽⁾ . All repairs should be made by a competent qualified electrician ⁽) .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ The switch has to be in position OFF and the appliance has to be unplugged from the power supply before cleaning the appliance or filling the water tank. Never leave the appliance unsupervised when in use (when functioning or not).
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and never allow it to come into contact with the hot parts of the appliance.
□ Stand the appliance on a table or flat surface.
☐ Be careful the filter holder, the filter and the steam tube get hot during use. Avoid manipulating them without taking special care.
☐ Only use fresh (potable) and cold (moderate) water.
☐ Make sure the appliance has cooled down before cleaning, storing or filling it.
☐ Be careful not to get burned by the steam coming out of the tube. Only use the steam tube for heating water or milk or to make the milk scummy.
Before the first use of the coffee machine, it is absolutely necessary to operate the appliance only with water (thrice).
☐ To avoid the pipe getting blocked, use it regularly (for example to clean the filter and the filter holder).
□ Never use your appliance without water in the water tank.

^* Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

PREPARING THE MACHINE

• Remove all packaging materials.
• Before the first use of the coffee machine, wash the removable parts carefully in warm soapy water and rinse with clear water.
• Before the first use, it is absolutely necessary to operate the appliance only with water (thrice) without coffee powder in order to remove possible residue from the machine.

OPERATION

Important: during the use, always check that there is enough water for the preparation in the water tank.

• Check that the switch is in the OFF position (the side with the white point is up and the lights are off) and that the appliance is unplugged from the power supply.
• Fill water in the water tank. This one is removable and if you want you can remove it from the appliance to fill it. Therefore you only have to raise its lid and to pull the handle.
  • To place it back, proceed inversely until it stops and close the lid.
• Insert the plug into an appropriate wall socket. Your appliance is now ready for use.

PREPARING ESPRESSO

• According to the required number of cups insert the small filter for one cup or the large filter for two cups into the filter holder.
• Put the coffee powder special for expresso, that you will find in shops, into the filter. The amount of coffee can change following your taste but in general it is recommended to fill the filter completely and press the coffee with the measuring spoon.
• Insert the filter holder into the opening. Therefore, place the handle of the filter holder in front of the position of the appliance and pull the filter locking device to you. Insert the filter holder in the opening and turn it to the right until it stops. The handle of the filter holder has to

be in front of the position of the appliance.

• Place one or two cup(s) on the drain and under the release valve of the filter holder.
• Check that the function switch is in the position "STAND BY" and place the switch on the ON position. The red power pilot light will light up and indicates that the appliance is switched on. At the same time the yellow heating pilot light lights up indicating that the heating element rises in temperatures. As soon as it is hot enough, the yellow pilot light turns off.

- Then slide the function switch to position ____. The pump will start functioning and a few seconds later the coffee will start coming out through the openings of the filter holder. At the beginning you can hear that the pump makes more noise than when the water start flowing. This is absolutely normal.

- When the cup(s) is (are) filled, slide the function switch to position 0 and the water will stop flowing.

- To prepare other expressos, empty the used coffee in the filter. Therefore you have to remove the filter holder by turning it to the left. Push the filter locking device in order to block it and beat the filter holder above the bin. Rinse with clear water and fill the filter again with the desired amount of coffee.

• Proceed as described here above.

PREPARING CAPPUCCINO

• First of all prepare a coffee as described here above letting enough place for the milk.
• Then fill the desired milk quantity into a heat resistant container (it has to be large enough to avoid splashing) and place it under the steam nozzle. Immerse the steam nozzle completely in the milk in order to reduce splashing.
• Set the function switch to position. The pump will start functioning in a jerky way (it is absolutely normal) and the milk will start frothing, which means that the steam is coming out.
• When you obtain the required smoothness, place the function switch to the position "STAND BY".
• Then pour the preparation in your cup.

AFTER EACH USE

• Switch off your appliance thanks to the switch. The red pilot light will turn off and unplug the appliance from the power supply.
• Check the water level in the collecting tank under the drain by controlling the red indication in this thank. When the water level is too high (NB: This tank becomes filled regularly during the use of the appliance), empty the tank. Therefore remove it from the base by both tongues on the side and place it again.
• It is also recommended to empty the coffee and to rinse the filter and the filter holder after each use for a question of hygiene.

CLEANING AND CARE

• It is essential to note the safety instructions.
• Clean the filter holder and the filter with warm soapy water. You can use the produced steam to clean the filter and the head of the filter holder but pay attention not to get burned.
• After having made a cappuccino, clean the tip of the steam nozzle. You can remove it by pulling on it. It is recommended to wipe the metal tube in order to avoid limestone marks.
• Clean the outer surfaces using a soft, damp cloth and a gentle cleaner.
• Never use abrasive cleaners and hard utensils.
  • Empty the collecting tank regularly for a question of hygiene.
