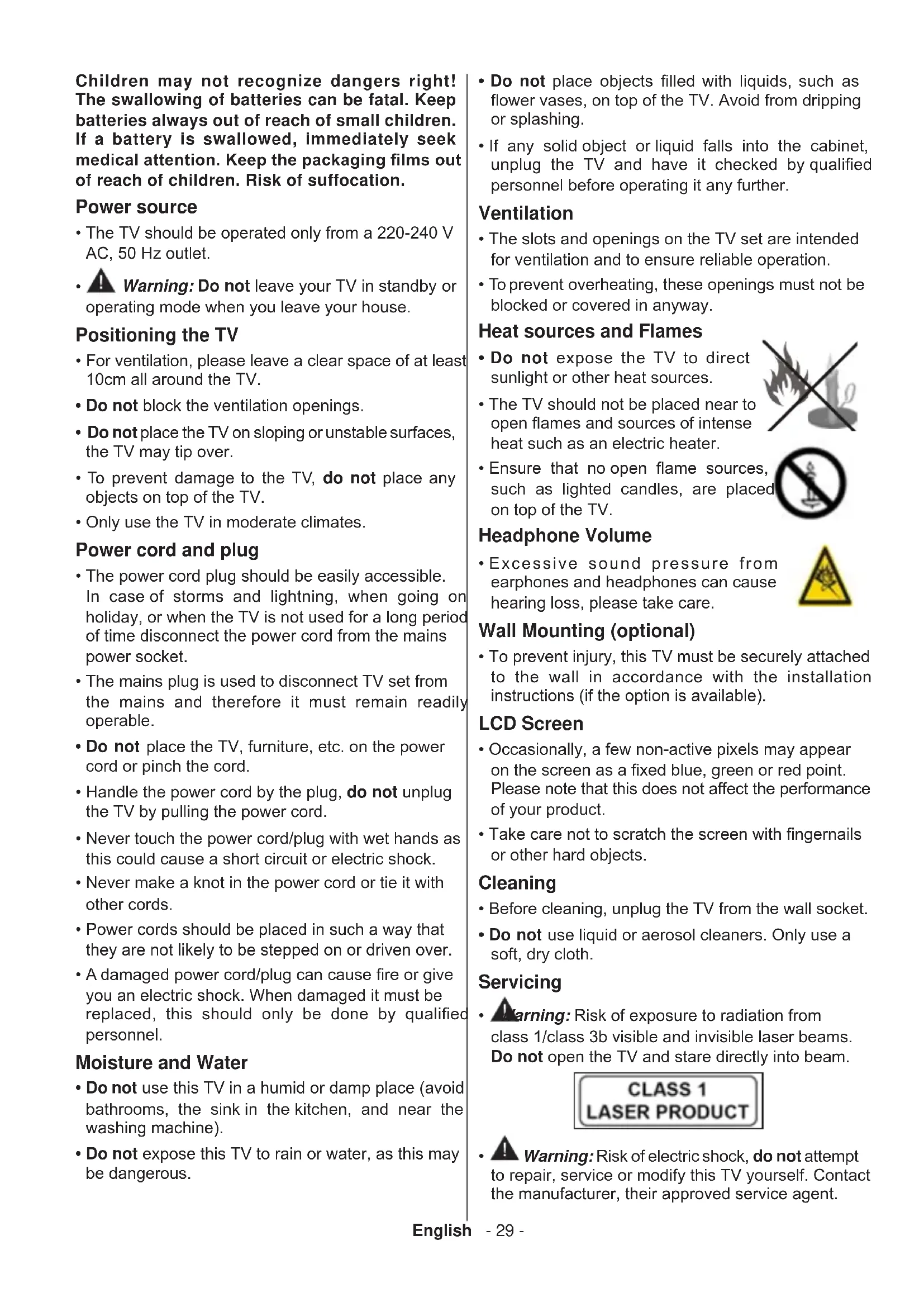

• The TV should be operated only from a 220-240 V AC, 50 Hz outlet.

Warning: Do not leave your TV in standby or

operating mode when you leave your house. Positioning the TV

• For ventilation, please leave a clear space of at least 10cm all around the TV.

• Do not block the ventilation openings.

• Do not place the TV on sloping or unstable surfaces, the TV may tip over.

• To prevent damage to the TV, do not place any objects on top of the TV.

• Only use the TV in moderate climates. Power cord and plug

• The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.

• The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

• Do not place the TV, furniture, etc. on the power cord or pinch the cord.

• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.

• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

• Never make a knot in the power cord or tie it with other cords.

• Power cords should be placed in such a way that they are not likely to be stepped on or driven over.

• A damaged power cord/plug can cause re or give you an electric shock. When damaged it must be replaced, this should only be done by qualied personnel. Moisture and Water

• Do not use this TV in a humid or damp place (avoid bathrooms, the sink in the kitchen, and near the washing machine).

• Do not expose this TV to rain or water, as this may be dangerous.

• Do not place objects lled with liquids, such as ower vases, on top of the TV. Avoid from dripping or splashing.

• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualied personnel before operating it any further. Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.

• To prevent overheating, these openings must not be blocked or covered in anyway. Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.

• The TV should not be placed near to open ames and sources of intense heat such as an electric heater.

• Ensure that no open ame sources, such as lighted candles, are placed on top of the TV. Headphone Volume

• Excessive sound pressure from earphones and headphones can cause hearing loss, please take care. Wall Mounting (optional)

• To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available). LCD Screen

• Occasionally, a few non-active pixels may appear on the screen as a xed blue, green or red point. Please note that this does not affect the performance of your product.

• Take care not to scratch the screen with ngernails or other hard objects. Cleaning

• Before cleaning, unplug the TV from the wall socket.

• Do not use liquid or aerosol cleaners. Only use a soft, dry cloth. Servicing

• Warning: Risk of exposure to radiation from class 1/class 3b visible and invisible laser beams. Do not open the TV and stare directly into beam.

• Warning: Risk of electric shock, do not attempt to repair, service or modify this TV yourself. Contact the manufacturer, their approved service agent.English - 30 - Environmental Information This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efciency feauture of this TV. To reduce energy consumption, you should take the following steps: You can use Power Save Mode setting, located in the Picture Settings menu. If you set Power Save Mode as Eco, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode. If you set power save mode as Picture off, a message will appear on the screen and backlight will be off within three seconds. Press any button on the remote controller to activate the picture again. When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption. Disconnect power when going away for longer time. It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption.Also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use. Please helps us to save environment by following these steps. Repair Information Please refer all servicing to qualied personnel. Only qualied personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information. Accessories included Remote Control Batteries: 2 x AAA Instruction Book TV - Features

• Fully integrated digital/cable/satellite TV (DVB- T/C/S-S2).

• HDMI connector for digital video and audio.

• Scart socket for external devices.

• Headphone connection.

• Automatic programming system.

• Forward or backward manual tuning.

• Automatic power down after up to six hours.

• PLL (Frequency Search).

• NTSC / PAL playback (according to disc content).

• LPCM audio via coaxial and optical digital audio outputs (optional).

• Multi-Audio (up to 8) support (according to disc content).

• Multi-Subtitle (up to 32) support (according to disc content).

• Multi-Angle (up to 9) support (according to disc content).

• 8 level parental control.

• Fast forward and rewind - 5 different speeds: 2x, 4x, 8x, 16x, 32x.

• Slow motion playback - 4 different speeds: 1/2x, 1/4x, 1/8x, 1/16x forward.

• Frame by frame forward playback.

switch You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more,source OSD will be displayed. To select desired source, move the switch upward or downward and release. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via the control button. Operation with the Remote Control Press MENU button on your remote control to display main menu screen. Use Left or Right button to select a menu tab and press OK to enter. Use Left / Right / Up / Down to select or set an item. Press BACK or MENU button to quit a menu screen. DVD - Control buttons A- Disc loader B- Play / Pause ( / ) button Plays / pauses the disc. When DVD menu (root menu) is active, this button functions as “button select” (selects the highlighted item in menu) if this is not prohibited by the disc). C- Stop / Eject ( / ) button Stops the disc playing / Ejects or Loads the disc. NOTE: You cannot eject the disc via the remote control. To eject while playing a file; you should press the STOP button “ / ” (on the TV) three times. Input Selection Once you have connected external systems to your TV, you can switch to different input sources. Press

SOURCE ” button on your remote control consecutively to select the different sources. Changing Channels and Volume You can change the channel and adjust the volume by using the V+/- and P+/- buttons on the remote.English - 32 - Viewing remote control - TV NOTE: The Remote Control range is approximately 7m / 23ft.

4. No Function (in DVB channels)

22. Source selection

28. OK / Select / Hold (in TXT mode) / Channel List

PRESETS Using My button 1 (*) Press MY BUTTON 1 for ve seconds when on a desired source, channel or link, until the “MY BUTTON IS SET” message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function. Using My Button 2 (**) This button’s main function is to switch between DVB-T, DVB-C and DVB-S broadcasts. However, if you press MY BUTTON 2 for ve seconds, you can set a function to it as described in My Button 1.English - 33 - Viewing remote control - DVD

17. Source selection

NOTE: Remote Control buttons that are not indicated with a number cannot be used in DVD mode.English - 34 - Viewing the Connections NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the supplied SIDE AV CONNECTION cable’s WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. You can use the VGA input for connecting a YPbPr device. To do this, you need a YPbPr to PC cable (Not supplied). Connector Type Cables Device Scart Connection (back) VGA Connection (back) SIDE AV PC/YPbPr Audio Connection (side) Side Audio YPbPr or PCConnection Cable (Not supplied) HDMI Connection (back) SPDIFF Connection (back) SIDE AV Side AV (Audio/Video) Connection (side) HEADPHONE HEADPHONE Headphone Connection (side) USB Connection (side)

1. Lift the cover on the back of the remote upward gently.

2. Install two AAA batteries. Make sure to match the +

and - ends of the batteries in the battery compartment (observe the correct polarity.

3. Replace the cover.

Connect Power & Antenna/Cable/ Satellite IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet. SPDIF VGA 13V dc /18V dc300mAMax. Aerial or Cable Satellite DiSEqCSwitch Switching On/Off Switching the TV On With power cord plug connected to the mains power socket, the TV is in ‘Standby’ mode. To switch the TV on from standby mode: Press the “ ” button and the TV will switch to standby mode. Then the standby LED lights up. To switch on the TV from standby mode either: a. Press the “ ” button, CH ^ / v or a numeric button on the remote control. b. Press the middle of the “ ” button on the TV. By either method the TV will switch on. Switching the TV Off Press the “ ” button on the remote control or press the standby “ ” button, so the TV will switch to standby mode. To turn off the TV completely, remove the power cord plug from the mains power socket. Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode. First Time Installation When turned on for the rst time, the “language selection” menu appears. The message “Welcome please select your language!” is displayed in all language options listed alphabetically. Press the “ ” or “ ” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “ ” or “ ” button to set the required country, and press “ ” button to select Search Type (optional). Use “ ” or “ ” to set the desired search type. Available search types are Digital and analog, digital only and analog only. When set, press “ ” to select Teletext Language. Use “ ” or “ ” to select the desired Teletext Language. Next, select Scan Encrypted and set as Yes if you want to scan coded stations. Default PIN code can change depending on the selected country. If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234.English - 36 - Press OK button on the remote control to continue and the following message will be displayed on the screen. You can activate Store mode (optional) option by using “ ” or “ ” button. If Store Mode (optional) is selected, Store mode option will be available in other settings menu and your TV’s features will be illustrated on the top of the screen. A conrmation screen will be displayed after selecting the Store Mode (optional). Select YES to proceed. If Home Mode is selected, Store mode (optional) will not be available after the First Time Installation. Press OK button on the remote control to continue and the following message will be displayed on the screen.. You must select a search type to search and store broadcasts from the desired source. Aerial Installation If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts. NOTE: You can press MENU button to cancel. After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN(*), please select “Yes” and than press OK. Press OK button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence. Cable Installation If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen: To continue please select YES and press OK. To cancel operation, select NO and press OK.English - 37 - You can select frequency ranges from this screen. For highlighting lines you see, use “ ” or “ ” button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When nished, press OK button to start automatic search. The TV will search and store available broadcasts. Satellite Installation If you select Satellite option from the Search Type screen, you can set a satellite and watch satellite channels. When you select Satellite installation, Antenna Type menu will be displayed. There are three types of antenna selection. You can select Antenna type as Direct, Unicable or DiSEqC switch by using “ ” or “ ” buttons. Direct: If you have a single receiver and a direct satellite dish, select this antenna type. After selecting Direct, another menu screen will be displayed. Select an available satellite and press OK to scan for services. Unicable: If you have multiple receivers and a unicable system, select this antenna type. Press OK to continue. Congure settings by following instructions on the screen. Press OK to scan for services. DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. After selecting DiSEqC switch, another menu screen will be displayed. You can set four DiSEqC options (if available). Press GREEN button to scan all satellites or press YELLOW button to scan only the highlighted satellite. To save and exit press OK button. Quick Menu Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites and Sleep Timer options. Press Q.MENU button on the remote control to view quick menu. See the following chapters for the details of the listed features. Media Playback via USB Input You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play les stored in a USB drive. 2.5” and 3.5” inch (hdd with external power supply) external hard disk drives are supported. IMPORTANT! You should back up your les before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any le damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more le capacity, you can experience problems with the formatting process. Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a le. Media Browser Menu You can play photo, music, and movie les stored on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Insert a USB disk to the port on the side part of the TV. Press MENU button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features. You can set your Media Browser preferences by using the Settings dialog.English - 38 - Changing Image Size: Picture Formats Programmes can be watched in different picture formats, depending on the transmission received. You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press “ ” button repeatedly to change the image size. You can shift the screen up or down by using “ ” or “ ” buttons while in 14:9 Zoom, Cinema or Subtitle. Using the Channel List The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press MENU button to view main menu. Select Channel List item by using Left or Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press Up or Down button to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press MENU button to exit. Sorting Channel List You can select broadcasts to be listed in the channel list. To display specic types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using “ ” or “ ” button. Press OK button to continue. You can select a network type option from the list by using

” or “ ” and OK buttons.English - 39 - Menu Features and Functions Picture Menu Contents Mode For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema,Game,Dynamic and Natural. Contrast Sets the lightness and darkness values of the screen. Brightness Sets the brightness value for the screen. Sharpness Sets the sharpness value for the objects displayed on the screen. Colour Sets the colour value, adjusting the colors. Power Save Mode To set Power Save Mode as Eco, Picture Off and Disabled. See the section, “Environmental Information” in this manual for further information on Power Save Mode. Backlight (optional) This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game. Noise Reduction If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off. Advanced Settings Dynamic Contrast You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off. Colour Temp Sets the desired colour tone. Picture Zoom Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema. Auto (Only available in Scart mode with SCART PIN8 high voltage/low voltage switching). HDMI True Black(optional) While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture. Film Mode (optional) Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching lms to see the fast motion scenes clearly. Skin Tone Adjust the desired skin tone. Colour Shift Adjust the desired colour tone. RGB Gain Press OK button to edit RGB gain. You can congure the colour temperature values using the RGB Gain feature. Reset Resets the picture settings to factory default settings. Autoposition (in PC mode) Automatically optimizes the display. Press OK to optimize. H Position (in PC mode) This item shifts the image horizontally to right hand side or left hand side of the screen. V Position (in PC mode) This item shifts the image vertically towards the top or bottom of the screen. Dot Clock (in PC mode) Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts. Phase (in PC mode) Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method. While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.English - 40 - Menu Features and Functions Sound Menu Contents Volume Adjusts volume level. Equalizer: In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User. Balance This setting is used for emphasizing left or right speaker balance. Headphone Sets headphone volume. Sound Mode You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode. AVL Automatic Volume Limiting (AVL) function sets the sound to obtain xed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes). Dynamic Bass (optional) Enables or disables the Dynamic Bass. Digital Out Sets digital out audio type. Install and Retune Menu Contents Automatic Channel Scan (Retune) Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB-T stations. Digital Cable: Searches and stores cable DVB-C stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations. Satellite: Searches and stores satellite stations. Manual Channel Scan This feature can be used for direct broadcast entry. Network Channel Scan Searches for the linked channels in the broadcast system. Analogue Fine Tune You can use this setting for ne tuning analogue channels. This feature is not available if no analogue channels are stored. First Time Installation Deletes all stored channels and settings, resets TV to factory settings and starts rst time installation. You can follow the instructions in the Initial Installation section for more information on this process.English - 41 - Menu Features and Functions Settings Menu Contents Conditional Access Controls conditional access modules when available. Language Congures language settings. Parental Congures parental settings. Default PIN code can change depending on the selected country. If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234. Timers Sets timers for selected programmes. Date/Time Sets date and time. Note:

• The TV takes the time info via the broadcast. Correct time will be available on Date/ Time Settings, if the time info is provided in the broadcast. If the TV is in no channel mode, Date/Time settings can be changed. However, if there is a channel preset, only “Time Settings Mode” can be changed and if this is set to Manual, Time Zone will be enabled.

• If the TV is switched to standby mode and switched on later and there is no broadcast available, time information will not be updated. If there is a present broadcast; however, time information will be taken via the broadcast. In other words, time information will be available according to these priorities: The TV rst looks for the time info in the broadcast, then to the user preference, and lastly to the teletext time information. Sources Enables or disables selected source options. Satellite Settings Displays satellite settings. Other Settings: Displays other setting options of the TV set: Menu Timeout Changes timeout duration for menu screens. Scan Encrypted When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search. Blue Background Activates or deactivates blue background system when the signal is weak or absent. Software Upgrade To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode. Application Version Displays application version. Hard of Hearing If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals. Audio Description Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track. Auto TV Off You can set the timeout value of auto off feature.After the timeout value is reached and the Tv is not operated for selected time , the TV will go off. Store Mode (optional) If you are displaying the TV in a store, you can activate this mode. While Store Mode is enabled, some items in the TV menu may not be available to be set. Your TV’s features will be illustrated on the top of the screen.English - 42 - Menu Features and Functions Other Settings: Displays other setting options of the TV set: Biss Key Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter BISS key on a broadcast, you can use Biss Key setting located in the Other Settings menu. Highlight Biss Key and press OK to enter keys on the desired broadcast. Standby Search (optional) If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast denition and similar changes.English - 43 - DVD MODE Handling Discs

• To keep the disc clean, only handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• If the disc is contaminated with any substance like glue, remove before using it.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc.

• After playing, store the disc in its case. Cleaning Discs

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the centre out.

• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. DVD - Features

• DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG playback.

• NTSC / PAL playback (according to disc content).

• LPCM audio via coaxial and optical digital audio outputs (optional).

• Multi-Audio (up to 8) support (according to disc content).

• Multi-Subtitle (up to 32) support (according to disc content).

• Multi-Angle (up to 9) support (according to disc content).

• 8 level parental control.

• Fast forward and rewind - 5 different speeds: 2x, 4x, 8x, 16x, 32x.

• Slow motion playback - 4 different speeds: 1/2x, 1/4x, 1/8x, 1/16x forward.

• Frame by frame forward playback.

• Copied disks may be incompatible. How to watch a DVD NOTE: DVD mode cannot be accessed unless a DVD is inserted or a DVD control button is pressed.

1. Switch on the TV.

2. Switch to DVD source using the “

SOURCE ” button on the remote control.

3. Insert a disc into the loader.

The disc MUST be facing you when looking at the TV screen. Most discs will be automatically loaded and play will start automatically if the disc does not have any menus recorded on it. If play does not start automatically, press the play button “ ” on the remote control, or the play button

/ ” on the right side of the TV. A menu may appear on the TV screen after a few moments or the lm may start immediately after the Film/TV Company introduction. This will depend on the disc content and may differ on each disc. NOTE: Steps 4 and 5 are only available when a menu is recorded on the disc.

play. Notes on DVD Playback a. No sound will be heard during Rapid advance or Rapid reverse. b. No sound will be heard during Slow motion play. c. Reverse Slow motion play is not available. d. In some cases, the subtitle language will not be changed immediately to the selected one. e. When the preferred language will not select, even after pressing the button several times, it means the language is not available on the disc. f. When the DVD player is restarted or the disc is changed, the subtitle selection is automatically changed back to the initial settings. g. If a language is selected that is not supported by the disc, the subtitle language will automatically be set to the disc’s priority (default) language.English - 44 - h. Usually a ‘circulation’ will happen while switching to another language, this means you can cancel the subtitle by pressing the same button a number of times until “Subtitle Off” appears on the screen.

i. When the power is turned on or the disc is removed,

the language heard will be the one selected at the initial settings. j. Some DVDs may not contain root and/or title menus. k. Reverse stepping is not available. l. For reference: If you attempt to enter a number greater than the total time of the current title, the time search box disappears and “Input Invalid

message appears on top-left corner of screen. m. The slide show is disabled when the ZOOM mode is on. DVD Mode Configuration

1. While in DVD source, press DISPLAY button

to access DVD Setup menu. This is only possible if there is no playback.

2. This menu is operated using “ ” or “ ” and “

” or “ ” buttons. TV Type TV Type is only available as ‘PAL’. The TV set also supports NTSC signal; however, the signal will be converted to PAL when it appears on the screen. Language Setup This menu is used for setting language preferences in DVD mode. Language menu contents are detailed below: OSD LANG You can select the default OSD language of the player menus AUDIO You can select the default audio language if supported by the DVD disc. DISC MENU You can select the DVD’s disc menu language among these languages. Disc menu appears in the selected language, if supported by the DVD disc. SUBTITLE You can select the default subtitle language if supported by the DVD disc. Preferences: These are the DVD mode preferences. Menu contents are detailed below: DEFAULT If you choose RESET and press SELECT, the factory- presets are loaded. Parental level and parental password does not change. DOWNMIX This mode can be selected when the digital audio output of the TV is used. SURROUND Surround sound output. STEREO Two channels stereo. PARENTAL Playing some DVDs can be limited depending on the age of users. The “Parental Control” function allows playback limitation level to be set by the parent. Parental Level can be adjusted to one of the eight levels. Level “8 ADULT” adjustment let you watch all of the DVD titles ignoring the DVD disc’s parental level. You can watch the DVD discs, which has the same or lower parental level than the player’s level only. Menu contents are detailed below: PASSWORD Using this item you can change the current password. To change the password you will be prompted to enter your old password. After you have entered your old password, you can now enter the new 4-digit password. You can use C key to delete the incorrect entry. NOTE: Factory preset of the password is “0000”. You have to enter XXXX digital password every time you want to change the parental level. If you forget your password please contact technical service. SPDIF OUTPUT You can set Spdif Output as PCM or RAW. If you select PCM from SPDIF Output in DVD menu and play DVD with Dolby audio, you can get audio output with two channels via the speakers and the SPDIF Out. If you select RAW from SPDIF Output in DVD menu and play DVD with Dolby audio, speakers will be muted and you can get 5+1 Dolby audio via the SPDIF Out.English - 45 - DVD Controls You can operate DVD, movie CD, music or picture CD’s content by using the correct buttons on your remote control. Below are main functions of commonly used remote control buttons. Other Functions – Button Combinations (During playback)

Sets slow forward speed

Sets rapid advance speed

Sets rapid reverse speed

Skip backward/forward Skip backward/forward Rotate Skip backward/forward

Rapid advance / Rapid reverse Views the scene from different angles (if available) Changes slide effect (depends on the content)

Direct selection of scenes or time. Selects the desired file. Selects the desired file. SUBTITLE Subtitle on-off. Press repeatedly to switch between subtitle options. X X BLUE BUTTON Displays disc menu (if available). Displays disc menu (if available). X X RED BUTTON Zooms picture. Press repeatedly to switch between zoom options.English - 46 - Electronic Programme Guide (EPG) Some, but not all channels send information about the current and next programmes. Press the button to view the EPG menu. Info bar commands: RED button: Previous day. GREEN button: Next day. YELLOW button: Zooms to the selected programme. BLUE button - Next day: displays ltering options. BLUE: displays ltering options. Teletext “ ” Teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode. “BACK” Index: Selects the teletext index page. “INFO (i)” Reveal: Shows hidden information (e.g. solutions of games). “OK” Hold: Holds a text page when convenient. Press again to resume.

”/“ ” Subcode Pages: Selects subcode pages if available when the teletext is activated. P+ / P- and numbers (0-9): Press to select a page. Note: Most TV stations use code 100 for their index pages. Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “ ” or “ ” commands will request the next or previous page respec tively. Using SatcoDX Feature SatcoDX (optional): You can perform SatcoDX operations using the Satelite Settings. On SatcoDX menu, there are two options regarding to satcodx feature as in the following: You can download or upload satcoDX data. In order to perform these functions supported for satcodx feature, a USB device must be connected to the TV in the rst place. You will be able to upload current services and related satellites & transponders in TV, to a USB device. In addition to the uploading feature you will be able to download one of the satcodx les stored in USB device, to the TV. When you select one of these satcodx files, all services and related satellites and transponders in the selected le will be stored in TV. If there are any installed terrestrial, cable and/or analog services, they will be kept and only satellite services will be removed. Afterwards, check your antenna settings and make changes if necessary. An error message stating “No Signal” may be displayed if antenna settings are not congured properly. Software Upgrade Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.

• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.

• In Upgrade Options menu select Scan for upgrade and press OK button.English - 47 -

• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

• If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version. Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is nished successfully. During reboot TV makes nal initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

• If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to x the problem for you. Caution: While led is blinking during reboot do not unplug your TV’s power. Doing this may cause your TV not to re-open again and can only be xed by service personnel. Troubleshooting & Tips Image persistence - ghosting Please note that ghosting may occur while displaying a persistent image (still or paused image). LED TVs’ image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods. No power If your TV has no power, please check the power cord plug is connect to the mains power socket. Poor picture

1. Have you selected the correct TV system?

2. Is your TV or house aerial located too close to a

non-earthed audio equipment or neon lights, etc.?

3. Mountains or high buildings can cause double

pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?.

4. Check if you have entered the correct frequency.

5. Please retune the channels.

6. The picture quality may degrade when two devices

are connected to the TV at the same time. In such a case, disconnect one of the devices. No picture

1. No Picture means that your TV is not receiving a

transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

2. Is the aerial connected properly?

3. Are the plugs connected tightly to the aerial

4. Is the aerial cable damaged?

5. Are suitable plugs used to connect the aerial?

6. If you are in doubt, consult your dealer.

1. Has the TV been set to mute? To cancel mute,

press the “ ” button, or increase the volume level.

2. Sound is coming from only one speaker. Is the

balance set to one extreme? See Sound Menu section. Remote control - does not operate Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.) Input sources - can not be selected

1. If you cannot select an input source, it is possible

that no device is connected.

2. Check the AV cables and connections if you have

tried to connect a device. The DVD picture quality is poor

1. Make sure the DVD disc surface is not damaged

(no scratches, ngerprints etc.).

2. Clean the DVD disc and try again. See instructions

in “Cleaning Discs” to clean your disc properly.

3. Ensure that the DVD disc is in the loader with the

label facing you when looking at the TV screen.

4. A damp DVD disc or condensation may effect the

equipment. Wait for 1 to 2 hours in Stand-by mode to dry the equipment. The Disc does not play

1. No disc in the machine - Place a disc into the loader.

2. Disc is incorrectly loaded - Ensure that the DVD

disc is in the loader with the label facing you when looking at the TV screen.

3. Wrong type of disc. The DVD player cannot play

CD-ROMS etc.English - 48 -

4. The region code of the DVD disc must match the

player. Ensure that the DVD disc is in the loader with the label facing to the front. Wrong type of disc. The machine cannot play CD- ROMS with PC-Data. Wrong OSD language

1. Select the language in the setup menu.

2. The language for the sound or subtitles on a DVD

disc cannot be changed.

3. Multilingual sound and/or subtitles are not recorded

1. These functions are not available on the DVD.

2. Angle can only be changed when the angle symbol

is displayed. If nothing works. If you have tried the above solutions and none seem to work, try switching your TV-DVD off and on again. If this does not work, contact your supplier or TV-DVD repair technician. Never attempt to repair a defective TV-DVD yourself. Manufactured under license from Dolby Laboratories. TRADEMARK ACKNOWLEDGMENT “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead. Products Battery PC Typical Display Modes The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080. Index Resolution Frequency 1 640x350p 60 Hz

Video 12cm Single sided; 240 min. Double sided; 480 min. DVD contains excellent sound and video due to Dolby Digital and MPEG-2 System. Various screen and audio functions can be easily selected through the on screen menu. Audio 12cm 74 min. An LP is recorded as an analogue signal with more distortion. CD is recorded as a digital signal with better audio quality, less distortion and less deterioration of audio quality over time. Audio (xxxx.mp3) 12cm Depends on MP3 quality MP3 is recorded as a digital signal with better audio quality, less distortion and less deterioration of audio quality over time. Video (still picture) 12cm Depends on JPG quality JPEG is recorded as a digital signal with better picture quality over time. For proper operation, only 12 cm discs must be used.Français - 51 - Précautions de sécurité RISK OF ELECTRIC SHOCKDO NOT OPENCAUTIONCAUTION:

licensed by: TELEFUNKEN Licenses GmbH Imported by: Vestel Germany GmbH, D-85748 Garching/Munich
