USER MANUAL BKS 1510 BEKO

BKS 1510 BKS 1511 BKS 1515 Vacuum Cleaner User Manual EN FR TR RU BS MK SQ SR TH 01M-8936633200-1516-05 01M-8938503200-1516-05 01M-8936643200-1516-05Please read this user manual first! Dear Customer, Thank you for prefering a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Explanation of symbols Throughout this user manual the following symbols are used:

Warning for hazardous situations with regard to life and property. Protection class for electric shock. This product has been produced in environmentally friendly, modern facilities.Complies with the WEEE Regulation.Does not contain PCB.Made in P.R.C.Vacuum cleaner / User manual 3 / 86 EN CONTENTS 1 Important safety and environmental instructions 4-5

1.1 General safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Compliance with the WEEE Directive and

2 Your vacuum cleaner 6

4 Cleaning and maintenance 9-10

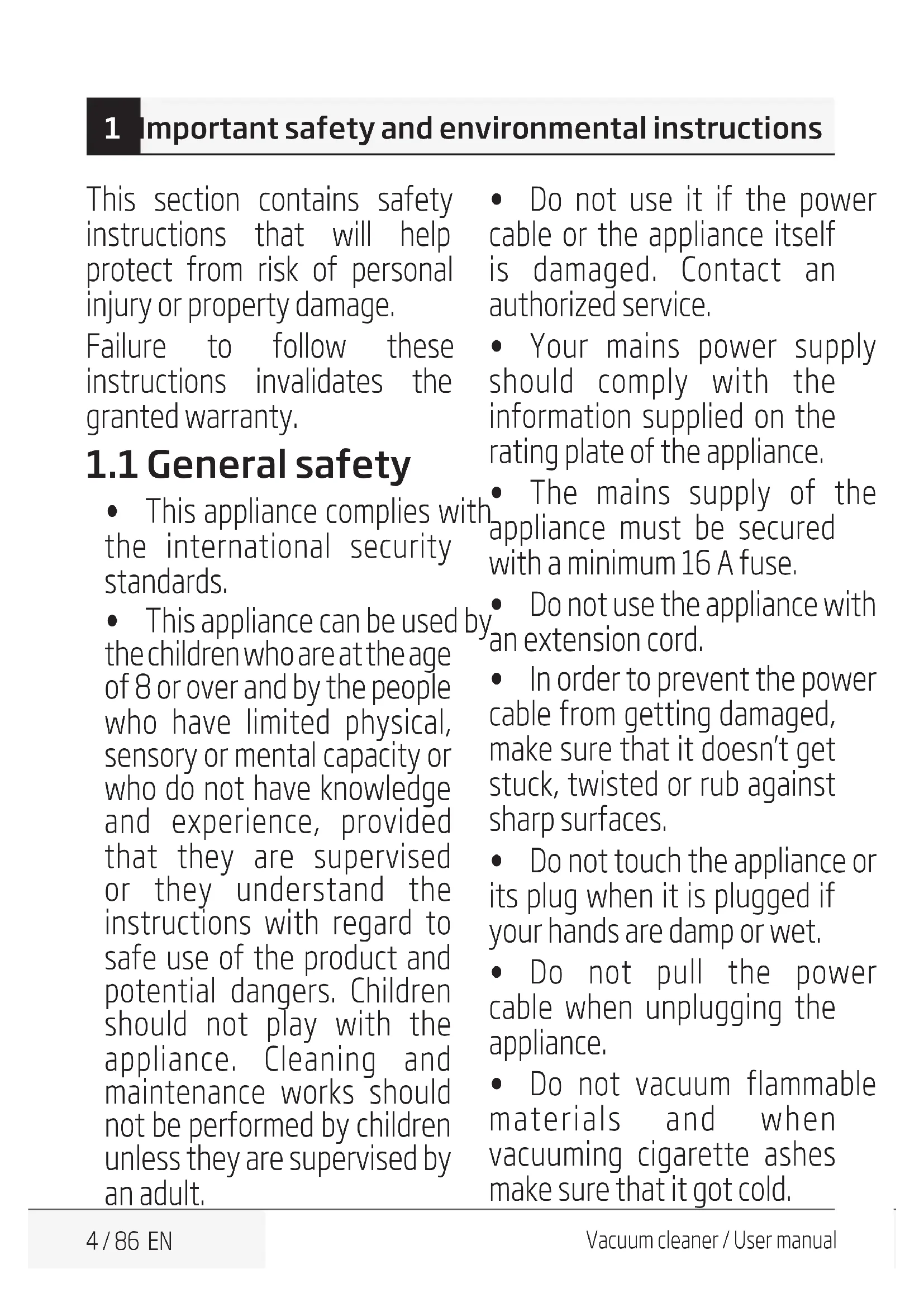

Vacuum cleaner / User manual This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

• Ths applance comples wth the nternatonal securty standards.

• Ths applance can be used by the chldren who are at the age of 8 or over and by the people who have lmted physcal, sensory or mental capacty or who do not have knowledge and experence, provded that they are supervsed or they understand the nstructons wth regard to safe use of the product and potental dangers. Chldren should not play wth the applance. Cleanng and mantenance works should not be performed by chldren unless they are supervsed by an adult.

• Do not use t f the power cable or the applance tself s damaged. Contact an authorzed servce.

• Your mans power supply should comply wth the nformaton suppled on the ratng plate of the applance.

• The mans supply of the applance must be secured wth a mnmum 16 A fuse.

• Do not use the applance wth an extenson cord.

• In order to prevent the power cable from gettng damaged, make sure that t doesn’t get stuck, twsted or rub aganst sharp surfaces.

• Do not touch the applance or ts plug when t s plugged f your hands are damp or wet.

• Do not pull the power cable when unpluggng the applance.

• Do not vacuum flammable materals and when vacuumng cgarette ashes make sure that t got cold. 1 Important safety and environmental instructionsVacuum cleaner / User manual 5 / 86 EN

• Do not vacuum water or other liquid materials.

• Protect the appliance from rain, humidity and heat sources.

• Never use the appliance in or near to combustible or inflammable places and materials.

• Unplug the appliance before cleaning and maintenance.

• Do not dip the appliance or its cable in water to clean it.

• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

• Do not attempt to dismantle the appliance.

• Only use the original parts or parts recommended by the manufacturer.

• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

• Do not use the appliance without filters; otherwise it can get damaged.

• When vacuuming the stairs, the appliance should be located below the user.

• If your store the package material, keep it out of the reach of children.

1.2 Compliance with the WEEE

Directive and disposal of waste products This product does not include harmful and prohibited materials specified in the “Regulation for Supervision of the Waste Electric and Electronic Appliances” issued by the Ministry of Environment and Urban Planning. This appliance conforms to the WEEE regulation. This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Contribute to the preservation of environment and natural sources by taking the used products to the recycling points.

1.3 Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. 1 Important safety and environmental instructions6 / 86 EN Vacuum cleaner / User manual

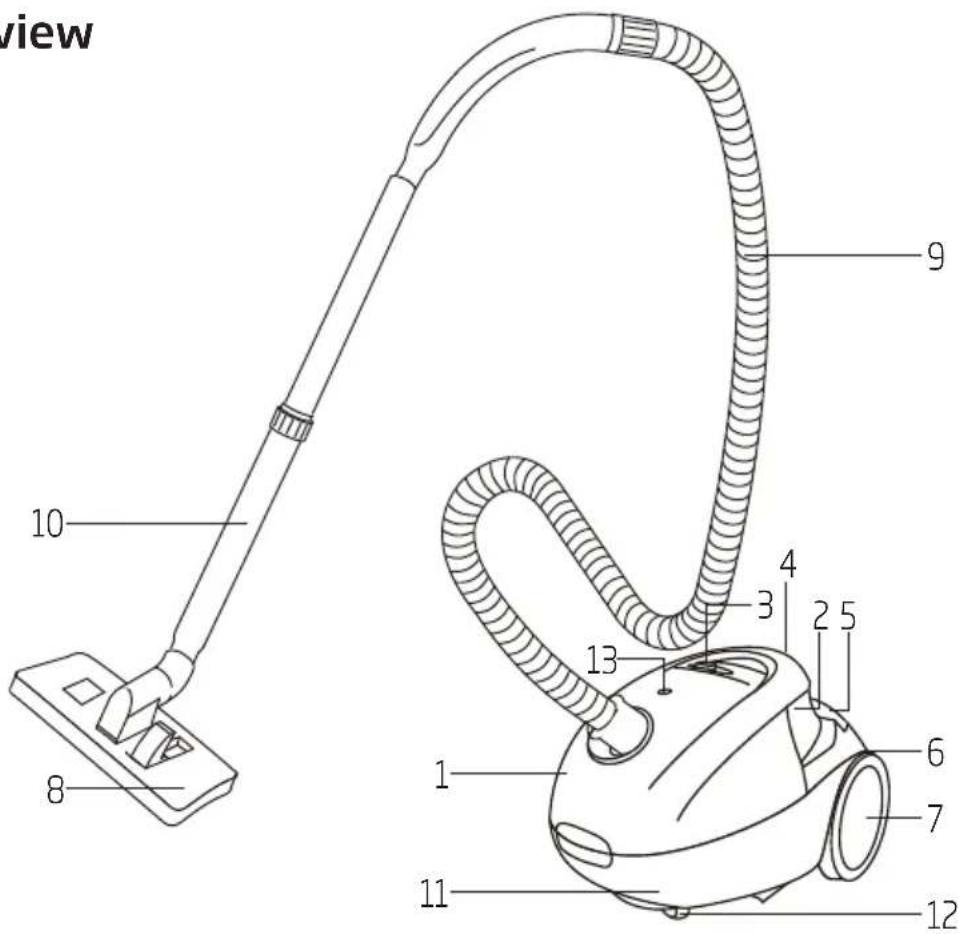

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions. 2 Your vacuum cleaner

8. Hard floor/carpet nozzle

10. 2 pcs. plastic extension tubes

Net weight : 3,9kg Rights to make technical and design changes are reserved.

4Vacuum cleaner / User manual 7 / 86 EN 3 How to Use

The applance was desgned to be used n houses, and s not ft for ndustral use.

3.2 Assembling the appliance

Insert the hose in the coupling on the appliance and press as far as it will go.

3.3 Telescopic tube (BKS 1515

only) Connect the telescopc tube to the end of the hose handgrp. The telescopc extenson enables the hose to be extended to the requred length.

All vacuumng tools can be connected ether drectly to the hose handgrp or to the telescopc extenson.

3.4 Using the cleaning tools

• Two poston carpet/floor brush Pos.1: to clean hard floors, bristles out. Pos.2: to clean carpets and rugs, bristles in.

• Crevce tool Ideal for removng dust from fabrc, furnture books, curtans, frames and clothng.8 / 86 EN Vacuum cleaner / User manual

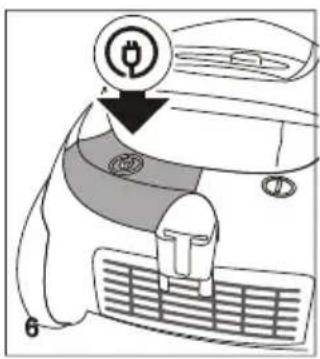

Before using the appliance, extract the power cable completely and plug into the mains. To rewind the cable, unplug and press the cable wind button.

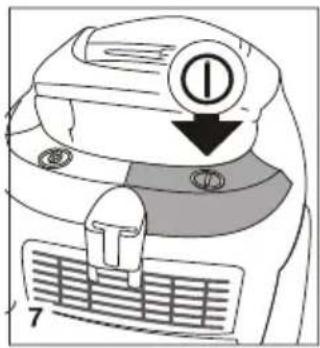

To turn the vacuum cleaner on, lightly press the ON/OFF button. 3 How to Use

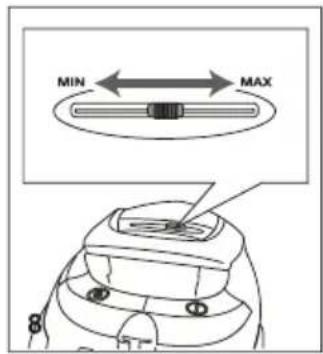

regulation(BKS 1515) Move the power regulator to electronically regulate suction power according to the type of surface to be cleaned. The maximum power of the appliance can therefore be exploited to vacuum dust from carpets or hard floors (marble, ceramics, cotto, etc) and a lower suction power to clean curtains or other light fabrics. The hose handgrip also incorporates a mechanical suction regulator. This enables suction power to be varied rapidly and practically by simply moving the slide.Vacuum cleaner / User manual 9 / 86 EN 4 Cleaning and maintenance Switch off and unplug the appliance ,before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

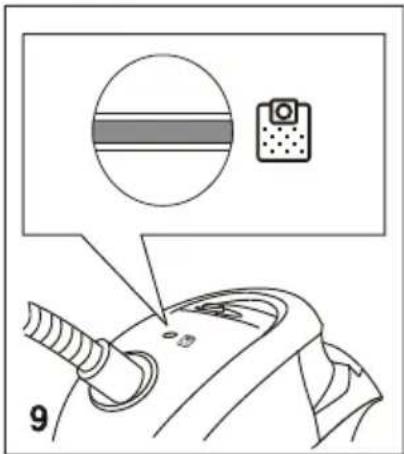

4.1 Dust bag full indicator

The dust bag full indicator warns when the dust bag needs changing or the vacuum hose is blocked.

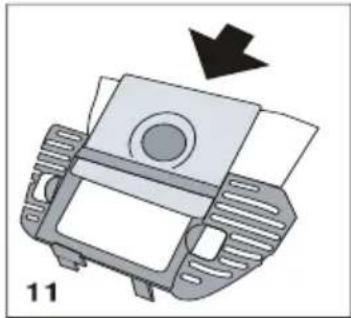

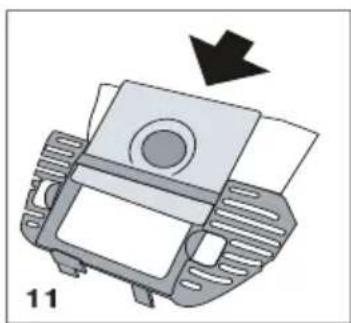

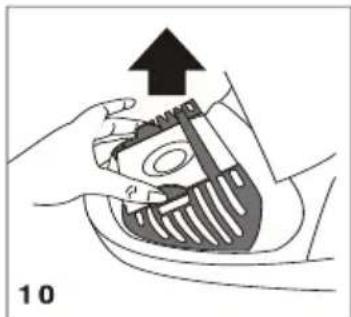

4.2 Replacing the dust bag

To change the paper dust bag, pull the bag compartment opening lever and lift the cover. Remove the dust bag holder and throw away the old bag. Insert the new bag in place of the old one and put the dust bag holder back in the compartment. Close the cover with slight pressure. You should change the dust bag frequently when vacuuming up very fine dirt such as flour, talcum powder, etc.To avoid the appliance giving off unpleasant smells, you should replace the dust bag at least twice a year. The appliance has a safety device which prevents the dust bag compartment cover being closed when there is no dust bag in place.

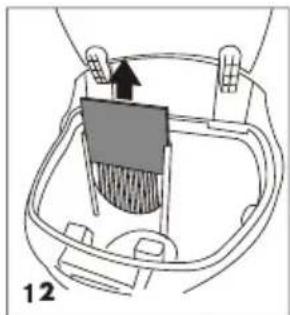

4.3 Motor protection filter

To extend the working life of the appliance and protect the motor, it is vital to keep the motor protection filter clean.To access the filter, open the dust bag compartment, exract the dust bag and remove the filter holder.If the filter is not excessively dirty, simply remove the dust.If the filter is very dirty, wash by hand in cold or warm water.10 / 86 EN Vacuum cleaner / User manual Make sure the filter is dry before putting it back in the appliance. When replacing the filter, make sure it is positioned correctly.

Never wash the filter in the washing machine or dry with a hairdryer.

4.4 Air outlet filter

Remove the rear grill, take out the sponge filter and when visibly dirty, clean it. You should clean the filter at least every 5 dust bag changes.

Never use the appliance without the filter.

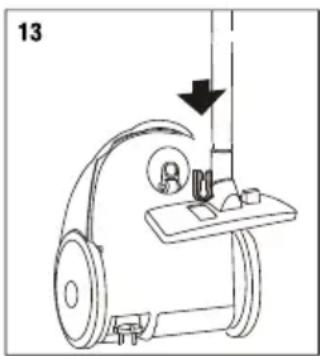

4.5 Parking position

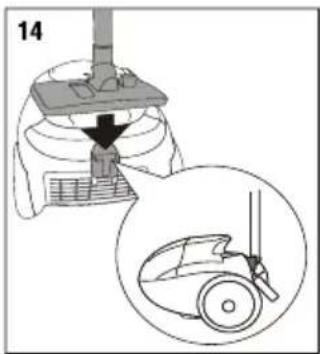

The appliance is provided with a parking base at the bottom to enable it to be put away safely and tidily in the parking position. If you have to interrupt cleaning for a brief period, the appliance has a convenient hose “parking” system. Insert the bracket on the brush joint into the housing on the bottom of the appliance. Insert the bracket on the brush joint into the housing in the parking base at the rear of the appliance.

Malfunction of the appliance (low power, unusual noise or complete breakdown) could be caused by obstructed nozzles or hoses or faulty electrical components. Check the nozzles, dust bag and motor protection filter. If this does not resolve the problem, take the appliance to an authorised service centre.

• If you do not intend to use the appliance for a long time, store it carefully.

• Pull the appliance's plug out.
