SJM240 - Kettle KENWOOD - Free user manual and instructions

USER MANUAL SJM240 KENWOOD

Line drawing of a Kenwood water heater with labeled design (no text or symbols on the device itself)

Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK

www.kenwoodworld.com

1826171

SJM240 series

SJM250 series

English 2 - 4

Nederlands 5 - 7

Français 8 - 10

Deutsch 11 - 13

Italiano 14 - 16

Português 17 - 19

Español 20 - 22

Dansk 23 - 25

Svenska 26 - 28

Norsk 29 - 31

Suomi 32 - 34

Türkçe 35 - 37

Česky 38 - 40

Magyar 41 - 43

Polski 44 - 46

Русский 47 - 49

Ελληνικά 50 - 53

عربي ٥٢ - ٤٥

English

Technical diagram of a kettle with numbered parts for assembly or cleaning steps

before using your Kenwood appliance

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.

safety

• Always unplug your kettle when not in use.

• Always use the filter and never overfill - boiling water may splash out.
• Avoid contact with steam coming out of the spout area when pouring and out of the lid or spout area when refilling.
• Boward: the metal body of the kettle will get hot during operation.
• Never let the cord hang down where a child could grab it.
• Never put the kettle, powerbase, cord or plug in liquid.
• Never use a damaged appliance. Get it checked or repaired: see 'service'
• Caution: Do not operate the kettle on an inclined surface.
• Only use the powerbase supplied and keep it clean and dry.
• Make sure the lid is secure before switching the kettle on.
• Warning: Do not open the lid while the water is boiling.
• Take care when opening the lid - droplets of hot water may be elected.
• Make sure the kettle is switched off before lifting or pouring.
• Remove the kettle from the base before filling or pouring.

• Never put the kettle near or on cooker hot plates or gas burners.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance.

• This kettle is for boiling water only.
• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of your kettle.
• This kello complies with European Economic Community Directive 89/336/EEC.

before using for the first time

1 W/ rap any excess cord around the bracket on the underside of the powerbase (8).
2 Fill to 'MAX', bol, then pour the water away. Repeat 2 to 3 times.

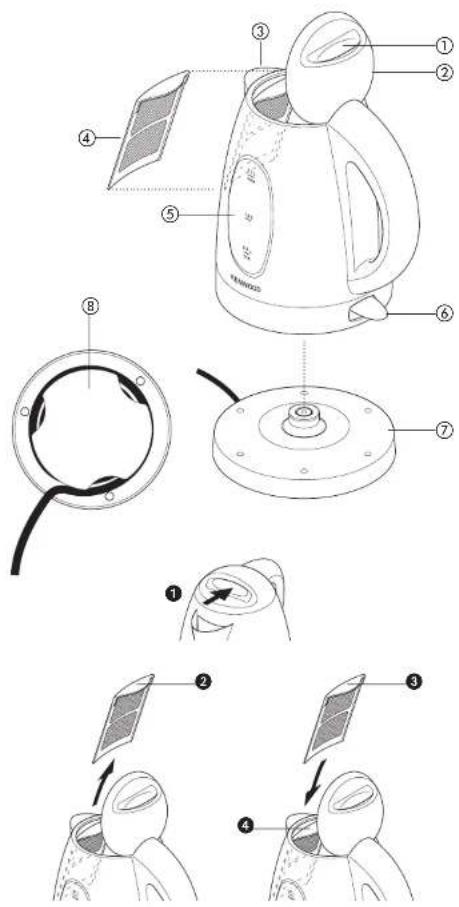

key

① id release
② hinged lid
③ spout
④ filter
⑤ water level window
⑥ or/off switch with indicator light
⑦360° powerbase
⑧ cord wrap

to use your kettle

1 Fill the kettle through either the spout or lid. To open the lid, push the lid release and pull the lid back ①. The water level must be between 'MAX' and 'MIN'.

- Be economical: do not boil more water than you need.

● To improve the quality of your drinks always use fresh water.

● Empty the kettle after each use.

2 Check the lid is closed.

3 Plug in and switch on. The indicator light will come on.

4 Y our kettle will boil and switch off automatically. To re-boil, wait a few seconds - the on/off switch needs time to reset.

- If you experience problems with your kettle switching on and off during use or switching off before boiling, check that the flat element is free from scale - see "descaling".

- Your kettle is fitted with a filter to hold back limescale particles.

- If you find drops of water under your kettle, don't worry - it is just condensation.

boil-dry protection

- If you switch on with too little water, your kettle will cut out automatically. Switch off, remove from the powerbase and let it cool down before re-filling. When it has cooled down, the switch will reset itself.

care and cleaning

- Before cleaning, unplug your kettle and let it cool down.

the outside and powerbase

- Wipe with a damp cloth, then dry. Do not use abrasives - they will scratch the metal and plastic surfaces.

the inside

- Even though your kettle comes with a filter, you still need to clean the inside (and the filter) regularly.

the filter

1 Open the lid.

2 Remove the filter by holding the tab and then lifting the filter out ②.

3 either rinse under the tap or use a soft brush.

or when descaling your kettle, drop the filter in too. Rinse thoroughly.

4 To re-fit the filter, hold the tab ③. Then slide the filter down into the bracket until secure ④.

descaling

- Regular descaling of the flat element will improve the performance of your kettle. If the kettle is not descaled regularly the build up of limescale may result in the following:

- problems may be experienced with the kettle switching on and off during use or switching off before boiling.

• the kettle may take longer to boil.

• the flat element may be damaged.

Please note: Failure to descale your kettle may invalidate your guarantee.

- When limescale starts to build up on the heating element, buy a suitable descaler and descale your kettle. After descaling, boil with fresh water several times and discard. Clean any descaler off the kettle - it can damage the parts.

- Some regions of the country have chalky water. This makes boiled water look cloudy and leaves a deposit on the side of the kettle. This is normal but can be removed with regular cleaning.

- Alternatively, to reduce limescale build up, use filtered water to fill your kettle.

- A range of Kenwood jug water filters are available.

service and customer care

• If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.
  If you need help with:
  • using your appliance
  ● servicing or repairs Contact the shop where you bought your appliance.
