USER MANUAL TAB 2 A720F LENOVO

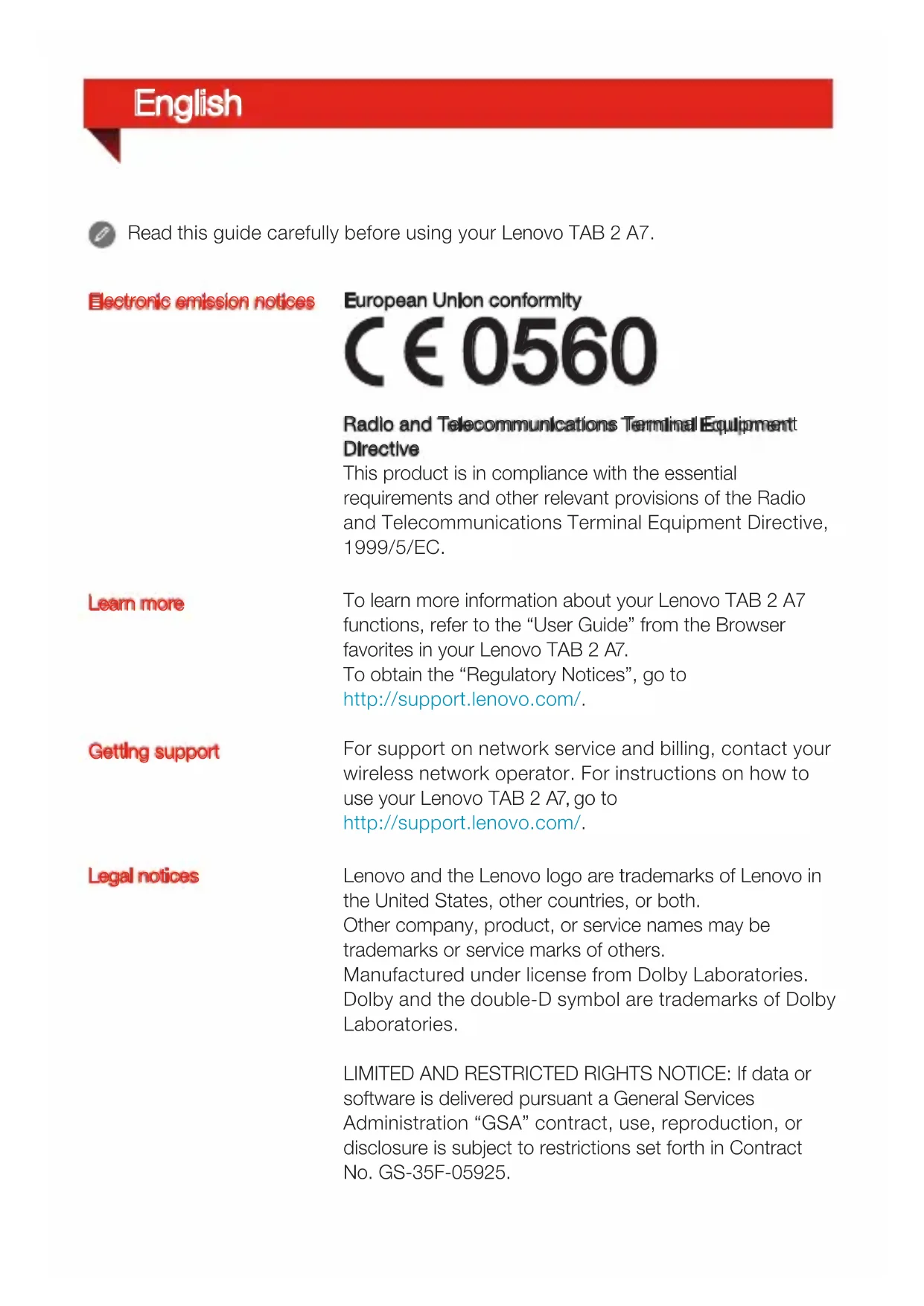

Lenovo TAB 2 A7 Safety, Warranty & Quick Start Guide V1.0 English/Deutsch/Français/Italiano/Português/Nederlands/Dansk/ Svenska/Norsk/Suomi/Español/Eesti/Latviski/Lietuvių k./Íslenska Lenovo TAB 2 A7-10F Lenovo TAB 2 A7-20FEnglish Electronic emission notices Learn more Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. To learn more information about your Lenovo TAB 2 A7 functions, refer to the “User Guide” from the Browser favorites in your Lenovo TAB 2 A7. To obtain the “Regulatory Notices”, go to http://support.lenovo.com/. Getting support For support on network service and billing, contact your wireless network operator. For instructions on how to use your Lenovo TAB 2 A7, go to http://support.lenovo.com/. Read this guide carefully before using your Lenovo TAB 2 A7. Radio and Telecommunications Terminal Equipment Directive This product is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive, 1999/5/EC. European Union conformity 0560Technical specifications MT8127 3450 mAh Model & version Camera Battery Display Wireless communication 0.3M (front) +

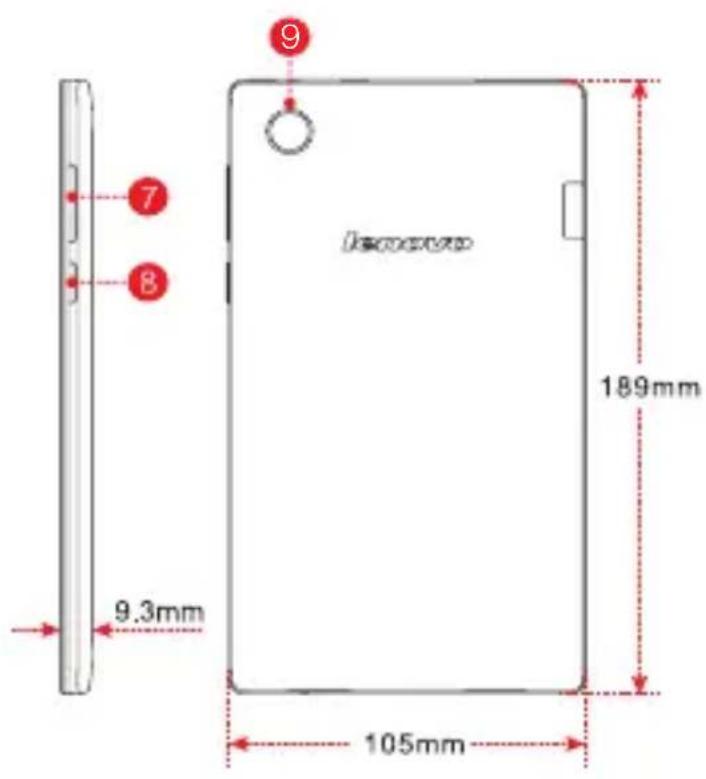

2M (rear) Size: 17.78 cm (7 inches) Resolution: 1024 × 600 Bluetooth 4.0 WLAN 802.11 b/g/n GPS ① Depending on the measuring method, the dimensions and weight might vary slightly.

Only Lenovo TAB 2 A7-20F has a rear camera.

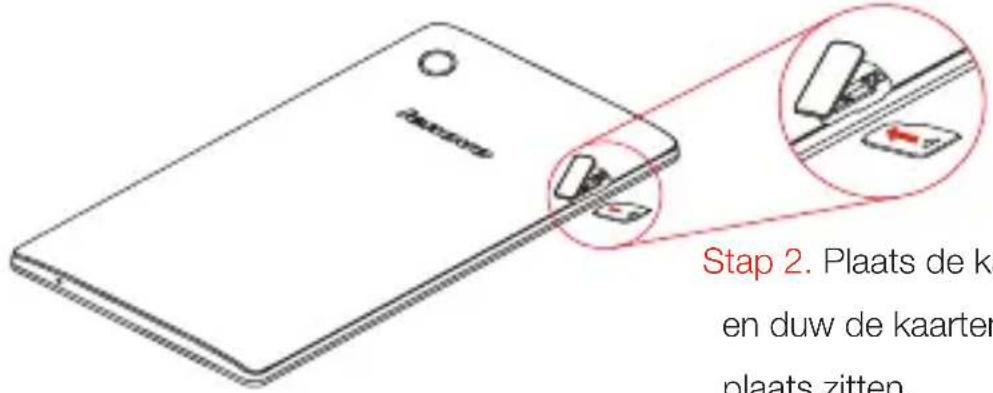

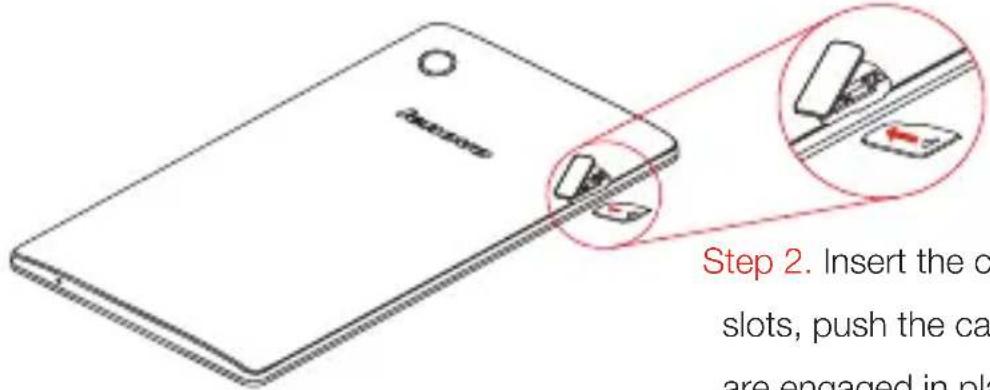

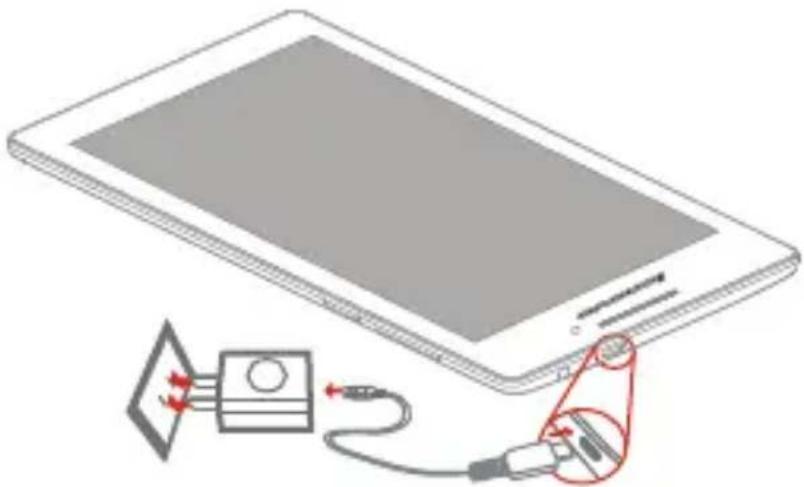

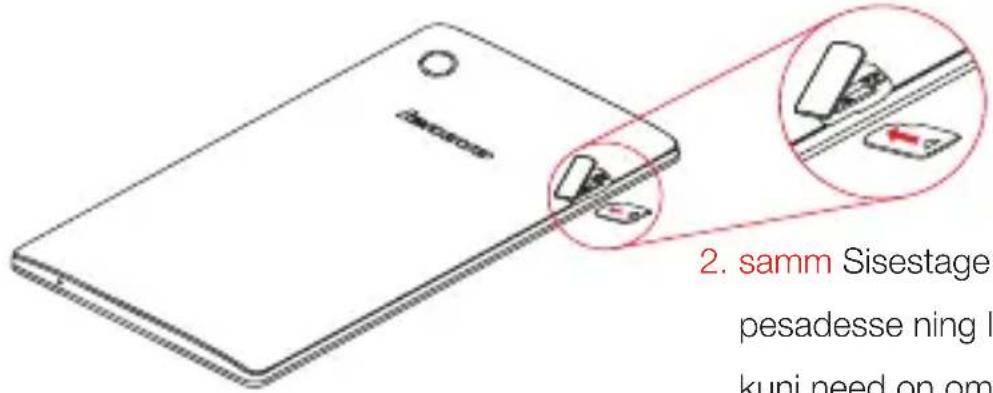

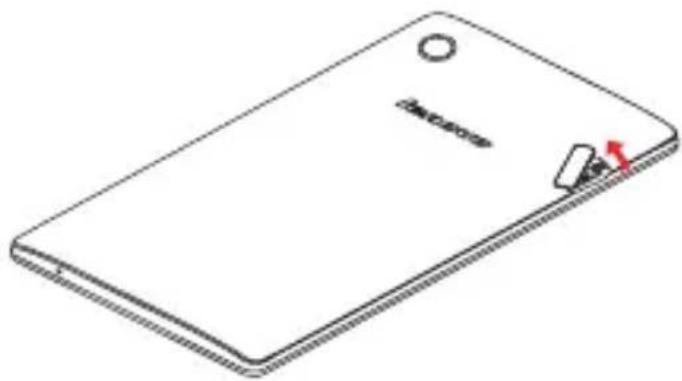

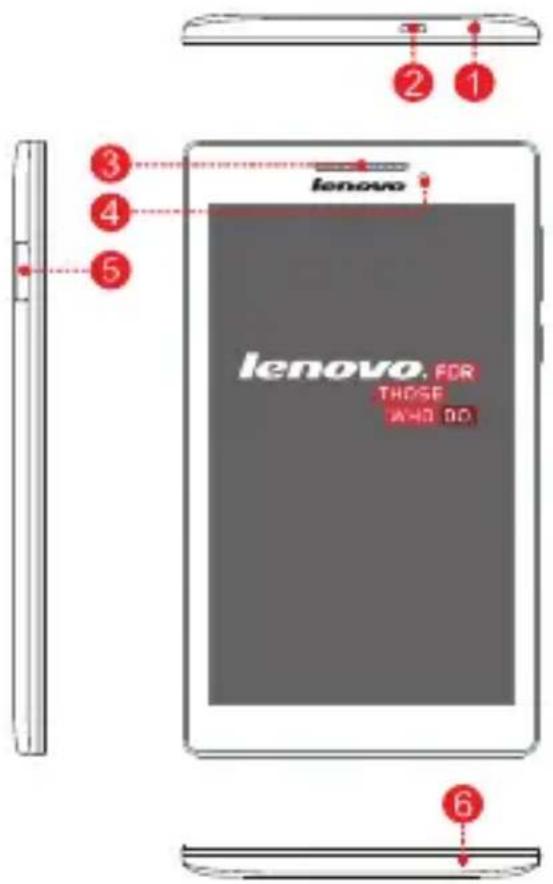

*Rear camera First glance Front camera *Only Lenovo TAB 2 A7-20F has a rear camera. 9Install the MicroSD card as shown. Step 1. Open the card-slot door. Step 2. Insert the card into the respective slots, push the cards until they are engaged in place. Step 3. Close the card-slot door. Preparing your Lenovo TAB 2 A7Turning on/off Before using your Lenovo TAB 2 A7, you might need to charge the battery. Charge the battery as shown. Connect your Lenovo TAB 2 A7 to a power outlet using the included cable and USB power adapter. Low battery Fully charged Charging Turn on: Press and hold the On/Off button until the Lenovo logo appears. Turn off : Press and hold the On/Off button for a few seconds, tap Power off and then tap OK. Starting to use your Lenovo TAB 2 A7 Taking screenshots Press and hold the On/Off button and the volume down button at the same time.Read before using your tablet Read first-Regulatory information The following sections provide critical safety and regulatory information for Lenovo tablets and instructions on how to access electronic versions of the publications developed for your tablet. Downloading publications Accessing your User Guide The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo Limited Warranty notice” later in this document for details on accessing the full warranty. Online technical support Online technical support is available during the lifetime of a product at http://www.lenovo.com/support. You can get help and information from the Customer Support Center by telephone. Before contacting a Lenovo technical support representative, please have the following information available: model and serial number, the exact wording of any error message, and a description of the problem. Your technical support representative might want to walk you through the problem while you are at your device during the call. Device models equipped with wireless communications comply with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. In addition, if your product contains a telecom modem, it complies with the requirements for connection to the telephone network in your country. Be sure to read the Regulatory Notice for your country or region before using the wireless devices contained in your device. To obtain a PDF version of the Regulatory Notice , refer to the “Downloading publications ” section below. Electronic versions of your publications are available from the http://support.lenovo.com. To download the publications for your device, go to: http://support.lenovo.com and follow the instructions on the screen. Your User Guide contains detailed information about your device. To access your User Guide, go to http://support.lenovo.com and follow the instructions on the screen. Service and Support information Telephone technical supportWARNING: Handling the cord on this product or cords associated with accessories sold with this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Polyvinyl Chloride (PVC) cable and cord notice Built-in rechargeable battery notice Prevent hearing damage Your device has a headphone connector. Always use the headphone connector for headphones (also called a headset) or earphones. Worldwide Lenovo Support telephone list

Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo Support for factory replacement. CAUTION: Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphone and headphone output voltage and the sound pressure level. Therefore, to protect your hearing, adjust the equalizer to an appropriate level. Excessive use of headphones or earphones for a long period of time at high volume can be dangerous if the output of the headphone or earphone connectors do not comply with specifications of EN 50332-2. The headphone output connector of your device complies with EN 50332-2 Sub clause 7. This specification limits the device's maximum wide band true RMS output voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band characteristic voltage of 75 mV. Using headphones that do not comply with EN 50332-2 can be dangerous due to excessive sound pressure levels. If the telephone number for your country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative. Important safety and handling information Plastic bag notice

Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation. Important: Telephone numbers are subject to change without notice. The most up-to-date telephone list for the Customer Support Center is always available at http://www.lenovo.com/support/phone.Warning statement: To prevent possible hearing damage, do not listen at high volume levels for a long period of time. Lenovo Limited Warranty notice This product is covered by the terms of the Lenovo Limited Warranty, version L505-0010-02 08/2011. Read the Lenovo Limited Warranty (LLW) at http://www.lenovo.com/warranty/llw_02. You can view the LLW in a number of languages from this Web site. If you cannot view the LLW from the Web site, contact your local Lenovo office or reseller to obtain a printed version of the LLW. Lenovo TAB 2 A7 Model & Version Sound pressure warning statement For the device that is tested in accordance with EN 60950-1: 2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform audio tests for EN50332. This device has been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Warranty information If your device came with headphones or earphones in the package, as a set, the combination of the headphones or earphones and the device already complies with the specifications of EN 50332-1. If different headphones or earphones are used, ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using headphones that do not comply with EN 50332-1 can be dangerous due to excessive sound pressure levels. Model Version WLAN Lenovo TAB 2 A7-10F Lenovo TAB 2 A7-20F WLAN* Excludes some components. 90-day limited warranty for power adapters, keyboards, plastics and hinges. Types of Warranty Service

1. Customer Replaceable Unit (“CRU”) Service

Warranty period and type of Warranty service Country or Region Purchase Warranty Period Type of Warranty Service France, Germany, Italy, Austria, United Kingdom, Israel, Australia, New Zealand parts and labor-1 year Battery pack -1 year 1, 3 Serbia, Costa Rica, Venezuela, Peru, Uruguay, Ecuador, Colombia, Chile, Argentina, Indonesia, Vietnam, India, Malaysia, Thailand, Philippines, Singapore, Hong Kong parts and labor-1 year Battery pack -1 year 1, 4 Russia, Ukraine, Egypt, Lebanon, Morocco, South Africa, Tunisia, Mauritius, Mozambique, Saudi Arabia, United Arab Emirates, Jordan, Kenya, Nigeria, Uganda, Ghana, Oman, Tanzania, Namibia parts and labor-1 year Battery pack -1 year

Poland, Hungary, Romania, Bulgaria, Greece, Croatia, Slovenia, Slovakia, Cyprus, United States of America, Canada, Mexico, Japan parts and labor-1 year Battery pack -1 year 1, 5 Panama parts and labor-1 year Battery pack -1 year 2, 4 Taiwan, South Korea parts and labor-1 year Battery pack -1 year 3, 4 Spain, Switzerland, Portugal, Netherlands, Belgium, Sweden, Denmark, Norway, Finland, Estonia, Latvia, Lithuania, Iceland parts and labor-2 year Battery pack -1 year 1, 3 Czech Republic parts and labor-2 year Battery pack -1 year 1, 5 Turkey parts and labor-2 year Battery pack -1 year 3, 4 Brazil parts and labor-1 year Battery pack -1 year 2, 5Electrical and electronic equipment marked with the symbol of a crossed-out wheeled bin may not be disposed as unsorted municipal waste. Waste of electrical and electronic equipment (WEEE) shall be treated separately using the collection framework available to customers for the return, recycling, and treatment of WEEE. Country-specific information is available at： http://www.lenovo.com/recycling.

1. Customer Replaceable Unit ('CRU')-service

3. Koeriers- of depotservice

Local 3 Col. Benito Juarez Norte
