USER MANUAL Hoz 5 Comfort AEG

Open vented (non-pressurised) small water heater

Operation and installation 12

1. General information 13
2. Safety 13
3. Appliance description.. 14
4. Cleaning, care and maintenance 14
5. Troubleshooting 14

INSTALLATION

1. Safety 15
2. Appliance description.. 15
   8.Preparations. 15
3. Installation 16
4. Commissioning 17
5. Settings 17
6. Shutdown 17
7. Troubleshooting 17
8. Maintenance 18
9. Specification 18

GUARANTEE

ENVIRONMENT AND RECYCLING

INSTALLATION TEMPLATE (IN THE MIDDLE OF THESE INSTRUCTIONS)

SPECIAL INFORMATION

The appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.
- When permanently connected to the power supply using a dedicated junction box, the appliance must be able to be isolated from the mains power supply by an isolator that disconnects all poles with at least 3mm contact separation.
The power cable may only be replaced (for example if damaged) by a qualified contractor authorised by the manufacturer, using an original spare part.
- Never connect the appliance via a time switch.
- Secure the appliance as described in chapter "Installation / Installation".

• During heating, expansion water drips from the tap outlet.
  The appliance must only be installed with an open (non-pressurised) tap.
• Never subject the appliance to water pressure.
  The tap outlet has a vent function. Scale build-up can block the outlet and subject the appliance to pressure.
• Never seal the tap outlet.
  Only use special aerators for non-pressurised water heaters.
• Never extend the tap outlet with a hose.
  Drain the appliance as described in chapter "Installation / Maintenance / Draining the appliance".

OPERATION

1. General information

The chapters "Special Information" and "Operation" are intended for both the user and qualified contractors.

The chapter "Installation" is intended for qualified contractors.

Note Read these instructions carefully before using the appliance and retain them for future reference. Pass on the instructions to a new user if required.

1.1 Safety instructions

1.1.1 Structure of safety instructions

KEYWORD Type of risk Here, possible consequences are listed that may result from failure to observe the safety instructions. Steps to prevent the risk are listed.

1.1.2 Symbols, type of risk

Symbol Type of risk
!	Injury
	Electrocution
	Burns (burns, scalding)

1.1.3 Keywords

KEYWORD	Meaning
DANGER	Failure to observe this information will result in seri-ous injury or death.
WARNING	Failure to observe this information may result in seri-ous injury or death.
CAUTION	Failure to observe this information may result in non-serious or minor injury.

1.2 Other symbols in this documentation

Note General information is identified by the adjacent symbol.

Read these texts carefully.

Symbol Meaning
!	Material losses (appliance damage, consequential losses and environ- mental pollution)
	Appliance disposal

This symbol indicates that you have to do something. The action you need to take is described step by step.

1.3 Units of measurement

Note

All measurements are given in mm unless stated otherwise.

2. Safety

2.1 Intended use

This open vented (non-pressurised) appliance is designed for heating domestic hot water. The appliance can supply one draw-off point.

This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.

2.2 General safety instructions

WARNING Burns

During operation, the tap can reach temperatures in excess of 60^ . There is a risk of scalding at outlet temperatures in excess of 43^ .

WARNING Injury

Only a qualified contractor is permitted to remove the temperature selector.

WARNING Injury

The appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

Where children or persons with limited physical, sensory or mental abilities are allowed to use this appliance, we recommend a permanent temperature limit. A qualified contractor can set this limit.

Material losses

The user should protect the appliance and its tap against frost.

Material losses

Never subject the appliance to water pressure. The tap outlet has a vent function. Scale build-up can block the outlet and subject the appliance to pressure.

» Never seal the tap outlet.
» Only use special aerators for non-pressurised water heaters.
» Never extend the tap outlet with a hose.

Material losses

Connecting the appliance via a time switch will cause an unintentional reset of the high limit safety cut-out.

Never connect the appliance to the power supply via a time switch.

2.3 Test symbols

See type plate on the appliance.

3. Appliance description

The open vented (non-pressurised) appliance constantly maintains the water content at the pre-selected temperature. During heating, expansion water drips from the tap. The appliance may only be installed with taps for open vented (non-pressurised) water heaters (see chapter "Installation / Appliance description / Required accessories").

thermostop function

The thermostop function (thermal separation) of the Huz 5 OKO Comfort prevents the tap becoming hot in standby mode.

3.1 Operation

You can set any required DHW outlet temperature at the temperature selector. The heat-up indicator illuminates during the heat-up process.

Huz 5 ÖKO Comfort

Hoz 5 Comfort

1 Temperature selector
2 Heat-up indicator

Depending on the system, the actual temperatures may vary from the set value.

• Cold. On this setting, the appliance is protected from frost. The tap and the water line are not protected.
  E approx. 40^
  e Recommended energy saving setting (approx. 60^ ), minor scaling

Note

A qualified contractor can set a temperature limit on the appliance (see "Installation / Settings / Setting the temperature limit").

4. Cleaning, care and maintenance

Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning the appliance.
Check the tap regularly. You can remove limescale deposits at the tap outlet using commercially available descending agents.

Almost every type of water will deposit limescale at high temperatures. This settles inside the appliance and affects both the performance and service life. The heating elements should therefore be descaled if necessary. A qualified contractor who is aware of the local water quality will tell you when the next descending is due.

5. Troubleshooting

Problem	Cause	Remedy
The appliance does not supply hot water.	The temperature selector is set to“.”	Switch the appliance ON by turning the temperature selector.
	No power at the appliance.	Check the plug / fuses in the fuse box.
Water can only be drawn at a reduced rate.	The aerator in the tap is scaled up.	Descale / replace the aerator.
Loud boiling noises in-side the appliance.	The appliance is scaled up.	Have the appliance descaled by a qualified contractor.

If you cannot remedy the fault, notify your contractor. To facilitate and speed up assistance, please provide the numbers from the type plate.

26 02 06 031

INSTALLATION

6. Safety

Only a qualified contractor should carry out installation, commissioning, maintenance and repair of the appliance.

6.1 General safety instructions

We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the appliance are used.

6.2 Instructions, standards and regulations

Note

Observe all applicable national and regional regulations and instructions.

7. Appliance description

The appliance is intended to heat cold water and supply it to a single draw-off point.

Huz 5 ÖKO Comfort

The open vented (non-pressurised) appliance is only suitable for undersink installation.

Hoz 5 Comfort

The open vented (non-pressurised) appliance is suitable only for oversink installation.

7.1 Standard delivery

The following are delivered with the appliance:

• Wall mounting bracket

7.2 Required accessories

The following taps are available as accessories for open vented operation:

Huz 5 ÖKO Comfort

AHEu 50 WT - Mono lever mixer tap for washbasins

AHEu 50 S - Mono lever mixer tap for sinks

AHu 50 - Mixer tap with pivoting spout

AHu 51 - Twin-lever mixer tap with pivoting spout

AHS 50 - Sensor tap

Hoz 5 Comfort

AHo 50 - Twin-lever mixer tap with pivoting spout

8. Preparations

Flush the water line thoroughly.

Water installation

A safety valve is not required.

Taps/valves

Sealed unvented taps are not permitted.

» Install an open vented tap.

8.1 Installation site

Material losses

Install the appliance in a room free from the risk of frost.

Material losses

Mount the appliance on the wall. The wall must have a sufficient load-bearing capacity.

Note

Ensure that the appliance is freely accessible for maintenance work.

Always install the appliance vertically and near the drawoff point.

8.1.1 Huz 5 ÖKO Comfort - Undersink installation

Material losses

The Huz 5 OKO Comfort is designed exclusively for undersink installation. The water connections of the appliance point upwards.

D0000045680

D0000045679

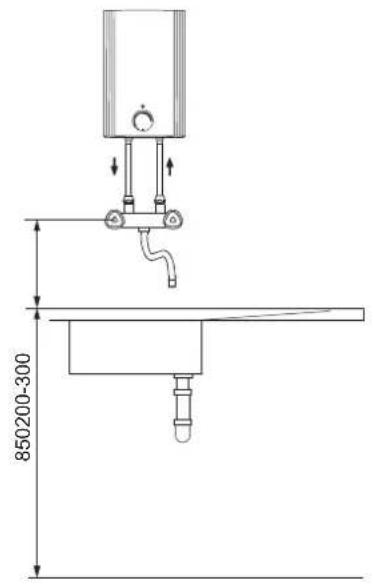

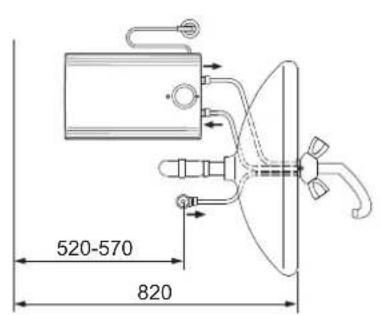

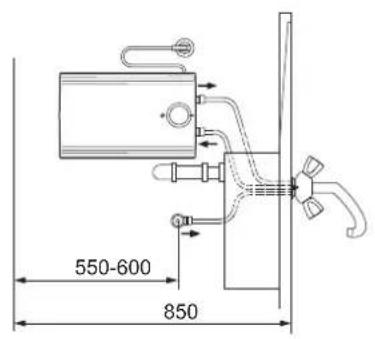

8.1.2 Hoz 5 Comfort - Oversink installation

Material losses

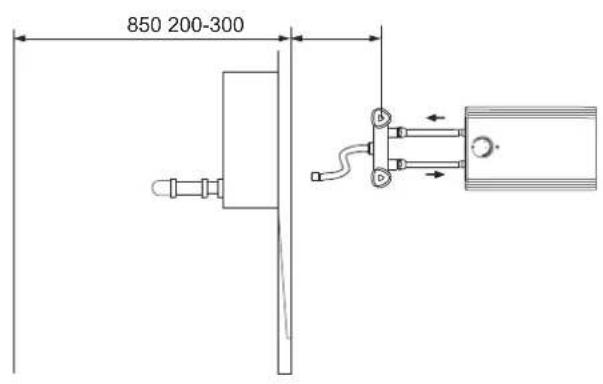

The Hoz 5 Comfort is designed exclusively for oversink installation. The water connections of the appliance point downwards.

0000047628

Material losses

Connecting hose length (from tap to appliance) may not exceed 1 m.

For connecting hoses >1 m:

» Install a tube aerator attachment in the overflow line.

9. Installation

9.1 Appliance installation

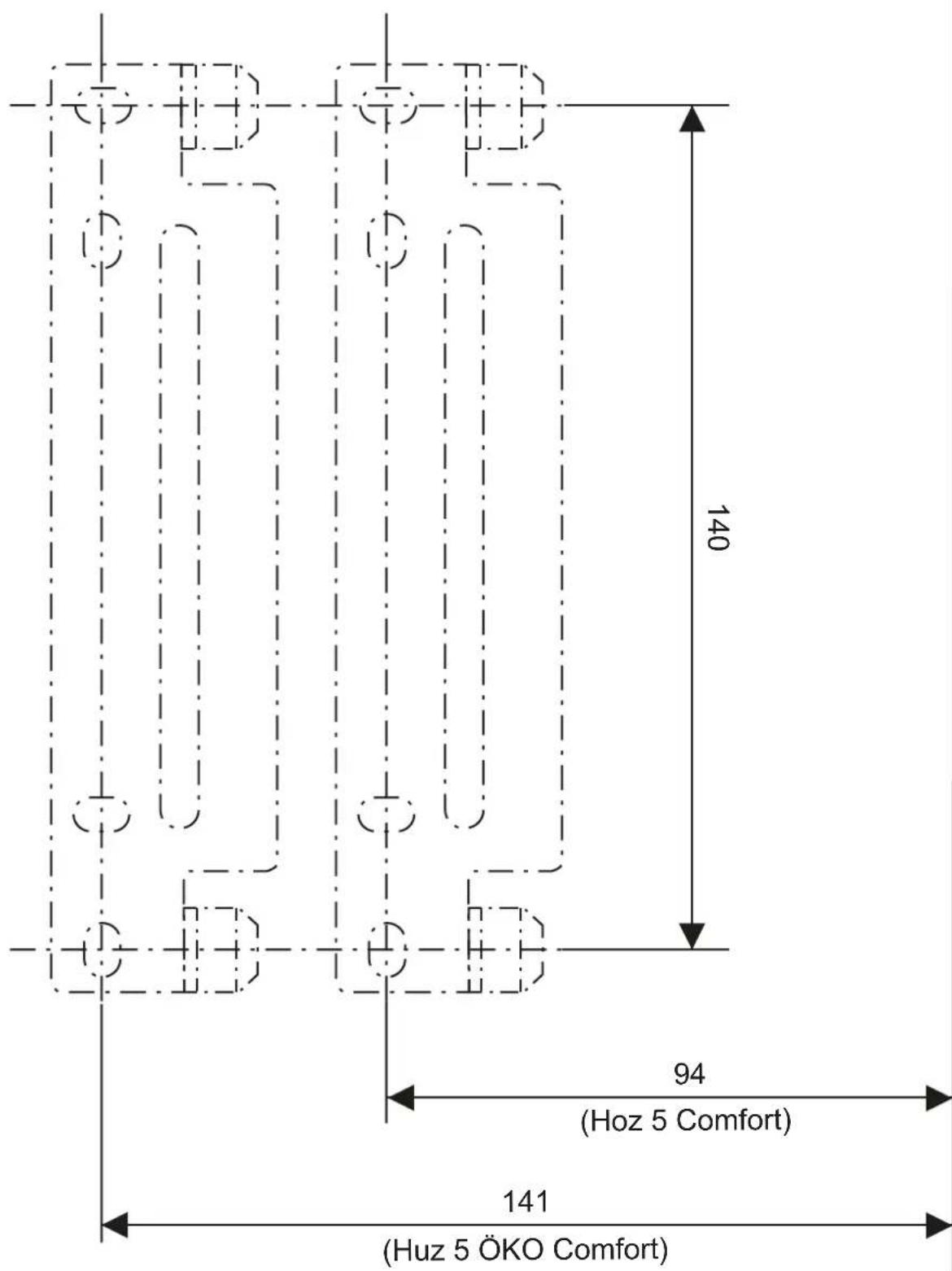

» Mark out the drill holes using the installation template (see middle part of these instructions).

Drill the holes and insert suitable rawl plugs.
» Secure the wall mounting bracket using suitable screws.
» Hang the appliance on the wall mounting bracket.

9.2 Water connection

Material losses

Carry out all water connection and installation work in accordance with regulations.

Material losses

The appliance may develop a leak and cease functioning.

Never subject the appliance to water pressure.
Never interchange the water connections.
Set the flow rate (see tap instructions). Observe the maximum permissible flow rate with a fully opened tap (see chapter "Installation / Specification / Data table").

Material losses

Counterhold with a suitable spanner when tightening fittings.

Huz 5 ÖKO Comfort

000045678

Match up the colour coding on the tap water connections and the appliance:

R.h. side blue = "Cold water inlet"
L.h. side red = "DHW outlet"

Secure the water connections from the tap to the appliance.

Note

Ensure that the water connections are not kinked during installation. Prevent any tensioning during installation.

Hoz 5 Comfort

26 02 06 0025

» Secure the water connections from the tap to the appliance.

Note

The levers for the twin-lever mixer tap for oversink installation are delivered DIN 44897-compliant:

Cold water on the left (blue)
Hot water on the right (red)

9.3 Power supply

WARNING Electrocution Carry out all electrical connection and installation work in accordance with relevant regulations.

WARNING Electrocution When permanently connected to the power supply using a dedicated junction box, the appliance must be able to be isolated from the mains power supply by an isolator that disconnects all poles with at least 3mm contact separation.

WARNING Electrocution Ensure that the appliance is earthed.

Material losses The voltage specified on the type plate must match the mains voltage.

» Observe the type plate.

The following electrical connections are permissible:

	Huz 5 OKO Comfort	Hoz 5 Comfort
Connection to a freely acces-sible standard socket withmatching plug	X	X
Permanent connection to anappliance junction box withearth conductor	X	X

10. Commissioning

WARNING Electrocution Commissioning may only be carried out by a qualified contractor in accordance with safety regulations.

10.1 Initial start-up

0000049323

Either open the DHW valve of the tap or set the mono lever mixer tap to "hot" until the water that flows out is free of air bubbles.

Insert the plug into the standard socket or set the fuse/MCB in the fuse box.
» Select a temperature.
» Check the entire hydraulic installation for tightness.

Note If you fail to follow the correct sequence (first water, then power), the high limit safety cut-out will trip. Proceed as follows:

» Disconnect the appliance from the power supply.
» Fill the appliance with water.
» Connect the appliance to the power supply.

10.1.1 Appliance handover

» Explain the functions of the appliance to the user. Show the user how to operate the appliance.
» Make the user aware of potential dangers, especially the risk of scalding.
» Hand over these instructions and, if applicable, the instructions for any accessories.

10.2 Recommissioning

See chapter "Installation / Commissioning / Initial startup".

11. Settings

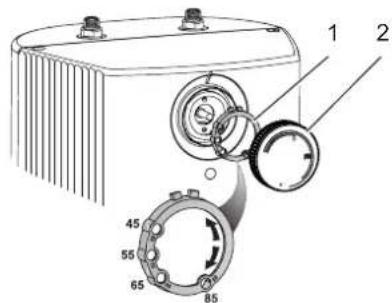

11.1 Setting the temperature limit

D0000045671

1 Limiting ring
2 Temperature selector

Placing the limiting ring behind the temperature selector allows you to limit the setting range of the temperature selector to a specific maximum temperature.

Turn the temperature selector to zero (fully anti-clockwise to "●").

Pull off the temperature selector and the limiting ring.
Push the limiting ring with the required maximum setting onto the controller shaft.
» Install the temperature selector set to zero (4)

12. Shutdown

» Isolate the appliance from the power supply by removing the plug or by tripping the MCB in the fuse box.

Drain the appliance (see chapter "Installation / Maintenance / Draining the appliance").

13. Troubleshooting

Fault	Cause	Remedy
The appliance does not supply hot water.	The high limit safety cut-out has tripped.	Remedy the cause of the fault. If necessary, replace the temperature controller. Allow the appliance to cool down. If you have isolated the appliance from the power supply, the high limit safety cut-out will be reset automatically.
Loud boiling noises inside the appliance.	The appliance is scaled up.	Descale the appliance.

14. Maintenance

WARNING Electrocution Before any work on the appliance, disconnect all poles of the appliance from the power supply.

» Dismantle the appliance for maintenance work.

14.1 Draining the appliance

WARNING Burns Hot water may escape during the draining process.

Drain the appliance via its connectors.

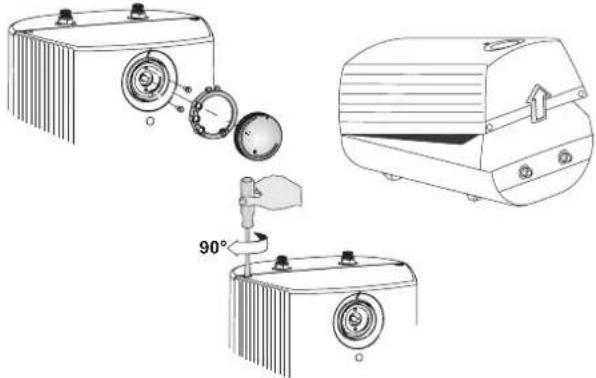

14.2 Opening the appliance

0000045675

Pull off the temperature selector and the limiting ring.
» Remove the screws from underneath the temperature selector.
» Open the appliance cover by lowering the bolt screws inwards and pivot the cover upwards, then remove it.

14.3 D escaling the appliance

Material losses Never treat the cylinder surface with descending agents.

» Remove the flanged immersion heater.
Carefully tap the heating element to remove coarse limescale deposits.

Immerse the heating element up to the flange plate in descending agent.

14.4 Replacing the power cable

The power cable must only be replaced by a qualified contractor with an original spare part. Alternatively, the H05VV-F3x1.0 cable may be used.

14.5 Checking the earth conductor

Pull off the temperature selector and the limiting ring.
Check the earth conductor (in Germany, e.g. BGV A3) across a temperature controller fixing screw and the earth conductor contact of the power cable.

14.6 Positioning the temperature sensor in its protective pipe

» When replacing the temperature controller, guide the temperature sensor into its protective pipe.
» Secure the temperature sensor in place below the earthed plug.

26 02 06 0219

L1 Temperature controller

	Huz 5 ÖKO Comfort	Hoz 5 Comfort
L1	185	200

15. Specification

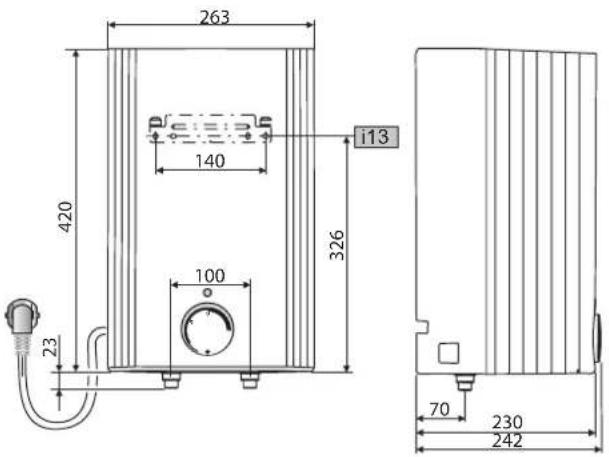

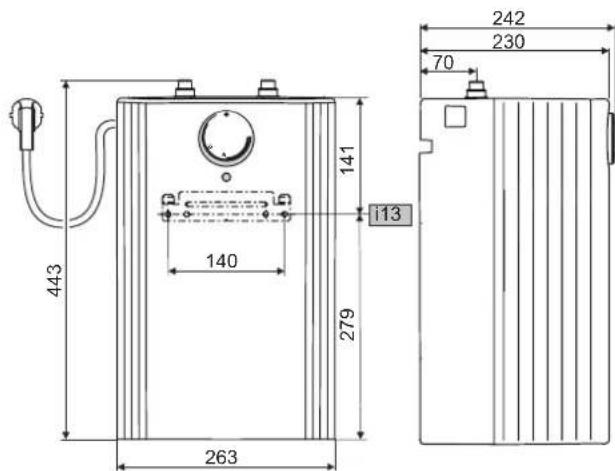

15.1 Dimensions and connections Huz 5 ÖKO Comfort

000018559

			Huz 5 ÖKO Comfort
c01	Cold water inlet	Male thread	G 3/8 A
c06	DHW outlet	Male thread	G 3/8 A
i13	Wall mounting bracket

Hoz 5 Comfort

D0000047620

Hoz 5 Comfort
c01 Cold water inlet Male thread G	1/2 A
c06 DHW outlet Male thread G 1/2 A
i13 Wall mounting bracket

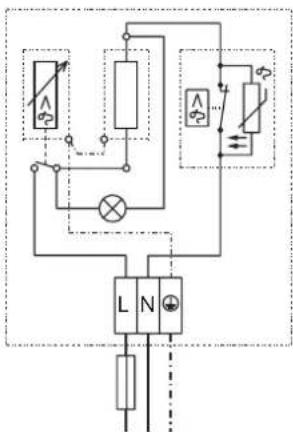

15.2 Wiring diagram

1/N/PE 230V

85_02_06_0001

15.3 Heat-up diagram

The heat-up period depends on the degree of scaling and residual heat. For the heat-up time for a cold water supply at 10^ and a maximum temperature setting, see the diagram.

D0000047175

15.4 Country-specific approvals and certifications

The test symbols can be seen on the type plate.

15.5 Extreme operating and fault conditions

In the case of faults, a peak temperature of up to 100^ may briefly occur in the system.

15.6 Details on energy consumption

Product data complies with EU regulations relating to the Directive on the eco-design of energy related products (ErP).

		Huz 5 ÖKO Comfort	Hoz 5 Comfort
		222164	222154
Manufacturer		AEG Haus-technik	AEG Haus-technik
Load profile		XXS	XXS
Energy efficiency class		A	A
Energy conversion efficiency	%	38	38
Annual power consumption	kWh	487	487
Default temperature setting	°C	55	55
Sound power level	dB(A)	15	15
Daily power consumption	kWh	2,254	2,254

15.7 Data table

		Huz 5 ÖKO Comfort	Hoz 5 Comfort
		222164	222154

Hydraulic data

Nominal capacity	|	5	5
Mixed water volume at 40 °C	|	10	10

Electrical data

Rated voltage	V	230	230
Rated output	kW	2	2
Rated current	A	8.7	8.7
MCB/fuse rating	A	10	10
Phases		1/N/PE	1/N/PE
Frequency	Hz	50/60	50/60

Application limits

Temperature setting range	°C	35-85	35-85
Max. permissible pressure	MPa	0	0
Max. flow rate	l/min	5	5

Energy data

Standby energy consumption/24 h at 65 °C	kWh	0.22	0.22
Energy efficiency class		A	A

Versions

IP rating		IP24 D	IP24 D
Undersink installation		X
Oversink installation			X
Type		Open	Open
Internal cylinder material		Plastic	Plastic
Thermal insulation material		EPS	EPS
Colour		White	White

Dimensions

Depth	mm	230	230
Height	mm	443	443
Width	mm	263	263

Weights

Weight

kg

3.2

3.2

Guarantee

The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only granted if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted.

We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.

D0000052863

REMARQUESPARTICULIERES

UTILISATION

WAARSCHUWING verbranding

Hoz 5 Comfort

26_02_06_0019

Rechts blauw = "Koudwatertoevoer"
- Links rood = "Warmwateruitloop"

Urzhumskaya street 4,

building 2

129343 Moscow

Tel. [phone]

Fax [phone]

Switzerland

STIEBEL ELTRON AG

Industrie West

Gass 8

5242 Lupfig

Tel. [phone]

Fax [phone]
