USER MANUAL 3168431003063 TEFAL

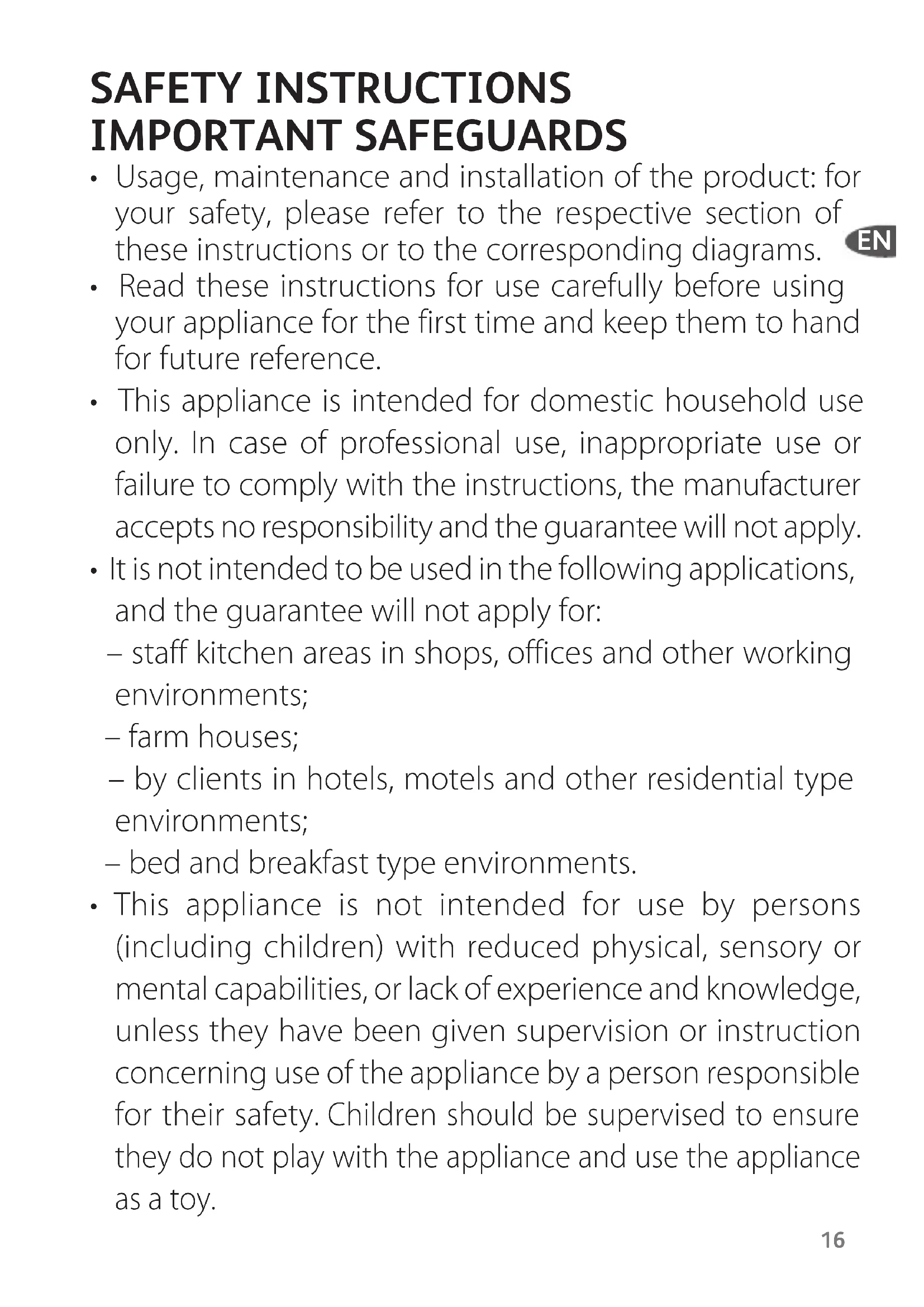

• Usage, maintenance and installation of the product: for your safety, please refer to the respective section of these instructions or to the corresponding diagrams.

• Read these instructions for use carefully before using your appliance for the first time and keep them to hand for future reference.

• This appliance is intended for domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• It is not intended to be used in the following applications, and the guarantee will not apply for: – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance and use the appliance as a toy. EN17

• This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

• Keep the appliance and its cord out of the reach of children less than 8 years.

• Never submerge the appliance or the cable in water or any other liquid.

• This appliance is suitable for both indoor and outdoor use.

• For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment, etc.).

• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

• This appliance can be used in an outdoor environment, provided the electrical power is supplied through a socket outlet with an earth connection and a residual current device (RCD) having a residual operating current rating not exceeding 30mA.

• The appliance must be connected to a socket-outlet with an earth connection.18

• It is recommended to regularly check the power cable for signs of possible damage, and the appliance should not be used if the cable is damaged.

• Any connection error will invalidate your guarantee.

• Always plug the appliance into a socket outlet with an earth connection.

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

• WARNING: Charcoal or similar combustible fuels must not be used with this appliance.

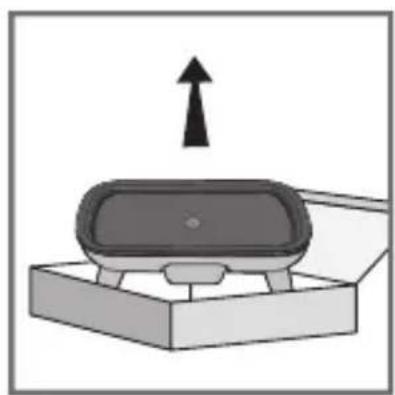

• Remove all packaging materials, stickers and accessories from inside and outside of the appliance.

• The appliance must be placed and used on a flat, stable, heat-resistant work surface, away from water splashes.

• Unwind the power cord fully before use.

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Never immerse the appliance or its power cord in water or any other liquid.

• Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present. EN19

• Never leave the appliance unattended when in use.

• Do not let the power cord hang where children may reach it.

• Take all necessary precautions to prevent anyone tripping over an extension cord.

• Switch off and disconnect the appliance from the power supply when not in use.

• Never disconnect the plug by pulling on the power cord.

• Inspect the appliance and power cord for signs of wear or damage prior to connecting to the power supply.

If the power cord is damaged, it must be replaced by a special cable or unit available from the manufacturer or its after-sales service.

• Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

• Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

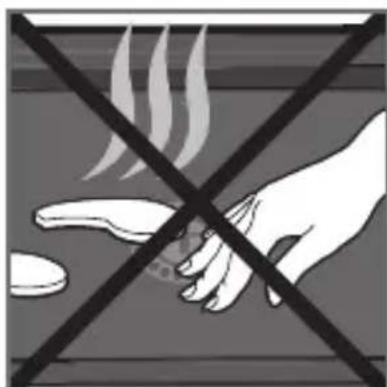

Accessible surface temperatures can be high when the appliance is operating, Never touch these surfaces, always use the handles.

• Never move the appliance when it is hot or in use.

• Allow the appliance to cool down completely before you clean and store it.

• The power cord must never be close to or in contact20

• Read the instructions carefully, common to different versions depending on the accessories supplied with your appliance, and keep them within reach.

• If the appliance is used in the centre of the table, keep it out of the reach of children.

• Make sure the appliance is placed on a flat, stable, heat-resistant surface before using it.

• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.

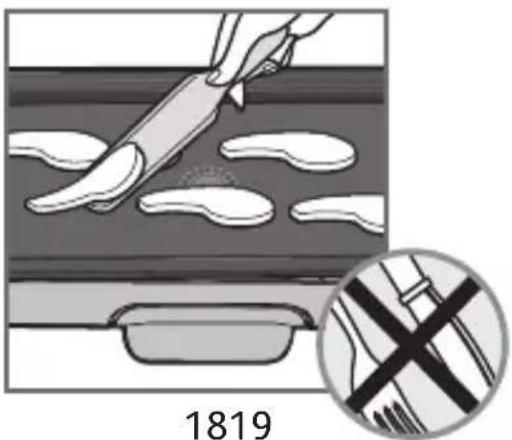

• Always use a wooden or plastic spatula to avoid damaging the cooking plate (

• In order to avoid deterioration of the plate, use it only as it was designed to be used (for example, do not place it in an oven or on a stove, whether it be gas or electric).

• Use only the plate provided with the appliance or a plate bought at an authorized Service Centre.

• Check that the plate is stable and correctly positioned on the base of the appliance.

• Before first use, wash the plate (see paragraph After Use), pour a small amount of cooking oil on it and wipe off an excess oil with a soft cloth.

• Be careful where you place the electric power cord, whether you use an extension or not. Take all the necessary precautions in order not to hinder people from moving around the table, so that nobody gets tangled or trips over the cord.

• When used outdoors, store your appliance in a sheltered area, away from bad weather. with hot parts of the appliance, close to a source of heat or resting on sharp edges.

• Never place the appliance close to a wall or below a wall cupboard.

• Never place the appliance below or close to easily inflammable objects (e.g. curtains, etc.).

• If parts of the appliance should catch fire, never try to extinguish flames with water. Disconnect the appliance and smother the flames with a damp cloth.

• Do not consume foodstuff that comes into contact with the parts marked with logo . Thank you for buying this Tefal appliance. Tefal has an ongoing policy of research and development and may modify these products without prior notice.

• For your safety, this appliance conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment,…).

• If the appliance has been used outdoors, ensure that it is completely dry before using it, to prevent any danger. Turn it upside down to empty out any water.

• On first use, there may be a slight odour and a little smoke.

• Do not consume foodstuff that comes into contact with the parts marked with logo. Advice / information

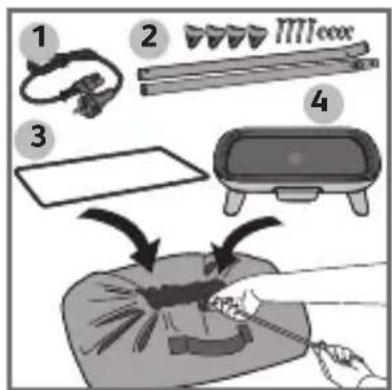

• Keep the storage bag out of the reach of children.

• Allow the appliance to cool down completely before storing it in the bag or before covering it.

• Maintenance advice: – We recommend that you wash your storage bag with a sponge and washing-up liquid. – Do not iron your storage bag. – The bag is not machine washable. – Before each use, all the product’s components and accessories that have come into contact with foodstuffs must be washed. Storage cover Description

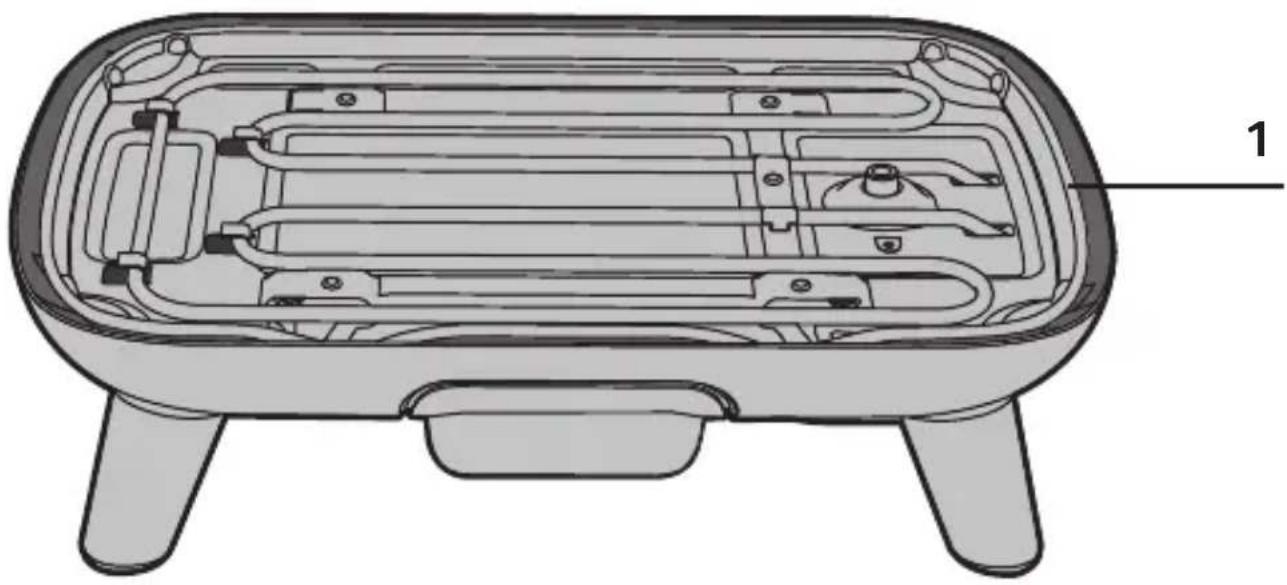

• Base of the appliance

• Never leave the appliance unattended when plugged in or in use.

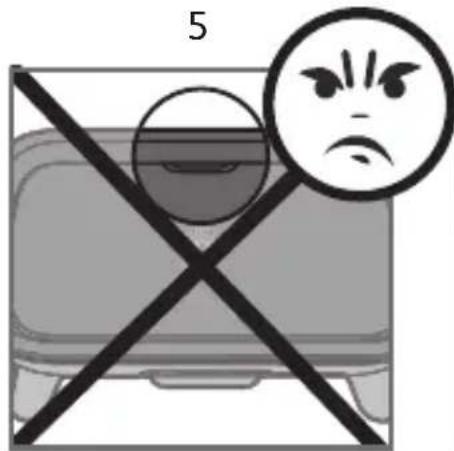

• To prevent the appliance from overheating, do not place it in a corner or against a wall.

• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.

• Never place the appliance on or near hot or slippery surfaces; never leave the cord hanging over a heat source (hotplates, gas stove, etc.).

• Do not place cooking utensils on the cooking surfaces of the appliance.

• Never use a knife to cut directly over the plate.

• Do not place the plate on a fragile surface or under water when it is hot.

• Do not move the appliance when in use.

• Do not use aluminium foil or other objects between the plate and the food being cooked.

• Do not cook food in aluminium foil.

• To avoid spoiling your product, do not use flambé recipes in connection with it at any time.

• Do not use metal scourers or scouring powders to avoid damaging the cooking surface.

• Do not remove the juice collection tray during cooking.

• If the juice collection tray gets filled during cooking, let the contents cool before emptying it.

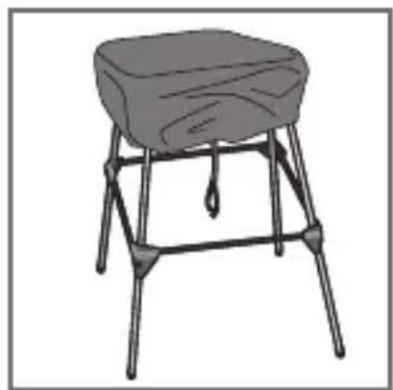

• Do not leave your appliance out in the rain. The cover is not sufficient to protect the appliance if it is exposed to rain or other bad weather (hail, snow, etc.).

• Remove the cover completely before heating your appliance.

• Do not store the appliance in the sun, or leave it outdoors in winter. Do not22 Using

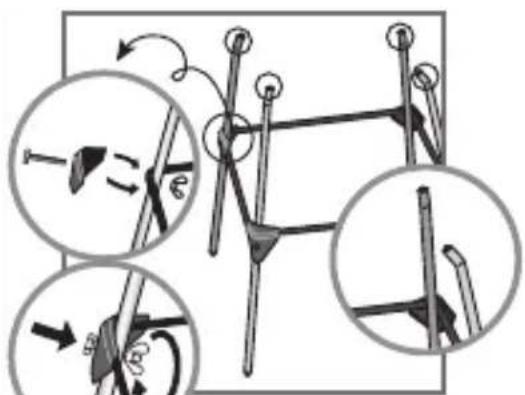

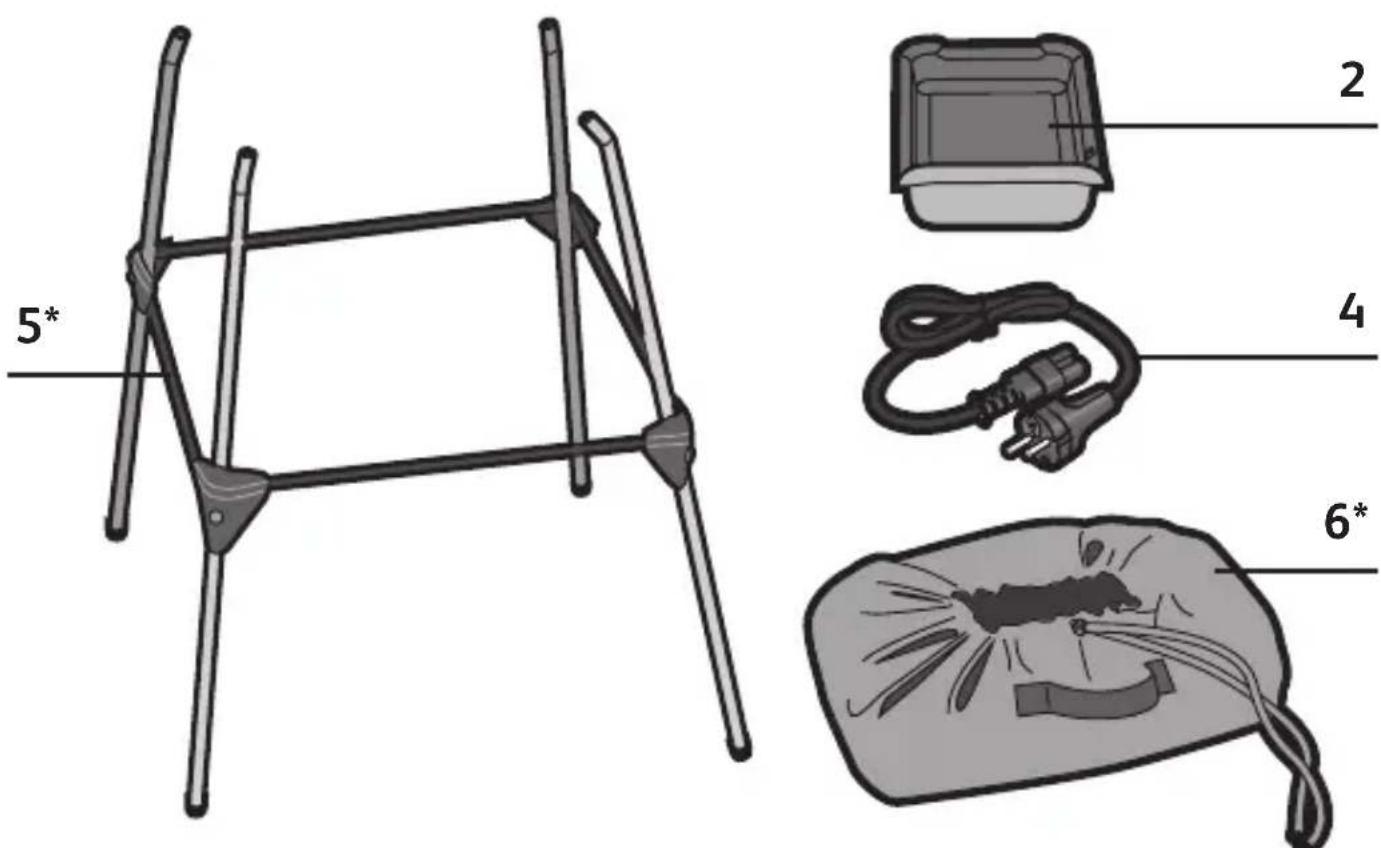

• Assemble the legs ( 2-3

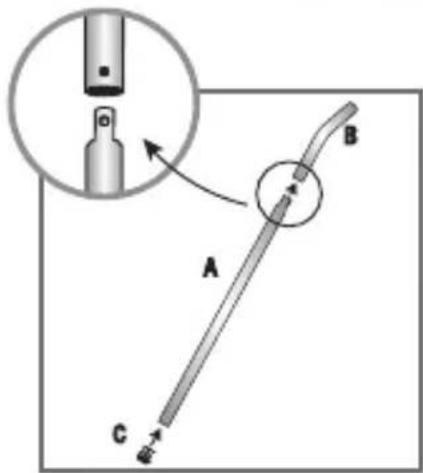

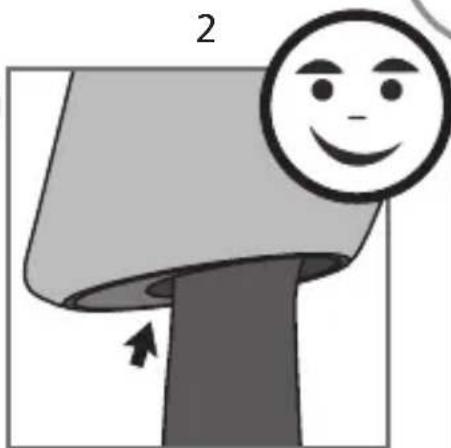

• Fit the appliance to the base and insert the 4 tubes completely into the housings under the legs.

• Ensure that the assembly is correctly posi- tioned and stable.

• Completely unwind the cable.

• Unwind the cord completely.

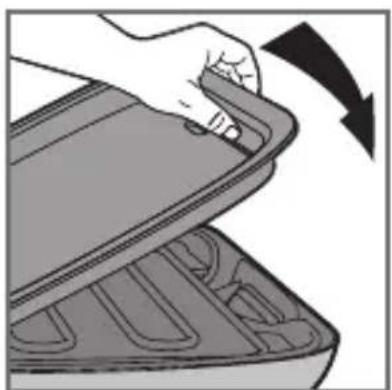

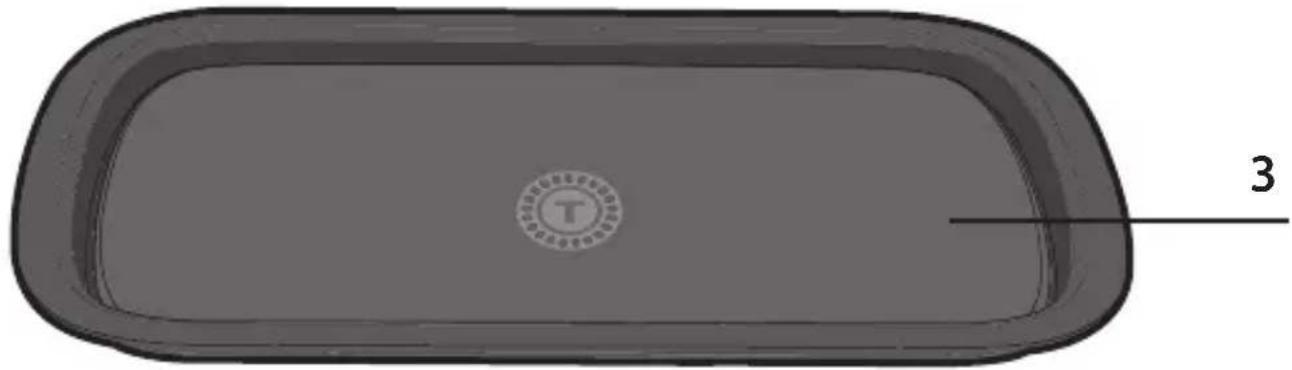

• Fit the removable plate onto the base of the appliance (

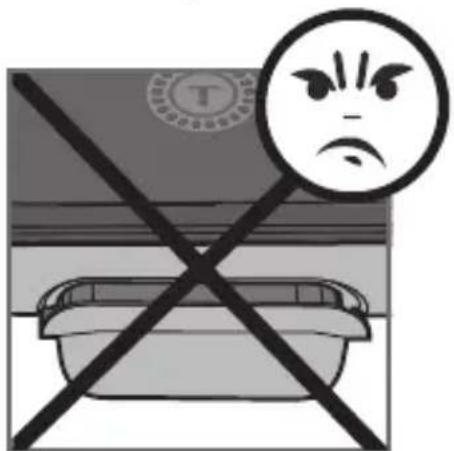

). Make sure that it is in the right position; the drainage slots should be at the front, above the juice tray. ( 8-9

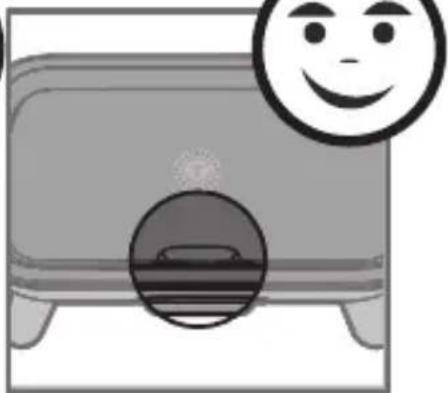

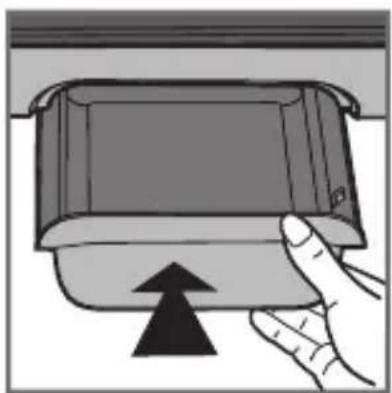

• Place the juice collection tray in the cooking position ( 10-11-12

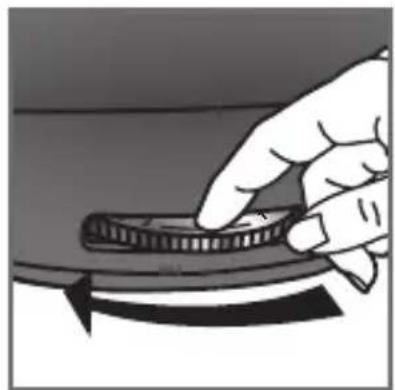

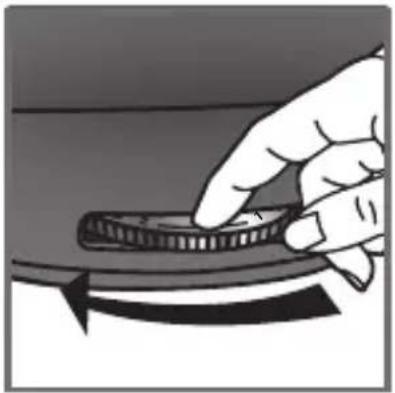

• Set the thermostat to the min position (

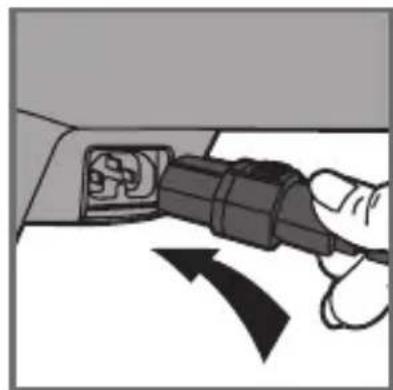

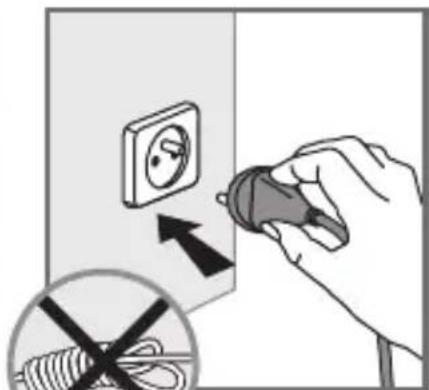

• Attach the power cord to the product, and then plug it in ( 14-15

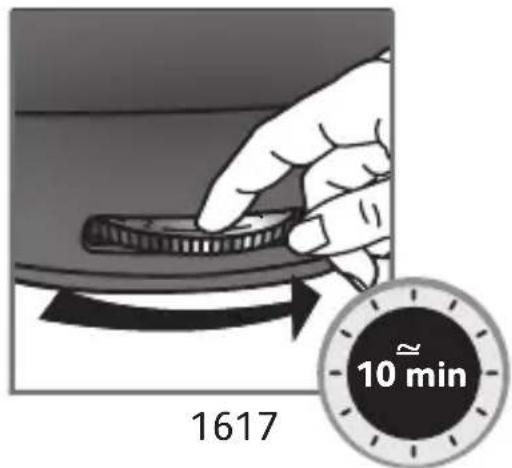

• Set the thermostat to suit the chosen recipe

• Pre-heat the appliance for about 10 minutes

• The appliance will be ready for use once it is preheated.

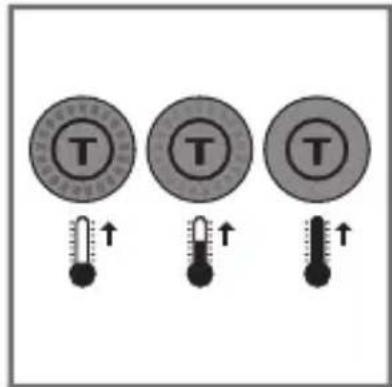

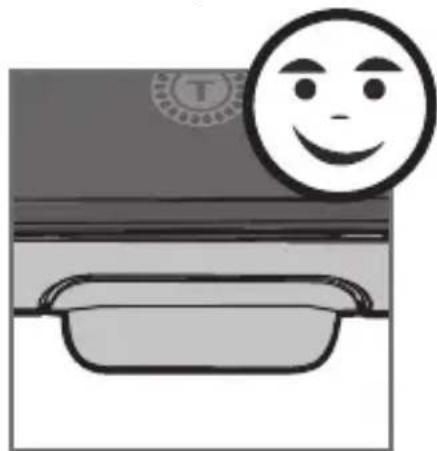

the Thermo-Spot turns solid red when the appliance is perfectly preheated and ready to cook (* depending on model)

Environment protection first! Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point. After use

• Before unplugging the appliance, set the thermostat on position min (

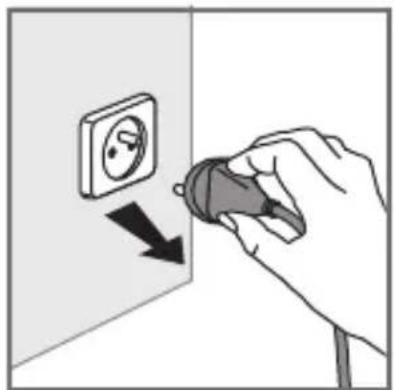

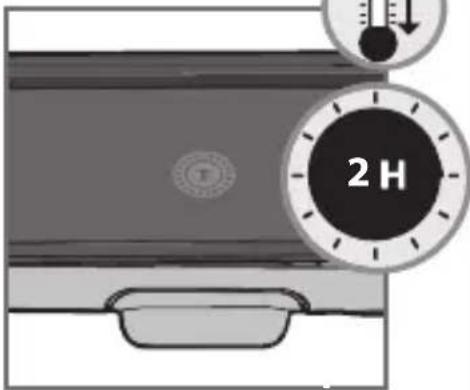

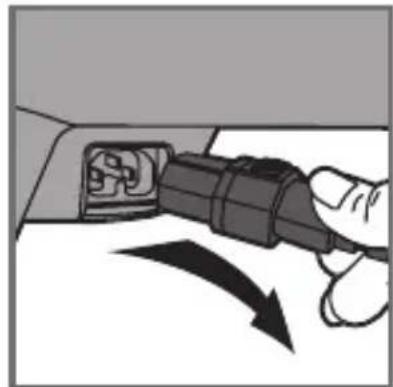

• Unplug the power cord, disconnect it from the appliance ( 21-22 ) and allow it to cool for 2 hours (

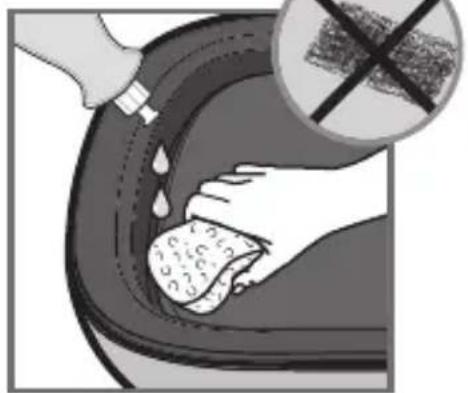

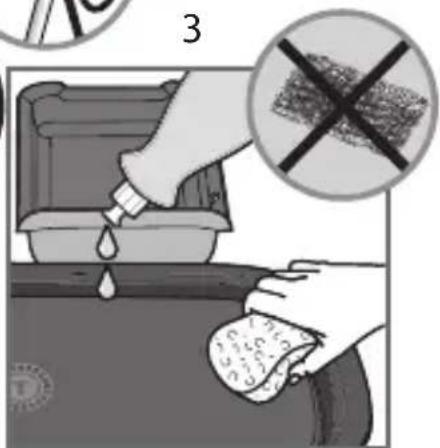

• The base of the appliance must be cleaned with a sponge and a little washing-up liquid. Do not use scouring pads (

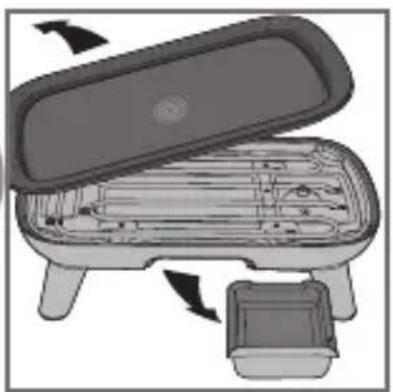

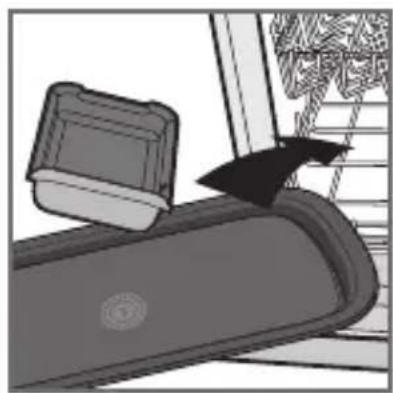

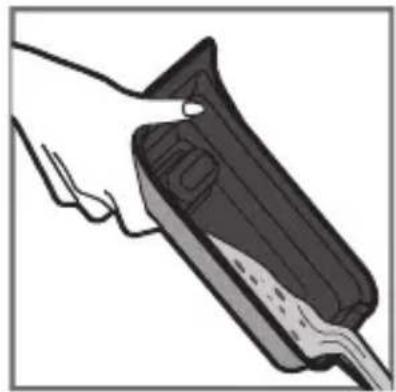

• The plate and juice collection tray must be cleaned after each use, either with your usual washing-up liquid (no scouring pad and powder or metallic sponge) (

) or in the dishwasher (

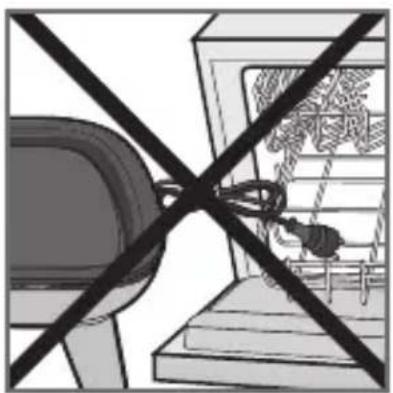

• Do not place the base of the appliance or its cord in the dishwasher (

• If the heating element is really dirty, rub with a dry cloth when cold.

• Check that the appliance has cooled down completely and that it is unplugged before putting it away.

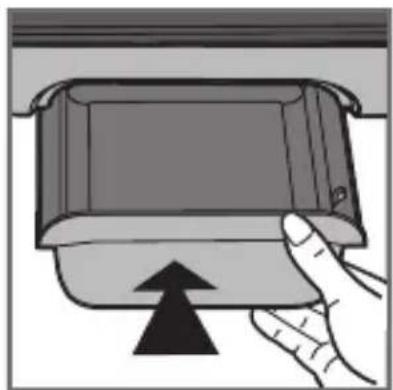

• Place the juice tray in the front of the appliance under the plate (

• Store the appliance and the power cord in a dry place.
