USER MANUAL TFB3302 BOSCH

Diagram illustrating a mechanical device operation with labeled steps and directional arrows, showing hand press and disassembly operations.

Technical diagram showing two views of a car air vent with labeled components and directional arrows indicating motion or movement.

Illustration of a steaming hot pot on a rotating platform (no text or symbols)

Illustration of a cooking process with a frying pan and a pot on a stovet (no text or symbols)

Überbacken

Mechanical device with internal components and motion lines, no visible text or symbols

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read and follow the operating instructions carefully and keep them for later reference! Enclose these instructions when you give this appliance to someone else.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

⚠️ Risk of electric shock!

■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing.
Ensure that the protective conductor system of the domestic supply has been correctly installed.
■ Connect and operate the appliance only in accordance with the specifications on the rating plate.
■ Do not use the appliance if the power cord and/or appliance are damaged.
■ Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
■ Never immerse the appliance or mains cable in water or place it in the dishwasher.
■ The power cord must not come into contact with hot parts or be pulled across sharp edges.
■ If there is a fault, pull out the mains plug immediately or switch off the power supply.

Risk of fire!

■ Do not connect the appliance to or operate it by means of a time switch or remote control socket.
■ Always pull out the mains plug after using the appliance, before cleaning the appliance, before leaving the room or if a fault occurs.
■ Never leave the appliance unattended while it is switched on!

Risk of suffocation!

Do not allow children to play with packaging material.

Risk of injury!

Improper use of this appliance may result in injury.

Risk of burns!

During operation of the appliance the temperature of exposed surfaces may become very high. Take hold of the appliance by the handle only, do not transport the appliance until it has cooled down!

Before using for the first time

Wash and dry the hotplates and lightly oil them on the top.

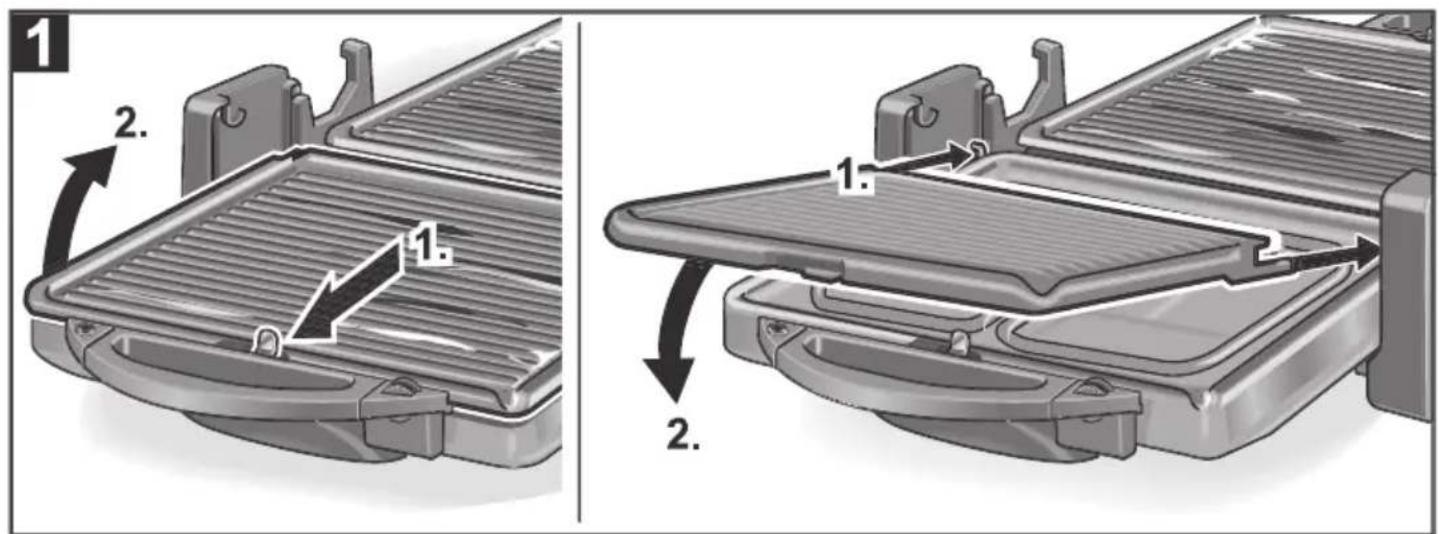

Removing and inserting the hotplates

Figure 1

When inserting the hotplates, care should be taken that the lugs on the right and left are inserted into the hinges and the hotplate catch shuts.

Using the appliance

Do not operate without the hotplates!

Close the appliance and set to the position given on the grill dial using the rotary control: the control lamp illuminates.

This extinguishes as soon as the correct temperature has been reached.

When using for the first time, a slight odor and a little smoke may appear during the first few minutes of use. This is not a threat nor any evidence of malfunction of the product. In this case open the window and ventilate the room until there is no more smoke or odor.

Introduction

Grill food light instead of dark or brown, remove burnt remnants! Do not overgrill starchy foods, especially potato and cereal products (production of acrylamides minimised).

First season the under plate. Wipe the hotplates with a paper towel before placing more food on it. Do not scratch with sharp-edged utensils! Place small, suitable trays (not included in delivery) under the grease outlets. Frozen food items must be fully defrosted and dry. Only add salt to meat and fish after grilling.

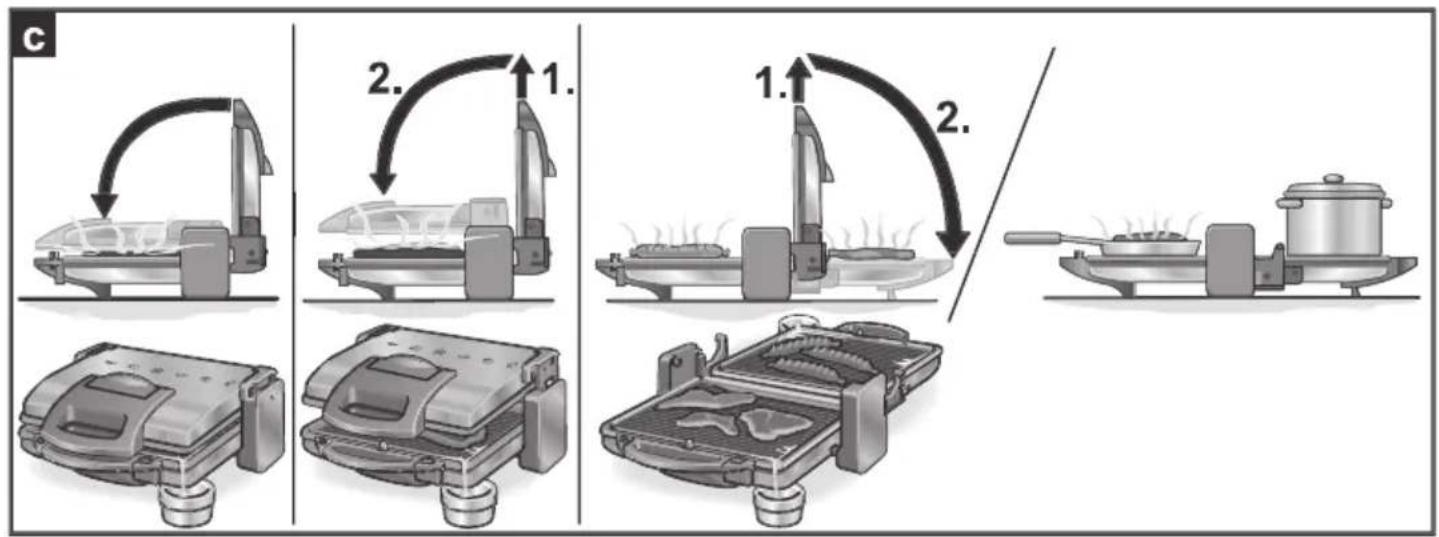

Contact grilling

The hotplates are in direct contact with the food. Particularly suitable for grilling shashlik, chops and pork.

Cross-sectional view of a mechanical device with internal components (no visible text or symbols)

Party grilling or keeping the meal warm

Grilling: The food must be turned. If aluminium foil is used, this should be greased on top.

Illustration of a steaming machine with two rectangular objects on top (no text or symbols)

Keeping warm: Only at positions 1-2.

Illustration of a cooking process with a frying pan and a pot on a stand (no text or symbols)

Au gratin dishes

The top hotplate should not touch the food. The bread should not be toasted beforehand.

Illustration of a mechanical device with no visible text or symbols

Cleaning

⚠️ Risk of electric schock!

Never immerse the appliance or mains cable in water or place it in the dishwasher! Do not use a steam cleaner.

Do not clean with oven/grill spray.

■ Unplug the appliance.
■ Remove the hotplates. These may be washed in a dishwasher. These are, however, best cleaned by hand when they are still lukewarm.
■ Clean the exterior with a damp cloth. Do not use strong or abrasive cleaning agents.

Technical specifications

Electrical connection 220-240 V~50/60 Hz
Output 1800 W
Appliance height 120 mm
Appliance width 390 mm
Appliance depth 325 mm

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
