USER MANUAL MUC22B42RU BOSCH

Plate of marbled meat garnished with parsley and lettuce, served with a fork (no text or symbols visible)

Black and silver Bosch rice cooker with digital display and control buttons (no visible text or symbols)

Register your new Bosch now: www.bosch-home.com/welcome

Close-up of a large, golden-brown baked cake with powdered sugar topping, served on a glass plate with a small metal bowl containing white powder (no text or symbols visible)

MUC2...RU MUC4...RU

BOSCH

Illustration of an open book with a curved arrow indicating rotation (no text or symbols)

A

3D wire mesh basket with a 10* label and a handle, no readable text or symbols beyond the label

Cross-sectional diagram of a mechanical device with labeled parts (no text or symbols present)

Two kitchen utensils with a scale, one upright and one tilted (no text or symbols)

Illustration of a coiled electrical plug with two terminal connectors (no text or symbols)

Please read and follow the operating instructions carefully and keep them for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

The appliance is suitable for cooking, baking, roasting, stewing, steam-cooking, frying, pasteurising and heating up food, as well as keeping food warm. It must not be used for processing other substances or objects. All ingredients must be hygienically faultless.

During handling, the rules of kitchen hygiene must be observed.

Use the appliance with original accessories only. Only use the pan and the accessories with the basic appliance.

Only use the appliance indoors at room temperature and up to 2000 m above sea level. When installing the appliance, ensure that there are no sensitive surfaces and appliances above and behind the appliance that may be damaged by the temperature development and the escaping steam. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children.

Safety instructions

⚠️ Risk of electric shock and fire!

The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed. Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. To prevent hazards, the appliance may only be repaired by customer service.

If the power cord of this appliance is damaged, it must be replaced with a special connection cord, which is available from our after-sales service. Never connect the appliance to timer switches or remote-controllable sockets. Never leave the appliance unattended while it is switched on! If there is a fault, pull out the mains plug immediately or switch off the power supply. The mains cable must not come into contact with hot parts or be pulled across sharp edges. Never immerse the appliance or the mains cable in water or place it in the dishwasher. Unplug the appliance before cleaning it.

Risk of scalding!

During operation, the appliance must never be used without the pan inserted. The housing, pan and metallic components heat up while the appliance is in use! The pan and the accessories may only be removed using the tools provided. Use oven gloves. Hot steam is generated in the appliance. Do not lean over the appliance. Open the lid with care. Only transport or clean the appliance once it has fully cooled down!

Risk of suffocation!

Do not allow children to play with packaging material.

Risk of fire!

Never plug the appliance in if there are still accessories or other objects in the pan. After plugging in, always check whether a programme is run automatically. → "Auto-Restart function" see page 7

⚠️ Important!

After usage or cleaning, allow the appliance to dry for at least 30 minutes with the lid open to prevent the formation of condensation.

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period. → "Care and daily cleaning" see page 17

Caution!

Never use spatulas or cooking spoons with hot fat or oil or leave in a hot pan. They might melt!

Congratulations on the purchase of your new Bosch appliance.

In doing so, you have opted for a modern, high-quality domestic appliance. On the following pages of these operating instructions you will find useful information for safe use of this appliance.

We request that you read these operating instructions carefully and observe all instructions. This ensures you will be able to enjoy this appliance for a long time, and the results will confirm your choice of this appliance.

Retain these operating instructions for subsequent use or for the next owner.

You can find further information about our products on our website.

Content

Intended use....5

Safety instructions ....5

Overview....7

Auto-Restart function....7

Control panel 8

Before using for the first time....9

Operation....11

Preparation....15

Customised setting options ....16

Care and daily cleaning....17

Disposal....19

Guarantee....19

List of preparation programmes....19

Cooking times....21

Model overview and technical data .....22

Special accessories....23

Troubleshooting....23

Overview

→ Figure A

1 Multi-cooker (basic appliance)

2 Control panel

3 Lid

4 Opening button for the lid

5 Removable steam outlet (with window*), 2-part

6 Carrying handle

7 Mains connection

8 Pan with non-stick coating

9 Removable lid insert

10 Deep frying basket with removable handle*

11 Steamer insert, 2-part

12 Pan tongs

13 Spatula

14 Ladle

15 Measuring beaker *

16 Mains cable

17 Operating instructions

18 Recipe book

* Depending on the model

The operating instructions refer to different models of the appliance. → "Model overview and technical data" see page 22

Auto-Restart function

The appliance has an “Auto-Restart” function. Whenever the power supply fails or is interrupted by the user, the appliance will automatically return to the last programme used once it is supplied with sufficient power again or is reconnected to the power supply. The appliance will start to heat up again, and the display will show the remaining time for the resumed programme.

Risk of fire!

Never plug the appliance in if there are still accessories or other objects in the pan.

After plugging in, always check whether a programme is run automatically.

If an unwanted programme starts running, press button X to stop the programme and to enter standby mode.

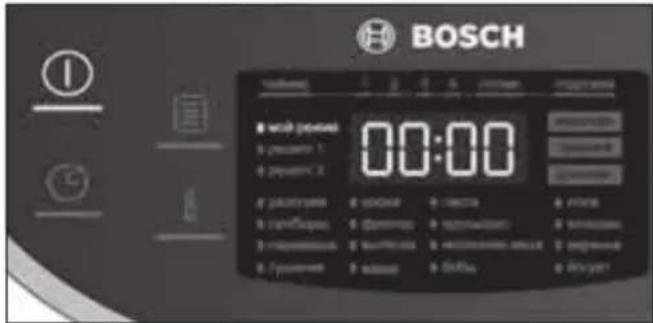

Control panel

The control panel consists of controls (buttons) and indicators (LEDs). The buttons can be used to select the individual preparation programmes and adopt the different setting options (e.g. preparation temperature and time). The settings are indicated via the illuminated LEDs and/or the display.

Controls

→ Fig. B

① Standby Switches the appliance standby mode on or off.
Set the start time delay The start time delay can be set for the selected preparation programme.
Select a preparation programme from the list (g) The individual preparation programmes are displayed one after another by repeatedly pressing button ☐. The corresponding LED lights up in the control panel.

Set a customised preparation temperature

For customised adjustment of the preparation temperature.

≡← Adjust the preparation time The pre-configured preparation time [ средняя ] (medium) for a prepara- tion programme can be shortened [ короткая ] or lengthened [ длинная ]. The corresponding indicator (f) lights up. The corresponding pre-config- ured preparation time is shown in the display (a).

Set a customised preparation time For customised adjustment of the preparation time.

√ Confirm the programme Pressing button √ starts the selected preparation programme.

X Delete a setting or abort the programme Pressing button X deletes the settings or stops a programme that was previously started.

Indicators

→ Fig. ©

a Display

Display of the remaining time or the temperature.

b таймер (timer)

Indicates that the start time delay is enabled. The display (a) shows the time until the start of the selected preparation programme.

c Preparation steps / programmeprogress

Display of the individual preparation steps and the programme progress. In the case of multiple preparation steps (e.g. the ingredients are added after heating the deep frying oil), these are visually indicated by the illumination of LEDs 1, 2, 3 or 4. An audible signal also sounds if a subsequent preparation step is required.

d готово (finished)

This indicates that the meal is ready. The display (a) flashes and shows "00:00". An audible signal also sounds.

е подогрев (keep warm)

Indicates that the keep warm function is switched on at the end of a preparation programme. A rectangle lights up in the display (dotted line).

f Display of the pre-configured preparation time

The pre-configured preparation time [средняя] (medium) for a preparation programme can be shortened [короткая] or lengthened [длинная] using button ≡←. The corresponding indicator lights up.

g List of preparation programmes

There are 16 pre-configured preparation programmes available. The individual preparation programmes are displayed one after another by repeatedly pressing button ☐. The corresponding LED lights up in the control panel.

h рецепт 1&2 – recipe 1&2 (depending on model)

Memory locations for preparation programmes with customised time and temperature.

Quick setting mode for customising the preparation time and temperature setting for a cooking process.

Before using for the first time

Before the new appliance can be used, it must be fully unpacked, cleaned and connected to the power outlet. To do this, perform the following steps:

1. Remove the base unit and all accessories from the packaging and dispose of all packing materials.

2. Use the carrying handle to lift up the appliance. Swing the carrying handle upwards accordingly.

Illustration of two household appliances with arrows indicating rotation or change (no text or symbols)

Caution!

You must use only the carrying handle. This also applies for safe transport of the appliance.

1. Place the appliance on a stable, level and smooth work surface.

Caution!

There must be no sensitive surfaces and appliances above and behind the appliance that may be damaged by the temperature development and the escaping steam.

4. Remove the steam outlet

Grip the steam outlet at the rear and pull up and off.

Illustration of a robotic vacuum cleaner with a black arrow indicating rotation (no text or symbols)

5. Open the lid of the appliance

Press the opening button on the lid.

Illustration of a hand placing a small object into a rice cooker with an open lid, showing a directional arrow (no text or symbols)

6. Remove the lid insert

Grip both flanges on the left and right of the lid insert, then pull out and remove the lid insert.

Illustration of a closed appliance with internal components and directional arrows indicating motion (no text or symbols)

en Before using for the first time

1. Lift the pan out of the appliance interior.

Illustration of a kitchen mixer with a pot and handle, showing internal components and a directional arrow (no text or symbols)

1. Remove the packaging material that is on the appliance and the accessory parts.

2. Check all parts for completeness.

→ Figure A

1. Check the appliance and the accessory parts for visible damage.

Caution!

Never operate a damaged appliance!

1. Thoroughly clean and dry all parts before using for the first time. → “Care and daily cleaning” see page 17

2. After cleaning, insert the pan back into the appliance interior.

Caution!

Before inserting the pan, check that the appliance interior is dry and clean.

13. Insert the lid insert

Insert the lid insert into the 2 ducts at the bottom and press into the lid at the top.

14. Close the lid

Press the lid down until it clicks into place.

1. Insert the steam outlet Place the steam outlet onto the lid from above and press down firmly.

1. Connect the supplied mains cable to the appliance first and then connect it to the socket.

Illustration of a rice cooker with its close-up view showing the internal components (no text or symbols)

Risk of fire!

After plugging in, always check whether a programme is run automatically (Auto-Restart function). If an unwanted programme starts running, press button X to stop the programme and to enter standby mode.

On the control panel, buttons ① and √ and all LEDs briefly light up once and a five-level audible signal sounds. Button ① then flashes. The appliance is in standby mode and is ready for operation.

Caution!

Use only the supplied mains cable.

Operation

Function selection mode

In function selection mode, all preparation programmes are selected and all settings are made on the appliance. To do this, perform the following steps:

Risk of scalding!

During operation, the appliance must never be used without the pan and the steam outlet inserted.

Caution!

Each time prior to operation, check the appliance for damage, completeness, cleanliness and proper installation.

→ "Before using for the first time" see page 9

1. The appliance is ready to use. Press button ① in order to access function selection mode.

In function selection mode, button ① and the indicator [ мой режим ] (my mode) are permanently lit. Button √ flashes. "00:00" is shown in the display.

Note: If no input is made on the control panel within 5 minutes, the appliance automatically switches to standby mode.

Selecting and starting a preparation programme

There are 16 pre-configured preparation programmes available to choose from.

→ "List of preparation programmes" see page 19

1. Fill the appliance with the desired ingredients. To do this, open the lid and pour the ingredients into the pan. The measuring scale on the inside of the pan can also be used to read the quantity.

Caution!

- Do not fill the pan beyond the mark [4.0 litres]! - Use only the spatula provided for stirring (do not use metal cutlery).

1. Close the lid and press button ① to access function selection mode.

Note: Certain preparation programmes or steps are carried out with the lid open.

→ See recipe book provided

1. Keep pressing button ☐ until the desired preparation programme is selected.

The corresponding LED lights up in the control panel and the pre-configured preparation time for the selected preparation programme flashes.

1. Press button √ to start the preparation programme.

The appliance heats up the pan until the target temperature is reached. During the heating phase, lines that light up in a clockwise direction appear in the display. Once the target temperature is reached, the lines go out and the preparation time is shown in the display.

The preparation process starts automatically.

Note: When the programme [паста] (pasta) or [ фритюр ] ( deep frying) is selected, a repeating audible signal is emitted and the display and button √ flash until the food has been added and button √ has been pressed.

The preparation time counts down.

Steam that is formed when preparing the meals exits the multi-cooker via the steam outlet, thereby preventing the formation of excess pressure. Depending on the model, the steam outlet is fitted with a viewing window.

Increasing or reducing the temperature during preparation

If the current temperature was set too high or too low during the preparation, this can be increased (by +10°C max.) or decreased (by -10°C max.) accordingly during the cooking process.

To increase the temperature, press and hold the ♂ button. The current temperature will be briefly shown on the display and will then increase in 1°C increments until the maximum value is reached (+10°C). Press and hold the button until the temperature is at the increased level desired.

To reduce the temperature, press and hold button ♂. The current temperature will be briefly shown on the display and will initially increase in 1°C increments until the maximum value is reached (+10°C). Once the maximum value has been reached, the display will jump back to the minimum value (20°C lower). Press and hold the button until the temperature is at the reduced level desired.

To continue with the preparation programme, press button √.

Note: If button √ is not pressed, the preparation programme will continue with the temperature that was previously set. When the preparation programme ends, an audible signal sounds and the indicator [готовo] (finished) and button √ light up. The display flashes and shows "00:00".

1. Open the lid of the appliance and serve the meal that has been prepared.

⚠️ Risk of scalding!

■ During preparation, large amounts of steam may accumulate in the appliance. Open the lid with care. Do not lean over the lid of the appliance.
■ The pan and any inserts that are used may be very hot. Always use pan tongs, suitable handles or oven gloves.

Notes:

■ The preparation programme can be stopped at any time using button X. The appliance subsequently switches to function selection mode.
If the preparation programme features the keep warm function, this is switched on automatically once the meal is ready and keeps the meal warm for up to 10 hours at 40°C. [готово] (finished) and [подогрев] (keep warm) light up. A rectangle lights up in the display (dotted lines). The keep warm function can be ended using button X. The appliance subsequently switches to function selection mode.

If the selected preparation programme consists of multiple preparation steps, an audible signal sounds once the next step needs to take place. In the control panel, LEDs 1, 2, 3 or 4 are shown accordingly and button √ flashes. Perform the following steps:

■ Open the lid of the appliance.
■ Add additional ingredients.
■ Close the lid of the appliance.
■ Start the next preparation step using button √.

The appliance heats up the appliance interior until the target temperature of the next preparation step is reached. During the heating phase, lines that light up in a clockwise direction appear in the display. Once the target temperature is reached, the lines go out and the next preparation time is shown in the display. The preparation process starts automatically. The preparation time counts down.

Selecting a pre-configured preparation time

The pre-configured preparation time of the level [ средняя ] (medium) is shown on the control panel for each preparation programme.

The preparation time can be shortened [короткая] or lengthened [длинная].

1. Keep pressing button ≡← until the desired indicator is lit. The display changes from [ средняя ] (medium) to [ длинная ] (longer) and then to [ короткая ] (shorter) before returning to [ средняя ] (medium).

The corresponding pre-configured values for the preparation time are shown in the display.

1. Press button √ to start the preparation programme.

Extending the preparation time during preparation

If the ingredients are not yet fully cooked shortly before the end of a preparation programme, the preparation time can be extended.

1. To do this, press and hold button ☒. The current preparation time will be briefly shown on the display and will then increase in 1-minute increments.

2. Press and hold the button until the desired preparation time has been reached.

3. Activate the newly set preparation time using button √.

Setting a start time delay

The start time delay can be set for the selected preparation programme so you can enjoy a freshly prepared meal at a specific time.

Note: the start time delay can only be set for certain preparation programmes. The pre-configured start time delay varies among these preparation programmes.

1. Select the preparation programme.

2. Press button ⏻. Button √ flashes. "00:10" flashes in the display.

Press button ⏻ repeatedly to increase the displayed time. A brief press increases the time by 5 minutes. A slightly longer press increases the time by 10 minutes. Pressing and holding button ⏻ for around 2 seconds increases the time by 30 minutes.

1. Press button √ when the desired start time delay is displayed.

The desired start time delay is shown in the display. [таймер ] (timer) lights up in the display. The time until the start counts down. Once this time has elapsed, the preparation process starts automatically.

Notes:

■ The start time delay can be switched off at any time by pressing button √. The preparation programme then starts immediately.

If "00:10" does not flash in the display, a start time delay cannot be set for the selected preparation programme.

Prematurely terminating the current preparation step

If the ingredients are cooked ahead of time during one of the preparation steps, the step can also be terminated manually.

1. To do this, press button √ for at least 2 seconds.

This will terminate the current preparation step. An audible signal will then sound as usual once the next step can be carried out. In the control panel, LEDs 1, 2, 3 or 4 are shown accordingly and button √ flashes.

1. Perform the next preparation step.

Using the deep frying basket

It is necessary to use the deep frying basket (depending on the model) in order to prepare meat, fish, chips, etc. in hot oil.

Note: For the best and tastiest results, we recommend using the suggestions in our recipe book.

Observe the following when using the deep frying basket:

Risk of scalding!

■ Fill with oil or deep frying fat up to the mark [1.0 l] at maximum.

■ Do not use more than 200 g of frozen food or 300 g of non-frozen food for deep frying.

■ During preparation, large amounts of steam may accumulate in the appliance. Open the lid with care. Do not lean over the lid of the appliance.

■ The pan and any inserts that are used may be very hot. Always use pan tongs, suitable handles or oven gloves.

■ Never use spatulas or ladles with hot fat or oil.

1. Open the lid of the appliance.

2. Fill the pan with a maximum of 1 litre of oil. The measuring scale on the inside of the pan can also be used to read the quantity.

3. Put the lid on.

4. In function selection mode, select the preparation programme [ фритюр ] (deep frying) → "List of preparation programmes" see page 19

5. Press button √ to start the preparation programme.

The oil is heated. Once the target temperature is reached, an audible signal sounds and button √ flashes.

1. Fill the deep frying basket with food for deep frying.

2. Open the lid of the appliance.

3. Place the deep frying basket in the pan using the handle supplied and remove the handle.

Illustration of a cooking pot with mesh net and side view showing internal components (no text or symbols)

1. Do not put the lid on.

Note: Certain preparation programmes or steps are carried out with the lid open.

→ See recipe book provided

1. Press button √ to start the preparation programme.

Once the preparation programme ends, an audible signal sounds.

1. Open the lid of the appliance.

2. To drain the deep-fried food, lift the deep frying basket using the handle and hang on the edge of the pan using the flange.

Using the steamer insert

It is necessary to use the steamer insert for the purpose of steam-cooking vegetables, meat and fish. The 2-part steamer insert enables different ingredients to be steamed separately at the same time (e.g. vegetables in the bottom part and fish in the top part).

Note: For the best and tastiest results, we recommend using the suggestions in our recipe book.

Observe the following when using the steamer insert:

Risk of scalding!

■ Fill with water up to the mark [0.5 📋] at maximum.

■ During preparation, large amounts of steam may accumulate in the appliance. Open the lid with care. Do not lean over the lid of the appliance.

■ The pan and any inserts that are used may be very hot. Always use pan tongs, suitable handles or oven gloves.

1. Open the lid of the appliance.
2. Fill the pan with a maximum of 0.5 litres of water. The measuring scale on the inside of the pan can also be used to read the quantity.
3. Hang the bottom part of the steamer insert in the pan.
4. For steam-cooking different ingredients, fill the bottom part up to the lower edge.
5. Position the top part and add additional ingredients.

Illustration of a microwave oven with a lid and two arrows indicating internal components (no text or symbols)

1. Put the lid on.
2. In function selection mode, select the preparation programme [ пароварка] (steam) → "List of preparation programmes" see page 19
3. Press button √ to start the preparation programme.

Once the preparation programme ends, an audible signal sounds and button √ flashes.

1. Open the lid of the appliance.

2. Lift the top part and the bottom part of the steamer insert out of the pan.

Child lock

The child lock can be activated and deactivated during a preparation process. If the child lock has been activated, all buttons on the appliance are locked and settings can no longer be made on the appliance.

Warning

When the child lock is active, the preparation processes cannot be changed or terminated. The child lock must be deactivated first.

Press the following button combination:

1. Activate

Press and hold buttons ⏻ and Ⓗ simultaneously for 3 seconds. A short audible signal sounds. The child lock is activated.

2. Deactivate

Press and hold buttons ⏻ and ⚙ simultaneously for 3 seconds once again. A short audible signal sounds. The child lock is switched off.

Preparation

General recommendations

For the best and tastiest results, we recommend using the suggestions in our recipe book, which was specially developed for use with the multi-cooker.

The recipe book features detailed information on the required quantities of ingredients, recommendations for the preparation time and the preparation temperature, and useful combinations of the preparation programmes.

Use these recipe recommendations in order to gain initial experience. Once you appreciate the benefits and the variety of the usage options, you will enjoy experimenting with new recipes. To do this, use the customised setting options that are explained on the following pages.

To provide you with an overview of all preparation programmes, we have compiled this information in a clearly arranged table.

→ "List of preparation programmes" see page 19

Customised setting options

The pre-configured values for the preparation time and the preparation temperature can be adapted to individual needs and the recipe guidelines.

Setting the preparation time

1. In function selection mode, keep pressing button ☐ until the desired preparation programme is selected.
   The corresponding LED lights up in the control panel and the pre-configured preparation time for this preparation programme is shown.

2. Press button ☒ once.

The pre-configured preparation time flashes in the display.

1. Keep pressing button ☒ until the desired preparation time is displayed.

When button ☒ is briefly pressed, the preparation time is increased by 1 minute. The time increases up to the pre-configured maximum value and then returns to the pre-configured minimum value. When button ☒ is pressed for a longer period, the preparation time is increased by 10 minutes.

1. Once the desired preparation time is displayed, press button √.

If the time needs to be adjusted individually for all preparation steps in a selected programme, then repeat points 2 to 4 prior to starting the respective preparation step.

Note: These settings are not saved. If this preparation programme is selected again, the pre-configured preparation time will be shown in the display once more.

Setting the preparation temperature

1. In function selection mode, keep pressing button ☐ until the desired preparation programme is selected.
   The corresponding LED lights up in the control panel and the pre-configured preparation time for this preparation programme is shown.
2. Press button ⏻ once.

The pre-configured preparation temperature flashes in the display.

1. Keep pressing button ⚠ until the desired preparation temperature is displayed.
   When button ♂ is briefly pressed, the preparation temperature is increased by 5°C. The temperature increases up to the pre-configured maximum value and then returns to the pre-configured minimum value. When button ♂ is pressed for a slightly longer period, the temperature is increased by 10°C.

2. Once the desired preparation temperature is displayed, press button √. If the temperature needs to be adjusted individually for all preparation steps in a selected programme, then repeat points 2 to 4 prior to starting the respective preparation step.

Note: These settings are not saved. If this preparation programme is selected again, the pre-configured preparation time will be shown in the display once more.

мой режим – my mode (manual)

Quick setting mode for customising the preparation time and temperature setting for a cooking process.

In function selection mode, button ① and the indicator [ мой режим ] (my mode) are permanently lit. Button √ flashes. "00:00" is shown in the display.

1. Press button ☒ once.

"00:00" flashes in the display.

1. Keep pressing button ☒ until the desired preparation time is displayed.

2. Press button ⚠ once.

"0000" flashes in the display.

1. Keep pressing button ♂ until the desired preparation temperature is displayed.

2. Press button √ to start with the selected settings.

The appliance heats up the pan until the target temperature is reached.

Once the target temperature is reached, the lines go out and the preparation time is shown in the display. The preparation process starts automatically.

рецепт 1 / рецепт 2 (recipe 1 / recipe 2) – saving personal preparation programmes

Depending on the model → "Model overview and technical data" see page 22 Personal preparation programmes with customised time and temperature can be saved under the memory locations [ рецепт 1 ] (recipe 1) and [ рецепт 2 ] (recipe 2).

1. In function selection mode, press button ☐ once.

The LED [ рецепт 1 ] (recipe 1) lights up. The pre-configured preparation time is shown in the display.

Note: if you have not previously saved any personal preparation programmes, "00:00" is shown in the display.

1. Press button ☒ once. The display flashes. LED 1 (preparation step 1) lights up in the control panel.

2. Keep pressing button ☒ until the desired preparation time is displayed.

When button ☒ is briefly pressed, the preparation time is increased by 1 minute. When button ☒ is pressed for a longer period, the preparation time is increased by 10 minutes. The time increases up to the pre-configured maximum value and then returns to the pre-configured minimum value.

1. Press button ⚡ once. The pre-configured preparation temperature is shown in the display.

Note: if you have not previously saved any personal preparation programmes, "0000" is shown in the display.

1. Keep pressing button ⚠ until the desired preparation temperature is displayed.

2. Press and hold button √ (>2 seconds) to save the set values.

In order to programme other preparation steps, repeat points 2 to 6. Up to 3 preparation steps can be programmed.

The saved preparation programme [ рецепт 1 ] (recipe 1) can be selected as usual via function selection mode.

→ "Selecting and starting a preparation programme" see page 11

Note: To save a second personal preparation programme under [ рецепт 2 ] (recipe 2), use the same process as described above for [ рецепт 1 ] (recipe 1). To delete a personal preparation programme, perform the following steps:

1. In function selection mode, press button ☐ once.

The LED [ рецепт 1 ] (recipe 1) lights up. The saved preparation time is shown in the display.

1. Press button ☒ once. The display flashes. LED 1 (preparation step 1) lights up in the control panel.

2. Press and hold button X (>2 seconds). The settings for [ рецепт 1 ] (recipe 1) are deleted.

Note: To delete the second personal preparation programme [ рецепт 2 ] (recipe 2), use the same process as described above for [ рецепт 1 ] (recipe 1).

Care and daily cleaning

⚠️ Risk of electric shock

■ Never immerse the appliance in water.
■ Do not steam-clean the appliance.
■ Unplug the appliance before cleaning it.

Caution!

■ Do not use any cleaning agents containing alcohol or spirits.
■ Do not use any sharp, pointed or metal objects.
■ Do not use abrasive cloths or cleaning agents.

en Care and daily cleaning

The appliance must be thoroughly cleaned after each use.

1. Let the appliance cool down completely.
2. Open the lid.
3. Remove the pan, lid insert, steam outlet and accessories. → "Before using for the first time" see page 9

Cleaning the basic appliance

1. Wipe the outside of the appliance with a soft, damp cloth and dry off.
2. Wipe the interior of the appliance with a soft, damp cloth and dry off.
3. Clean the control panel using a dry micro-fibre cloth.

Disassembling the steam outlet

Steam outlet with window:

1. Press together the white catches on the left and right on the underside of the steam outlet and remove the bottom part.

Two-panel diagram showing a device with a lid and a side panel, both with arrows indicating movement (no text or symbols)

1. To assemble, use the slot to hang the bottom part on the top part and press down until the catches click into place.

Steam outlet without window:

1. Press the white catches on the underside of the steam outlet, pull off the bottom part and remove from both ducts.

Two technical diagrams showing a mechanical component with arrows indicating motion or assembly (no text or symbols present)

1. To assemble, use both ducts to hang the bottom part and press down until the catch clicks into place.

Cleaning the lid insert and the steam outlet

1. Clean the individual parts with a detergent solution and a soft cloth or sponge.
2. Rinse with clean water and dry off.
3. Re-assemble the dry individual parts and attach to the basic appliance.

Cleaning the pan and accessories

1. Clean the individual parts with a detergent solution and a soft cloth or sponge.
2. Rinse with clean water and dry off.

Note: The pan, deep frying basket with handle, steamer inserts, basket tongs, spatula, ladle and measuring beaker can also be placed in the dishwasher.

Caution!

Before inserting the pan, check that the appliance interior is dry and clean and that there are no objects present in the appliance interior.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposals facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

List of preparation programmes

AutoCook offers you a total of 48 preparation programmes. These consist of 16 basic programmes, each with 3 time setting options. The following table contains the most important data for the various preparation programmes.

Programme Number of	preparation steps	Keep warm function available	Lid
мой режим – my mode
Customised setting for the desired temperature and preparation time	1 — Open / closed *
рецепт 1&2 – recipe 1&2
2 memory locations for personal recipes (depending on model)	1-3 — Open / closed *
разогрев – warm up
Warming up cold (pre-cooked) meals	1	√	Closed
суп/борщ – soup/borsch	short: 1
Preparing soups and stews	medium: 2 long: 2	√	Open / closed *
пароварка – steam
Steam-cooking vegetables, meat and fish (steamer insert required)	1	√	Closed
тушение – stew
Stewing vegetables, meat and fish	short: 1 medium: 2 long: 2	√	Open / closed *
жарка – fry
Frying vegetables, meat and fish	1	√	Open
фритюр – deep fry
Deep frying meat, fish, chips, etc. (deep frying basket required)	1 — Open
* Depending on the recipe / preparation step – Please see the recipe book provided for notes on correct use of the programmes and for information on ingredients, quantities and cooking times.

en List of preparation programmes

Programme Number of	preparation steps	Keep warm function available	Lid
выпечка – bakingBaking food	1 — Closed
варка – cookingCooking food	1	√	Closed
паста – pastaCooking pasta dishes	1	—	Closed / open *
крупы/рис – riceCooking cereals or rice	1 — Closed
молочная каша – porridgePreparing dairy foods	1	√	Closed
бобы – beansCooking beans	short: 1medium: 2long: 2	√	Closed
плов – pilafCooking pilaf	short: 2medium: 3long: 4	√	Open / closed *
холодец – aspicPreparing aspic and similar dishes	1 — Closed
варенье – jamPreserving fruits as jams	1 — Open
йогурт – yogurtPreparing yogurt	1 — Closed
* Depending on the recipe / preparation step – Please see the recipe book provided for notes on correct use of the programmes and for information on ingredients, quantities and cooking times.

Cooking times

The following table contains an overview of the cooking times for various dishes. The following cooking times depend on the thickness and consistency of the foods and should be viewed as recommendations for minimum times. Adjust cooking times accordingly. With frozen food extend the cooking time by at least 20%.

Programme Setting Duration Food Recommended				quantity (maximum)
пароварка(steam)	medium 30 mins Green beans (fresh) 500 g (800 g)
	short 10 mins Cauliflower		(same-sized florets)	500 g (800 g)
	long 50 mins Potatoes		(medium-sized, whole)	500 g (1200 g)
	short 10 mins Fish fillet 500 g (1000 g)
	medium 30 mins Meatballs 500 g (700 g)
	short 10 mins Eggs x 8 (x 12)
	medium 30 mins Dumplings 500 g (600 g)
	short	5 mins	Broccoli	500 g (800 g)
	short	3 mins	Peas 500 g (800 g)
	medium 30 mins Carrots		500 g (800 g)
	medium	30 mins Chicken breast 500 g (800 g)
	medium 30 mins Beetroot		(medium-sized, whole)	500 g (800 g)
крупы/рис (rice)	medium	30 mins	White, medium grain rice(side dish)	500 g rice,700 ml water
	medium	25 mins White, medium grain rice(side dish)		250 g rice,500 ml water
	long 60 mins Black rice		500 g rice,	500 ml water
	long	45 mins Black rice	250 g rice,350 ml water
молочная каша(porridge)	long	45 mins	Milk porridge	250 g round grain rice,1000 ml milk,100 g sugar
	medium	30 mins	Milk porridge	125 g round grain rice,500 ml milk,50 g sugar
фритюр(deep fry)	long 40 mins Chicken legs		200 g
	short	10 mins Button mushrooms	200 g
	medium 20 mins Chips		300 g
	medium 20 mins Cannelloni 300 g
	short	10 mins Fish fillet 200 g
	short	10 mins Wiener schnitzel (turkey)	200 g
	short	10 mins Wiener schnitzel (pork)	200 g
пароварка + фритюр (steam + deep fry)	short + short	10 mins + 10 mins	Raw vegetables (e.g. cauliflower)	200 g
выпечка (baking)	long 60 mins Shoulder of pork 1500 g
	medium 40 mins Meat loaf 800 g
	long 60 mins Cake 500 g
жарка (fry)	medium 15 mins Vegetables 300 g
	medium 15 mins Fish 200 g
	medium 15 mins Meat 500 g
	short	manual setting: 5 mins	Onions	200 g

Model overview and technical data

				MUC22...RU	MUC24...RU	MUC28...RU	MUC48...RU
				✓	✓	✓	✓
		[SATX]		—	✓	✓	✓
Individual memory locations				—	2	2	2
Max. volume capacity (litres)				4	4	4	4
Steam outlet with viewing window				—	✓	✓	✓
Pan coating				Teflon	Ceramic	Ceramic	Teflon
Housing material				Plastic	Plastic	Metal	Metal
Temperature range				40-160°C	40-160°C	40-160°C	40-160°C
Electrical connection (voltage – frequency)				220-240 V~50/60 Hz	220-240 V~50/60 Hz	220-240 V~50/60 Hz	220-240 V~50/60 Hz
Heater wattage				900 W	900 W	900 W	1200 W
Induction				—	—	—	✓
Length of power cable				1.5 m	1.5 m	1.5 m	1.5 m
Weight, empty				3.7 kg	4.1 kg	4.1 kg	5.4 kg

Special accessories

	MAZ4BISTainless steel pan, polished with a non-stick coating and storage lid*; suitable for the induction multi-cooker MUC48	5-litre pan; dishwasher-safe; very robust pan; 2.5 mm thick; stainless steel polished exterior; non-stick coating; lid* for the practical storage of food in the pan, e.g. in the refrigerator
	MAZ2BTPan with Teflon non-stick coating and storage lid*; suitable for the multi-cooker MUC22	5-litre pan; dishwasher-safe; Teflon non-stick coating; lid* for the practical storage of food in the pan, e.g. in the refrigerator
	MAZ2BCPan with ceramic non-stick coating and storage lid*; suitable for the multi-cooker MUC24/28	5-litre pan; dishwasher-safe; ceramic non-stick coating; lid* for the practical storage of food in the pan, e.g. in the refrigerator
	MAZ0FBDeep frying basket	Stainless steel basket with removable handle for easy handling; dishwasher-safe

*The storage lid is not supplied as standard with the appliance. This is only supplied with pans as a special accessory. If an accessory is not included in the product package, it can be purchased via trade stockists or customer service.

Troubleshooting

Problem Cause Remedy
A programme starts as soon as the appliance is plugged in.	The “Auto-Restart” function is continuing with an aborted programme. → “Auto-Restart function” see page 7	Press button X to stop the programme and to enter standby mode.
The prepared meal is half-raw. Filled beyond capacity. Do not fill the pan beyond the mark [4.0 litres]!

Problem Cause Remedy

The appliance boils over. Filled beyond capacity. Adjust the amount.
	The temperature is too high. Reduce the temperature.
	The selected preparation programme requires the meal to be cooked with the lid open.	Open the lid of the appliance.
LED does not light up. The appliance is switched off. Switch on the appliance.
The hotplate does not function. Fault in the appliance. Contact customer service.
Water is flowing out of the appliance.	The appliance features overflow protection.	Remove the water. Remove the pan and use a cloth to rub the appliance interior dry. Ensure that no water enters the appliance interior.
Display screen E1~E6	Fault in the appliance. Abort the preparation programme. Disconnect the appliance from the power supply. Switch the appliance on again. If the problem persists, contact customer service.
Display screen E0	Fault in the appliance. If the display persists for more than 20 seconds, disconnect the appliance from the power supply and contact customer service.
Display screen E1	Incorrect pan inserted or pan not recognised.	Disconnect the appliance from the power supply and contact customer service.
Display screen E2, E5, E6 or E7	The appliance has overheated. Disconnect the appliance from the power supply and allow to cool down. Restart the appliance once it has cooled down.
	Short-circuit in the appliance. Disconnect the appliance from the power supply and contact customer service.
Display screen E3	Mains voltage too high. Contact electricity provider or grid operator. Have the power supply checked by an expert.
Display screen E4	Mains voltage too low.
Display screen E8	Communication failure.	Restart the appliance once it has cooled down.
If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.

Illustration of two different household appliances with a hand holding a handle, showing internal components and motion arrows (no text or symbols)

Внимание!

Illustration of a small kitchen vacuum cleaner with a black arrow indicating rotation (no text or symbols)

Illustration of a hand placing a small object into a rice cooker with an open lid (no text or symbols)

Illustration of a portable air conditioner unit with open lid and internal fan (no text or symbols)

Illustration of a kitchen mixer with a pot and handle, showing internal components and a directional arrow (no text or symbols)

Illustration of a rice cooker with its side view showing the internal components (no text or symbols)

⚠️ Пожароопасность!

Illustration of a cooking pot with mesh insulation and a magnified inset showing internal components (no text or symbols)

Illustration of a microwave oven with a lid and two arrows indicating internal components (no text or symbols)

Two-panel illustration showing a device being placed on its side, with arrows indicating motion (no text or symbols)

Two technical diagrams showing a mechanical component with arrows indicating motion or assembly (no text or symbols present)

Illustration of two household appliances with arrows indicating rotation or change (no text or symbols)

Увара!

Illustration of a robotic vacuum cleaner with a black arrow indicating rotation (no text or symbols)

Illustration of a kitchen appliance with a pot and lid, showing a cooking step (no text or symbols)

Illustration of a rice cooker with its side view showing the internal components (no text or symbols present)

Illustration of a microwave oven with a lid and internal components, showing liquid level drops (no text or symbols)

Two-step diagram showing a device being placed on a tray, with arrows indicating motion (no text or symbols)

Two technical diagrams showing a mechanical assembly with arrows indicating direction, no text or symbols present.

AE United Arab Emirates,

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k

Rr. Shkelqim Fusha, Selite,

Pallati "Matrix Konstruksion",

Kati 0 dhe +1

1023 Tirane

Tel.: [phone], -131

Fax: [phone]

mailto:[e-mail]

EXPERT SERVIS

Rruga e Kavajes,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Cel: [phone]

mailto:[e-mail]

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.au

*Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel.: [phone]

Fax: [phone]

mailto:bosch_siemens_sarajevo@

yahoo.com

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch.home.bg

BH Bahrain

Khalaifat Est.

P.O. Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order

spare parts and accessories or for

product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances

Mfg. Pvt. Ltd. Arena House, Main Bldg,

2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30am to 4.00pm (exclude public holidays)

PL Polska, Poland

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm (exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za
