USER MANUAL Cucina 3 in 1 HD2430 PHILIPS

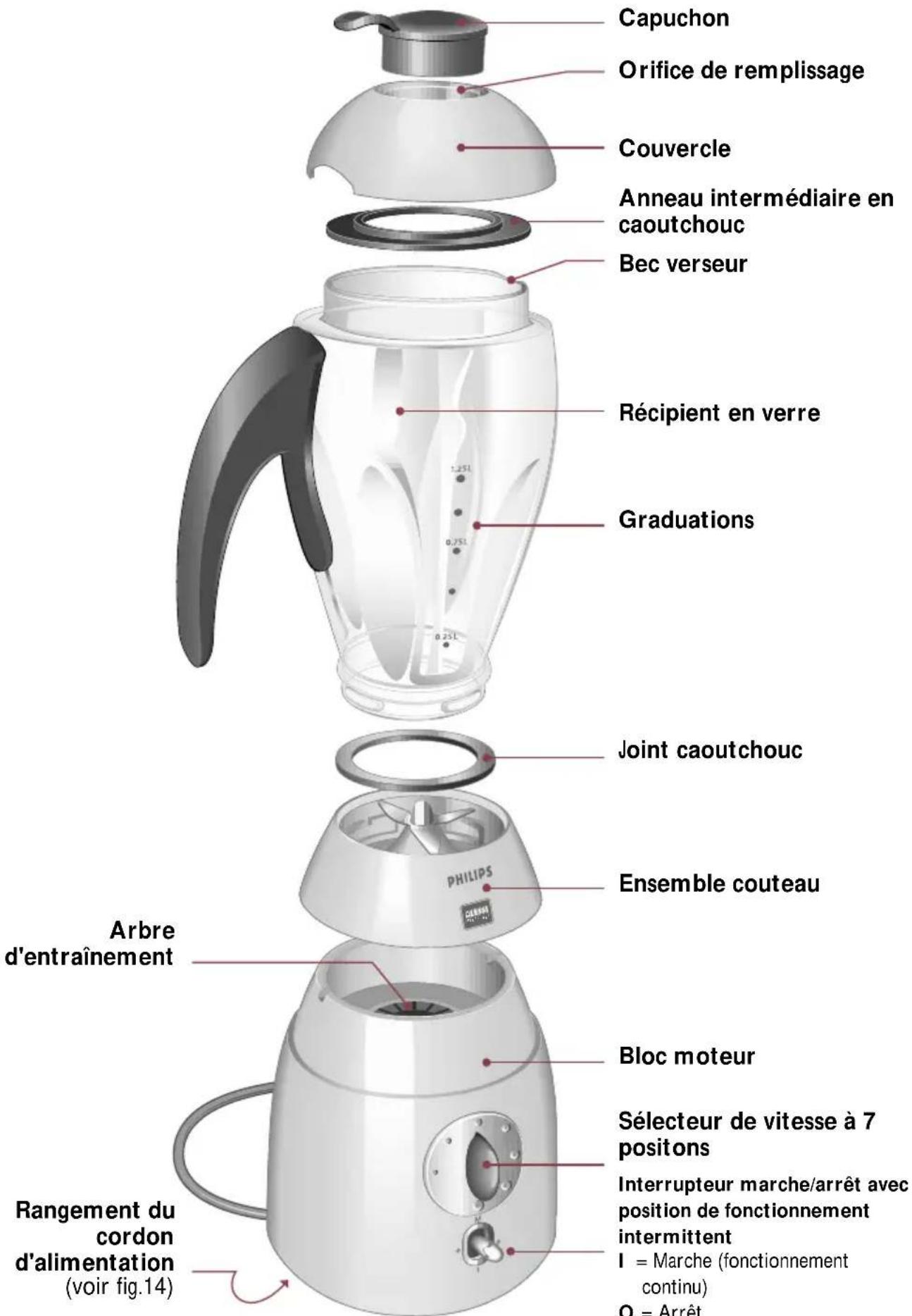

Stopper Filling hole Lid Rubber intermediate ring Spout Glass jar Graduations Rubber sealing ring Knife unit PHILIPS Drive shaft Motor unit Speed control with 7 speed settings On/Off switch with pulse position I = O n O = Off M = Pulse position Cord storage (see fig. 14)

Philips and Alessi worked together to create a unique line of electric kitchen appliances, uniting the best in form and function. This is a jubilee model to celebrate the success of the Philips Alessi line, consisting of a toaster, coffee maker, kettle and a citrus press.

Assembly

• Clean all detachable parts first (see Cleaning").

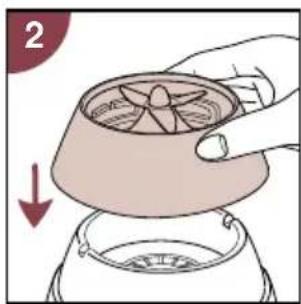

• Place the knife unit onto the motor unit (fig. 2). Turn it until it is properly fixed. It may lock into position at two points.

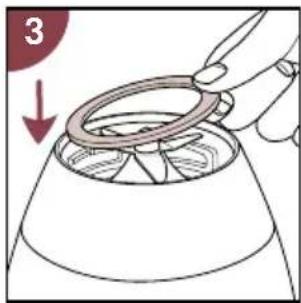

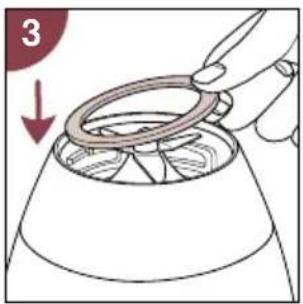

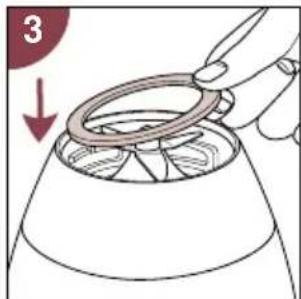

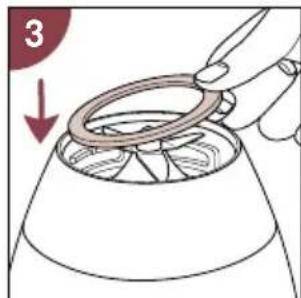

- Put the rubber sealing ring on the inside edge of the knife unit (fig. 3).

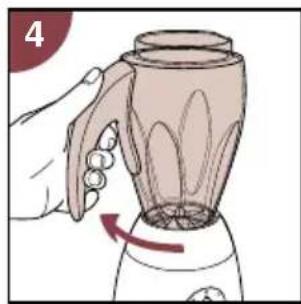

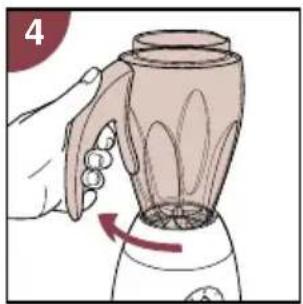

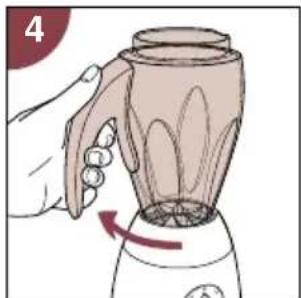

- Place the glass jar on the knife unit and fasten it by turning the handle (fig 4).

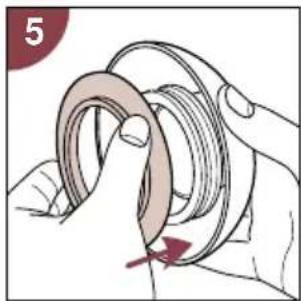

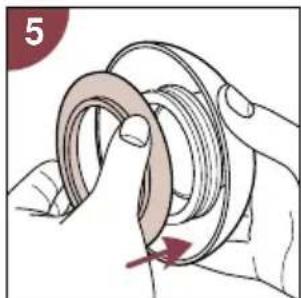

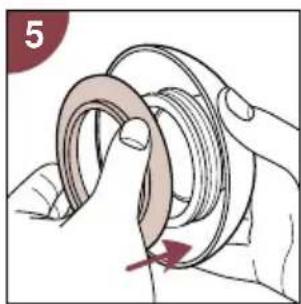

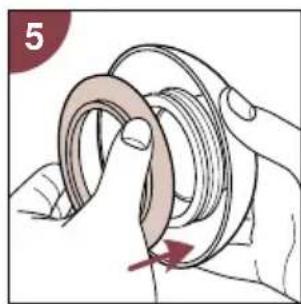

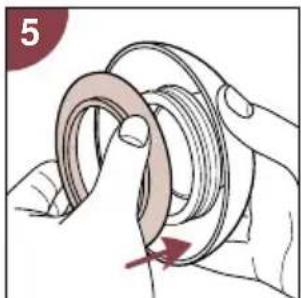

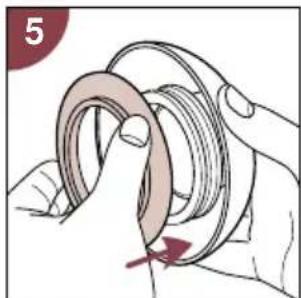

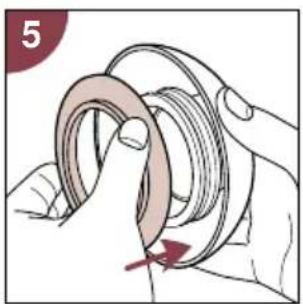

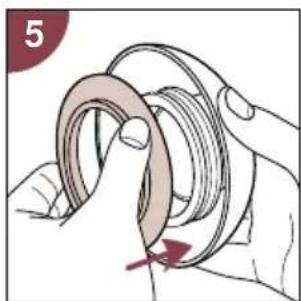

- Snap the rubber intermediate ring into the lid (fig. 5).

Illustration of a hand pouring liquid into a container with a star-shaped lid (no text or symbols)

Illustration of a hand holding a ring with a downward arrow, no text or symbols present

Illustration of a hand holding a blender with a curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a coiled spring or hose, with a red arrow indicating the rope direction (no text or symbols present)

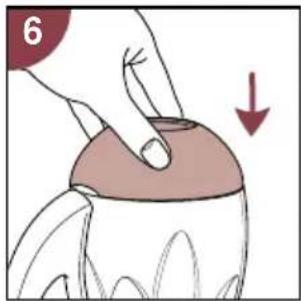

• After you have put the ingredients in the jar, put the lid onto the jar and press it home. Make sure the recess in the lid is directly opposite the handle (fig. 6).

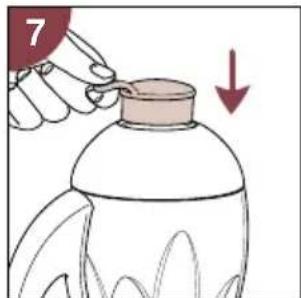

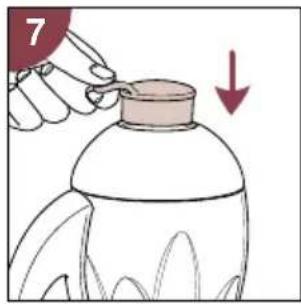

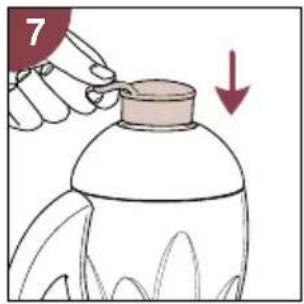

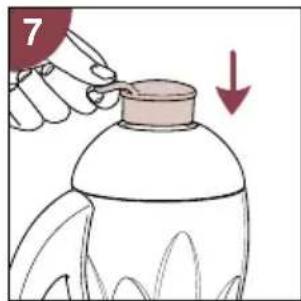

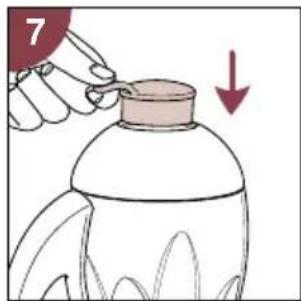

- Fit the stopper into the filling hole in the lid (fig. 7). Disassembly takes place in reverse order and direction.

Illustration of a hand pressing down on a pink object with a downward arrow (no text or symbols)

Illustration of a hand pouring liquid into a bottle with a red arrow indicating downward motion (no text or symbols)

Automatic safety system

The appliance has been equipped with an automatic safety system that switches off the motor when the jar has not been (correctly) assembled.

Note: Do not switch the appliance on and off by turning the jar!

Use

- Make sure that you have put the plug in the wall socket and fastened the jar onto the motor unit before you switch the appliance on.

- Set the speed control switch to the setting appropriate for the ingredients you wish to process. The seven speeds are indicated by means of dots (fig. 8). The larger the dot, the higher the speed.

8 1-3 4-6 7

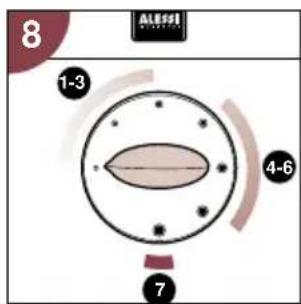

Speed For:

1 - 3 light blending jobs involving liquids (e.g. chocolate milk)
4 - 6 processing of firmer ingredients, involving the blending of liquids and solids
7 heavy blending jobs, involving the processing of mainly solid ingredients

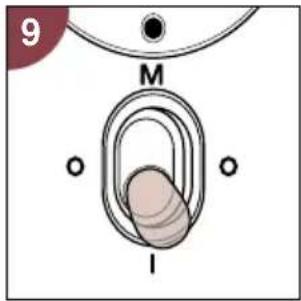

• Switch the appliance on by flipping the on/off switch to I (fig. 9).
• If you are not sure which speed to use, you can always choose the highest speed (i.e. the largest dot). If necessary, you can switch to a lower speed during processing.

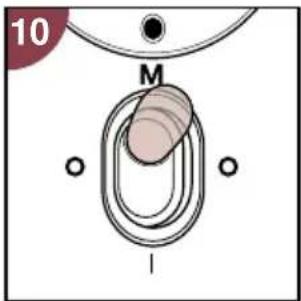

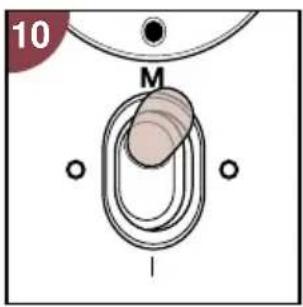

• If you want to run the appliance only briefly, move the switch to pulse position M and let go of it (fig. 10).

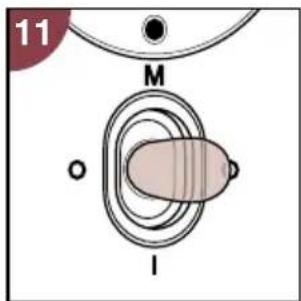

• To switch the appliance off, move the switch to position O (fig. 11).

9 M O O I

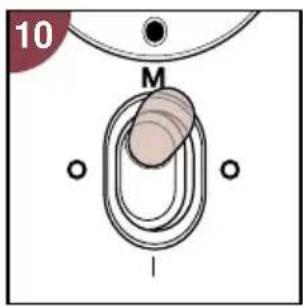

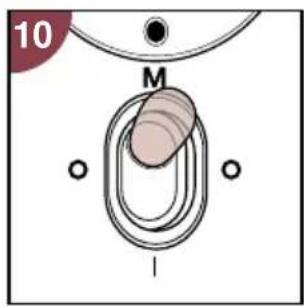

10 M O O

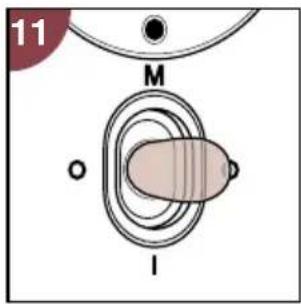

11 M O I

After use

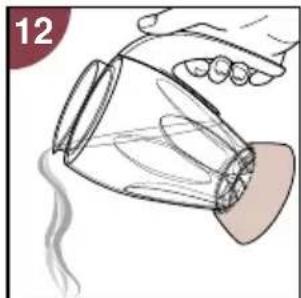

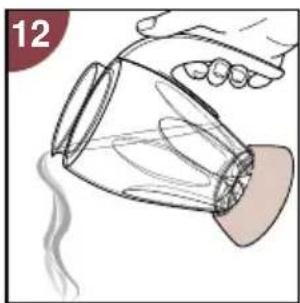

Note: If you want to pour out the contents of the jar, lift the glass jar, with the knife unit still attached to it, off the motor unit (fig. 12)! Never detach the jar from the knife unit when it is filled. If you were to do so, the contents would flow out at the bottom.

Illustration of a hand pouring liquid into a container with steam rising (no text or symbols)

Tips

• The filling hole in the lid can be used to add ingredients while the blender is running (figs. 13a and 13b).
- You tend to get finer results if you allow the blender to run a little longer (max. 3 minutes). Dry ingredients should not be processed for more than 1 minute.
- Cut meat and other solid ingredients into pieces before putting them in the jar.
- If you want to process solid ingredients, put them in the jar in small portions.
- If the appliance runs too slowly, switch it off and - set the on/off switch to pulse position M a few times, or - stir the ingredients with a spatula (when the appliance is switched off!), or - pour some of the contents out of the jar.
- To crush ice cubes: drop the ice cubes via the filling hole onto the rotating knife.
- For tomato juice: quarter the tomatoes and drop the tomato quarts via the filling hole onto the rotating knife.

Cleaning

• Do not clean the appliance, the knife unit, the glass jar and the other parts in a dishwasher.
• Cleaning is easiest when done immediately after use.
• Assemble the knife unit and the jar onto the motor unit in the manner described under "Assembly".

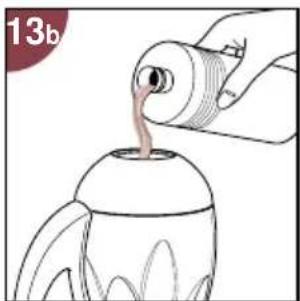

• Pour lukewarm water and some washing-up liquid into the blender jar.
• Run the appliance briefly.
• Unplug the appliance.
• Disassemble the blender jar with the knife unit still attached and rinse it with clean water.
• Disassemble the knife unit from the jar and rinse it under the tap. Be careful: the knife edges are very sharp!
• The motor unit can be cleaned with a moist cloth. Do not use abrasives, scourers, alcohol etc.

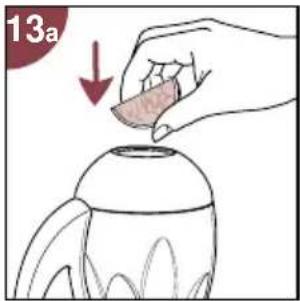

13a

Illustration of a hand pouring liquid from a bottle into a steaming cup (no text or symbols)

Cord storage

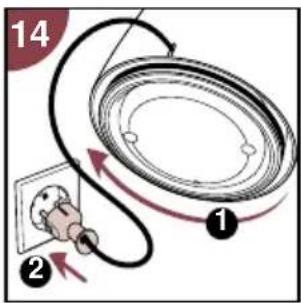

You can store excess cord length by winding it round the reel in the base of the appliance (fig. 14). Fix the cord at the required length by pressing it in the slot at the back of the appliance.

14 ① ②

Important

• Read the instructions for use and study the illustrations before you start using the appliance.
  • To prevent damage: check if the voltage indicated on the appliance corresponds to the local mains voltage (110-127 V or 220-240 V) before connecting the appliance.
• Keep the appliance away from children.
• Never leave the appliance alone when it is turned on.
• Never fill the jar with ingredients that have a temperature of over 80^
• Avoid spilling: never fill the jar above the maximum level indication (i.e. 1.25 litres), especially when you are mixing liquids. Always place the lid on the jar before you start using the appliance.
• The blender has been equipped with an automatic safety system that prevents the appliance from functioning if the knife unit and the glass jug have been incorrectly assembled.
• Do not switch the appliance on and off by turning the jar.

• After you have turned off the appliance, wait until the knife unit has completely stopped rotating before you take off the jar.
- Never put your hand or an object in the jar when the appliance is plugged in. If necessary, use a spatula to spoon food away from the wall of the jar, but always turn the appliance off before doing so!
- Never detach the jar from the motor unit when the appliance is running.
- Never immerse the motor unit in water or any other fluid, nor rinse it under the tap.
- Never use accessories or parts that are not explicitly recommended by Philips.
- Your guarantee will become invalid if you use such accessories or parts.
- Never use the appliance when the mains cord, plug or other parts are damaged. If the mains cord of this appliance is damaged, it may only be replaced with a cord of the original type. Turn to your Philips dealer or the authorised Philips service centre in your country for replacement.
