SSMUS - Projector Accessory Chief - Free user manual and instructions

Product Type	Universal Projector Mount Interface Kit (SSMU/SSBU)
Brand	Chief
Model	SSMUS
Weight Capacity	25 lb (11.34 kg)
Compatible Projectors	Most projectors with standard mounting holes (8-32, 10-24, M2.5, M3, M4, M5, M6, 1/4-20)
Mounting Interface	Compatible with Chief RSA/RSM series mounts
Included Components	Interface plate (SSBU or SSMU), base plate bracket, 4 legs, hardware kits (universal projector interface hardware, long screws, security kit)
Material	Steel
Installation Tools Required	1/4" hex key (included), 5/32" security hex key (included)
Security Features	Optional security screws or cable ties
Adjustability	Height-adjustable legs with locking clips
Dimensions (Interface Plate)	Approximately 10" x 6" (varies by model)
Indoor Use Only	Yes
Installation Type	Ceiling or wall mount (via RSA/RSM)
Warranty	Limited lifetime warranty (manufacturer)

Frequently Asked Questions - SSMUS Chief

What is the maximum weight capacity of the Chief SSMUS projector mount?

The maximum weight capacity is 25 lb (11.34 kg). Exceeding this can cause serious injury or equipment damage.

What tools are required for installation?

You will need a 1/4" hex key and a 5/32" security hex key, both included with the mount.

What types of projectors are compatible with the SSMUS?

It is compatible with projectors that have standard mounting holes using screws sizes: #8-32, #10-24, M2.5, M3, M4, M5, M6, or 1/4-20.

Can I use security screws to prevent theft?

Yes, optional security screws (8-32 x 3/8") can be installed in the legs, or you can use cable ties (not included) for security.

Is the SSMUS compatible with existing Chief mounts?

Yes, it attaches to UL Listed RSA or RSM ceiling mounts. See the RSA/RSM installation manual for details.

How do I adjust the height of the mount legs?

Loosen the height-adjustment nuts on the screw adapters, set the desired height, then retighten. All legs must be adjusted to the same level.

What is the difference between SSBU and SSMU?

The SSBU and SSMU are interface plate variants. Both are included in the kit; use the one that matches your installation requirements.

Can I install the mount outdoors?

No, this product is designed for indoor use only. Using it outdoors can lead to equipment damage or injury.

What should I do if the legs do not lock onto the height-adjustable nuts?

Ensure the latch clips are in the unlocked position before attaching. Press the locking buttons and slide the clip cover until it clicks into the locked position.

How do I clean and maintain the mount?

Wipe with a dry cloth. Do not use abrasive cleaners. Periodically check all screws and fasteners for tightness.

USER MANUAL SSMUS Chief

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the SSBU/SSMU does not exceed 25 lbs (11.34 kg).

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

--SAVE THESE INSTRUCTIONS--

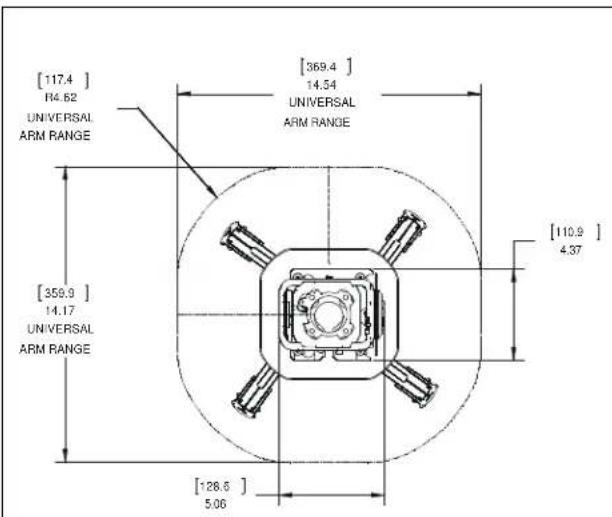

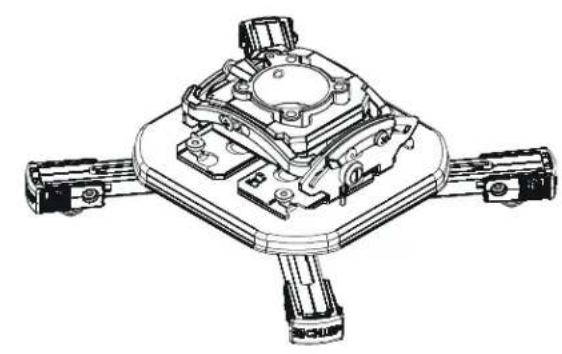

DIMENSIONS

SSMU with RSM shown)

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lõsen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Socket Wrench
	Destornillador Phillips		Llave de cubo
	Kreuzschlitzschraubendreher		Llave de cubo
	Chave de fendas Phillips		Chave de caixa
	Cacciavite a stella		Chiave a brugola
	Kruiskopschroevendraier		Dopsleutel
	Tournevis à pointe cruciforme		Clé à douilles
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Optional
	Von Hand		Optional
	Com a maior		Optional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguidad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de:bacea sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

TOOLS REQUIRED FOR INSTALLATION

1/4" (included) 5/32" (security) (included)

2

PARTS

A (1) [SSBU interface plate]
(OR)

A (1) [SSMU interface plate]

B (1) [Base plate bracket]

[SSBU/SSMU leg]

D (4)
umb nut!
BU only)

[All Points Security Kit]

10-24 x 1/4" [SSBU Only]

8-32 x 3/8" [SSBU Only]

G (4) H (1) 10-24 x 3/8" 5/16-18 x 1/2" [SSBU Only] [SSBU Only]

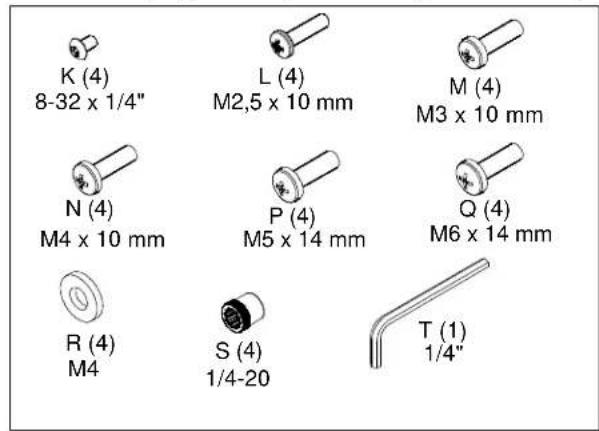

[Universal Projector Interface Hardware Kit]
K (4) 8-32 x 1/4"

L (4) M2.5 x 10mm

M (4) M3 x 10mm

N (4)
M4×10mm

M5 x 14mm

Q(4) M6 x 14mm

R (4) M4

S (4) 1/4-20

[Universal Hardware Kit - Long Screws]

V (4) M4 x 25mm

W (4) M5 x 25mm

X (4) x 25mm

Y(4) .500x.257x.625

ASSEMBLY AND INSTALLATION

Remove Screw Adapters from SSBU/SSMU Legs

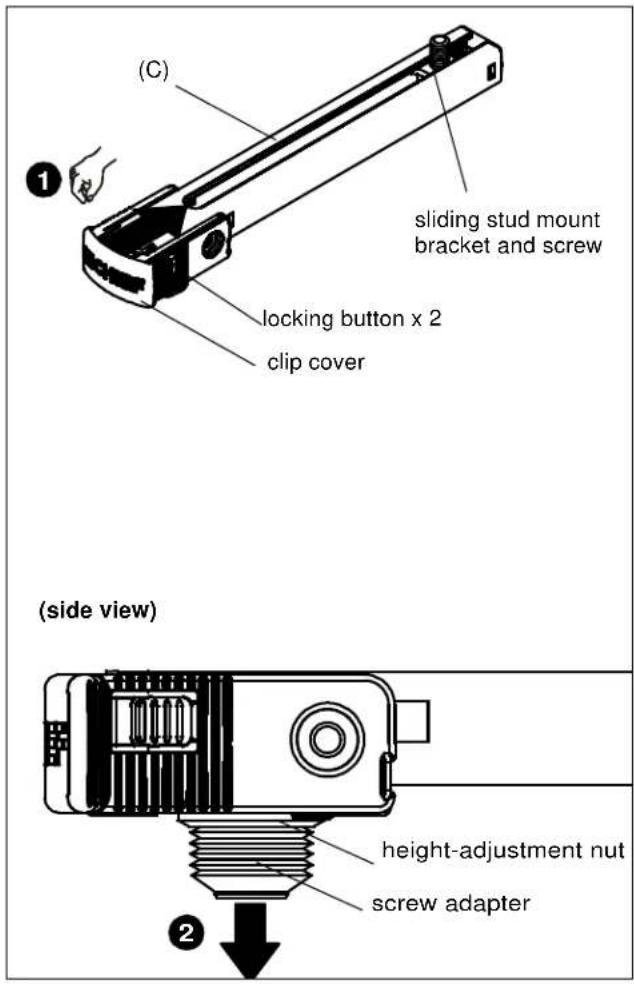

1. Press locking buttons on SSBU/SSMU leg (C) firmly and simultaneously push clip cover toward enclosed sliding stud mount bracket and screw. (See Figure 1)
2. Screw adapter and attached height-adjustment nut will be released. Set aside for later use. (See Figure 1)
3. Repeat Steps 1-2 for each leg to be used in installation.

Figure 1

Attach Projector to SSBU/SSMU

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the SSBU/SSMU interface brackets does not exceed 25 lbs (11.34 kg).

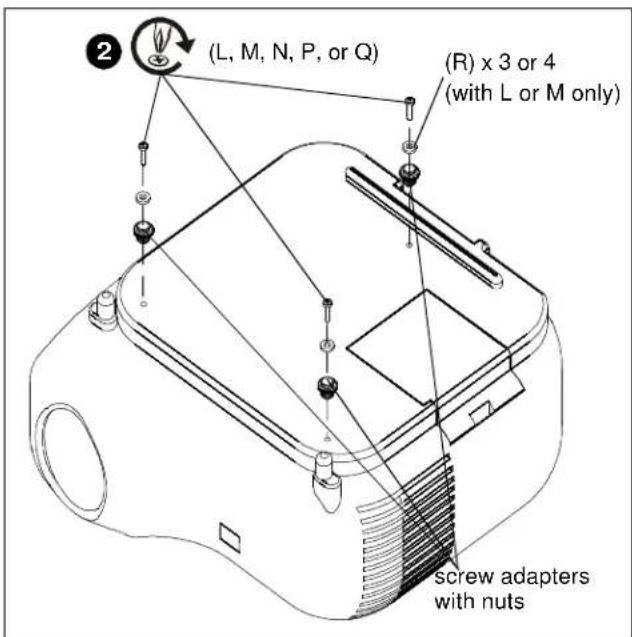

1. Determine proper size screw to insert into projector. Test Phillips screws (L, M, N, P, or Q) provided until one fits the projector holes.

2. Insert screws through M4 flat washers (R), screw adapters with height-adjustable nuts and into projector holes. (See Figure 2)

NOTE: Only use washers (R) if using L or M screws to attach screw adapters to projector.

Figure 2

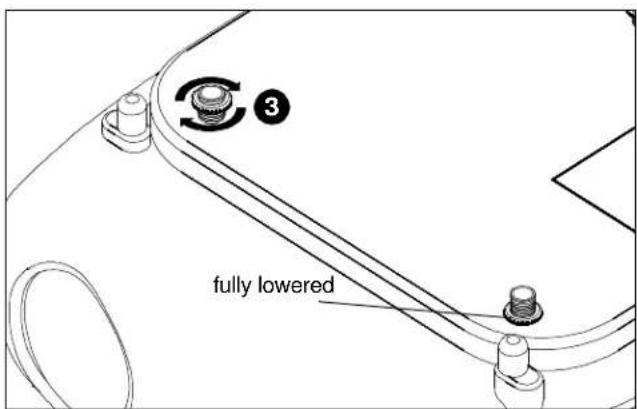

1. Adjust height-adjustment nuts to desired level. (See Figure 3)

NOTE: Height-adjustment nuts should be adjusted as low as possible while ensuring that the legs will always clear any elevated surfaces on the projector. All nuts must be adjusted to the same level to ensure an even mount.

IMPORTANT! : The optional Universal Hardware Kit - Long Screws (see Parts drawing) may be used if there is interference with any part of the projector, and more height is required to clear elevated surfaces of the projector.

Figure 3

1. Place SSBU/SSMU legs (C) over screw adapters and height-adjustment nuts. (See Figure 4)

NOTE: Make sure arm latch clips are in the unlocked position.

Figure 4

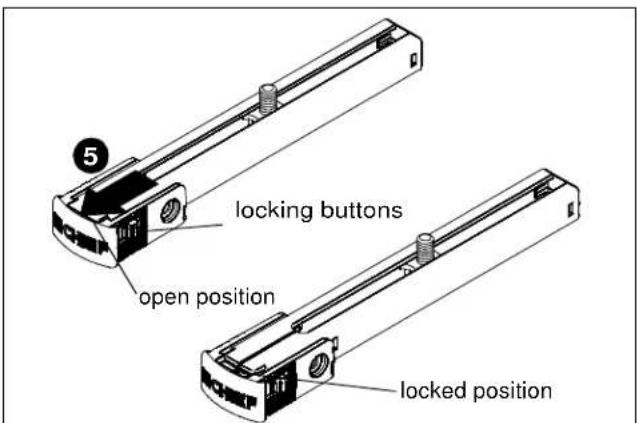

1. Press locking buttons on SSBU/SSMU leg (C) firmly and simultaneously push clip cover away from enclosed sliding stud mount bracket until clip cover is in the locked position. (See Figure 5)
2. Repeat Step 5 for remaining legs.

WARNING: Make sure legs have securely locked onto height-adjustable nuts with the latch clips. If the legs are not properly locked onto the adapters, the projector could fall from the SSBU/SSMU mount causing SERIOUS INJURY or DEATH!

Figure 5

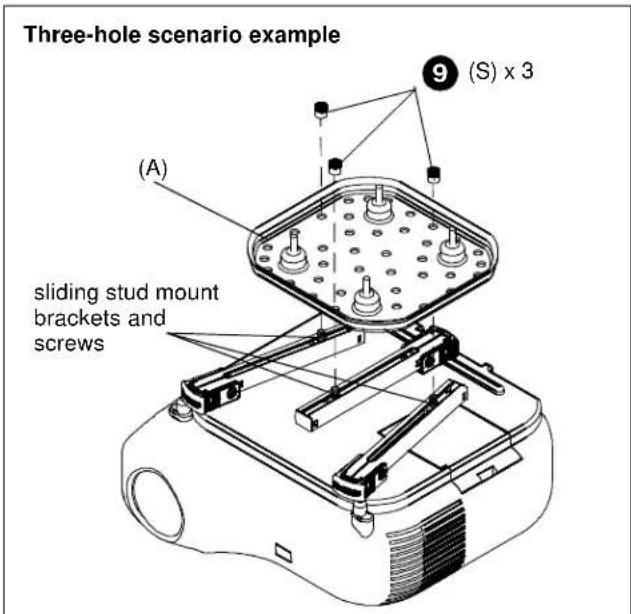

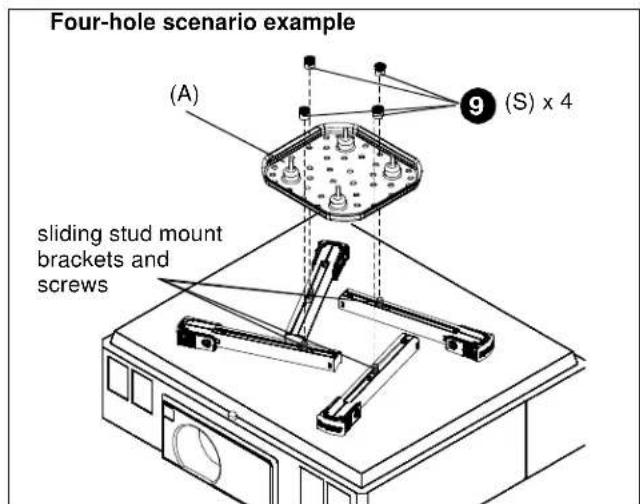

1. Maneuver legs so that sliding stud mount brackets and screws are towards the middle of the projector. (See Figure 6) and (See Figure 7)
2. Position sliding stud mount brackets and screws so that SSBU or SSMU main plate (A) can be evenly mounted to legs. (See Figure 6) and (See Figure 7)
3. Secure SSBU/SSMU main plate to SSBU/SSMU legs by installing 1/4-20" Allen nuts (S) to screws on SSBU/SSMU legs. (See Figure 6) and (See Figure 7)

NOTE: The following examples are two of many possible scenarios based on typical examples of mounting hole patterns. Specific connection points will vary based on the hole pattern. Multiple scenarios may be used for each specific hole pattern as long as the weight of the projector is centered and balanced after mounting.

Figure 6

Figure 7

Attach SSBU/SSMU to UL Listed RSA or RSM

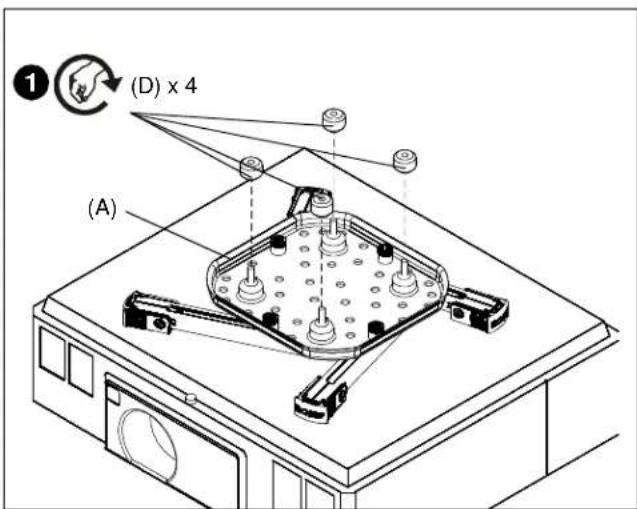

1. On SSBU, partially install four thumb nuts (D) to SSBU main plate screws. (See Figure 8)

Figure 8

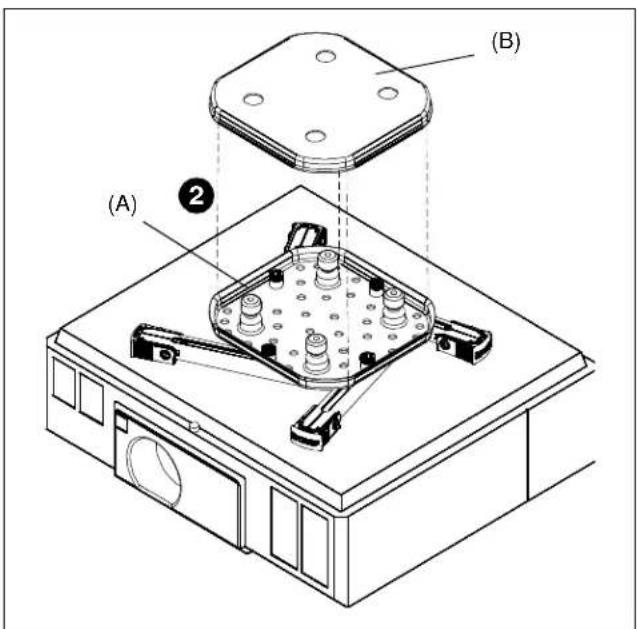

1. Place SSBU/SSMU base plate (B) over SSBU/SSMU interface plate (A). (See Figure 9)

Figure 9

1. Attach SSBU/SSMU to RSA/RSM. Refer to RSA/RSM installation manual for details.

Security Screw Installation (Optional)

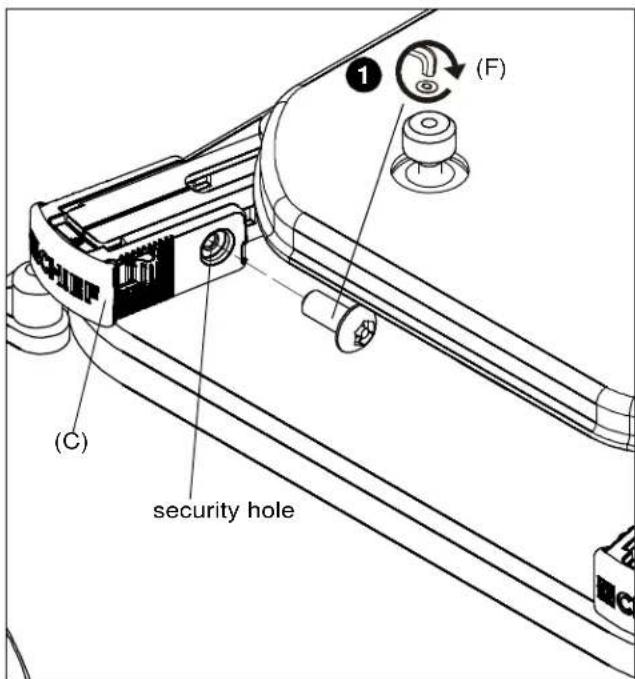

1. Install #8-32 x 3/8" button head security screws (F) into security holes on SSBU/SSMU legs. (See Figure 10)

NOTE: Up to two security screws can be installed on each leg. It is recommended that screws be installed in holes that are difficult to access to achieve maximum security.

NOTE: Cable ties (not included) may be used instead of the security screws. Thread cable tie through both holes on leg and secure cable tie.

Figure 10

CLAUSES DE NON-RESPONSABILITÉ

E(2) F(4) 10-24x1/4" 8-32x3/8" [nurSSBU] [nurSSBU]

[All-Points-Sicherheitspaket]

G (4) H (1) 10-24 x 3/8" 5/16-18 x 1/2" [nur SSBU] [nur SSBU]
