USER MANUAL XD900DG NEW POL

1.1 SAFETY INSTRUCTIONS

Norms and regulations to be respected

• The dishwasher may only be used to clean household dishes. If the appliance is used for other purposes or in a wrong manner, the manufacturer declines all responsibilities for possible damages.
• For safety reasons, no modifications must be carried out on the appliance.
• Before connecting the appliance to the electric power supply system, check that the power supply at the place of installation is compatible with the electric data indicated on the data tag.
• The installation must be carried out by qualified personnel.

Before running the appliance for the first time

- Make sure the dishwasher was not damaged during transport. Do not hook up the appliance if there is any damage. In case of damage, contact the vendor.

For the safety of children

• Do not allow children to play with the appliance.
• Detergents can cause permanent damage to eyes, mouth and throat.

They should therefore be kept outside the reach of children.

- The water in the dishwasher is not drinkable. Any residues of detergent in the appliance constitute a source of danger for children. They must therefore be kept away from the open dishwasher.

Daily use

• Do not turn on the dishwasher if the electric cable, or the water supply or water drainage pipes are damaged, or if the control board, the work surface or the base are in very bad condition.
• In case of a malfunction, shut off the water supply, then turn off the appliance and pull the electric plug from the outlet. If there is a permanent electric connection, turn off the service switch (if present) or remove the fuse (or fuses).
• To remove the plug from the electric outlet, hold the plug itself and pull; never pull the cable.
• All repairs of the dishwasher must be carried out by specialised personnel. Inappropriate repairs can create a severe danger for the user. For repairs, you should therefore contact our technical customer assistance service or a specialised vendor.
• The replacement of the supply cable must be carried out only by the technical service staff.
• If the pipes and tubes are deteriorated, substitute them with new original parts before hooking up the appliance.
• Do not use detergent substances that could lead to an explosion.
• Do not sit or lean on the open door. The appliance might otherwise tilt over.
• Before adding special dishwasher salt, detergent and rinse aid, make sure that the manufacturer of these substances recommends their use for household dishwashers.
• Always shut off the water supply when the dishwasher is not in use for longer periods of time, e.g., during your vacations.

©

4 DESCRIPTION OF THE APPLIANCE

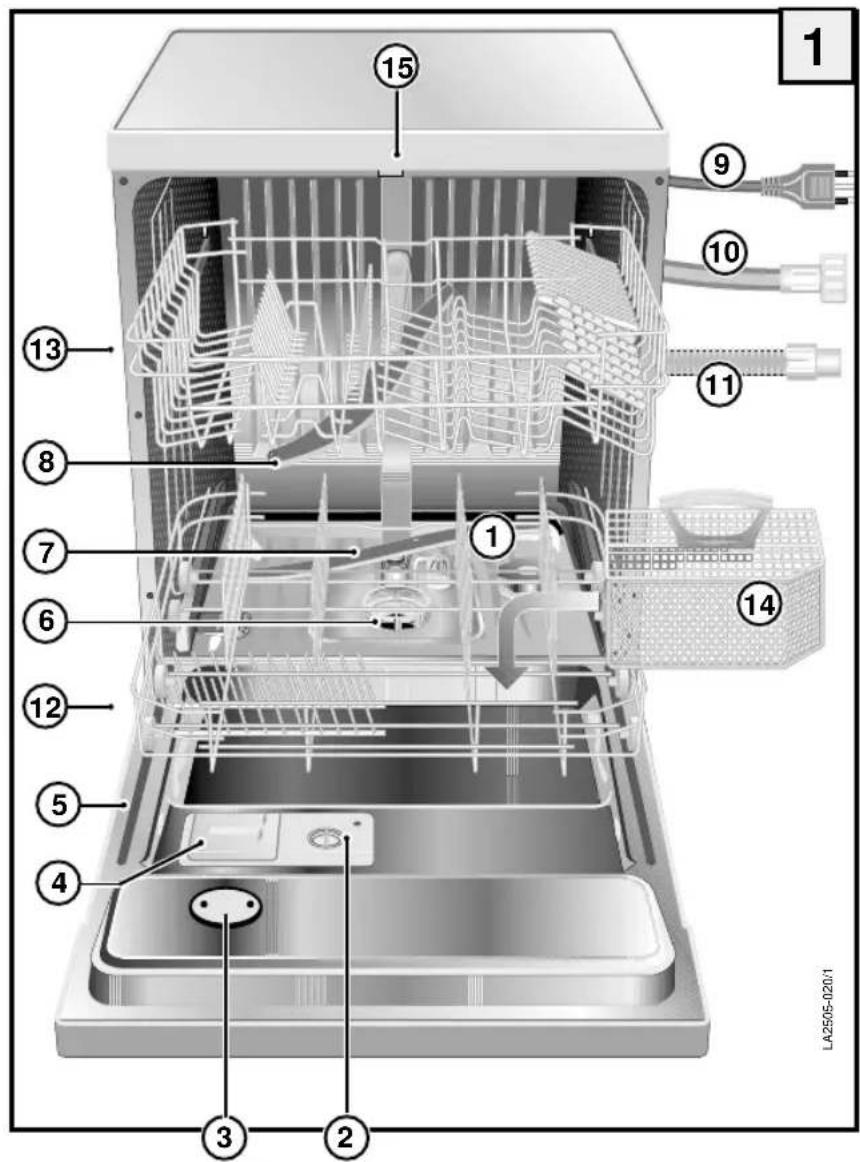

4.1 GENERAL PARTS

1) salt container
2) rinse aid container
3) drying ventilator (if included)
4) container for detergent
5) data tag
6) filters
7) lower spray-rotor
8) upper spray-rotor
9) electric cable
10) water supply tube
11) water drainage tube
12) lower basket
13) upper basket
14) cutlery container
15) hook for door closing mechanism

Technical diagram of a washing machine with numbered components for identification and assembly reference.

4.2 TECHNICAL DATA

capacity (standard settings): 12 pressure of water supply system minimum pressure: 0.05 Mpa maximum pressure: 1 Mpa

Attention: the necessary characteristics of the electric supply grid are indicated on the data tag.

0,05 - 1MPa MAX ....A W Model. ...... .......... 12 .....V.....Hz Made in EU CE

5 INSTALLATION

5.1 LEEVEELLINGG

2 P LA2505-030

2.1 M

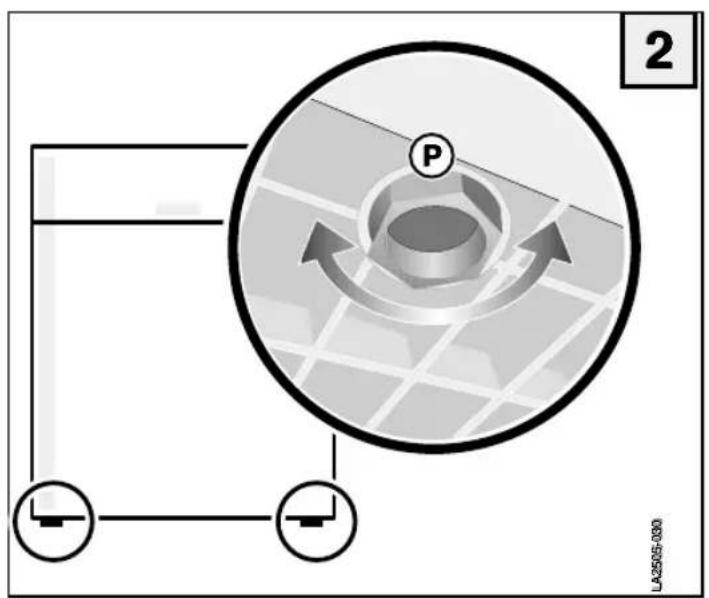

Place the appliance in the spot where you want to install it. Use feet P (unscrew or screw in) to regulate (if necessary) the height of each foot to assure that the appliance is in a fully level position.

If the appliance is positioned in a level position, its correct functioning is assured.

Maximum error = 2 degrees

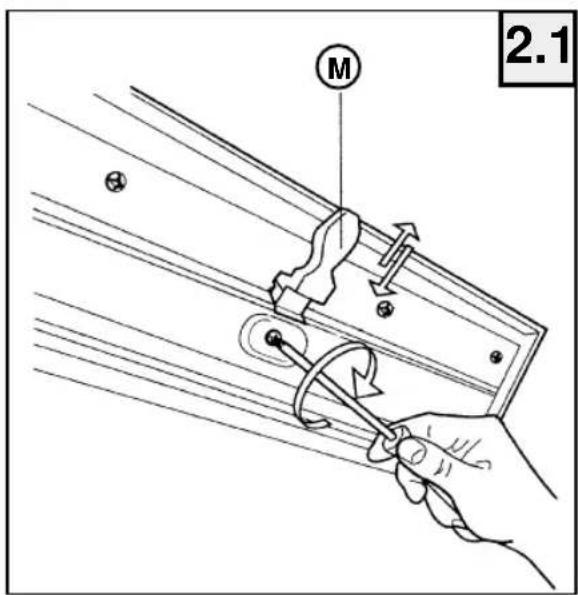

After levelling the appliance, regulate the hook of the door closing mechanism, to assure that the door closes perfectly.

In order to obtain a perfect seal adjust the door locking device but only after having levelled the machine in its final installation position.

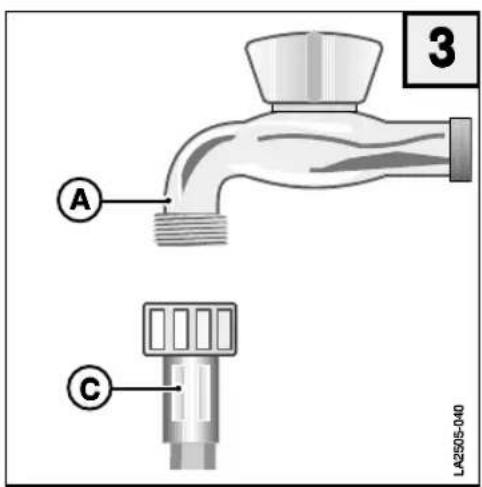

5.2 WATER CONNECTION

The water supply tube C, which accompanies the dishwasher, makes it possible to connect the appliance to a faucet with a 3/4" attachment.

During the installation, the following instructions must be followed:

• Attach tube C to the cold water faucet A.
• If the tube is being attached to new pipes that have not been used for a long time, you should let the water run for some time before attaching the tube in order to make sure that dirt and rust residues are eliminated.
• Make sure that the water pressure corresponds to the range indicated on the data tag.
  The appliance may be connected to the cold water system. It must not be connected to the hot water system.

A C 3 LA2505-040

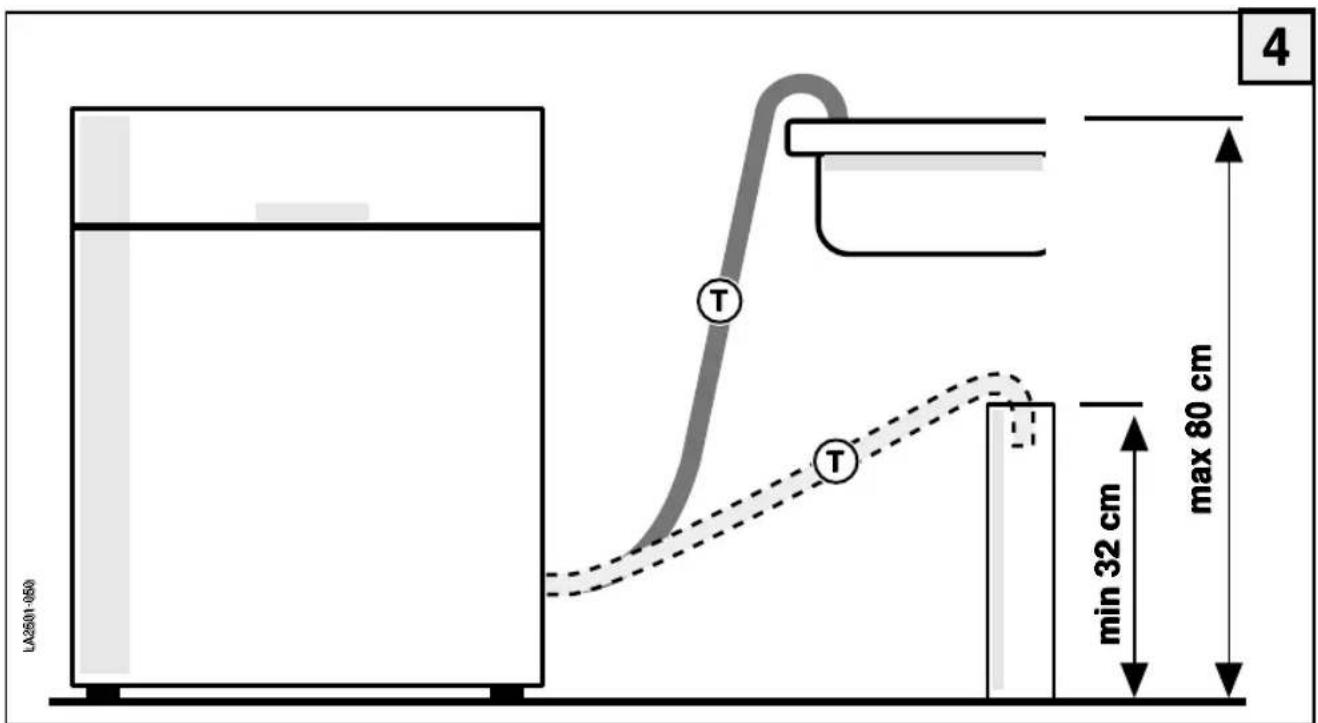

5.3 CONNECTIONNOFFDBRAMMAGEWATER

The curved end of drainage tube T, which is being supplied with your appliance, should be hooked onto the edge of a sink or into a drainage pipe.

A special siphon should be used to prevent bad odours.

During the assembly, the following precautions should be taken:

• the drainage tube must not be bent to avoid blockages;
• the tube's end, relative to the top surface of the dishwasher (fig. 4), must be placed at a height between 32 and 80~cm ;
• the end of the tube must never be immersed in water;
• the drainage tube must not be extended to more than a maximum length of 1 metre. The extension must have the same internal diameter. Furthermore, the maximum height at which the tube's end can be placed (in the case of an extended tube) must be reduced from 80 to 50~cm .
• If you use a drainage pipe, make sure its internal diameter is not inferior to 4 cm.

LA2501-050 T T min 32 cm max 80 cm 4

5.4 ELECTRIC CONNECTIONS

The appliance may only be connected to a properly installed electric outlet with an earth (ground) contact. The connection must be carried out in correspondence with existing laws and regulations and supplementary rules issued by the supplier of electric power.

The tension shown on the data tag must correspond to the power tension of the electric grid at the site of installation.

See data tag for the size and format of the electric outlet to be used.

6.1 BEEQREELUSINGGTTHEEARPPLAANCE

Before turning on the appliance, make sure that the plug attached to the electric cable is connected to the electric outlet, the water supply tube is connected to the faucet, the faucet is turned on, the drainage tube has been connected according to the instructions.

Opening of the door

Pull the handle forward. The door should open without effort. If you pull the handle while the dishwasher is running, a safety mechanism will turn off the appliance.

Adding special dishwasher salt

• Open the door and take out the lower basket.
• Remove the lid of the salt container by turning it anticlockwise.

Only during the first time you carry out this operation: fill about 1/2 litre of water into the salt container.

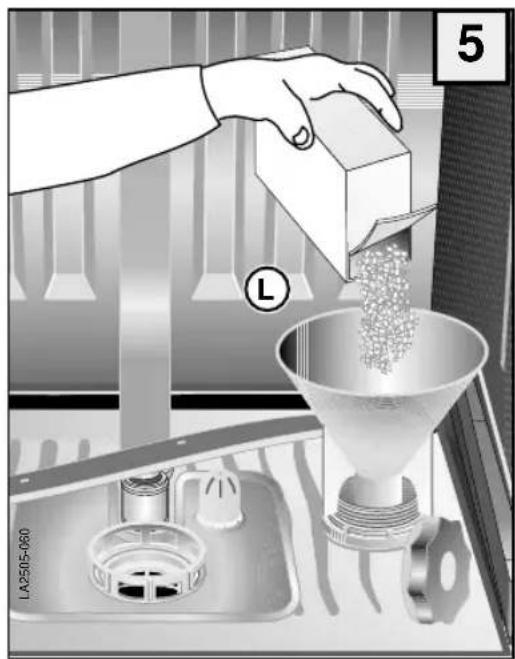

- Use funnel L to fill the special dishwasher salt into the container (use about 1.0-1.5 kg of salt).

- Remove possible salt residues from the opening of the container.

- Put the lid of the container back in its place by turning it clockwise.

- If you don't use the dishwasher immediately after filling the salt container, run the programme pre-wash to rinse away the water and salt particles that spilled over from the container.

* The water softening system is equipped with an electric instrument that indicates the salt content level.

A control light will be illuminated on the front panel (fig. 18, 6) of your dishwasher to indicate when it is necessary to add more dishwasher salt.

5 L LA2505-060

Regulation of the water softener system

For the washing process it is better to use soft water (with a low calcium content), to avoid calcium deposits on the dishes and on the inside of the dishwasher.

To find out the degree of hardness of your water contact your town administration or use a commercial testing kit.

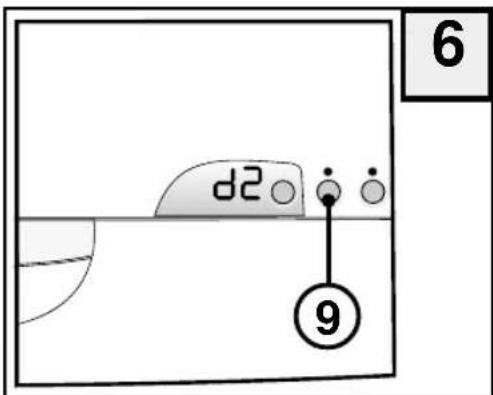

To reach an optimal regeneration setting, keep the button DELAY 9 (fig. 6) pressed when turning on the appliance. Now, the current setting is being displayed (e.g., d5). To modify the setting (within 5 seconds), press the same button again until the desired level is reached (see table).

Wait for 6 seconds without modifying the setting. A buzzer sound will indicate that the new setting was accepted. On the display, the request select programme will appear.

d2 ⑨ 6

Regeneration levels

Positionof regulation device	French degrees °fH	German degrees °dH
d1	<15	<8,4
d2	>15 <25	>8,4 <14
d3	>25 <40	>14 <22,4
d4	>40 <60	>22,4 <33,6
d5	>60 <80	>33,6 <44,8
d6	>80 <90	>44,8 <50,4
	>=higher/<=lower

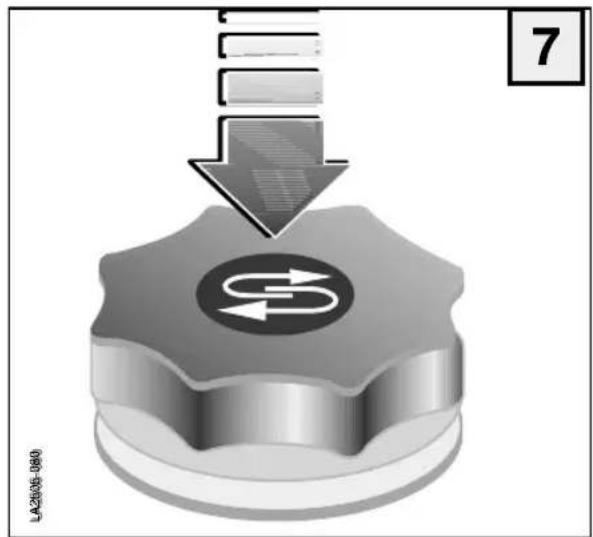

Use only special dishwasher salt. Other types of salt (e.g., regular household salt) often contain substances that do not dissolve completely in water and can therefore obstruct the water softener, thus making it unusable.

3D mechanical component with a gear-shaped base and a downward arrow, no visible text or symbols

Refilling of rinse aid

The rinse aid, which is released automatically during the final phase of the wash cycle, guarantees that the dishes dry quickly and prevents the formation of stains and calcium sediments.

Indication of salt level (if present)

The green mark under the cap indicates that there is still enough salt in the container. If the green mark is no longer visible, the salt container needs to be refilled with special dishwasher salt.

8 T S LA2505-092

Only use rinse aids for dishwashers. Other products won't obtain the desired effect.

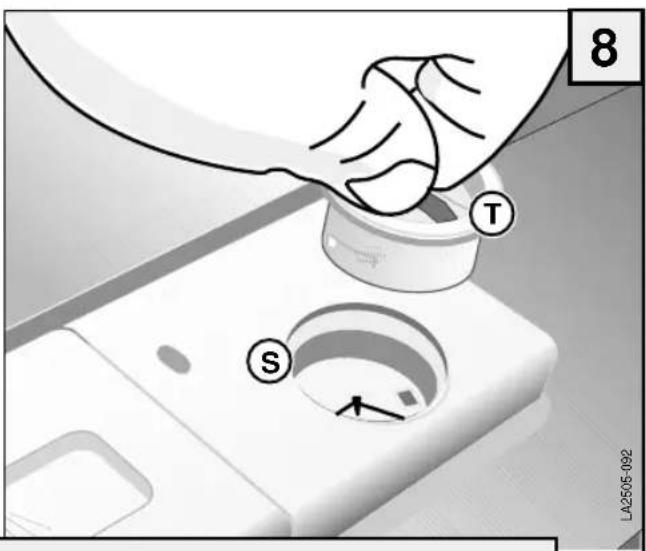

The rinse aid container S is located on the inside of the door.

• Remove the container cap T by turning it 1/4 revolution anticlockwise.
• Fill container with rinse aid up to the broken line. Maximum quantity: about 140 ml.
• Put the cap back in its place.
• Clean off possible residues of rinse aid with a cloth, otherwise too much foam might be produced during the rinsing process.

Indication of rinse aid level

• Electric (fig. 18-18.1)

The appliance is equipped with a level indicator for the rinse aid. When it lights up, more rinse aid needs to be added.

F 9 LA2505-096

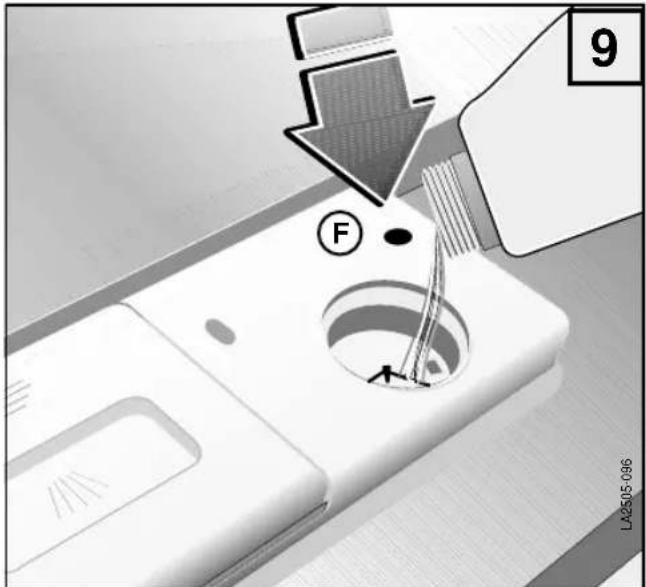

• Mechanical (fig. 9)

More rinse aid needs to be added when the indicator (located on the container F) is clear (●). When the container is full, the indicator has a dark coloration.

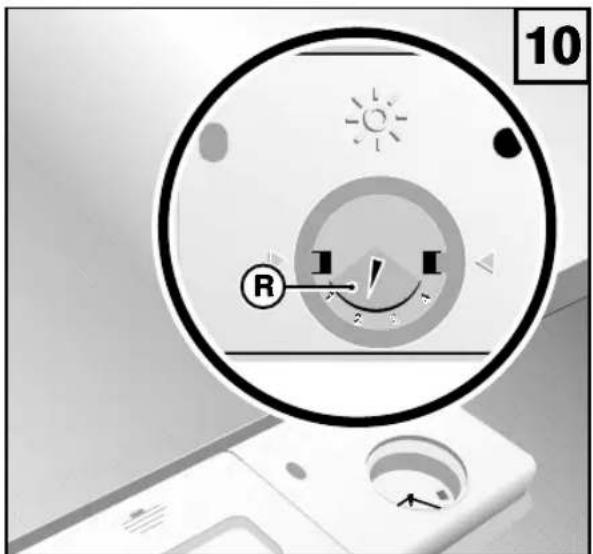

Regulation of rinse aid dosage

The regulation R of the quantity of rinse aid that is released can be found in the refill opening of the rinse aid container.

It can be adjusted with a screwdriver. The possible settings range from 1 to 4,1 corresponds to a release of one ml of rinse aid, 4 to four ml, etc. The appliance has been set on 2 (two ml) by the manufacturer.

A full rinse aid container is sufficient for about 50 wash cycles. The quantity of rinse aid to be released should be adjusted when the result of the wash process is not satisfactory.

• Always wipe off with a cloth any rinse aid that spilled over from the container.

It is important to check the level of rinse aid in the container periodically – if possible every 31 wash cycles.

Adding the detergent

IMPORTANT! Do not use detergents in this dishwasher that are made for dish washing by hand! These substances produce large quantities of foam but they do not clean the dishes in a dishwasher. They can even lead to a malfunctioning of the appliance.

You should therefore only use detergents that are specifically made for household dishwashers.

Keep your detergent containers closed and in a dry place.

Only when you use the pre-wash programme no detergent is needed.

During a programme the detergent is automatically taken from the detergent container.

We recommend the use of about 25 g of detergent.

Detergents vary in their strength and efficiency. You should therefore pay attention to the dosage recommendations of each manufacturer.

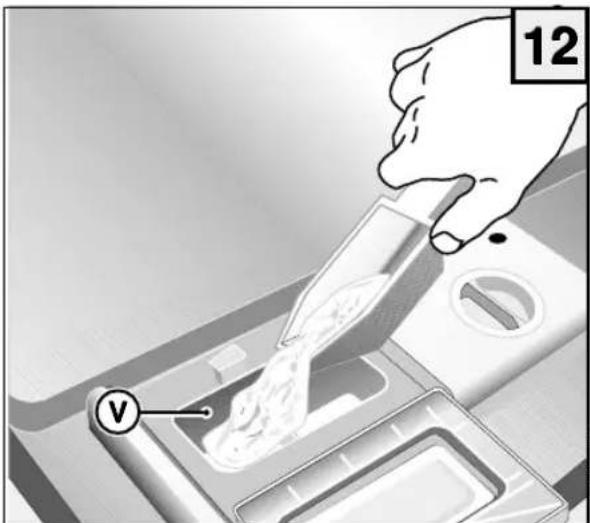

The container for the detergent is located on the inside of the door.

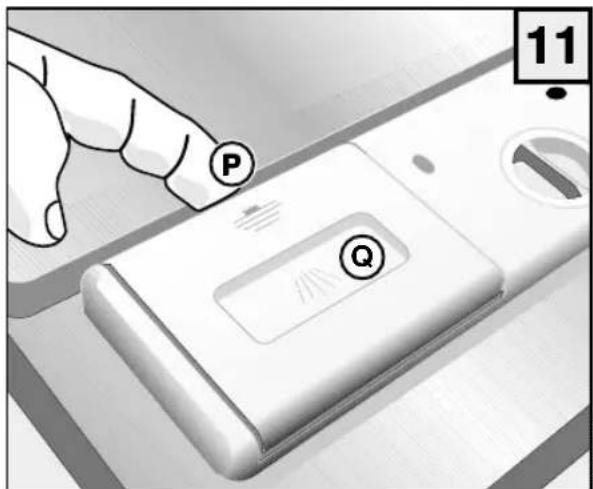

If the lid is closed:

- Push forward closing mechanism P. The lid will open with a "click".

- Fill the detergent into the container V.

- To close the lid, press until you hear a closing "click".

If your dishes are exceptionally dirty, you can also fill some detergent into the indentation Q of the lid. In this case, fill the indentation up to the edge. This detergent will be available and active during the pre-wash phase.

10 R

LA2505-094

P Q 11

LA2905-080

12 V

LA2009-100

How to load and unload the dishwasher

There are two dish baskets that allow you to store all different kinds of dishes.

• Remove from the dishes any larger pieces of food to avoid an obstruction of the filter and the development of bad odours.
• If pots and pans are particularly dirty and contain crusts of food (after frying or roasting), soak them in a water bath before washing them in the dishwasher.

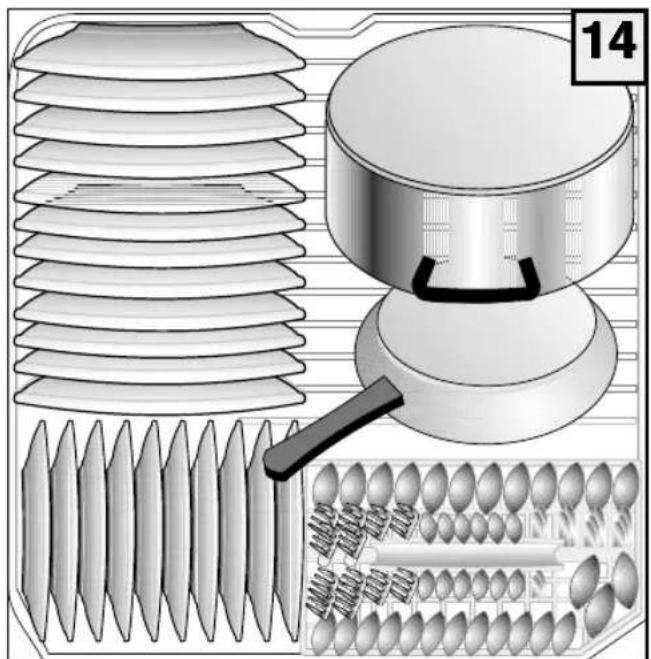

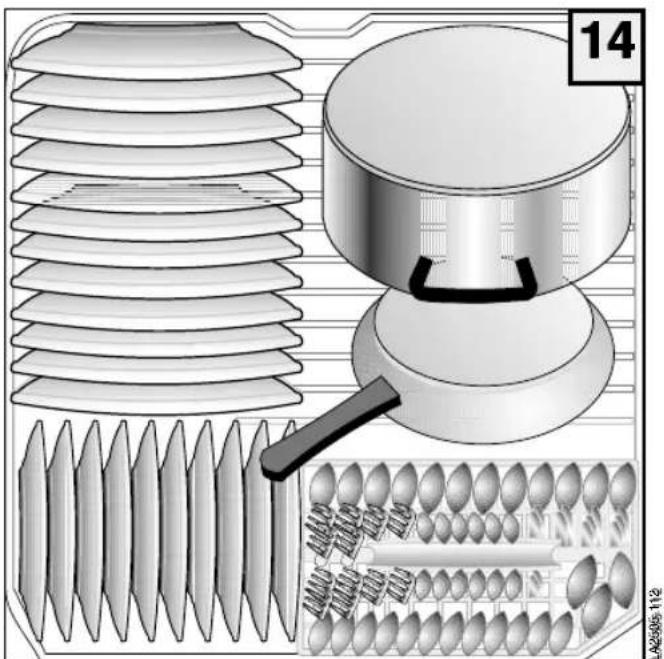

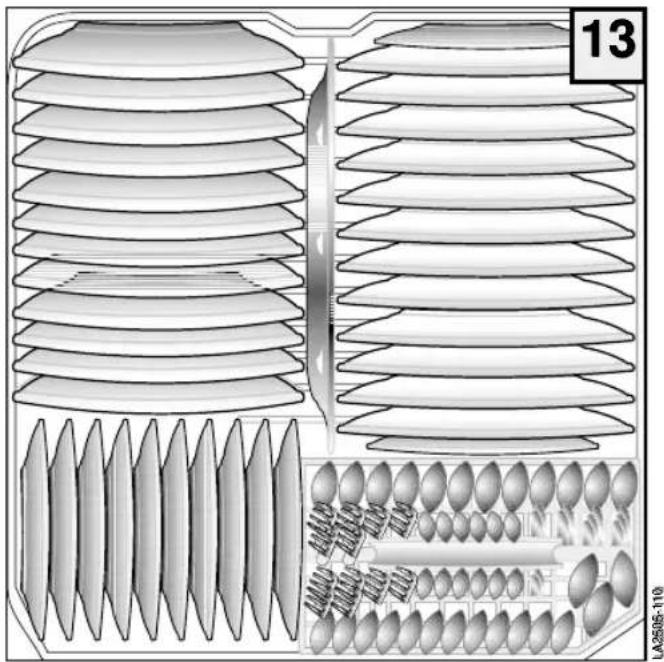

Use of the lower basket

The lower basket is intended to hold dishes that are more difficult to clean, as well as the cutlery basket.

The lower basket holds regular plates, soup bowls, pans, soup tureens, lids, and serving dishes. Flat and deep plates must be placed in a way that leaves some space between the individual plates.

Technical diagram of a mechanical component with layered structure and internal components (no text or symbols)

All plates must be in a vertical position so that the water can pass freely.

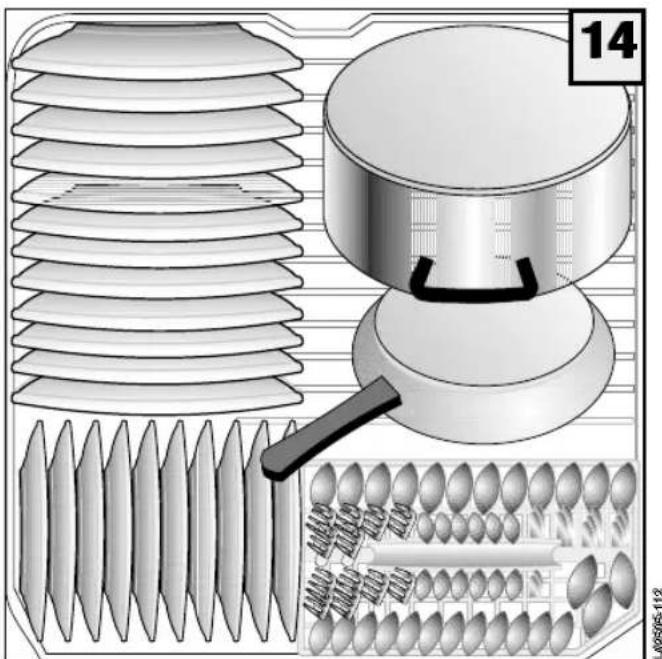

Pans and pots must always be placed upside down. You can choose any kind of loading configuration, but you should make sure that the dirtiest surface of dishes, pots and pants faces the water spray and that the water can flow off without hindrances.

Technical illustration of a mechanical assembly with layered components and a labeled component (14), no readable text or symbols present.

Cutlery

For best cleaning results, cutlery should be inserted with its handles facing down. Spoons, forks, and knives must be placed in the specific areas of the cutlery basket that are designed for them.

ATTENTION:

Particularly long cutlery, specifically "long knives", should not be positioned pointing upwards but should be placed horizontally in the top tray or washed by hand.

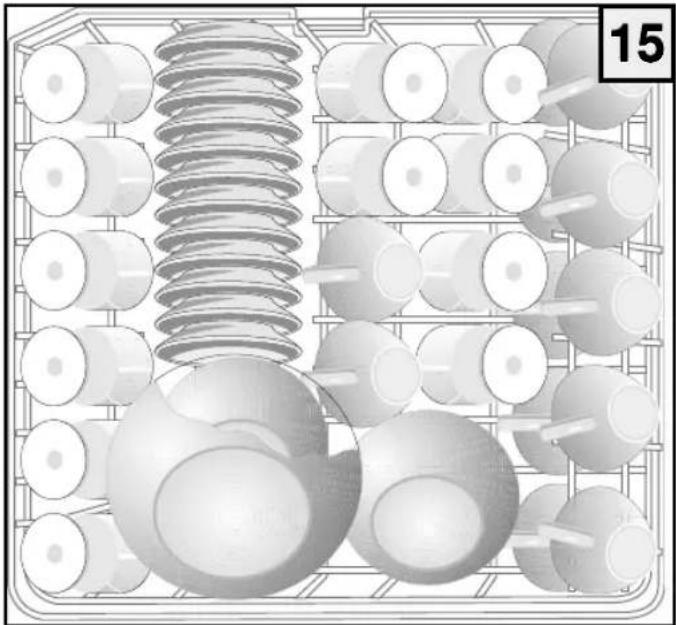

Use of the upper basket

The upper basket can be pulled out all the way. It holds small and medium sized dishes such as glasses, small plates, tea and coffee cups, small salad bowls, and small pans and pots that are not very dirty.

Desert plates must always be placed vertically; glasses, cups, pots and pants must be placed upside down.

Light dishes should be held by a support structure so that they don't get thrown around by the water jet.

An optimal arrangement of dishes inside the dishwasher will guarantee best washing results, allowing the appliance will be able to develop its full effectiveness.

3D rendered mechanical assembly with threaded fasteners and cylindrical components (no text or symbols)

LA2505-120

Because of the elevated temperature of the water used to wash the dishes and of potential chemical reactions with the detergent, it is recommended not to wash copper or aluminium dishes, cutlery with wood or horn handles, delicate porcelains, or non heat resistant glass or plastic dishes in the appliance.

If you possess decorated porcelain, you should test one single piece to make sure that the décor is not being damaged or altered.

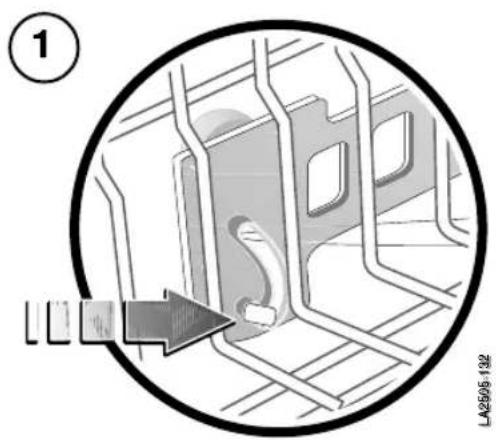

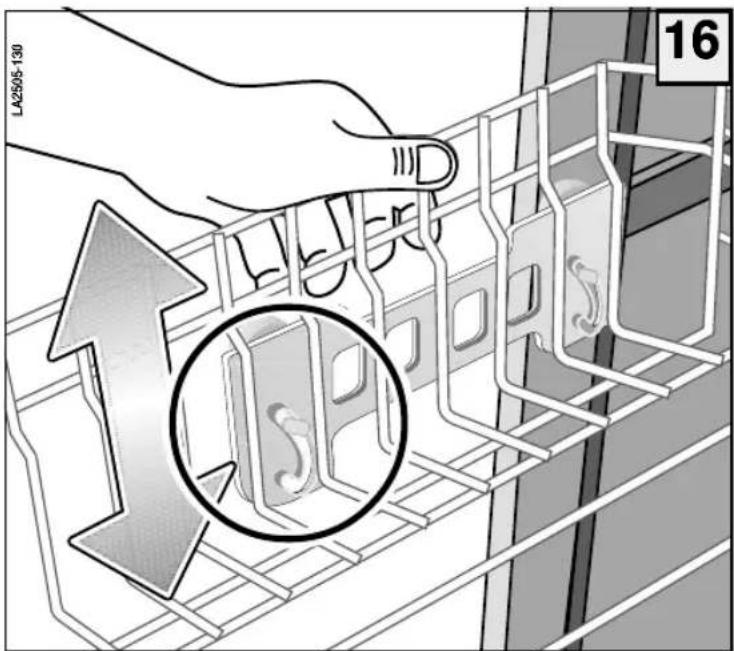

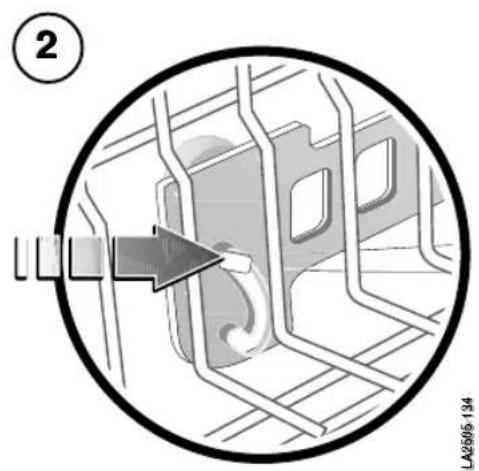

Height regulation of the upper basket

Use the handle on the side (only on left) to regulate the basket's height and inclination.

1 regulation of horizontal position

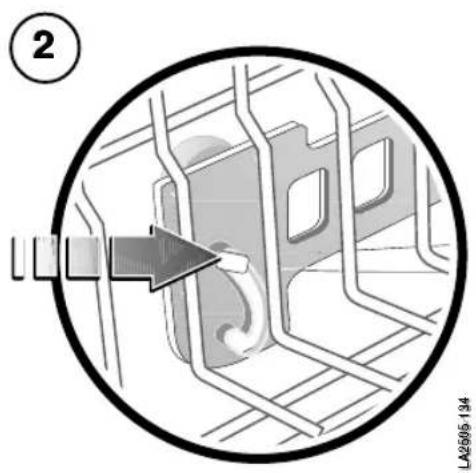

2 regulation of inclination

LA2505-130 16

① LA2505.132

② LA2505.134

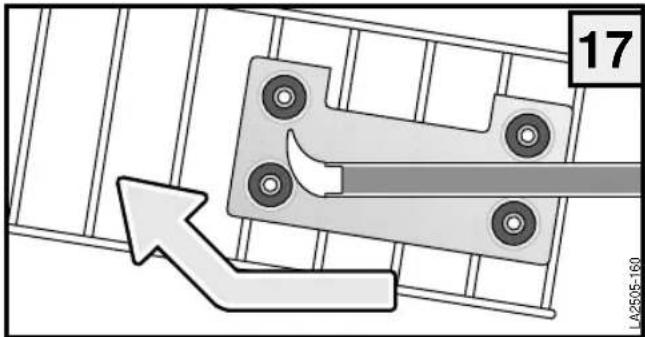

Pulling out the upper basket

The upper basket can be pulled out and removed as shown in the figure.

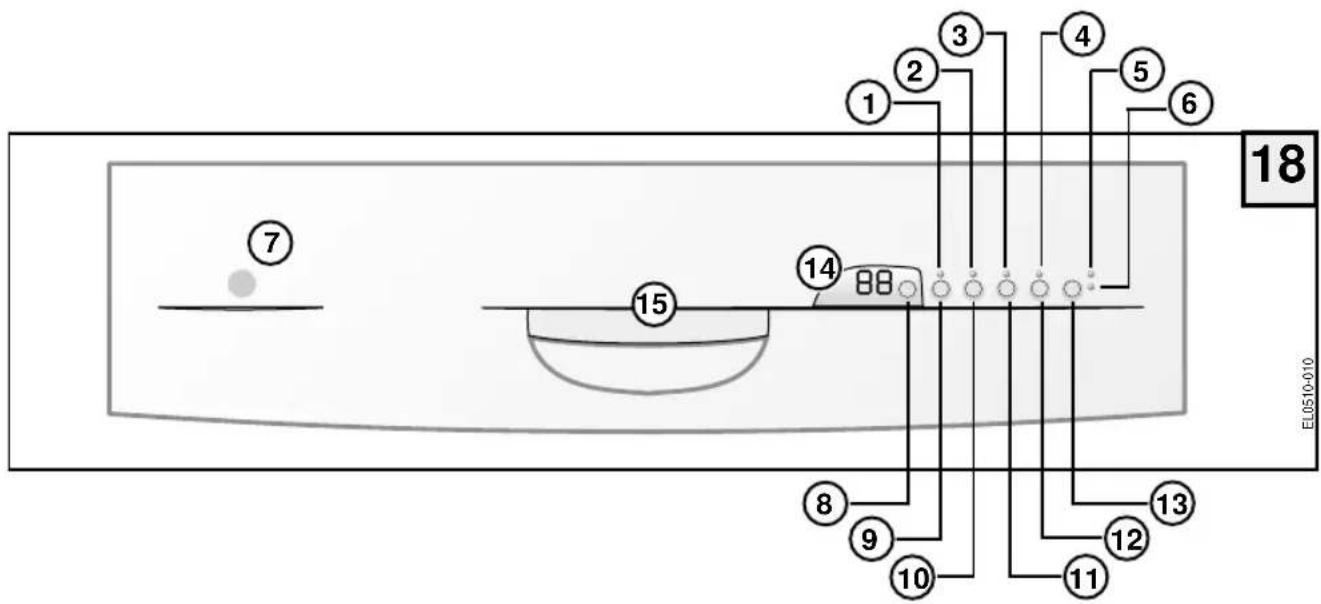

Description of control buttons and indication lights

17 LA2505-160

Led Display

1) Indication of delayed start (Delay)
2) Indication of half load
3) Indication of pre-wash cancel
4) Indication of drying
5) Indication of low salt level
6) Indication of low rinse aid level

Control buttons

7) On/Off
8) Programme selection
9) Delayed start selection (Delay)
10) Half load selection
11) Pre-wash cancel selection
12) Drying selection
13) Start/Stop/Pause programme
14) Multifunction display
15) Door opening handle

18 EL0510-010

Start

After checking the quantities of regeneration salt and of rinse aid, open the water faucet completely, place the dishes in the baskets, fill detergent into the detergent container and add also detergent for the pre-wash (if necessary) then close the front door.

Now proceed as follows:

• Use the On/Off button ⑦. On the display ⑭ the words programme selection will appear.
• Use the programme selection button (8) to select the desired programme
• Press the start/pause programme button ⑬. After a sound signal, which indicates the initiation of the programme, the appliance will run the wash cycle automatically.
  Note: On the display, the duration of the chosen programme will be shown.

It is advisable not to open the dishwasher during the wash.

Options

(Note: the various options must be selected before initiating the wash cycle)

- Delayed start (9): time delays for the initiation of the wash cycle can be set ranging from 1 to 16 hours. On the display, the delay period that was selected will be shown. The LED display will be blinking during the entire delay period. The selection of this setting option is confirmed when the number of the pre-selected programme appears on the display.

- Half load (10): when choosing this wash cycle option, the following indication will appear on the display: (=wash superior basket,_=wash inferior basket). The corresponding LED indication will be illuminated. The selection of this setting option is confirmed when the number of the pre-selected programme appears on the display.

- Pre-wash cancel ⑪: This option is only available for programmes that include a pre-wash.

When pressing the button, the corresponding LED indication will be illuminated.

The selection of this setting option is confirmed when the number of the pre-selected programme appears on the display.

- Drying 12: this programme option is carried out automatically by the programmes in whose cycle it is included (see programme table). To modify the dryer setting, the drying button must be pressed before initiating the chosen programme. On the display, the following information will appear: AO = no drying; A1 = Drying 20'; A2 = Drying 35'; A3 = Drying 45'.

The corresponding LED indication will be illuminated.

The selection of this setting option is confirmed when the number of the pre-selected programme appears on the display.

- Note: In the models without the drying ventilator, this option is to be considered as waiting time at the end of the cycle.

• Description of Start/Stop/Pause button ⑬

- It initiates the wash programme cycle ⑦ (the buzzer sound indicates that the cycle has started).

- When you turn on the machine, using the ON/OFF button, the display indicates the number of the last program that has been carried out. In cases where the previous program has not yet finished, the display will flash the number of this program. In order to re-start it you must simply press the "START" button (13), the remaining time that is necessary in order to finish the cycle will appear automatically on the display. (Situations such as this will occur each time that you open the machine when it is carrying out a program).

- If pressed during the wash for less than 5" the machine will pause, the number of the program will be seen flashing on the display, (in this case it is possible to add or remove dishes etc.) In order to proceed with the washing program, close the door and press the button 13 again.

- Programme settings by mistake (change programme)

- Reset by using the start/stop/pause button 13: keep the button pressed until the buzzer stops beeping (it produces a series of beeps).

- Repeat the select programme operation.

Note: If the programme has been initiated and has run beyond the water fill phase, the display indicates

“☐☐”, Then, the appliance will discharge all water, and (after a prolonged buzzer sound) the display will indicate the pre-selected programme setting.

Now, the appliance is ready for a new setting.

- Note: Once you have opened the door, always press the Start button 13 in order to restart the dishwasher.

- Activation / Elimination of the buzzer

b0 = Buzzer DEACTIVATED

b1 = Buzzer ACTIVATED

In order to access the setting of the BUZZER, keep the PROGRAM button ⑧ pressed down when you turn on the machine. The current setting "b1" will be visualised on the Display. In order to change this setting, press the same button until you have selected the status of the buzzer that you desire. Wait for approximately 6 seconds, without changing your choice, following this, the sound of the BUZZER will confirm that the setting has been memorised.

- End of cycle

Once the washing cycle is finished ⑭ , the program number will appear lit up and still on the display, if it is flashing wait for the end of the cycle.

- Checking the functions

During the washing phase it is possible to visualise the various functions in the following manner:

By pressing the program selection button ⑧, the number of the pre-set program will be visualised on the display.

By pressing the half load button ⑩, the upper or lower washing area will be seen.

By pressing the drying button ⑫, the level of drying will be seen.

Stop

After the wash cycle, the dishwasher stops automatically, then unit will emit a long buzz to indicate the end of the wahing cycle. To turn it off, press the button on/off ⑦ . After each wash cycle, the water faucet must be closed to insulate the appliance from the water supply system.

Table of wash programmes

Programmes	Programmenumber	Turn on & Select Prog.	* Add Detergent			Dishes and degree of dirt	Programme descriptions	Duration*(1)
		ON OFF	pre-wash	wash
Rinse	P1	•			Pans and dishes until the next wash cycle	Short cold wash to prevent food residues from drying up and forming crusts on the dishes	11'
Intensive 70°C	P2	•	•	•	Very dirty dishes (except delicate pieces)	1 warm Pre-wash – Main wash3 rinse (2 cold – 1 warm) Drying	2h
Normal 60°C(EN 50242)	P3	•	•	•	Medium dirty dishes (except delicate parts)	1 cold pre-wash – Main wash2 rinse (1 cold – 1 warm) Drying	2h 17'
Delicate 60°C	P4	•		•	Very dirty pans and dishes	Main wash2 rinse (1 cold – 1 warm) Drying	1h 40'
Normal 40°C	P5	•	•	•	Normally dirty dishes	1 cold pre-wash – Main wash2 rinse (1 cold – 1 warm)	49'
Rapid 40°C	P6	•		•	Very dirty dishes	Main wash2 rinse (1 cold – 1 warm)	39'
Biological 60°C	P7	•		•	Pans and dishes	Main wash3 rinse (2 cold – 1 warm) Drying	1h 38'
Strong 70°C	P8	•	•	•	Pans and dishes very dirthy	1 warm Pre-wash – Main wash3 rinse (2 cold – 1 warm) Drying	2h 11'

(1) N.B. Indicative duration of the washing times including the duration of the drying times in the programs where drying is included.
Drying time "setting of the defaults in A2=35".
(*) In the P1 program it is possible to have a drying setting (see options paragraph); in this way you will have a warm rinse program with a drying feature (PLATE WARMER) with the following settings:
A1 washes at 65°C it dries for 20' – A2 washes at 60°C and dries for 35' – A3 washes at 50°C and dries for 45'.

MAIN TENANCE

7.1 CCEANINGGOFFS9DAY-PROTORS

The spray-rotors can easily be removed for the periodic cleaning of the jets in order to prevent possible obstructions. Wash them thoroughly under running water and put them back in their correct position.

Illustration of a hand pressing a button on a bridge structure, with no visible text or symbols.

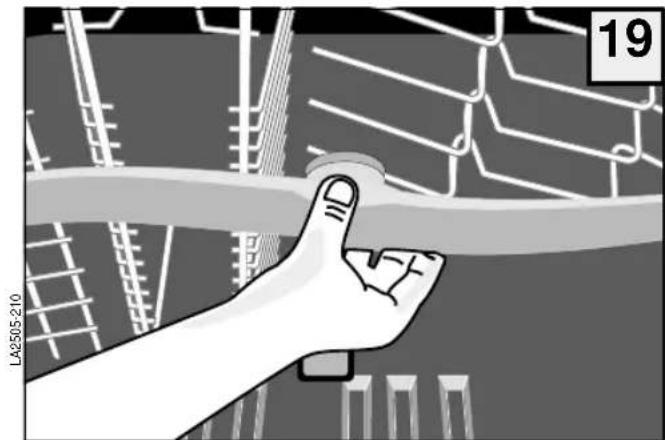

To remove the upper spray-rotor:

Unscrew anticlockwise the support of the spray-rotor.

Illustration of a hand using a tool to press down a mechanical component (no text or symbols visible)

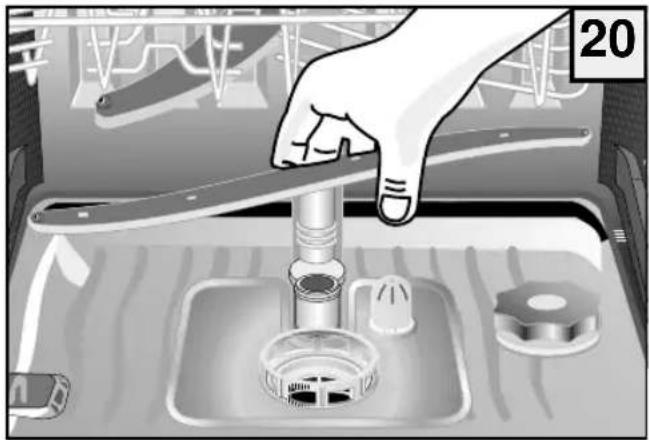

To remove the lower spray-rotor:

Pull the spray-rotor upwards and take it out.

7.2 CCEANINGGOFFHITEBSS

After each wash the filter group should be checked in order to remove possible dirt residues. Proceed as follows:

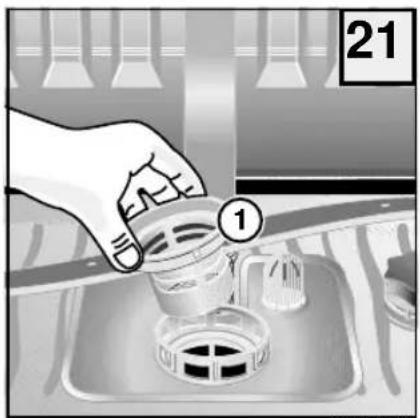

• take out the central filter 1.

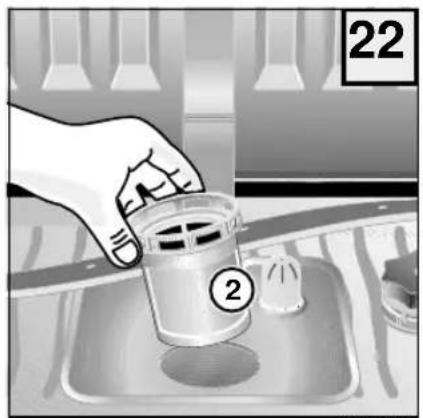

- remove the external water filter 2.

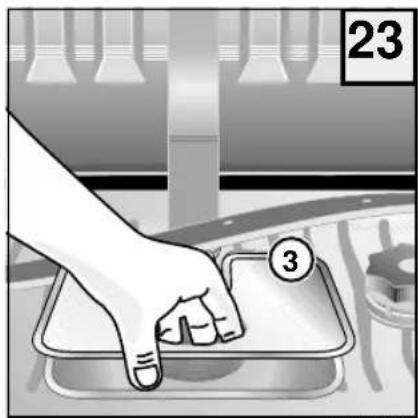

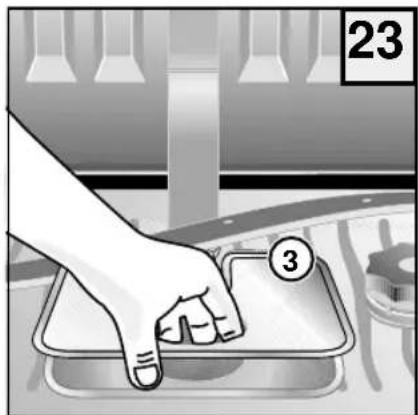

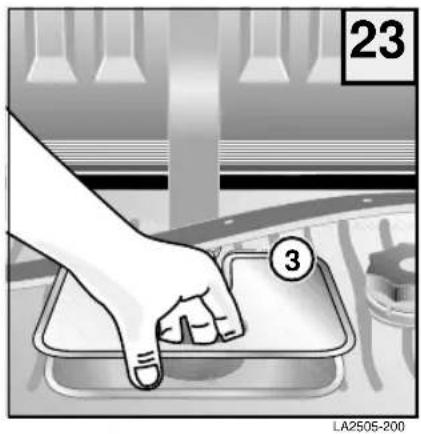

• take out mobile grid 3.

Clean all these components under running water. It is important to clean all filters thoroughly because the dishwasher cannot function properly with obstructed filters.

We recommend to put the cleaned filters back in their positions immediately to avoid damage to the wash pump.

21 ①

LA2505-180

Illustration of a hand placing a small container into a sink with a numbered label (2), no text or symbols present.

LA2505-190

Illustration of a hand pressing down on a tray with a numbered circle and label '23' (no text or symbols on the diagram itself)

LA2505-200

7.3 CLEANING OF THE DISHWASHER'S EXTERNAL SURFACES

The dishwasher's surfaces (made of metal, and in the front of plastic) must be cleaned periodically. Use a clean and soft piece of fabric. Never use acids or abrasive detergents.

If you don't use the appliance for long periods of time

If the dishwasher is not being used for extended periods of time, you should proceed as follows:

• run the pre-wash programme twice
• remove the electric plug from the outlet
• disconnect the water supply tube

- leave the door slightly open to avoid the formation of bad odours.

7.4 TABLE OF ERROR CODES

Error	When this occurs	Checks to carry out	Action to be taken
E1	During the water cycle (the program stops)	- Tap closed- Filter of loading tube blocked- Drainage tube flat- Drainage tube broken- Water supply tube bent- Insufficient water pressure	- Reset the dishwasher- Check- Reset the dishwasher- Call the authorised assistance centre- Reset the dishwasher- Verify the water pressure
E2	At the end of the cycle	- Repeat the washing cycle	- If the same problem reoccurs, contact the authorised technical assistance centre immediately communicating to them the type of error that is shown.
E4	At the end of the cycle	- Insufficient water pressure- The litre counter valve is not working	- Verify the water pressure- Call the authorised assistance centre
E5	At the end of the cycle	- The drainage tube is bent- The siphon is blocked- The drainage pump is blocked	- Check- Check- Call the authorised assistance centre
E6	At the end of the cycle	- The filter grills are blocked- A pot is placed up side down	- Clean the filter grills- Check at the end of the cycle, position the pots correctly during the next wash
E7	At the end of the cycle	- Repeat the washing cycle	- If the same problem reoccurs, contact the authorised technical assistance centre immediately communicating to them the type of error that is shown.

N.B.: Upon contacting the authorised technical assistance centre always communicate the type of error encountered.

WHAT TO DO IN CASE OF MALFUNCTIONS

You should first check whether it is possible to rectify some minor problems yourself. Follow these instructions. If you are unable to identify or remove the problem, you should contact the technical client assistance service.

• The programme does not start

• Are the internal fuses broken? Is the dishwasher connected to the electric supply system?
• Is the door closed properly? Press on the door to close it completely.

- No water enters the appliance

• Is the water faucet open?
• Is the filter between the faucet and the water supply tube obstructed? If so, clean the filter.
• Is the water supply tube obstructed? Check the tube.

- The programme indicator does not move on from its starting position

• Is the water faucet completely open?
• Is the filter between the faucet and the water supply tube obstructed? If so, clean the filter.
• Is the water pressure lower than 0.05 Mpa?

- The used water is not removed from the dishwasher

• Is the waste disposal tube obstructed? Check the tube.
• The siphon is obstructed? Check the siphon.

• The dishes are not clean after washing them

• Did you choose an appropriate programme for the type of dishes and the degree of dirt you are dealing with?
• Are the dishes arranged in a way that allows the water-jet to reach all their surfaces?
• Are the dishwasher's baskets overloaded?
• Are the spray-rotors blocked by a dish or some cutlery?
• Are all filters at the bottom of the dishwasher clean? Are they all in their correct position?
• Did you add the correct amount of detergent?
• Is the water discharge tube connected properly?
• Is there still any special dishwasher salt in the appropriate container? Without salt the water is not being softened.
• Was the water softening system adjusted according to the local amount of calcium in the water?

• The dishes do not dry or they remain opaque

- Is there any rinse aid left in the appropriate container?

- Glasses and dishes show the formation of lines, spots, and stains or a shiny blue coloration - During the rinse process too much rinse aid is being released. Adjust the rinse aid release.

• Glasses and dishes show stains of dried water

- During the rinse process too little rinse aid is being released. Adjust the rinse aid release.

Please note:

The appliance was tested and checked by the manufacturer. As a consequence, you may find some traces of water inside. These will disappear after the first use.

Technical diagram of a washing machine with numbered components for identification and assembly reference.

2 P LA2505-000

2.1 M

3D mechanical component with a gear-shaped base and directional arrow symbol, no readable text or labels

Technical illustration of a mechanical component with layered structure and internal components (no text or symbols)

14 LA0506-112

Besteck

3D rendered mechanical components arranged in a grid, showing threaded and cylindrical parts (no text or symbols)

LA2505-120

Illustration of a hand adjusting a cable or wire component with scaffolding in the background (no text or symbols)

Illustration of a hand adjusting a mechanical component in a kitchen sink (no text or symbols)

Hand placing a small container into a sink with a numbered label (2) and page number 22 in the corner (no text or symbols on the main subject)

23 ③ LA2505-200

Technical diagram of a washing machine with numbered components for identification and assembly reference.

5.3 RACCORDEMENT POUR L'EVACUATION DU PRODUIT NETTOYANT

6.1 OPERAATIONSSPPREELIMINAARESS

3D mechanical component with a gear-shaped base and a downward arrow, no visible text or symbols

Technical diagram of a mechanical component with layered structure and internal components (no text or symbols)

Technical illustration of a mechanical assembly with layered components and a labeled component (14), no readable text or symbols present.

Services

3D rendered mechanical assembly with multiple cylindrical components and threaded fasteners (no text or symbols)

LA2505-120

① LA2505.132

② LA2505.134

Hand pressing a button on a curved surface with scaffolding and grid lines in the background (no text or symbols)

Illustration of a hand using a tool to clean or install a mechanical component, with no visible text or symbols.

Illustration of a hand pouring liquid into a container with a numbered label (2), no text or symbols present.

LA2505-190

23 ③

LA2505-200

7.3 NETTOYAGE DES SURFACES EXTERNES DE LA MACHINE

Technical diagram of a washing machine with numbered components for identification and assembly reference.

4.2 DATOS TECNICOS

5 LA2505-000

3D mechanical component with gear and arrow symbol, no readable text or labels

Technical illustration of a mechanical component with layered structure and internal components (no text or symbols)

LA2505-110

Technical illustration of a mechanical assembly with layered components and a labeled part (14), no readable text or symbols present.

LA2505-112

Cubiertos

3D rendered mechanical assembly with threaded components and cylindrical parts arranged in a grid (no text or symbols)

LA2505-120

Illustration of a hand adjusting a cable or wire component, with scaffolding and a numbered label '19' in the background (no readable text or symbols on the diagram itself)

Illustration of a hand using a tool to press a mechanical component into a tank (no text or symbols visible)

Hand placing a small container into a tray with a numbered label (2) and page number 22 in the background (no readable text or symbols on the main subject)

23 ③ LA2505-200

7.3 LIMPIEZA DE LAS SUPERFICIES EXTERIORES DE LA MAQUINA

Technical diagram of a multi-level cleaning machine with numbered components for identification and assembly reference.

4.2 DAATTITECONOCI

3D mechanical component with a gear and directional arrow symbol, no readable text or labels

Technical illustration of a mechanical component with layered structure and cross-sectional view (no text or symbols)

LA2505-110

Technical illustration of a mechanical assembly with layered components and a labeled component (14), no readable text or symbols present.

LA2505-112

Posate

3D rendered mechanical assembly with threaded fasteners and cylindrical components (no text or symbols)

LA2505-120

Diagram of a subway car interior showing tracks and overhead lines, with no readable text or symbols.

Illustration of a hand holding a tool near industrial equipment (no text or symbols visible)

Illustration of a hand adjusting a kitchen sink with a tool, showing components like a drain and wash (no text or symbols)

Illustration of a hand placing a container into a sink with a numbered label (2), no text or symbols present.

LA2505-190

23 ③

LA2505-200

7.3 PULIZIA DELLE SUPERFICI ESTERNE ALLA MACCHINA
