T21200 - Car stereo Ultimate - Free user manual and instructions

Product type	Car audio amplifier
Brand	Ultimate
Model	T21200 (T2 series)
Amplifier class	Class AB
Number of channels	1 channel (mono) for T2-1200, 2 channels for T2-1400, 4 channels for T2-2450, etc.
RMS power (4 ohms)	200 W × 1 (model T2-1200)
RMS power (2 ohms)	300 W × 1 (model T2-1200)
Max power (4 ohms)	350 W × 1 (model T2-1200)
Max power (2 ohms)	470 W × 1 (model T2-1200)
Total harmonic distortion (THD)	0.12% (model T2-1200)
Signal-to-noise ratio	97 dB (model T2-1200)
Frequency response	10 Hz – 200 kHz (model T2-1200)
Minimum load impedance	2 ohms
Damping factor	180 @ 4 ohms (model T2-1200)
Input sensitivity (low level)	300 mV – 8 V
Input sensitivity (high level)	Up to 10 V
Power supply	12 V DC, 30 A fuse (model T2-1200)
Built-in filters	LPF, HPF, Full (low-pass, high-pass, full-range)
Variable cutoff frequency	40 – 200 Hz (LPF), 40 – 400 Hz (HPF)
Bass boost	0 – 18 dB at 45 Hz
Connectors	Gold-plated RCA, gold-plated power and speaker terminals
Protections	Short circuit, overload, thermal shutdown
Dimensions (W × D × H)	23 × 37 × 5 cm (model T2-1200)
Care and cleaning	Disconnect power, clean with a dry, soft cloth. Do not use liquids or abrasive products.
Safety	Install by a professional, use a fuse within 45 cm of the battery, avoid moisture.

Frequently Asked Questions - T21200 Ultimate

How to install the Ultimate T21200 amplifier?

Installation should be performed by a professional. If you do it yourself, choose a well-ventilated place, not upside down. Secure the amplifier with 4 screws on a solid surface. Use a minimum 8-gauge power cable, connect directly to the battery with a fuse within 45 cm. Connect the remote wire (REM) to the trigger output of the car stereo.

What does the LED indicator on the amplifier mean?

The LED indicates operating status. When red, the amplifier is on and working normally. If it turns blue, a protection is activated (short circuit, overload, or overheating). In this case, cut power, check connections, and let it cool.

How to adjust the gain (sensitivity) of the amplifier?

Turn the gain to minimum (8V). Set the car stereo volume to 75% of maximum. Slowly increase the gain until you hear distortion, then reduce slightly. This adjustment matches the input level to the amplifier.

Can I use the amplifier with 2-ohm speakers?

Yes, the amplifier is stable at 2 ohms. It will deliver more power but produce more heat. Ensure sufficient ventilation to avoid thermal shutdown.

What is the role of the low-pass filter (LPF)?

The low-pass filter (LPF) only passes low frequencies (e.g., for a subwoofer). The cutoff frequency is adjustable from 40 to 200 Hz. Use it to prevent highs from reaching the subwoofer.

How to connect a car stereo without RCA outputs?

Use the high-level input of the amplifier. Connect the speaker wires from the car stereo to the high-level input terminals (left/right, positive/negative). Then adjust the gain to avoid distortion.

What is MOSFET technology?

MOSFET technology (Metal-Oxide-Semiconductor Field-Effect Transistor) is used in the power supply. It ensures better efficiency, fast response to current variations, and reduced distortion.

How to use the low-level output (RCA) to connect a second amplifier?

The low-level output delivers a full-band (unfiltered) signal. Connect an RCA cable from this output to the input of the second amplifier. Note that filter settings do not apply to this output.

What is the maximum power of the T2-1200 amplifier?

Maximum power is 350 W × 1 at 4 ohms and 470 W × 1 at 2 ohms. RMS (continuous) power is 200 W × 1 at 4 ohms and 300 W × 1 at 2 ohms.

How to maintain the amplifier?

Disconnect power before any cleaning. Wipe the surface with a dry, soft cloth. Never use liquids or chemicals. Periodically check connections and cleanliness of heat sinks.

USER MANUAL T21200 Ultimate

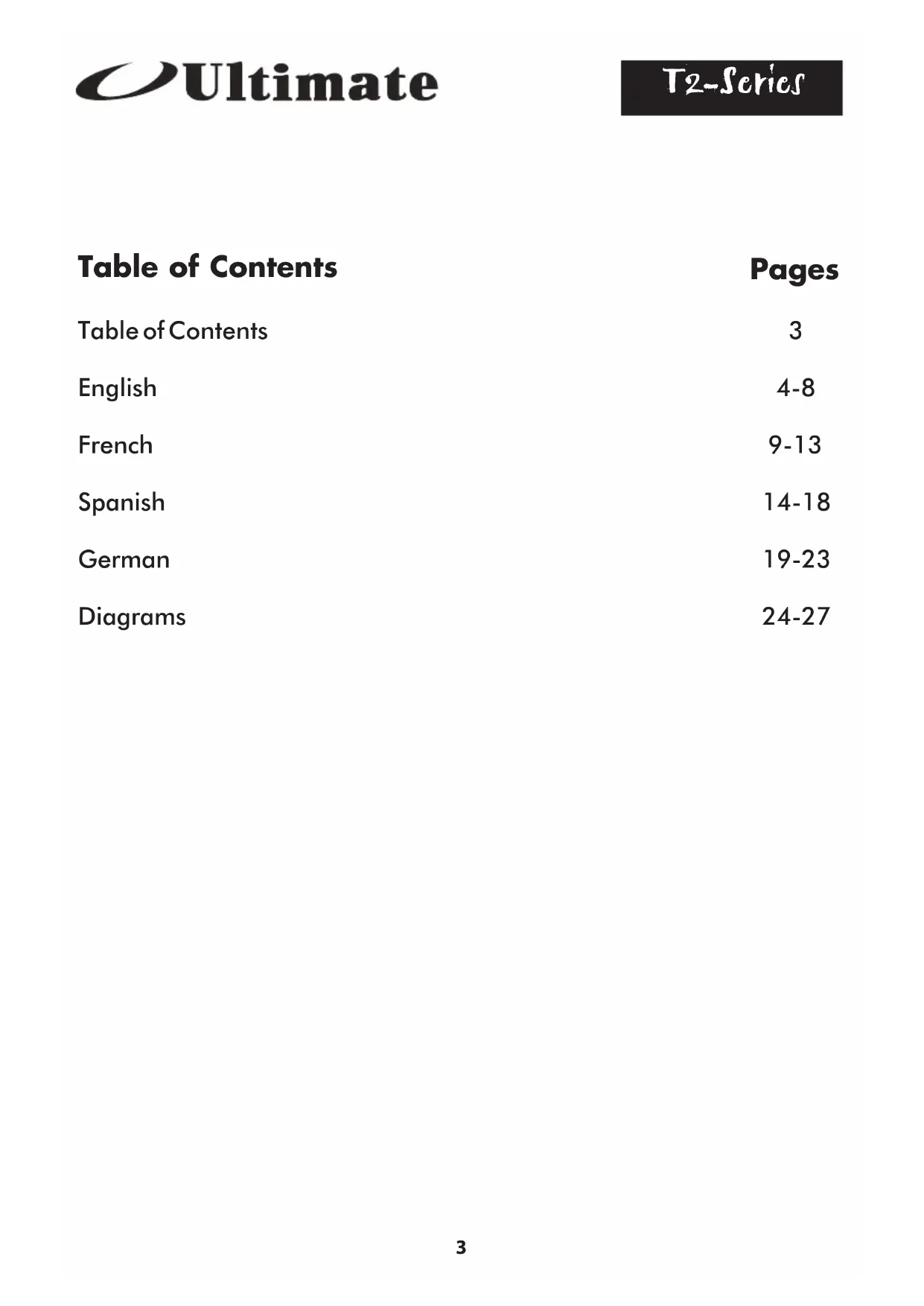

Table of Contents	Pages
Table of Contents	3
English	4-8
French	9-13
Spanish	14-18
German	19-23
Diagrams	24-27

Ultimate

Introduction

Ultimate Car Audio products have been designed to deliver awesome performance and the coolest look on the street! Learning from our past successes, our new products have been developed with a whole new look and attitude. After all, we want you to have an ultimate car audio system. Ultimate would like to thank you for purchasing it's products.

Caution

This device is a high power, audio amplifier. Proper and careful usage of this product will provide many years of enjoyment. Being exposed to very loud music can result in temporary or permanent hearing loss. Misuse or improper installation will shorten the life of your product, and/or result in damage to the vehicle electrical system. Please ensure you read this manual completely for procedures on how to properly install this unit.

Description

Ultimate's T2 series amplifiers are designed to deliver powerful, undistorted sound. We drive our amps through rigorous load testing to ensure they operate under the most stressful of conditions. After all, we know you will!

Using rugged cast aluminum end caps, our amps allow you to create a sleek and custom looking install. The power and system wires stay hidden out of site, while all the connections and critical amplifier settings stay protected from unauthorized tampering.

MOSFET technology assures your amp satisfies the voltage and current demands of today's systems. And with ultra low distortion, these amps will deliver clean, crisp sound to your speakers and subwoofoers.

Stability is essential when your speaker system drops below normal impedance levels. Our amplifiers will operate safely into 2 ohm loads, without causing distortion to get out of control. Operating at these loads will generate lots of heat. Our engineered heat sink design ensures our amplifiers dissipate that heat effortlessly, while keeping your tunes pumping hard!

Professional tweaking your audio system to get the right sound is an absolute must. Our variable crossover control and bass boost enhancement offers you this flexibility. Choose the level of boost, or find the your speaker's sweet spot. We LOVE a great sounding car audio system too!

Features

Class AB Circuitry

• 2 Ohm Stable Amplifier

MOSFET Power Supply

Multi-Channel Capable

• Illuminated "Ultimate"logo

Overload Protection Indicator

Gold Plated RCA Connections

• Low Level Input - variable up to 8 volts

High Level Input - variable up to 10 volts

Gold Plated Terminal Block for Power Input & Speaker Output

Crossover Selection Switch for LPF / Full / HPF

Variable Low Pass Filter Control from 40 to 200Hz^2

Variable Crossover Control for 40 to 400Hz

Variable Bass Boost Control from 0 to 18dB at 45Hz^2

• Bass boost - switched 12dB at 45Hz

• Protection Circuitry against Short, Overload and Thermal

1Not available on T2-1200 and T2-1400

2T2-1200, T2-1400 and T2-2100only

3T2-2450 and T2-5450 only

Protection

This amplifier has been outfitted with protection circuitry against short, overload, and thermal shut-down. In a functional state, the LED glows "red" and indicates "power on". Should the amplifier sense any fault in your speakers or subwoofoers, or reach a point of thermal shutdown, the LED will glow "blue". In this case, the power must be shut down to the system to bring the amplifier back to a functional state.

Ultimate

Installation

Ultimate recommends professional installation of all it's products. Should you choose to install this product yourself, please read this manual carefully and refer to the instructions detailed below. Failure to do so may result in poor product performance, premature or immediate malfunction, and potential damage to your vehicle or it's contents.

• When selecting a location to mount your amplifier, please ensure proper ventilation is considered. Areas below seats or in trunks are suitable, so long as air flow is not restricted. Refrain from mounting your amplifier upside down, as heat will not dissipate effectively, and can result in thermal shutdown or component failure

• Using a standard Allen key (3/32), remove the hex bolts located in the fins at the top of the amplifier heat sink. Pulling the end caps away from the amp, you'll find all the connectors and adjustments to complete the installation.

• Mount your amplifier using 4 screws, preferably onto a piece of wood. If screwing into the body of the vehicle, be sure to check for brake,fuel or electrical lines,as well as stay clear of the gas tank.

• Using a minimum of 8 gauge wire, run a power cable directly to the positive terminal of your battery to the +12V terminal of your amp. A separate fuse must be located within 18 inches of the battery to protect the vehicle from a potential short. Total up the fuse ratings on your amplifiers to determine the fuse size required under the hood.

• Your amplifier will turn on only when ignition is activated. This can be accomplished by connecting an 18 gauge wire to the 'trigger' output on your head unit. If you are using an OEM radio, this will not be available. You must locate a + 12 switched circuit to achieve this.

• The ground path is equally important to the positive feed of your amplifier. Find or create a bare metal spot on the vehicle's chassis. Using as short a wire as possible, connect to the 'GND' terminal using the same gauge wire as you did for power. The paint on the body must be removed to bare metal.

• If you're using a low-level output signal from your head unit, ensure to use a high quality RCA cable to prevent unwanted noise. It is preferred to use the side opposite to the power wire to run the RCA. Failure to do so can introduce unwanted noise into the input signal which will be heard through your speakers.

• If your head unit doesn't have RCA, then the hi-level input of the amp would be used. For this, it is ideal to tap in on the speakers closest to the amplifier location. Using regular 18 gauge speaker wire, take left and right (both positive and negative) signals. Connect directly to the 'hi-level' input on your amplifier. Proper gain settings are required to ensure undistorted sound.

• You have now completed the basic installation portion of your new amplifier. Please continue to the "Amplifier Settings" section of this manual to properly configure your amp for maximum listening pleasure.

Amplifier Settings

The gain control (input sensitivity) on this amp is not a volume control. It is designed to provide proper matching of various source units to this amplifier, and provides a reference to how much signal will be necessary to reach maximum operating power. Correct settings will ensure safe operation for both your amplifier and speakers.

• Start by turning the gain level to the "8 volt" setting. This is the minimum level, far left.
• Next, turn up your head unit volume up to 75% of max volume. For example, if your digital volume control goes to "50", you would use the "40" level for this exercise.
• Last, slowly begin increasing the gain until distortion becomes audible, then turn the gain back a notch. You have now properly set your input sensitivity.

Crossover Control

Your amplifier has been designed with an onboard 18db/oct crossover, or filter management system. How you configure these settings will be dependent on the speakers you are connecting to the amp. The crossover circuit consists of two main settings: 1. Filter Type; 2. Frequency Adjustment.

The "filter type" is controlled by a "LPF, FULL, HPF" switch. The low-pass filter, LPF, will allow only low frequency information to pass on to the speakers. The opposite would be achieved using the HPF, high pass filter. When no filter is required, the FULL setting would be selected, allowing all frequencies to pass.

For proper operation of some speakers, it is necessary to select the crossover point to which they will play. The "frequency adjustment" setting allows you to accomplish this. In a LPF mode, only frequencies up to the crossover point will play, with a gentle roll-off beyond that point. In HPF mode, any frequency above that point will be heard, with those below being filtered away gradually.

Bass Boost

Sometimes, we want a little more kick to our system's bottom end. Your amplifier has been outfitted with an internal circuit to provide a boost at frequencies surrounding 45hz. A bass boost should be treated similar to a gain control. Proper adjustment of this setting will be required to ensure safe operation of your amplifier and speakers. When boosting the lower frequencies, turning the input sensitivity down would be required. Failure to do so may result in permanent damage.

Low Level Output

Rather than running a 2nd RCA for multiple amplifiers, the low level output will provide a full-range signal. Fading capability will not be possible in this arrangement.

Specifications	T2-2250	T2-2100	T2-2450
Continuous Power:
·4 ohms	55x2	100x2	55x4
·2 ohms	80x2	190x2	80x4
Maximum Power:
·4 ohms	140x2	240x2	140x4
·2 ohms	320x2	360x2	200x4
Bridged Power:
·4 ohms	160x1	400x1	160x2
THD:	0.05%	0.05%	0.04%
Signal to Noise Ratio	91db	101db	90db
Frequency Response:	10-110Khz	10-110Khz	10-110Khz
Speaker Impedance:	2 ohms	2 ohms	2 ohms
Damping Factor:	220@4 ohms	240@4 ohms	200@4 ohms
Input Sensitivity:	300mV - 8V	300mV - 8V	300mV - 8V
Dimensions:	9" x 11 3/4" x 2"	9" x 18 1/2" x 2"	9" x 17 5/8" x 2"
	23cm x 30cm x 5cm	23cm x 47cm x 5cm	23cm x 45cm x 5cm
Fuse Rating:	25A	25A×2	20A×2

Specifications	T2-5450	T2-1200	T2-1400
Continuous Power:
·4 ohms	55x4 + 170x1	200x1	400x1
·2 ohms	85x4 + 240x1	300x1	550x1
Maximum Power:
·4 ohms	140x4 + 300x1	350x1	800x1
·2 ohms	320x4 + 410x1	470x1	1100x1
Bridged Power:
·4 ohms
THD:	0.05%	0.12%	0.04%
Signal to Noise Ratio	96db	97db	97db
Frequency Response:	10-110Khz	10-200Khz	10-200Khz
Speaker Impedance:	2 ohms	2 ohms	2 ohms
Damping Factor:	230@4 ohms	180@4 ohms	190@4 ohms
Input Sensitivity:	300mV - 8V	300mV - 8V	300mV - 8V
Dimensions:	9" x 205/8" x 2"	9" x 141/2" x 2"	9" x 181/2" x 2"
	23cm x 52cm x 5cm	23cm x 37cm x 5cm	23cm x 47cm x 5cm
Fuse Rating:	40A×2	30A	30A×2

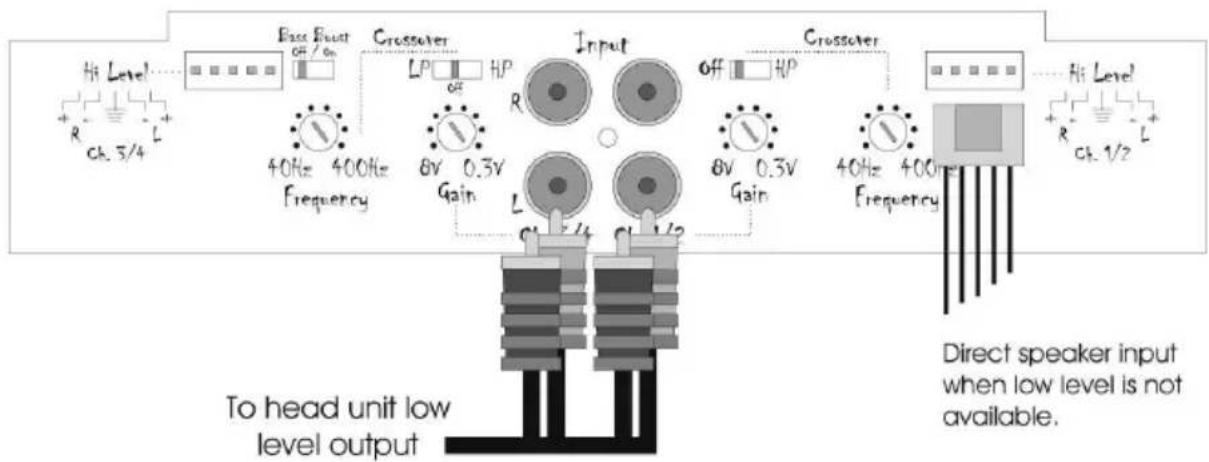

Introduction

Speaker terminals
(3 ch mode)

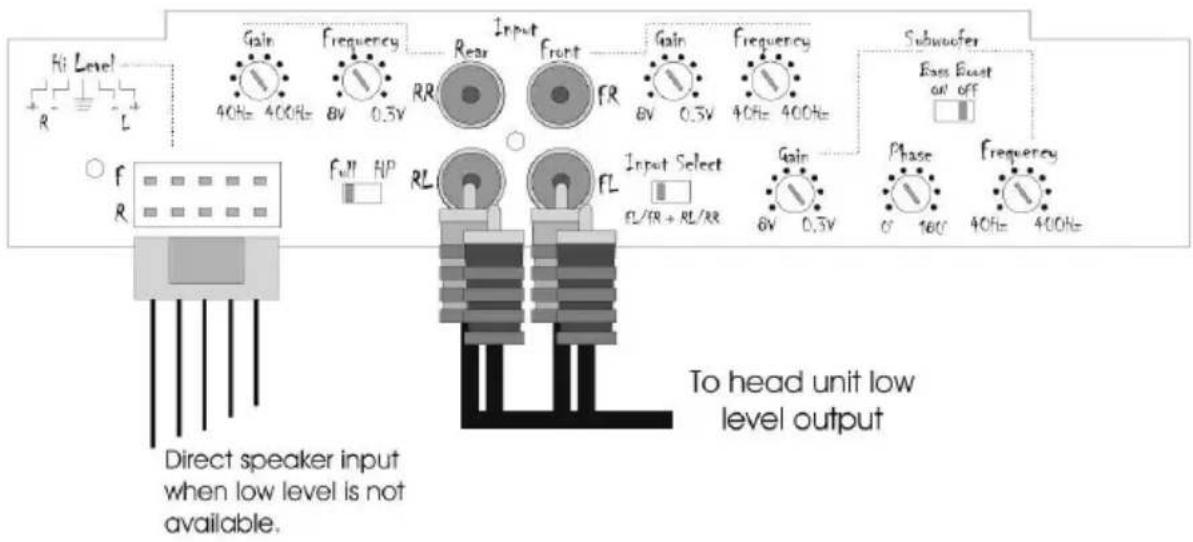

Diagram

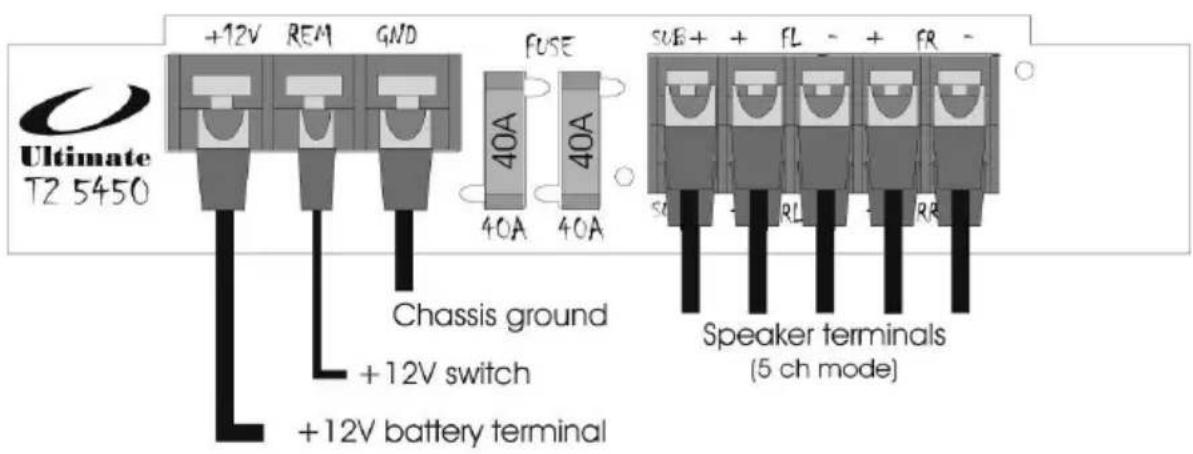

T2-5450

Speaker terminals
(3 ch mode)
