GEFELICITEERD MET DE AANSCHAF VAN UW SMARTCOOL MOBILE AIRCONDITIONER

Mobiele Airconditioner

Technical diagram of a mechanical or industrial device with heat exchangers and directional arrows indicating flow or movement (no text or symbols present)

Diagram showing airflow or ventilation change from a window frame to a cabinet, with no visible text or symbols.

STROOMVOORZIENING

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

MOBILE AIR CONDITIONER

VERY IMPORTANT

Do not install and use your portable air conditioner unit before carefully reading this instruction guide. Please retain this manual brochure for product warranty and future reference

CAUTION

1." DO NOT BLOCK VENTILATION "! Please make sure the inlet and outlet ventilation is not blocked at all times.
2. Operate this unit on a horizontal surface to avoid water leakage.
3. Do not operate this unit in an explosive or corrosive atmosphere.
4. Operate this unit in an ambient of 17\~32 degree centigrade when the unit is in the cooling function. Contrarily, when the unit is in the heating function, the ambient temperature is 5\~23 degree centigrade.
5. Clean air filter periodically to enjoy the most efficient cooling.
6. When the unit is shut off, please wait at least 3.5 minutes before restarting this is to prevent the compressor from being damaged.
7. This unit needs at least 10 Amps of electricity to have its compressor operational. To avoid the household electricity block out, please do not use any extension cord for this unit.
8. This unit is for indoor cooling, heating and dehumidifying.
9. When boot-strap, the fan will operate but the compressor will start up after the cooling alarm flashes for three minutes
- In heating function, the heating alarm will flash for 3.5 minutes before the compressor and fan start up.

1. When the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
2. The batteries must be removed from the appliance before it is scrapped and that they are disposed of safely.
3. The air-conditioner can be connected only to a supply with system impedance no more than 0.219 . In case necessary, please consult your supply authority for system impedance information.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

ATTENTION

For effective heating and cooling functions, please ensure that the following steps are undertaken:

1) Extend the exhaust hose to a length of not more than 400mm. The exhaust hose must be kept parallel and must not be bent up or down.
2) A distance of 500mm minimum must kept between the filter side of the unit.
3) When this appliance starts to defrost, the wording "DF" will be displayed on the LED.

≥500mm Fig.1

Two technical line drawings showing pipe fittings and a checkmark (no text or symbols)

CONGRATULATIONS ON YOUR SELECTION OF A QUALITY PORTABLE AIR CONDITIONER

PORTABLE AIR CONDITIONER

Your Air Conditioner has been designed and manufactured to the highest standards of modern engineering.

Its many features not only include remote control

Operation that lets you control all functions with easy and convenience.

• Moves easily from room to room on easy glide castors
• No installation required-just plug into any household power outlet
• Refrigerated air system design cools instantly whenever you want it
• Dehumidified filtered air cycle for improved breathing conditions due to powerful dehumidification process
  -If remote control function is not required, your one touch electronic pad provides easy to identify manual operation
  -24 hour programmable timer that can be used with either the air conditioning or dehumidification setting
  -Unique sleep control function
  -220\~240 Volt 50Hz operation
  -1.6 meter cord with plug

UNPACKING INSTRUCTIONS

1. Place the unit in the correct upright position before unpacking.
2. Cut the two packing straps.
3. Slide the carton in an upwards motion and it will release from the base.
4. Grip the carry handles located on either side of the unit and carefully lift until it slides out of the foam base.
5. Disconnect the tie-in inside the exhaust tube and take out the exhaust tube
6. Install the exhaust tube on the unit before operating the unit.

CONTENTS

1 / Air control unit
2 / 1-remote control unit (batteries not included – size 1.5 VOLTS UM4 AAA CR03 required)
3 / Batteries

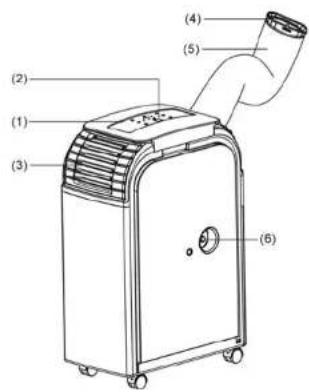

NAME OF THE PARTS

1. Control panel
2. Remote receiver
3. Adjustable air vent
4. Joint tube
5. Exhaust tube
6. Up drain pipe

(1) (2) (3) (4) (5) (6)

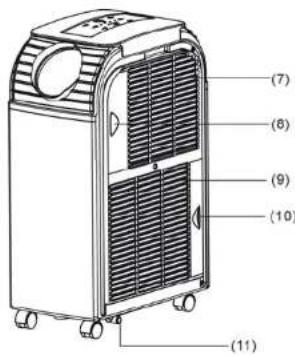

1. Cool air inlet
2. Cool air filter
3. Hot air inlet
4. Hot air filter
5. Drain pipe

(7) (6) (9) (10) (11)

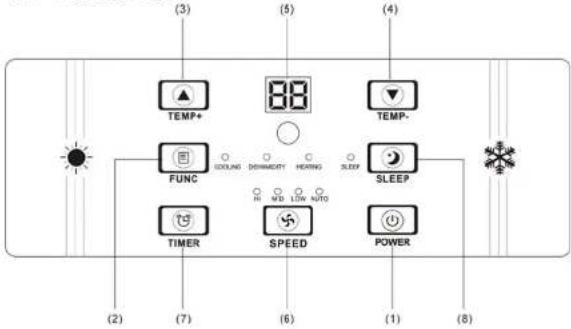

CONTROL PANEL & DESCRIPTION OF FUNCTION

(3) (5) (4) TEMP+ 88 TEMP-# FUNC SLEEP TIMER SPEED POWER (2) (7) (6) (1) (8)

1. POWER KEY

Press to turn unit "ON" or "OFF".

1. FUNCTION

Press this key to select refrigeration, heat or dehumidification. or cooling.

1. TEMPERATURE REGULATION KEY (UP)

During cooling function: This key raises the preset temperature by 1°C

each time it is pressed to a maximum of 30^ C.

During heating function: This key raises the preset temperature by 1°C

each time it is pressed to a maximum of 25°C

1. TEMPERATURE REGULATION KEY (DOWN)

During cooling function: This key lowers the preset temperature by 1°C each

time it is pressed to a minimum of 17°C.

During heating function: This key lowers the preset temperature by 1°C each time it is

pressed to a minimum of 15°C

1. L.E.D. DISPLAY

Indicates the temperature or the time setting. After any time set

the display will return to the preset temperature automatically.

1. SPEED

Press to select either LOW, MEDIUM, HIGH or AUTO fan speed.

If "AUTO" is selected(During cooling function), "HI

"MEDIUM" or "LOW" will be selected automatically according to

the difference between setting temperature and room

temperature.

Note: In heating function and dehumidifying function, the wind-speed setting is inefficacy because the unit has set high-speed(heating) and low-speed(dehumidifying).

1. PROGRAMMABLE

Programmable timer ON/OFF key.

TIMER

TIMER-ON: The timer-on is used to turn on the unit automatically after the set time is over.

1. Press the "TIMER" key at stand-by status to set the time desired.

2. Once the set hour has come to an end, the unit will turn on automatically.

3. Press the "POWER" key before time out, the setting time will be canceled and the unit will turn on.

TIMER-OFF: The timer-off is used to turn off the unit automatically after the setting time is over.

1. Press the "TIMER" key at stand-by status to set the time desired.

2. Once the set hour has come to an end, the unit will turn off automatically.

3. Press the "POWER" key before the time out, the setting time will be canceled and the unit will turn off.

8.SLEEP CONTROL

When setting the "sleep comfort" mode please ensure that you

FUNCTION

then set the number of hours required and press the timer button till those hours are indicated on the L.E.D display. After

setting the hours the L.E.D. display will automatically return to the current pre-set temperature. To increase this setting "up" press button indicating and for each press, the temperature will be increased by 1°C. Likewise to set for a lower temperature press button indicating and for each press the temperature will be decreased by 1°C.

During the course of this cycle, to ensure maximum sleep comfort. the micro-processor memory will raise the pre-set temperature 0.5^ C each half hour to a maximum of 2^ C over two hours and then maintain that temperature for the balance of the time set.

The portable air conditioner is fitted with a 3 minute compressor delay protection circuit which simply means that the compressor requires 3.5 minutes to start. From either being switched on, or when changing from "dehumidify" to any air conditioning cycle chosen.

9. ALARM

When the water tank is full, "E4" will be displayed on the display panel. To resume operation, please remove the rubber cap of the drain hose to drain out the water firstly. After finishing draining the water out, please restart the unit and then the unit can operate normally.

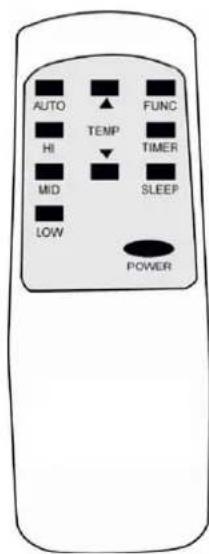

REMOTE CONTROL FUNCTION

AUTO ▲ FUNC TEMP TIMDR MD SLEEP LOW POWER

1. POWER
2. FUNC
3. TIMER
4. AUTO
5. HI
6. MID
7. LOW
8. SLEEP
9. TEMP.

Stop/Start switch

Function "MODE" selector

Hourly programming

Automatic fan speed

High fan speed

Medium fan speed

Low fan speed

Night operation selector

Temperature selector

NOTICE

This unit can evaporate the condensation and flow out through the exhaust hose automatically.

1. When the unit is in the cooling function, it does not need the exhaust hose installed. Please make sure that the rubber cap is locked on drain hose, when the unit is running.
2. When operating the heating function, the "①" rubber cap on drain hose should be pulled out and install a proper drain hose in order to improve the heating effect
3. When operating the dehumidifying function the "①" rubber cap on drain hose should be pulled out and install a proper drain hose.
4. Please remove the air exhaust hose, connect a drain hose to the drain hole and lead the water to the outside in order to let the dehumidifying capacity intensify.

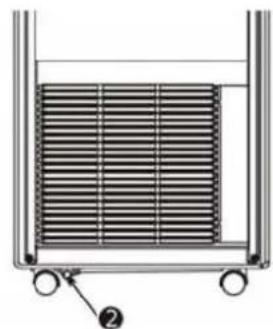

   ※ When the water tank is full,"E4" will be displayed on the display panel. To resume operation, please remove the rubber cap "②" of the drain hose to drain out the water first. After drainage is complete, please restart the unit and then the unit can operate normally.

MAINTENANCE

PLEASE DISCONNECT THE POWER CORD BEFORE CLEANING.

AIR FILTER

The air filter located on the left hand side of the unit can be removed, simply by pulling the frame in an upward motion.

CONDENSER/EVAPORATOR

Use a brush attachment with a vacuum cleaner.

CABINET

Wipe with a damp cloth and polish with a soft cloth.

Technical line drawing of a mechanical or industrial device with heat exchangers and wheels (no text or symbols)

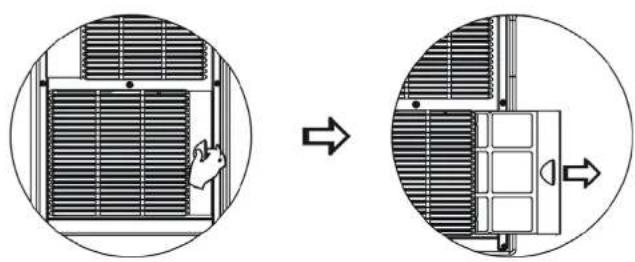

To remove the air filter, please follows the arrow direction and push the filter lightly, and then take out the filter for cleaning.

Diagram showing airflow or ventilation process between two circular views, with no visible text or symbols.

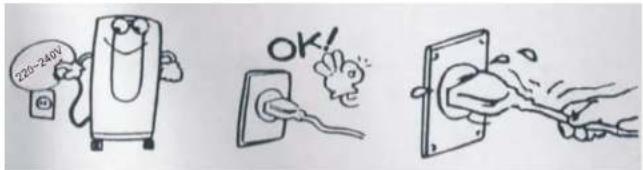

POWER SUPPLY

(1) Confirm the correct power.
(2) Insert the plug into the outlet firmly. In case of dangerous leak, prevent the AC cord from scarring.
(3) Don't pull power wire by force because it will cause damage to power wire.

220-240V OK!

PLACE FOR USE

(1) Because the machine expels hot air, please don't operate in a narrow place.
(2) In case of dangerous leak, don't work the machine in a humid place.
(3) Don't place the machine in a sunlit corner otherwise the colors soon fade out of the machine.

HELPFUL HINTS

The unit is fitted with a special thermal cut off device.

Please ensure the unit is not placed against objects which will obstruct air intake e.g. furniture or curtains as this will affect it's performance dramatically.

Do not place the unit in direct sunlight, as this may cause the unit to overheat and turn off.

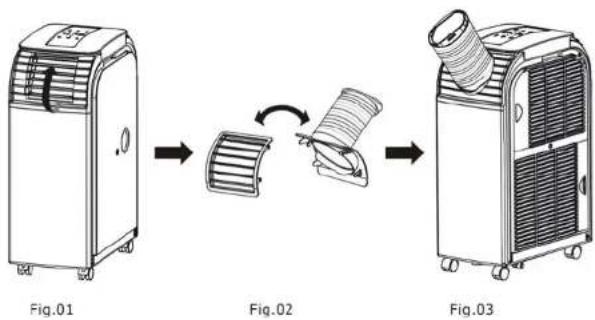

EXHAUST TUBE INSTALL

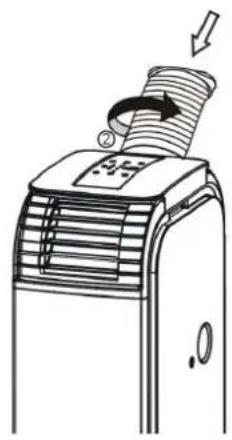

1. Circumrotate the wind pipe according to the direction as the arrowhead ① indicates and then the wind pipe can be took out from the unit.
2. Circumrotate the wind pipe according to the direction as the arrowhead ② indicates and then make it connect with the unit.

Illustration of a portable air conditioner unit with a cup and fan, showing airflow direction (no text or symbols)

How to enjoy heating function?

When operating heating function:

1. Disassemble the subassembly of outlet and the subassembly of exhaust pipe as arrow direction Fig.01 and then exchange the two subassemblies to install. The finished illustration is as Fig.03.

TROUBLE SHOOTING

Problem	Cause	Trouble
E1 Electrical short on both temperature sensor and PCB		Contact an electrician for repair
E2 Electrical short of temperature sensor copper tube and PCB wiring		Contact an electrician for repair
E3 Leaking refrigerant from copper tube Contact an electrician for repair
E4 Indicates water tank full or possibly the incorrect wiring of plug		User needs to pull out the rubber stopper which is located at the bottom of the unit, to drain the water away. Check that the plug has been wired correctly.

SPECIFICATION

Model No. SM35G SM40G

Power Source 220\~240VV/50Hz 220\~240VV/50Hz

Rated Power (EN60335)

Cooling

1480W

1700W

Heating

1300W

1500W

Cooling Capacity 3500W 4000W

Heating Capacity

3500W 4000W

Moisture Removed

60 L/DAY

70 L/DAY

Refrigerant

R410A

R410A

Dimensions (mm)

300Wx505Dx778H

300Wx505Dx778H

Model No.

SM26G

SM26W

Power Source

220-240V\~50Hz

Rated Power (EN60335)

950W

950W

Cooling

1100W

1100W

Heating

Cooling Capacity

2600W

2600W

Heating Capacity

2600W

2600W

Moisture Removed

50 L/DAY

Refrigerant

R410A

Dimensions (mm)

300Wx480Dx630H

(CE) N 842/2006:

R410A is a kind of fluorinated greenhouse gases covered by

the Kyoto Protocol.

Its total global warming potential (GWP) is 1975

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

MAIKO

SMARTCOOL

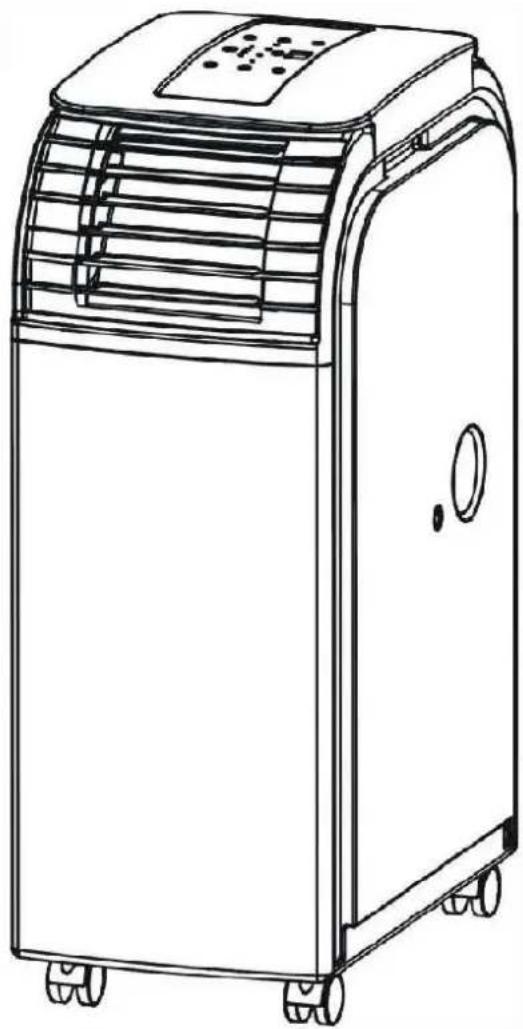

INSTRUCTION FOR USE

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

MOBILE AIR CONDITIONER

Vor Inbetriebnahme

GEBRAUCHSANWEISUNG

Line drawing of a washing machine with handle and control panel (no text or symbols)

Simple line drawing of a vehicle chassis with wheels and a numbered component (no text or symbols)

Diagram of a heat exchanger or cooling unit with a submerged grid and labeled component (no text or symbols present)

Reinigung Wartung

WARTUNG

BITTE ZIEHEN SIE DEN NETZSTECKER AUS DER NETZSTECKDOSE, BEVOR SIE DAS GERÄT REINIGEN.

LUFTFILTER

Diagram showing two steps of a car air conditioner with labeled parts and directional arrows indicating motion.

>500mm Fig 1 400mm

MERCI D'AVOIR ACHETE UN CLIMATISEUR PORTABLE

LOGIK DE QUALITE

Line drawing of a mechanical device with circular components and a handle (no text or symbols)

CONTENU

Line drawing of a portable air conditioner with a cup and fan, showing airflow direction (no text or symbols)

Line drawing of a car air conditioner unit with airflow direction arrow (no text or symbols)

INSTALLATION DU KIT POUR FENETRE

Diagram illustrating the installation of an air conditioner with labeled components and airflow direction

Technical line drawing of a mechanical device with two views: top shows a wheel assembly and bottom shows a heat exchanger (no text or symbols)

PANNEAU DE COMMANDE ET CONTROLE A DISTANCE

AUTO HI MID LOW TEMP FUNC TIMER SLEEP POWER

1. POWER

2. FUNC

3. TIMER

4. AUTO

5. HI

6. MID

7. LOW

8. SLEEP

9. TEMP.

Bouton Arrêt/Marche

Technical diagram of a vehicle air conditioning unit showing airflow direction (no text or labels)

Diagram showing a room interior with ventilation grilles before and after installation, no text or symbols present

MODEL	SM26G	SM26W	SM35G	SM40G
POWER SOURCE	220-240V 50Hz AC		220-240V 50Hz AC
RATING COOLING POWER CONSUMPTION(W) (at Wb24 /Db35 )	990W	990W	1340W	1530W
RATED POWER (EN60335) COOLING HEATING	1100W 950W	1100W 950W	1300W 3500W	1700W 1500W
COOLING CAPACITY HEATING CAPACITY at Wb24 /Db35 )	2,600W	2,600W	3500W	4,000W
MOISTURE REMOVAL (30 , RH80%)	50 L/Day	50 L/Day	60 L/Day	70 L/Day
REFRIGERANT	R410a	R410a	R410a	R410a
UNIT DIMENSION (mm)	W300xD480xH630		W300xD505xH778

(CE) N 842/2006:
