Product Type	In-Ear Headphones
Brand	Shure
Model	SE535LTD
Transducer	Triple Balanced Armature Drivers
Sensitivity	119 dB SPL/mW (at 1 kHz)
Impedance	36 Ω (at 1 kHz)
Frequency Response	18 Hz – 19 kHz
Weight	30 g (1 oz)
Connector	Gold-plated stereo 3.5 mm (1/8 in) plug
Cable	Detachable, secure fit with click
Included Ear Tips	Soft flex inserts (S/M/L), foam inserts, triple-flange inserts
Sound Isolation	Sound Isolating™ – passive noise reduction
Included Accessories	Carrying case, adapters, replacement cables, cleaning tool
Care and Cleaning	Clean inserts with warm water; wipe with mild antiseptic; use cleaning loop for nozzle
Safety	Do not modify product; do not push insert beyond ear canal; cleaning tool for earphones only
Operating Temperature	-18 to 57 °C (0 to 135 °F)
Storage Temperature	-29 to 74 °C (-20 to 165 °F)
Approvals	CE, compliant with EMC Directive 2004/108/EC, EN55103 (E1 + E2)

Frequently Asked Questions - SE535LTD SHURE

How to connect the detachable cable?

Align the L and R markings (or colored dots: red for right, blue for left). Press straight in until you hear a click. Do not pull at an angle.

What if the bass is weak?

This means the insert is not forming a tight seal. Gently push the earphone deeper or try a different insert.

How to change the ear tips?

Rotate and pull the used insert to remove it. Push the new insert onto the nozzle until the flange is completely covered.

How to clean the earphones?

Remove the inserts, gently rinse them with warm water and let dry. For the nozzle, use the provided cleaning loop. Clean the connectors with a dry cotton swab.

Can I use custom molded inserts?

Yes, but for optimal performance, use only the inserts provided by Shure, except for custom molded inserts.

How to properly wear the earphones for physical activity?

Loop the cable around your ear and tighten it behind your head. Slide the cable adjuster up to remove slack.

What if the cable does not detach?

Grip the connector and the earphone near their junction, pull straight without twisting. The connector is click-lock, not threaded. A click occurs when connecting.

Can I use an alcohol-based disinfectant?

No, use a mild antiseptic. Alcohol-based disinfectants can damage the earphones.

What is the warranty if I modify the product?

Any modification voids the warranty and may cause injury or product failure.

How to know if the insert is correctly installed?

The flange and the nozzle should not be visible. If they are, the insert is not properly in place.

USER MANUAL SE535LTD SHURE

Black-and-white profile of a person's head and shoulders, looking upward (no text or symbols visible)

©2010 Shure Incorporated 27A13835 (Rev. 2)

Shure Sound Isolating™ Earphones, built with balanced armature speakers, deliver a detailed soundstage free from outside noise. The powerful and stylish Shure SE earphones come with a detachable cable, adapters, a durable carrying case, and interchangeable Sound Isolating™ sleeves for a comfortable and personalized fit.

Printed in China

Detachable Cable

You may need to detach the cable from the earphones to attach optional components or to replace the cable if it becomes damaged. To prevent accidental separation, the connector has a snug fit. Take special care to prevent damage to the earphone and connector.

• Do not use pliers or other tools.

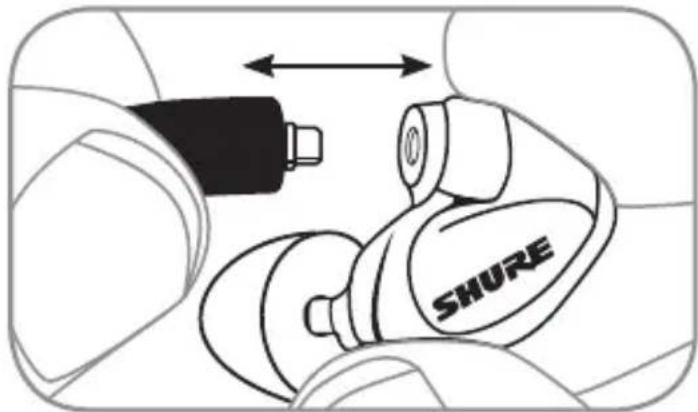

- Grasp the connector and the earphone as close as possible to where they join.
• Pull straight apart—do not twist. Cable is a snap fit, not threaded.
- Do not pull on the cable or put any pressure on the earphone nozzle.
- Listen for a click when connecting.
- When reattaching the cable, match the "L" and "R" markings. For clear cables and earphones, match the color dots (Red = Right, Blue = Left).

Note: If you pull at an angle, the connector will not detach.

Diagram of a SHURE car seatbelt with bidirectional arrow indicating movement (no text or symbols beyond brand name)

Audible click when properly seated

Wearing the Earphones

The following are some suggested ways of wearing the earphones.

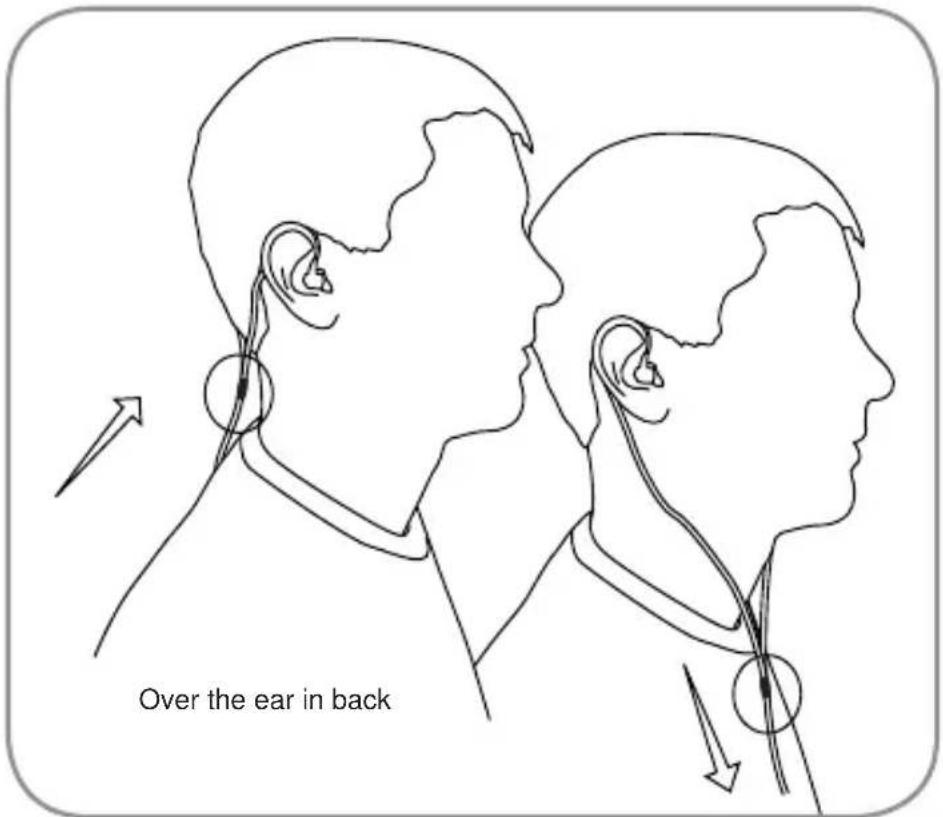

Wearing the cable over the ear and securing it behind the head can help keep the earphones in place during physical activity
Tighten the cable and take up slack by raising the cable cinch.

Inserting the Earphones

Close-up of a hand holding an earbell with black clip, no visible text or symbols

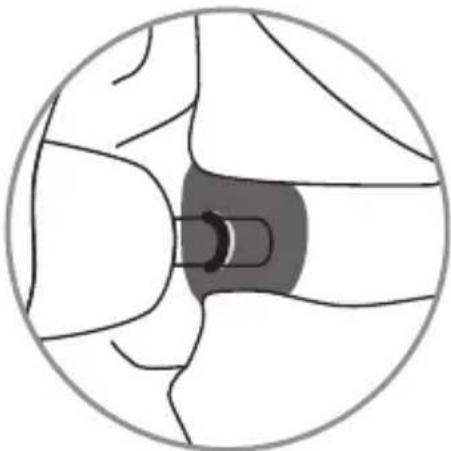

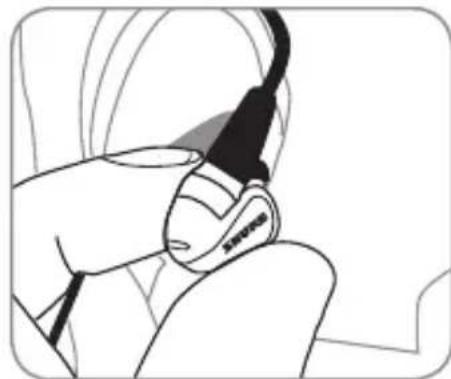

Insert the earphones so they form a tight seal. The fit of the earphone can greatly affect sound quality.

Important: If there seems to be a lack of low frequency response (bass), this means that the earphone sleeve is not forming a tight seal. Gently push the earphone deeper into the ear canal or try a different sleeve.

Cross-sectional diagram of a biological structure with internal layered patterns and a central dark region (no text or labels)

Warning: Do not push the earphone sleeve beyond the ear canal opening.

Changing Sleeves

Pure diagram of a mechanical or fluidic component without any text, numbers, or symbols

Twist and pull to remove the sleeve from the nozzle.

Simple line drawing of a vehicle head with a curved arrow indicating rotation (no text or symbols)

Slide on a new sleeve so that it completely covers the barb and the nozzle.

Caution: If the barb or any of the nozzle is exposed, the sleeve is not properly installed. Replace sleeves if they do not tightly grip the nozzle. To ensure proper fit and performance, use only sleeves supplied by Shure (unless using custom molded sleeves).

Removing the Earphones

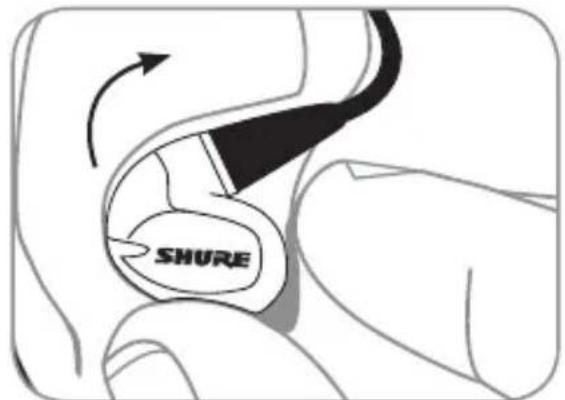

Grasp the body of earphone and gently twist to remove.

Note: Do not pull on cable to remove earphone.

Choosing a Sleeve

Select an earphone sleeve that provides the best fit and sound isolation. It should be easy to insert, fit comfortably, and easy to remove.

Soft Flex Sleeves: In small, medium, and large sizes. Made from pliable rubber.

Soft Foam Sleeves: Compress the foam sleeve between your fingers and insert into the ear canal. Hold in place for about ten seconds while the foam expands.

Triple-Flange Sleeves: If desired, use scissors to trim the stem on the sleeve.

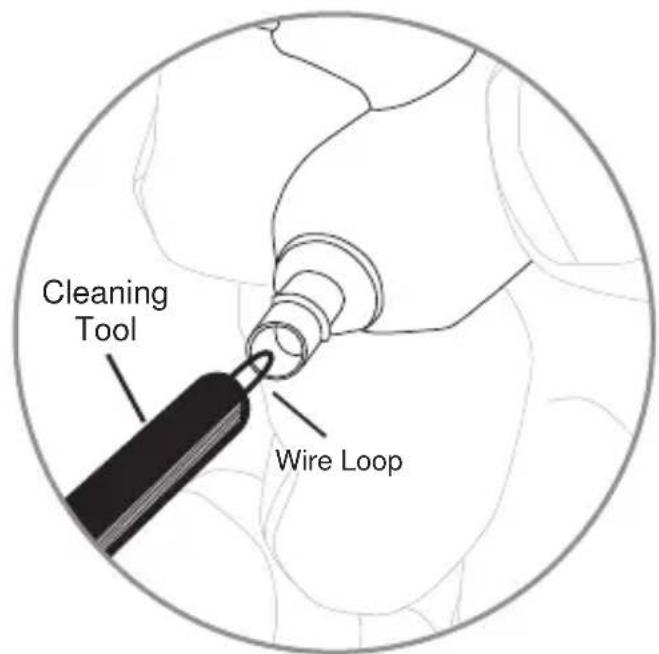

Cleaning the Earphone Nozzle

If you notice a change in sound quality, remove the sleeve and check the nozzle of your earphone. If nozzle is blocked, clear obstruction by using wire loop end of cleaning tool.

Caution: When cleaning, do not force any object through the earphone nozzle! This will damage the earphone sound filter.

Warning: The cleaning tool is only to be used to clean the earphones.

Any other use, such as using the tool to clean ears, could result in injury.

Accessories

• Earphone Sleeves
• Replacement Cables
• Carrying Cases

For more information visit www.shure.com

• Music Phone Accessory Cables
• Volume Control
- Adapters

Maintenance

• Careful maintenance ensures a tight seal between the sleeve and nozzle, improving sound quality and product safety.
• Keep the earphones and sleeves as clean and dry as possible.
• To clean sleeves, remove them from earphones, gently rinse in warm water and air dry. Foam sleeves require a longer drying time. Inspect for damage and replace if necessary. Ear sleeves must be completely dry before reusing.
• Wipe the earphones and sleeves with mild antiseptic to avoid infections. Do not use alcohol-based disinfectants.
• Do not expose earphones to extreme temperatures.
• Replace the sleeves if they do not fit properly.
• Do not attempt to modify this product. Doing so will void the warranty and could result in personal injury and/or product failure.
• Note: The cable connectors to the earphones may collect debris or other deposits that can affect audio quality. If this happens, disconnect the cables and clean them using a dry cotton swab.

WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

SE535 SE425 SE315
