USER MANUAL Evoke D2 Bluetooth PURE

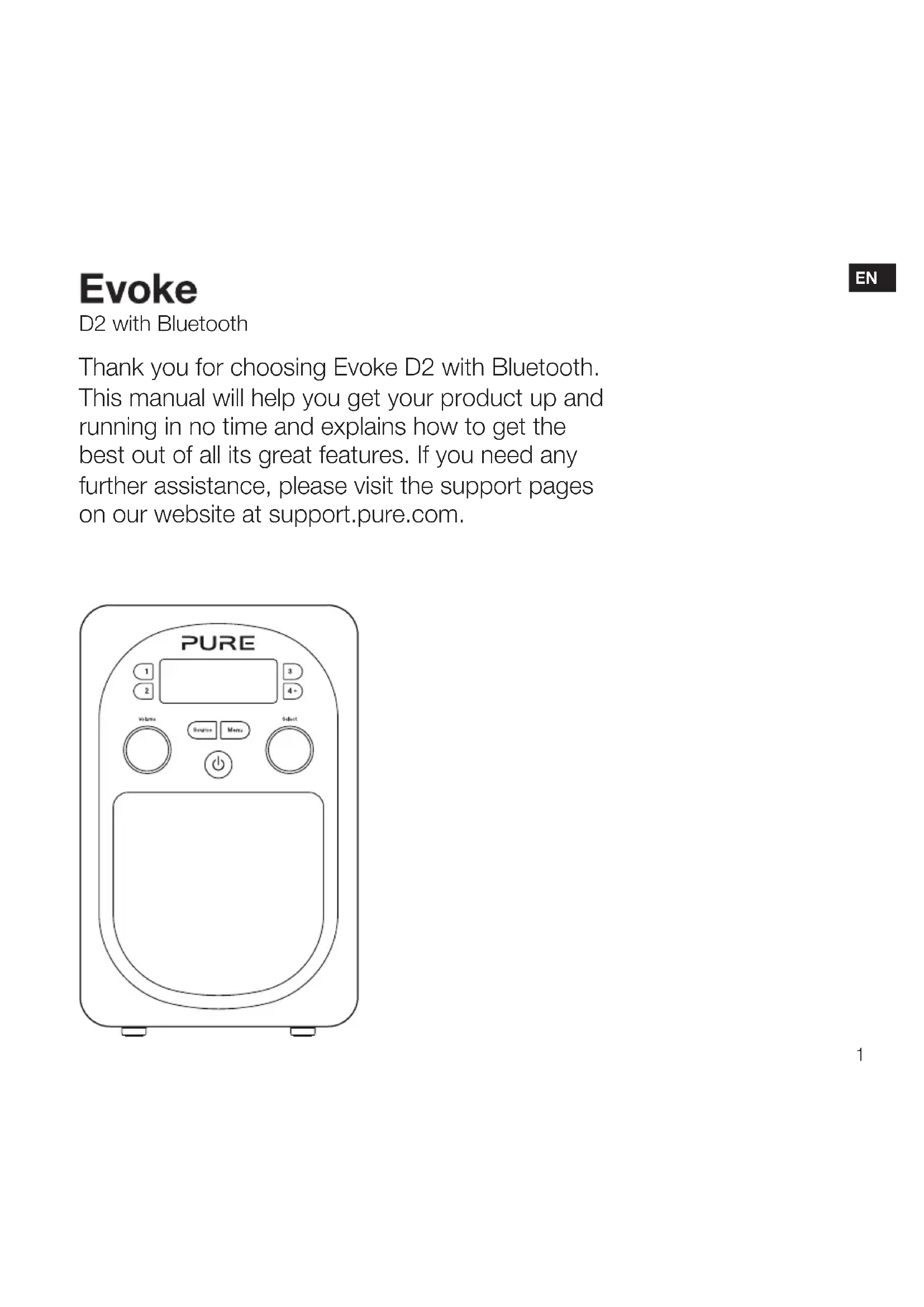

D2 with Bluetooth Thank you for choosing Evoke D2 with Bluetooth. This manual will help you get your product up and running in no time and explains how to get the best out of all its great features. If you need any further assistance, please visit the support pages on our website at support.pure.com. DA2 Safety information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Keep the unit away from heat sources such as radiators, heaters or other appliances that produce heat.

6. Do not expose the unit to direct sunlight.

7. Do not use the unit near water.

8. Avoid objects or liquids getting into the unit.

9. Do not remove screws from or open the unit casing.

10. Fit the mains adaptor to an easily accessible socket, located near the radio and ONLY use the mains power adapter

11. Should not be immersed in water, used in shower or bathroom if plugged into the mains.

ChargePAK B1 Safety Instructions

1. Read the instructions for ChargePAK use in this document.

2. Only use your ChargePAK with original Pure products.

3. Store ChargePAK in a cool, dry place at normal room temperature. Remove from devices that will be stored unused for

4. Do not puncture, modify, drop, throw, or cause other unnecessary shocks to your ChargePAK. May present a risk of fire,

explosion, or chemical burn if mistreated. 5. Do not dispose of ChargePAK in a fire or incinerator, or leave in hot places such as a motor car under direct sunlight. Do not store near oven, stove, or other heat source. 6. Do not connect ChargePAK directly to an electrical source, such as a building outlet or automobile power-point. Do not place into a microwave oven, or any other high-pressure container.

7. Do not immerse ChargePAK in water or otherwise expose it to liquids.

8. Do not short circuit ChargePAK.

9. Do not use or charge a ChargePAK that appears to be leaking, discoloured, rusty, deformed; emitting an odour; or is

otherwise abnormal. 10. Do not touch a leaking ChargePAK directly; wear protective material to remove and dispose of it properly immediately.

11. Do not store where children may have access.

12. Dispose of ChargePAK as per normal rechargeable batteries according to the local laws and regulations of your region. Some batteries may be recycled, and may be accepted for disposal at your local recycling centre. Damage to hearing can occur with consistent exposure to high volume when using headphones. Always check the volume level before inserting headphones into your ears. Use of headphones while operating a vehicle is not recommended and is illegal in some areas. Stop listening to your Evoke if you find it distracting while operating any type of vehicle or performing any other activity that requires your full attention.3

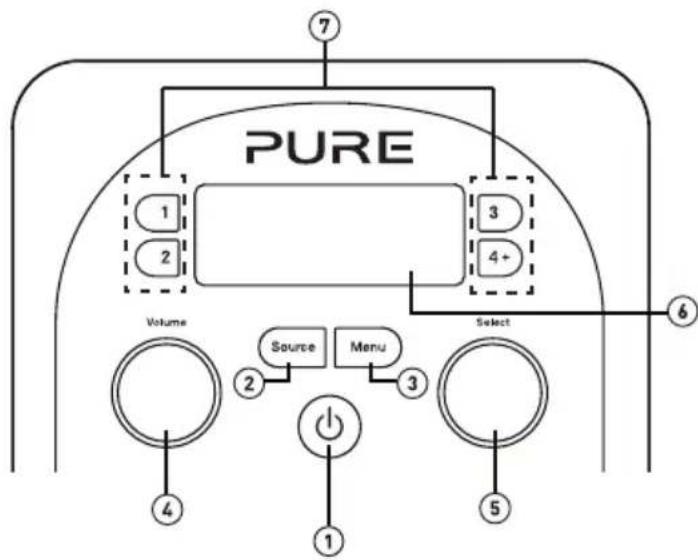

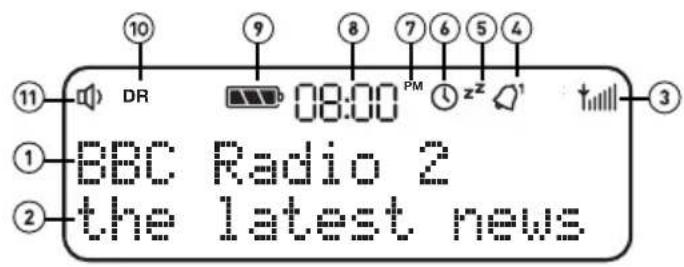

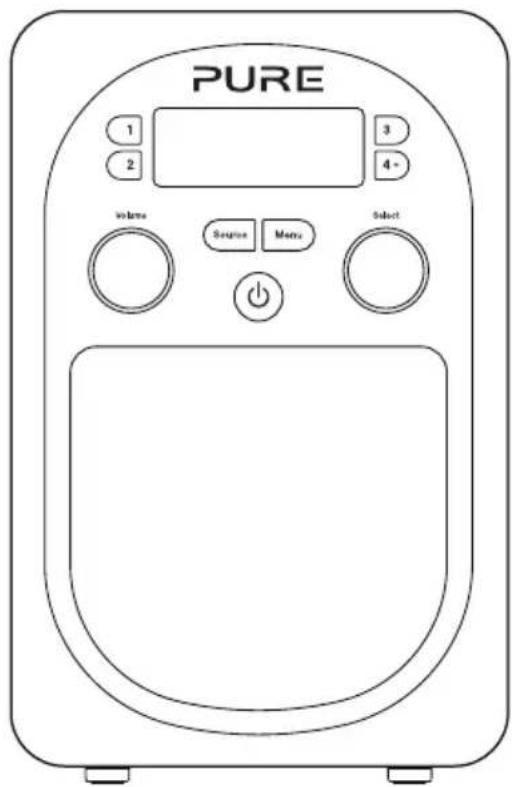

Contents 4 Introduction 4 Front panel controls 4 Display 5 Rear panel 6 Getting started 6 Quick set up 7 Using your Evoke 7 Selecting digital radio 7 Selecting FM radio 7 Pausing and controlling scrolling text 8 Storing and selecting presets 8 To quick-store a station to a preset button (1–3) 8 To store a station to the preset list (1–10) 8 To recall a preset when listening to digital radio or FM radio 9 Using Bluetooth 9 Preparing Evoke to stream audio using Bluetooth 10 Setting the alarm and sleep timer 10 Setting the alarm 11 Cancelling a sounding alarm 11 Snoozing a sounding alarm 11 Disabling an alarm 11 Setting the sleep timer 12 Options and settings 12 General settings 12 Bluetooth settings 13 Digital radio settings 13 FM settings 13 Audio settings 14 Display settings 15 Clock settings 16 Appendix 16 Help and advice 16 Installing the ChargePAK B1 17 Technical specifications4 Front panel controls Introduction 1. Standby: On/standby switch (mains powered) or on/off switch (ChargePAK powered).2. Source: Press to switch between Digital radio, FM radio, Auxiliary input and Bluetooth.3. Menu: Press to access setup options.4. Volume: Turn to adjust volume. Push to mute and un-mute.5. Select: Turn and press to browse and select radiostations (see page 7), select and adjust menu options or pause and control scrolling text (see page 7). 6. Display: See below for more information on the display options.7. Presets 1 - 4+: Store up to 10 digital or 10 FM radio preset stations. the latest news BBC Radio 2

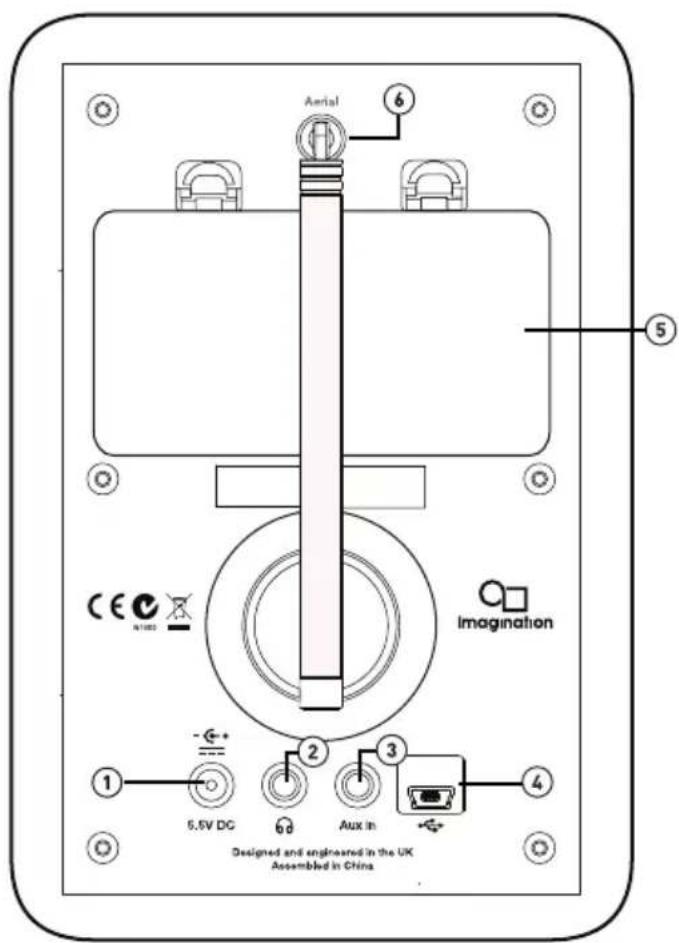

2. 3.5mm stereo headphone socket.

3. 3.5mm auxiliary input connection for an iPod, MP3

4. Mini-B type USB connector for USB software

5. Compartment for ChargePAK B1 rechargeable

battery (sold separately).

6. Telescopic antenna.6

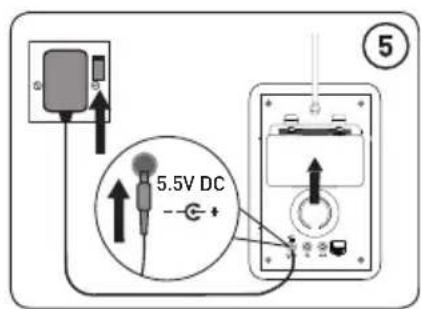

Getting started Note: If you have a ChargePAK B1 rechargeable battery (sold separately) fit it now before plugging Evoke in. See page 16 for more information.

• Unclip the aerial and fully extend it (steps A and B).

• Insert the jack of the supplied mains adapter into the socket on the rear of the radio (C).

Select your language when prompted. Turn the Select dial to select a language (English/French/German/ Italian/Spanish) and push to confirm.

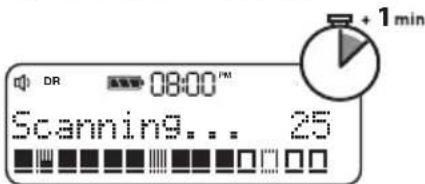

English Language * Wait for the radio to complete an Autotune for all available stations. When the Autotune is complete, a station will be selected.

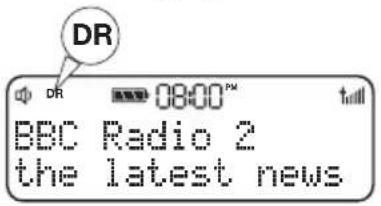

Using your Evoke Selecting digital radio Press Source to switch to digital radio.Changing digital stations1. Turn the Select dial to the station you want to listen to.2. Push the Select dial to tune into the station. Selecting FM radio Press Source to switch to FM radio.Seek tuningTurn and release the Select dial right or left to seek to the next or previous FM radio station that has a strong signal.Manual tuning1. Change the FM radio tuning mode to ‘Manual’ (see page 13).2. Turn the Select dial right or left to step up or down 0.05 MHz. the latest news BBC Radio 2

Using the auxiliary input 1. Connect the line out or headphone socket of your auxiliary device tothe Aux In socket on your Evoke using a suitable cable.

2. Press Source to switch to auxiliary input.

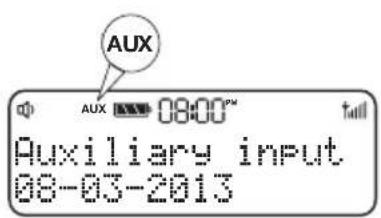

3. The Auxiliary input screen will display and Evoke will play any audiothat is playing on the auxiliary device.08-03-2013Auxiliary input DRFMAUX 08-03-2013 Auxiliary input PMDRFMAU

Pausing and controlling scrolling text 1. When ‘Scrolling text’ information is displayed in either digital or FMradio, push the Select dial to pause the scrolling text.2. Turn the Select dial to scroll forwards and backwards through thetext. To exit push the Select dial again. Pick of the po BBC Radio 2BBC Radio 2

DR8 To quick-store a station to a preset button (1–3) Tune to the digital or FM radio station you want to store. Press and hold one of the numbered preset buttons (1–3) for two seconds to save the current station as a preset. You can save over existing presets. To store a station to the preset list (1–10) 1. Tune to the digital radio or FM radio station you want to store.2. Press and release the 4+ button to view the numerical list of storedpresets, then turn the Select dial to choose any preset numberbetween 1 and 10. You can overwrite existing presets.3. Press and hold the Select dial until you see the ‘Preset stored’message. To recall a preset when listening to digital radio or FM radio To tune to presets 1 to 3, press the corresponding numbered button on Evoke (1 to 3).To access the full list of presets (from 1 to 10):1. Press and release the 4+ button.2. Turn the Select dial right or left to scroll through the list of presets andpush the Select dial to tune to the selected preset.Store up to 10 digital and 10 FM radio stations for quick access.

Storing and selecting presets

Using Bluetooth If your phone or tablet is capable of storing audio files, you can use Bluetooth to stream any music stored on your phone or tablet to Evoke. Note: Adding a Bluetooth device varies on different mobile devices. See your Bluetooth mobile device manual for specific information. Preparing Evoke to stream audio using Bluetooth

1. Enable Bluetooth on your mobile device.

2. On your mobile device, select the option to add a new Bluetooth device. On some mobile devices you

may need to select the search or scan option.

3. Start the pairing process on your mobile device. Do this by selecting Evoke from the list of available

devices that appear on the mobile device’s screen. This will connect automatically once paired. You will now be able to start streaming audio to Evoke from your Bluetooth device. Note: You will need to disconnect any connected mobile Bluetooth devices from Evoke to stream from a different Bluetooth device. Bluetooth will automatically disconnect if you go out of range of Evoke. To manually disconnect you will usually need to use the Bluetooth settings on your mobile device. Note: For more help with Bluetooth, see our “Help and advice” on page 16.10 Setting the alarm and sleep timer The alarm in Evoke switches the radio on (if in standby) and tunes to a digital or FM radio station or sounds a tone.Note: The alarm function does not work when Evoke is being powered by the ChargePAK B1. Alarm the latest news BBC Radio 2

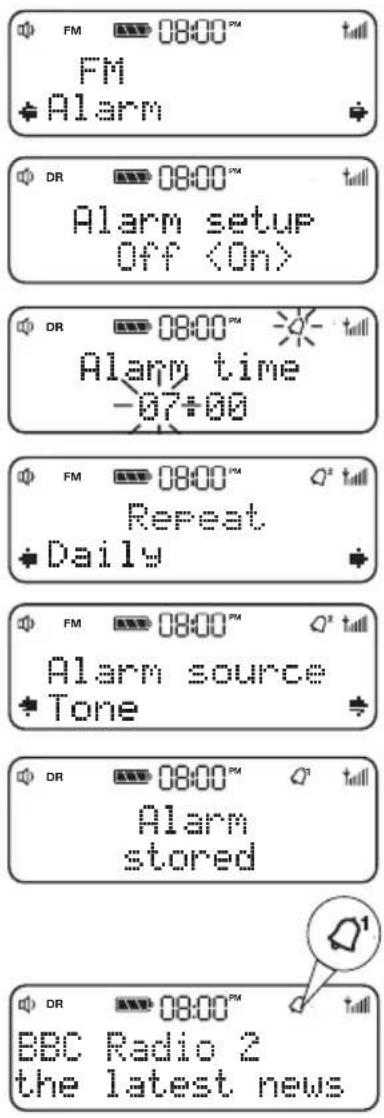

Setting the alarm 1. Press Menu.2. Turn and press the Select dial to choose ‘Alarm’.3. Turn and press the Select dial to choose ‘On’.4. Turn and press the Select dial to set the hour for the alarm. Repeatto set the minutes for the alarm.5. Turn and press the Select dial to specify one of the following alarmrepeat options: ‘Once’, ‘Daily’, ‘Weekdays’, ‘Weekends’, ‘EverySaturday’ or every ‘Every Sunday’ and press Select to confirm.6. Turn and press the Select dial to specify ‘FM’, ‘DAB’ or ‘Tone’. Ifyou are specifying a tone alarm, skip to step 9.7. Turn and press the Select dial to specify which station should beplayed when the alarm goes off. You have the option of selectingone of your preset stations or you can select ‘Last Used’ to selectthe station that you were last listening to.8. Turn and press the Select dial to set the volume that the radio willplay at when the alarm sounds.9. The alarm icon will appear on the display to show that the alarm is set. DRFM

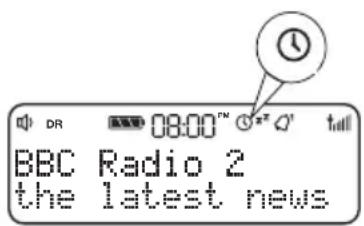

Cancelling a sounding alarm To cancel a sounding tone alarm, press either the 3, 4+, Menu or Source button, or push the Select dial. Note: If you have set up your alarm to tune into a radio station, you can only cancel the alarm by pressing the Standby ( ) button. Snoozing a sounding alarm To snooze a sounding alarm, press either the preset number 1 or preset number 2 button. Disabling an alarm 1. Press Menu.2. Turn and press the Select dial to choose ‘Alarm’.3. Turn and press the Select dial to choose ‘Off’.4. The alarm icon on the display will disappear. Setting the sleep timer The sleep timer can be set to switch Evoke off after a period of time. 1. Press Menu.2. Turn and press the Select dial to choose ‘Sleep timer’.3. Turn and press the Select dial to set the timer for up to 90 minutesor choose Sleep off to cancel. The sleep timer icon will appear on the display to show that the sleeptimer is set.

DR12 Options and settings General settings Changing the language

2. Turn and press the Select dial to choose ‘Settings’.

3. Turn and press the Select dial to choose ‘Language’.

4. Turn and press the Select dial to select a menu language from ‘English’, ‘French’, ‘German’, ‘Italian’ or

’Spanish’. Factory reset Resetting your Evoke removes all presets, stored stations, alarms and resets all other options to default settings.

3. Turn and press the Select dial to ‘Factory reset’.

4. Turn and press the Select dial to confirm that you want to reset the Evoke to default settings.

3. Turn and press the Select dial to ‘Version’.

Update Contact Pure technical support (http://support.pure.com) for more information on how to update Evoke to the latest software version. Bluetooth settings You can use the Bluetooth menu to make Evoke visible or invisible to other Bluetooth devices:

2. Turn and press the Select dial to choose ‘Bluetooth’.

Turn and press the Select dial to turn Bluetooth ‘On’ or ‘Off’.13

Digital radio settings Autotune You can use the autotune function to automatically scan for new digital radio stations and remove inactive ones. Note: Autotune is only available when you have selected ‘Digital’ as the radio source. To carry out an autotune:

2. Turn and press the Select dial to choose ‘Autotune’. The number of stations found will be displayed

during the autotune. When the autotune has finished, Evoke will tune to the last station that you were listening to. FM settings FM stereo option You can choose between ‘Stereo’ or ‘Mono’ reception when listening to FM radio. You may want to choose Stereo if listening using headphones. Note: The FM stereo option is only available when you have selected ‘FM’ as the radio source. To change between Stereo or Mono reception:

2. Turn and press the Select dial to choose ‘FM stereo’.

3. Turn and press the Select dial to choose between ‘Stereo’ or ‘Mono’ FM reception.

FM tuning mode Press Menu and turn and press the Select dial to choose ‘FM Tuning Mode’. Choose from the following two modes: Seek: When you turn the Select dial, the radio tunes to the next station with a good signal. Manual: When you turn the Select dial, the radio tunes up or down the FM radio frequency range by 0.05 MHz. Audio settings To adjust the bass and treble settings:

2. Turn and press the Select dial to choose ‘Audio’.

Turn and press the Select dial to choose ‘Bass’ or ‘Treble’.

4. Turn and press the Select dial to set the level from -6 (low) to 6 (high).14

Changing the information shown on the display

1. Press Menu and turn and press the Select dial to choose ‘Display’.

2. Press Menu and turn and press the Select dial to choose ‘Information’.

3. Turn and press the Select dial to choose one of the following options:

Scrolling text: Provided by the broadcaster. Signal strength: The clear block indicates reliable reception level. Date: Displays the current date. Signal quality: (Digital radio only) From 0 (low) to 100 (high). Display settings Changing the backlight brightness level

1. Press Menu and turn and press the Select dial to choose ‘Display’.

2. Turn and press the Select dial to choose ‘Backlight’.

5. Turn and press the Select dial to set a brightness level between ‘1’ (dim) and ‘5’ (bright).

Changing the duration that the backlight is illuminated

1. Press Menu and turn and press the Select dial to choose ‘Display’.

2. Turn and press the Select dial to choose ‘Backlight’.

3. Turn and press the Select dial to adjust the duration the backlight is illuminated for when Evoke’s display is

‘Active‘ or in ‘Standby’.

4. Turn and press the Select dial to select ‘Duration’.

5. Turn and press the Select dial to choose one of the following option

Always on: The backlight will always be illuminated at your preferred brightness level. Timed off: The backlight will always be illuminated at your preferred brightness level when a button is pressed and then switch off after 7 seconds of inactivity.15

Clock settings Setting the time and date The time and date on Evoke are automatically set by the FM or digital radio signal. If the time/date does not update automatically, you can manually set it using this option. Note: Any time or date updates received by an FM or a digital broadcast will override manual settings, if clock synchronisation is enabled (see the following page for more information). Setting the time and date manually

1. Press Menu and turn and press the Select dial to choose ‘Clock’.

2. Turn and press the Select dial to choose ‘Set Time/Date’.

3. Turn and press the Select dial to set the hour. Repeat to adjust the minutes.

4. Turn and press the Select dial to set the day of the month. Repeat to set the month and year.

2. Turn and press the Select dial to choose ‘Set 12/24 hour’. Repeat to set the required time format.

Changing the date format

1. Press Menu and turn and press the Select dial to choose ‘Clock’.

2. Turn and press the Select dial to choose ‘Set date format’. Repeat to set the required date format.

Clock synchronisation options You can select the radio sources that you want to use for setting the time. By default, Evoke uses both the FM and digital radio signals to synchronise the time.

1. Press Menu and turn and press the Select dial to choose ‘Clock’.

2. Turn and press the Select dial to choose ‘Clock synch’.

3. Turn and press the Select dial to choose the required clock synchronisation option and press Select.

Changing the alarm snooze time

1. Press Menu and press the Select dial to choose ‘Clock’.

2. Turn and press the Select dial to choose ‘Set snooze time’.

3. Turn and press the Select dial to choose a snooze time between 5 and 59 minutes.16

Appendix Help and advice I can’t see Evoke in the list of available Bluetooth devices on my mobile device This may be because your Evoke Bluetooth visibility setting is set to ‘Off’ (see page 12). Your Evoke setting will need to be set to ‘On’ to pair wih your mobile device. My mobile device is prompting me for a passcode when I try to pair with Evoke Some legacy Bluetooth devices may prompt you to enter a passcode when trying to pair with Evoke. If this occurs, enter the code ‘0000’.

1. Switch Evoke off and disconnect from the mains

2. Open the battery compartment.

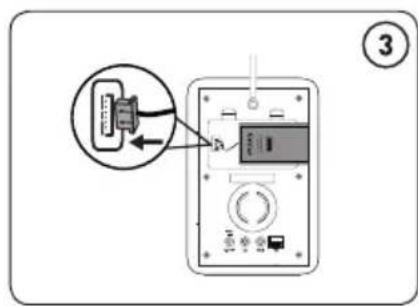

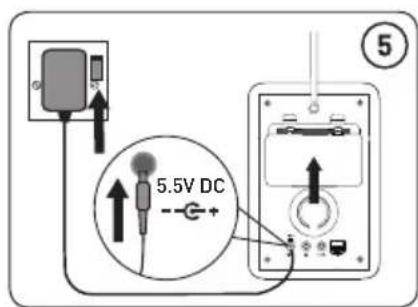

3. Insert the ChargePAK connector plug into the

socket in the compartment. Line up the ridges on the plug with the slots in the socket to ensure correct orientation. Do not force the plug.

4. Insert ChargePAK into the battery compartment,

5. Replace the battery cover and connect Evoke to

6. ChargePAK will begin charging.

Note: If you are charging ChargePAK for the first time or after an extended period of inactivity it is recommended that it is charged for around 24 hours to ensure full battery power. If ChargePAK is flat there may be a slight delay before the battery charging indicator is displayed. 5.5V DC ChargePAK B1 ChargePAK B1 Installing the ChargePAK B117

Technical specifications Radio Digital and FM radio Frequencies DAB/DAB+/DMB-R/Parametric stereo decode up to 256 kbps FM radio 87.5-108 MHz Bluetooth A2DP support Audio 1.6W RMS. Full-range 3” drive unit. Input connectors 5.5V DC power adaptor socket (230V supplied), Mini USB connector for product updates, 3.5mm Line-in for auxiliary devices Output connectors 3.5mm stereo headphone socket. Mains power supply Adapter: Input: AC 100-240V, 50/60Hz, 0.18A, Output DC 5.5V , 1.0A; Main unit: DC 5.5V , 1.0A ChargePAK Pure ChargePAK B1 rechargeable battery pack (available separately) Power consumption Standby: 0.8W, Active: 1.7W Dimensions 115 mm wide x 180 mm high x 120 mm deep Approvals CE marked. Compliant with the EMC and Low Voltage Directives (2004/108/ EC and 2006/95/EC) ETSI EN 300 401 compliant. Australian C-Tick N1600 and Electrical Safety.18 Warranty information Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of two years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Should you have a problem with your unit please contact your supplier or contact Pure Support at http://support.pure.com. Disclaimer Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person or organization of such revisions or changes. Trademarks Evoke D2 with Bluetooth, ChargePAK, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited. Copyright Copyright © 2014 Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited. Version 2 February 2014. Disposal of Waste Electrical & Electronic Equipment This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.FR

D2 with Bluetooth DANSK
