USER MANUAL PDP5080XA PIONEER

PDP- 5080xA PDP- 4280xA

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.

If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

WARNING : THIS APPARATUS MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green & Yellow : Earth Blue : Neutral Brown : Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or

by the earth symbol coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

D3-4-2-1-2-1_B_En

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_En-A

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058 A En

CAUTION

The switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2a_A_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A_En

This product complies with the Low Voltage Directive 2006/95/EC and EMC Directive 89/336/EEC, amended by 92/31/EEC and 93/68/EEC.

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4_A_En

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

D3-4-2-1-6_A_En

Operating Environment

Operating environment temperature and humidity: +0^ to +40^ (+32^ to +104^) less than 85% RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (on strong artificial light) D3-4-2-1-7c_A_En

The following symbols are found on labels attached to the product. They alert the operators and service personnel of this equipment to any potentially dangerous conditions.

WARNING

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En

VENTILATION CAUTION

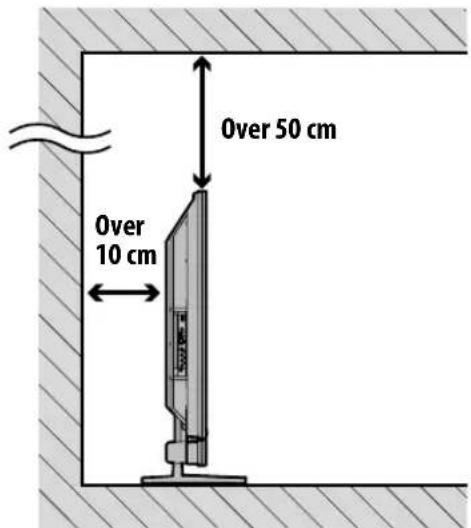

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation. For the minimum space required, see page 14.

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

STANDBY/ON Button

STANDBY: When placed into the standby mode, the main power flow is cut and the unit is no longer fully operational.

STANDBY/ON Indicator: The indicator is lit red when the unit is in the standby mode and is lit blue when it is in the power-on mode.

Contents

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. In some countries of regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit are the same.

Illustrations shown in this manual are for the PDP-5080XA unless otherwise specified.

Contents

01 Important user information 6

02 Safety precautions 8

Installation precautions 9

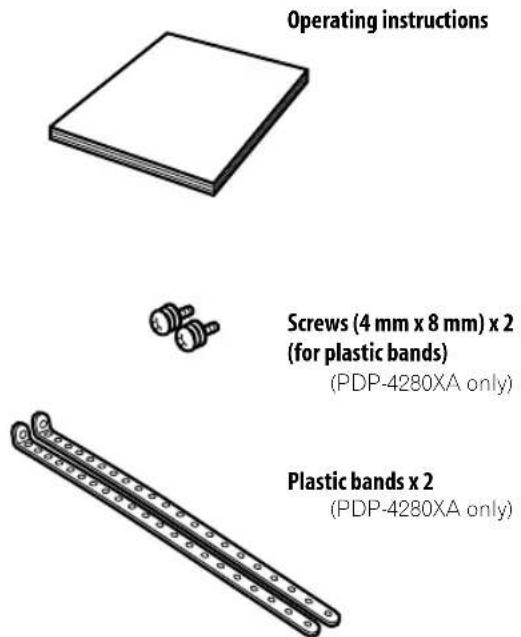

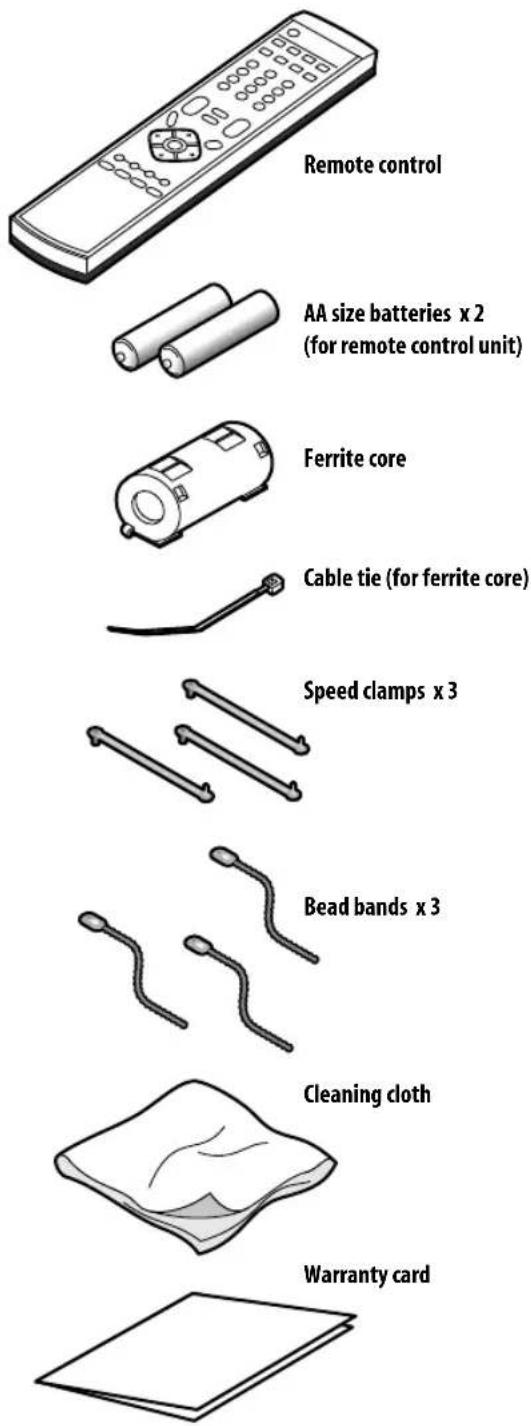

03 Supplied accessories 10

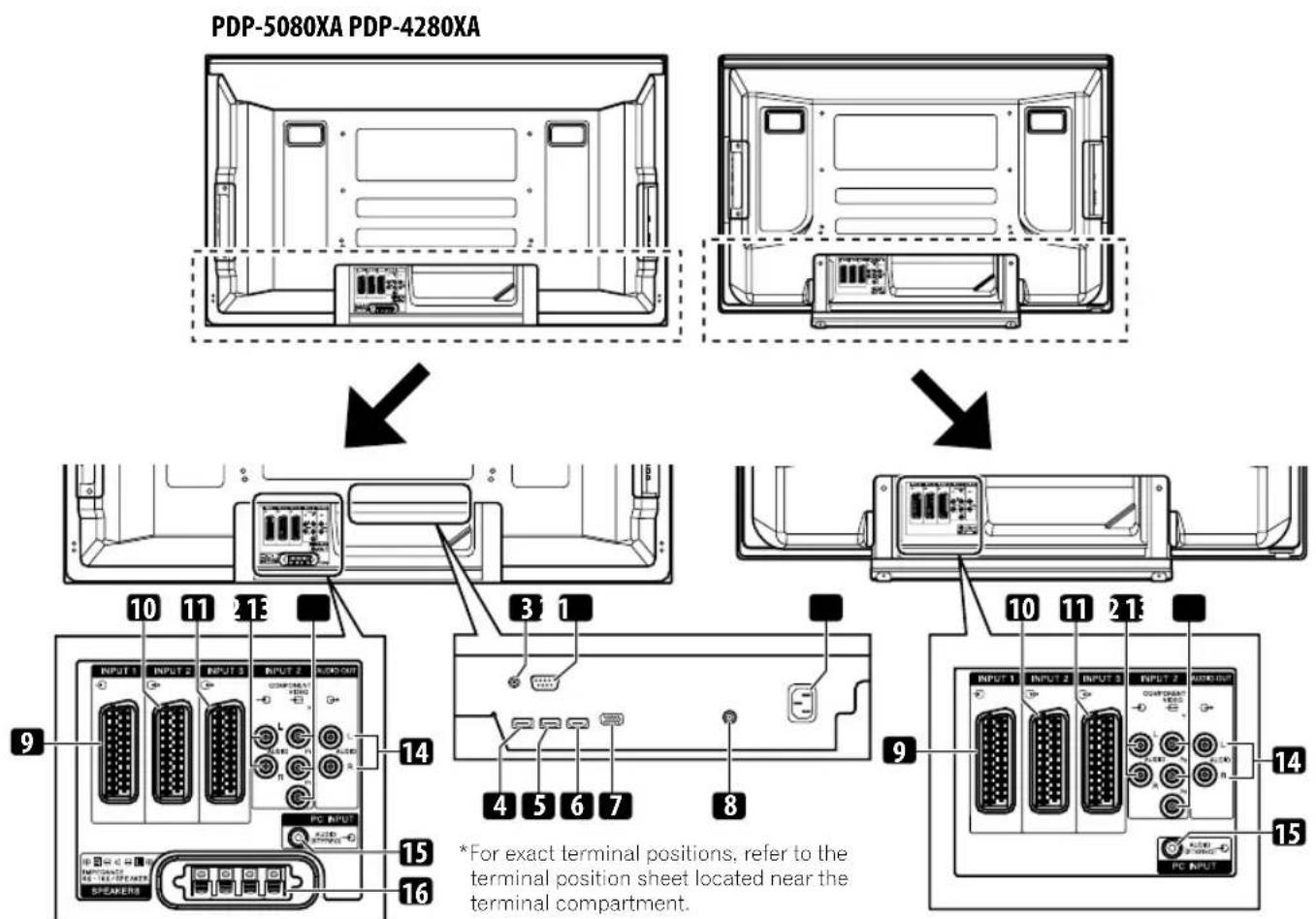

04 Part names 11

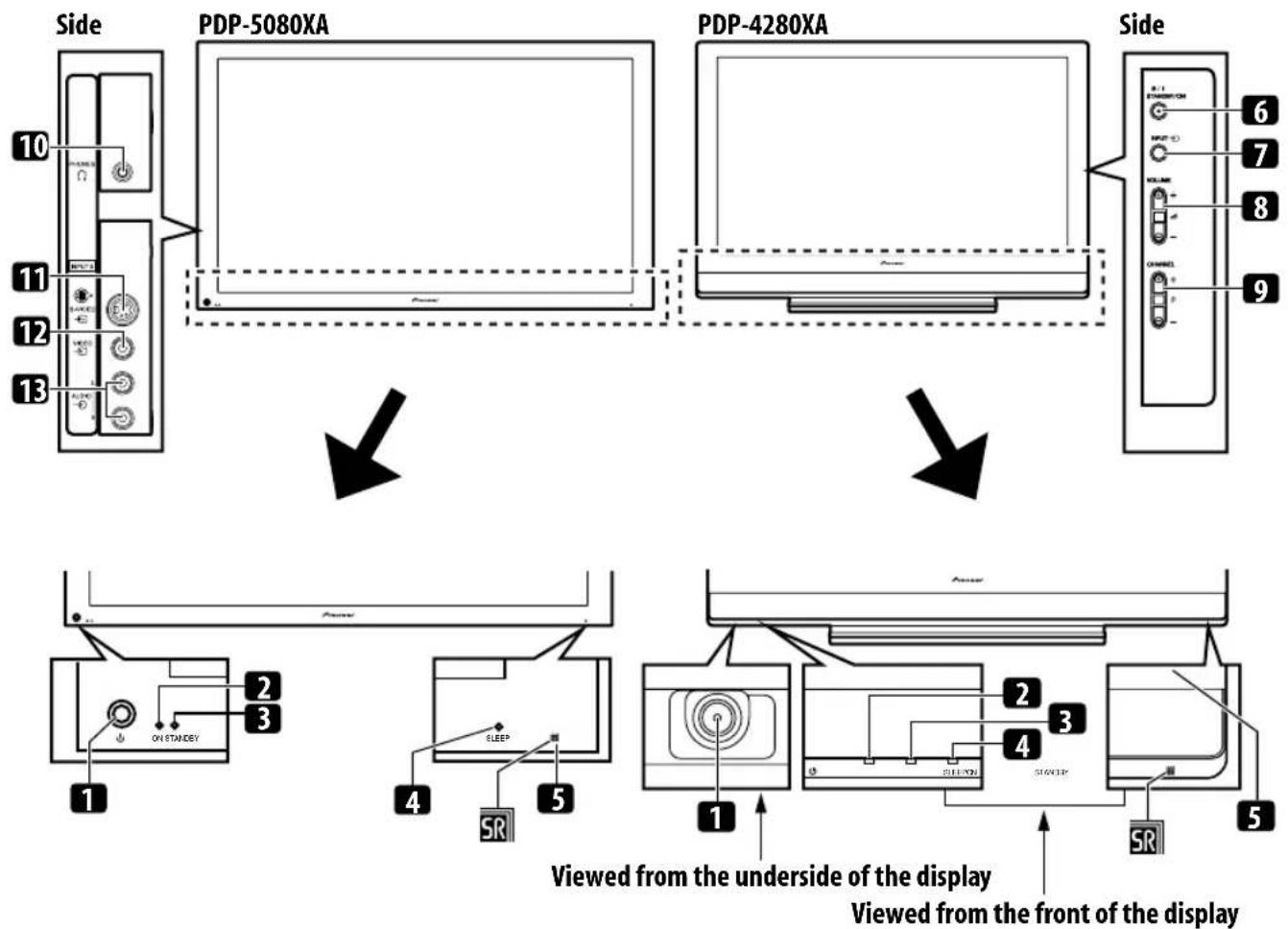

Plasma television. 11

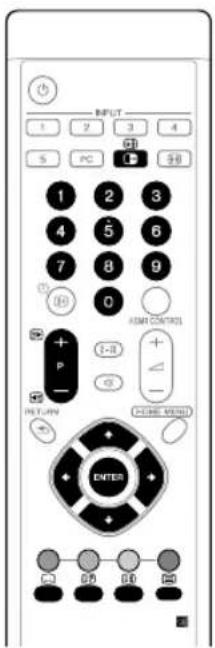

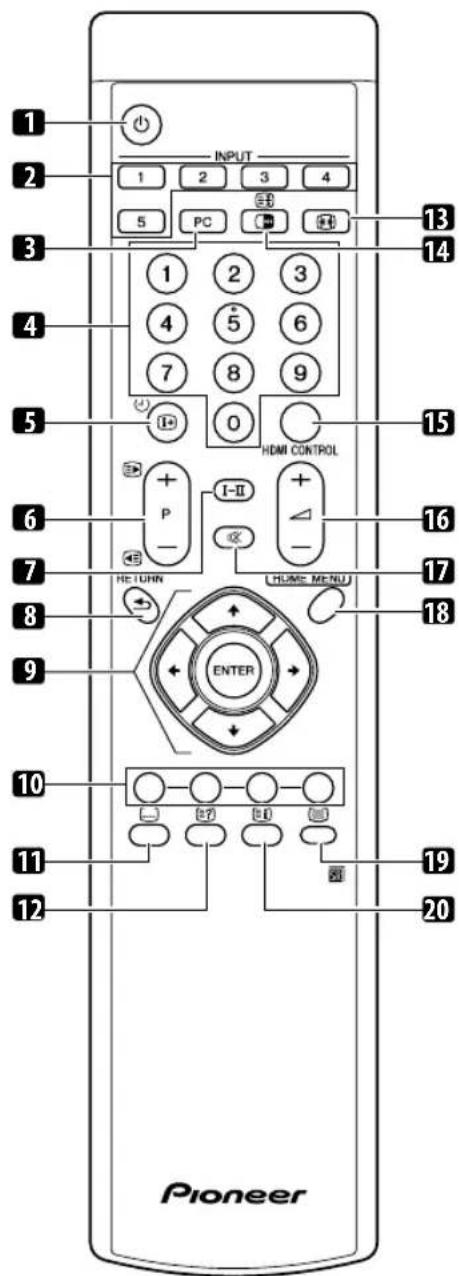

Remote control unit. 13

05 Preparation 14

Installing the plasma television 14

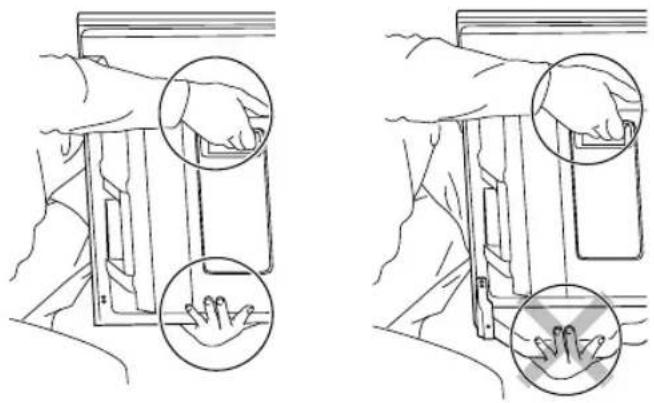

Moving the plasma television. 14

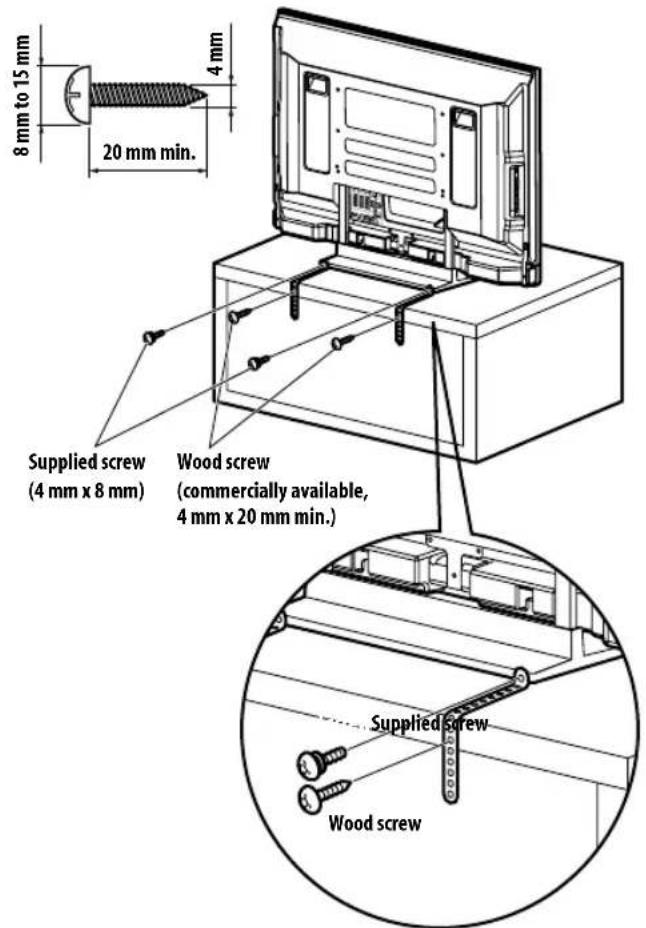

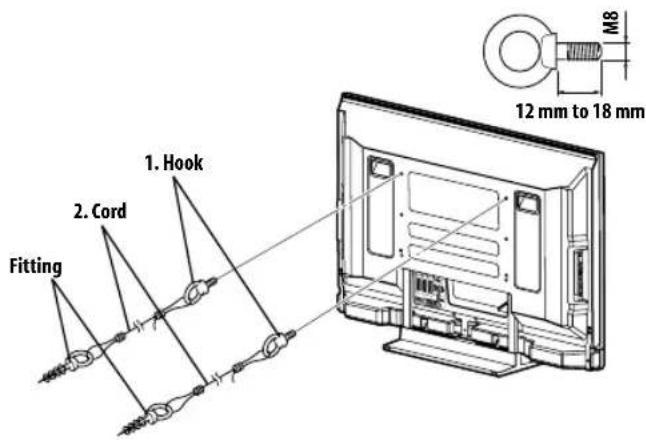

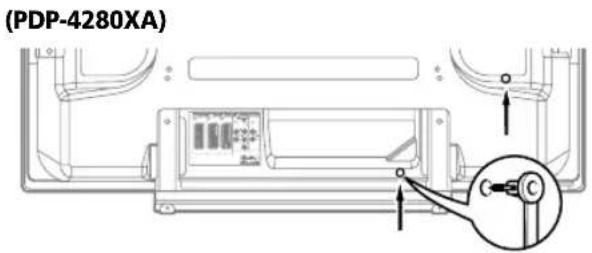

Preventing the plasma television from falling over... 15

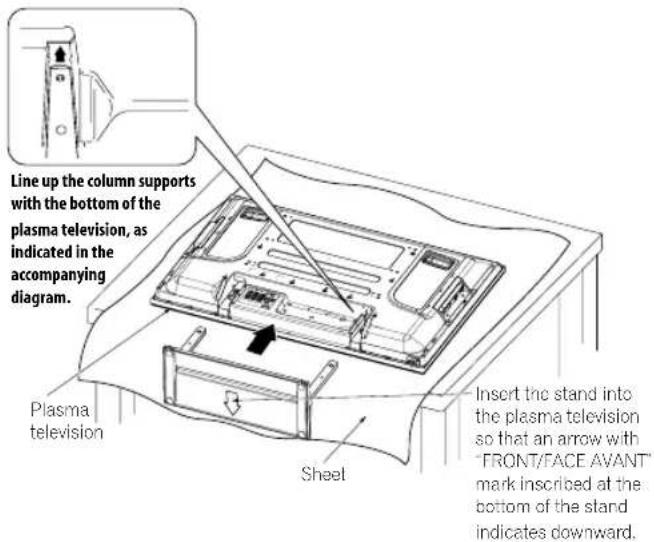

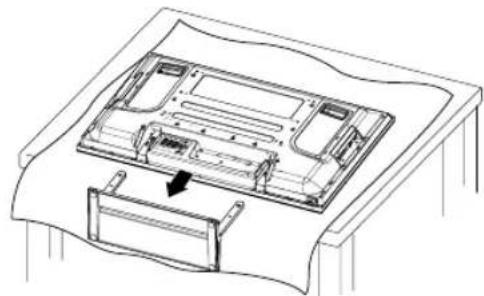

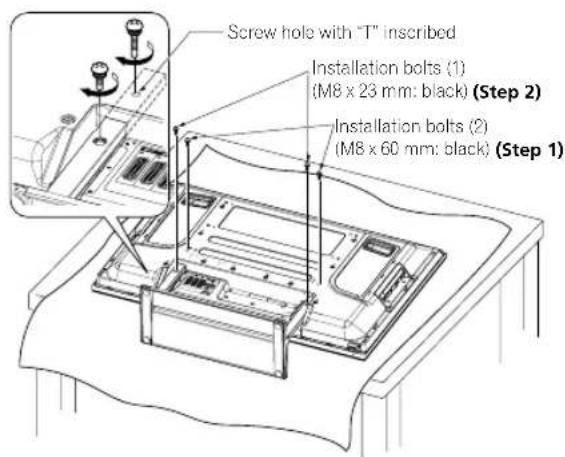

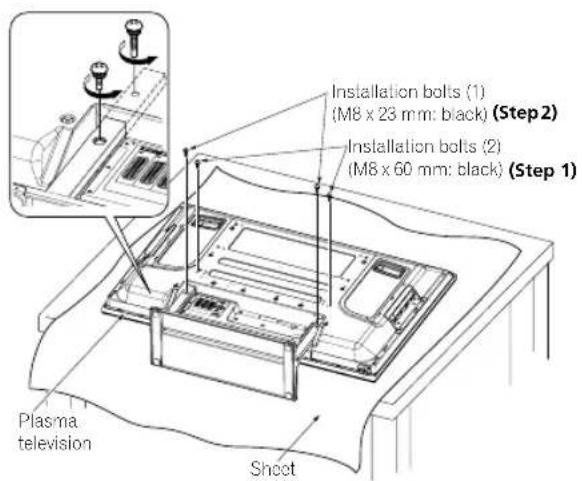

Attaching/detaching the Pioneer stand (for PDP-4280XA only) 16

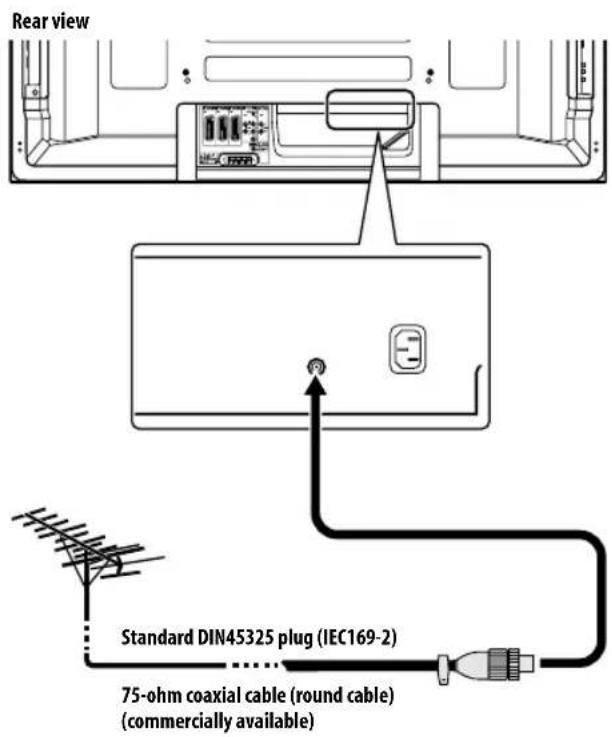

Basic connections 17

Preparing the remote control unit 19

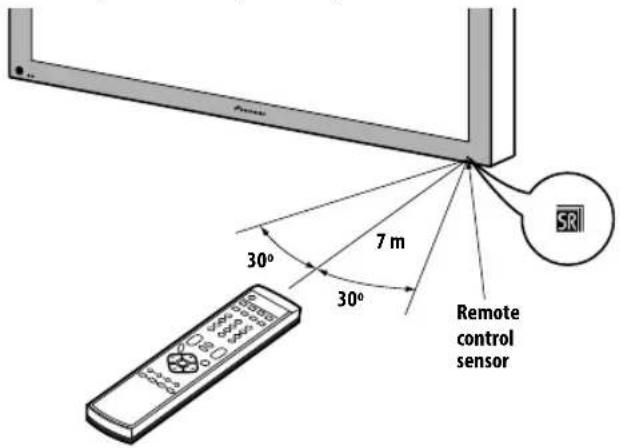

Operating range of the remote control unit 19

06 Watching TV 20

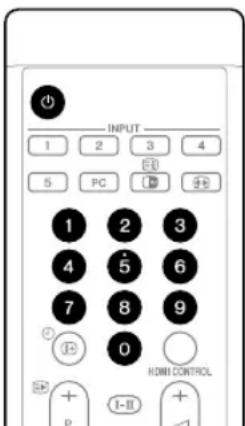

Turning the power on. 20

Placing the system into standby 20

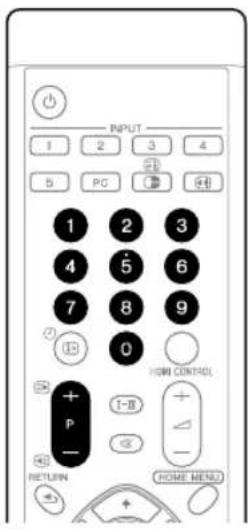

Changing channels 21

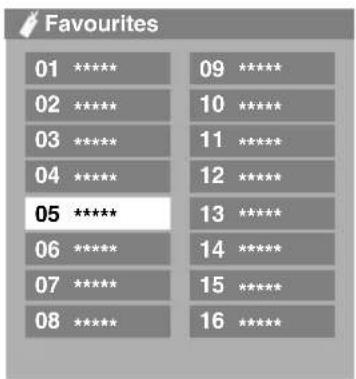

Tuning to your favourite channels 21

Changing the volume and sound 21

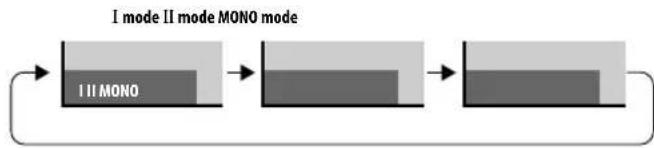

Switching the broadcast audio channel. 22

Freezing images 22

07 The HOME MENU 23

HOMEMENU overview 23

Using the HOME MENU. 23

08 Setting up. 24

Setting up TV channels 24

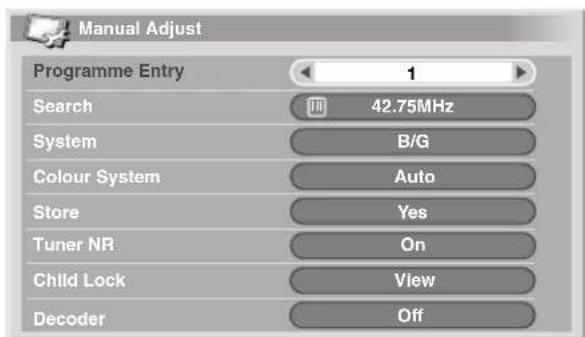

Setting up analogue TV channels manually 24

Reducing video noise. 25

Setting Child Lock 25

Selecting a decoder input terminal 25

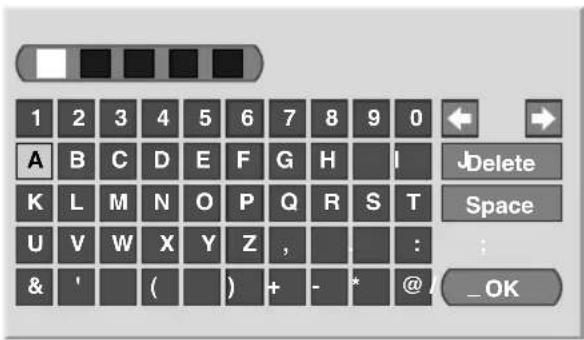

Labeling TV channels. 26

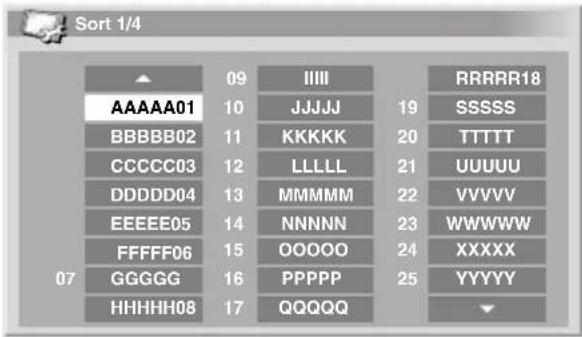

Sorting preset TV channels 26

Language setting 27

AV Selection 27

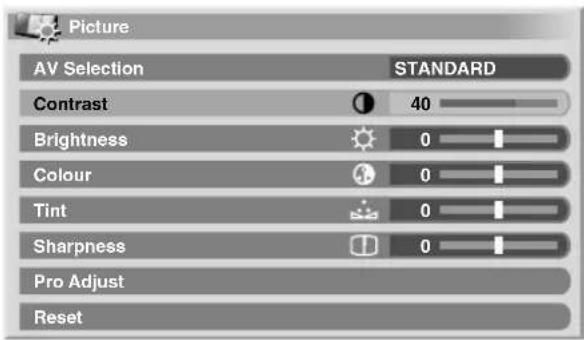

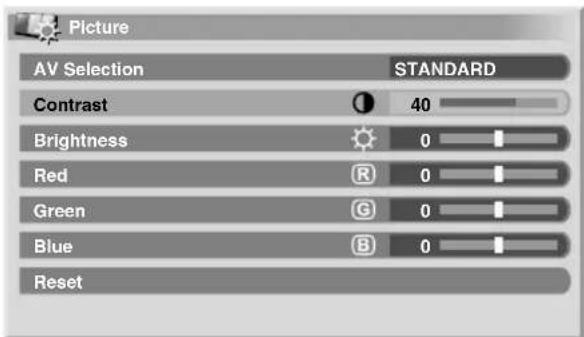

Basic picture adjustments. 28

Advanced picture adjustments 29

Comparing picture adjustments on the screen 32

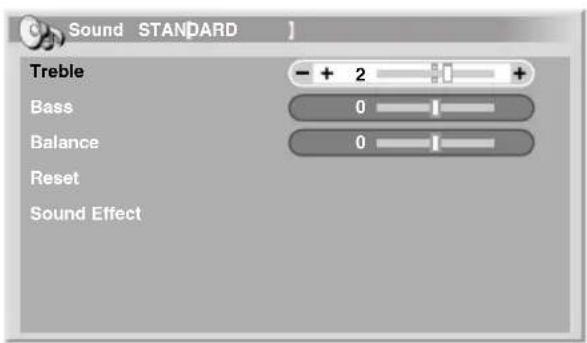

Sound adjustments 33

Power Control 33

Contents

09 Useful adjustment settings 35

Switching the vertical drive mode (AV source only) 35
Adjusting image positions (AV source only) 35
Adjusting image positions and clock automatically (PC source only) 36
Adjusting image positions and clock manually (PC source only) 36
Selecting an input signal type 36
Colour system setting 36
Selecting a game mode 37

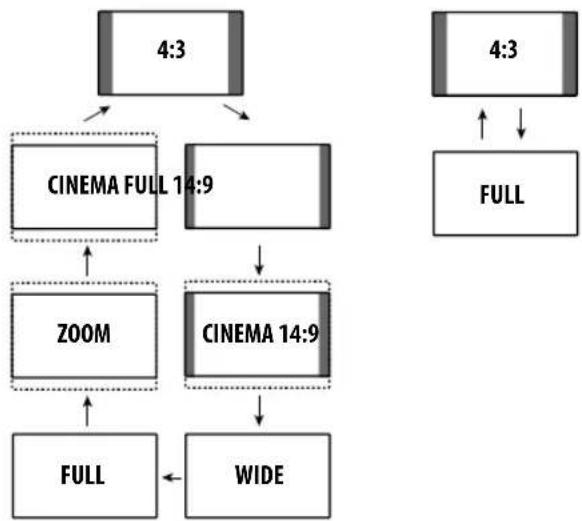

Selecting a screen size manually 37
Selecting a screen size automatically. 38
Detecting side masks. 38
Changing the brightness at both sides of the screen (Side Mask) 38
BlueLED Dimmer 39
Orbiter 39
Video Pattern 39
Sleep Timer 39

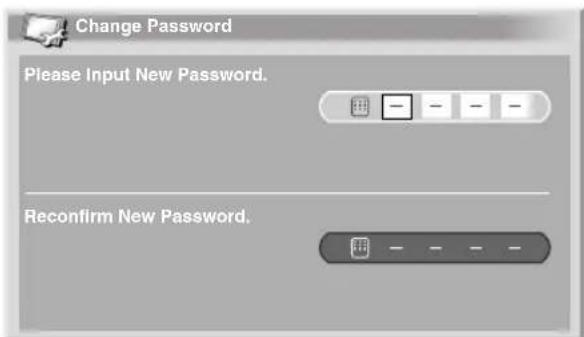

Using a password 39

10 Using with other equipment 41

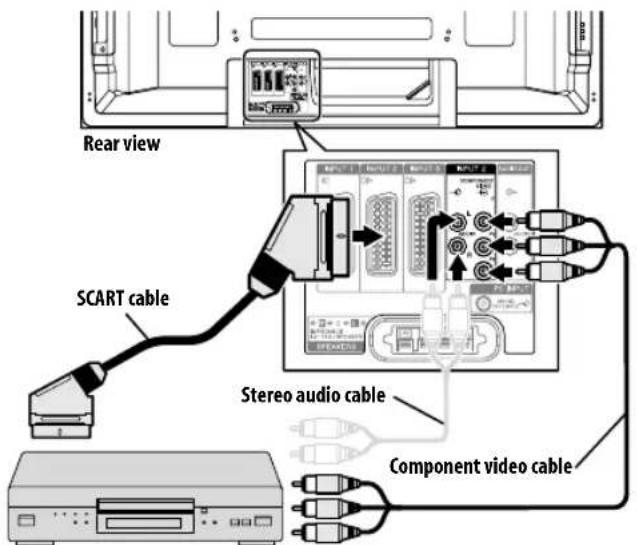

Connecting a DVD player 41

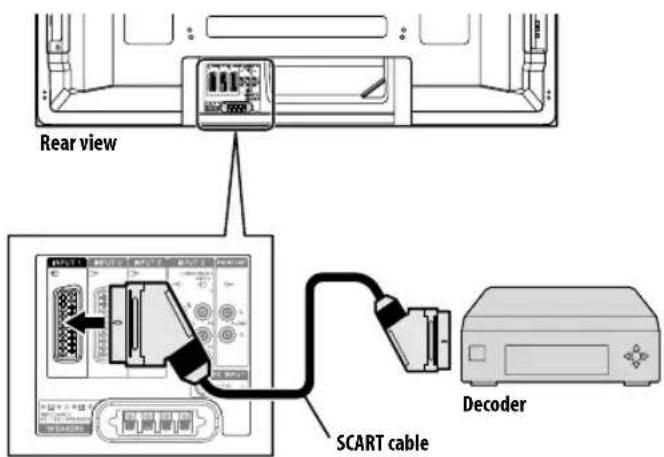

Connecting a decoder 41

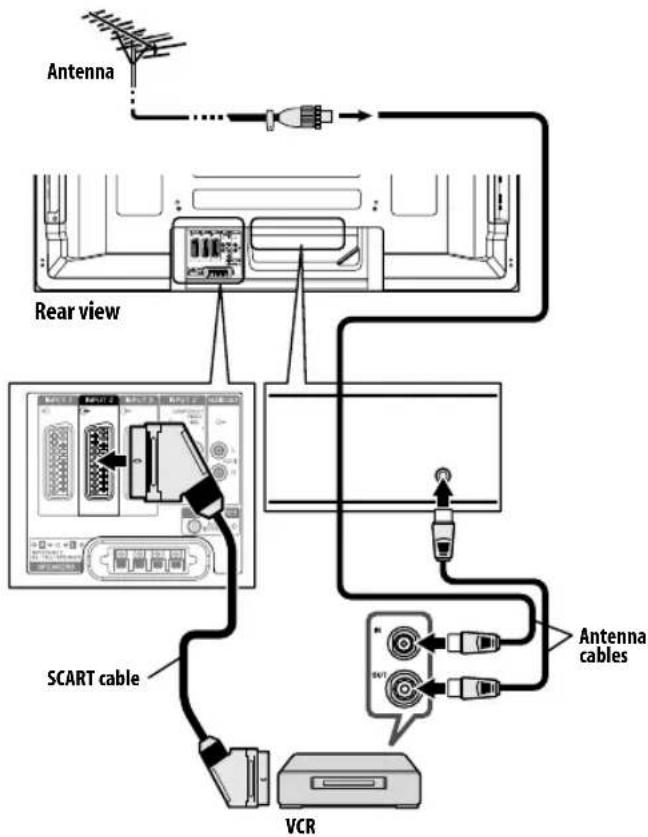

Connecting a VCR 42

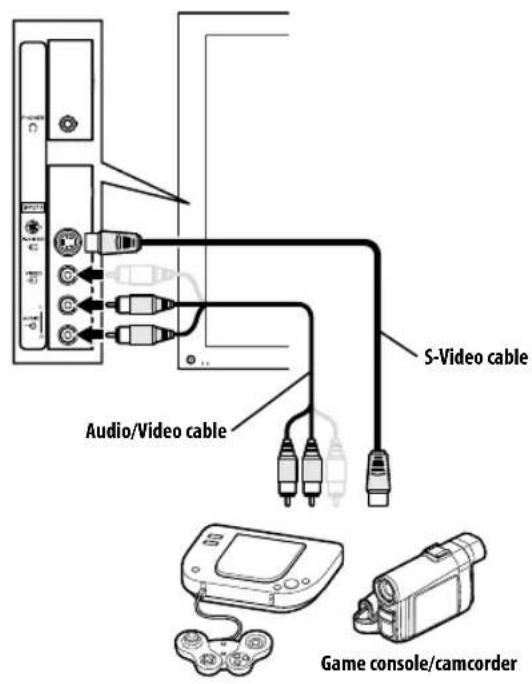

Connecting a game console or camcorder. 42

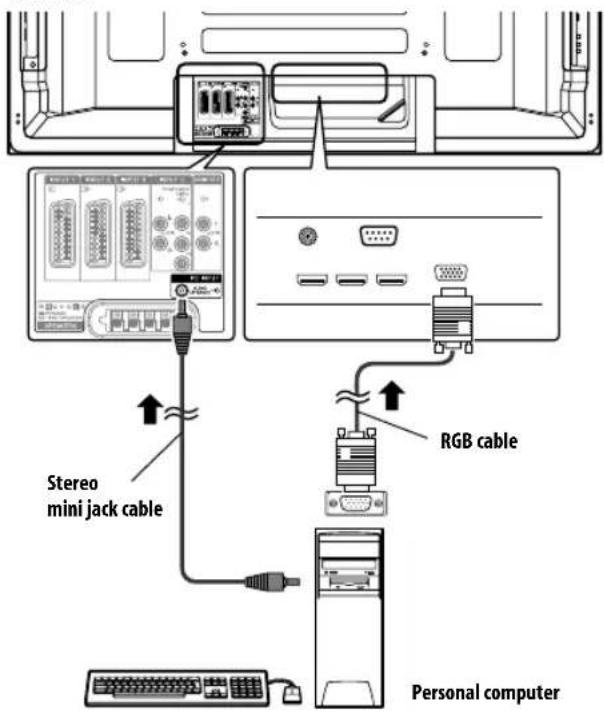

Connecting a personal computer 43

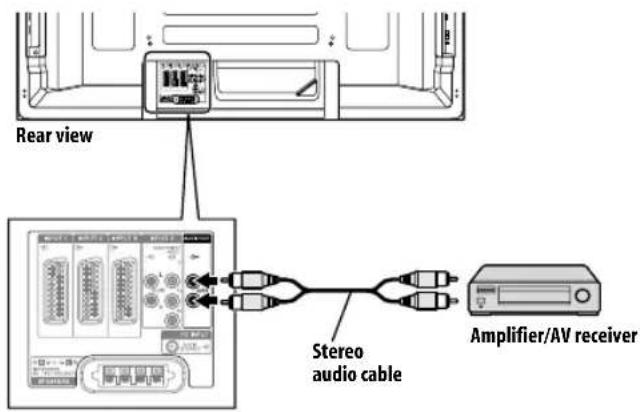

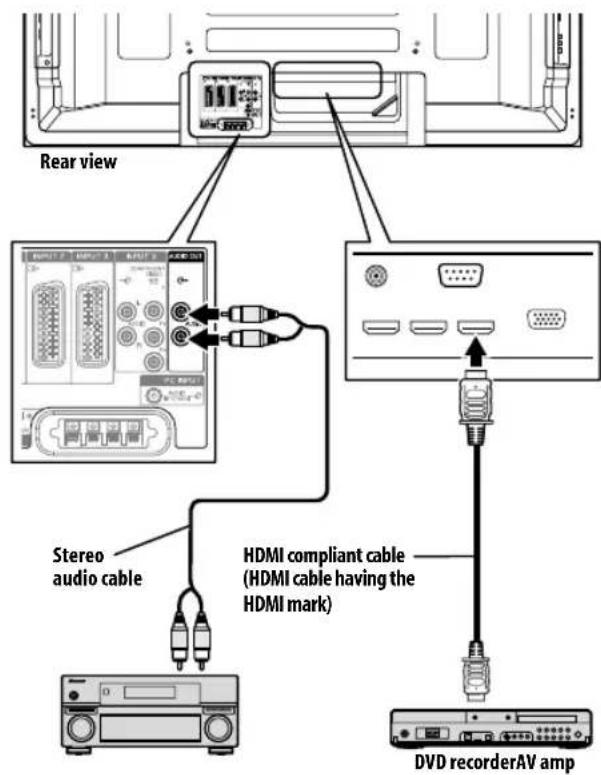

Connecting an amplifier/AV receiver 43

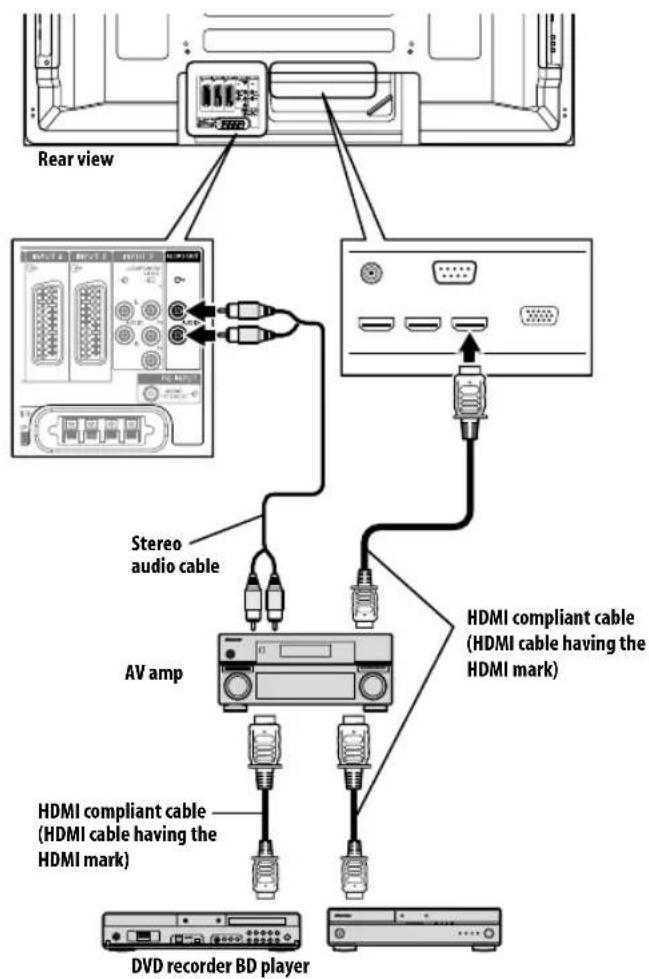

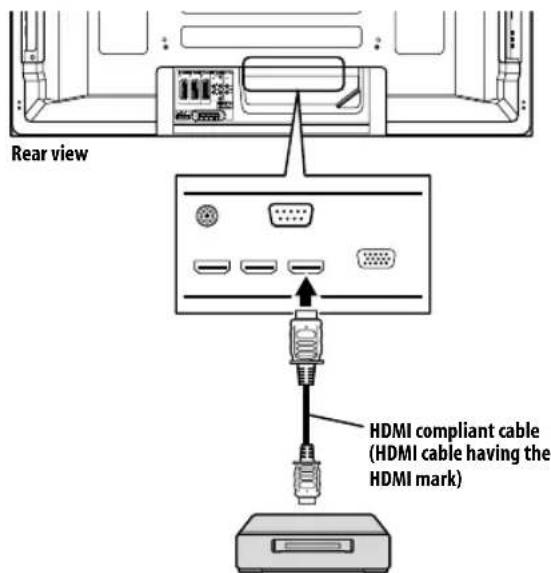

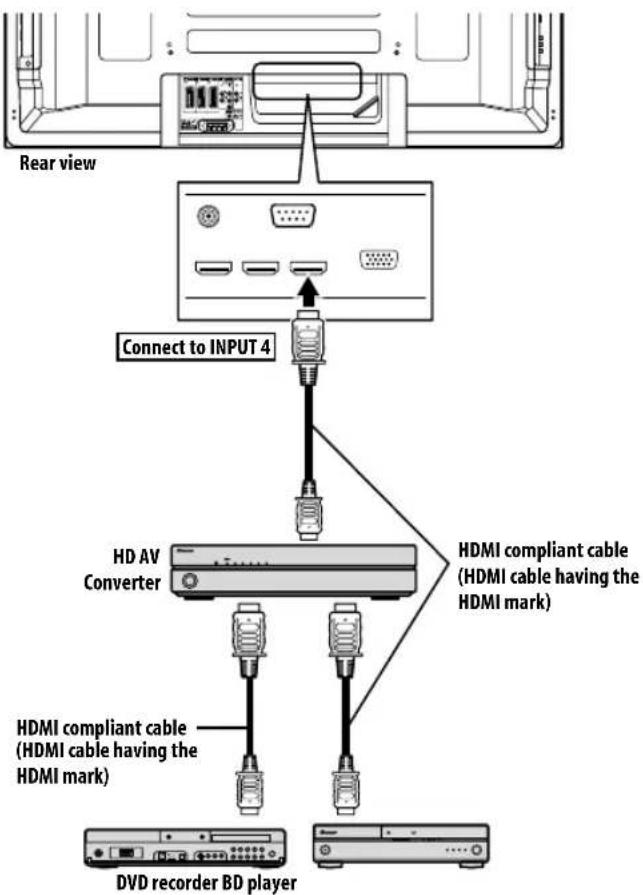

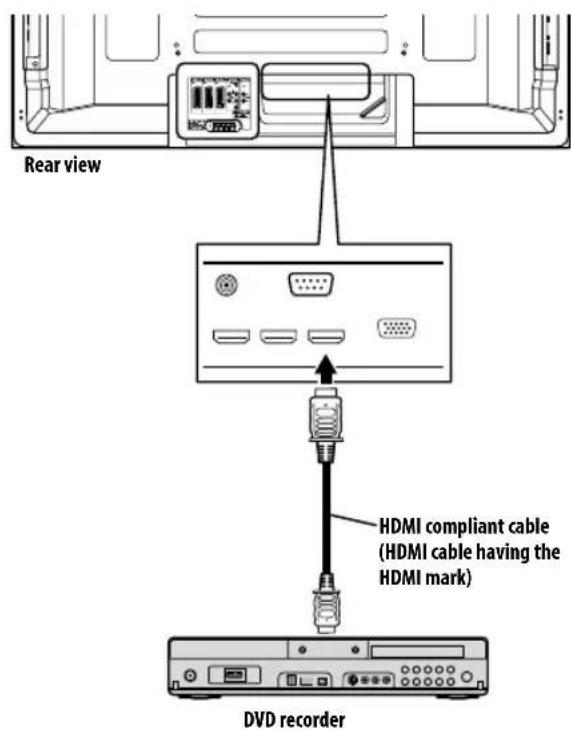

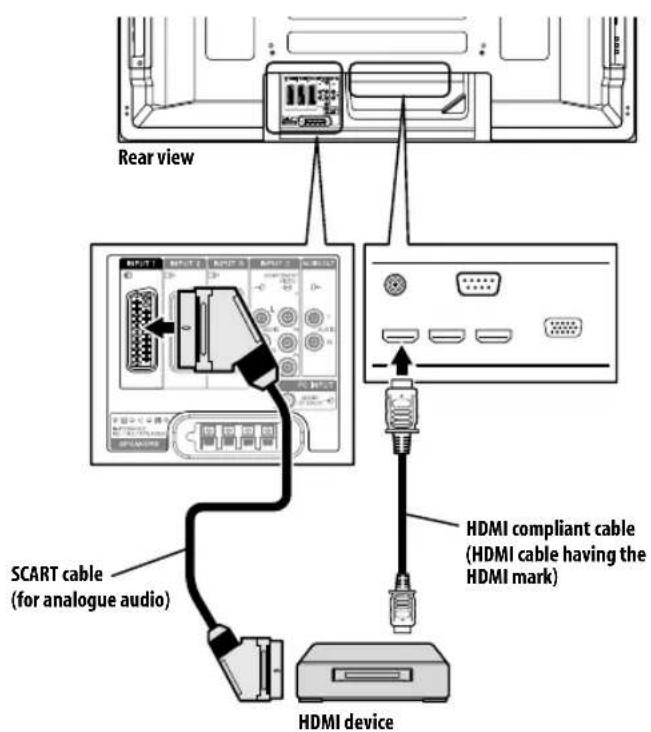

Using the HDMI Input 44

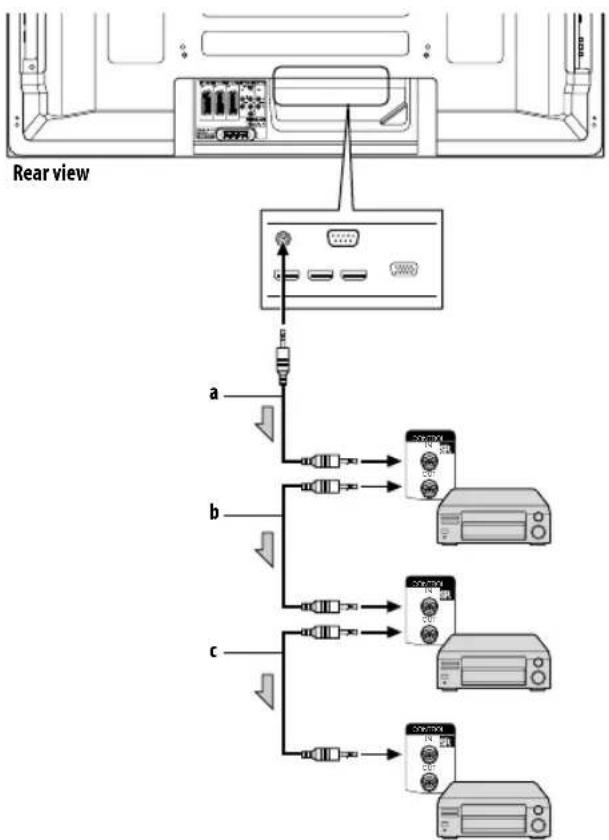

Connecting control cords. 46
Using i/o link.A. 47

11 Using the HDMI Control 48

Using the HDMI Control functions 48
Making the HDMI Control connections 49

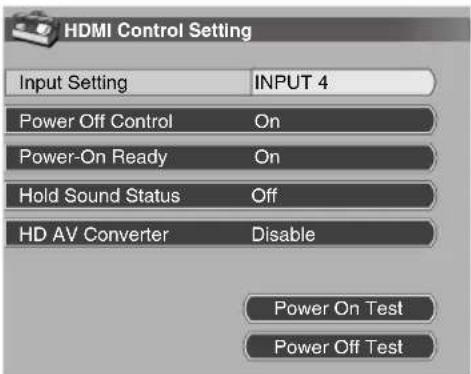

Setting the HDMI Control. 51

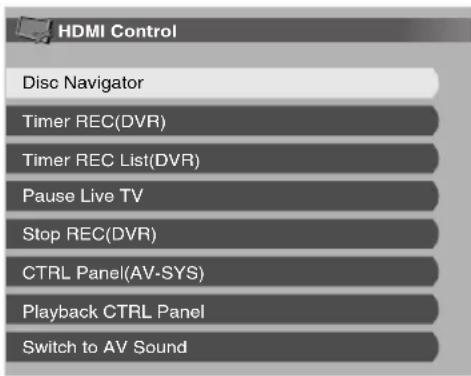

Using the HDMI Control menus. 53

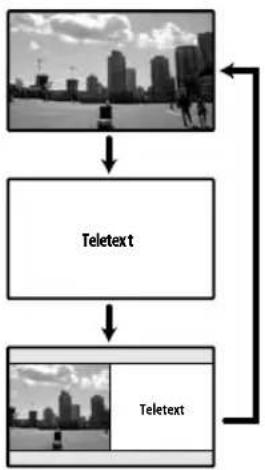

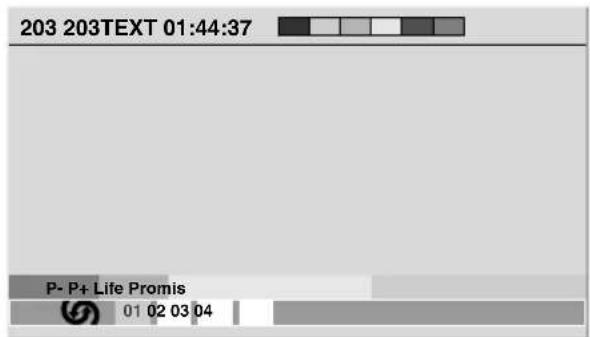

12 Using Teletext 54

Using the Teletext Functions 54
Operating the Teletext basics 54

13 Additional information. 56

Troubleshooting 56

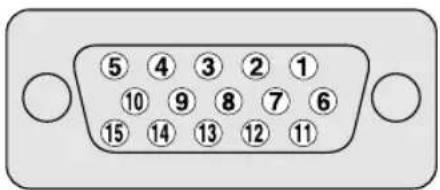

Signal names for 15-pin mini D-sub connector. .58

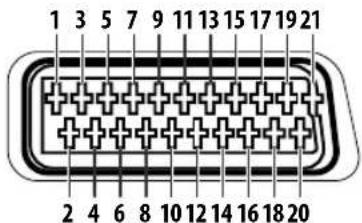

SCART pin assignments. 59
Specifications. 60

Chapter 1

Important user information

In order to obtain maximum enjoyment from this Pioneer PDP-5080XA/PDP-4280XA plasma television, please first read this information carefully.

With the Pioneer PDP-5080XA/PDP-4280XA, you can be assured of a high quality plasma television with long-life and high reliability. To achieve images of exceptional quality, this Pioneer plasma television incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology.

The Pioneer PDP-5080XA/PDP-4280XA plasma television incorporates the latest in colour filter technology: Direct Colour Filter. This improves the colour/picture reproduction of these models as compared to previous models. It also eliminates the need for a physical glass panel to be placed in front of the plasma display, which furthers Pioneer's continued goal of reducing environmental waste in consumer electronics, now during the manufacturing process and in the future during the recycling process.

Over the course of its lifetime, the luminosity of the Pioneer PDP-5080XA/PDP-4280XA plasma television will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on your Pioneer plasma television for a long time, please carefully read and follow the usage guidelines below:

Usage guidelines

All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Plasma televisions are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your plasma television:

• Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. closed-captioned images or video game images which have static portions).
• Do not display Teletext for a prolonged period of time.
• Avoid viewing the on-screen display for extended periods, from a decoder, DVD player, VCR and all other components.
• Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component.
  Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.
• When playing a video game, the "GAME" mode setting within "AV Selection" is strongly recommended. However, please do not use this mode for long periods of time.
  After playing a game or displaying any still image, it is best to view a normal moving picture in the "WIDE" or "FULL" screen setting for more than three times the length of the previous still moving image.
  After using the plasma television, always switch the display to "STANDBY" mode.

Installation guidelines

The Pioneer PDP-5080XA/PDP-4280XA plasma television incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the plasma television, in order to prevent the unit from tipping over in the event of vibration or accidental movement.

This product should be installed by using only parts and accessories designed by Pioneer. Use of accessories other than the Pioneer stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit.

Pioneer will not be responsible for accident or damage caused by the use of parts and accessories manufactured by other companies, inadequate installation or stabilization, erroneous operation, remodeling or natural disasters.

To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission:

Plasma television protection function

When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the plasma television automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes.

Information of pixel defect

Plasma television displays information using pixels. Pioneer plasma television panels contain a very large number of pixels. (Depending on the panel size; over 2.3 million cells for a 42 inch display, over 3.1 million cells for a 50 inch display). All Pioneer display panels are manufactured using a very high level of ultra-precision technology and undergo individual quality control. In rare cases, some pixels can be permanently switched off, or on, resulting in either a black or coloured pixel permanently fixed on the screen.

This effect is common to all plasma televisions because it is a consequence of the technology.

If the defective pixels are visible at a normal viewing distance of between 2.5 meters and 3.5 meters whilst viewing a normal broadcast (i.e. not a test card, still image or single colour display) please contact the supplying dealer.

If, however, they can only be seen close up or during single colour displays then this is considered normal for this technology.

Infrared rays

The plasma television releases infrared rays because of its characteristics. Depending on how the plasma television is used, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected.

Important user information

Radio interference

While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product.

Plasma television driving sound

The screen of the plasma television is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may make you hear buzz sound or electrical circuit humming from the plasma television.

Do not attach such items as labels and tape to the product.

This may result in the discolouration or scratch of the cabinet.

When not using the product for a long period of time

If you do not use the product for a long period of time, the functions of the product may be adversely affected. Switch on and run the product occasionally.

Condensation

Condensation may take place on the surface or inside of the product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction.

Cleaning the surface of the screen and the glossy surface of the front cabinet

When cleaning the surface of the screen or the glossy surface of the front cabinet, gently wipe it with a dry soft cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the screen hard, the surface of the product will be scratched.

If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Cleaning the cabinet

When cleaning the cabinet of this product, gently wipe it with a clean soft cloth (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the cabinet hard, the surface of the cabinet will be scratched.

The cabinet of this product is mostly composed of plastic. Do not use chemicals such as benzene or thinner to clean the cabinet. Using these chemicals may result in quality deterioration or coating removal.

Do not expose the product to volatile gas or fluid such as pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal.

If you clean the surface of the cabinet with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

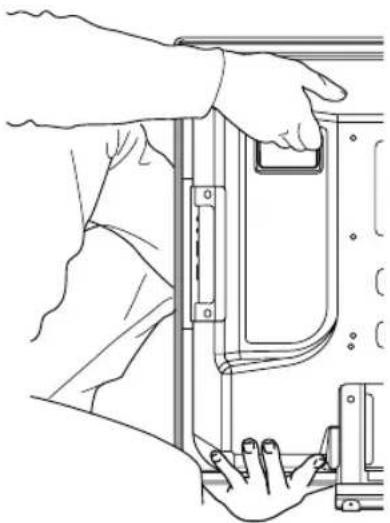

Handles at the rear of the plasma television

Do not remove the handles from the rear of the plasma television. When moving the plasma television, ask another person for help and use the handles attached to the rear of the plasma television. Do not move the plasma television by holding only a single handle. Do not use the handles to hang the product when installing or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.

Fan motor noise

The rotation speed of the cooling fan motor increases when the ambient temperature of the plasma television becomes high. You may hear the sound of the fan motor at that time.

To use this product for a long period of time

The Energy Save function can maintain efficiency of the screen for a long period of time. Setting the Energy Save function to "Mode 1" is recommended in order to maintain the efficiency of the screen for a long period of time.

Caution

Panel sticking and after-image lag

Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than one minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

After-image (lag image) due to burning

Avoid displaying the same image on the plasma television continuously over a long period of time.

If the same image is displayed continuously for a long period, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

Note

• When a still image, such as a programme menu, is displayed for 5 to 10 minutes, the system automatically turns the image off to prevent damage from screen burning.
• To prevent screen burning, the display position is automatically changed imperceptibly when watching plasma television (see Orbiter on page 39).

Preventing damage from screen burning

• We recommend that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement (see page 37).
• Set the Side Mask detection function to "On", the High Definition 16:9 aspect ratio images containing side masks will be detected and the side masks will be added automatically or the image displayed in full screen, leading to more effective countermeasures taken for the screen burning (see Detecting side masks on page 38).

Chapter 2

Safety precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product.

1. Read instructions - All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place - These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings - All warnings on the product and in the instructions must be observed closely.
4. Follow instructions - All operating instructions must be followed.
5. Cleaning - Unplug the power cord from the AC outlet before cleaning the product. To clean the product, use the supplied cleaning cloth or other soft clothes (e.g., cotton, flannel). Do not use liquid cleaners or aerosol cleaners.
6. Attachments - Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture - Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.
8. Stand - Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.
9. When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

1. Ventilation - The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

2. Power source - This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

3. Power cord protection - The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

4. The plasma television used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the plasma television breaks.
5. Overloading - Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
6. Entering of objects and liquids - Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
7. Servicing - Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
8. Repair - If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

1. Replacement parts - In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
2. Safety checks - Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
3. Wall or ceiling mounting - When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
4. Heat sources - Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).
5. Unplug the power cord from the AC outlet before installing the speakers. (for PDP-5080XA only)
6. Never expose the screen of the plasma television to a strong impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury.
7. Do not expose the plasma television to direct sunlight for a long period of time. The optical characteristics of the front protection panel changes, resulting in discoloration or warp.
8. The plasma television weighs about 34.4kg (75.8 lbs.) for the PDP-5080XA and about 31.2 kg (68.8 lbs.) for the PDP-4280XA (including the stand). Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.

Safety precautions

Installation precautions

Observe the following precautions when installing with any items such as the optional stand.

When using the optional stand, brackets, or equivalent items

• Ask your dealer to perform the installation.
• Be sure to use the supplied bolts.
• For details, see the instruction manual that comes with the optional stand (or equivalent items).

When using other items

• Consult your dealer.

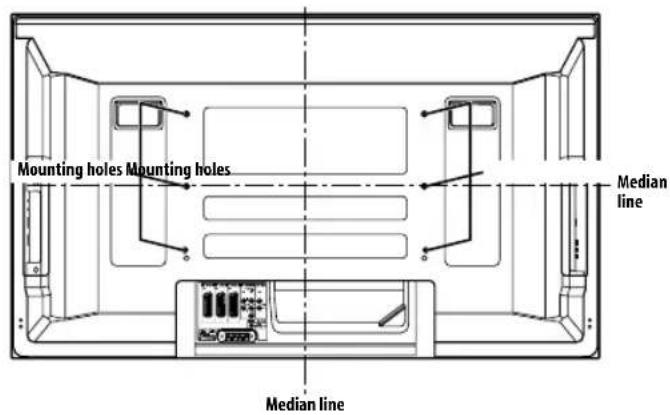

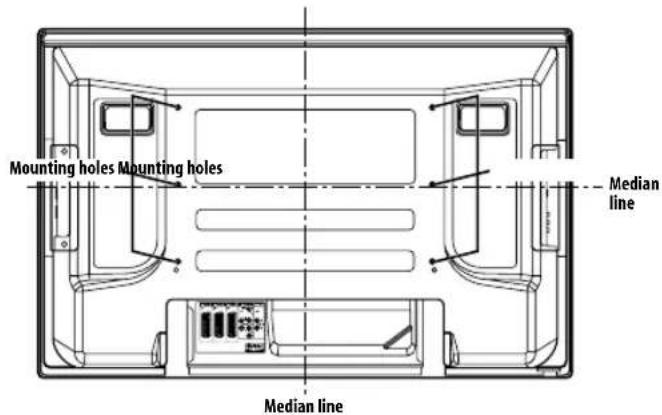

  The following six mounting holes can be used for the installation:

Rear view

(PDP-5080XA)
(PDP-4280XA)

Caution

• Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines.

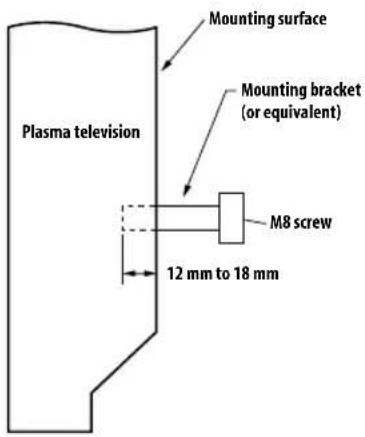

• Use M8 screws, which go 12 mm to 18 mm in depth from the mounting surface of the plasma television. See the side view shown below.
• Be careful not to block the ventilation opening at the rear of the plasma television.
• Be sure to install the plasma television on a flat surface because it contains glass.
• The screw holes other than the illustrations on the left are to be used only for the specified products. Never use them for mounting non-specified products.
• Do not mount or remove the plasma television to or from the stand, with speakers attached (for PDP-5080XA only).

Note

It is strongly recommended to use the optional Pioneer mounting products.
- Pioneer shall not be liable for any personal injury or product damage that results from the use of mounting items other than the optional Pioneer products.

Side view

Chapter 3

Supplied accessories

Check that all of the following accessories are supplied in the box.

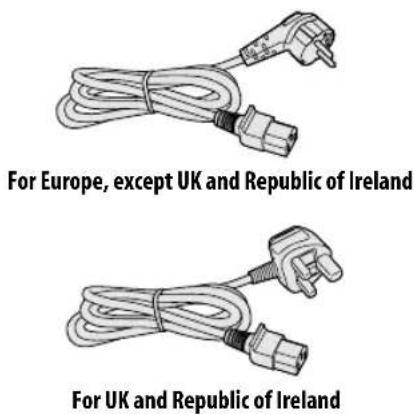

Power cable

Only the power cable appropriate for your country or region is supplied:

Chapter 4 Part names

Plasma television

(Front)

The terminals on side panels are common to the PDP-5080XA and PDP-4280XA.

1 button (If the button is off, the power will not turn on even when 0 to 9 on the remote control unit or STANDBY/ON on the plasma television are pressed.)
2 POWER ON indicator
3 STANDBY indicator
4 SLEEP indicator
5 Remote control sensor
6 STANDBY/ON button

7 INPUT button
8 VOLUME + / - buttons
9 CHANNEL +/- buttons
10 PHONES output terminal
11 INPUT 5 terminal (S-VIDEO)
12 INPUT 5 terminal (VIDEO)
13 INPUT 5 terminals (AUDIO)

Plasma television

(Rear)

The terminals from 1 to 8 are the same as the PDP-5080XA.

1 AC IN terminal
2 RS-232C terminal (used for factory setup)
3 CONTROL OUT terminal (supports SR+
4 INPUT 1 terminal (HDMI)
5 INPUT 3 terminal (HDMI)
6 INPUT 4 terminal (HDMI)
7 PC INPUT terminal (Analogue RGB)
8 ANT (Antenna) input terminal

9 INPUT 1 terminal (SCART)
10 INPUT 2 terminal (SCART)
11 INPUT 3 terminal (SCART)
12 INPUT 2 terminals (Audio)
13 INPUT 2 terminals (COMPONENTVIDEO:Y, P_B, P_R)
14 AUDIO OUT terminals
15 PC INPUT terminal (Audio)
16 SPEAKERS terminals (right/left)

Remote control unit

Point the remote control at the plasma television to operate.

10

Turns on the power to the plasma television or places it into the standby mode.

2 INPUT

Selects an input source of the plasma television. ("INPUT 1", "INPUT 2", "INPUT 3", "INPUT 4", "INPUT 5")

3PC

Selects the PC terminal as an input source.

40 to 9

TV/External input mode: Selects a channel.

Teletext mode: Selects a page.

Turns the power on when the STANDBY indicator lights red.

5 i+

Displays the channel information.

6P+/P-

TV/External input mode: Selects a channel.

Teletext mode: Selects a page.

7I-Ⅱ

Sets the sound multiplex mode.

8 RETURN

Restores the previous menu screen.

9↑/↓/←/→

Selects a desired item on the setting screen.

ENTER

Executes a command.

10 Colour (RED/GREEN/YELLOW/BLUE)

Teletext mode: Selects a page.

11

Jumps to Teletext subtitle page.

12 E?

Displays hidden characters.

13

Selects the screen size.

14

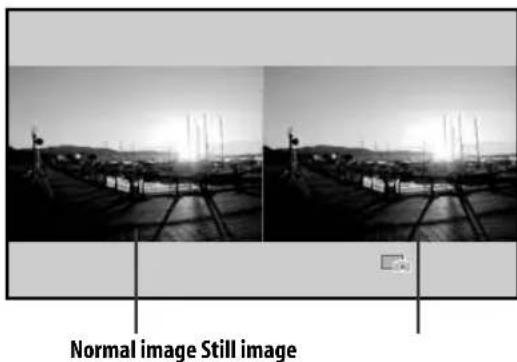

TV/External input mode: Freezes a frame from a moving image. Press again to cancel the function.

Teletext mode: Stops updating Teletext pages. Press again to release the hold mode.

15 HDMI CONTROL

Displays the HDMI Control menu.

16

Sets the volume.

17

Mutes the sound.

18 HOME MENU

Displays the HOME MENU screen.

19

Selects the Teletext mode (all TV image, all TEXT image, TV/TEXT image).

20 Ei

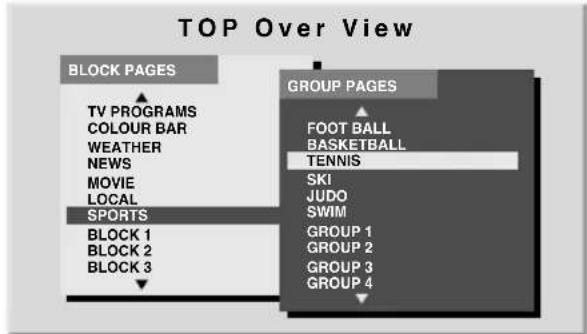

Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.

Chapter 5 Preparation

Installing the plasma television

Location

• Avoid direct sunlight. Maintain adequate ventilation.

Caution

• If you do not leave sufficient space above the plasma television, it will not receive enough ventilation and will not operate properly.
• Pioneer will not be responsible for accident or damage caused by inadequate installation or stabilization, erroneous operation, remodeling or natural disasters.

Note

• Allow enough space around the upper and back parts when installing to ensure adequate ventilation of the rear of the unit.
• Be sure to install the plasma television in a flat, stable location.

Using the optional Pioneer stand (for PDP-5080XA only)

For details on installation, refer to the instruction manual supplied with the stand.

Using the optional Pioneer speakers (for PDP-5080XA only)

For details on installation, refer to the instruction manual supplied with the speakers.

Moving the plasma television

When installing on a rack, etc., hold the plasma television as shown below. Because the plasma television is heavy, be sure to have someone help you when moving it.

(for PDP-5080XA)

Note

• Do not use the speaker to support the weight of the plasma television.
  Always remove the speakers before moving the plasma television. Do not hold the plasma television by the speaker mounting fittings.

(for PDP-4280XA)

Preparation

Preventing the plasma television from falling over

After installing the stand, be sure to take special care to ensure that the plasma television will not fall over and is stabilized to both the wall and rack.

Stabilizing on a table or rack

Stabilize the plasma television as shown in the diagram using the supplied plastic bands and screws.

Note

To stabilize the plasma television on a table or rack, also use commercially available wood screws that have a nominal diameter of 4mm and that are at least 20mm long.

Drill a hole in the middle at the rear of the tabletop panel before using a wood screw. Perform this work the same way on the left and right sides.

Using a wall for stabilization

1 Attach falling prevention bolts (hooks) to the plasma television.

2 Use strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

Perform this work in the same way on the left and right sides. Use hooks, cords and fittings that are available on the market. Recommended hook: Nominal diameter 8 mm, length 12 mm to 18 mm

Caution

• A table or rack with adequate strength should always be used to support the plasma television. Failure to do so could result in personal injury and physical damage.
• When installing the plasma television, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents.
  If you do not take these precautions, the plasma television could fall down and cause injury.
• The screws, hooks, cords and other fittings that you use to secure the plasma television to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached.
• Select the appropriate screws, hooks, cords, and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.

Attaching/detaching the Pioneer stand (for PDP-4280XA only)

Caution

• The weight of a 42 inch plasma television is about 29.5kg (65.0 lbs.), it has little depth, and is unstable. Therefore, at least two people must assemble and install it.

Detaching the stand

When you use a stand, brackets and other fittings than the attached, use the following procedure to remove the attached stand.

1 With the plasma television lying flat, loosen and remove the installation bolts (1) and (2) using a screwdriver.

2 Remove the stand from the plasma television.

Make sure to keep the installation bolts (1) and (2) that have been removed as they are reused when attaching the stand to the plasma television.

Note

• Be sure to install the plasma television in a flat, stable location.
• Place a sheet or protective cover to protect the display from scratches or damage.
• Work only with the plasma television lying flat on a table or similar surface.
• When lying the plasma television down, be careful not to scratch or damage it.

Reattaching the stand.

1 With the plasma television lying flat, fit the stand's support columns to the bottom of the plasma television as indicated by the arrows, then slowly insert them.

• Be extremely careful not to insert the support columns of the stand into any part of the plasma television other than the stand insertion slots. Doing so might damage the plasma television panel or its ports or result in warping of the stand.

2 Attach the stand at the points indicated by the arrows and tighten the installation bolts (2) and (1) firmly using a screwdriver.

Note

• Be sure to install the plasma television in a flat, stable location.
• Insert the screws into the holes vertically and tighten them.
• Place a sheet or protective cover to protect the display from scratches or damage.
• Work only with the plasma television lying flat on a table or similar surface.
• When lying the plasma television down, be careful not to scratch or damage it.

Preparation

Basic connections

Connecting the antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable.

- Connect a 75-ohm coaxial cable (commercially available) to the ANT terminal.

Antenna cable (commercially available)

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC169-2), plug it into the antenna terminal at the rear of the plasma television.

Note

If the antenna is not connected correctly, the quality of reception may be impaired. If images are not displaying correctly, check whether the antenna connection is correct or not.

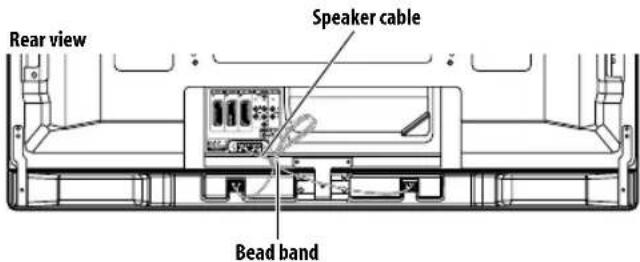

Routing cables

When the speaker is installed under the plasma television panel (for PDP-5080XA only):

Note

• Use the supplied bead bands as necessary.
• When tidying up your speaker cables, make sure to bundle them so that they are not subjected to any pressure.

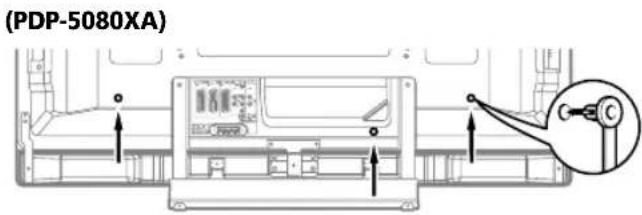

Attaching speed clamps to the main unit

Use the speed clamps as necessary to route the connecting cables. The diagrams below show the location of the holes on the rear of the plasma television.

Preparation

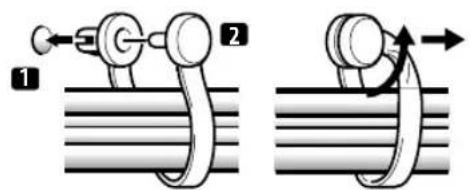

Attaching and removing speed clamps

Insert [1] into an appropriate hole on the rear of the plasma television and snap [2] into the back of [1] to lock the clamp.

• Speed clamps are designed to be difficult to undo once in place. Please attach them carefully.
• Use pliers to twist the clamp 90^ , pulling outward. The clamp may deteriorate over time and become damaged if removed.
• Be careful not to subject any connecting cables to strain.

Note

• Use the speed clamps as necessary.

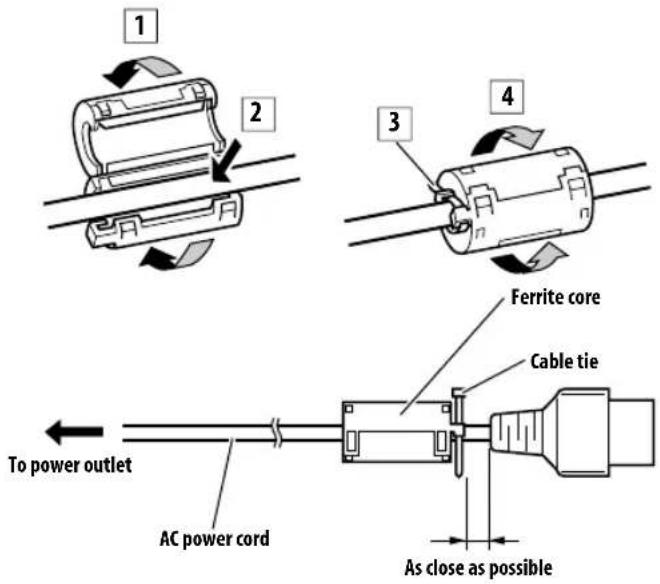

Attaching the ferrite core

Attach the accessory ferrite core to the end of the power cord as shown in the accompanying illustration. Use the provided cable tie to prevent the ferrite core from slipping on the table.

If you do not do this, the plasma television will not conform to mandatory CE standards.

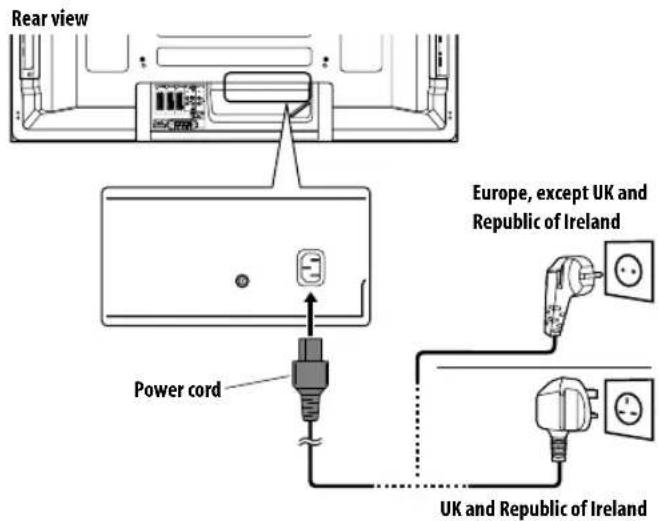

Connecting the power cord

Note

• Disconnect the power cord from the power outlet when the plasma television is not going to be used for a long period of time.
• Insert the power plug in the AC outlet, after all other components are connected.

Preparing the remote control unit

Inserting batteries

1 Open the battery cover.

2 Load the supplied two AA size batteries while inserting their respective negative polarity (-) ends first.

Place batteries with their terminals corresponding to the (+) and (-) indicators in the battery compartment.

3 Close the battery cover.

Caution

Improper use of batteries can result in chemical leakage or an explosion. Be sure to follow the instructions below.

• When you replace the batteries, use manganese or alkaline ones.
• Place the batteries with their terminals corresponding to the (+) and (-) indicators.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
  The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
  If you will not use the remote control unit for an extended period of time, remove the batteries from it.
• WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTITUTION'S RULES THAT APPLY IN YOUR COUNTRY/AREA.

Operating range of the remote control unit

Operate the remote control unit while pointing it toward the remote control sensor (SR) located at the bottom right of the front panel of the plasma television. The distance from the remote control sensor must be within 7 m and the angle relative to the sensor must be within 30 degrees in the right, left, upward, or downward direction.

Note

• With the PDP-4280XA, the SR logo is located at the lower right on the speaker but the location of the remote control sensor is the same as with the PDP-5080XA.

Caution

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote control sensor of the plasma television is under direct sunlight or strong lighting. In such case, change the angle of the lighting or plasma television, or operate the remote control unit closer to the remote control sensor.
• When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function.
• As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones early enough.
• The plasma television emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the plasma television.
• Depending on the installation environment, infrared rays from the plasma television may not allow this system to properly receive commands from the remote control unit or may shorten allowable distances between the remote control unit and the remote control sensor. The strength of infrared rays emitted from the screen differs, depending on images displayed on the screen.

Chapter 6 Watching TV

Important

• Before watching broadcast channels, the built-in TV tuner must be set up. See Setting up TV channels on page 24 for how to do this.

Turning the power on

• Press on the plasma television when the POWER ON and STANDBY indicators are off.

The system is on.
The POWER ON indicator lights up blue.

• Press or 0 to 9 on the remote control unit or STANDBY/ON on the plasma television if the STANDBY indicator lights red.

The POWER ON indicator lights up blue.
If you press 0 on the remote control unit, images from INPUT 1 will be displayed.
- If you press 1 to 9, TV images will be displayed.

Placing the system into standby

Press on the remote control unit or STANDBY/ON on the plasma television.

The STANDBY indicator lights up red.
- The system enters the standby mode and the image on the screen disappears.

Note

• When on the plasma television is off, you cannot turn the power on by pressing or 0 to 9 on the remote control unit or STANDBY/ON on the plasma television.
• When the system is placed into standby mode, the main power flow is cut and the system is no longer fully operational. A minute flow of power feeds the system to maintain operational readiness.
  If you are not going to use the plasma television for a long period of time, be sure to remove the power cord from the power outlet.

Plasma television status indicators

The table below shows the operational status of the plasma television. You can check the current status of the system with the indicators on the plasma television.

Indicator status System status

POWER ON STANDBY

●	●	The power cord of the plasma television has been disconnected. Or, the power cord of the plasma television has been connected but the ● button of the plasma television is off.
●	●	Power to the system is on.
●	●	The system is in the standby mode.

For other than the above, see Troubleshooting on page 56.

Note

• You can select "High", "Mid" or "Low" for the brightness of the POWER ON indicator (see Blue LED Dimmer on page 39).

Changing channels

Use the remote control or the control panel on the right-hand side of the plasma television to change channels.

Channel display

Using P + / P- on the remote control unit

• Press + to increase the channel number.
• Press P- to decrease the channel number.

Note

• CHANNEL +/- on the plasma television operates the same as P+/P-.
• P + / P - cannot pick up channels that are set to skip. For Channel Skip, see steps 13 and 14 under Setting up analogue TV channels manually on page 24.

Using 0 to 9 on the remote control unit

• Select channels directly by pressing buttons 0 to 9.

For example:

Press 2 to select channel 2 (one-digit channel).

Press 1 then 2 to select channel 12 (two-digit channel).

Note

• In standby, when you press 0, the power turns on and images come from the INPUT 1 source. Or, when you press any button from 1 to 9, TV images display.

Tuning to your favourite channels

If you have registered your favourite channels, selecting from the registered list may be the easiest way to tune to those channels.

1 While watching broadcasts, press ENTER to call up the Favourite Channel List.

2 Select a favourite channel to tune in ( / , then ENTER).

• Press RETURN to exit the Favourite Channel List.

Note

• You can register up to 16 channels as your favourite channels. For the registration, see steps 13 and 14 under Setting up analogue TV channels manually on page 24. Make sure to select "Yes (Listed)" in step 14.

Changing the volume and sound

Use the remote control or the control panel on the right-hand side of the plasma television to adjust the volume.

Using + I - on the remote control unit

• Press to increase the volume.
• Press to decrease the volume.

Volume adjustment

VOLUME + / - on the plasma television operates the same as + / -

Using on the remote control unit

1 Press to mute the sound.
appears on the screen.

2 Press again or + to restore the sound.

Switching the broadcast audio channel

Depending on the broadcast, you can switch the audio channel.

• Press I-II to change the audio channel.

The table below shows the available audio channels by broadcast audio type.

		Setting
		I	II	MONO
NICM Broadcasts2 Broadcasts	Stereo	1AAA NICAM STEREO 10:00	1AAR NICAM STEREO 10:00	1AAA MONO 10:00
	Bilingual	2BBB NICAM I 10:00	2BBB NICAM II 10:00	2BBB MONO 10:00
	Monaural	3CCC NICAM MONO 10:00	3CCC NICAM MONO 10:00	3CCC MONO 10:00
	Stereo	4DDDSTEREO 10:00	4DDDSTEREO 10:00	4DDD MONO 10:00
	Bilingual	5EEE DUALI 10:00	5EEE DUALI 10:00	5EEE MONO 10:00
	Monaural	6FFF MONO 10:00	6FFF MONO 10:00	6FFF MONO 10:00

Note

• In each of the sound multiplex mode selected using the I-II button, the display changes depending on broadcasting signals being received.
• Once the MONO mode is selected, the sound remains mono even if the system receives a stereo broadcast. You must switch the mode back to I or II mode if you want to hear stereo sound again.
• Selecting a sound multiplex mode while the input source is "INPUT 1" to "INPUT 5" does not change the type of sound. In this case, sound is determined by the video source.

Freezing images

Use the following procedure to capture and freeze one frame from a moving image that you are watching.

Important

• Displaying a static image for a long period of time, or for shorter periods of time everyday, may result in image retention.

1 Press A still image appears on the right screen while a moving image is shown on the left screen.

2 Press again to cancel the function.

Note

• When this function is not available, a warning message appears.

Chapter 7

The HOME MENU

HOME MENU overview

For AV source

HOME MENU Item Page
Picture AV Selection 27
	Contrast 28
	Brightness 28
	Colour 28
	Tint 28
	Sharpness 28
	Pro Adjust 29
	Reset 28
Sound Treble	33
	Bass 33
	Balance 33
	Reset 33
	Sound Effect 33
Power Control	Energy Save 33
	No Signal Off 34
	No Operation Off 34
Sleep Timer	- 39

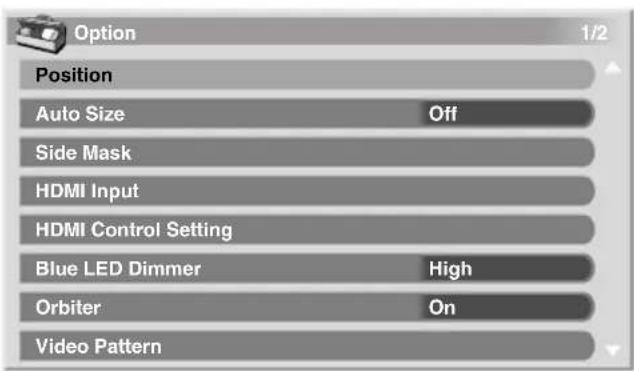

Option	Position 35
	Auto Size 38
	Side Mask 38
	HDMI Input 44
	HDMI Control Setting 51
	Blue LED Dimmer 39
	Orbiter 39
	Video Pattern 39

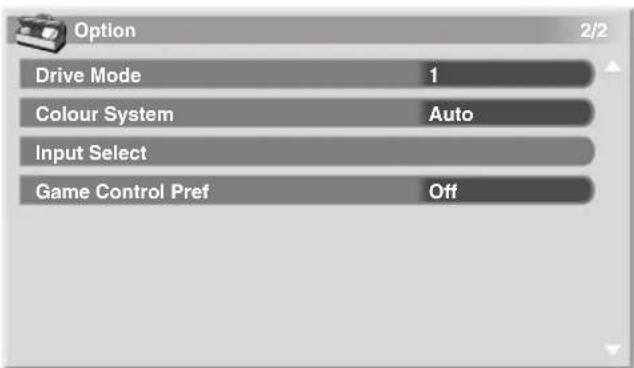

	Drive Mode 35
	Colour System 36
	Input Select 36
	Game Control Pref 37
Setup	Auto Installation 24
	Analogue TV Setup 24
	i/o link.A 47
	Password 39
	Language 27
HDMI Control	- 53

For PC source

HOME MENU Item Page
Picture AV Selection	27
	Contrast 28
	Brightness 28
	Red	28
	Green	28
	Blue	28
	Reset 28
Sound Same as the AV source	33
Power Control	Energy Save	33
	Power Management	34
Sleep Timer	-	39
Option Auto Setup	36
	Manual Setup	36
	HDMI Input	44
	HDMI Control Setting	51
HDMI Control	-	53

Using the HOME MENU

The following describes the typical procedure for setting up the menus. For the actual procedures, see the appropriate pages that describe individual functions.

1 Press HOME MENU.

2 Press ↑/↓ to select a menu item, and then press ENTER.

3 Repeat step 2 until you access the desired submenu item.

The number of menu layers differs depending on the menu items.

4 Press / to select an option (or parameter), and then press ENTER.

For some menu items, press ↑/↓ instead of ←/→.

5 Press HOME MENU to exit the menu.

Note

• You can return to the upper menu levels by pressing RETURN.

Chapter 8 Setting up

Setting up TV channels

This section describes how to automatically search for and set up TV channels.

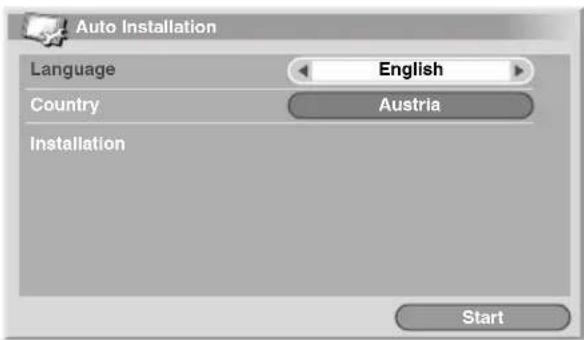

Using Auto Installation

When the plasma television is switched on for the first time after purchase, the initial auto installation is initiated. You can automatically set language, country and channels in successive operations.

1 Select "Language" (↑/↓).
2 Select a language ( / ) .

You can select from among 17 languages: English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish, Czech, Polish and Ukrainian.

3 Select "Country" (↑/↓).

4 Select the country ( / ) .

5 Select "Start" (↑/↓ then ENTER).

Auto Installation automatically starts.

To quit Auto Installation in progress, press RETURN.

Note

• You can start Auto Installation from the HOME MENU after moving to another country, for example. Perform the following steps before starting Auto Installation: Press HOME MENU, select "Setup" (↑/↓ then ENTER), then "Auto Installation" (↑/↓ then ENTER). The password entry screen appears. Enter your four-digit password using buttons 0 to 9.
• If no channel is found, check the antenna connections, and then retry Auto Installation.

Setting up analogue TV channels manually

Use the Manual Adjust function to set up TV channels manually.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Analogue TV Setup" (↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9. For the password, see Using a password on page 39.

4 Select "Manual Adjust" (↑/↓ then ENTER).
5 Select "Programme Entry" (↑/↓).
6 Select a programme number ( / ) .

You can select 1 through 99.

7 Select "Search" (↑/↓).
8 Enter a frequency using buttons 0 to 9, then ENTER.

You can also press / to enter a frequency.

9 Select "System" (↑/↓).

10 Select a sound system ( / ) .
You can select from among "B/G", "D/K", "I", "L", and "L'".
11 Select "Colour System" (↑/↓).
12 Select a colour system ( / ) .
You can select from among "Auto", "PAL", "SECAM", and "4.43NTSC".
13 Select "Store" (↑/↓).
14 Select "Yes", "Yes (Listed)", or "No" ( ).

Setting up

Item Description

Yes	You can select the channel using P+/P-.
Yes (Listed)	Select this option to register the channel as your favourite channel. You can select the channel using the Favourite Channel list and P+/P-.
No	You cannot select the channel using P+/P-.

15 Press HOME MENU to exit the menu.

• Alternatively, to set up for another channel, repeat steps 6 to 14.

Note

The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD/HDD recorder (DVR).
- Manual Adjust also allows you to make selections for Tuner NR, Child Lock, and Decoder. See Reducing video noise, Setting Child Lock, and Selecting a decoder input terminal.

Reducing video noise

For the individual channels, you can specify whether the plasma television should reduce video noise depending on the levels of broadcasting signals.

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).

3 Select "Analogue TV Setup" (↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9. For the password, see Using a password on page 39.

4 Select "Manual Adjust" (↑/↓ then ENTER).
5 Select "Programme Entry" (↑/↓).
6 Select a programme number ( / ) .
You can select 1 through 99.
7 Select "Tuner NR" (↑/↓).
8 Select "On" ( / ).
9 Press HOME MENU to exit the menu.

Note

• This function may not achieve a satisfactory result, depending on the conditions of broadcasting signals.
• When using a decoder with a decoder terminal selected, this function may fail to achieve a good result.
  The factory default is "On".

Setting Child Lock

Child Lock inhibits selected TV channels from being tuned and watched.

1 Repeat steps 1 to 6 provided for Reducing video noise.

After selecting a channel (using Programme Entry), perform the following steps:

2 Select "Child Lock" (↑/↓).

3 Select "Block" ( / ).

• The selection is switched between "View" (factory default) and "Block".

4 Press HOME MENU to exit the menu.

Selecting a decoder input terminal

If you have connected a decoder, select a decoder input terminal (INPUT 1).

1 Repeat steps 1 to 6 provided for Reducing video noise.

After selecting a channel (using Programme Entry), perform the following steps:

2 Select "Decoder" (↑/↓).
3 Select "INPUT 1" (←/→).
4 Press HOME MENU to exit the menu.

Note

• With "Off" (factory default) selected, you cannot watch any images from the decoder.

Labeling TV channels

You can name TV channels that you have set up, using up to five characters. This may help you easily identify the channels during selections.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Analogue TV Setup" (↑/↓ then ENTER).
The password entry screen appears. Enter your four-digit password using buttons 0 to 9.
4 Select "Label" (↑/↓ then ENTER).
5 Select "Programme Entry" (↑/↓).
6 Select a programme number ( / ) .

You can select 1 through 99.

7 Select "Label" (↑/↓ then ENTER).

The name entry screen appears.

8 Select the first character ( / / / then ENTER).

The cursor moves to the second character.

9 Repeat step 8 to enter up to five characters.

• To correct entered characters, select [←] or [→] on the screen, and then press ENTER. The cursor moves to the preceding or subsequent character.
• To delete the current character, select [Delete] on the screen, and then press ENTER.
• To put a space for the current character, select [Space] on the screen, and then press ENTER.

10 To complete the name entry, press ↑/↓ or ←/→ to select [OK] on the screen, and then press ENTER.

11 Press HOME MENU to exit the menu.

Note

The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD/HDD recorder (DVR).

Sorting preset TV channels

Use the following procedure to change the sequence of the preset TV programmes.

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).

3 Select "Analogue TV Setup" ( ↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9.

4 Select "Sort" (↑/↓ then ENTER).

The sort screen appears.

5 Select a channel to be shifted (↑/↓/←/→ then ENTER).

6 Select a new location (↑/↓/←/→ then ENTER).

Sorting is executed.

7 Press HOME MENU to exit the menu.

Note

• To change a page on the Sort screen in step 6, select / on the screen with / to select a page, and then press ENTER.
  The above procedure transfers and sets only the shifted channel information to recording equipment such as a VCR or DVD/ HDD recorder (DVR).

Setting up

Language setting

You can select the language to be used for on-screen display such as menus and instructions, from among 17 languages: English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish, Czech, Polish and Ukrainian.

For the language to be used in the Teletext mode, you can select from among West Europe, East Europe, Greece/Turkey, Cyrillic, and Arabia.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Language" (↑/↓ then ENTER).
4 Select "Menu" (↑/↓).
5 Select a language ( / ) .

6 Select "Teletext" (↑/↓).
7 Select a language ( / ) .
8 Press HOME MENU to exit the menu.

AV Selection

Select from the six viewing options, depending on the current environment (e.g., room brightness), the type of the current TV programme, or the type of images input from external equipment.

1 Press HOME MENU.
2 Select "Picture" (↑/↓ then ENTER).
3 Select "AV Selection" (↑/↓ then ENTER).
4 Select the desired option ( ↑/↓ then ENTER).

For AV source

For AV source

Item Description

STANDARD Well defined image in a normally lit room. This setting is shared by the external inputs and TV input sources.

DYNAMIC Sharp imaging with the maximum contrast. Note that this mode does not allow manual image quality adjustment. This setting is shared by the external inputs and TV input sources.

MOVIE Optimized for movies. This setting is shared by the external inputs and TV input sources.

SPORT Optimized for sports programmes. This setting is shared by the external inputs and TV input sources.

GAME Lowers image brightness for easier viewing. This setting is shared by the external inputs and TV input sources.

USER Allows the user to customize settings as desired. You can set the mode for each input source.

For PC source

Item Description

STANDARD For a highly defined image in a normally bright room

USER Allows the user to customize setting as desired. You can set the mode for each input source.

5 Press HOME MENU to exit the menu.

Note

• If you have selected "DYNAMIC", you cannot select "Contrast", "Brightness", "Colour", "Tint", "Sharpness", "Pro Adjust", and "Reset"; these menu items are dimmed.

Basic picture adjustments

Adjust the picture to your preference for the chosen AV Selection option (except DYNAMIC).

1 Press HOME MENU.
2 Select "Picture" (↑/↓ then ENTER).
3 Select an item to be adjusted (↑/↓ then ENTER).

For PC source, the following screen appears:

4 Select the desired level ( / ) .

When an adjustment screen is in display, you can also change the item to be adjusted, by pressing ↑/↓.

5 Press HOME MENU to exit the menu.

For AV source

Item	← button	→ button
Contrast For less contrast For more contrast
Brightness For less brightness For more brightness
Colour For less colour intensity	For more colour intensity
Tint Skin tones become purplish	Skin tones become greenish
Sharpness For less sharpness For more sharpness

For PC source

Item	← button	→ button
Contrast For less contrast For more contrast
Brightness For less brightness For more brightness
Red For weaker red	For stronger red
Green	For weaker green	For stronger green
Blue	For weaker blue	For stronger blue

Note

• To perform advanced picture adjustments, select "Pro Adjust" in step 3 and then press ENTER. For the subsequent procedures see Advanced picture adjustments on page 29.
• To restore the factory defaults for all items, press ↑/↓ to select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press ←/→ to select "Yes", and then press ENTER.

Setting up

Advanced picture adjustments

The plasma television provides various advanced functions for optimizing the picture quality. For details on these functions, see the tables.

Using PureCinema

1 Press HOME MENU.
2 Select "Picture" (↑/↓ then ENTER).
3 Select "Pro Adjust" (↑/↓ then ENTER).
4 Select "PureCinema" ( ↑/↓ then ENTER).
5 Select "Film Mode" or "Text Optimisation" (↑/↓ then ENTER).
6 Select the desired parameter ( ↑/↓ then ENTER).

For the selectable parameters, see the table.

PureCinema

Automatically detects a film-based source (originally encoded at 24 frames/second), analyses it, then recreates each still film frame for high-definition picture quality

Film Mode Off Deactivates the PureCinema

Standard Produces smooth and vivid moving images (film specific) by automatically detecting recorded image information when displaying DVD or high-definition images (e.g., movies) having 24 frames per second

Smooth Produces smoother and more vivid moving images

Advance Produces smooth and quality moving images (as shown on theatre screens) by converting to 72 Hz when displaying DVD images (e.g., movies) having 24 frames per second

Text Optimisation

Off Deactivates Text Optimisation

On Improves subtitle display quality

Note

• "Standard" is not selectable for the following input signals: 480p, 576p, 720p@50 Hz, 720p@60 Hz, 1080p@24 Hz, 1080p@50 Hz, 1080p@60 Hz.
  "Advance" is not selectable for the following input signals: PAL, SECAM, 576i, 576p, 720p@50 Hz, 1080p@24 Hz, 1080i@50 Hz, 1080p@50 Hz/60 Hz.
  "Smooth" is not selectable for the following input signals: 1080p@50 Hz, 1080p@60 Hz.
• When you select "On" for "Game Control Pref" on the "Option" menu, the "PureCinema" setting is disabled.

Using Intelligent Mode

1 Press HOME MENU.
2 Select "Picture" (↑/↓ then ENTER).
3 Select "Pro Adjust" (↑/↓ then ENTER).
4 Select "Intelligent Mode" (↑/↓ then ENTER).
5 Select the desired parameter (↑/↓ then ENTER).

Intelligent Mode

Performs such compensation that results in the optimum colour tones and brightness for images

Selections Off Deactivates Intelligent Mode

On Activates Intelligent Mode

6 Press HOME MENU to exit the menu.

Note

• As this function automatically optimizes image quality, the process in which image settings such as brightness and tint gradually change may be seen on the screen. This is not a malfunction.

Using the Picture Detail

1 Press HOME MENU.

2 Select "Picture" (↑/↓ then ENTER).

3 Select "Pro Adjust" (↑/↓ then ENTER).

4 Select "Picture Detail" (↑/↓ then ENTER).

5 Select an item to be adjusted (↑/↓ then ENTER).

• You can select "DRE Picture", "Black Level", "ACL", "Enhancer Mode" or "Gamma".

6 Select the desired parameter ( ↑/↓ then ENTER).

DRE Picture

Emphasizes the contrast on images so that the difference between brightness and darkness becomes more distinct

Selections Off Deactivates DRE Picture

High Enhanced DRE Picture

Mid Standard DRE Picture

Low Moderate DRE Picture

Setting up

Black Level

Emphasizes dark portion on images so that the difference between brightness and darkness becomes more distinct

Selections Off Deactivates Black Level

On Activates Black Level

ACL

Performs such compensation that results in the optimum contrast characteristics for images

Selections Off Deactivates ACL

On Activates ACL

Enhancer Mode

Selects processing of the image's high frequency (detailed) areas

Selections 1 Selects Hard (SHARPNESS) image

2 Selects Natural (SHARPNESS) image

3 Selects Soft (SHARPNESS) image

Gamma

Adjusts the gamma characteristics (image gradation characteristics)

Selections 1 Selects gamma characteristics 1

2 Selects gamma characteristics 2

3 Selects gamma characteristics 3

Using Colour Temp

1 Press HOME MENU.
2 Select "Picture" (↑/↓ then ENTER).
3 Select "Pro Adjust" (↑/↓ then ENTER).
4 Select "Colour Detail" (↑/↓ then ENTER).
5 Select "Colour Temp" (↑/↓ then ENTER).
6 Select the desired parameter ( ↑/↓ then ENTER).

Colour Temp

Adjusts the colour temperature, resulting in a better white balance

Selections High White with bluish tone

Mid-High Intermediate tone between High and Mid

Mid Natural tone

Mid-Low Intermediate tone between Mid and Low

Low White with reddish tone

Manual Colour temperature adjusted to your preference

• You may rather want to perform fine adjustment. To do this, select "Manual" first and then press and hold ENTER for more than three seconds. The manual adjustment screen appears. Then go to step 7.

7 Select an item to be adjusted (↑/↓ then ENTER).

8 Select the desired level ( / ) .

Item		← button	→ button
R High	Fine adjustment for bright portions	For weaker red	For stronger red
G High		For weaker green	For stronger green
B High		For weaker blue	For stronger blue
R Low	Fine adjustment for dark portions	For weaker red	For stronger red
G Low		For weaker green	For stronger green
B Low		For weaker blue	For stronger blue

To perform adjustment for another item, press RETURN, and then repeat steps 7 and 8.
- You may press ↑/↓ to immediately change an item to be adjusted.

9 Press HOME MENU to exit the menu.

Using CTI and Colour Space

1 Repeat steps 1 to 4 provided for Using Colour Temp.
2 Select "CTI" or "Colour Space" (↑/↓ then ENTER).
3 Select the desired parameter ( ↑/↓ then ENTER).

CTI

Provides images with clearer colour contours. The CTI stands for Colour Transient Improvement.

Selections Off Deactivates CTI

On Activates CTI

Setting up

Colour Space

Changes the colour reproduction space

Selections 1 Optimized for vivid, vibrant colour reproduction

2 Standard colour reproduction

4 Press HOME MENU to exit the menu.

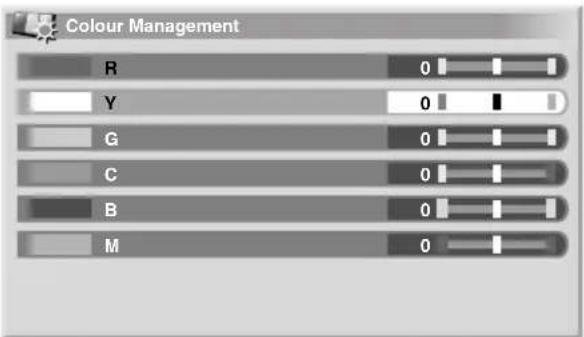

Using Colour Management

1 Press HOME MENU.
2 Select "Picture" (↑/↓ then ENTER).
3 Select "Pro Adjust" (↑/↓ then ENTER).
4 Select "Colour Detail" (↑/↓ then ENTER).
5 Select "Colour Management" (↑/↓ then ENTER).
6 Select an item to be adjusted (↑/↓ then ENTER).

7 Select the desired level ( / ) .

Item	← button	→ button
R Closer to magenta Closer to yellow
Y Closer to red Closer to green
G Closer to yellow Closer to cyan
C Closer to green	Closer to blue
B Closer to cyan	Closer to magenta
M	Closer to blue	Closer to red

To perform adjustment for another item, press RETURN, and then repeat steps 6 and 7.
- You may press ↑/↓ to immediately change an item to be adjusted.

8 Press HOME MENU to exit the menu.

Eliminating noise from images

1 Press HOME MENU.

2 Select "Picture" (↑/↓ then ENTER).
3 Select "Pro Adjust" (↑/↓ then ENTER).
4 Select "Noise Reduction" (↑/↓ then ENTER).

5 Select an item to be adjusted ( ↑/↓ then ENTER).
You can select "3DNR", "Field NR", "Block NR" or "Mosquito NR".

6 Select the desired parameter (↑/↓ then ENTER).

3DNR

Eliminates video noise for clean crisp images. 3DNR stands for 3-dimensional Noise Reduction.

Selections Off	Deactivates 3DNR
	High	Enhanced 3DNR
	Mid	Standard 3DNR
	Low	Moderate 3DNR

Field NR

Removes glimmer for more natural images

Selections Off	Deactivates Field NR
	High	Enhanced Field NR
	Mid	Standard Field NR
	Low	Moderate Field NR

Block NR

Helps reduce noise appearing in high-definition images

Selections Off	Deactivates Block NR
On	Activates Block NR

Mosquito NR

Reduces mosquito noise in DVD and high-definition images, resulting in noise-free images

Selections Off	Deactivates Mosquito NR
On	Activates Mosquito NR

7 Press HOME MENU to exit the menu.

Setting up

Using the 3DYC and I-P Mode

1 Press HOME MENU.
2 Select "Picture" (↑/↓ then ENTER).
3 Select "Pro Adjust" (↑/↓ then ENTER).
4 Select "Others" (↑/↓ then ENTER).
5 Select "3DYC" or "I-P Mode" (↑/↓ then ENTER).
6 Select the desired parameter ( ↑/↓ then ENTER).

3DYC

Optimizes characteristics for separating brightness signals and colour signals. This works for both video and still images.

Selections Off Deactivates 3DYC

High Enhanced 3DYC

Mid Standard 3DYC

Low Moderate 3DYC

I-P Mode

Perform optimum conversion from interlace signals to progressive signals. This works for both video and still images.

Selections 1 Optimum for video images

2 Standard setting

3 Optimum for still images

7 Press HOME MENU to exit the menu.

Note

For the 3DYC, the individual parameters are selectable only when:
- You have selected "INPUT 1", "INPUT 2" or "INPUT 3" as the input source and "Video" as the input signal type (see Selecting an input signal type on page 36); or
- You have selected "INPUT 5" as the input source and have not connected a S-Video cable; or you have selected the analogue tuner.
The 3DYC setting is ineffective when SECAM, PAL60, or 4.43NTSC signals are input.
- The I-P Mode setting is disabled if you use an external input source and select "On" for "Game Control Pref" on the "Option" menu.
- For the I-P Mode, the individual parameters are not selectable for the following input signals: 480p, 576p, 720p, 1080p.

Comparing picture adjustments on the screen

During picture adjustments, you can quickly refer to the image previously set in the same parameter, allowing you to easily compare and select the preferred image quality.

1 Press HOME MENU.

2 Select "Picture" (↑/↓ then ENTER).

3 Select an item to be adjusted (↑/↓ then ENTER).

4 While performing adjustment, press BLUE on the remote control unit.

"Before" displays and the image adjusted last time appears for comparison.

Before

5 Press the button again to return to the newly adjusted image. Each press of the button toggles between "Before" and "After".

6 Repeat steps 1 and 5 for other parameters.

7 Press HOME MENU to exit the menu.

Caution

• If you exit the menu by pressing HOME MENU or no operation is performed for 60 seconds, all the parameter settings displayed last are stored in memory.
• If you want to exit the menu without performing the adjustments (or leaving the settings disabled) on the "After" screen, switch to "Before" and then exit.

Note

• You cannot adjust any item while on the "Before" screen. A warning message appears.
• When you switch to another parameter, make sure to change the display from "Before" to "After" first, otherwise you cannot select "Before". A warning message appears if you don't.
• If you exit the selection from the "Before" screen, the previous entry is stored in the memory and the button no longer works.
• If you exit the selection from the "After" screen, the new entry is stored in the memory and the button no longer works.
• If you move and change the "AV Selection" parameter, the new entry in the current parameter is stored in the memory and the button continues to work.
• You cannot compare images between different parameters on the "AV Selection" menu ("STANDARD" and "MOVIE", for example).

• When you select this function, "Intelligent Mode" for "Pro Adjust" on the "Picture" menu is set to off and image quality returns to default settings.
  This function is not selectable:

• when you select "AV Selection",

• when you select "Yes" or "No" on the confirmation screen for "Reset" from the "Picture" menu or
• when you select a menu from the PC source

Setting up

Sound adjustments

You can adjust the sound quality to your preference with the following settings.

Adjust the sound to your preference for the chosen AV Selection option. See AVSelection on page 27.

1 Press HOME MENU.
2 Select "Sound" (↑/↓ then ENTER).
3 Select an item to be adjusted (↑/↓).
4 Select the desired level ( / ) .

item	← button	→ button
Treble For weaker treble For stronger treble
Bass For weaker bass For stronger bass
Balance Shifts the audio balance to the left	Shifts the audio balance to the right

5 Press HOME MENU to exit the menu.

Note

• You cannot adjust the sound for listening with headphones.
• If you perform sound adjustments with headphones connected, the new settings will become effective as soon as you disconnect the headphones.
  To restore the factory defaults for all items, press ↑/↓ to select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press ←/→ to select "Yes", and then press ENTER.

Sound Effect

You can select from SRS FOCUS, SRS or SRS TruBass.

1 Press HOME MENU.
2 Select "Sound" (↑/↓ then ENTER).
3 Select "Sound Effect" (↑/↓ then ENTER).
4 Select "SRS FOCUS", "SRS" or "SRS TruBass" (↑/↓).
5 Select the desired parameter ( / ) .

SRS FOCUS
Selections Off Deactivates SRS FOCUS
	On Activates SRS FOCUS Shifts the apparent direction of the sound upward for more clearly defined sound
SRS
Selections Off Deactivates SRS
	On Activates SRSReproduces highly effective threedimensional sound
SRS TruBass
Selections Off Deactivates SRS TruBass
	On Activates SRS TruBass Provides deep, rich bass using a new technology

6 Press HOME MENU to exit the menu.

Note

• (WARS) denotes a status where SRS FOCUS

SRS® and SRS TruBass® are on.

• You cannot adjust the sound effect for listening with headphones.
• If you change the sound effect with headphones connected, the new setting will become effective as soon as you disconnect the headphones.
  The effect of this function differs depending on signals.

Power Control

Power Control provides convenient functions for power saving.

Energy Save

You may use one of the three Energy Save modes to save power consumption.

1 Press HOME MENU.
2 Select "Power Control" (↑/↓ then ENTER).
3 Select "Energy Save" (↑/↓ then ENTER).
4 Select "Mode 1", "Mode 2", or "Picture Off" (↑/↓ then ENTER).

Energy Save

Selections Off Does not decrease the picture brightness

Mode 1 Slightly lowers power consumption while slightly suppressing the brightness drop level

Mode 2 Decreases the picture brightness and lowers power consumption

Picture Off Deactivates the screen to save power. To restore the screen display, press any button other than +/− and ×. This setting is not memorized by the system.

5 Press HOME MENU to exit the menu.

Note

• When you change the Energy Save mode, you may notice a change in the panel sound. This is normal.
• The Energy Save function can maintain efficiency of the screen for a long period of time. Setting the Energy Save function to "Mode 1" is recommended in order to maintain the efficiency of the screen for a long period of time.

No Signal off (AV source only)

The system will be automatically placed into the standby mode if no signal is received for 15 minutes.

1 Press HOME MENU.
2 Select "Power Control" (↑/↓ then ENTER).
3 Select "No Signal off" (↑/↓ then ENTER).
4 Select "Enable" (↑/↓ then ENTER).

No Signal Off

Selections Disable (default)	Does not place the system into the standby mode
	Enable Places the system into the standby mode if no signal is received for 15 minutes

5 Press HOME MENU to exit the menu.

Note

• Five minutes before the system is placed into the standby mode, a message appears every minute.
• The system may not be placed into the standby mode when noise signals are present at the plasma television after a TV programme finishes.

No Operation off (AV source only)

The system will be automatically placed into the standby mode when no operation is performed for three hours.

1 Press HOME MENU.
2 Select "Power Control" (↑/↓ then ENTER).
3 Select "No Operation off" (↑/↓ then ENTER).
4 Select "Enable" (↑/↓ then ENTER).

No Operation off

Selections Disable (default)	Does not place the system into the standby mode
Enable Places the system into the standby mode if no operation is performed for three hours

5 Press HOME MENU to exit the menu.

Note

• Five minutes before the system is placed into the standby mode, a message appears every minute.

Power Management (PC source only)

The system will be automatically placed into the standby mode when no signal is received from the personal computer.

1 Press HOME MENU.
2 Select "Power Control" (↑/↓ then ENTER).
3 Select "Power Management" (↑/↓ then ENTER).
4 Select "Mode 1" or "Mode 2" (↑/↓ then ENTER).

Off (default) No power management

Item Description

Mode 1 · Places the system into the standby mode when no signal is received from the personal computer for eight minutes. · Even when you start using the computer and a signal is received again, the system stays off. · The system is switched on again by pressing STANDBY/ON on the plasma television or ⊙ on the remote control unit.

Mode 2 - Places the system into the standby mode when no signal is received from the personal computer for eight seconds.

• When you start using the computer and a signal is input again, the system is switched on.
  The system is switched on again by pressing STANDBY/ON on the plasma television or on the remote control unit.

5 Press HOME MENU to exit the menu.

Note

• This function is not selectable when the PC is connected to the HDMI terminal.

Chapter 9

Useful adjustment settings

About "Option" menus

The "Option" menu consists of two screens. To select the desired menu, press / repeatedly to switch between Screen 1 and Screen 2. The current screen number appears at the top right corner on the screen.

(For AV source)

Switching the vertical drive mode (AV source only)

You can select the desired drive mode according to the programme you watch.

1 Press HOME MENU.

2 Select "Option" (↑/↓ then ENTER).

3 Select "Drive Mode" (↑/↓ then ENTER).

4 Select "1", "2" or "3" (↑/↓ then ENTER).

5 Press HOME MENU to exit the menu.

Note

• This setting can be made for each input source separately.
• This setting cannot be made when 480i, 480p, 1080i@60 Hz, 720p@60 Hz, 1080p@24 Hz or 1080p@60 Hz signals are input.
  The Drive Mode does not operate when "On" is selected in Game Control Pref.

Adjusting image positions (AV source only)

This setting adjusts the horizontal and vertical positions of images on the plasma television.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Position" (↑/↓ then ENTER).
4 Select "H/V Position Adjust" (↑/↓ then ENTER).
5 Adjust the vertical position (↑/↓) or the horizontal position ( / ) .
6 Press HOME MENU to exit the menu.

Note

To restore the factory defaults for all items, press ↑/↓ to select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press ←/→ to select "Yes", and then press ENTER.
Adjustments are stored separately according to input source.
Depending on the displayed video, the image position may not change even after adjustment.

Adjusting image positions and clock automatically (PC source only)

Use Auto Setup to automatically adjust the positions and clock of images coming from a personal computer.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Auto Setup" (↑/↓ then ENTER).
A message screen appears and Auto Setup starts.
4 Press HOME MENU to exit the menu.

Note

• When Auto Setup is finished, "Auto Setup completed." appears.
• Even when "Auto Setup completed." appears, Auto Setup may have failed, depending on conditions.
• Auto Setup may fail with a PC image composed of similar patterns or monochrome. If not successful, change the PC image and try again.
• Be sure to connect the computer to the plasma television and switch it on before starting Auto Setup.
• This function is not selectable when the PC is connected to the HDMI terminal.

Adjusting image positions and clock manually (PC source only)

Usually you can easily adjust the positions and clock of images using Auto Setup. Use Manual Setup to optimize the positions and clock of images when necessary.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Manual Setup" (↑/↓ then ENTER).
4 Select the item to be adjusted ( / then ENTER).
5 Perform adjustment ( / and / ) .
With "Clock" or "Phase" selected, you can perform adjustment in the parameter using / .
6 Press HOME MENU to exit the menu.

Note

To restore the factory defaults for all the items, press ↑/↓ to select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press ←/→ to select "Yes", and then press ENTER.
- This function is not selectable when the PC is connected to the HDMI terminal.

Selecting an input signal type

After connecting to the INPUT 1, INPUT 2, or INPUT 3 terminal, specify the type of video signals to be received from the connected equipment. For the type of the signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 1, INPUT 2, or INPUT 3 on the remote control unit or press INPUT on the plasma television to select an input source.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Input Select" (↑/↓ then ENTER).
4 Select "Input" or "Audio Select" (↑/↓ then ENTER).

5 Select a signal type (↑/↓ then ENTER).

You can select the video input terminal for "Input":

• For "INPUT 1", you can select "Video" or "RGB".
  For "INPUT 2", you can select "Video", "S-Video" or "COMPONENT".
  For "INPUT 3", you can select "Video", "S-Video", or "RGB".
  You can select the audio input terminal for "Audio Select":
• Select "SCART" or "RCA".

6 Press HOME MENU to exit the menu.

Note

• INPUT 1 or INPUT 3 is selectable only when "Disable" is selected in the "Setting" for "HDMI Input".
• You can select the signal in each input terminal.
  The "Audio Select" is only available when "COMPONENT" is selected in "Input" for "Input Select".
• If no image appears or images appear in inappropriate colours, specify another video signal type.
• For the signal types to be specified, check the operation manual that came with the connected equipment.

Colour system setting

If an image does not appear clearly, select another colour system (e.g., PAL, NTSC).

1 Press HOME MENU.

2 Select "Option" (↑/↓ then ENTER).

3 Select "Colour System" (↑/↓ then ENTER).

4 Select a video signal system ( ↑/↓ then ENTER).

• You can select "Auto", "PAL", "SECAM", "NTSC", or "4.43NTSC".
• With "Auto" selected, input signals are automatically identified.

5 Press HOME MENU to exit the menu.

Note

The factory default is "Auto".
- You do not need to enter any setting if "HDMI Input" has been selected.
- You need to perform colour system setting for each of "INPUT 1", "INPUT 2", "INPUT 3" and "INPUT 5".
- For the colour system setting, see steps 11 and 12 under Setting up analogue TV channels manually on page 24.

Useful adjustment settings

Selecting a game mode

When playing a game, you can use this function to establish a preference for image quality or operability.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Game Control Pref" (↑/↓ then ENTER).
4 Select "On" or "Off" (↑/↓ then ENTER).
5 Press HOME MENU to exit the menu.

Note

The "Game Control Pref" is only available when using an external input (except a PC source) and "GAME" is selected in "AV Selection".
- The "Game Control Pref" options are not effective when PC signals are received (when a PC source menu is displayed on the screen).
- The "On" setting is not effective when freezing images.

Item Description

On Establishes a preference for operability

Off Establishes a preference for image quality

Selecting a screen size manually

Press to switch among the screen size options selectable for the type of video signals currently received.

Each time you press the selection is switched.

The selectable screen sizes differ depending on the types of input signals.

Important

• If images with black bands on both sides or top and bottom of the screen - when using the "4:3", "FULL 14:9" or "CINEMA 14:9" modes, for example - are displayed continuously for long periods or for shorter periods of time over several days, image retention may result. It is recommended that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement.

AV source

Item Description

4:3 For standard 4:3 pictures. A side mask appears on each side.

FULL 14:9 For 14:9 squeeze pictures. A thin side mask appears on each side.

Item Description

CINEMA 14:9 For 14:9 letterbox pictures. A thin side mask appears on each side, and you may also see bars on the top and bottom with some programmes.

WIDE In this mode the picture is progressively stretched toward each side of the screen

FULL For 16:9 squeeze pictures

ZOOM For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

CINEMA For 14:9 letterbox pictures. Bars may appear on the top and bottom on some programmes.

PC source

Item Description

4:3 Fills the screen without altering the input signal aspect ratio

FULL Full 16:9 screen display

AV source PC source

Note

• While receiving High Definition video signals, pressing switches among "FULL", "WIDE", "4:3", and "ZOOM".
• Some HD broadcasts may display 4:3 content with side masks, which may cause uneven wear. After viewing it is recommended to view full-screen motion video (see Detecting side masks on page 38).
  The specifications given for the PC source is for the PDP-5080XA. For the PDP-4280XA, the number of panel pixels is different, and thus signal processing and actual viewing conditions will vary slightly.

Selecting a screen size automatically

The plasma television automatically selects an appropriate screen size when the received video signals contain WSS (wide screen signaling) information or when video signals are received from a connected HDMI equipment (see page 44). To activate this function, use the following procedure.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Auto Size" (↑/↓ then ENTER).
4 Select "Natural" or "Wide-Zoom" (↑/↓ then ENTER).

Item Description

Off Deactivates the Auto Size function

Natural Naturally adjusts the image to the screen

Wide-Zoom Enlarges and displays only the 4:3 aspect ratio portion in full and wide screen

5 Press HOME MENU to exit the menu.

Note

• Manually select an appropriate screen size if an image does not automatically switch to a correct screen format.
• When the video signal contains no aspect ratio information, the function will not work even with "Natural" or "Wide-Zoom" selected.

Detecting side masks

Some HD broadcasts may display 4:3 content with side masks. The plasma television automatically detects these side masks to provide grey side masks when "Natural" has been selected for "Auto Size", or display the image full screen with the side masks removed when "Wide-Zoom" has been selected. This function does not operate when "Off" is selected for "Auto Size".

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Side Mask" (↑/↓ then ENTER).
4 Select "Detection" (↑/↓).
5 Select "On" ( / ).

Item Description

Off Deactivates the Side Mask detection

On Activates the Side Mask detection

6 Press HOME MENU to exit the menu.

Important

• The "On" setting prevents uneven wear on 4:3 content and side masks and can reduce the possibility of image retention.

Note

• You cannot set the Side Mask detection to "On" or "Off" when "Off" is selected in "Auto Size".
• The Side Mask detection does not operate on 4:3 content displayed in SD signals.
• "AUTO" will appear on the channel display when this function is on.
• Set the Side Mask detection function to "On", the High Definition 16:9 aspect ratio images containing side masks will be detected and the side masks will be added automatically or the image displayed in full screen, leading to more effective countermeasures taken for the screen burning.
• Detection errors may occur depending on the HD contents. In case a detection error occurs, manually change the screen size to the desired size.

Changing the brightness at both sides of the screen (Side Mask)

With the 4:3, FULL 14:9, or CINEMA 14:9 screen size, you can change the brightness of the grey side masks that appear at both sides of the screen.

1 Repeat steps 1 to 3 provided for Detecting side masks.
2 Select "Brightness Sync." (↑/↓).
3 Select the desired parameter ( / ) .

Item Description

Fixed

(default)

Always sets the same brightness for the grey side.

masks

Auto Adjusts the brightness of the grey side masks

according to the brightness of images

Important

• The "Auto" setting adjusts the brightness of the side masks according to the brightness of the screen and can reduce the possibility of image retention.

4 Press HOME MENU to exit the menu.

Blue LED Dimmer

You can adjust the brightness of the POWER ON indicator depending on the brightness level of the viewing area.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Blue LED Dimmer" (↑/↓ then ENTER).
4 Select "High", "Mid" or "Low" (↑/↓ then ENTER).
5 Press HOME MENU to exit the menu.

Orbiter

This function automatically shifts the image little by little to reduce the occurrence of the burning.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "Orbiter" (↑/↓ then ENTER).
4 Select "On" (↑/↓ then ENTER).
5 Press HOME MENU to exit the menu.
To cancel this function, select "Off" in step 4.

Note

• When the Orbiter function is set to "On", the image may appear to drop slightly on the screen.
• This function does not operate when PC signals are received.

Video Pattern

You can display the Video Pattern screen that also helps eliminate after-image when it occurs.

1 Press HOME MENU.

2 Select "Option" (↑/↓ then ENTER).

3 Select "Video Pattern" (↑/↓ then ENTER).

A confirmation screen appears.

4 Select "Start" (ENTER).

The Video Pattern screen displays.

Note

The system is automatically placed into standby one hour after the Video Pattern screen has started.
- While the Video Pattern screen is on, no buttons operate except on the remote control unit, STANDBY/ON and on the plasma television.
- To cancel the Video Pattern screen, press on the remote control unit, STANDBY/ON or on the plasma television.
- The Video Pattern timer has priority over the sleep timer. When the Video Pattern timer is on, the sleep timer becomes ineffective.

Sleep Timer

When the selected time elapses, the Sleep Timer automatically places the system into the standby mode.

1 Press HOME MENU.

2 Select "Sleep Timer" (↑/↓ then ENTER).

3 Select the desired time ( ↑/↓ then ENTER).

Select "Off" (cancel), "30 min", "60 min", "90 min", or "120 min".

4 Press HOME MENU to exit the menu.

Note

• Five minutes before the selected time elapses, the remaining time appears every minute.
• To check the remaining time, perform steps 1 and 2. After checking the time, press HOME MENU to restore the previous display.
• The SLEEP indicator on the front of the plasma television lights orange when the sleep timer is set.

Using a password

The plasma television provides the Child Lock function for preventing children from watching inappropriate programmes. You need to enter a password when watching programmes with "Block" specified. Before the system is shipped, "1234" is preset as the factory-default password. You can however, change the password as you want.

You will need to enter the password before using the "Auto Installation", "Analogue TV Setup" or "Password" functions from the HOME MENU. This is to prevent unauthorized changes to the settings.

Entering a password

You will need to enter the password after selecting a channel blocked with the Child Lock function, and before you can use some of the menu functions.

• Enter your four-digit password using buttons 0 to 9.

Note

• If you fail to enter the correct password three times, "Invalid password." appears, and the menu is closed. In order to display the password entry screen again to unlock the password, select the blocked channel or open the menu again.
• If the password entry screen disappears before entry, you may recall it by pressing ENTER.

Useful adjustment settings

Changing the password

Use the following procedure to change the password.

1 Press HOME MENU.

2 Select "Setup" ( ↑/↓ then ENTER).

3 Select "Password" (↑/↓ then ENTER).

The password entry screen appears. Enter the current four-digit password using buttons 0 to 9.

4 Select "Change Password" (↑/↓ then ENTER).

5 Enter a four-digit password to be newly set, using buttons 0 to 9.

6 Enter the same password that you have entered in step 5.

• If a different password is entered, the operation goes back to step 5 for reentry from the beginning.
• You can try up to three times to reconfirm the new password before the Change Password screen is automatically exited.

7 Press HOME MENU to exit the menu.

Note

Take a note of the newly set password and keep it handy.

Resetting the password function

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Password" (↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9.

4 Select "Reset" (↑/↓ then ENTER).
5 Select "Yes" ( / then ENTER).
6 Press HOME MENU to exit the menu.

Note

The above procedure will reset the password to the factory default (1 2 3 4).

Disabling the password function

Use the following procedure if you want to deactivate the protection function that prompts password entry. The factory default is "Enable".

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Password" (↑/↓ then ENTER).
The password entry screen appears. Enter your four-digit password using buttons 0 to 9.
4 Select "Password Setting" (↑/↓ then ENTER).
5 Select "Disable" (↑/↓ then ENTER).
6 Press HOME MENU to exit the menu.

Note

The above procedure will reset the password to the factory default (1 2 3 4).
- After disabling the password function, you cannot change the Child Lock settings. See Setting Child Lock on page 25.
After disabling the password function, you cannot change or reset the password.
- When you enable the password function again after disabling it, the factory default password (1 2 3 4) is restored.

We suggest you write down your password so you don't forget it.

If you forget the password

When the message "Please Input Your Password," is displayed, press the ENTER button on the remote control unit and hold it down for three seconds or longer.

The password reverts to "1234".

Chapter 10

Using with other equipment

You can connect many types of external equipment to your plasma television, like a decoder, VCR, DVD player, game console, personal computer and camcorder.

To view images coming from external equipment, select the input source using the INPUT buttons on the remote control (page 13) or INPUT on the plasma television.

Caution

• To protect all equipment, always unplug the plasma television from the power outlet before connecting to a decoder, VCR, DVD player, game console, personal computer, camcorder or other external equipment.

Note

Refer to the relevant operation manual (DVD player, etc.) carefully before making connections.
- Unless stated otherwise, the connecting cables shown in the illustrations are readily available commercially, but are not supplied with this product.

Connecting a DVD player

Use the INPUT 2 terminal when connecting to a DVD player and other audiovisual equipment.

When using a component video cable, select "COMPONENT" in the "Input Select" menu and "SCART" in the "Audio Select" menu (see Selecting an input signal type on page 36). In this case, the SCART cable will carry the audio signal.

If you want the audio cable to carry the audio signal, connect the audio cable to the INPUT 2 terminal (Audio) and select "RCA" in the "Audio Select" menu.

DVD player

DVD playback

To watch a DVD, press INPUT 2 on the remote control unit or press INPUT on the plasma television to select "INPUT 2".

Note

• If DVD images do not come in clearly, you may need to change the input signal type setting using the menu. See page 36.
  Refer to your DVD player operation manual for the signal type.

Connecting a decoder

Use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.

Displaying a decoder image

Press buttons 0 to 9 or P + / P- to select a programme specified for decoder setting (page 25).

Press INPUT 1 on the remote control unit or press INPUT on the plasma television to select "INPUT 1".

Note

• Be sure to use "INPUT 1" to connect a decoder.
• If decoder images do not come in clearly, you may need to change the input signal type setting using the menu. See page 36.
  Refer to your decoder operation manual for the signal type.

Using with other equipment

Connecting a VCR

Use the INPUT 2 terminals when connecting a VCR and other audiovisual equipment.

If your VCR supports TV-VCR advanced "AV link" systems, you can connect the VCR to the INPUT 2 or INPUT 3 terminal on the plasma television using the fully-wired 21-pin SCART cable.

AV link advanced system

• Download tuning information directly from TV to VCR (Preset download).
  While watching TV, you can record a programme with a one-touch press of the VCR recording button. (WYSIWYR*)
• Refer to your VCR operation manual as some VCRs have an exclusive key for WYSIWYR.
• When you press the play button on the VCR, the system automatically turns on from standby and displays a VCR image.

Note

• TV-VCR advanced "AV link" systems may not be compatible with some external sources.

VCR playback

To watch a VCR image, press INPUT 2 on the remote control unit or press INPUT on the plasma television to select "INPUT 2".

Note

• If VCR images do not come in clearly, you may need to change the input signal type setting using the menu. See page 36.
• Connect external equipment to only terminals that are to be actually used.
  Refer to your VCR operation manual for the signal type.

Connecting a game console or camcorder

Use the INPUT 5 terminals to connect a game console, camcorder and other audiovisual equipment.

Displaying an image from the game console or camcorder

To watch an image coming from the game console or camcorder, press INPUT 5 on the remote control unit or press INPUT on the plasma television to select "INPUT 5".

Note

The INPUT 5 terminals are checked for cable connections in the order where: 1) S-Video, 2) Video.
- Connect external equipment to only terminals that are to be actually used.

Using with other equipment

Connecting a personal computer

Use the PC terminals to connect a personal computer.

Note

The PC input terminals are DDC2B-compatible.

Rear view

Displaying an image from a personal computer

To watch an image coming from the personal computer, press PC on the remote control unit or press INPUT on the plasma television to select "PC".

When connecting to a personal computer, the correct input signal type is automatically detected. If the personal computer image does not come in clearly, you may need to use Auto Setup menu. See page 36.

Note

The PC terminals cannot be used for audiovisual equipment.

Computer compatibility chart

Resolution Frequency

720×400 70 Hz

640x480(VGA)60Hz

800×600(SVGA)60Hz

1280x72060Hz

1024 x 768 (XGA) 60 Hz

1360 x 768 (Wide-XGA) 60 Hz

1280x1024 (SXGA) 60 Hz

Connecting an amplifier/AV receiver

You can enjoy more powerful sound by connecting an amplifier or AV receiver to the plasma television.

Note

• For details, refer to the operation manual for the audio equipment to be connected.
• Audio signals synchronizing with currently displayed images are always output to the AUDIO OUT terminals.

Using the HDMI Input

The INPUT 1, INPUT 3 and INPUT 4 terminals are HDMI terminals to which digital video and audio signals can be input. To use the HDMI terminal, activate the terminal and specify the types of video and audio signals to be received from the connected equipment. For the types of these signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 1, INPUT 3 or INPUT 4 on the remote control unit or press INPUT on the plasma television to select "INPUT 1", "INPUT 3" or "INPUT 4".

Video signals supported

720 (1440) x 576i@50 Hz

720 x 576p@50 Hz

1280 x 720p@50 Hz

1920 x 1080i@50 Hz

720 (1440) x 480i@59.94 Hz/60 Hz

720 x 480p@59.94 Hz/60 Hz

1280 x 720p@59.94 Hz/60 Hz

1920 x 1080i@59.94 Hz/60 Hz

1920 x 1080p@24 Hz

1920 x 1080p@50 Hz

1920 x 1080p@60 Hz

PC signals supported

640 x 480 (VGA) 60 Hz

800 x 600 (SVGA) 60 Hz

1024 x 768 (XGA) 60 Hz

1360 x 768 (Wide - XGA) 60 Hz

1280 x 1024 (SXGA) 60 Hz

For audio, the system supports the following:

• Linear PCM (STEREO 2ch)
• Sampling frequency: 32kHz,44.1kHz,48kHz

HDMI Control supported

The plasma television supports the HDMI Control functions. By connecting devices that support the HDMI Control functions to the plasma television, you can control the connected device(s) from the plasma television or remote control unit of the plasma television. See Using the HDMI Control on Chapter 11.

Deep Colour supported

Deep Colour means the colour depth that describes the number of bits used to represent the colour of a single pixel in a bitmapped image. Besides the conventional RGB/YCbCr16 bit/20 bit/24 bit signals, the plasma television also supports RGB/YCbCr30 bit/36 bit signals. This enables finer, minute colour reproduction when a device that supports Deep Colour signals (HDMI1.3) is connected to the plasma television. When Deep Colour signals are received, the colour depth appears on the channel display.

Note

• It may take a short while until the image is displayed, depending on the equipment connected.
• When connecting a PC to the HDMI terminal, use the HDMI compliant PC or video card.
• When connecting a PC to the HDMI terminal using a DVI output terminal, the plasma television may not display properly. If that is the case, consult with your PC manufacturer.

Connecting HDMI equipment

When using the INPUT 1 HDMI terminal:

Using with other equipment

When using the INPUT 4 HDMI terminal:

HDMI device

Activating the HDMI terminal

When you use the INPUT 1 or INPUT 3 HDMI terminal, select the terminal for the desired input source, then perform the following procedure to activate the terminal.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "HDMI Input" (↑/↓ then ENTER).
4 Select "Setting" (↑/↓ then ENTER).
5 Select "Enable" (↑/↓ then ENTER).

Item Description

Disable (default) Deactivates the HDMI terminal

Enable Activates the HDMI terminal

6 Press HOME MENU to exit the menu.

Specifying the type of input signals

1 Repeat steps 1 to 3 provided for Activating the HDMI terminal.
2 Select "Signal Type" (↑/↓ then ENTER).
3 Select "Video" or "PC" (↑/↓ then ENTER).

Item Description

Video (default) Select this option except when a PC is connected

PC Select this option when a PC is connected to the HDMI input terminal

4 Press HOME MENU to exit the menu.

Caution

Make sure to select "PC" when a PC is connected to the HDMI input terminal.

Note

• In the "Video" mode, the image is "over-scanned" (enlarged), and the mode is automatically switched to "PC" when PC signals are received.
• In the "PC" mode, the image is displayed in full size for optimum image quality.

when "Video" is selected
("overscan" size screen)

when "PC" is selected
("underscan" size screen)

Specifying the type of digital video signals

1 Repeat steps 1 to 3 provided for Activating the HDMI terminal.
2 Select "Video" (↑/↓ then ENTER).
3 Select the type of digital video signals (↑/↓ then ENTER).

• If you select "Auto", an attempt will be made to identify the type of digital video signals when digital video signals are received.

Item Description

Auto (default) Automatically identifies input digital video signals

Colour-1 Digital Component Video signals (4:2:2) locked

Colour-2 Digital Component Video signals (4:4:4) locked

Colour-3 Digital RGB signals (16 to 235) locked

Colour-4 Digital RGB signals (0 to 255) locked

4 Press HOME MENU to exit the menu.

Using with other equipment

Note

• If you select a parameter other than "Auto", make such a setting that results in natural colour.
• If no image appears, specify another digital video signal type.
• For the digital video signal types to be specified, check the operation manual that came with the connected equipment.

Specifying the type of audio signals

When you use the INPUT 1 or INPUT 3 HDMI terminal, select the terminal for the desired input source, then perform the following procedure to specify the type of audio signals.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "HDMI Input" (↑/↓ then ENTER).
4 Select "Audio" ( ↑/↓ then ENTER).
5 Select the type of audio signals (↑/↓ then ENTER).
- If you select "Auto", an attempt will be made to identify the type of audio signals when audio signals are received.

Item Description

Auto (default) Automatically identifies the input signals

Digital Accepts digital audio signals

Analogue Accepts analogue audio signals

6 Press HOME MENU to exit the menu.

Note

• If no sound is output, specify another audio signal type.
• For the audio signal types to be specified, check the operation manual that came with the connected equipment.
• Depending on the equipment to be connected, you also need to connect analogue audio cables.

Connecting control cords

Connect control cords between the plasma television and other Pioneer equipment having the logo. You can then operate the connected equipment by sending commands from its remote control unit to the remote control sensor on the plasma television. After the CONTROL IN terminals have been connected, the remote control sensors on the connected equipment do not accept commands from the remote control units. Face the remote control units to the remote control sensors on the plasma television when operating the connected equipment.

Note

• Make sure that the power cord is removed from the power outlet when making connections.
• Complete all component connections before making control cord connections.

About SR+

The CONTROL OUT terminal on the rear of the plasma television supports SR + that allows linked operations with a Pioneer AV receiver. SR + presents functions such as the input switch linkage operation function and the DSP surround mode display function. For more information, see the instruction manual that came with the Pioneer AV receiver supporting SR + .

Note

• While in connection through SR+ , the volume on this system is temporarily minimized.
• When making control cord connections, use the SR+ cable.
• When making control cord connections with one or more pieces of Pioneer equipment, directly connect the plasma television and the Pioneer amplifier that supports SR+. Do not connect other equipment between them.

Using with other equipment

When SR+ is not used (a, b and c):
The control cables (commercially available) are mono sound cables with mini plugs (no resistance).
When SR+ is used (a):
Use the SR+ cable (available as option).

Using i/o link.A

The plasma television incorporates three typical i/o link.A functions for smooth connections between plasma television and other audiovisual equipment.

One Touch Play

While the plasma television is in standby mode, it automatically turns on and plays back images from the audiovisual source (e.g. VCR, DVD).

WYSIWYR (What You See Is What You Record)

When the remote control unit of the connected VCR has the WYSIWYR button, you can automatically start recording by pressing the WYSIWYR button.

Preset Download

Automatically transfers channel preset information from the tuner on the plasma television to the one on the connected audiovisual equipment (e.g. VCR) via the INPUT 2 or INPUT 3 terminal.

Selecting the SCART terminal for use with i/o link.A

The INPUT 2 and INPUT 3 terminals on the plasma television are available for use with i/o link.A. Select which is to be used.

1 Press HOME MENU.
2 Select "Setup" (/ then ENTER).
3 Select "i/o link.A" (↑/↓ then ENTER).
4 Select a setting (/ then ENTER).

Item Description

INPUT 2 (default) INPUT 2 is available for i/o link.A

INPUT 3 INPUT 3 is available for i/o link.A

5 Press HOME MENU to exit the menu.

Note

• The i/o link.A functions work only when the audiovisual equipment is connected to the INPUT 2 or INPUT 3 terminal on the plasma television with i/o link.A via a fully wired 21-pin SCART.
  Refer to operation manuals of each external equipment for the details.
• If a SCART cable has been connected to the INPUT 3 terminal with the i/o link.A activated, input signals (other than Component) are automatically identified and displayed. If the i/o link.A has been deactivated, Video is always selected for signals other than RGB because the system cannot identify among RGB, Y/C (S-Video), and CVBS (Video) signals; for example, receiving Y/C (S-Video) signals results in monochrome display.

Chapter 11

Using the HDMI Control

Using the HDMI Control functions

You can operate such Pioneer devices as a recorder, player, AV system or HD AV Converter that support the HDMI Control functions using the remote control of the plasma television.

The HDMI Control functions include playback of content using on-screen control panel on the plasma television, recording of a TV programme while watching, timer recording using a programme list on the connected recorder, and confirmation of timer recording registered in the recorder. For details, see the table below.

Note

Maximum number of devices that can be connected and controlled using the remote control unit of the plasma television is as follows: recorder x 2, player x 2, AV system or HD AV Converter x 1.
- Not all device operations may be available for HDMI Control functions.

HDMI Control functions

Function Description		Usable devices
Playback of content	The proper input source is automatically selected and the content is played back on the plasma television as you press PLAY on the connected device	Recorder/ player
On-screen control	Recorder/player operation can be controlled on-screen or with the remote control unit of the plasma television (play, stop, fast forward/reverse, etc.)	Recorder/ player
Recording of TV programme	The programme now watching can be recorded using the remote control unit of the plasma television	Recorder
Timer recording	Timer recording using a programme list on the recorder connected	Recorder
Confirmation of recording schedule	Recording schedule registered in the recorder can be displayed and confirmed on the screen using the remote control unit of the plasma television	Recorder

Function Description		Usable devices
Display Language Setup	Information on the display menu language is transferred to the recorder or player connected to the plasma television. For details, see the operation manual that came with the recorder or player.	Recorder/ player
AV system control	Receiver/amplifier operation can also be controlled with the remote control unit of the plasma television (volume, surround mode and input selection of the HDMI terminal)	AV system
Power On	The connected recorder can be turned On when the plasma television is turned On. The plasma television can be turned On when the connected recorder(s) or player(s) is turned On and images are input to the plasma television.	Recorder/ player
Power Off The connected device(s) can be turned Off when the plasma television is turned Off		Recorder/ player/AV system
HD AV Converter control	An HD AV Converter can also be connected and controlled (For details, see page 51)	HD AV Converter

• Press +/− or to adjust volume for the AV system.
• Press , , , , ENTER, RETURN (color (BLUE, RED, YELLOW, GREEN) buttons to use such functions as the disc navigator and electronic programme guide (EPG) on the connected recorder or player.

Note

• When using the HDMI Control functions, operate the remote control unit while pointing it toward the remote control sensor (SR) located at the bottom right of the front panel of the plasma television.
• You cannot use two or more HDMI terminals at the rear of the plasma television at the same time except "Power Off" and "Display Language Setup" functions.

On-screen control panel

For an AV system

Switches the surround mode in order
Switches the input source in reverse order
Switches the surround mode in reverse order
Closes the screen to return to the HDMI Control menu
5 Displays the model number of the connected device
6 Void
Switches the input source in order

Press or on the remote control unit of the plasma television to switch the surround mode in order or in reverse order, or to switch the input source in order or in reverse order. Pressing HDMI CONTROL turns the control panel screen off to return to the HDMI Control menu.

Note

• You cannot operate the recorder/player when you press or to switch the input source during operation. To resume the operation, return to the HDMI Control menu and select the desired function again.

For a recorder

1 Skips commericals
Fast reverse
Stops playback
Closes the screen to return to the HDMI Control menu
3 Displays the model number of the connected device
6 Starts playback
Fast forward

Press or on the remote control unit of the plasma television to select fast reverse or fast forward mode, to skip commercials or to stop playback. Pressing ENTER starts playback and HDMI CONTROL turns the control panel screen off to return to the HDMI Control menu.

For a player

5
1 Displays the DVD disc menu or Blu-ray disc's pop-up menu on the player
Fast reverse
7 8 Stops playback
Closes the screen to return to the HDMI Control menu
3 Displays the model number of the connected device
6 Starts playback
Fast forward

Press or on the remote control unit of the plasma television to select fast reverse or fast forward mode, to display the DVD menu or Blu-ray disc's pop-up menu on the player or to stop playback. Pressing ENTER starts playback and HDMI CONTROL turns the control panel screen off to return to the HDMI Control menu.

Making the HDMI Control connections

When you make changes in connections between the plasma television and the device(s) that supports the HDMI Control functions or settings for the "HDMI Control Setting", perform the following procedure:

1 Turn on the plasma television and all the connected devices.
2 Confirm that the setting in "Input Setting" for "HDMI Control Setting" is properly entered according to the connected devices. Also confirm the setting in the "HDMI Control" menu for the connected devices.
3 Switch to the HDMI input terminals to which the devices are connected to check if audio and video images are properly output and displayed.
4 Try turning off the plasma television, then turn the power back on to the plasma television.

Connecting an AV amp/DVD recorder/BD player

The PDP-5080XA/PDP-4280XA does not support S/PDIF. When connecting the plasma television to an AV system, use the analogue AUDIO OUT terminal.

Connecting a DVD recorder

Note

Maximum number of devices that can be connected and controlled using the remote control unit of the plasma television is as follows: recorder x 2, player x 2, AV system or HD AV Converter x 1.
- When connecting an AV system or HD AV Converter, be sure to place and connect it between the plasma television and recorder or player.
- Do not connect an AV system that does not support the HDMI Control functions between the plasma television and a recorder/ player, otherwise the HDMI Control functions may not operate properly.

• When connecting an AV system that does not support the HDMI Control functions and a player/ recorder that supports the HDMI Control functions to the plasma television, connect the AV system to the AUDIO OUT terminal on the plasma television using a stereo audio cable, and the recorder/ player to the HDMI terminal using an HDMI compliant cable (see the illustration below).

• After making connections, enter the setting in "Input Setting" for "HDMI Control Setting". Be sure that the setting is entered in each HDMI input terminal to which the device is connected.
• You cannot connect and use an AV system and HD AV Converter at a time.
• Settings in the connected device(s) are also required to use the HDMI Control functions. For details, see the operation manual that came with the connected device(s).
• When a recorder is connected, its power is automatically switched on as the plasma television is turned On to help make the recording smoother.
  For more information on the devices that support the HDMI Control functions, check the Pioneer Web site (see cover).

Using the HDMI Control

Setting the HDMI Control

Selecting the input terminal

Select the HDMI terminal to which the external device is connected in order to use the HDMI Control functions.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "HDMI Control Setting" (↑/↓ then ENTER).

4 Select "Input Setting" (↑/↓ then ENTER).
5 Select "INPUT 1", "INPUT 3" or "INPUT 4" (↑/↓ then ENTER). Only the device that supports the HDMI Control and is connected through the selected INPUT terminal is available for the HDMI Control functions.
6 Press HOME MENU to exit the menu.

Note

• If you have selected "Enable" for "HD AV Converter", you do not need to enter settings in "Input Setting".
• "INPUT 1" or "INPUT 3" can only be selected when "Enable" has been selected for the "HDMI Input" menu (see Activating the HDMI terminal on page 45).
• If you have selected "Off" in step 5, a message "Operations cannot be carried out. Confirm the HDMI control settings." appears when HDMI CONTROL is pressed on the remote control unit.

Selecting the Power Off Control

You can select whether or not the connected device is turned Off when the plasma television is turned Off. (factory default is "On")

1 Repeat steps 1 to 3 provided for Selecting the input terminal.
2 Select "Power Off Control" (↑/↓ then ENTER).
3 Select "On" (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

Note

• The "Power Off Control" function is valid for the devices connected to any of HDMI terminals at the rear of the plasma television.

Selecting the Power-On Ready

You can select whether or not the plasma television is turned On when the connected Pioneer recorder or player is turned On and images are input to the plasma television. (factory default is "On")

1 Repeat steps 1 to 3 provided for Selecting the input terminal.
2 Select "Power-On Ready" (↑/↓ then ENTER).
3 Select "On" (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

Selecting the Hold Sound Status

You can select whether or not the function is held for the connected Pioneer AV system even if the system is placed into standby during HDMI Control operations. (factory default is "Off")

1 Repeat steps 1 to 3 provided for Selecting the input terminal.
2 Select "Hold Sound Status" (↑/↓ then ENTER).
3 Select "On" (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

Selecting the HD AV Converter

The HD AV Converter is an HDMI input selector that will be launched on the market by Pioneer. It has both HDMI and analogue input terminals that support the HDMI Control functions. When the HD AV Converter mode is selected, you can switch the HD AV Converter input terminals using the remote control unit of the plasma television. Picture and sound quality can also be adjusted for each input terminal on the HD AV Converter. For details on selecting the HD AV Converter mode, see the following: (factory default is "Disable")

1 Repeat steps 1 to 3 provided for Selecting the input terminal.
2 Select "HD AV Converter" (↑/↓ then ENTER).
3 Select "Enable" (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

HD AV Converter mode

In the HD AV Converter mode, functions and menus unique to the HD AV Converter are available as follows:

Channel display

In the HD AV Converter mode, a channel display appears as one of the input terminals (INPUT 1 to INPUT 5) selected. The input terminal displayed at the top of the screen is for the HD AV Converter connected, followed by "HD AV Converter".

INPUT 3

HD AV Converter

STANDARD CINEMA 149

Input selection for the HD AV Converter

In the HD AV Converter mode, you can select INPUT 1 to INPUT 5 on the HD AV Converter using "INPUT 1 to INPUT 5" on the remote control unit or INPUT on the right side of the plasma television.

Menu setting download

In the HD AV Converter mode, settings in the following menus for the plasma television's "INPUT 1 to INPUT 5" are transferred to "INPUT 1 to INPUT 5" on the HD AV Converter connected:

• Picture quality settings in "Picture"
  Sound settings in "Sound"
• HDMI-related settings in "HDMI Input" for "Option"

Like the plasma television, these settings can be changed in each of INPUT 1, INPUT 2, INPUT 3, INPUT 4 or INPUT 5 on the HD AV Converter. If you exit the HD AV Converter mode after having changed the settings, the changed settings are transferred to each INPUT on the plasma television.

Note

• A Pioneer HD AV Converter is required to use the HD AV Converter mode. Check the Pioneer Web site (see cover) for updated information on the HD AV Converter.
• When using an HD AV Converter, you also need to enter the setting on the HD AV Converter. For details, refer to the operation manual that came with the HD AV Converter.
• Do not select "Enable" in the "HD AV Converter" menu if you do not use an HD AV Converter.
• When selecting "Enable" for the "HD AV Converter" menu, be sure to connect the HD AV Converter to INPUT 4 on the plasma television.
• In the HD AV Converter mode, only video and audio signals that are input from "INPUT 1 to INPUT 5" on the HD AV Converter connected to INPUT 4 on the plasma television will be displayed and output. Do not connect other devices than a decoder to INPUT 1 to INPUT 3 or INPUT 5. When connecting a decoder, make sure to use INPUT 1 on the plasma television (see Selecting a decoder input terminal on page 25 and Connecting a decoder on page 41).
• You cannot connect and use an AV system and HD AV Converter at the same time.

Using the HDMI Control

Power On/Off Test

You can confirm if the Power On/Off control function is effective between the plasma television and the connected device.

1 Press HOME MENU.
2 Select "Option" (↑/↓ then ENTER).
3 Select "HDMI Control Setting" (↑/↓ then ENTER).
4 Select "Power On Test" or "Power Off Test" (↑/↓ then ENTER).
A list containing devices appears when multiple HDMI devices are connected to the HDMI terminals.
5 Select the desired device (↑/↓ then ENTER).
6 Press HOME MENU to exit the menu.

Note

Devices that can be checked for Power On/Off Test are those connected to HDMI terminals as set in "Input Setting".
- If the Power On/Off Test fails, check for the connection and setting.
The Power On/Off Test cannot be carried out on HD AV Converters.

Using the HDMI Control menus

You can enjoy various functions with the connected Pioneer recorder, player or AV system that supports the HDMI Control functions by selecting and using the corresponding HDMI Control menus.

1 Press HOME MENU.

2 Select "HDMI Control" (↑/↓ then ENTER).

The HDMI Control menu is displayed.

HDMI Control menu

Item Description
Disc Navigator Displays a title list of the connected recorder or player
Timer REC (DVR) Displays an electronic programme guide (EPG) of the connected recorder
Timer REC List (DVR)	Displays a timer recording list of the connected recorder
Pause Live TV Starts recording of the current TV channel when a recorder is connected, but with playback paused, effectively pausing the broadcast
Stop REC (DVR) Stops recording for the connected recorder
CTRL Panel (AV-SYS)	Displays the control panel for the connected AV system on the plasma television
Playback CTRL Panel	Displays the control panel for the connected recorder or player on the plasma television
Switch to AV Sound (Switch to PDP Sound)	Switches between the plasma television and the connected AV system to which sound is output

Note

• To use the HDMI Control functions, a Pioneer recorder, player or AV system that supports the HDMI Control functions is required.
• Not all operations may be controlled for the connected devices.
• The HDMI Control menu is not selectable when "Off" is selected in "Input Setting" for the "HDMI Control Setting" menu.
• Even when the programme being recorded is over, recording is not automatically stopped on the Pause Live TV menu.
  The CTRL Panel (AV-SYS) menu is only available when the sound is output from the AV system.
• The Playback CTRL Panel menu is selectable when the connected recorder or player is ready to operate.
• You can also display the HDMI Control menu by pressing HDMI CONTROL on the remote control unit of the plasma television.

Chapter 12

Using Teletext

Using the Teletext Functions

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your plasma television receives Teletext signals broadcast by TV networks, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among many services available.

Important

• Displaying Teletext pages for a long period of time, or for shorter periods of time everyday, may result in image retention.

Operating the Teletext basics

Turning on and off Teletext

1 Select a TV channel or external input source providing a Teletext programme.

2 Press to display the Teletext (full screen).

3 Press again to display the Teletext on the right screen and normal image on the left screen.

Each time you press, the screen mode switches as shown in the above diagram.
- If you select a programme with no Teletext signal, "Cannot display Teletext." appears.

Selecting and operating Teletext pages

Use the following remote control buttons to select and operate Teletext pages.

Colour (RED/GREEN/YELLOW/BLUE):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding colour (RED/GREEN/YELLOW/BLUE) on the remote control unit.

0 to 9:

Directly select any page from 100 to 899 by using 0 to 9

Press to increase the page number.

Press to decrease the page number.

Using Teletext

E?

To display hidden information such as an answer to a quiz, press ⑦.

Press again to hide the information.

图：

To stop updating Teletext pages, press

Press to release the hold mode.

3i:

Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.

Note

• Before displaying the Teletext, return the screen to the single-screen mode.

Displaying subpages

You can display several subpages as they are transmitted.

1 Press to display Teletext.

• If you open a page containing subpages, the subpages are automatically displayed in sequence.

2 To quit automatic subpage change, press /

• You can then manually change subpages by pressing / .

Note

• Pressing l causes the page to be changed and the subpage screen to disappear.
• Pressing stops automatic subpage change and performs its respective button function.

Displaying TOP Over View

When receiving TOP Teletext, you can read a TOP text overview.

1 Press to display Teletext.

2 While receiving TOP Teletext, press to display TOP Over View.

3 Press / and / to select the desired block or group pages, and then press ENTER.

Displaying subtitle pages

You can display several subtitles as they are transmitted.

1 Press to display the subtitle.

Subtitle is updated by the information sent by the broadcasting station.

2 Press again to access next available subtitle screen.

Chapter 13

Additional information

Troubleshooting

Problem Possible solution
GENERAL

• No power. • The system cannot be switched on.	• Is the power cord disconnected? (See page 18.) • Has Ⓞon the plasma television been turned on? (See page 20.) • Check if you pressed buttons 0 to 9 or Ⓞon the remote control unit. (See page 20.) • If the indicator on the system lights up red, press 0 to 9 or Ⓞon the remote control unit or STANDBY/ON on the plasma television.
• Power is suddenly turned off.	• The system's internal temperature has increased. Remove any objects blocking vent or clean. (See page 14.) • Check the power control setting. (See page 33.) • Check the sleep timer setting. (See page 39.)
• System cannot be operated.	• External influences such as voltage malfunction, static electricity, etc., may cause improper operation. In this case, operate the system after unplugging the power cord and re-plugging it in after one to two minutes.
• Remote control unit does not operate.	• Operate the remote control unit while pointing it toward the remote control sensor on the plasma television. (See page 19.) • Are the batteries inserted with polarity (+,-) aligned? (See page 19.) • Are the batteries worn out? Replace with new batteries. (See page 19.) • Are you using it under strong or fluorescent lighting? • Is a fluorescent light illuminated to remote control sensor? • Check if any obstacles exist between the remote control unit and the remote control sensor.
• Panel sounds/noises.	• Panel generated sounds—for example, fan motor noise, electrical circuit humming, glass panel buzzing—are normal operation of a phosphor-based matrix display. • When you change the Energy Save mode, you may notice a change in the panel sound. This is normal.
PICTURE/SOUND
• No image and audio is presented.	• Check if the input source for video or PC has been unintentionally selected although you want to watch a TV channel. (See page 21.) • Check if you have selected a channel blocked with Child Lock. (See page 25.) • Enter a password to temporarily cancel Child Lock. (See page 39.) • Check if you have selected “Enable” in “HD AV Converter” for “HDMI Control Setting” even though no HD AV Converter is connected. Select “Disable” if that is the case. (See page 51.) • Check the cable connection with the antenna. (See page 17.) • Check the cable connection with the other equipment. (See pages 41 to 47.)
• No picture. • Is connection to other components correct? (See pages 41 to 47.) • Is the Input Select setting correct? (See page 36.) • Is a non-compatible PC signal being input? (See page 43.)
• Sound is reversed between the right and left. • Sound is output from only a single speaker.	• Check if the speaker cable connections have been reversed between the right and left or if the speaker cable from either speaker has been disconnected (for PDP-5080XA only). (See page 12.) • Has the balance been correctly adjusted? (See page 33.)
• Audio is output but no image is presented.	• Check if you have selected “Picture Off” for “Energy Save”. With this option selected, the screen is deactivated: only sound is output. To restore the screen display, press any button other than +/− or ×. (See page 33.)

Additional information

Problem Possible solution
• Images are presented but no audio is output.	• Check if you have selected the minimum volume. (See page 21.) • Check that no headphones are connected. • Check that the sound is not muted. (See page 21.) • When using "INPUT 5" as the input source, check that the audio terminal is also properly connected. (See page 42.) • When using PC as the input source, check that the audio terminal is also properly connected. (See page 43.) • When using "COMPONENT" for "INPUT 2", check to see if the settings are properly entered. (See pages 36 and 41.)
• Picture is cut off.	• Is the image position correct? (See pages 35 and 36.) • Has the correct screen size been selected? (See page 37.)
• Strange colour, light colour, dark or colour misalignment.	• Adjust the picture tone. (See pages 28 to 32.) • Is the room too bright? The picture may look dark in a room that is too bright. • Check the colour system setting. (See page 36.)
• After-image lag.	• After displaying a still image or a very bright image for a certain period of time, if the screen is then switched to a darker scene, the previous image may appear as an after-image. • This can be rectified by playing a rather bright moving image for several minutes. However, displaying a still image for excessively long periods of time may cause permanent display deterioration. • You can display the "Video Pattern" screen that helps eliminate after-image when it occurs. (See page 39.)
• Brightness and colour tone on both sides differ from those in the centre in 4:3 mode.	• If images in 4:3 mode or letterbox images are displayed for long periods or for shorter periods over several days, an after-image may remain due to burning. This is a characteristic of plasma displays. • We recommend that you enjoy watching images in a full screen mode as much as possible. (See page 37.) • We recommend you select "Auto" for "Brightness Sync." in the Side Mask setting. This adjusts the brightness of the grey side masks according to the brightness of the main image. (See page 38.)
HDMI Control
• HDMI Control functions do not operate.	• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 49.) • Check if you have entered the settings properly for "HDMI Control Setting". (See page 51.) • Check if the settings for the HDMI Control functions are effective on the connected device(s). For details, refer to the operation manual that came with the device.
• No image and audio is presented.	• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 49.) • Check if you have entered the settings properly for the HDMI Control Setting. (See page 51.) • Check if you have selected "Enable" in "HD AV Converter" for "HDMI Control Setting" even though no HD AV Converter is connected. Select "Disable" if that is the case. (See page 51.) • Check that the HD AV Converter is connected to INPUT 4 if you have selected "Enable" in "HD AV Converter" for "HDMI Control Setting". (See page 51.)
• No picture	• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 49.) • Check if you have entered the settings properly for "HDMI Control Setting". (See page 51.)
• No sound	• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 49.) • Check if you have entered the settings properly for "HDMI Control Setting". (See page 51.)
• An error message "The device cannot be operated. Please check the connection." appears.	• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 49.) • Check if you have entered the settings properly for "HDMI Control Setting". (See page 51.)

Additional information

Problem Possible solution
OTHER
• POWER ON indicator or STANDBY indicator is quickly flashing.	• Internal protective circuits may have been activated. First turn off Ⓒ on the plasma television, and then turn the power on by pressing Ⓞ again after waiting one minute or more. If the indicator is still flashing, unplug the plasma television's power cord from the power outlet. Wait one to two minutes then plug in the plasma television again. If this does not solve the problem, contact a Pioneer Service Center. These are listed on your warranty card for each country. Alternatively, check the Pioneer Web site (see cover) for contact details.

If the following error codes appear on the screen, check the corresponding items in the table.

Code Message Check
SD04 and SD11	Powering off. Internal temperature too high. Check temperature around PDP.	Check if the ambient temperature of the plasma television is high.
SD05 (PDP-5080XA)	Internal protection circuit turns the system off. Is there a short in speaker cable? (PDP-4280XA)	Check the speaker cable connections between the plasma television and the speakers.
	Internal protection circuit turns the system off.	Contact a Pioneer Service Center. These are listed on your warranty card for each country. Alternatively, check the Pioneer Web site (see cover) for contact details.

Signal names for 15-pin mini D-sub connector

Pin No.	Signal name			Pin No.	Signal name
1	R	9	+	5	V
2	G	1	0	G	N	D	(
3 B 11	Not connected
4	N	o	t	c	o	n	n
5	N	o	t	c	o	n	n
6	G	N	D	(	g	r	o
7	G	N	D	(	g	r	o
8	G	N	D	(	g	r	o

SCART pin assignments

Various audio and video devices may be connected via the SCART terminals.

SCART (INPUT 1)
1	Audio right output	2	Audio right input	3 Audio left output
4	Common earth for audio	5	Earth for Blue	6 Audio left input
7	Blue input	8	Audio-video control	9 Earth for Green
10	Not used	11	Green input	12 Not used
13	Earth for Red	14	Earth for Red/Green/Blue control	15 Red input
16	Red/Green/Blue control	17	Earth for Video output	18 Earth for Video input
19	Video output	20	Video input	21 Plug shield
SCART (INPUT 2)
1	Audio right output	2	Audio right input	3 Audio left output
4	Common earth for audio	5	Earth	6 Audio left input
7	Not used	8	Audio-video control	9 Earth
10	AV link control	11	Not used	12 Not used
13	Earth	14	Earth	15 Chroma S-Video input
16	Not used	17	Earth for Video output	18 Earth for Video input/S-Video input
19	Video output	20	Video input/S-Video input	21 Plug shield
SCART (INPUT 3)
1	Audio right output	2	Audio right input	3 Audio left output
4	Common earth for audio	5	Earth for Blue	6 Audio left input
7	Blue input	8	Audio-video control	9 Earth for Green
10	AV link control	11	Green input	12 Not used
13	Earth for Red	14	Earth for Red/Green/Blue control	15 Chroma S-Video input
16	Red/Green/Blue control	17	Earth for Video output	18 Earth for Video input/S-Video input
19	Video output	20	Video input/S-Video input	21 Plug shield

Specifications

Item		50" plasma television, model: PDP-5080XA	42" plasma television, model: PDP-4280XA
Number of pixels 1365 x 768 pixels 10		24 x 768 pixels
Audio amplifier		17 W + 17 W (1 kHz, 10 %, 6 Ω)	17 W + 17 W (1 kHz, 10 %, 6 Ω)
Speakers -woofer: 4.8 cm x 13 cm c		one type	Tweeler: 2.5 cm semidome type
Sound Effect SRS FOCUS/SRS/SRS TruBass
Power Requirements		220 V to 240 V AC, 50 Hz/60 Hz, 361 W (0.3 W Standby)	20 V to 240 V AC, 50 Hz/60 Hz, 298 W (0.3 W Standby)
Weight 34.4 kg (75.8 lbs.) Main unit:		29.5 kg (65.0lbs.)	Stand: 1.7 kg (3.8 lbs.) (including bolts) Total: 31.2 kg (68.8 lbs.)
Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV Function	Receiving System	B/G, D/K, I, L/L'
	Tuner VHF/UHF	E2-E69 ch, F2-F10 ch, I21-I69 ch, IR A-IR J ch
	CATV	Hyper-band, S1-S41 ch
	Auto Channel Preset	99 ch, Auto Preset, Auto Label, Auto Sort
	STEREO	NICAM/A2
Terminals	Rear INPUT 1	SCART (AV in, RGB in, TV out), HDMI in*
	INPUT 2	SCART (AV in/out, S-VIDEO in, AV link *2), Component Video in, AUDIO in
	INPUT 3	SCART (AV in/out, S-VIDEO in, RGB in, AV link *2), HDMI in *1
	INPUT 4	HDMI in*1
	CONTROL OUT	1
	SPEAKERS	6 Ω to 16 Ω	-
	Antenna	75 Ω Din Type for VHF/UHF in
	PC INPUT	Analogue RGB in, Audio in
	AUDIO OUT	AUDIO out (Fixed)
	Side INPUT 5	S-VIDEO, AV in
	PHONES	16 Ω to 32 Ω recommended

*This conorms to HDM1.3 and HDCP1.1.HDMI (High Definition Multimedia Interface) is a digital interface that handles both video and audio using a single cable. HDCP (High-bandwidth Digital Content Protection) is a technology used to protect copyrighted digital contents that use the Digital Visual Interface (DVI).
*2 Switchable from menu.

Design and specifications are subject to change without notice.

Additional information

Dimensions

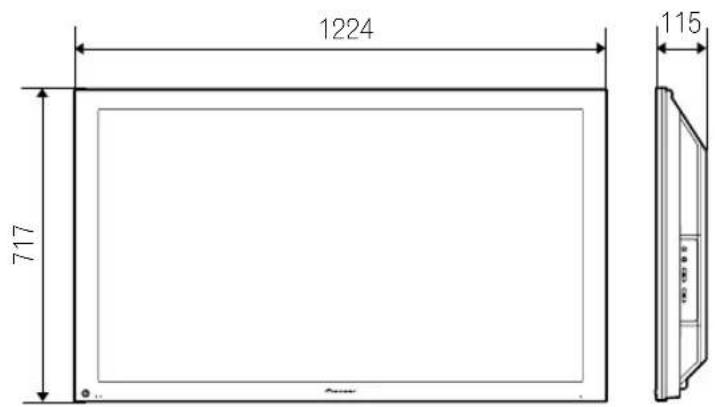

PDP-5080XA

Unit: mm

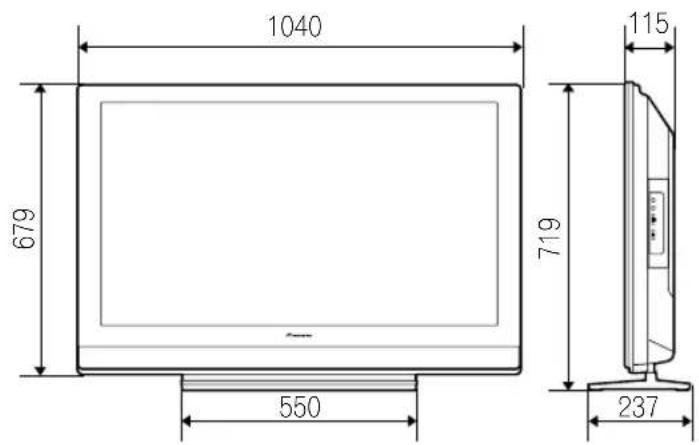

PDP-4280XA

Unit: mm

Trademarks

• is a SRSSark of SRS Labs, Inc.

• WOW technology is incorporated under license from SRS Labs, Inc.

• This product includes FontAvenue® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.
• DDC is a registered trademark of Video Electronics Standards Association.
  HDMl, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
  The names of companies or institutions are trademarks or registered trademarks of the respective companies or institutions.

IMPORTANT

Marche Active SRS FOCUS

E

Marche Active SRS TruBass

⑩

Gestion alimentation (source PC uniquely)

Code Message Verification

Publication de Pioneer Corporation.

© 2007 Pioneer Corporation

Festlegendes Tonsignaltypes

Copyright © 2007 Pioneer Corporation.

Usually,我会 adjust the positions and reloq of the images automatically. Utilize the configuration manual for optimizing the positions and reloq of the images when sea is necessary.

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu)

Printed on recycled paper.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.

Publication de Pioneer Corporation.

© 2007 Pioneer Corporation.
