TKG CM 1005 - Coffee machine KALORIK - Free user manual and instructions

Product type	Drip coffee maker
Brand	Kalorik
Model	TKG CM 1005
Category	Coffee maker
Water tank capacity	Approximately 1.25 L (estimate)
Coffee type	Ground coffee
Power	900 W (typical estimate)
Power supply voltage	220-240 V / 50-60 Hz (estimate)
Functions	Manual shut-off, keep-warm hot plate, anti-drip system
Main material	Plastic and glass (carafe)
Dimensions (L x W x H)	Approximately 25 x 20 x 30 cm (estimate)
Weight	Approximately 1.5 kg (estimate)
Included accessories	Glass carafe, filter holder
Filter type	Paper filter (not included)
Operating indicator light	Yes
Automatic shut-off	No (must be turned off manually)
Maintenance	Descaling recommended every 7 to 10 uses
Cleaning	Carafe, filter and filter holder washable in warm soapy water; body with a damp cloth
Safety	Do not immerse in water, do not use without water, carafe not microwave-safe
Warranty	Not specified (see seller's terms)

Frequently Asked Questions - TKG CM 1005 KALORIK

How to descale my Kalorik TKG CM 1005 coffee maker?

Pour 3 tablespoons of white vinegar into the reservoir, fill with water to the maximum level, then run a cycle without coffee. After it stops, rinse 2 to 3 times with cold water. Perform this operation every 7 to 10 uses if the water is hard.

Can I use something other than ground coffee in the filter?

No, only put ground coffee in the filter. Using other substances could damage the appliance or be dangerous.

Can the carafe be heated in the microwave?

No, the glass carafe must never be placed in a microwave oven to reheat coffee. This could cause irreversible damage.

What to do if the coffee maker does not turn on?

First check that the cord is properly plugged in and the outlet works. Make sure the reservoir has water and the carafe is in place. If the problem persists, contact a qualified service.

How to clean my Kalorik TKG CM 1005 coffee maker?

Unplug and let the appliance cool down. Clean the filter, filter holder and carafe with warm soapy water. The body of the coffee maker is cleaned with a damp cloth. Never immerse the appliance in water.

Can I leave the coffee maker on all day?

It is not recommended to leave the coffee maker on for more than two hours and especially not to leave the empty carafe on the hot plate. The appliance does not have automatic shut-off, it must be turned off manually.

How much water to put in the reservoir?

Use the carafe to pour water into the reservoir. Do not exceed the maximum level indicated, otherwise the coffee will overflow from the carafe.

Why does the coffee overflow from the carafe?

This can happen if you have overfilled the water reservoir or if the filter is clogged. Check that you have not exceeded the maximum level and that the filter is properly placed.

Is the coffee filter included in the package?

No, the filter is not included. You must use standard paper filters of a size suitable for the filter holder.

Can I use a reusable permanent filter?

Yes, you can use a permanent filter compatible with the machine's filter holder. Make sure it is properly positioned to avoid leaks.

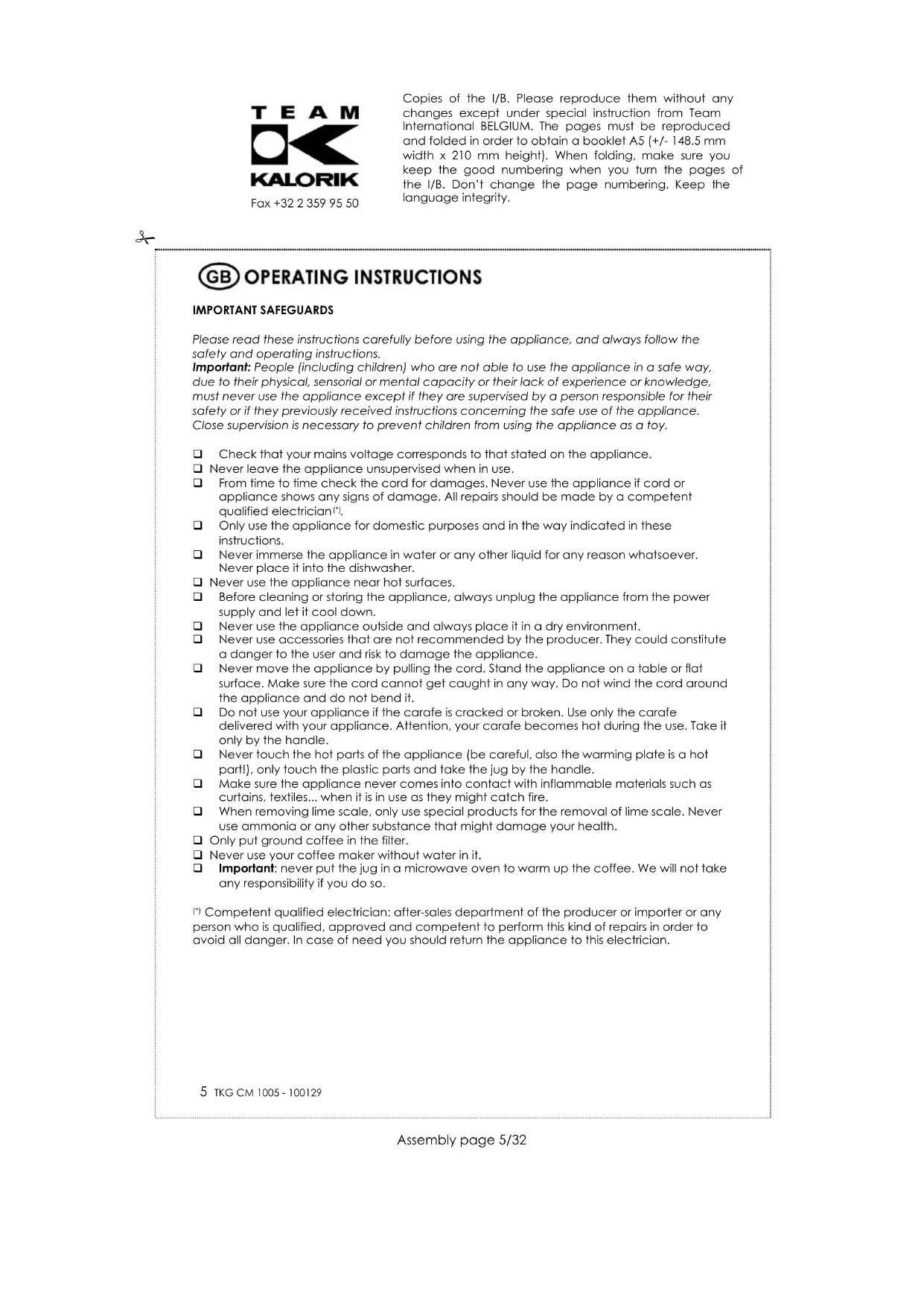

USER MANUAL TKG CM 1005 KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. All repairs should be made by a competent qualified electrician!.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Before cleaning or storing the appliance, always unplug the appliance from the power supply and let it cool down.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Stand the appliance on a table or flat surface. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Do not use your appliance if the carafe is cracked or broken. Use only the carafe delivered with your appliance. Attention, your carafe becomes hot during the use. Take it only by the handle.
Never touch the hot parts of the appliance (be careful, also the warming plate is a hot part!), only touch the plastic parts and take the jug by the handle.
Make sure the appliance never comes into contact with inflammable materials such as curtains, textiles... when it is in use as they might catch fire.
When removing lime scale, only use special products for the removal of lime scale. Never use ammonia or any other substance that might damage your health.
Only put ground coffee in the filter.
Never use your coffee maker without water in it.
Important: never put the jug in a microwave oven to warm up the coffee. We will not take any responsibility if you do so.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

FIELD OF APPLICATION/OF OPERATION

Use the appliance for domestic purposes only and in the way indicated in these instructions.
This appliance is intended to be used for domestic applications and similar applications such as:

Kitchen corners reserved for personnel in shops, offices and other professional environments.

Farms.

The use by clients of hotels, motels and other environments with a residential character.

Environments of the "bed and breakfast" type.

INITIAL OPERATION

When you use your appliance for the first time, pour fresh water into the water tank and switch on the appliance (without coffee).

Once all the water has passed through, switch the appliance off and let it cool down. When it is cold enough, repeat the process with fresh water. Repeat this process 3 times.

PREPARATION OF COFFEE

• Open the lid of the water tank.
  Using the glass carafe, pour the desired amount of water into the water tank. Make sure not to overfill by respecting the maximum level indicated on the water tank.
• Place the filter holder into the coffee maker. Put a filter in the filter holder and add the desired quantity of ground coffee in the filter. Put back the filter holder, making sure it is placed correctly.
• Never forget to close the lid of the water tank and to place the glass carafe on the warming plate before switching on your coffee maker.
• Press the "power" button to switch on the coffee maker. The pilot light will be illuminated, indicating that your appliance is working. A device allows you to keep coffee warm for as long as the coffee maker is working and the jug is standing on the appliance. Caution: the coffee maker will not turn off as long as you don't switch it off manually. We advise you not to let the appliance switched on for more than 2 hours and make sure that you never let an empty jug on the appliance.
• When you remove the jug from the appliance, a non-drip valve will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the carafe automatically opens the non-drip valve and allows remaining coffee to filter through into the jug.
• Wait until the brewing process is finished and the filter has run empty before removing the jug.

DECALCIFICATION AND CLEANING

Before cleaning, turn off the appliance, unplug it and let it cool down.
The filter, filter holder, carafe and carafe lid can be cleaned in a solution of warm water and mild liquid soap.
The coffee maker can be cleaned using a damp cloth. Never immerse the body of your coffee maker in water or any other liquid. Never use abrasive cleaning products or solvents.
- Decalcifying the coffee maker prolongs its life span. For decalcification only use products especially made for the decalcification of coffee makers.
- Never use a dishwasher to clean the jug. Just clean it in soapsuds.

6 TKG CM 1005-100129

If the water in your region is hard, descale your coffee maker every 7 to 10 uses as follows:

Pour 3 cups of clean vinegar into the water tank and fill to the maximum level with water.
- Place the carafe on the warming plate.
Plug in the coffee maker and press the "power" button.
- When the water tank has emptied, switch off the coffee maker and empty the carafe.
- Rinse the coffee maker two or three times by repeating the above process using cold water only.

PRACTICAL HINTS

When you notice that the coffee making process is longer than it should be, it is probably time to decalcify the appliance. Do not wait until the situation gets worse. The decalcifying frequency depends on the amount of lime in the water and therefore can be different from family to family. Therefore it is important to pay attention to this. A good maintenance of your appliance will prolong its lifespan. Guarantee claims will not be accepted for the replacement of a heating element full of scale.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

DOMAINE'D'APPLICATION/D'UTILISATION

Team International Romania Srl;

Str.Industrilor 56A, sector 3, Bucuresti CUI 16991287; R.C. J40/19685/29.11.2004

TKG CM 1005

Deutsch	2
English	5
François	8
Nederlands	11
Espanol	14
Português	17
Italiano	20
Polska	23
România	26
