USER MANUAL CA28390 CONSTRUCTA

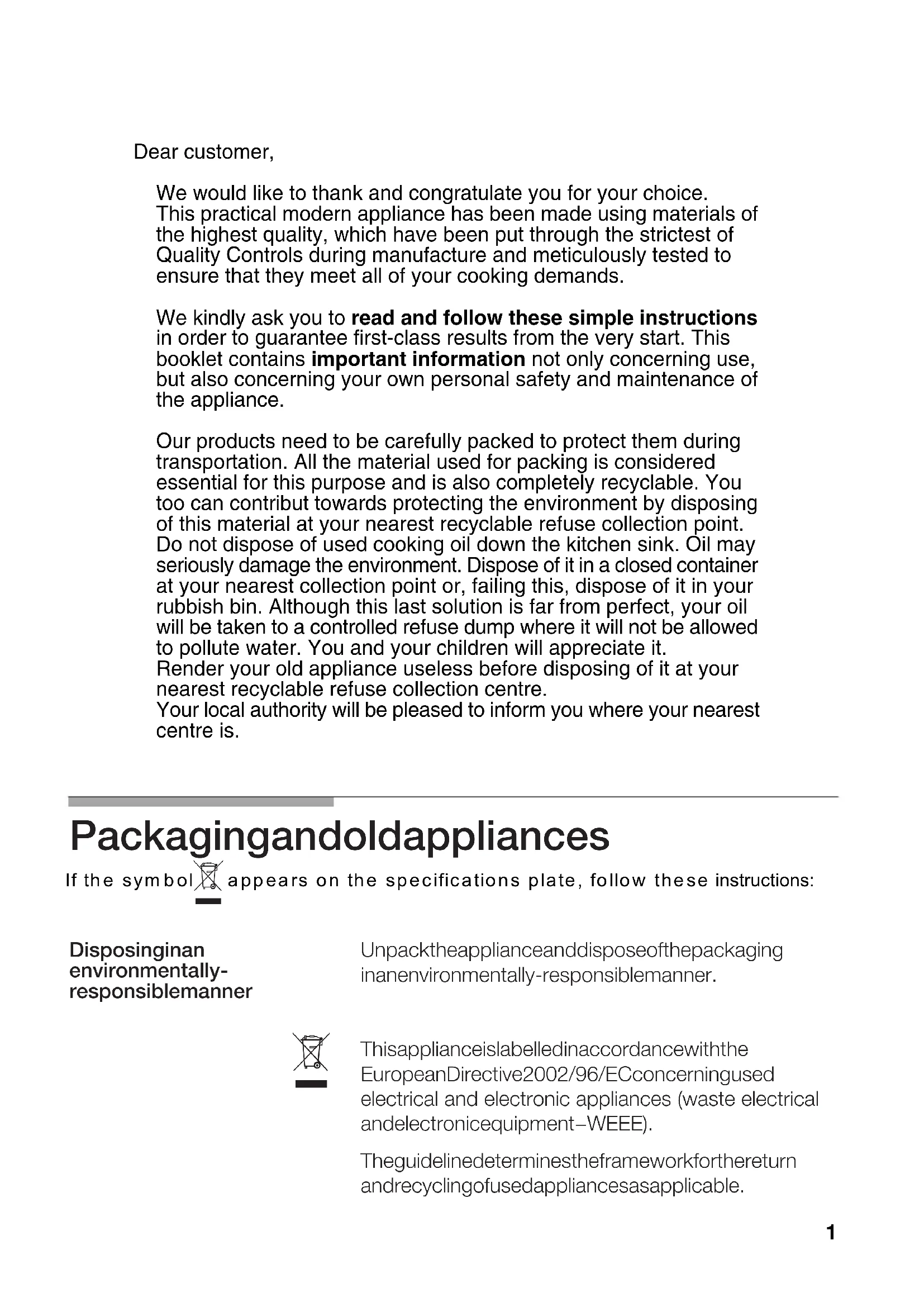

Cod. 9000283711 E Gebrauchsanweisung GebruiksaanwijzingDear customer, We would like to thank and congratulate you for your choice. This practical modern appliance has been made using materials of the highest quality, which have been put through the strictest of Quality Controls during manufacture and meticulously tested to We kindly ask you to read and follow these simple instructions in order to guarantee first-class results from the very start. This booklet contains important information not only concerning use, but also concerning your own personal safety and maintenance of the appliance. Our products need to be carefully packed to protect them during transportation. All the material used for packing is considered essential for this purpose and is also completely recyclable. You too can contribut towards protecting the environment by disposing of this material at your nearest recyclable refuse collection point. Do not dispose of used cooking oil down the kitchen sink. Oil may seriously damage the environment. Dispose of it in a closed container at your nearest collection point or, failing this, dispose of it in your rubbish bin. Although this last solution is far from perfect, your oil will be taken to a controlled refuse dump where it will not be allowed to pollute water. You and your children will appreciate it. Render your old appliance useless before disposing of it at your nearest recyclable refuse collection centre. Your local authority will be pleased to inform you where your nearest centre is.

If th e sym bol appears on the specifications plate, follow the se instructions: ensure that they meet all of your cooking demands. 1CONTENTS Safety Warnings 3 Your new hob 5 Gas Burners 6 Recommended receptacle diameters 7 Cooking recommendations 8 Warnings of use Cooking Cleaning and maintenance Troubleshooting Conditions of warranty

12Safety warnings Read this manual carefully in order to cook efficiently and safely. In accordance with current regulations, the installation and adaptation of gas systems may only be performed by an officially authorised technician. Check all measurements before proceeding to install your new hob. These instructions are only valid for the countries indicated on the appliance. Refer to the technical instructions to adapt the appliance to the conditions of use for the relevant country. This appliance should not be connected to device for extracting combustion products. The appliance should not be exposed to strong draughts, as these may blow the burners out. This appliance leaves the factory set for the gas supply indicated on the characteristics plate. Call the Service Centre this it needs to be altered. Do not tamper inside the appliance. If necessary, call your local Service Centre. Look after these instructions of use and installation so as to be able to produce them should the appliance ever change hands. If your hob is supplied with a glass cover, do not subject it to excessive force. If the glass should become detached from the hob, call the Service Centre immediately for them to repair or replace it. Do not use a damaged appliance. The surfaces on heating and cooking appliances get hot when in use. Be careful. Keep children away from the appliance. Only use your appliance for the preparation of food and never for room-heating purposes. 3Overheated fat or oil can easily catch fire. Never leave the appliance unattended when cooking food with fat or oil, e.g. chips. Never pour water on burning fat or oil. DANGER OF BURNS! Cover the receptacle to smother the flames and turn the hob off. In the event of a fault, cut the gas and electricity supplies to the appliance. Call our Service Centre to repair the fault. Do not use unstable or uneven-based receptacles on cooking plates or burners. They may accidentally tip over. If a gas supply knob/valve jams, do not force it. Call your official Service Centre immediately for them to repair or replace it. While using your gas hob should avoid draughts and spillages of cold liquids. As these may cause the glass to break. The illustrations used in this booklet are only intended as a guide. Do not use steam clearing machines to clean the hotplate, as there is risk of electrocution. IF THESE INSTRUCTIONS ARE NOT FOLLOWED,

THE MANUFACTURER ACCEPTS NO

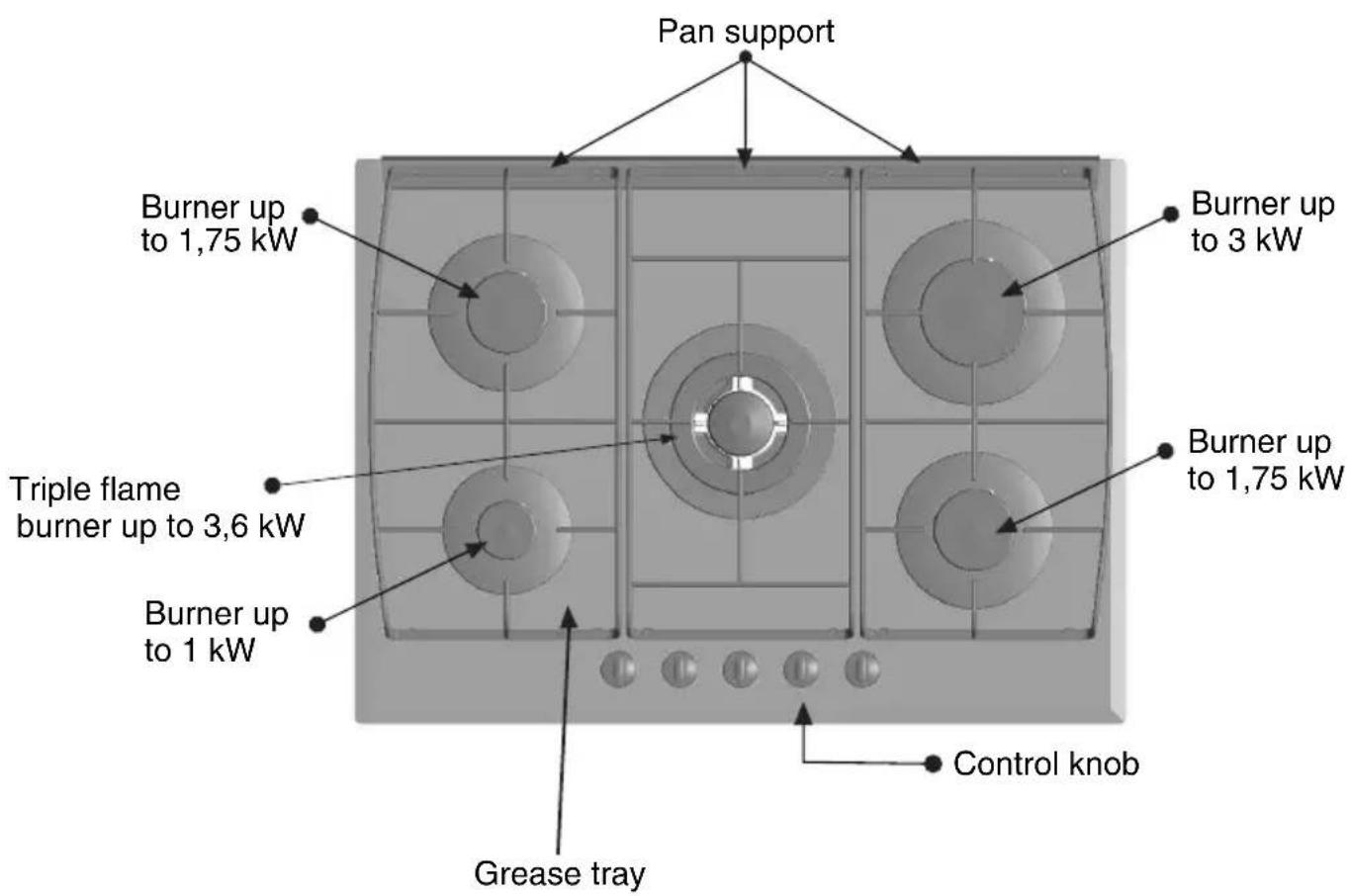

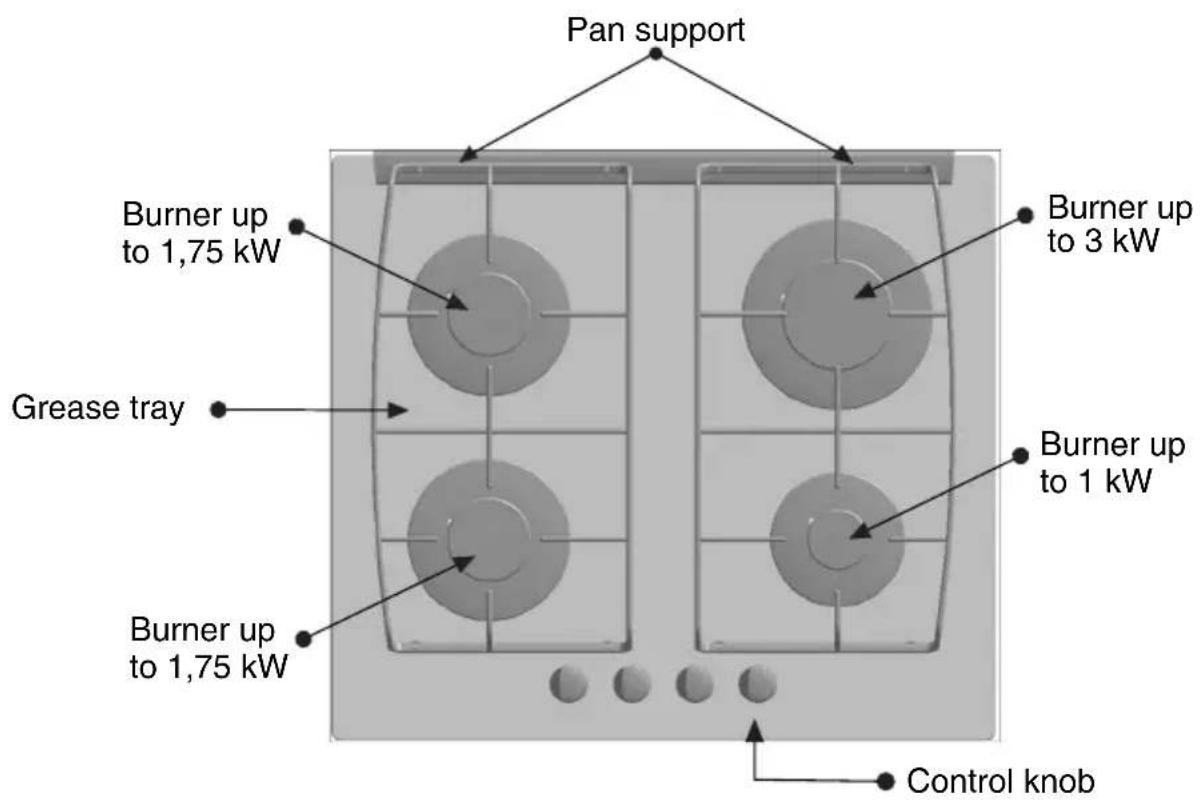

RESPONSIBILITY. 4Your New Hob: Pan support Triple flame burner up to 3,6 kW Control knob Burner up to 1,75 kW Burner up to 1,75 kW Burner up to 3 kW Burner up to 1 kW

Grease tray Burner up to 3 kW Burner up Burner up to 1,75 kW Burner up Control knob to 1,75 kW to 1 kW Grease tray Pan supportGas burners Each control knob indicates which burner it controls. To light a burner, push in the knob for the burner you wish to use and turn it in an anti-clockwise direction to the lighting position. Hold the knob at the maximum position for a few seconds until the burner ignites and then release and set the knob to the desired setting. If the burner does not light at the first attempt, repeat the operation. If your hob does not come with any kind of automatic ignition system, then light the burners with a naked flame (cigarette lighter, matches, etc.). If the spark plugs are dirty, then a fault may occur in the ignition system. Keep them completely clean. Clean the spark plugs using a small brush, remembering that the plugs must not receive any kind of violent impact. If your hob is equipped with burners with safety valves which prevent gas from being released should the burners accidentally go out, proceed to light as described above, but keep the control knob pressed in until the burners light and then for a few more seconds once alight. If complete ignition does not occur, repeat the operation keeping the knob pressed in for approx. 10 seconds To turn the burners off, turn the control knob in a Your modern functional hob is equipped with progressive valves which permit you to find the perfect flame setting between maximum and minimum. Depending on the model that you have purchased, your hob may come with a triple-flame burner, the perfect system for cooking paellas, using woks, etc. Gas appliances create both heat and humidity in the room they are used in. Make sure that your kitchen is properly ventilated: keep natural ventilation outlets open or install a mechanical ventilation system (extractor fan). When using your appliance for a prolonged period of time, it may be necessary to provide additional ventilation e.g. by opening a window (without creating a draught) or turning up the setting on your mechanical ventilation system. Fig 1. Fig 1. clockwise direction to the setting. 6Recommended receptacle diameters (cm.) Depending on model:

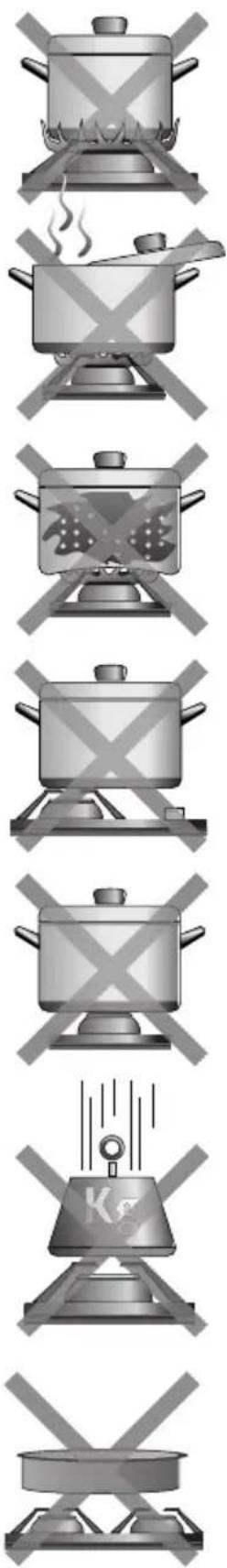

BURNER MINIMUM Ø RECEPTACLE MAXIMUM Ø RECEPTACLE

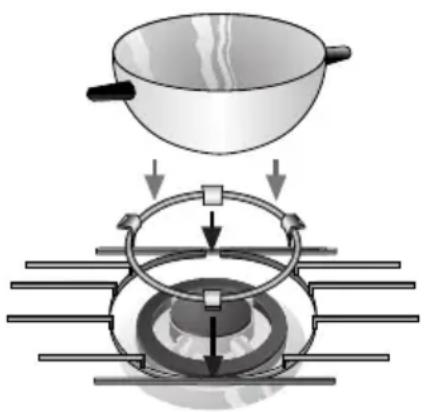

Triple flame: 22 cm 22 cm 26 cm 12 cm 20 cm Auxiliary: 10 cm 12 cm Depending on the model that you have purchased, your hob may come equipped with an additional pan support. This pan support is essential when using the triple-flame burner for receptacles with diameters of more than 26 cm, griddles, terracotta casseroles and all kinds of If you do not have a pan support, then these are available from your Service Centre, code 363300. Coffee pot support: Depending on the model that you have purchased, your hob may come equipped with an additional coffee pot support. This pan support is only for use on the auxiliary burner for receptacles with diameters of less than 10 cm. If you do not have a pan support, then these are available from your Service Centre, code 184200. The manufacturer cannot be held responsible for the non-use or misuse of these additional pan support. Additional pan support: An orange-coloured flame is normal and it is produced in the presence of dust in the atmosphere, spillages, etc. Rapid: Semi-rapid: Fig 2. concave receptacles (woks, etc.). Fig 2. 7These recommendations are only intended as a guide Cooking recommendations Very strong Strong Medium Slow Triple flame Boiling, stewing, grilling, Re-heating and keeping food browning off, paellas, oriental warm: prepared food, pre-cooked food Escalope, steak, omelette, Rice, white Steaming: sauce, ragout. fish, vegetables. Steamed potatoes, fresh Re-heating and keeping food warm: pre-cooked food and delicate stews. Auxiliary Stews, rice pudding, caramel. Making/melting: slow boiling: Butter, pulses, fruit, chocolate, Rapid Semi-rapid food (wok). vegetables, pasta. fried food. Thawing and frozen food. jelly. 8DON'Ts DOs Do not place receptacles on burners off centre. They could tip over. Do not use wide-based receptacles on the burners nearest to the controls. When centred on the burner, they could touch the controls or raise the temperature in the area. This may damage the hob. Do not place receptacles directly on top of burners. Do not use excessive weights or strike the hob with heavy objects. Handle receptacles on the hob with care. Warnings concerning cooking: Do not use receptacles with uneven bases. They lengthen cooking times and increase energy consumption. Only use thick-,flat-based saucepans, frying pans and casseroles. Do not cook without lids or with lids only partially covering receptacles. You are wasting energy. Always use lids. Always place receptacles in the middle of burners. Always place receptacle on the pans support. Make sure that the metal grids and the tops of the burners are correctly positioned before using them. Do not use small receptacles on large burners. The flame should not touch the sides of receptacles. Always use suitably sized receptacles on each burner. This helps avoid excessive gas consumption and prevents receptacles from getting tarnished. Do not use two burners or heat sources for a single recipient. Do not use baking trays, earthenware dishes, etc... at full heat for a long time Only use one recipient per burner. Use the extra mental grid on the burner with three flames. 9Cleaning and maintenance: If the coating on the electric plates has worn off through use, smear them with a few drops of oil or one of the maintenance products available on the market. The high temperatures suffered by the cover on the triple-flame burner ring and the stainless steel parts on your hob (plate rings, grease trays, area around burners, etc) may become discoloured over time. This is NORMAL. Clean them after use with a product suitable for stainless steel. After washing the pans support, dry them thoroughly before cooking with them again. The presence of droplets of water or dampness at the beginning of the cooking process may damage the enamel surface. Be careful with the feet on the metal grids when cleaning them; if they are detached, the grid may scratch the glass next time it is used. DON'Ts DOs Do not use scouring powder, over cleaner sprays or abrasive pads that may scratch the glass. Never use sharp objects such as knives or wire wool to remove the remains of food that has become encrusted onto the surface. Do not use knives, scrapers or similar implements for cleaning the joins between the glass and the rims of the burners or the metal surrounds. Do not slide recipients over the glass as they may scratch it. Similarly, do not drop hard or sharp objects onto the glass. Avoid Knocking any part of the edge of the cooking plate. Grains of sand, which may, for example, come from cleaning vegetables, can scratch the glass surface. Clean the surface of the heating elements once they have cooled down, each time they are used. Even small amounts of dirt burn when it is switched on again. The burners and pans support must be cleaned regulary to keep them clean. This is done by submerging them in soaply water and scrubbing them them with a non-metal brush to keep the holes and slits free from obstruction so they can give a perfect flame. Dry the burner covers whenever wet or damp. After cleaning and drying the burners, make sure that the covers are properly in position on the flame diffuser. Once the appliance is cold, clean it with a sponge and soapy water. 10Troubleshooting ...if none of the electrical system works? -Faulty fuse. -Check the fuse in the main fuse box and -The automatic circuit breaker or mains differential has been triggered. -Check to see if the circuit breaker or a differential has been triggered in the mains ...if the electric ignition system does not work? -There may be food or cleaning product particles between the spark plugs and the burners. -The burners are wet. -Dry the burner covers and spark plugs carefully. -Check that the covers have been put in the proper position. -The covers on the burners are not in the right position. ...if the flame on the burners is not evenly distributed? -The burner components have not been assembled properly. -The gas outlets on the burners are dirty. -Put the components in their correct positions. -Clean the gas outlets on the burners. ...if the gas flow does not seem normal or there is no gas flow at all? -The gas flow has been cut at an intermediate stopcock. -If the gas is supplied from a gas bottle, it may be empty. - Open any intermediate stopcocks. -Replace the gas bottle with a full one. ...if the kitchen smells of gas? -One of the valves has been left open. -Possible leak on the gas bottle coupling. -Check to see if a valve has been left open. -Check that the coupling on the gas bottle is in order. What´s wrong Possible cause Solution -The gap between the spark plug and the burner needs to be cleaned carefully. It is not always necessary to call the Service Centre. In some cases, you may be able to solve the problem yourself. This table contains some useful information. Important information: Only authorised personnel from our Service Centre are qualified to work on the main gas and electric systems. ...if the safety devices on the different burners do not work? -The control knob has not been kept pressed in for long enough. -The outlets on the burners are dirty. -Once ignited, keep the control knob pressed in for a few seconds. -Clean the gas outlets on the burners. replace it if it is faulty. supply box. 11Conditions of warranty The conditions of warranty are those set out by our company's representatives in the country where you purchased your appliance. The salesperson that sold you the appliance will be only too pleased to inform you as to the details of these conditions. Proof of purchase must be produced when making any kind of claim against the warranty. The manufacturer reserves the right to modify these conditions. Should you need to contact our Service Centre, please quote the following information: E - NR FD These indications appear on your appliance's characteristics plate on the bottom of your appliance. 12Geschätzter Kunde: Wir danken Ihnen und beglückwünschen Sie zu Ihrer Wahl. Dieses praktische, moderne und funktionale Gerät wird aus erstklassigen Materialien hergestellt, die während des gesamten Produktionsprozesses einer strikten Qualitätskontrolle unterzogen und eingehend geprüft wurden, um Ihre Anforderungen nach einem perfekten Kochfeld zu Daher möchten wir sie bitten, diese einfache Anweisung aufmerksam durchzulesen und einzuhalten, um bereits ab der ersten Benutzung unübertroffene Ergebnisse zu erzielen. Sie enthält wichtige Informationen nicht nur für die Benutzung sondern auch für die Pflege und Ihre Sicherheit. Für den Transport benötigen unsere Produkte eine wirksame Schutzverpackung. Bei dieser Verpackung beschränken wir uns auf das unbedingt erforderliche Material, das gesamte Verpackungsmaterial ist voll recyclefähig. Wie wir können auch Sie einen Beitrag zum Umweltschutz leisten, indem Sie die Verpackung in einem in der Nähe Ihres Wohnorts zu diesem Zweck aufgestellten Container entsorgen. Das gebrauchte Öl sollte nicht über den Abfluss entsorgt werden, da dies eine sehr hohe Umweltbelastung darstellt. Sammeln Sie das Öl in einem geschlossenen Behälter und geben Sie diesen an einer Sammelstelle ab, oder ist dies nicht möglich, entsorgen Sie den Behälter in Ihrem Abfallbehälter (somit gelangt er auf eine kontrollierte Müllhalde; dies ist nicht die beste aller Lösungen, Sie vermeiden damit jedoch die Verschmutzung des Grundwassers). Ihre Kinder und Sie selbst werden es danken. Machen Sie ein nicht mehr benutztes Gerät vor der Entsorgung unbrauchbar. Danach bringen Sie es zur einer Sammelstelle für recyclefähige Wertstoffe. Ihre örtliche Verwaltung gibt Ihnen Auskunft über diese Sammelstellen.
