Notes on using the manual CoolMatic CRP-40

Please read this instruction manual carefully before starting the appliance and keep it in a safe place for future reference. If you pass on the appliance to another person, hand over this operating manual along with it.

Contents

1 Notes on using the manual 24
2 Safety instructions 25
3 Scope of delivery 27
4 Intended use 27
5 Technical description 27
6 Setting up and connecting the refrigerator. 28
7 Using the refrigerator 32
8 Cleaning and maintenance 35
9 Guarantee 35
10 Disposal 36
11 Troubleshooting 37
12 Technical data 39

1 Notes on using the manual

The following symbols are used in this operating manual:

Caution!

Safety instruction: failure to observe this instruction can cause material damage or personal injury.

Caution!

Safety instruction: Failure to observe this instruction can cause material damage and impair the function of the device.

Caution!

Safety instruction relating to a danger from an electrical current or voltage. Failure to observe this instruction can cause material damage or personal injury and impair the function of the device.

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Safety instructions

Note

Supplementary information for operating the device.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.

√This symbol describes the result of an action.

fig. 3 1, page 4: This refers to an element in an illustration. In this case, "item 1 in figure fig. 3 on page 3".

Please also observe the following safety instructions.

2 Safety instructions

WAECO International will not be held liable for claims for damage resulting from the following:

● Damage to the device resulting from mechanical influences and excess voltage
● Alterations to the device made without the explicit permission of WAECO International
● Use for purposes other than those described in the operating manual

2.1 General safety

● Have a trained technician perform the installation in wet rooms.
- Do not operate the appliance if it is visibly damaged.
- This appliance may only be repaired by qualified personnel. Inadequate repairs can cause considerable hazards. If you device should need repairing, please contact WAECO customer service.
- Do not open the refrigerant circuit under any circumstances.
- Set up the appliance in a dry location where it is protected against splashing water.
- Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
● Ensure that the ventilation slots are not covered.
- The appliance is not suitable for the storage of caustic materials or materials containing solvents.
● For use only on vessels over 20 meters in lenght.

Safety instructions CoolMatic CRP-40

● Before you start up the appliance for the first time, check that the operating voltage matches the battery voltage (see type plate).
● Danger of fatal injuries!

When using the device on boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.

• If the cable is damaged, it must be replaced to prevent possible electrical hazards. Only replace a damaged cable with one of the same type and specifications.
• Persons (including children) whose physical, sensory or mental capabilities or lack of experience and knowledge prevent them from using the refrigerator safely should not use this appliance without initial supervision or instruction by a responsible person.

2.2 Operating the appliance safely

● Electronic devices are not toys.

Always keep and use the device well out of the reach of children.

● Defrost the appliance in good time to save energy.
- If you connect the appliance to a battery, make sure that no food comes into contact with the battery acid.
● Protect it from rain and moisture.

- Disconnect the device and other consumers from the battery before charging the battery with a quick charging device.

Over voltages can damage the electronics of the device.

Note:

Disconnect the device if you are not going to use it for a prolonged period.

● Danger of fatal injury!

Do not touch exposed cables with your bare hands. This especially applies when operating the appliance from an AC mains.

CoolMatic CRP-40 Scope of delivery

3 Scope of delivery

Quantity Description

1 R e f r i g e r a t o

1 Operating manual

3.1 Accessories

Description Item no.

WAECO rectifier

MPS-35

for devices with Bd-35F compressor

4 Intended use

The refrigerator is designed for cooling and freezing foodstuffs. The appliance is also suitable for use on boats.

If you wish to cool medicines, please check if the cooling capacity of the appliance is suitable for the medicine in question.

5 Technical description

The CoolMatic CRP-40 refrigerator is suitable for use with a 12 V or 24 V DC voltage and can therefore also be used for camping or on boats. It can also be connected to a 230 V mains supply via the WAECO MPS-35 rectifier.

When used on boats the refrigerator can be subjected to a constant inclination of 30^ .

The refrigerator can chill products and keep them cool. Products can be deep-frozen in the freezer compartment.

All materials used in the refrigerator are compatible for use with foodstuffs. The refrigerant circuit is maintenance-free.

You can use the continuously variable thermostat to set the desired temperature.

The device is fitted with a detachable unit which can be separately installed (fig. 2, page 3).

Setting up and connecting the refrigerator CoolMatic CRP-40

5.1 Control elements

No. in

fig. 3, page 4

Explanation

1 Temperature controller

6 Setting up and connecting the refrigerator

Safety instructions for installation on boats

Please note the following instructions for installation on boats:

• The device can be tilted sideways up to 30°. When setting up the refrigerator, note that it must be fastened to take account of this. If you have any questions regarding installation, consult your specialist dealer.
• Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides, fig. 4, page 4).
• The appliance is designed for ambient temperatures between +18°C and +32°C.
• If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.
• Observe all the other installation instructions in this section.

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Setting up and connecting the refrigerator

6.1 Installing the refrigerator

In continuous operation, the air humidity may not exceed 90%.

Set up the fridge in a dry, sheltered place. Avoid placing it near heat sources such as radiators, gas ovens or hot water pipes. Do not let it stand in direct, strong sunlight.

The cooling device must be positioned so that heated air can dissipate easily. Therefore make sure there is adequate ventilation (fig. 4, page 4).

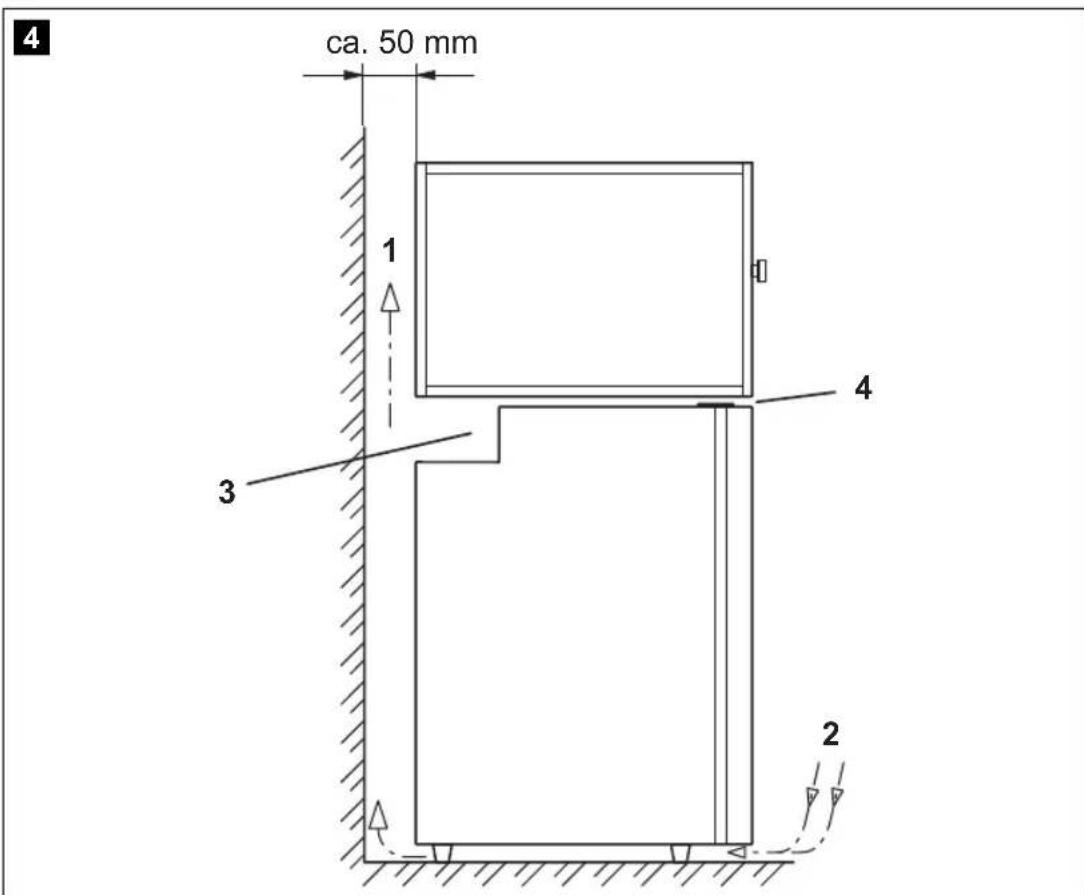

No. in fig. 4, page 4 Explanation

1 Hot waste air
2 Cold intake air
3 Condenser
4 With decorative panel 50 mm space at the top!

Note

The cooling unit is detachable mad can be installed up to 1.5 metres away from the cooler if there is limited space.

6.2 Releasing the lock

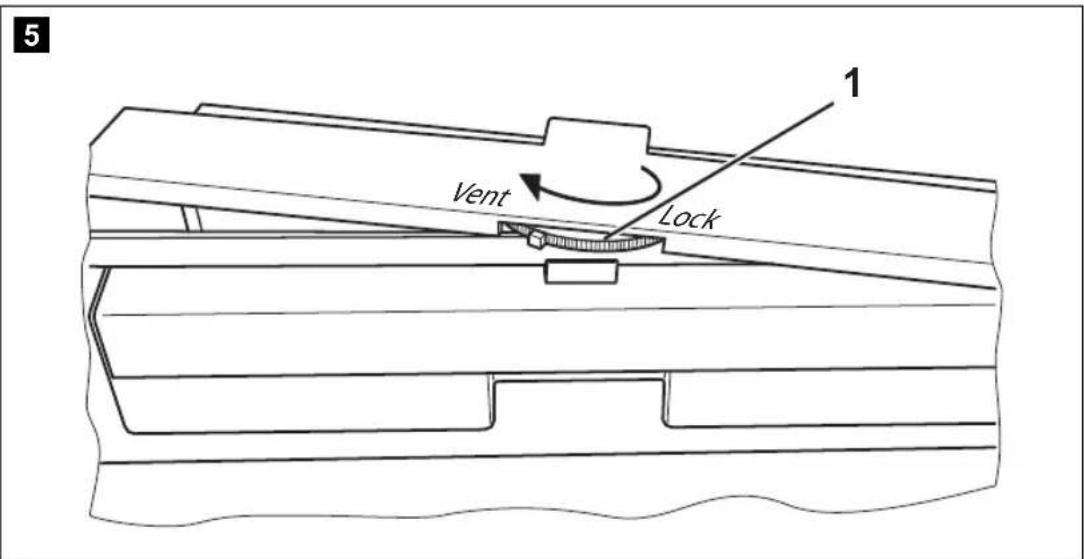

The refrigerator has a locking mechanism (fig. 5 1, page 5) which is also used to protect it during transport. The following settings are possible:

Caution!

Only adjust the locking mechanism when the door is open. If you use it with the door closed, you will damage the device.

● Normal lock (turn wheel clockwise to the end stop): the door is locked and secured.
To open the door, lift the handle up and open the door.
- Vent (turn wheel anti-clockwise to the end stop): The door is slightly open and fixed in place.
Use this position, if you are not going to use the appliance for a long time.

Setting up and connecting the refrigerator CoolMatic CRP-40

6.3 Changing the door hinge

You can also change the hinge of the door, so that it opens to the left rather than the right.

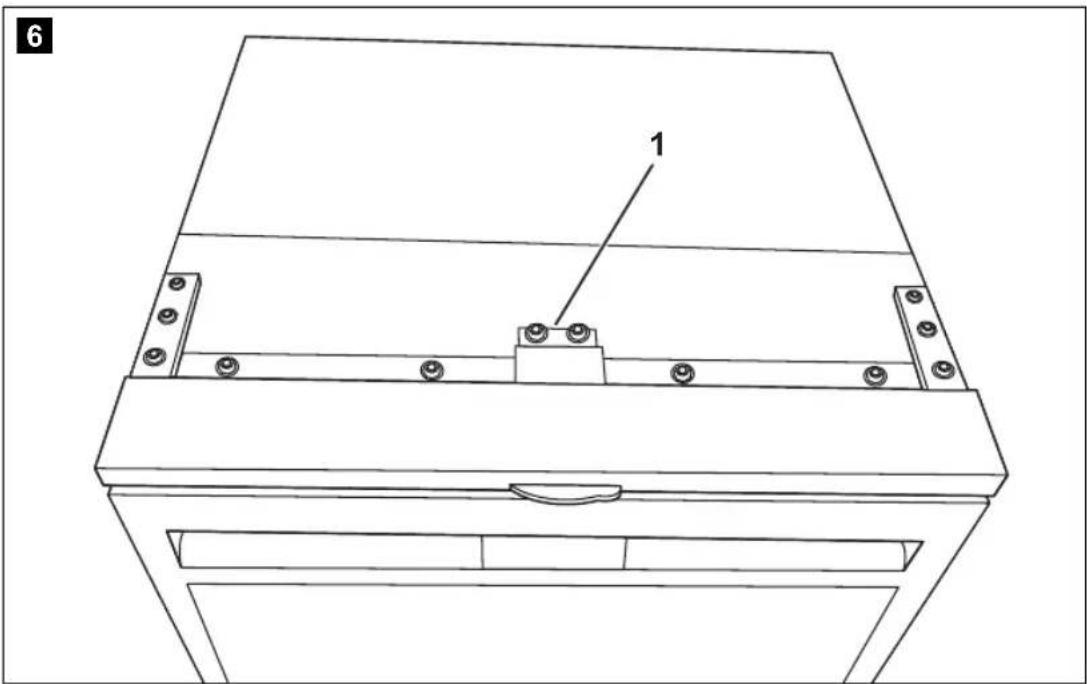

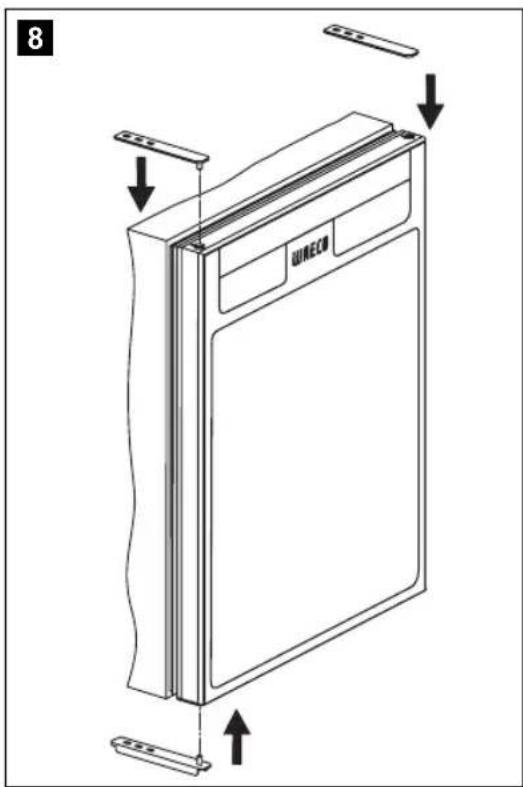

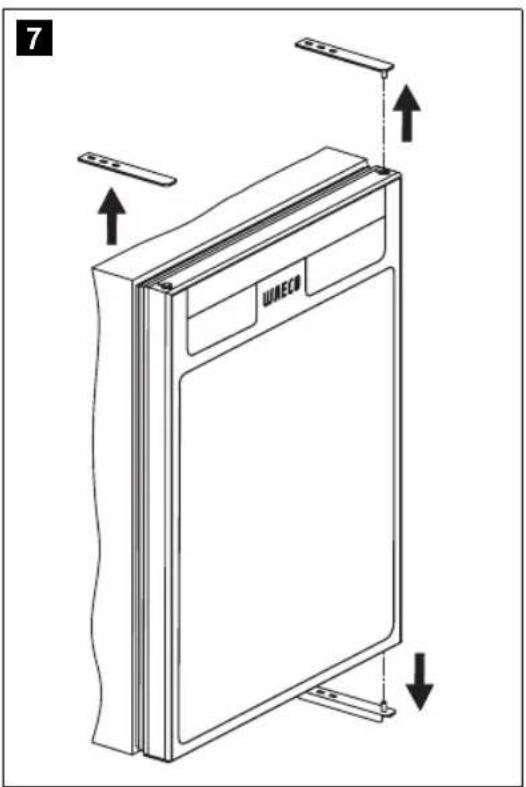

▶ Proceed as shown in fig. 6, page 5 to fig. 8, page 6, to change the hinges.

6.4 Connecting to a battery

The refrigerator can be operated with a 12 V to 24 V DC voltage supply.

Caution!

To prevent voltage and power losses, the cable should be as short as possible and not be interrupted.

For this reason avoid additional switches, plugs or socket strips.

▶Determine the required cross section of the cable in relation to the cable length according to fig. 9, page 6.

Key for fig. 9, page 6

Co-ordinate axis Meaning Unit
I Cable length m
∅Cable cross section mm^2

Caution!

Make sure that the polarity is correct.

▶Before starting up the appliance for the first time, check whether the operating voltage and the battery voltage match (see type plate).

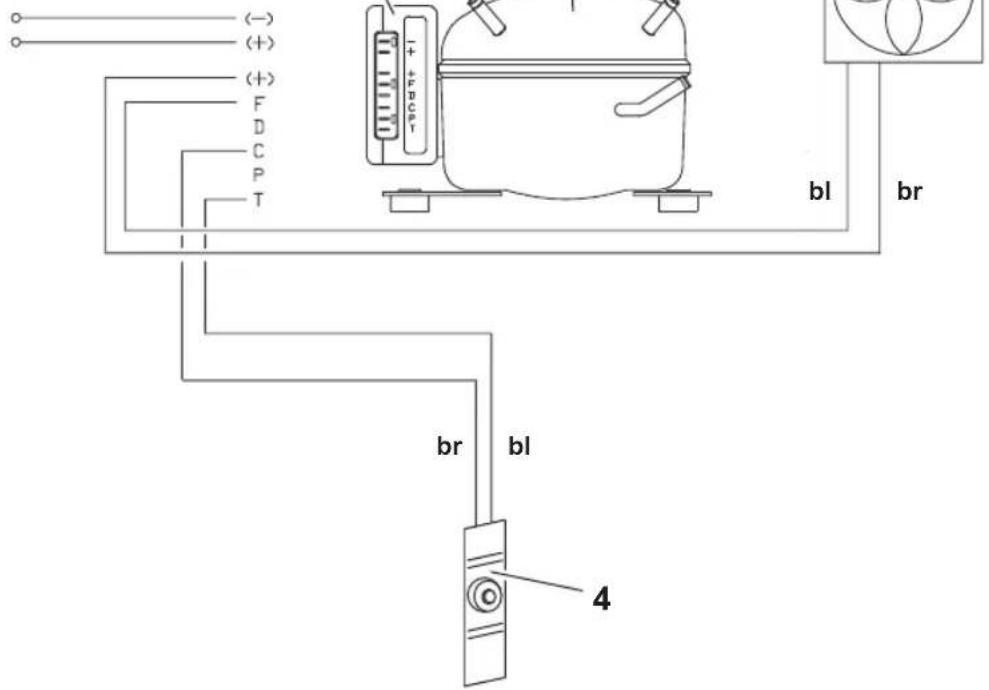

For the electrical connection you also need the wiring diagram (fig. 10, page 7).

No. in fig. 10, Meaning page 7

1 Electronic terminal rail
2 Compressor
3 DC fan (if present)
4 Mechanical thermostat

CoolMatic CRP-40 Setting up and connecting the refrigerator

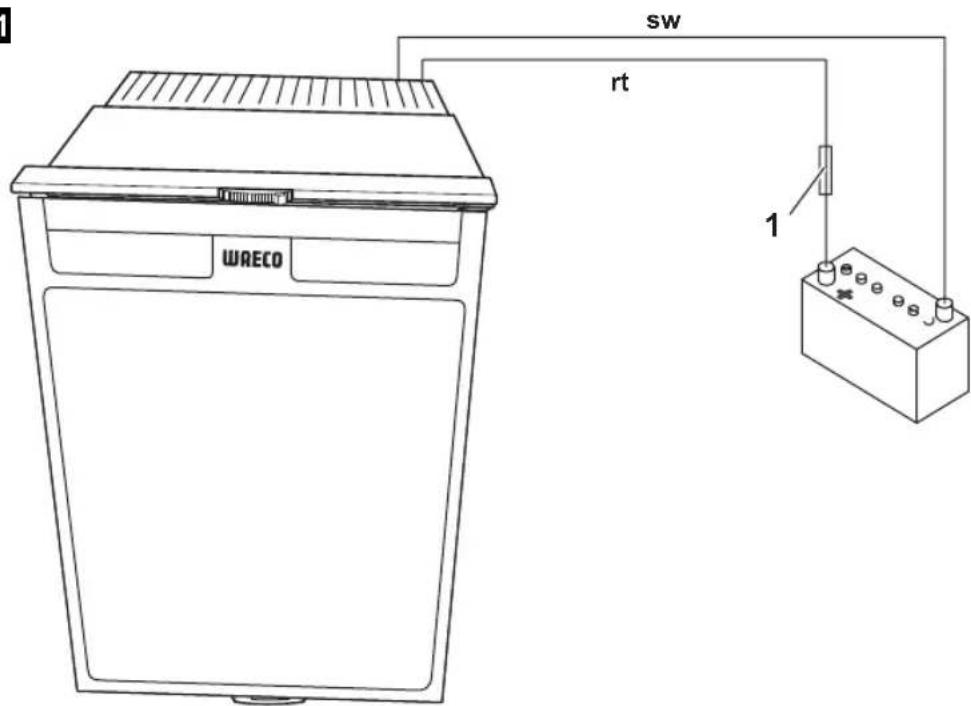

▶ Connect the refrigerator (fig. 11, page 7)

– as directly as possible to the poles of the battery or
- to a plug socket which is fuse protected with at least 15 ~A (at 12 ~V ) or 7.5 ~A (at 24 ~V ).

Caution!

Disconnect the device and other consumers from the battery before charging the battery with a quick charging device. Over voltages can damage the electronics of the device.

For safety reasons the refrigerator is equipped with an electronic system to prevent the polarity being reversed. This protects the refrigerator against reversed polarity when connecting to a battery and against short circuiting. To protect the battery, the refrigerator switches off automatically if the voltage is insufficient (see table below).

	12 V 24 V
Cut-off voltage	10.4 V 22.8 V
Cut-in voltage	11.7 V 24.2 V

6.5 Connecting to a 230 V mains supply

Danger of fatal injuries!

Never handle plugs and switches with wet hands or if you are standing on a wet surface.

Caution!

If you are operating your cooling device on board a boat with a mains connection of 230 V from the land, you must install a residual current circuit breaker between the 230 V mains supply and the cooling device.

Get advice from a qualified specialist.

▶To operate the refrigerator on the 230 V mains, use the WAECO MPS-35 rectifier.

Using the refrigerator CoolMatic CRP-40

7 Using the refrigerator

Note

Before starting your new refrigerator for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 35).

7.1 Energy saving tips

• Choose a well ventilated location which is protected from direct sunlight.
• Allow hot food to cool down first before you place it into the device.
• Do not open the refrigerator more often than necessary.
• Do not leave the door open for longer than necessary.
  ● Defrost your refrigerator as soon as a layer of ice forms.
• Avoid unnecessarily low temperature settings.
  ● Clean dust and dirt from the condenser at regular intervals.

7.2 Using the refrigerator

The fridge conserves fresh foodstuffs. The freezer compartment conserves frozen foodstuffs and freezes fresh foodstuffs.

Caution!

Make sure that drinks or foodstuffs in glass containers are not cooled too severely. Drinks and liquids expand when they freeze. This can break the glass containers.

Caution!

Food may only be stored in its original packaging or in suitable containers.

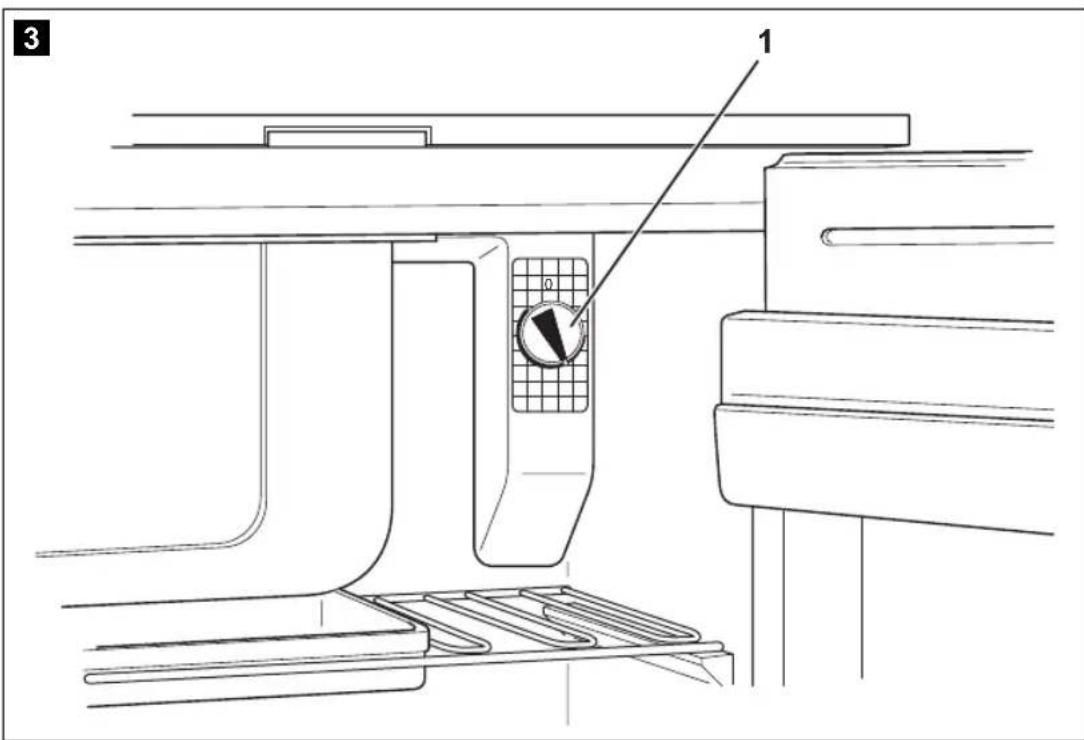

▶ Switch the refrigerator on by turning the knob (fig. 3 1, page 4) to the right.

Note

After switching on, the refrigerator requires approx. 60 s until the compressor starts up.

CoolMatic CRP-40 Using the refrigerator

Caution!

Ensure that the objects placed in the refrigerator are suitable for cooling to the selected temperature.

Setting the temperature

You can set the temperature to any level using the knob. The built-in thermostat regulates the temperature as follows:

● Min. (left limit) = warmest setting

● Max. (right limit) = coldest setting

Note

The cooling capacity can be influenced by:

● The ambient temperature
● The amount of food to be conserved
- The frequency with which the door is opened.

Conserving foodstuffs

You can conserve foodstuffs in the refrigerator. The time for which the food can be conserved in this way is usually stated on the package.

Caution!

Do not conserve any warm foodstuffs in the refrigerator.

Do not place glass containers with liquids in the freezer compartments.

Note

Food which can easily absorb tastes and odours and liquids and products with a high alcohol content should be conserved in air-tight containers.

The refrigerator is divided in different zones with different temperatures:

• The colder zones are immediately above the drawers for fruit and vegetables, near the back wall.
• Observe the temperature information and best before date on the food packaging.

Using the refrigerator CoolMatic CRP-40

▶Observe the following when using the refrigerator:

• Never re-freeze products which have started defrosting or have been defrosted; consume them as soon as possible.
• Wrap food in aluminium foil or cling film and shut in in a suitable box with a lid. This ensures that aromas, the shape and the freshness will be better conserved.

Defrosting the refrigerator

Humidity can form frost in the interior of the refrigerator or on the vaporiser. This reduces the cooling capacity. Defrost the device in good time to avoid this.

Caution!

Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

This is how to defrost the refrigerator:

▶Take the contents out.
▶If necessary, put them in another cooling appliance.
▶Set the knob to "0".
▶Leave the door open.
▶Wipe off the water resulting from defrosting or – if present – empty the collecting tray. If your device has a water drain, drain the thawed water off.

Switching off and storing the refrigerator

If you do not intend to use the refrigerator for a long time, proceed as follows:

▶Set the knob to level "0".
▶Disconnect the power cable from the battery or pull the DC cable plug out of the rectifier.
▶Clean the refrigerator (see chapter “Cleaning and maintenance” on page 35).
▶Set the lock to the "VENT" position. This prevents odours from forming.

Securing the refrigerator door

You can prevent the refrigerator door from being opened inadvertently.

Put the locking mechanism on the top of the door to position 1 (fig. 5 1, page 5).

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

CoolMatic CRP-40 Cleaning and maintenance

8 Cleaning and maintenance

Caution!

Do not use abrasive cleaning agents or hard objects for cleaning as these can damage the refrigerator.

Caution!

Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

As soon as the refrigerator becomes dirty, clean it with a damp cloth.
▶Make sure that no water drips into the seals. This can damage the electronics.
▶Wipe the refrigerator dry with a cloth after cleaning.

9 Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

● A copy of the receipt with purchasing date
● A reason for the claim or description of the fault

Disposal CoolMatic CRP-40

10 Disposal

Danger! Risk of child entrapment

Before you throw away your old refrigerator:

Take off doors
- Leave the shelves in place so that the children may not easily climb inside

Caution!

When disposing of the device, make sure it is not overheated, as the insulating foam was made with flammable gas.

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

CoolMatic CRP-40 Troubleshooting

11 Troubleshooting

Compressor does not run

Fault Possible cause Remedy
U_KL=0 V There is an inter	ruption in the con- nection between the battery and the electronics	Establish a connection
	Main switch faulty (if installed) Replace	the main switch
	Additional supply line fuse has blown (if installed)	Replace the supply line fuse
U_KL≤ U_ON	Battery voltage is too low Charge the battery
Start attempt with U_KL≤ U_OFF	Loose cablesPoor contact (corrosion)	Establish a connection
	Battery capacity too low Replacing the battery
	Cable cross section too small Replace the cable (fig. 9, page 6)
Start attempt with U_KL≥ U_ON	Ambient temperature too high –
	Insufficient ventilation and/or air supply	Move the refrigerator to another location
	Condenser is dirty Clean the condenser
	Fan defective (if installed) Replace the fan
Electric circuit between the pins in the compres- sor interrupted	Defective compressor Replace the compressor
Usage when the ambi-ent temperature is too low	The compressor only starts up at an ambient temperature of more than +16 °C.	Only switch on the refrig- erator at an ambient tem- perature of more than +16 °C.

U_KL Voltage between the positive and negative terminals of the electronics

U_ON Cut-in voltage of the electronics

U_OFF Cut-off voltage of the electronics

Troubleshooting CoolMatic CRP-40

Interior temperature too low in control level "1"

Fault Possible cause Remedy
Compressor runs constantly	Thermostat sensor has no contact on the vaporiser	Secure the sensor
	Faulty thermostat Change the thermostat
Compressor runs for a long time	Large quantities have been frozen in the freezer compartment	-

Poor cooling, interior temperature increases

Fault Possible cause Remedy
Compressor runs for a long time/continuously	Vaporiser is iced over Defrost the vaporiser
	Ambient temperature too high –
	Insufficient ventilation and/or air supply	Move the refrigerator to another location
	Condenser is dirty Clean the condenser
	Fan defective (if installed) Replace the fan
Compressor runs intermittently	Battery capacity exhausted Charge the battery

Unusual noises

Fault Possible cause Remedy
Loud humming A component of the refrigerant circuit cannot move freely (touching the wall)	Bend the component carefully away from the obstruction
	Foreign body jammed between the cooling unit and the wall	Remove the foreign body
	Fan noise (if installed) –

CoolMatic CRP-40 Technical data

12 Technical data

Item number: 9105600001
Voltage: 12 V DC or 24 V DC
Capacity:	39 l
Freezer proportion:	5,3 l
Average power consumption: 45 W
Cooling temperature range: 0 °C to max.	-18°C
Relative humidity: maximum 90%
Constant inclination: max. 30°
Dimensions in mm:	fig. 1, page 3
Weight: 19 kg
Test/certificates:	complies with ErP/EuP directive

Versions, technical modifications and delivery options reserved. The coolant circuit contains R134a.

5 Description technique 44

Description technique CoolMatic CRP-40

5 Description technique

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Garantie

9 Garantie

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Uso adecuado

4 Uso adecuado

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Uso de la nevera

Nota

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Impiego del frigorifero

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Impiego del frigorifero

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Smaltimento

10 Smaltimento

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

CoolMatic CRP-40 Garanti

9 Garanti

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Garanti CoolMatic CRP-40

9 Garanti

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

CoolMatic CRP-40 Sikkerhetsregler

Tips

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

Deponering CoolMatic CRP-40

10 Deponering

Fare! Farlig for barn

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

Pure geometric diagram with crosshair and circular shapes without any text or symbols

①Dometic Italy S.p.A.

Via Virgilio, 3

I-47100 Forli

[phone]

[phone]

Mail: [e-mail]

Overseas + Middle East

AUS Dometic Australia

1 John Duncan Court

Varsity Lakes QLD 4227

[phone]

[phone]

Mail: [e-mail]

CH Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang (Zürich)

[phone]

吕 [phone]

Mail: [e-mail]

N Dometic Norway AS

Skolmar 24

N-3232 Sandefjord

[phone]

吕 [phone]

Mail: [e-mail]

(HK) WAECO Impex Ltd.

Suites 2207-2211 · 22/F · Tower 1

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

Hong Kong

[phone]

[phone]

Mail: [e-mail]

DK Dometic Denmark A/S

Nordensvej 15, Taulov

DK-7000 Fredericia

[phone]

吕 [phone]

Mail: [e-mail]

NL Dometic Benelux B.V.

Ecustraat 3

NL-4879 NP Etten-Leur

[phone]

吕 [phone]

Mail: [e-mail]

ROC WAECO Impex Ltd.

Taipei Office

2 FL-3 · No. 56 Tunhua South Rd, Sec 2

Taipei 106, Taiwan

[phone]

[phone]

Mail: [e-mail]

E Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

s Dometic Scandinavia AB

Gustaf Melins gata 7

Regional Office Middle East

P O Box 74775

Dubai, United Arab Emirates

[phone]

[phone]

Mail: [e-mail]

F Dometic S.N.C.

Dometic House · The Brewery

Blandford St. Mary

Dorset DT11 9LS

[phone]

[phone]

Mail: [e-mail]

USA Dometic Marine Division

2000 N. Andrews Ave. Extension

Pompano Beach, FL 33069 USA

[phone]

[phone]

Mail: [e-mail]

FIN Dometic Finland OY

Mestarintie 4

FIN-01730 Vantaa

[phone]

吕 [phone]

Mail: [e-mail]

www.dometic-waeco.com
