USER MANUAL NSXMT90 AIWA

SERVICE PERSONNEL.” NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi- cations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help, CAUTION Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user’s right or authority to operate this product. PRECAUTIONS Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference, All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below. Installation

Water and moisture — Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like. Heat — Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41 “F) or greater than 35°C (95”F). Mounting surface — Place the unit on a flat, even surface. Ventilation — The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from each side. - Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings. - Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded. Objects and liquid entry — Take care that objects or liquids do not get inside the unit through the ventilation openings. Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care.

Quick stops, excessive force,

and uneven surfaces may cause AV* the unit or cart to overturn or fall. Condensation — Moisture may form on the CD pickup lens when: - The unit is moved from a cold spot to a warm spot - The heating system has just been turned on - The unit is used in a very humid room - The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again. Wall or ceiling mounting —The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions. Electric Power 1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.

Polarization —As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet, To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself. - Never handle the AC power plug with wet hands, as this could result in fire or shock. - Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket. - Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock. I ENGLISH4

Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug. When not in use — Unplug the AC power cord from the AC power plug if the unit wi’11n;t be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off Outdoor Antenna 1 Power lines —— When connecting an outdoor antenna, make sure it is located away from power lines.

Outdoor antenna grounding — Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANS1/NFPA70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves. Antenna Grounding According to the National Electrical Code

ELECTRODE SYSTEM (NEC ART 250 PART H) NEC-NATIONAL ELECTRICAL CODE Maintenance Clean the unit only as recommended in the Operating Instructions, Damaae Reauirina Service Have the units serviced by a qualified service technician if: - The AC power cord or plug has been damaged - Foreign objects or liquid have gotten inside the unit - The unit has been exposed to rain or water - The unit does not seem to operate normally - The unit exhibits a marked change in performance - The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

TROUBLESHOOTING GUIDE ......................................... 24 SPECIFICATIONS ...................m....m................................... 25 PARTS INDEX ................................................... Back cover ENGLI!;H 2SETTING UP The Dolby Pro Logic system which is the biggest feature of this stereo system provides you with multi channel sound in your home. Complete setting and connection of the main unit, supplied speakers, your TV and video equipment according to the following procedure. Check your system and accessories

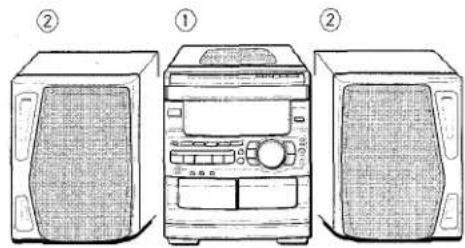

0 CX-NMT90 Compact disc stereo cassette receiver @ SX-NA94 Front speakersSX-R210 SX-C400 Surround speakers Center speaker Remote controlAM antennaFM antennaOperating Instructions, etc To stand the AM antenna on a surface Fix the claw to the slot. Owner’s record For your convenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty. Model No.Serial No. (Lot No.)CX-NMT90SX-NA94

POSITIONING THE SPEAKERS

To achieve the optimum effects obtainable with the Dolby Pro Logic system, it is important to position the speakers properly. Refer to the following illustration to find out the best location in your room. CX-NMT90 —

Q) Front speakers(j) Center speaker Position in the center of the two front speakers. In addition, position on or below the TV set, if connecting a TV set to the unit. Surround speakers Place the surround speakers directly to the side of or slightly behind the listening area. Align them horizontally, about 1 meter (3.2 feet) above ear height.

No sound is heard from the center and surround speakers when the Dolby Pro Logic and SURROUND are set to off. ● The center speaker sounds only when the Dolby Pro Logic is set to on. CONNECTIONS Before connecting the AC cord The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.IMPORTANT Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord in the end. I SX-C400

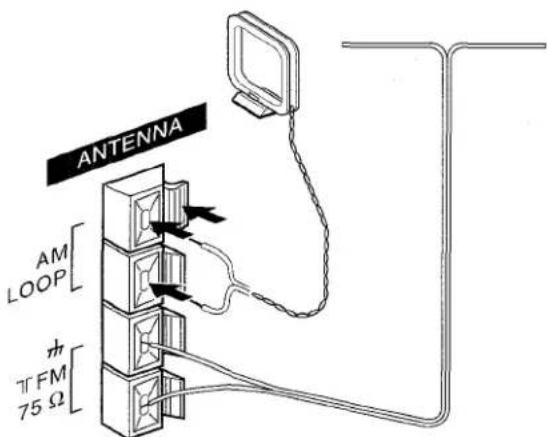

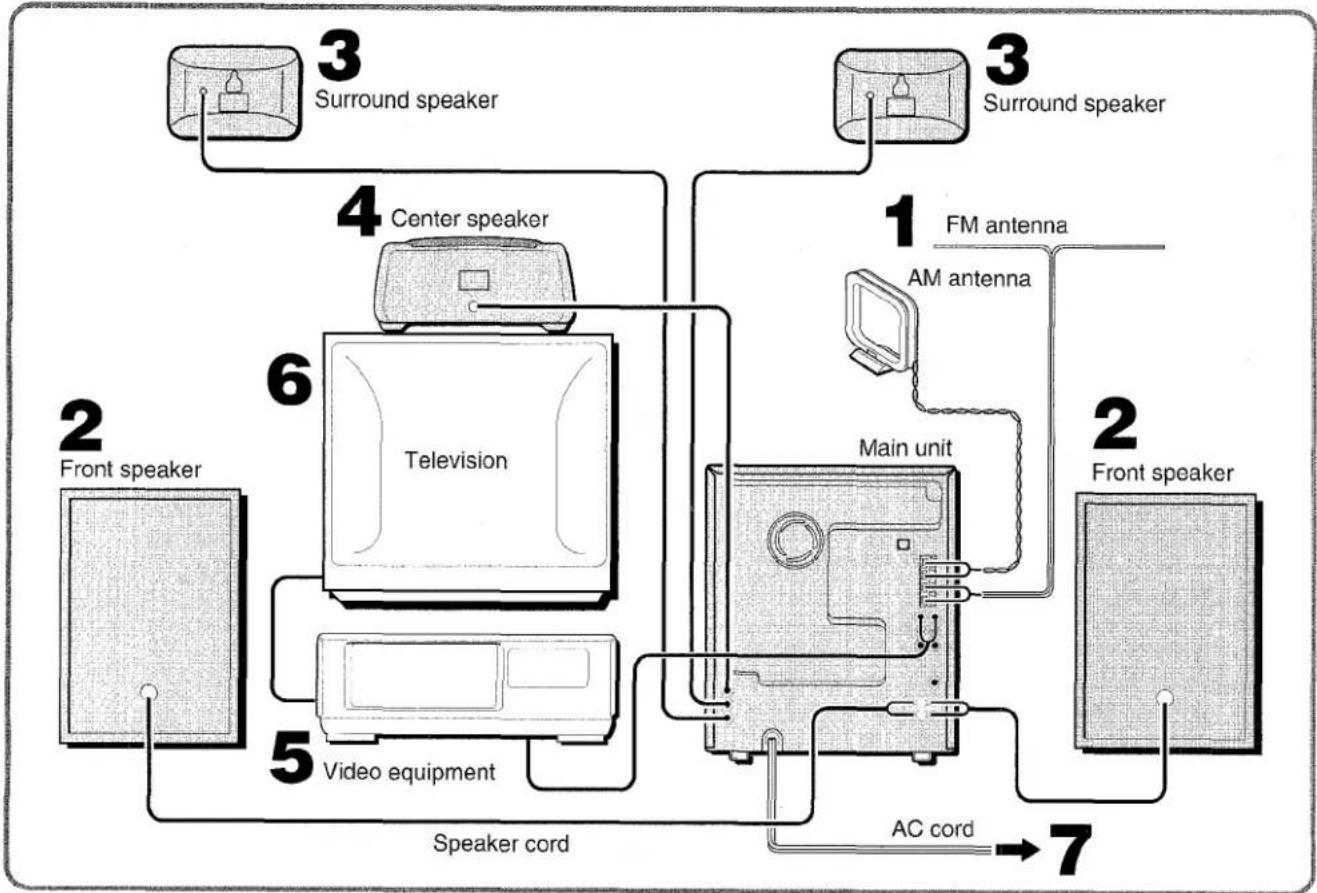

7 Connect the supplied antennas. 3 Connect the surround speakers. Connect the FM antenna to the FM 75 Q terminals and the Connect the surround speaker cords to the SURROIJND

AM antenna to the AM LOOP terminal. SPEAKERS KI terminals. 2 Connect the front speakers. Connect the speaker with R mark to SPEAKERS R terminals, and the speaker with L mark to SPEAKERS L terminals.

There is no difference between the surround speakers. Both speakers can be connected as R (right) or L (left). 4 Connect the center speaker. Connect the center speaker cord to the CENTER SPEAKER Q terminal. 5 Connect the video equipment. Connect the VIDEO/AUX jack of this unit to the audio output jack of the video equipment with an optional audio connecting cord. 6 Connect the Television to the video equipment. Refer to the Operating Instructions of the connected equip- ment for details.

Connect the AC cord to an AC outlet. The cords with white stripes should be connected to the ~ terminals and the other cords to the O terminals. ENGLISH 4To position the antennasFM feeder antenna: Extend this antenna horizontally in a T-shape and fix its ends to the wall. loop antenna: Position for the best reception.

● Be sure to connect the speaker cords correctly. Improper connections can cause short circuits in the SPEAKERS terminals. ● Do not leave objects generating magnetism near the speakers. ● Do not bring the FM antenna near metal objects or curtain rails. ● Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up. ● Do not unwind the AM antenna wire.

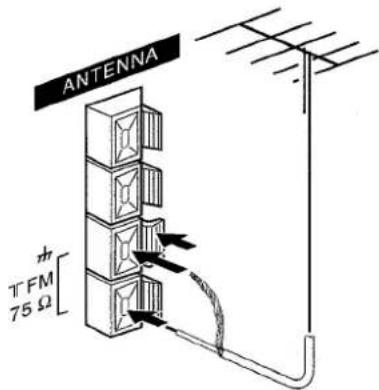

CONNECTING AN OUTDOOR ANTENNA

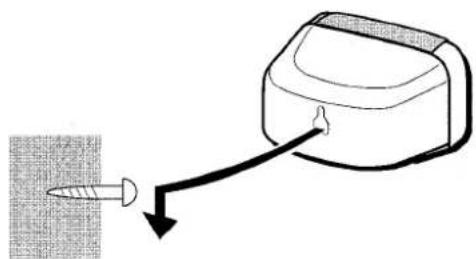

For better FM reception, use of an outdoor antenna is recommended. Connect the outdoor antenna to the FM 75 Q terminals. To mount the surround speakers on the wall Mount each speaker on a s~ot that can hold its weiaht. To connect other optional equipment+ page 23.

Sound is not heard from the surround speakers when the SURROUND is set to off. To change the AM tuning interval The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval. Press the POWER button while pressing the TUNER/BAND button. To reset the interval, repeat this procedure.

REMOTE CONTROL inserting batteries Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries. R6(AA) When to replace the batteries The maximu”m operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones. Using the remote control The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well. ● If the unit is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage. c The remote control may not operate correctly when: - The line of sight between the remote control and the remote sensor inside the display window is exposed to intense light, such as direct sunlight - Other remote controls are used nearby (those of a television, etc.) When the AM tuning interval is changed, all preset stations (see “PRESETTING STATIONS on page 8) are cleared. The preset stations have to be set again. 5 ENGLISHBEFORE OPERATION AUDIO ADJUSTMENTS POWER TAPE DEMO

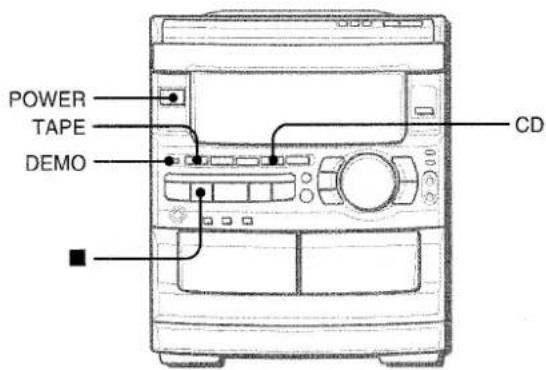

To turn the unit on Press one of the function buttons (TAPE, TUNER, VIDEO/AUX, CD, MD). Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function). The POWER button is also available. When the unit is turned on, the disc compartment may open and close to reset the unit. DEMO (Demonstration) mode When the AC cord is connected, the display window demonstrates the functions of the unit. When the power is turned on, the DEMO display is overridden by the operation display. When the power is turned off, the DEMO mode is restored. To cancel DEMO mode Press the DEMO button. The clock display appears. (To set the current time, see “SETTING THE CLOCK on page 21.) Tore-activate the DEMO mode, press the DEMO button again. illumination guides Whenever the AC cord is connected or one of the function buttons is pressed, the buttons for that operation light up or flash. Example: When the AC cord is connected, the II SET button flashes as a guide to setting the current time. Flash windows The windows on the top of the unit and the cassette decks light up or flash while the unit is being powered on. To turn off the light of the top window, press the ■ button while pressing the CD button. To turn back on, repeat the above. To turn off the light of the cassette decks, press the ■ button while pressing the TAPE button. To turn back on, repeat the above. To turn the unit off Press the POWER button. VOLUME Turn the VOLUME control on the main unit, or press the VOLUME buttons on the remote control. The volume level is displayed as a number from O to MAX 1[31). The volume level is automatically set to 16 when the power is turned off with the volume level set to 17 or more. To change the Iefth’ight balance Press the MANUAL SELECT button on the remote control. L/R is displayed for 2 seconds. Press the 1<< DOWN or >*II UP button on the remote control within these 2 seconds. ● The DOLBY PRO LOGIC front speakers level is also changed. (See page 17) BBE SYSTEM The BBE system enhances the clarity of high-frequency sound. It also enriches the Karaoke function to make your voice sound clear and pleasant. Press the BBE button. Each time it is pressed, the level changes. Select one of the three levels, or the off position to suit your preference.

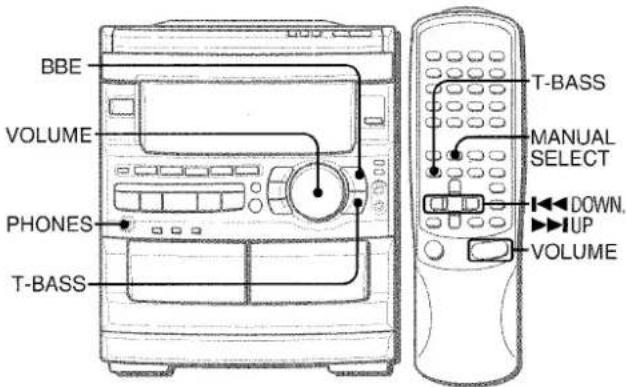

The T-BASS system enhances the realism of Iow-frequsncy sound. Press the T-BASS button. Each time it is pressed, the level changes. Select one of the three levels, or the off position to suit your preference. Low frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low frequency sound is originally emphasized. In this case, cancel the T-BASS system. ENGLISH 6GRAPHIC EQUALIZER

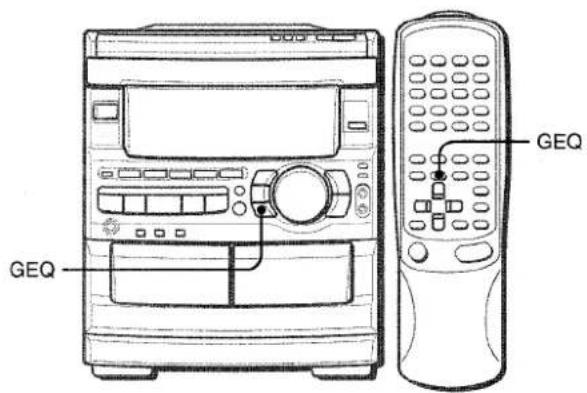

GEQ GEQ This unit provides the following three different equalization curves. ROCK: Powerful sound emphasizing treble and bass POP: More presence in the vocals and midrange CLASSIC: Enriched sound with heavy bass and fine treble Press the GEQ button repeatedly until the desired equalization curve is displayed.

To cancel the selected mode Press the GEQ button repeatedly so that GEQ OFF appears on the display. Using the headphones Connect headphones tothe PHONES jack witha stereo standard plug (06.3 mm, 1/4 inch). No sound is output from the speakers while the headphones are plugged in, ● When the headphones are plugged in, the SURROUND system and the DOLBY PRO LOGIC are canceled. Sound adjustment during recording The output volume and tone (except BBE) of the speakers or headphones may be freely varied without affecting the level of the recording.

The DSP (Digital Signal Processor) surround system can recreate the effect of sounds reflected from walls or ceilings. This system enhances 3 types of sound presence, DISCO: Sound presence of a disco LIVE: Sound presence of a live music performance HALL: Sound presence of a concert hall Press the SURROUND button repeatedly until the desired SURROUND mode is displayed.

Equalization curves are selected automatically to match the SURROUND modes and can also be selected or turned off to suit your preference. When the music source is monaural Select LIVE to obtain a simulated stereo effect. When DISCO or HALL is selected, no sound will be heard from the surround speakers. To cancel the selected mode Press the SURROUND button repeatedly so that SUR OFF appears on the display, While SURROUND mode is off, no sound is heard from the surround speakers. To adjust the volume of the surround speakers Press the MANUAL SELECT button twice on the remote control. “SUR” is displayed for 2 seconds. Press the 1<< DOWN or UP *I button on the remote control within these 2 seconds. ● The Dolby Pro Logic surround speakers level is also changed. (See page 17.) The SURROUND mode is canceled when: - the MIC or ECHO level is changed. - the DOLBY PRO LOGIC is turned on. When playing back a tape recorded with BBE, it is recommended that BBE be set to off to avoid distorted high frequency sound. 7 ENGLISHMANUAL TUNING PRESETTING STATIONS

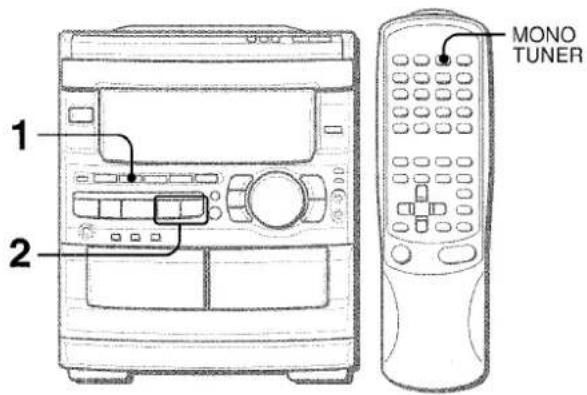

Press the TUNER/BAND button repeatedly to select the desired band.FM — AM When the TUNER/BAND button is pressed while the power is off, the power is turned on directly. Press the 1+ DOWN or ➤>1 UP button to select a station. Each time the button is pressed, the frequency changes. When a station is received, “TUNE” is displayed for 2 seconds. During FM stereo reception, IIKID)l) is displayed. To search for a station quickly (Auto Search) Keep the M+ DOWN or b~l UP button pressed until the tuner starts searching for a station. After tuning in to a station, the search stops. To stop the Auto Search manually, press the 1<< DOWN or ➤>1UP button. ● The Auto Search may not stop at stations with very weak signals. When an FM stereo broadcast contains noise Press the MONO button on the remote control so that “MONO appears on the display. Noise is reduced, although reception is monaural. To restore stereo reception, press the MONO TUNER button so that MONO disappears. To change the AM tunning interval See page 5. FLti -1, ,

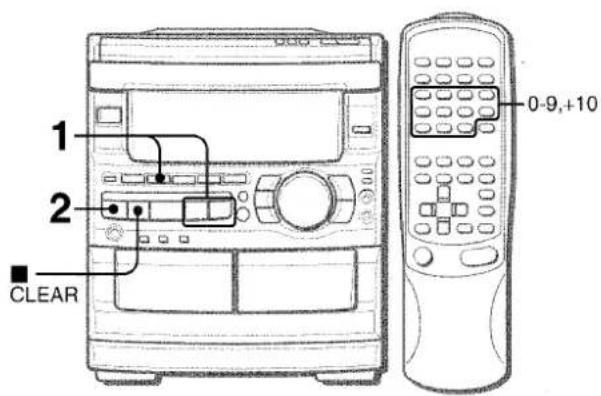

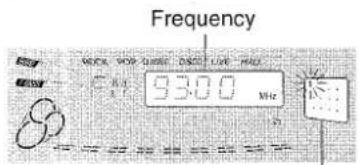

The unit can store a total of 32 preset stations. (Each band has a maximum of 20 available preset stations. ) When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

Press the TUNER/BAND button to select a bi~nd, and press the 1++ DOWN or F>l UP button to select a station. Press the II SET button to store the station. A station is assigned a preset number, beginning frorr 1 irl consecutive order for each band. FrequencyPreset number Repeat steps 1 and 2. The next station will not be stored if a total of 32 preset stations for all the bands or a total of 20 preset stations for one bancl have already been stored.

PRESET NUMBER TUNING

Use the remote control to select the preset number directly.

Press the TUNER/BAND button to select a band 2 Press the numbered buttons to select a preset number.Example: To select preset number 20, press the +1 O, +10 and Obuttons To select preset number 15, press the +10 and 5 buttons. Selecting a preset number on the main unit Press the TUNER/BAND button to select a band, Then, press the +- DIRECTION/PRESET button repeatedly. Each time the button is pressed, the next ascending number is selected, To clear a preset station Select the preset number of the station to be cleared, Then, Ipress the ■ CLEAR button, and press the II SET button within 4 seconds. The preset numbers of all other stations in the band with higher numbers are also decreased by one.

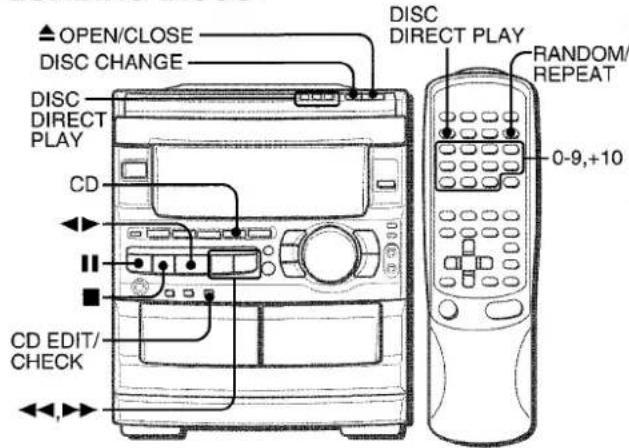

ENGLI!?H 8BASIC OPERATIONS

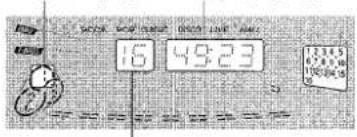

LOADING DISCS DISC Press the CD button, then press the A OPEN/ CLOSE button to open the disc compartment. Load disc(s) with the label side up. To play one or two discs, place the discs on tray 1 and 2. To play three discs, press the DISC CHANGE button to rotate the trays after placing two discs. Place the third disc on tray 3. Close the disc compartment by pressing the A OPEN/CLOSE To play one disc only, press one of the DISC DIRECT PLAY buttons. The selected disc is played once. To play with the remote control Press the DISC DIRECT PLAY button, then press one of the numbered buttons 1 to 3 within 3 seconds to select a disc. To stop play, press the ■ button. To pause play, press the II button. To resume play, press again. To search for a particular point during playback, keep the 44 or> button pressed and release the button at the desired point. To skip to the beginning of a track during playback, press the + or - button repeatedly. To remove discs, press the = OPEN/CLOSE button.

start play when the power is off (Direct Play Function) Press the CD button. The power is turned on and play of the loaded disc(s) begins. When the A OPEN/CLOSE button is pressed, the power is also turned on, To check the remaining time Press the CD EDIT/CHECK button during play, The amount of time remaining until all tracks finish playing is displayed, To restore the playing time display, repeat the above. Selecting a track with the remote control

Press the DISC DIRECT PLAY button, then press one of the numbered buttons 1 to 3 within 3 seconds to select a disc. 2 Press the numbered buttons and the +10 button to select a track.Example: To select the 25th track, press the +10, +10 and 5 buttons. To select the 10th track, press the +1 O and O buttons. The selected track starts to play and continues to the end of that disc.Tray number of the disc to be played Total playing time Replacing discs during play While one disc is playing, the other discs can be replaced without interrupting play. 1 Press the DISC CHANGE button. 2 Remove the discs and replace with other discs. 3 Press the A OPEN/CLOSE button to close the disc compartment.Total number of tracks

PLAYING DISCS Load discs. To play all discs in the disc compartment, press the +> button. Play begins with the disc on tray 1. ● When loading an 8-cm (3-inch) disc, put it onto the inner circle of the tray. ● Do not place more than one compact disc on one disc tray. ● Do not tilt the unit with discs loaded. Doing so may cause malfunctions,Elapsed playing timeNumber of trackbeing played

9 ENGLISHRANDOM /REPEAT PLAY

Use the remote control, RANDOM play All the tracks on the selected disc or on all the discs can be played randomly. REPEAT pk?lY A single disc or all the discs can be played repeatedly, Press the RANDOM/REPEAT button. Each time it is pressed, the function can be selected cyclically. RANDOM play — RANDOM lights up on the display. REPEAT play — q lights up on the display. RANDOM/REPEAT play — RANDOM and ~ light upon the display. Cancel — RANDOM and G go out from the display.

During random play, the following operations are not possible: -to select the tracks directly with the numbered buttons. -to skip to the previously played track with the ~ button, PROGRAMMED PLAY Up to 30 tracks can be programmed from any of the inserted discs.

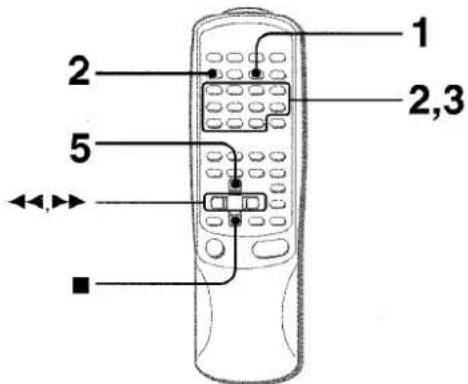

Use the remote control.

Press the PRGM button twice in stop mode. The PRGM indicator lights up on the display. PRGM

• When the PRGM button is pressed once in step 1, the unit enters the KARAOKE PROGRAM (see page 20). Press the DISC DIRECT PLAY button, then press one of the numbered buttons 1 to 3 within 3 seconds to select a disc. The selected disc is indicated in red on the display, Go to the next step when the tray stops rotating.

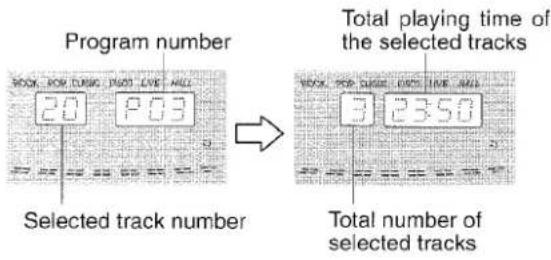

Press the numbered buttons and the +10 button to program a track. Example: To select the 25th track, press the +1 O, +1 O and 5 buttcms. To select the 10th track, press the +1 O and O buttons, Total playing time of Program numberthe selected tracksSelected track numberTotal number ofselected tracks Repeat steps 2 and 3 to program other tracks. Press the 4> button to start play. To check the program Each time the + or ➤* button is pressed in stop mode, a disc number, track number, and program number will be displayed. To clear the program Press the ■ CLEAR button in stop mode, To add tracks to the program Repeat steps 2 and 3 instop mode.The trackwillbe programmed after the last track. To change the programmed tracks Clear the program and repeat all the steps again.

During programmed play, you cannot perform random play, check the remaining time, and select a disc or track, ENGLISH t OBASIC OPERATIONS

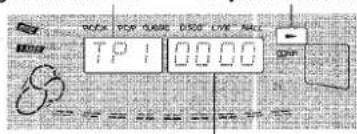

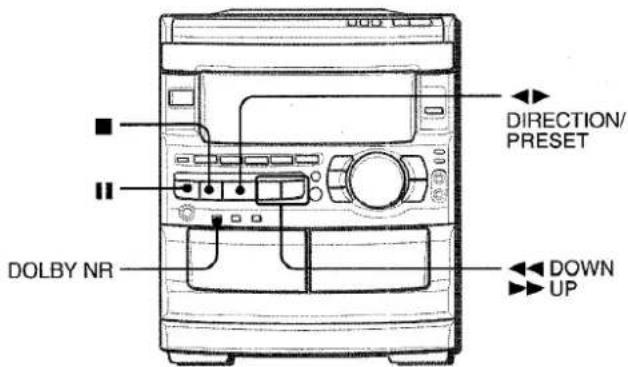

T II T ‘H- AEJECTDeck 2A EJECTInsert a tape. Deck 1 Press the DOLBY NR button and turn on or off to match the playback tape. Dolby NR ● On deck 1, tapes are always played back on both sides. On deck 2, you can select a reverse mode to play back one or both sides. ● Use Type I (normal), Type II (high/CrOz) or Type IV (metal) tapes for playback. Press the TAPE button and press the 4 EJECT mark to open the cassette holder. For tapes recorded with DOLBY NR, turn on UU NR. For tapes recorded without DOLBY NR, turn off no NR. Press the +> button to start play. Playing deck numberPlayback side indicator

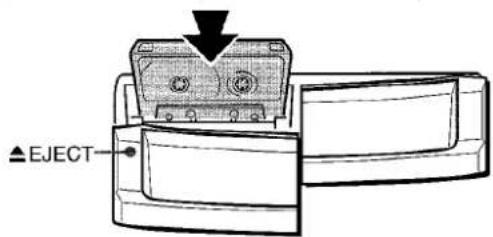

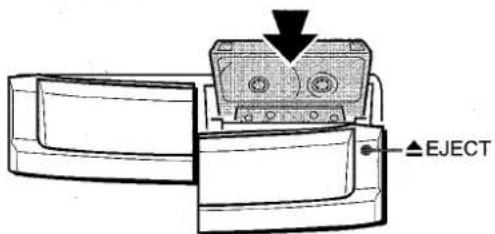

Insert a tape with the exposed side down. Push the cassette holder to close. The tape &ounter indicates the tape running length. P: The front side is being played (forward). +: The back side is being played (reverse). To select a reverse mode (deck 2 only) Each time the REV MODE button is pressed, the reverse mode changes. When tapes are loaded in both decks Press the TAPE button first to select a deck. The selected deck number is displayed. To stop play, press the ■ button. To pause play (deck 2 only), press the II button. To resume play, press again. To change the playback side, press the <- DIRECTION/ PRESET button in play or pause mode. To fast forward or rewind, press the ++ or - button. Then press the ● button to stop the tape. To play one side only, select Z. To play from front side to reverse side once only, select Z>. To play both sides repeatedly, select C=). ● When tapes are loaded in both decks, =) on the display indicates Continuous Play. To start play when the power is off (Direct Play Function) Press the TAPE button. The power is turned on and play of the inserted tape begins.

set the tape counter to 0000 Press the ■ CLEAR button in stop mode. The counter is also set to 0000 when the cassette holder is opened. If a television is used near this unit during tape playback, noise may be heard from the speakers. In this case, turnthe television off .

I 1 ENGUSHMUSIC SENSOR

If there is a 4-second or longer blank between each track, a search for the beginning of the current or next track during playback can be done easily.Press the 41-4 or ➤> button during playback referring to the playback side indicator (< or -) on the display. For example, when the ➤* button is pressed while > is displayed, playback of the next track starts. Music sensor function may not be able to detect tracks under the following conditions: ● Blanks of less than 4 seconds between tracks ● Noisy blanks ● Long passages of low-end sound ● Low overall recording levels CONTINUOUS PLAY

3 h“ --- After playback on one deck finishes, the tape in the other deck will start to play without interruption.

Insert tapes into deck 1 and deck 2. Press the TAPE/DECKl/2 button to select the deck to be played back first. Press the REV MODE button to select Z). Press the 4> button to start playback. Playback continues until the ■ button is pressed. About cassette tapes ● To prevent accidental erasure, break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.Type 11tapeTab for side Adetection slot To record on the tape again, cover the tab openings with adhesive tape, etc. (On Type 11 tapes, take care not to cover the Type 11tape detection slot.) ● 120-minute or longer tapes are extremely thin and easily deformed or damaged, They are not recommended. ● Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break orjam inthe mechanism.

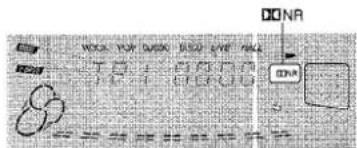

DOLBY NR system The Dolby Noise Reduction system reduces tape hiss noise. For optimum performance when playing back a tape recorded with the DOLBY NR system, turn on the DOLBY N R system.ENGL/S/+ 1 ~!BASIC RECORDING This section explains how to record from the tuner, CD player, or external equipment. Preparation ● Set the tape to the point where recording will start. ● Use Type I (normal) and Type II (high/Cr02) tapes for recording.

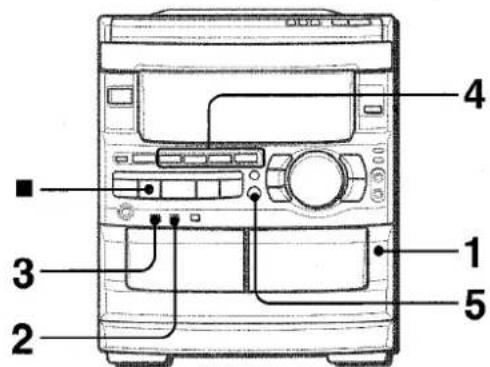

Insert the tape to be recorded on into deck 2. Insertthe tape withthe sideto be recordedon first facing out from the unit. Press the REV MODE button to select the reverse mode. To record on one side only, select =. To record on both sides, select =) or (=). Press the DOLBY NR button to turn Dolby NR on or off. To record with DOLBY NR, turn on no NR. To record without DOLBY NR, turn off 00 NR. Press one of the function buttons and prepare the source to be recorded. To record from a CD, press the CD button and load the disc(s). To record from a radio broadcast, press the TUNER button and tune in to a station. To record from the connected source, press the VIDEO/ AUX or MD button and play. Press the . REC/REC MUTE button to start recording. When the selected function is CD, playback and recording start simultaneously. To stop recording, press the ■ button. To pause recording, press the 11 button. (Applicable when the source is TUNER, VI DEO/AUX or MD.) To resume recording, press again.

INSERTING BLANK SPACES

Insertion of 4-second blank spaces enables you to activate the Music Sensor function. (Applicable when the source is TUNER, VIDEO/AUX or MD.) 1 Press the ● REC/REC MUTE button during recording or while in recording pause mode. ~ on the display flashes for 4 seconds and the tape runs without recording. After 4 seconds, the deck enters the recording pause mode.

Press the II button to resume recording. To insert a blank space of less than 4 seconds, press the ● REC/REC MUTE button again while ~ is flashing. To insert blank spaces of more than 4 seconds, after the deck enters recording pause mode, press the ● REC/REC MUTE button again. Each time the button is pressed, a 4-second blank space is added.

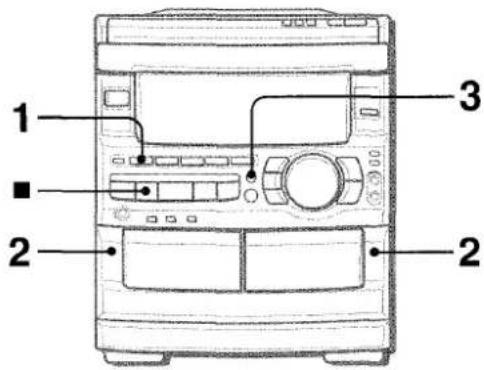

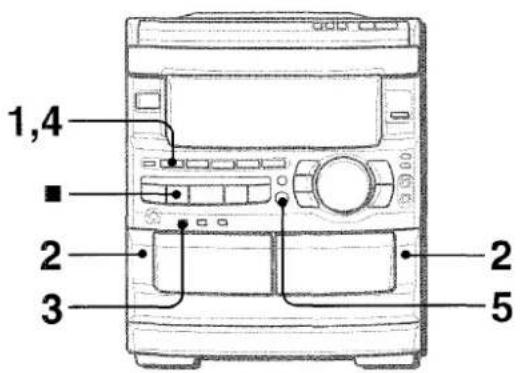

erase a recording Make sure the microphone is not connected to this unit.

Insert the tape to be erased into deck 2 and press the TAPE/ DECK 1/2 button to display “TP 2“. Set the tape to the point where the erasure is to be started. Set the reverse mode by pressing the REV MODE button, Press the ● REC/REC MUTE button to start the erasure. I ~ ENGLISHDUBBING A TAPE MANUALLY DUBBING THE WHOLE TAPE 1,4

13ma ● Set the tape to the point where recording will start. ● The reverse mode is automatically set to 1. Note that recording will be done on one side of the tape only.

Press the TAPE button. Insert the original tape into deck 1 and the tape to be recorded on into deck 2. Insert the tapes with the sides to be played back or recorded on facing out from the unit, Press the DOLBY NR button to turn off the Dolby NR.

NR on the display goes out. Press the TAPE/DECK 1/2 button to select deck 1. “TP 1” is displayed. Press the ● REC/REC MUTE button to start recording. Playing and recording start simultaneously. To stop dubbingPress the Ml button. To set the Dolby NR when playing back the dubbed tape Press the DOLBY NR button and turn Dolby NR on or off to match the original tape. This function allows you to make exact copies of both sic~es cl the original tape, The reverse side of both tapes will start simultaneously as soon as the longer tape has been reversed. ● Dubbing does not start from a point halfway in the tape. ● The reverse mode is automatically set to 1), ● The Dolby NR does not affect recording,

Press the TAPE button. Insert the original tape into deck 1 and the tape to be recorded on into deck 2. Insert each tape with the side to be played back or recorded on first facing out from the unit.

Press the SYNC DUB button once or twice to start recording.

For recording at normal speed, press it once to display NORM-DUB.@ For recording at high speed, press it twice to display HIGH-DUB, The tapes are rewound to the beginning of the front sides, and recording starts. stop dubbinq Press the ■ butt&. To set the Dolby NR when playing back the dubbedl tape Press the DOLBY NR button and turn Dolby NR on or off to match the original tape.

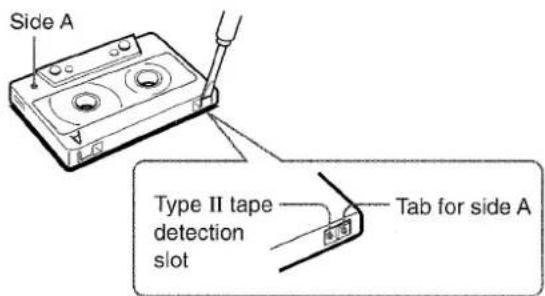

Recording does not start, if the erasure prevention tab on either side of the tape is broken off. HVGL/SIY 14Al EDIT RECORDING o-9 The Al edit function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track length. If necessary, the order of tracks is rearranged so that no track is cut short, (Al: Artificial Intelligence) Al edit recording will not start from a point halfway into the tape. The tape must be recorded from the beginning of either side,

Insert the tape into deck 2, and press the DOLBY NR button to turn Dolby NR on or off. Insert the tape with the side to be recorded on first facing out from the unit, Press the CD button and load the disc(s). Press the CD EDIT/CHECK button ~. “EDIT” and “Al” lights up on the display. When “PRGM” is displayed, press the CD EDIT/CHECK button again, Press one of the DISC DIRECT PLAY buttons to select a disc. Press the 4 or ~ button to designate the tape length. 10 to 99 minutes can be specified. In a few seconds, the microcomputer determines the tracks to be recorded on each side of the tape. ● The numbered buttons on the remote control are also available to designate the tape length. Example: When using a 60-minute tape, press the 6 and O buttons.Tape length Tape side A Selected (front side) tracks for side A 6 Press the ● REC/REC MUTE button to start recording. The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts. To stop recording Press the ■ button, Recordingand CD play stop simultaneously. To clear the edit program Press the ■ CLEAR button twice so that “EDIT” disappears on the display. To check the order of the programmed track numbers Before recording, press the CD EDIT/CHECK button to select side A or B, and press the - or - button repeatedly. ProgrammedTrack numbertrack numbersProgram number To add tracks from other discs to the edit program If there is any time remaining on the tape after step 5, you can add tracks from other discs in the CD compartment

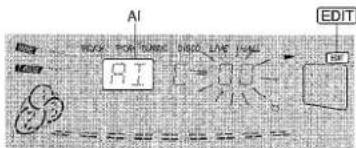

Press the CD EDIT/CHECK button to select side A or B, Press one of the DISC DIRECT PLAY buttons to select a disc. Press the numbered buttons on the remote control to select tracks. PRGM appears on the display. A track whose playing time is longer than the remaining time cannot be programmed. Repeat steps 2 and 3 to add more tracks. Time on cassette tapes and editing time The actual cassette recording time is usually a little longer than the specified recording time printed on the label. This unit can program tracks to use the extra time. When the total recording time is a little longer than the tape’s specified recording time after editing, the display shows the extra time (without a minus mark), instead of the time remaining on the tape (with the minus mark).

● Recording is inhibited if the erasure prevention tab on either side of the tape is broken off. ● The Al edit function cannot be used with discs containing 31 tracks or more.Remainingtime of side A 15 ENGLISHPROGRAMMED EDIT RECORDING

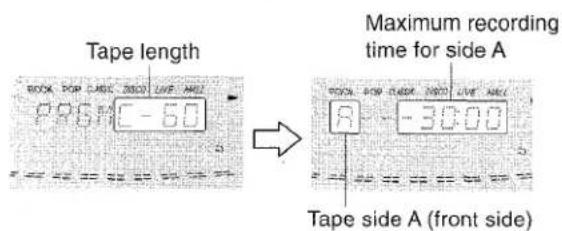

Programmed edit function enables CD recording while checking the remaining time on each side of the tape as the tracks are programmed. The programmed edit recording will not start from a point halfway in the tape, The tape must be recorded from the beginning of either side.

Insert the tape into deck 2, and press the DOLBY NR button to turn Dolby NR on or off. Insert the tape with the side to be recorded on first facing out from the unit. Press the CD button and load the disc(s). Press the CD EDIT/CHECK button twice

“EDIT and “PRGM” light up on the display. PRGEOm When “Al” is displayed, press the CD EDIT/CHECK button again. Press the +4 or > button to designate the tape length. 10 to 99 minutes can be specified, Maximum recording Tape length time for side A Tape side A (front side) Press the DISC DIRECT PLAY button, then press one of the numbered buttons 1 to 3 within 3 seconds on the remote control. Then, press the numbered buttons and the + 10 button on the remote control to program a track. Example: To select the 10th track of disc 2, press the DISC DIRECT PLAY and 2 buttons, then press the + 10 and O buttons.

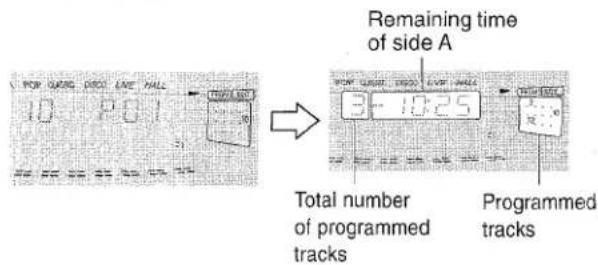

Repeat step 5 for the rest of the tracks for side A. A track whose playing time is longer than the remaining time cannot be programmed. Remaining time of side A Total number Programmed of programmed tracks tracks Press the CD EDIT/CHECK button to select side B and program the tracks for side B. After confirming Bon the display, repeat step 5, Tape side B (reverse side) Press the O REC/REC MUTE button recording. to start The tape is rewound to the beginning of the front sidle, the lead segment is played through for 10 seconds, and recording starts. When recording on the front side (A) ends, recording on the back side (B) starts. To stop recording Press the ■ button. Recording and CD play stop simultaneously,

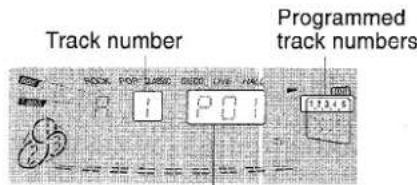

check the order of the programmed track numbers Before recording, press the CD EDIT/CHECK button to select side A or B, and press the < or - button repeatedly, Program number Track number Programmed track numbers

change the program of each side Press the CD EDIT/CHECK button to select side A or E3, and press the ■ CLEAR button to clear the program of the selected side. Then program tracks again.

clear the edit program Press the ■ button twice so that “EDIT” disappears on the display. Recording is inhibited if the erasure prevention tab on either sicle of the tape is broken off. ENGL/SH 1(6The Dolby Pro Logic feature and the center and rear speakers (standard) assure full-scale home theater sound. When playing back laser discs or video software that have been recorded in Dolby Surround, astonishingly realistic sound surrounds the listener to create a new level of audio/visual entertainment. Independent control of the four sound channels allows the listener to enjoy the same type of sound reproduction experienced in movie theaters. Voices are reproduced in the front and center sound field, while ambient sounds like cars and crowds are reproduced on all sides of the listener for an incredibly lifelike audio/video experience. Please read the following carefully to “tune” the system’s output to match the characteristics of your listening space,Check the following: ● Before using the DOLBY PRO LOGIC, adjust the proper balance of speaker sound levels. ● Make sure the supplied speakers are properly connected and positioned. (See page 3) ● Make sure the TV set and video unit are properly connected. (See page 4) ● Make sure the laser disc, video tape, etc., support

The unit is equipped with a built-in test signal generator called a noise sequencer for easy balance adjustment of all four channels. The sequencer outputs a noise signal that “travels” from channel to channel, enabling the simple adjustment of sound level to achieve, at the listening position, the same apparent loudness from each channel.Use the remote control.

Press the DOLBY PRO LOGIC button to select NORMAL. NORMAL lights up in red. If PHANTOM or 3CH - LOGIC lights up in red, press the DOLBY PRO LOGIC button repeatedly until NORMAL is selected. Press the MANUAL SELECT (TEST) button and hold it down for about four seconds until “L” flashes.

L: Left speaker —CEN: Center speaker SUR: Surround speakers e R: Right speaker

Adjust the sound level of the center and the surround speakers. While “CEN” or “SUR is displayed, press the DOWN l<< or

➤>1 button to adjust the volume of the center or surround speakersTo adjusi to match the level of the left and right speakers the balance between the left and right speakers, see page 6. At this time, the DOLBY PRO LOGIC mode should be canceled by pressing the DOLBY PRO LOGIC button until the “P-OFF is displayed. Press the MANUAL SELECT (TEST) button again to stop the noise signal.

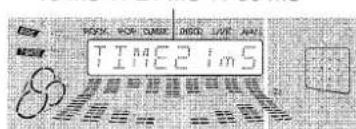

If the surround speakers level of the SURROUND is changed (see page 7), that of the DOLBY PRO LOGIC is also changed. About the channelsThe left and right speakerscreate the stereo effect. The center speaker helps achieve precise sound positioning over a broad sound field. The rear-mounted surround speakers enhance the “depth” of the sound field. To change the delay time The surround speakers reproduce sounds a split second after the front speakers. The delay is initially set to 21 ms (milliseconds). To change this standard delay time, press the MANUAL SELECT (TEST) button on the remote control repeatedly until “TIME” is displayed. Then, press the DOWN 1<< or UP ➤>1 button. Each time one of the buttons is pressed, the delay time changes as shown below.15mS+-+21mSH30mS A noise signal is sent to each channel in turn in the following sequence.

LF -a DOLBY PRO LOGIC 1 Press the VIDEO/AUX button and start playback of the video source. 2 Press the DOLBY PRO LOGIC button. NORMAL is selected, and the playback sound has the DOLBY PRO LOGIC effect. To cancel Dolby Pro Logic mode Press the DOLBY PRO LOGIC button repeatedly until P-OFF is displayed. To change the sound levels during playback After adjusting the balance with the noise sequencer, the sound levels of the center or surround speakers can be adjusted during playback of laser discs or video software, 1 Press the MANUAL SELECT (TEST) button on the remote control repeatedly to select “CEN” (center) or ‘(SUR” (surround). 2 While the “CEN” or “SUR” is displayed, press the DOWN 1<< or UP Ebl button on the remote control to adjust the volume.

ADDITIONAL DOLBY PRO LOGIC MODES

[n addition to the NORMAL mode, this unit is also equipped with the PHANTOM and the 3 CH LOGIC modes. PHANTOM mode: Use this mode when no center speaker is connected. The center channel signals are output through the left and right speakers.

CH LOGIC mode: Use this mode when no surround speakers are connected. This mode reproduces rear sounds through the front speakers. To select PHANTOM or 3 CH LOGIC Press the DOLBY PRO LOGIC button repeatedly until the desired Dolby Pro Logic mode is displayed. The Dolby Pro Logic mode is displayed cyclically as follows.

~ NORMAL - PHANTOM+ 3 CH LOGIC 1

To adjust the balance of connected speaker sound levels Carry out steps 2 to 4 on page 17. EXE! ● Depending on the sound source and/or listening conditions, a surround effect may not be obtained even when the DOLBY PRO LOGIC is on. ● The full DOLBY PRO LOGIC effect cannot be obtained when using software without IX IDOLHYSURROUNDImark. In this case, use the SURROUND system instead. (See page 7.) ENGLISH 18MICROPHONE MIXING 3,4,5

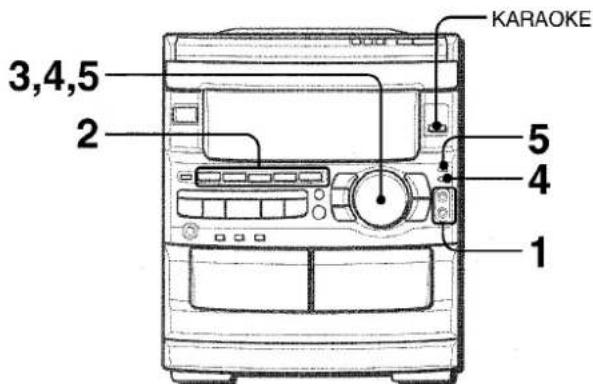

Two microphones (not supplied) can be connected to this unit, allowing you to sing along to music sources. Use microphones with mini plugs (03.5 mm, ‘/8 inch).

Connect your microphones to the MIC 1 and MIC 2 jacks. MIC 1 Press one of the function buttons to select the source to be mixed, and play the source. Adjust the volume and tone of the source. Press the MIC button and turn the VOLUME control within 4 seconds to adjust the microphone volume. The microphone volume can be selected from 1 to MAX (7) or OFF (cancel). The volume of both microphones is adjusted simultaneously. Press the ECHO button and turn the VOLUME control within 4 seconds to adjust the echo level. The echo level can be selected from 1 to MAX (7) or OFF (cancel). To change the delay time of echo Hold down the ECHO button while the echo is on. “L” (Long) and “M” (Medium) are displayed alternately. At the desired position, release the button. To record microphone sound mixed with source sound Follow the procedure for recording from the sound source (see page 13). The SYNC DUB button cannot be used for mixing recording. When not using the microphones Set the microphone volume and echo level to OFF and remove the microphones from the MIC jacks. ● When the MIC or ECHO level is changed, the SURROUND mode and the DOLBY PRO LOGIC are automatically canceled. ● If a microphone is held too near the speakers, a howling sound may be produced. In this case, hold the microphone away from the speakers, or decrease the microphone volume. ● If sound through the microphone is extremely loud, it may be distorted. In this case, decrease the microphone volume. ● When the function is changed, the microphone volume and the echo volume are set to off. Recommended microphones The use of unidirectional type microphones is recommended to prevent howling. Contact your local Aiwa dealer for details.

VOCAL FADER/MULTIPLEX FUNCTIONS

This unit can use discs or tapes as Karaoke sources. Use the vocal fader function for ordinary discs or tapes. Use the multiplex function for multi audio discs or tapes. Press the KARAOKE button repeatedly to select the vocal fader or multiplex function. Each time the KARAOKE button is pressed, one of these functions is selected cyclically. o @ @ @)Vocal Fader The singer’s voice becomes softer than the accompaniment.

Auto Vocal Fader The singer’s voice becomes softer only while there is audio input through a microphone.

Multiplex The sound on the left channel is heard from both speakers, and the sound on the right channel is muted. To hear the sound on the right channel, see below. @ Auto Multiplex The sound on the left channel is heard from both speakers, and the sound on the right channel is muted only while there is audio input through a microphone. To hear the sound on the right channel, see below. @ Cancel To change the audible channel in Multiplex function When Multiplex is selected, “MPX-L” is displayed for 3 seconds and changes to the selected function name. After the selected function name is displayed, keep D ressinu the KARAOKE buttonuntil “MPX-R” is displayed. To return to the initial setting, select MPX-L. When the power is turned off, MPX-L is restored. To change the time lag setting in Auto Vocal Fader or Auto Multiplex function The muted original singer’s voice can be turned faster to the normal level, When Auto Vocal Fader or Auto Multiplex is selected, “A-VF or “A-MPX” is displayed for 3 seconds and changes to the selected function name. After the selected function name is displayed, kee~ Dressina the KARAOKE button until “FAST is displayed. To return to the initial setting, select SLOW. When the power is turned off, SLOW is restored. ● The Karaoke functions may not operate correctly with the following kinds of CDs or tapes. - Those with monaural sound - Those recorded with strong echoes - Those with the vocal part recorded on the right or left side of the sound width ● While the Karaoke function is on, the sound is output as monaural. 19 ENGLISHKARAOKE PROGRAM

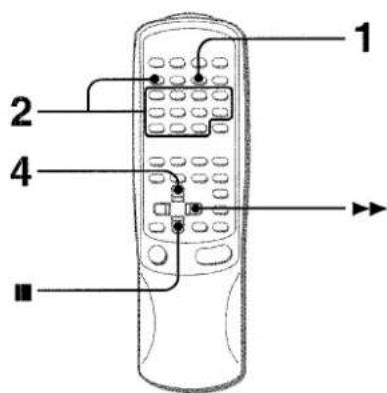

Before or during CD play, you can reserve up to 15 tracks to be played after the current track. Each reservation is cleared when it finishes playing,Use the remote control.

Press the PRGM button B. 2 Press the DISC DIRECT PLAY button, then press one of the numbered buttons 1 to 3 within 3 seconds to select a disc. Then, press the numbered buttons and the + 10 button to program a track. Reserved disc number Reserved track number 3 Repeat step 2 to reserve other tracks. 4 Press the 4 ➤ button to start play. After a track is played, it is cleared from the program. Disc number of the Number of remaining last reservation reserved tracks To add a reservation during play Repeat step 2, To check the reserved tracks Press the CD EDIT/CHECK button repeatedly. Each time it is pressed, the disc number and track number are displayed in the reserved order,To stop play Press the E button. When the 4E button is pressed, the play starts from the last track again. To skip a current track Press the ›~ button, The skipped track is cleared from the program. To clear all the reservations Press the ➤ b button repeatedly until “K - POO” is displayed. Press it once more to cancel the Karaoke programs. returns to that of CD play. The display ● If the reserved track number does not exist on the selected disc, the unit stops playing and the display flashes, In this case, press the >> button to skip the error track, Then press the <> button to start play with the next reserved track, ● When the PRGM button is pressed repeatedly in step 1, F]RGM is displayed and the unit enters CD program play mode (page lo). To cancel program play, press the ■ CLEAR button.

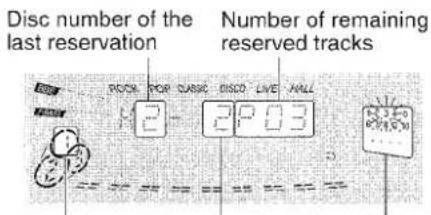

Currently Track number of Currently playing playing disc the last reservation track number flashes

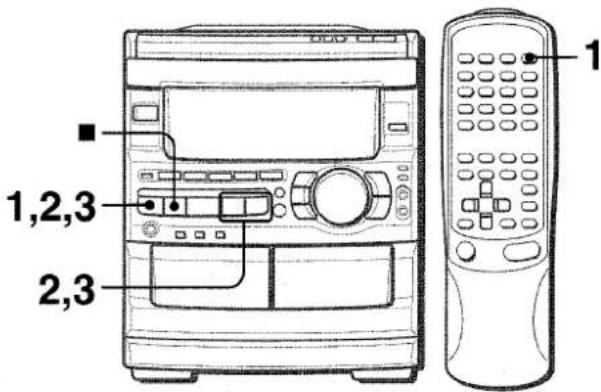

/1 ( Press the CLOCK button on the remote control, and press the II SET button within 4 seconds. Press the <+ DOWN or F- UP button to designate the hour, and press the II SET button. The hour stops flashing and the minute starts flashing. Press the ++ DOWN or ➤ F UP button to designate the minute, and press the II SET button. The minute stops flashing on the display and the clock stark from 00 seconds. To display the current time Press the CLOCK button on the remote control. The time is displayed for 4 seconds. However, the time cannot be displayed during recording. To switch to the 24-hour standard Press the CLOCK button on the remote control and then press the ■ button within 4 seconds. Repeat the same procedure to restore the 12-hour standard. [f the clock display flashes This is caused by a power interruption. The current time needs to be reset, If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.

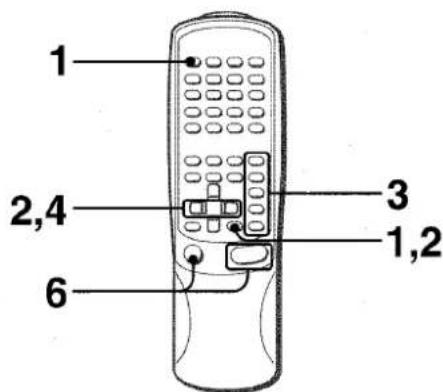

1,2 The unit can be turned on at a specified time every day with the built-in timer.Preparation Make sure the clock is set correctly. Use the remote control.

Press the TIMER button repeatedly until @ appears on the display , and press the II SET button within 4 seconds. O is displayed, and the hour flashes

If you press the II SET button after 4 seconds, operation may start. another Designate the hour of the timer-on time by pressing the l<< DOWN or ➤I UP button, and press the 11 SET button. Repeat to designate the minute of the timer-on time. After you designate the timer-on time, one of the source name flashes on the display for 4 seconds. Within 4 seconds, press one of the function buttons to select a source. The selected source name flashes for 4 seconds. At this time, the selected function button does not light up. ● If this step is not completed within 4 seconds, repeat from step 1. ● If the TUNER button is pressed, the band cannot be selected in this step. Within 4 seconds, select the duration for the timer-activated period with the l<< DOWN or WI UP button. 21 ENGLISH5

The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.

• If this step is not completed within 4 seconds, repeat from step 1. Prepare the source. To listen to a CD, load the disc to be played first on tray 1. To listen to a tape, insert the tape into deck 1 or 2. To listen to the radio, tune in to a station. Press the POWER button to turn the unit off after adjusting the volume and tone.

remains on the display after the power is turned off (timer standby mode), When the timer-on time is reached, the unit turns on and begins play with the selected source. ● The volume level is automatically set to 16 when the power is turned off with the volume level set to 17 or more. To check the specified time and source Press the TIMER button. The timer-on time, the selected source name and the duration for the timer-activated period are displayed for 4 seconds. To cancel timer standby mode temporarily Press the TIMER button repeatedly so that 0 or Q)REC disappears on the display. To restore the timer standby mode, press again to display @ or @ REC. Using the unit while the timer is set You can use the unit normally after setting the timer, Before turning off the power, repeat step 5 to prepare the source, and adjust the volume and tone. EEn3 ● Timer playback and timer recording will not begin unless the power is turned off, ● Connected equipment cannot be turned on and off by the built- in timer of this unit, Use an external timer, TIMER RECORDING Timer recording is applicable for TUNER and VIDEO/AUX (with an external timer) sources only. Press the TIMER button repeatedly until @)REC appears on the display, and press the II SET button within 4 seconds. Carry out the steps of “SETTING THE TIMER from step 2 and

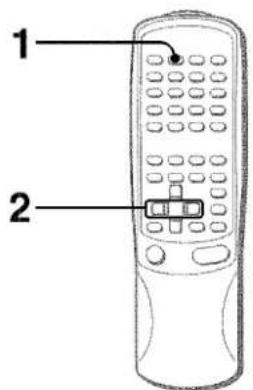

SETTING THE SLEEP TIMER

The unit can be turned off automatically at a specified time Use the remote control.

Press the SLEEP button. 2 Within 4 seconds, press the <+ or FF t.yutton to specify the time” until the power is turned oflf. Each time the button is pressed, the time changes betvveen 5 and 240 minutes in 5-minute steps.

Specified time To check the time remaining until the power is turned off Press the SLEEP button once. The remaining time is displayed for 4 seconds. To cancel the sleep timer Press the SLEEP button twice so that “SLEEP” on the clisplay disappears. insert the tape to be recorded into deck 2 after step 5. ENGLISH 22CONNECTING OPTIONAL EQUIPMENT

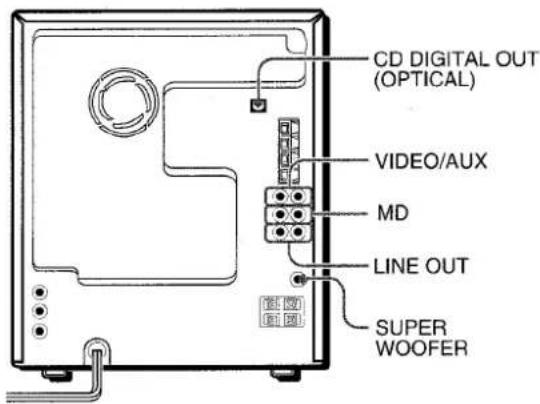

LINE OUTSUPERWOOFER OUT U,* Refer to the operating instructions of the connected equipment To play equipment connected to the VI DEO/AUX jacks or MD for details.jacks, proceed as follows. ● The connecting cords are not supplied. Obtain the necessary connecting cords. ● Consult your local Aiwa dealer for optional equipment.

This unit can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, MD players, VCRs, TV, etc.). Connect the red plug to the R jack, and the white plug to the L jack, When connecting a turntable Use an Aiwa turntable equipped with a built-in equalizer amplifier.

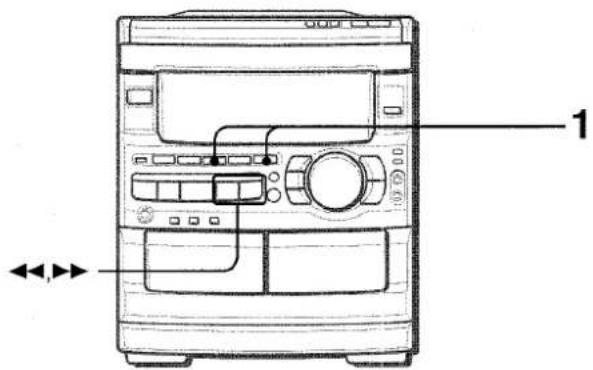

7 Press the VIDEOIAUX or MD button. When a equipment connected to the VIDEO/AUX jacks is played: press the VIDEO/AUX button. When a equipment connected to the MD jacks is played: press the MD button. 2 Play the connected equipment. To change a source name in the display When the VI DEO/AUX button is pressed, VIDEO is displayed initially. It can be changed to AUX or TV. With the power on, press the POWER button while pressing the VIDEO/AUX button. Repeat the procedure to select one of the names. This unit can output analog sound signal through these jacks. Use a cable with RCA phono plugs to connect audio equipment To adjust the sound level of the external source When the sound level of the external source is much higher or with LINE IN (analog input) jacks. much lower than that of other function sources, adjust it as

follows, 1 Press the VIDEO/AUX or MD button and play the equipment. Do not connect an equipment to the LINE OUT terminals and 2 Press the ++ or ➤> button so that the sound level becomes VI DEO/AUX terminals simultaneously. Otherwise, noise is the same as that of other function sources, generated and malfunction occurs.

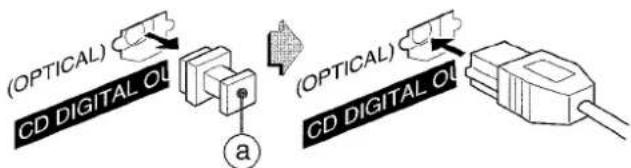

CD DIGITAL OUT (OPTICAL) JACK

During recording, the sound level can not be adjusted. This unit can output CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment (digital amplifier, DAT deck, MD recorder, etc.). Remove the dust cap @ from the CD DIGITAL OUT (OPTICAL) jack. Then, connect an optical cable plug to the CD DIGITAL OUT (OPTICAL) jack. When the CD DIGITAL OUT (OPTICAL) jack is not being used Attach the supplied dust cap. SUPER WOOFER d JACK Connect an optional powered sub woofer with a built-in-amplifier to the jack,

23 ENGLISHCARE AND MAINTENANCE

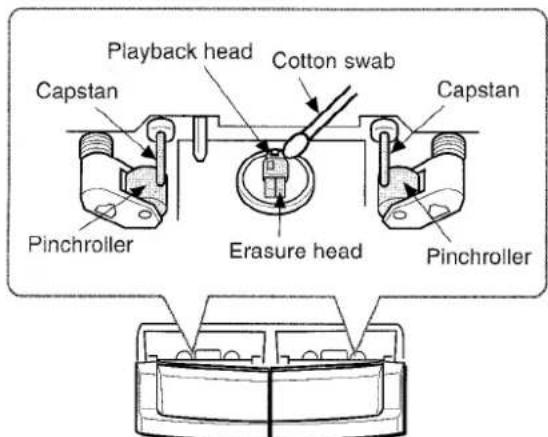

TROUBLESHOOTING GUIDE Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit, To clean the cabinet Use a soft and dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution, Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit. To clean the heads and tape paths After every 10 hours of use, clean the heads and tape paths with a head cleaning cassette or cotton swab moistened with cleaning fluid or denatured alcohol. (These cleaning kits are commercially available, ) When cleaning with a cotton swab, wipe the recording/playback head, erasure head (deck 2 only), capstans, and pinchrollers, playback pead Cotton swab

After cleaning the heads and tape paths with a liquid head cleaning cassette or a moistened swab, wait until the cleaned parts are completely dry before inserting the tapes, To demagnetize the heads The heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise. After 20 to 30 hours use, demagnetize the heads with any commercially available demagnetizer. Care of discs ● When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth,

• After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid. Care of tapes ● Store tapes in their cases after use. ● Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise. ● Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight, If the unit fails to perform as described Instructions, check the following guide, GENERAL There is no sound. ● Is the AC cord connected properly? ● Is there a bad connection? (+ Page 3) in these Operating ● There may be a short circuit in “th; speaker terminals. + Disconnect the AC cord, then correct the speaker connections.

• Was an incorrect function button Dressed? Sound is emitted from one speaker only. c Is the other speaker disconnected? The output sound is not stereo. ● Is the Karaoke function turned on? (+ page 19) An erroneous display or a malfunction occurs.

Reset the unit as stated below. TUNER SECTION There is constant, wave-like static. ● Is the antenna connected properly? (+ page 3) ● Is the signal weak? + Connect an outdoor antenna. The reception contains noise interferences or the sound is distorted. ● Is the system picking up external noise or multipath distortion? + Change the orientation of the antenna. + Move the unit away from other electrical appliances.

CASSETTE DECK SECTION

The tape does not run. ● Is deck 2 in pause mode? (+ page 11) The sound is off-balance or not adequately high. ● Is the playback head dirty? (+ page 24) Recording is not possible. ● Is the erasure prevention tab on the tape broken off? (+ pa~le 12) ● Is the recording head dirty? (+ page 24) Erasure is not possible. QIs the erasure head dirty? (+ page 24) ● Is a metal tape being used? High frequency sound is not emitted. ● Is a tape recorded without Dolby NR played back with the Dolby NR system operating? (+ page 11) ● Is the recording/playback head dirty? (+ page 24)

The CD player does not play. ● Is the disc correctly inserted? (+ page 9) ● Is the disc dirty? (+ page 24) ● Is the lens affected by condensation? + Wait approximately one hour and try again, To reset If an unusual condition occurs in the display window or the cassette decks, reset the unit as follows. 1 Press the POWER button to turn off the power. 2 Press the POWER button to turn the power back or while pressing the W CLEAR button. Everything stored in memory after purchase is canceled, If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord, and connect it again. Then carry out step 2. ENGLISH24SPECIFICATIONS Main unit CX-NMT90 FM tuner section Tuning range

Usable sensitivity (IHF) 13,2 dBf Antenna terminals 75 ohms (unbalanced)

tuner section Tuning range

kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step) Usable sensitivity 350 ~Vlm Antenna Loop antenna Amplifier section Power output Front 145 W+145W(50Hz–20kHz, THD less than 17., 6 ohms) Rear (Surround) 10 W+ 10 W(l kHz, THD less than l“A, 16 ohms) Center

SPEAKERS: accept speakers of 6 ohms or more SURROUND SPEAKERS: accept speakers of 16 ohms or more CENTER SPEAKER: accept speakers of 8 ohms or more PHONES (stereo jack): accepts headphones of 32 ohms or more Cassette deck section Track format 4 tracks, 2 channels stereo Frequency response CrOz tape: 50 Hz -16000 Hz Normal tape: 50 Hz – 15000 Hz Signal-to-noise ratio 60 dB (Dolby B NR ON, CrOz tape peak level) Recording system AC bias Heads Deck 1: Playback head x 1 Deck 2: Recording/play bac!d erase head x 1 Compact disc player section Laser Semiconductorlaser(1= 780 nm) D-A converter 1 bit dual Signal-to-noise ratio 90 dB (1 kHz, O dB) Harmonic distortion

0.03 % (1 kHz, O dB)

Wow and flutter Unmeasurable S~eaker svstem SX-NA94 Cabinet type 3 way, bass reflex (magnetic shieldedtype) Speakers Woofer: 160 mm (6’/s in.) conetype Tweeter: 80 mm (31/1in.) cone type Supertweeter:

Specifications and external appearance are subject to change without notice, WWSYSTEM The word “BBE” and the “BBE symbol” are trademarks of BBE Sound, Inc. Under license from BBE Sound, Inc.

DOLBY NR/DOLBY PRO LOGIC

Manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY”, the double-D symbol no and “PRO LOGIC” are trademarks of Dolby Laboratories Licensing Corporation. COPYRIGHT Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used. General Power requirements 120 V AC, 60

Power consumption 155W Dimensions of main unit 260 x 309 x 370 mm (W XHXD) (101/, x 121/, x 145/Bin.) Weight of main unit

“CAUTION:TO REDUCE THE RISK OF

Instructions about each patl on the main unit or remote control are indicated on the right side. The parts are listed in alphabetical order.

CD EDIT/CHECK (EDIT/CHECK) .............. ..... . 9, 15, 16

EDIT/CHECK (CD EDIT/CHECK) . 9, 15, 16
