| Product type | CD player/recorder with tuner and cassette deck |
| Brand / Model | Aiwa CXNA303 |
| Dimensions (W x H x D) | 260 x 330 x 346 mm (main unit) |
| Weight | 5.7 kg (main unit) |
| Power supply | AC 120 V, 60 Hz, 85 W |
| Playable formats | Audio CD, cassette (type I), FM/AM radio |
| Number of CD trays | 3 trays |
| CD functions | Random, repeat, programmed playback (max 30 tracks) |
| Cassette deck | Dual deck (playback deck 1, recording/playback deck 2) |
| Radio functions | Manual and automatic tuning, memory for 32 stations |
| Graphic equalizer | Rock, Pop, Classic modes |
| T-BASS system | Bass boost (3 levels) |

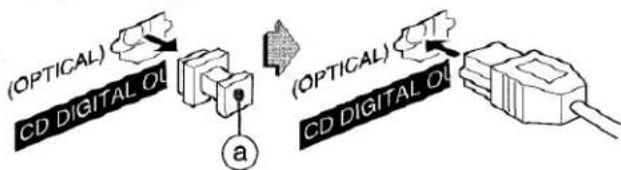

| Connectivity | VIDEO/AUX input (RCA), optical digital CD output, speaker terminals (6 Ω), headphone (32 Ω), FM/AM antennas, optional surround speakers |
| Timer | Sleep timer and wake-up timer |
| Maintenance | Clean heads every 10 hours, demagnetize every 20-30 hours, clean cabinet with a soft dry cloth |
| Safety | Do not expose to water or heat, do not block ventilation, do not open the unit |
| Included accessories | Remote control, AM and FM antennas, instruction manual |
Frequently Asked Questions - CXNA303 AIWA
User questions about CXNA303 AIWA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cd player/recorder in PDF format for free! Find your manual CXNA303 - AIWA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CXNA303 by AIWA.
USER MANUAL CXNA303 AIWA
COMPACT DISC STEREO SYSTEM SISTEMA ESTEREO CON REPRODUCTOR DE DISCOS COMPACTOS CHAINE STEREO AVEC LECTEUR DE DISQUES COMPACTS
CX-NA303
-For NSX-A303 and NSX-A304
OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES MODE D'EMPLOI
Enl (English)
E (Espanol)
F (Francais)
For assistance and information call toll free 1-800-BUY-AIWA
(United States and Puerto Rico)
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL."
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Owner's record
For your convenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.
| Model No. | Serial No. (Lot No.) |
| CX-NA303 | |
| SX-NA302 | |
| SX-R275 (NSX-A304 only) |
PRECAUTIONS
Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.
Installation
1 Water and moisture - Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.
2 Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5^ (41^) or greater than 35^ (95^) .
3 Mounting surface - Place the unit on a flat, even surface.
4 Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10cm (4 in.) clearance from the rear and the top of the unit, and 5cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.
5 Objects and liquid entry - Take care that objects or liquids do not get inside the unit through the ventilation openings.
6 Carts and stands- When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.
7 Condensation - Moisture may form on the CD pickup lens when:
- The unit is moved from a cold spot to a warm spot.
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.
8 Wall or ceiling mounting - The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.
Electric Power
1 Power sources - Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.
3 AC power cord
- When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this could result in fire or shock.
- Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power outlet.
- Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.
4 Extension cord - To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.
5 When not in use - Unplug the AC power cord from the power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.
Outdoor Antenna
1 Power lines - When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding - Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.
Antenna Grounding According to the National Electrical Code
NEC-NATIONAL ELECTRICAL CODE
Maintenance
Clean the unit only as recommended in the Operating Instructions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged.
- Foreign objects or liquid have gotten inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
TABLE OF CONTENTS
PRECAUTIONS 1
PREPARATIONS
CONNECTIONS 3
REMOTE CONTROL 5
BEFORE OPERATION 5
SOUND
AUDIO ADJUSTMENTS 6
GRAPHIC EQUALIZER 6
RADIO RECEPTION
MANUAL TUNING 7

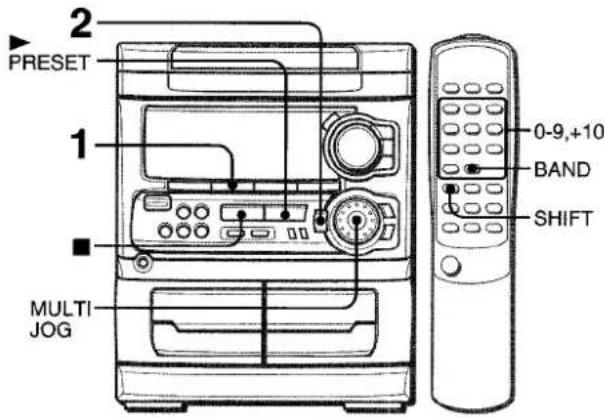

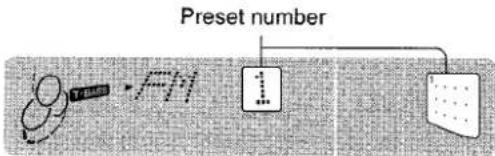

PRESETTING STATIONS 7

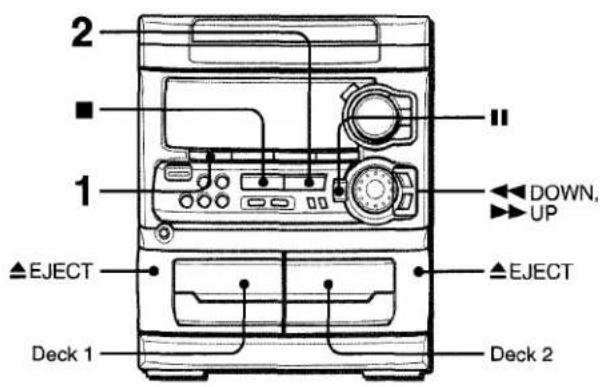

TAPE PLAYBACK
BASIC OPERATIONS 8
CD PLAYING

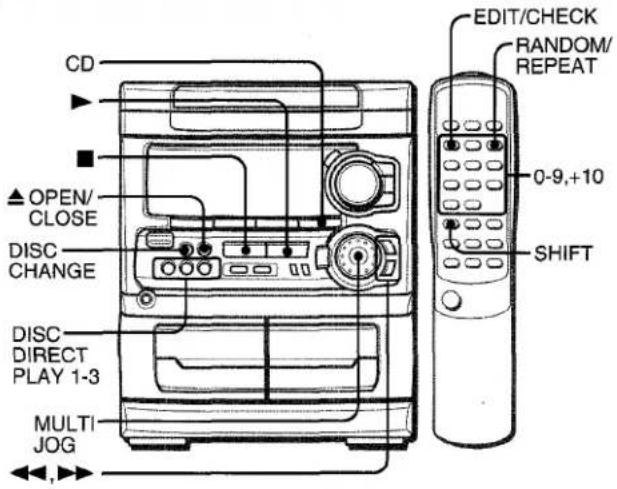

BASIC OPERATIONS 9

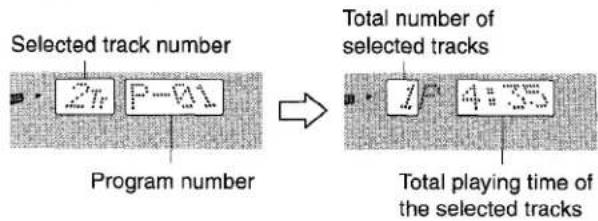

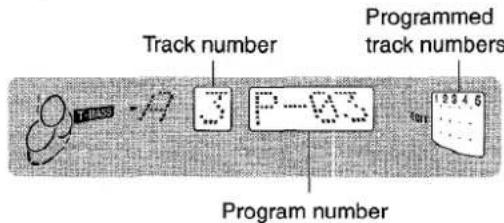

PROGRAMMED PLAY 10
RECORDING

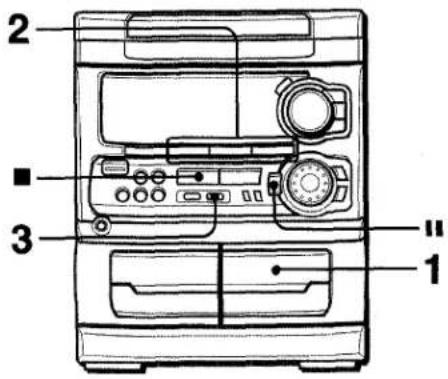

BASIC RECORDING 11
DUBBING A TAPE MANUALLY 12

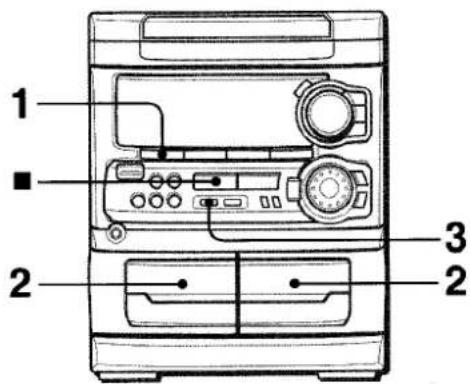

DUBBING THE WHOLE TAPE 12

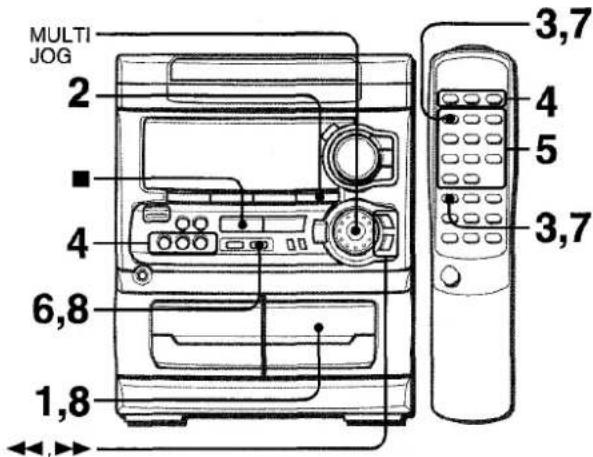

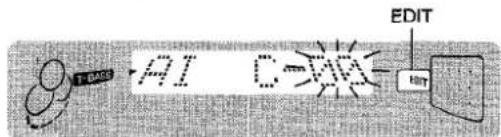

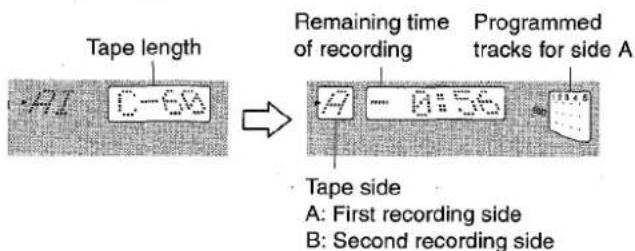

AI EDIT RECORDING 13

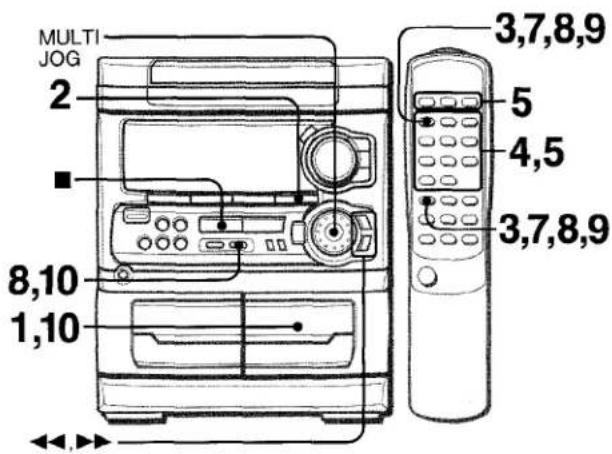

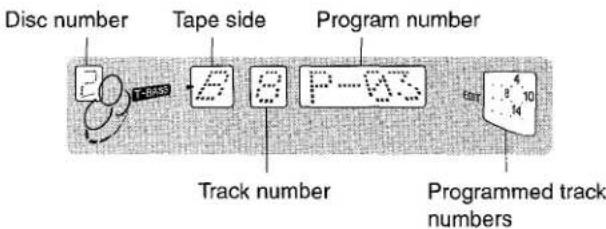

PROGRAMMED EDIT RECORDING 14
CLOCK AND TIMER

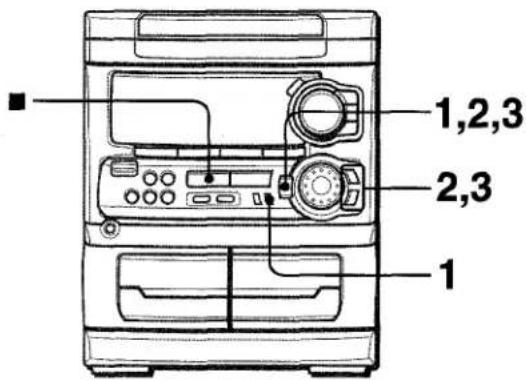

SETTING THE CLOCK 15

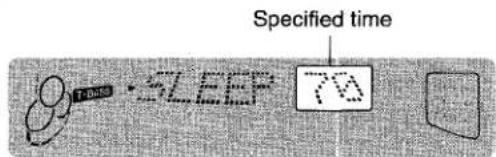

SETTING THE SLEEP TIMER 15

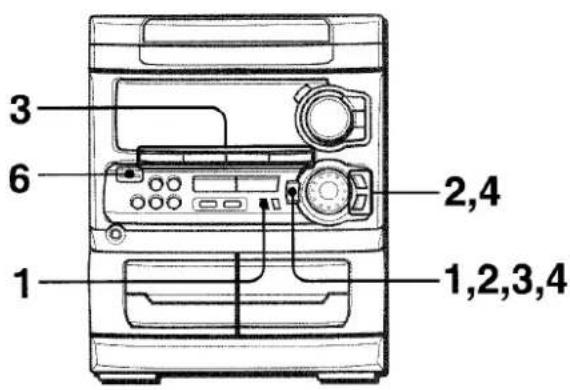

SETTING THE TIMER 16

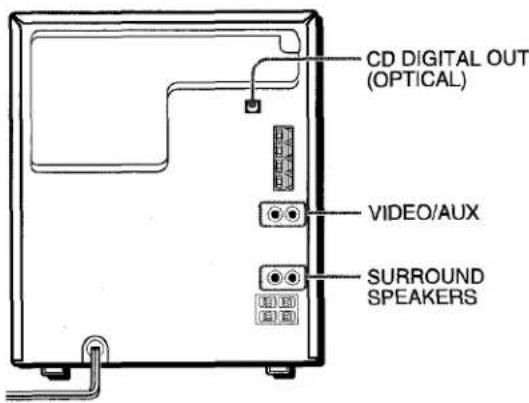

OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT 17

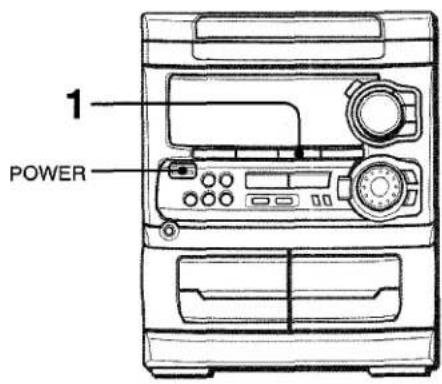

LISTENING TO EXTERNAL SOURCES 17
GENERAL

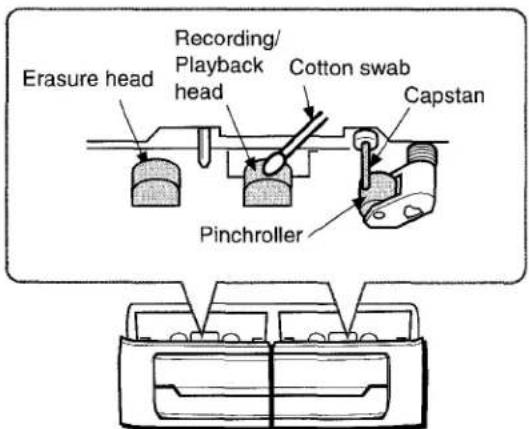

CARE AND MAINTENANCE 18
TROUBLESHOOTING GUIDE 18
SPECIFICATIONS 19
PARTS INDEX Back cover
CONNECTIONS

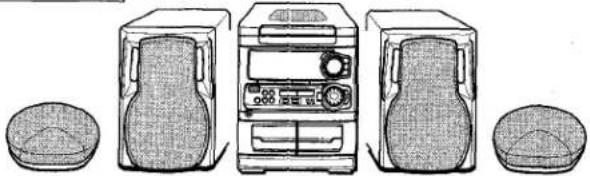

Check your system and accessories
NSX-A303
NSX-A304
CX-NA303 Compact disc stereo cassette reciever SX-NA302 Front speakers
* SX-R275 Surround speakers (For NSX-A304 only)
Remote control
AM antenna
FM antenna
Operating Instructions, etc.
- Optional SX-R275 Surround speakers are available with the NSX-A304.
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

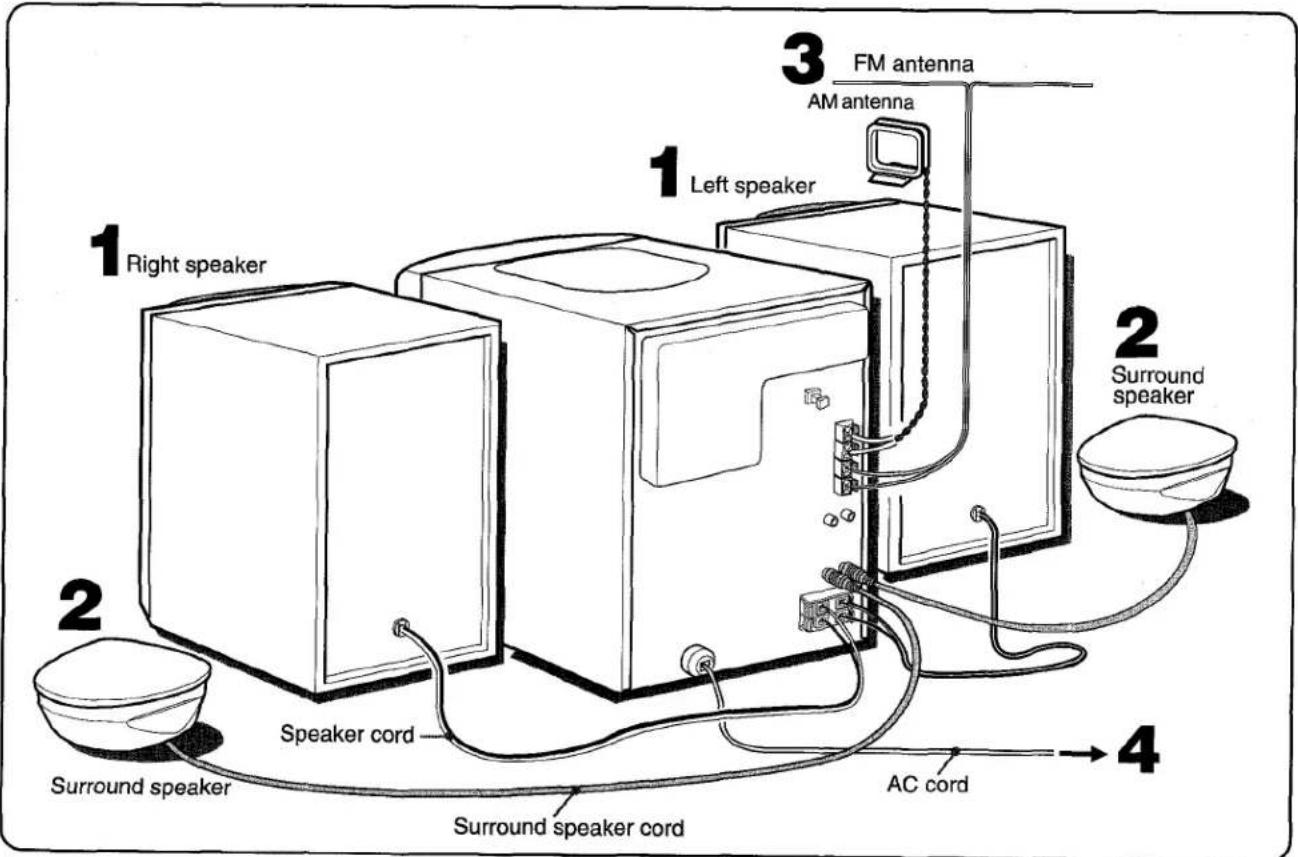

IMPORTANT
Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord in the end.

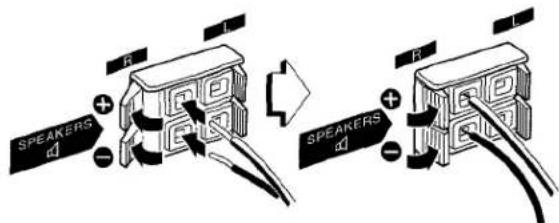

1 Connect the right and left speakers to the main unit.
Connect the right speaker cord to SPEAKERS R terminals, and left to SPEAKERS L terminals.
The speaker cord with the white stripe should be connected to terminal and the black cord to terminal.
2 Connect the surround speakers to the main unit. (only for NSX-A304)
There are no differences between the surround speakers. Connect each surround speaker cord to SURROUND SPEAKERS R or L terminal.

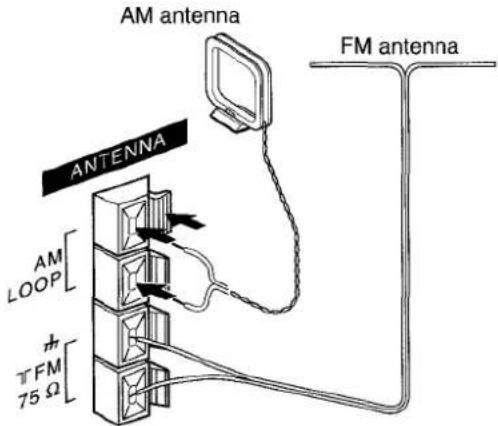

3 Connect the supplied antennas.
Connect the FM antenna to FM 75Ω terminals and the AM antenna to AM LOOP terminals.
4 Connect the AC cord to an AC outlet.

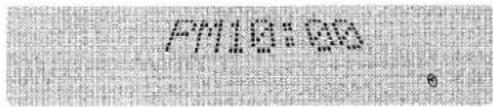

NOTE
When the AC cord is connected, the all characters may light up on the display. In this case, disconnect the AC cord. Then, connect it again.
To position the antennas
FM feeder antenna:
Extend this antenna horizontally in a T-shape and fix its ends to the wall.
AM antenna:
Position to find the best possible reception.

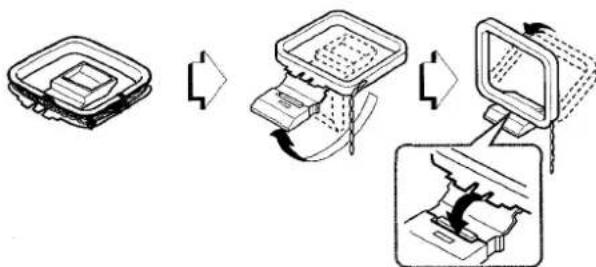

To stand the AM antenna on a surface
Fix the claw to the slot.
NOTE
- Be sure to connect the speaker cords correctly. Improper connections can cause short circuits in SPEAKERS terminals.
- Do not leave objects generating magnetism, such as credit cards, near the speakers, as these objects may be damaged.
- Do not bring the FM antenna near metal objects or curtain rails.
- Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up.
- Do not unwind the AM antenna wire.
CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is recommended.
Connect the outdoor antenna to FM 75Ω terminals.
To connect other optional equipment page 17.
REMOTE CONTROL

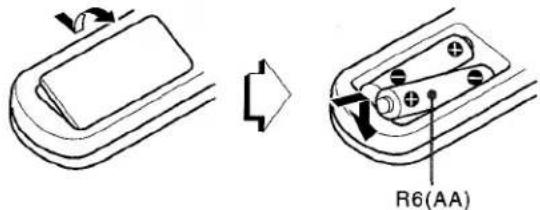

Inserting batteries
Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.
When to replace the batteries
The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.
To use SHIFT on the remote control
Buttons ① have two different functions. One of these functions is indicated on the button, and the other on the plate above the button.
To use the function on the button, simply press the button.
To use the function on the plate above the button, press the button while pressing SHIFT.
To use FUNCTION on the remote control
The FUNCTION substitutes for the function buttons (TAPE/DECK 1/2, TUNER,VIDEO/AUX, CD) on the main unit.
Each time FUNCTION is pressed, the next function is selected cyclically. When tapes are inserted in both decks, each deck is selected with FUNCTION.
NOTE
- If the remote control is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
The remote control may not operate correctly when: - The line of sight between the remote control and the remote sensor inside the display window is exposed to intense light, such as direct sunlight
- Other remote controls are used nearby (those of a television, etc.)

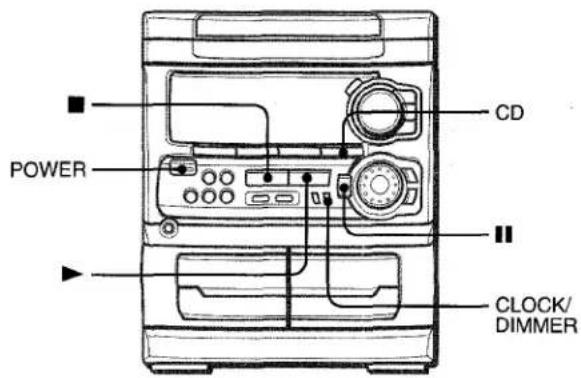

BEFORE OPERATION
To turn the unit on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX, CD). Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function).
POWER is also available.
When the unit is turned on, the disc compartment may open and close to reset the unit.
To turn the power off
Press POWER.
Flash window
The window on the top of the unit lights up or flashes while the unit is being powered on.
To turn off the light of the top window, press while pressing CD. To turn back on, repeat the above.
DEMO (Demonstration) mode
When the AC cord is connected, the display window demonstrates the functions of the unit. When the power is turned on, the DEMO display is overridden by the operation display. When the power is turned off, the DEMO mode is restored.
To cancel DEMO mode
Press SET while the power is off. The clock flashes on the display. (To set the current time, see "SETTING THE CLOCK" on page 15.) To re-activate DEMO mode, press while the power is off.
Demo game
You can enjoy playing Demo game with your system.
1 Press
Three numbers on the display start to run.
2 Press once.
The number on the left side stops.
3 Press twice to stop the remaining two numbers.
Scoring:
20 points are given to start the game.
If all the numbers are equal, 50 points are added to the score.
If not equal, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to 0, you lose.
To reset the game
Press CLOCK/Dimmer, then press . The game starts again.
AUDIO ADJUSTMENTS
VOLUME
Turn VOLUME on the main unit, or press VOLUME on the remote control.
The volume level is displayed as a number from 0 to MAX (31). The volume level is automatically set to 16 when the power is turned off with the volume level set to 17 or more.

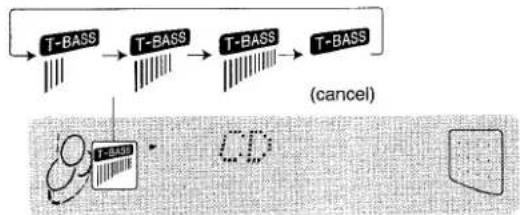

SUPERT-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency sound.
Press T-BASS.
Each time it is pressed, the level changes. Select one of the three levels, or the off position to suit your preference.
To select with the remote control press T-BASS while pressing SHIFT.
NOTE
Low frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low frequency sound is originally emphasized. In this case, cancel the T-BASS system.
To dim the illumination of the display
1 Press CLOCK/Dimmer twice so that "DIMMER" is displayed, then press SET within 4 seconds.
2 Press or repeatedly to select the dimmer mode as follows.
3 Press SET within 4 seconds.
DIMMER 1: The illumination of the display is dimmer than usual, and the spectrum analyzer lights off.
DIMMER 2: The illumination of the display is dimmer than DIMMER 1, and the illumination on the buttons light off.
DIM-OFF: The normal display is resumed.
GRAPHIC EQUALIZER
This unit provides the following three different equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
CLASSIC: Enriched sound with heavy bass and fine treble.

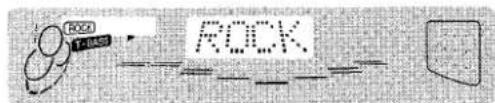

Press one of GRAPHIC EQUALIZER.
The selected equalization mode is displayed.
To cancel the selected mode
Press the selected button again. "GEQ OFF" is displayed.
To select with the remote control
Press GEQ repeatedly while pressing SHIFT. The GEQ mode is displayed cyclically as follows.
Using the headphones
Connect headphones to the PHONES jack with a standard stereo plug ( 6.3mm,1 / 4 inch).
No sound is output from the speakers while the headphones are plugged in.
Sound adjustment during recording
The output volume and tone of the speakers or headphones may be freely varied without affecting the recording.

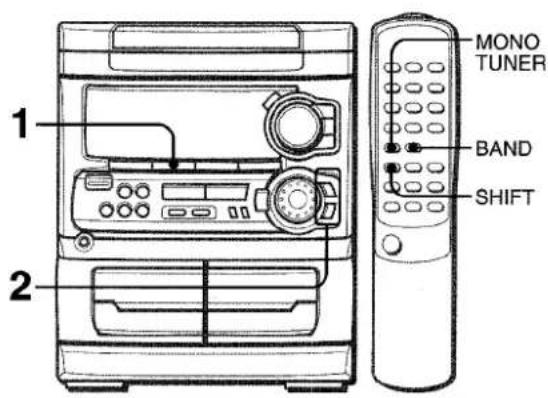

MANUAL TUNING
1 Press TUNER/BAND repeatedly to select the desired band.
When TUNER/BAND is pressed while the power is off, the power is turned on directly.
To select a band with the remote control Press BAND while pressing SHIFT.
2 Press DOWN or UP to select a station.
Each time the button is pressed, the frequency changes. When a station is received, "TUNE" is displayed for 2 seconds. During FM stereo reception, ([0]) is displayed.
To search for a station quickly (Auto Search)
Keep DOWN or UP pressed until the frequency starts to change rapidly. After tuning in to a station, the search stops.
To stop the Auto Search manually, press DOWN or UP.
The Auto Search may not stop at stations with very weak signals.
When an FM stereo broadcast contains noise
Press MONOTUNER on the remote control while pressing SHIFT so that "MONO" appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, press these buttons so that "MONO" disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10kHz step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval.
Press POWER while pressing TUNER/BAND.
To reset the interval, repeat this procedure.
NOTE
When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.
PRESETTING STATIONS
The unit can store a total of 32 preset stations. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.
1 Press TUNER/BAND to select a band, and press DOWN or UP to select a station.
2 Press SET to store the station.
A preset number beginning from 1 in consecutive order for each band is assigned to the station.
3 Repeat steps 1 and 2.
The next station will not be stored if a total of 32 preset stations for all the bands have already been stored.
PRESET NUMBER TUNING
Use the remote control to select the preset number directly.
1 Press BAND while pressing SHIFT to select a band.
2 Press numbered buttons 0-9 and +10 to select a preset number.
Example:
To select preset number 20, press +10, +10 and 0.
To select preset number 15, press +10 and 5.
Selecting a preset number on the main unit
Press TUNER/BAND to select a band. Then, press PRESET repeatedly or turn MULTI JOG.
Each time PRESET is pressed, the next ascending number is selected.
To clear a preset station
Select the preset number of the station to be cleared. Then, press CLEAR, and press SET within 4 seconds.
The preset numbers of all other stations in the band with higher numbers are also decreased by one.
BASIC OPERATIONS
Use Type I (normal) tapes only.
1 Press TAPE and press EJECT to open the cassette holder.
Insert a tape with the exposed side down. Push the cassette holder to close.
2 Press to start play.
Only the side facing out from the unit can be played back.
To select a playing deck
When tapes are loaded in both decks, press TAPE first to select a deck.
The selected deck number is displayed.
To stop play, press
To pause play (deck 2 only), press. To resume play, press again.
To fast forward or rewind, press or . Then press to stop the tape.
To start play when the power is off (Direct Play Function)
Press TAPE. The power is turned on and play of the inserted tape begins.
To set the tape counter to 0000
Press CLEAR in stop mode.
The counter is also set to 0000 when the cassette holder is opened.
When tapes are loaded in both decks
After playback on deck 1 finishes, the tape in the deck 2 will start to play without interruption and will stop at the end of the tape. (Continuous play)
BASIC OPERATIONS
LOADING DISCS

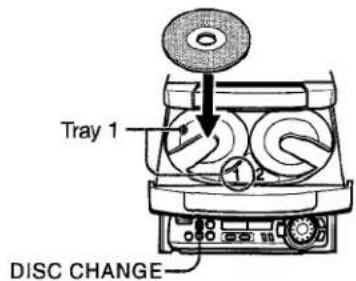

Press CD, then press OPEN/CLOSE to open the disc compartment. Load disc(s) with the label side up.
To play one or two discs, place the discs on tray 1 and 2.
To play three discs, press DISC CHANGE to rotate the trays after placing two discs. Place the third disc on tray 3. Close the disc compartment by pressing OPEN/CLOSE.
PLAYING DISCS

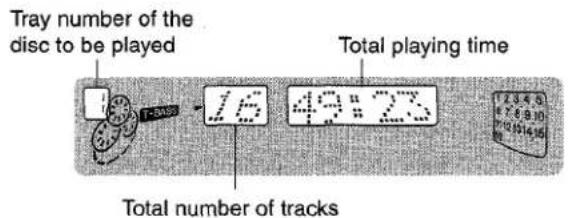

Load discs.
To play all discs in the disc compartment, press Play begins with the disc on tray 1.
To play one disc only, press DISC DIRECT PLAY 1-3. The selected disc is played once.
To stop play, press.
To pause play, press. To resume play, press again.
To search for a particular point during playback, keep or pressed and release it at the desired point.
To skip to the beginning of a track during playback, press or repeatedly or turn MULTI JOG. To remove discs, press OPEN/CLOSE.
To start play when the power is off (Direct Play Function) Press CD. The power is turned on and play of the loaded disc(s) begins.
When OPEN/CLOSE is pressed, the power is also turned on and the disc compartment is opened.
To check the remaining time
During play, press EDIT/CHECK on the remote control while pressing SHIFT. The amount of time remaining until all tracks finish playing is displayed. To restore the playing time display, repeat the above.
Selecting a track with the remote control
1 Press DISC DIRECT PLAY 1-3 to select a disc.
2 Press numbered buttons 0-9 and +10 to select a track. Example:
To select the 25th track, press +10, +10 and 5.
To select the 10th track, press +10 and 0.
The selected track starts to play and continues to the end of that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without interrupting play.
1 Press DISC CHANGE.
2 Remove the discs and replace with other discs.
3 Press OPEN/CLOSE to close the disc compartment.
NOTE
- When loading an 8-cm (3-inch) disc, put it onto the inner circle of the tray.
- Do not place more than one compact disc on one disc tray.
- Do not tilt the unit with discs loaded. Doing so may cause malfunctions.
RANDOM /REPEAT PLAY
Use the remote control.
RANDOM play
All the tracks on the selected disc or all the discs can be played randomly.
REPEAT play
A single disc or all the discs can be played repeatedly.
Press RANDOM/REPEAT while pressing SHIFT.
Each time it is pressed, the function can be selected cyclically.
RANDOM play — RANDOM lights up on the display.
REPEAT play lights up on the display.
RANDOM/REPEAT play — RANDOM and light up on the display.
Cancel - RANDOM and disappear from the display.
To play all discs, press to start play.
To play a single disc, press one of DISC DIRECT PLAY 1-3 to start play.
NOTE
During random play it is not possible to skip to the previously played track with .
PROGRAMMED PLAY
Up to 30 tracks can be programmed from any of the inserted discs.
Use the remote control.

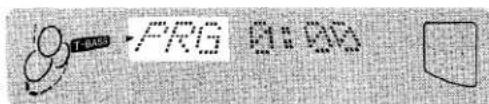

1 Press PRGM while pressing SHIFT in stop mode.
"PRG" is displayed.
2 Press DISC DIRECT PLAY 1-3 to select a disc.
Go to the next step when the tray stops rotating.
3 Press numbered buttons 0-9 and +10 to program a track.
Example:
To select the 25th track, press +10, +10 and 5.
To select the 10th track, press +10 and 0.
4 Repeat steps 2 and 3 to program other tracks.
5 Press to start play.
To check the program
Each time or is pressed in stop mode, a disc number, track number, and program number will be displayed.
To clear the program
Press CLEAR in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
To play the programmed tracks repeatedly
After programming the tracks, press RANDOM/REPEAT repeatedly until appears on the display.
NOTE
During programmed play, you cannot perform random play, checking the remaining time, and selecting a disc or track.
BASIC RECORDING
This section explains how to record from the tuner, CD player, or external equipment.
Preparation
- Use Type I (normal) tapes only.
- Set the tape to the point where recording will start.
Note that recording is done on only one side of the tape.

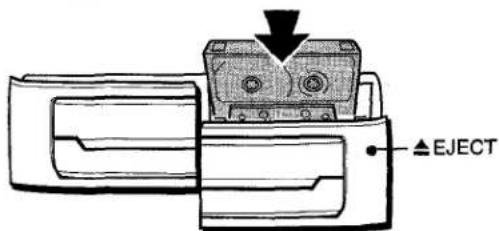

1 Insert the tape to be recorded on into deck 2.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press function (CD, TUNER or VIDEO/AUX) and prepare the source to be recorded.
To record from a CD, press CD and load the disc(s). To record from a radio broadcast, press TUNER and tune in to a station.
To record from a connected source, pressVIDEO/AUX and play.
3 Press REC/REC MUTE to start recording.
When the selected function is CD, playback and recording start simultaneously.
To stop recording, press
To pause recording, press III. (Applicable when the source is TUNER or VIDEO/AUX) To resume recording, press it again.
Sound adjustment during recording
The output volume and tone of the speakers or headphones may be freely varied without affecting of the recording.
INSERTING BLANK SPACES
Insertion of 4-second blank spaces enables you to activate the Music Sensor function. (Applicable when the source is TUNER, VIDEO/AUX or MD.)
1 Press REC/REC MUTE during recording or while in recording pause mode.
REC on the display flashes for 4 seconds and the tape runs without recording. After 4 seconds, the deck enters the recording pause mode.
2 Press to resume recording.
To insert a blank space of less than 4 seconds, press REC/REC MUTE again while REC is flashing.
To Insert blank spaces of more than 4 seconds, after the deck enters recording pause mode, press REC/REC MUTE again. Each time the button is pressed, a 4-second blank space is added.
About cassette tapes
- To prevent accidental erasure, break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.
To record on the tape again, cover the tab openings with adhesive tape, etc.
- 120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.

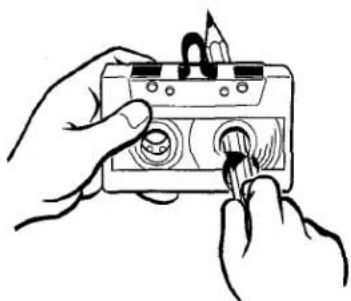

- Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break or jam in the mechanism.
To erase a recording
1 Insert the tape to be erased into deck 2 and press TAPE/ DECK 1/2 to display "TP 2".
2 Set the tape to the point where the erasure is to be started.
3 Press REC/REC MUTE to start the erasure.
DUBBING A TAPE MANUALLY
NOTE
Set the tape to the point where recording will start.
1 Press TAPE.
2 Insert the original tape into deck 1 and the tape to be recorded on into deck 2.
Insert the tapes with the sides to be played back or recorded on facing out from the unit.
3 Press TAPE/DECK 1/2 to select deck 1.
"TP 1" is displayed.
4 Press REC/REC MUTE to start recording.
Playing and recording start simultaneously.
To stop dubbing
Press
DUBBING THE WHOLETAPE
This function allows you to make exact copies of the original tape.
NOTE
Dubbing does not start from a point halfway in the tape.
1 Press TAPE.
2 Insert the original tape into deck 1 and the tape to be recorded on into deck 2.
Insert each tape with the side to be played back or recorded on facing out from the unit.

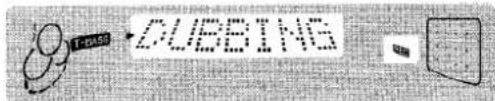

3 Press SYNC DUBBING to start recording.
The tapes are rewound to the beginning of the front sides, and recording starts.
To stop dubbing
Press
AI EDIT RECORDING
The AI edit recording function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track length. If necessary, the order of tracks is rearranged so that no track is cut short.
(AI: Artificial Intelligence)
NOTE
AI edit recording will not start from a point halfway into the tape.
The tape must be recorded from the beginning of either side.
1 Insert the tape into deck 2.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press CD and load the disc(s).
3 Press EDIT/CHECK once while pressing SHIFT on the remote control.
"EDIT" is displayed.
- When "PRGM" is displayed, press EDIT/CHECK while pressing SHIFT again.
4 Press DISC DIRECT PLAY 1-3 to select a disc.

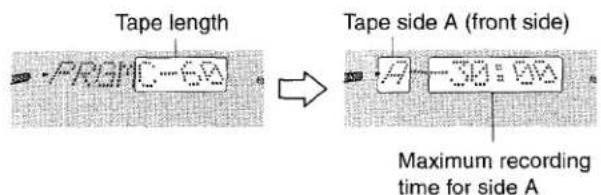

5 Press numbered buttons 0-9 on the remote control to designate the tape length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press 6 and 0. In a few seconds, the tracks to be recorded on each side of the tape are determined.
- or MULTI JOG are also available to designate the tape length.
6 Press REC/REC MUTE to start recording on the first side.
The tape is rewound to the beginning of the first side, the lead segment is played through for 10 seconds, and recording starts. When the last track programmed for side A is finished, deck 2 enters the recording stop mode. After entering the recording stop mode, go to step 7.

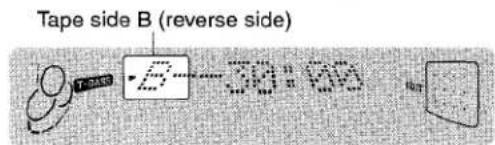

7 Press EDIT/CHECK while pressing SHIFT on the remote control to display the program for the second recording.
B is displayed.
8 Turn over the tape in deck 2 and press REC/REC MUTE to start recording on the second side.
To stop recording
Press. Recording and CD play stop simultaneously.
To clear the edit program
Press CLEAR twice so that "EDIT" disappears on the display.
To check the order of the programmed track numbers
Before recording, press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B, and press or repeatedly.
To add tracks from other discs to the edit program
If there is any time remaining on the tape after step 5, you can add tracks from other discs in the CD compartment.
1 Press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B.
2 Press DISC DIRECT PLAY 1-3 to select a disc.
3 Press numbered buttons on the remote control to select tracks. A track whose playing time is longer than the remaining time cannot be programmed.
4 Repeat steps 2 and 3 to add more tracks.
Time on cassette tapes and editing time
The actual cassette recording time is usually a little longer than the specified recording time printed on the label. This unit can program tracks to use the extra time. When the total recording time is a little longer than the tape's specified recording time after editing, the display shows the extra time (without a minus mark), instead of the time remaining on the tape (with the minus mark).
NOTE
The AI edit recording function cannot be used with discs containing 31 tracks or more.
PROGRAMMED EDIT RECORDING
In the programmed edit recording function the tracks can be programmed while checking the remaining time on each side of the tape as the tracks are programmed.
NOTE
The programmed edit recording will not start from a point halfway in the tape. The tape must be recorded on from the beginning of either side.
1 Insert the tape into deck 2.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press CD and load the disc(s).
3 Press EDIT/CHECK twice while pressing SHIFT on the remote control.
"EDIT" and "PRGM" are displayed.
- When "AI" is displayed, press EDIT/CHECK while pressing SHIFT again.
4 Press numbered buttons on the remote control to designate the tape length.
10 to 99 minutes can be specified.
The or MULTI JOG are also available to designate the tape length.
5 Press DISC DIRECT PLAY 1-3 to select a disc. Then, press numbered buttons 0-9 and +10 on the remote control to program a track.
Example: To select the 10th track of disc 2, press DISC DIRECT PLAY 2, then press +10 and 0.
6 Repeat step 5 for the rest of the tracks for side A.
A track whose playing time is longer than the remaining time cannot be programmed.
7 Press EDIT/CHECK while pressing SHIFT on the remote control to select side B and program the tracks for side B.
After confirming B on the display, repeat step 5.
8 Press EDIT/CHECK while pressing SHIFT to select side A and press REC/REC MUTE to start recording.
CD play and recording of edited tracks for the first side starts simultaneously. When the last track programmed for side A is finished, deck 2 enters the recording stop mode. After entering the recording stop mode, go to step 9.
9 Press EDIT/CHECK while pressing SHIFT on the remote control for recording of the second side.
B is displayed.
10 Turn over the tape in deck 2 and press REC/REC MUTE to start recording.
Recording starts.
To stop recording
Press. Recording and CD play stop simultaneously.
To check the order of the programmed track numbers Before recording, press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B, and press or repeatedly.
To change the program of each side
Press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B, and press CLEAR to clear the program on the selected side. Then program tracks again.
To clear the edit program
Press Clear twice so that "EDIT" disappears on the display.
SETTING THE CLOCK
1 Press CLOCK, then press II SET within 4 seconds.
When using the remote control
Press CLOCK while pressing SHIFT, then press SET within 4 seconds.
2 Press DOWN or UP to designate the hour, then press SET.
The hour stops flashing and the minute starts flashing.
3 Press DOWN or UP to designate the minute, then press SET.
The minute stops flashing on the display and the clock starts from 00 seconds.
To display the current time
Press CLOCK. The time is displayed for 4 seconds.
However, the time cannot be displayed during recording.
To switch to the 24-hour standard
Press the CLOCK and then press within 4 seconds.
Repeat the same procedure to restore the 12-hour standard.
If the clock display flashes
This is caused by a power interruption. The current time needs to be reset.
If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.
- MULTI JOG is also available instead of and .
SETTING THE SLEEP TIMER
The unit can be turned off automatically at a specified time.
Use the remote control.
1 Press SLEEP while pressing SHIFT.
2 Within 4 seconds, press or to specify the time until the power is turned off.
Each time the button is pressed, the time changes between 5 and 240 minutes in 5-minute steps.
To check the time remaining until the power is turned off Press SLEEP once while pressing SHIFT. The remaining time is displayed for 4 seconds.
To cancel the sleep timer
Press SLEEP twice while pressing SHIFT so that "SLEEP OFF" appears on the display.
- MULTI JOG is also available instead of and .
SETTING THE TIMER
The unit can be turned on at a specified time every day with the built-in timer.
Preparation
Make sure the clock is set correctly.
Use the remote control.

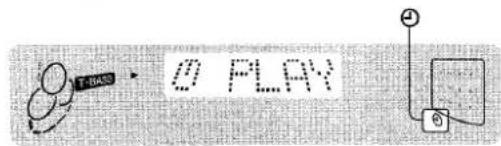

1 Press TIMER to display ①, then press SET within 6 seconds.
② is displayed and the hour flashes.
NOTE
If you press SET after 6 seconds, another operation may start.

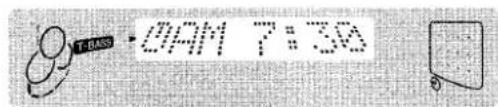

2 Designate the hour of the timer-on time by pressing DOWN or UP, then press SET.
Repeat to designate the minute of the timer-on time.

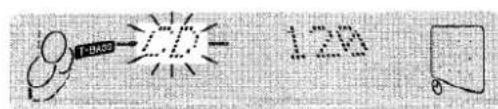

After you designate the timer-on time, one of the source names flashes on the display.
3 Press FUNCTION to select a source, then press SET.
- If TUNER is pressed, the band cannot be selected in this step.

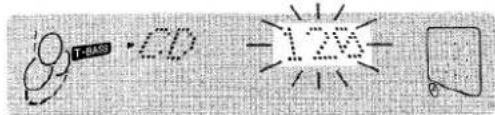

4 Select the duration for the timer-activated period with DOWN or UP, then press set.
The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.
5 Prepare the source.
To listen to a CD, load the disc to be played first on tray 1. To listen to a tape, insert the tape into deck 1 or 2.
To listen to the radio, tune in to a station.
6 Press POWER to turn the unit off after adjusting the volume and tone.
② remains on the display after the power is turned off (timer standby mode).
When the timer-on time is reached, the unit turns on and begins play with the selected source.
The volume level is automatically set to 16 when the power is turned off with the volume level set to 17 or more.
To check the specified time and source
Press TIMER. The timer-on time, the selected source name and the duration for the timer-activated period are displayed for 4 seconds.
To cancel timer standby mode temporarily
Press TIMER repeatedly until ② disappears on the display.
To restore the timer standby mode, press TIMER once or twice to display
Using the unit while the timer is set
You can use the unit normally after setting the timer.
Before turning off the power, carry out step 5 to prepare the source, and adjust the volume and tone.
NOTE
- Timer playback and timer recording will not begin unless the power is turned off.
- Connected equipment cannot be turned on and off by the built-in timer of this unit. Use an external timer.
* MULTI JOG is also available instead of and
TIMER RECORDING
Timer recording is applicable for TUNER and VIDEO/AUX (with an external timer) sources only.
Press TIMER repeatedly until ② flashes on the display, then press SET within 6 seconds. Carry out the steps of "SETTING THE TIMER" from step 2 and insert the tape to be recorded on into deck 2 after step 5.
CONNECTING OPTIONAL EQUIPMENT
Refer to the operating instructions of the connected equipment for details.
- The connecting cords are not supplied. Obtain the necessary connecting cords.
- Consult your local Aiwa dealer for optional equipment.
VIDEO/AUX JACKS
This unit can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, MD players, VCRs, TV, etc.). Connect the red plug to the VIDEO/AUX R jack, and the white plug to the VIDEO/AUX L jack.
When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.
CD DIGITAL OUT (OPTICAL) JACK
This unit can output CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment (DAT deck, MD recorder, etc.). Remove the dust cap from the CD DIGITAL OUT (OPTICAL) jack. Then, connect an optical cable plug to the CD DIGITAL OUT (OPTICAL) jack.
When the CD DIGITAL OUT (OPTICAL) jack is not being used
Attach the supplied dust cap.
Connect optional surround speakers with the 8 ohms to 16 ohms impedance to the jacks.
LISTENING TO EXTERNAL SOURCES
To play equipment connected to the VIDEO/AUX jacks proceed as follows.
1 PressVIDEO/AUX.
"VIDEO" or "AUX" appears on the display.
2 Play the connected equipment.
To change a source name in the display
WhenVIDEO/AUX is pressed, "VIDEO" or "AUX" is displayed initially. It can be changed to "VIDEO", "AUX" or "TV".
With the power on, press POWER while pressing VIDEO/AUX. Repeat the procedure to select one of the names.
CARE AND MAINTENANCE
Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.
To clean the cabinet
Use a soft and dry cloth
If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.
To clean the heads and tape paths
After every 10 hours of use, clean the heads and tape paths with a head cleaning cassette or cotton swab moistened with cleaning fluid or denatured alcohol. (These cleaning kits are commercially available.)
When cleaning with a cotton swab, wipe the recording/playback head (deck 2 only), erasure head (deck 2 only), capstans, and pinchrollers.
After cleaning the heads and tape paths with a liquid head cleaning cassette or a moistened swab, wait until the cleaned parts are completely dry before inserting the tapes.
To demagnetize the heads
The heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise. After 20 to 30 hours use, demagnetize the heads with any commercially available demagnetizer.
Care of discs
- When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth.
After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid.
Care of tapes
- Store tapes in their cases after use.
- Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise.
- Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.
TROUBLESHOOTING GUIDE
If the unit fails to perform as described in these Operating Instructions, check the following guide.
GENERAL
There is no sound.
Is the AC cord connected properly?
- Is there a bad connection? (→ page 3)
- There may be a short circuit in the speaker terminals.
Disconnect the AC cord, then correct the speaker connections.
Was an incorrect function button pressed?
Sound is emitted from one speaker only.
Is the other speaker disconnected?
An erroneous display or a malfunction occurs.
Reset the unit as stated below.
TUNER SECTION
There is constant, wave-like static.
Is the antenna connected properly? ( page 4)
Is the signal weak?
Connect an outdoor antenna.
The reception contains noise interferences or the sound is distorted.
- Is the system picking up external noise or multipath distortion?
Change the orientation of the antenna.
Move the unit away from other electrical appliances.
CASSETTE DECK SECTION
The tape does not run.
Is deck 2 in pause mode? ( page 8)
The sound is off-balance or not adequately high.
Is the playback head dirty? ( page 18)
Recording is not possible.
Is the erasure prevention tab on the tape broken off? (→ page 8)
Is the recording head dirty? ( page 18)
Erasure is not possible.
Is the erasure head dirty? ( page 18)
Is a metal tape being used?
High frequency sound is not emitted.
Is the recording/playback head dirty? ( page 18)
CD PLAYER SECTION
The CD player does not play.
Is the disc correctly placed? ( page 9)
Is the disc dirty? ( page 18)
Is the lens affected by condensation?
Wait approximately one hour and try again.
To reset
If an unusual condition occurs in the display window or the cassette decks, reset the unit as follows.
1 Press POWER to turn off the power.
2 Press POWER to turn the power back on while pressing CLEAR. Everything stored in memory after purchase is canceled.
If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord, and connect it again. Then carry out step 2.
SPECIFICATIONS
| Main unit CX-NA303 | |
| FM tuner section | |
| Tuning range | 87.5 MHz to 108 MHz |
| Usable sensitivity (IHF) | 13.2 dBf |
| Antenna terminals | 75 ohms (unbalanced) |
| AM tuner section | |
| Tuning range | 530 kHz to 1710 kHz (10 kHz step) |
| 531 kHz to 1602 kHz (9 kHz step) | |
| Usable sensitivity | 350 μV/m |
| Antenna | Loop antenna |
| Amplifier section | |
| Power output | 30 W + 30 W (50 Hz - 20 kHz, THD less than 1%, 6 ohms) |
| Total harmonic distortion | 0.1 % (15 W, 1 kHz, 6 ohms, DIN AUDIO) |
| Inputs | VIDEO/AUX: 500 mV |
| Outputs | SPEAKERS: accept speakers of 6 ohms or more |
| SURROUND SPEAKERS: accept speakers of 8 ohms to 16 ohms | |
| PHONES (stereo jack): accepts headphones of 32 ohms or more | |
| Cassette deck section | |
| Track format | 4 tracks, 2 channels stereo |
| Frequency response | 50 Hz - 10000 Hz |
| Recording system | AC bias |
| Heads | Deck 1: Playback head × 1 |
| Deck 2: Recording/playback head × 1, erase head × 1 | |
| Compact disc player section | |
| Laser | Semiconductor laser (λ = 780 nm) |
| D-A converter | 1 bit dual |
| Signal-to-noise ratio | 85 dB (1 kHz, 0 dB) |
| Harmonic distortion | 0.05 % (1 kHz, 0 dB) |
| Wow and flutter | Unmeasurable |
| General | |
| Power requirements | 120 V AC, 60 Hz |
| Power consumption | 85 W |
| Dimensions of main unit | 260 × 330 × 346 mm |
| (W × H × D) | (10^1/4 × 13 × 13^3/8 in.) |
| Weight of main unit | 5.7 kg (12 lbs 9 oz.) |
Speaker system SX-NA302
| Cabinet type | 2 way, bass reflex (magnetic shielded type) |
| Speakers | Woofer:120 mm (4 3/4 in.) cone typeTweeter:10 (13/32 in.) mm ceramic type |
| Impedance | 6 ohms |
| Output sound pressure level | 87 dB/W/m |
| Dimensions (W × H × D) | 235 × 324 × 250 mm(9 3/8 × 12 7/8 × 9 7/8 in.) |
| Weight | 3.2 kg (7 lbs 11 oz.) |
Specifications and external appearance are subject to change without notice.
COPYRIGHT
Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.
ADVERTENCIA
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDidas ELECTRICAS, NO EXPONGA Este APARATO A LA LLUVIA NI A LA HUMEDAD.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."
SINTONIZATION MANUAL
Para guitar discos, pulse OPEN/CLOSE.
TOMA CD DIGITAL OUT (OPTICAL)
Mode DEMO (Demonstration)
PRISE CD DIGITAL OUT (OPTICAL)
For assistance and information
call toll free 1-800-BUY-AIWA (United States and Puerto Rico)
