USER MANUAL FSE83800P AEG

= AirDry is ingeschakeld.

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice Register your product for better service: www.registeraeg.com Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The ENGLISH 27manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

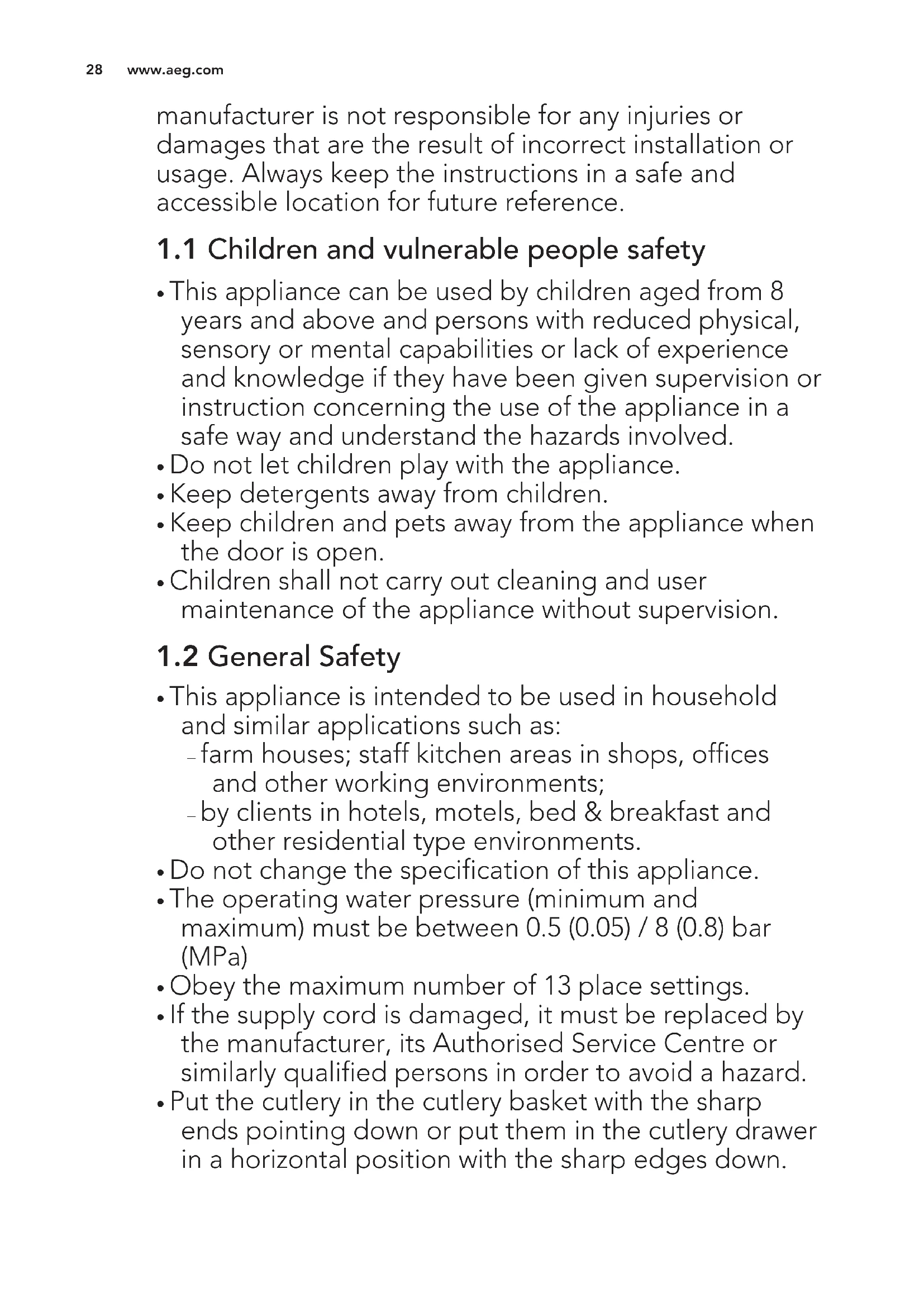

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Do not let children play with the appliance.

• Keep detergents away from children.

• Keep children and pets away from the appliance when the door is open.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

• This appliance is intended to be used in household and similar applications such as: – farm houses; staff kitchen areas in shops, offices and other working environments; – by clients in hotels, motels, bed & breakfast and other residential type environments.

• Do not change the specification of this appliance.

• The operating water pressure (minimum and maximum) must be between 0.5 (0.05) / 8 (0.8) bar (MPa)

• Obey the maximum number of 13 place settings.

• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

• Put the cutlery in the cutlery basket with the sharp ends pointing down or put them in the cutlery drawer in a horizontal position with the sharp edges down. www.aeg.com 28• Do not leave the appliance with the open door unattended to avoid stepping accidentally onto it.

• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

• Do not use high pressure water sprays and/or steam to clean the appliance.

• If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet.

• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the temperature is less than 0 °C.

• Follow the installation instruction supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Make sure that the appliance is installed below and adjacent to safe structures.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

• The appliance must be earthed.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• This appliance complies with the E.E.C. Directives.

• UK and Ireland only. This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse.

2.3 Water connection

• Do not cause damage to the water hoses.

• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear. ENGLISH 29• Ensure that there are no visible water leaks during and after the first use of the appliance.

• The water inlet hose has a safety valve and a sheath with an inner mains cable. WARNING! Dangerous voltage.

• If the water inlet hose is damaged, immediately close the water tap and disconnect the mains plug from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.

• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appliance until the programme is complete. Some detergent may remain on the dishes.

• The appliance can release hot steam if you open the door while a programme operates.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING! Risk of injury.

• This appliance has an internal lamp that comes on when you open the door and goes off when the door is closed.

• The lamp in this appliance is not suitable for household room illumination.

• To replace the lamp, contact the Service.

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and pets to get closed in the appliance. www.aeg.com

The TimeBeam is a display that is shown on the floor below the appliance door.

• When the programme starts, the programme duration comes on.

• When the programme is completed, 0:00 and CLEAN come on.

• When the delay start starts, the countdown duration and DELAY come on.

• When the appliance has a malfunction, an alarm code appears. ENGLISH 31When AirDry is activated during the drying phase, the projection on the floor may not be completely visible. To check the remaining time of the running programme, look at the control panel display.

Indicator Description End indicator. Rinse aid indicator. It is always off while the programme operates. Salt indicator. It is always off while the programme operates.

Programme Degree of soil Type of load Programme phases Options

• Crockery and cutlery

• Crockery, cut- lery, pots and pans

• Wash from 45 °C to 70

• Crockery, cut- lery, pots and pans

• Wash 50 °C and 65 °C

• Crockery, cut- lery, pots and pans

• Delicate crock- ery and glass- ware

• Crockery and cutlery

• Crockery and cutlery

With this programme, you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. This is the standard programme for test institutes.

The appliance senses the degree of soil and the quantity of items in the baskets . It automatically ad- justs the temperature and the quantity of water, the energy consumption and the programme duration.

With this programme, you can wash a load with mixed soil. Very heavy soil in the lower basket and normal soil in the upper basket. The pressure and the temperature of the water in the lower basket are higher than in the upper basket.

With this programme, you can wash a half-load dishwasher with fresh soil. It gives good washing re- sults in a short time.

With this programme, you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form in the appliance. Do not use detergent with this programme.

This is the most silent programme. The pump works at a very low speed to decrease the level of noise. Because of the low speed, the programme duration is long. ENGLISH

The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.

5.2 Information for test

institutes For all the necessary information for test performance, send an email to: info.test@dishwasher-production.com Write down the product number (PNC) that is on the rating plate.

6.1 Programme selection

mode and user mode When the appliance is in programme selection mode it is possible to set a programme and to enter the user mode. Settings available in the user mode:

• The level of water softener according to the water hardness.

• Activation or deactivation of the acoustic signal for the end of a programme.

• Selection of the colour of the TimeBeam.

• Activation or deactivation of the rinse aid empty notification.

• The level of rinse aid according to the required dosage.

• Activation or deactivation of AirDry. As the appliance stores the saved settings, there is no need to configure it before every cycle. www.aeg.com34How to set the programme selection mode The appliance is in programme selection mode when the display shows the programme number P1. After activation, the appliance is in programme selection mode by default. If not, set the programme selection mode the following way: Press and hold Reset until the appliance is in programme selection mode. How to enter user mode Make sure the appliance is in programme selection mode. To enter the user mode, press and hold simultaneously and until the indicators , , , , and flash and the display is blank.

6.2 The water softener

The water softener removes minerals from the water supply, which would have a detrimental effect on the washing results and on the appliance. The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales. The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results. Water hardness German de- grees (°dH) French degrees (°fH) mmol/l Clarke de- grees Water softener lev-

Do not use salt at this level. Whether you use a standard detergent or multi-tabs (with or without salt), set the proper water hardness level to keep the salt refill indicator active. Multi-tabs containing salt are not effective enough to soften hard water. How to set the water softener level Make sure the appliance is in user mode.

and are off. ENGLISH 35• The indicator still flashes.

• The display shows the current setting: e.g. = level 5.

2. Press repeatedly to change the

3. Press on/off to confirm the setting.

6.3 The rinse aid empty

notification The rinse aid helps to dry the dishes without streaks and stains. The rinse aid is automatically released during the hot rinse phase. When rinse aid chamber is empty, the rinse aid indicator is turned on notifying to refill rinse aid. If the drying results are satisfactory while using multi-tablets only, it is possible to deactivate the notification for refilling rinse aid. However, for best drying performance, always use rinse aid. If standard detergent or multi-tablets without rinse aid are used, activate the notification to keep the rinse aid refill indicator active. How to deactivate the rinse aid empty notification Make sure the appliance is in user mode.

• The indicators , , , and are off.

• The indicator still flashes.

• The display shows the current setting. – = the rinse aid empty notification is deactivated.

= the rinse aid empty notification is activated.

to change the setting.

3. Press on/off to confirm the setting.

6.4 The rinse aid dispenser

The rinse aid helps to dry the dishes without streaks and stains. The rinse aid is automatically released during the hot rinse phase. It is possible to set the released quantity of rinse aid between level 1 (minimum quantity) and level 6 (maximum quantity). Level 0 deactivates the rinse aid dispenser and no rinse aid is released. Factory setting: level 4. How to set the rinse aid level Make sure the appliance is in user mode.

• The indicators , , , and are off.

• The indicator continues to flash.

• The display shows the current setting: e.g. = level 4. – The levels of rinse aid range from 0A to 6A where level 0A means rinse aid is not used.

2. Press repeatedly to change the

3. Press on/off to confirm the setting.

6.5 Acoustic signals

Acoustic signals sound when a malfunction of the appliance occurs. It is not possible to deactivate these acoustic signals. There is also an acoustic signal that sounds when the programme is completed. By default this acoustic signal is deactivated but it is possible to activate it. How to activate the acoustic signal for the end of programme Make sure the appliance is in user mode.

• The indicators , , , and are off.

• The indicator still flashes.

• The display shows the current setting.

= the acoustic signal is deactivated. www.aeg.com 36– = the acoustic signal is activated.

2. Press to change the setting.

3. Press on/off to confirm the setting.

6.6 How to set the colour of

the TimeBeam It is possible to change the colour of the TimeBeam to match the colour of the kitchen floor. There are several colours available. The TimeBeam can also be deactivated. Make sure the appliance is in user mode.

• The indicators , , , and are off.

• The indicator still flashes.

• The display shows a number and letter C. Each number refers to a different colour.

= TimeBeam deactivated.

2. Press repeatedly to change the

3. Press on/off to confirm the setting.

AirDry improves the drying results with less energy consumption. During the drying phase, the door opens automatically and remains ajar. CAUTION! Do not try to close the appliance door within 2 minutes after automatic opening. This can cause damage to the appliance. If, afterwards, the door is closed for another 3 minutes, the running programme ends. AirDry is automatically activated with all programmes excluding (if applicable). To improve the drying performance refer to the XtraDry option or activate AirDry. CAUTION! If children have access to the appliance, it is advised to deactivate AirDry as opening the door may pose a danger. How to deactivate AirDry Make sure the appliance is in user mode.

• The indicators , , , and are off.

• The indicator still flashes.

• The display shows the current setting

= AirDry is deactivated. – = AirDry is activated.

2. Press to change the setting.

3. Press on/off to confirm the setting.

Desired options must be activated every time before you start a programme. It is not possible to activate or deactivate options while a programme is running. Not all options are compatible with each other. If you select non compatible options, the appliance automatically deactivates one or more of them. Only the indicators of the still active options are on.

Activate this option when you want to boost the drying performance. With use of this option, the duration of some programmes, water consumption and the last rinse temperature can be affected. The XtraDry option is a permanent option for all programmes other than and need not to be selected at every cycle. Every time is activated, XtraDry option is off and needs to be chosen manually. In other programmes, the setting of XtraDry is permanent and it is automatically used in next cycles. This configuration can be changed at any time. Activating XtraDry option deactivates TimeSaver. How to activate XtraDry Press . The related indicator is on. If the option is not applicable to the programme, the related indicator is off or it flashes quickly for a few seconds and then goes off. The display shows the updated programme duration.

The TimeSaver allows to reduce the duration of a selected programme by approximately 50%. The washing results are the same as with the normal programme duration. The drying results can decrease. This option increases the pressure and the temperature of the water. The washing and the drying phases are shorter. By default, TimeSaver is off, but it is possible to activate it manually. This option cannot be combined with XtraDry. How to activate TimeSaver Press , the related indicator comes on. If the option is not applicable to the programme, the related indicator does not come on or it flashes quickly for a few seconds and then goes off. The display shows the updated programme duration.

This option provides better hygiene results by keeping the temperature at 70 °C for at least 10 minutes during the last rinsing phase. How to activate ExtraHygiene Press , the related indicator comes on If the option is not applicable to the programme, the related indicator does not come on or it flashes quickly for a few seconds and then goes out. The display shows the updated programme duration.

1. Make sure that the current level of

the water softener agrees with the www.aeg.com38hardness of the water supply. If not, adjust the level of the water softener.

4. Open the water tap.

5. Start a programme to remove any

processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets. After starting a programme, it may take up to 5 minutes for the appliance to recharge the resin in the water softener. It seems that the appliance is not working. The washing phase starts only after this procedure is completed. The procedure is repeated periodically.

8.1 The salt container

CAUTION! Use rough salt designed for dishwashers only. Fine salt increases the risk of corrosion. The salt is used to recharge the resin in the water softener and to assure good washing results in daily use. How to fill the salt container Make sure that the Comfort Lift is empty and in raised position.

1. Turn the cap of the salt container

counterclockwise and remove it.

2. Put 1 litre of water in the salt

container (only for the first time).

3. Fill the salt container with dishwasher

salt (until it is full).

4. Carefully shake the funnel by its

handle to get the last granules inside.

5. Remove the salt around the opening

of the salt container.

6. Turn the cap of the salt container

clockwise to close the salt container. CAUTION! Water and salt can come out of the salt container when you fill it. After you fill the salt container, immediately start a programme to prevent corrosion.

CAUTION! Only use rinse aid specifically designed for dishwashers.

1. Open the lid (C).

2. Fill the dispenser (B) until the rinse

aid reaches the marking ''MAX''.

3. Remove the spilled rinse aid with an

absorbent cloth to prevent too much foam. ENGLISH

394. Close the lid. Make sure that the lid

locks into position. Fill the rinse aid dispenser when the indicator (A) becomes clear. If you use multi-tablets and the drying performance is satisfactory, the rinse aid refill indication can be disabled. We recommend to always use rinse aid for better drying performance, also in combination with multi- tablets containing rinsing agent.

1. Open the water tap.

2. Press the on/off button to activate

the appliance. Make sure that the appliance is in programme selection mode.

• If the salt indicator is on, fill the salt container.

• If the rinse aid indicator is on, fill the rinse aid dispenser.

3. Load the baskets.

4. Add the detergent.

5. Set and start the correct programme

for the type of load and the degree of soil.

CAUTION! Do not sit on the rack. Do not put excessive pressure on the locked basket. CAUTION! Do not exceed the max load capacity of 18 kg. CAUTION! Use only a detergent specifically designed for dishwashers. To ensure correct unlocking, lift the trigger handle completely and the basket slightly until the basket is disengaged on both sides. The Comfort Lift mechanism allows to lift the lower rack up (to the second rack level) and put it down to load and unload dishes easily. To move the lower basket from the lower position:

1. To lift the basket pull the rack out of

the dishwasher by the rack handle. The trigger handle should not be used. The basket is automatically locked on the upper level. Load or unload the basket carefully (refer to basket loading leaflet).

2. To lower the basket connect the

trigger handle with the basket frame as shown below. Lift the trigger handle and the rack up. Once the trigger handle is lifted, push the rack down. The mechanism www.aeg.com 40returns to its basic position on the lower level. There are two ways of lowering the basket depending on the loading:

• If there is a full load of plates slightly push the basket down.

• If the basket is empty or half- loaded press the basket down.

CAUTION! Only use detergent specifically designed for dishwashers.

1. Press the release button (A) to open

2. Put the detergent, in powder or

tablets, in the compartment (B).

3. If the programme has a prewash

phase, put a small quantity of detergent on the inner part of the appliance door.

4. Close the lid. Make sure that the lid

locks into position.

9.3 Setting and starting a

programme The Auto Off function This function decreases energy consumption by deactivating automatically the appliance when it is not operating. The function comes into operation:

• 5 minutes after the completion of the programme.

• After 5 minutes if the programme has not started. Starting a programme

1. Press the on/off button to activate

the appliance. Make sure that the appliance is in programme selection mode and the door is closed.

2. Press Program again and again until

the indicator of the desired programme is on. The display shows the programme duration.

3. Set the applicable options.

4. Press Start to start the programme.

• The indicator of the running phase is on.

• The programme duration starts to decrease with steps of 1 minute. Starting a programme with delay start

2. Press Delay again and again until the

display shows the desired delay time (from 1 to 24 hours).

3. Press Start to start the countdown.

• The delay indicator comes on to confirm the start of the countdown.

• The countdown starts to decrease with steps of 1 hour. Only the last hour decreases with steps of 1 minute. When the countdown is completed, the programme starts and the indicator of the running phase comes on. The delay indicator is off. Opening the door while the appliance operates Opening the door while a programme is running stops the appliance. It may affect the energy consumption and the programme duration. After closing the door, the appliance continues from the point of interruption. If the door is opened for more than 30 seconds during the drying phase, the running programme ends. It does not happen if the door is opened by AirDry function. ENGLISH 41Cancelling the delay start while the countdown operates When you cancel the delay start you have to set the programme and options again. Press and hold Reset until the appliance is in programme selection mode. Cancelling the programme Press and hold Reset until the appliance is in programme selection mode. Make sure that there is detergent in the detergent dispenser before you start a new programme. End of the programme All buttons are inactive except for the on/off button.

1. Press the on/off button or wait for

the Auto Off function to automatically deactivate the appliance. If you open the door before the activation of Auto Off, the appliance is automatically deactivated.

2. Close the water tap.

The following hints will ensure optimal cleaning and drying results in daily use and also help to protect the environment.

• Remove larger residues of food from the dishes into the waste bin.

• Do not pre-rinse dishes by hand. When needed, use the prewash programme (if available) or select a programme with a prewash phase.

• Always use the whole space of the baskets.

• When loading the appliance, make sure that the dishes can be completely reached and washed by the water released from the spray arm nozzles. Make sure that items do not touch or cover each other.

• You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. ''3in1'', ''4in1'', ''All in 1''). Follow the instructions written on the packaging.

• Select the programme according to the type of load and degree of soil. With the ECO programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.

• In areas with hard and very hard water we recommend to use plain dishwasher detergent (powder, gel, tablets containing no additional agents), rinse aid and salt separately for optimal cleaning and drying results.

• At least once a month run the appliance with the use of appliance cleaner which is particularly suitable for this purpose.

• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.

• Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

10.3 What to do if you want to

stop using multi-tablets Before you start to use separately detergent, salt and rinse aid do the following procedure.

1. Set the highest level of the water

softener. www.aeg.com

422. Make sure that the salt and rinse aid

containers are full.

3. Start the shortest programme with a

rinsing phase. Do not add detergent and do not load the baskets.

4. When the programme is completed,

adjust the water softener according to the water hardness in your area.

5. Adjust the released quantity of rinse

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove larger residues of food from the dishes into the waste bin.

• Make soft the remaining burned food on the items.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that glasses do not touch other glasses.

• Put cutlery and small items in the cutlery drawer.

• Put light items in the upper basket. Make sure that the items do not move.

• Make sure that the spray arms can move freely before you start a programme.

10.5 Before starting a

programme Make sure that:

• The filters are clean and correctly installed.

• The cap of the salt container is tight.

• The spray arms are not clogged.

• There is dishwasher salt and rinse aid (unless you use multi- tablets).

• The position of the items in the baskets is correct.

• The programme is applicable for the type of load and for the degree of soil.

• The correct quantity of detergent is used.

10.6 Unloading the baskets

1. Let the tableware cool down before

you remove it from the appliance. Hot items can be easily damaged.

2. First remove items from the lower

basket, then from the upper basket. At the end of the program water can still remain on the sides and on the door of the appliance.

11. CARE AND CLEANING

WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket. Make sure that the Comfort Lift is empty and properly locked in raised position. Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

11.1 Cleaning the filters

The filter system is made of 3 parts. ENGLISH 43C

1. Turn the filter (B) counterclockwise

2. Remove the filter (C) out of filter (B).

3. Remove the flat filter (A).

4. Wash the filters.

5. Make sure that there are no residues

of food or soil in or around the edge of the sump.

6. Put back in place the flat filter (A).

Make sure that it is correctly positioned under the 2 guides.

7. Reassemble the filters (B) and (C).

8. Put back the filter (B) in the flat filter

(A). Turn it clockwise until it locks. CAUTION! An incorrect position of the filters can cause bad washing results and damage to the appliance. www.aeg.com4411.2 Cleaning the upper spray arm We recommend to clean regularly the upper spray arm to avoid soil to clog the holes. Clogged holes can cause unsatisfactory washing results.

1. Pull out the upper basket.

2. To disengage the spray arm from the

basket, press the spray arm upwards in the direction indicated by the lower arrow and simultaneously turn it clockwise.

3. Wash the spray arm under running

water. Use a thin pointed tool, e.g. toothpick, to remove particles of soil from the holes.

4. To engage again the spray arm to

the basket, press the spray arm upwards in the direction indicated by the lower arrow and simultaneously turn it counterclockwise until it locks into place.

11.3 External cleaning

• Clean the appliance with a moist soft cloth.

• Only use neutral detergents.

• Do not use abrasive products, abrasive cleaning pads or solvents.

11.4 Internal cleaning

• Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth.

• Do not use abrasive products, abrasive cleaning pads, sharp tools, strong chemicals, scourer or solvents.

• If you use short duration programmes regularly, these can leave deposits of grease and limescale inside the appliance. To prevent this, we recommend running long duration programmes at least twice a month.

• To maintain the performance of your appliance at its best, we recommend using a specific cleaning product for dishwashers (at least once a month). Follow carefully the instructions on the packaging of the product.

TROUBLESHOOTING If the appliance does not start or it stops during operation, first check if you can solve the problem by yourself with the help of the information in the table or contact an Authorised Service Centre. ENGLISH 45WARNING! Repairs not properly done may result in serious risk to the safety of the user. Any repairs must be performed by qualified personnel. With some problems, the display shows an alarm code. The majority of problems that can occur can be solved without the need to contact an Authorised Service Centre. Problem and alarm code Possible cause and solution You cannot activate the ap- pliance.

• Make sure that the mains plug is connected to the mains socket.

• Make sure that there is no damaged fuse in the fuse box. The program does not start. • Make sure that the appliance door is closed.

• If the delay start is set, cancel the setting or wait for the end of the countdown.

• The appliance has started the procedure to recharge the resin inside the water softener. The duration of the procedure is approximately 5 minutes. The appliance does not fill with water. The display shows or

• Make sure that the water tap is open.

• Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.

• Make sure that the water tap is not clogged.

• Make sure that the filter in the inlet hose is not clogged.

• Make sure that the inlet hose has no kinks or bends. The appliance does not drain the water. The display shows .

• Make sure that the sink spigot is not clogged.

• Make sure that the filter in the outlet hose is not clog- ged.

• Make sure that the interior filter system is not clogged.

• Make sure that the drain hose has no kinks or bends. The anti-flood device is on. The display shows .

• Close the water tap and contact an Authorised Service Centre. The appliance stops and starts more times during op- eration.

• It is normal. It provides optimal cleaning results and en- ergy savings. The program lasts too long. • Select the TimeSaver option to shorten the program time.

• If the delayed start option is set, cancel the delay setting or wait for the end of the countdown. The remaining time in the display increases and skips nearly to the end of program time.

• This is not a defect. The appliance is working correctly. www.aeg.com46Problem and alarm code Possible cause and solution Small leak from the appli- ance door.

• The appliance is not levelled. Loosen or tighten the ad- justable feet (if applicable).

• The appliance door is not centred on the tub. Adjust the rear foot (if applicable). The appliance door is diffi- cult to close.

• The appliance is not levelled. Loosen or tighten the ad- justable feet (if applicable).

• Parts of the tableware are protruding from the baskets. Rattling/knocking sounds from inside the appliance.

• The tableware is not properly arranged in the baskets. Refer to basket loading leaflet.

• Make sure that the spray arms can rotate freely. The appliance trips the cir- cuit-beaker.

• The amperage is insufficient to supply simultaneously all the appliances in use. Check the socket amperage and the capacity of the meter or turn off one of the applian- ces in use.

• Internal electrical fault of the appliance. Contact an Au- thorised Service Centre. Refer to "Before first use", "Daily use", or "Hints and tips" for other possible causes. Once you have checked the appliance, deactivate and activate the appliance. If the problem occurs again, contact an Authorised Service Centre. For alarm codes not described in the table, contact an Authorised Service Centre.

12.1 The washing and drying results are not satisfactory

Problem Possible cause and solution Poor washing results. • Refer to "Daily use", "Hints and tips" and basket loading leaflet.

• Use more intensive washing programmes.

• Clean spray arm jets and filter. Refer to "Care and Cleaning". Poor drying results. • Tableware has been left for too long inside a closed appliance.

• There is no rinse aid or the dosage of rinse aid is not enough. Set the rinse aid dispenser to a higher level.

• Plastic items may need to be towel dried.

• For the best drying performance activate the option XtraDry and set AirDry.

• We recommend to always use rinse aid, even in com- bination with multi-tablets. There are whitish streaks or bluish layers on glasses and dishes.

• The release quantity of rinse aid is too much. Adjust the rinse aid level to a lower level.

• The quantity of detergent is too much. ENGLISH 47Problem Possible cause and solution There are stains and dry water drops on glasses and dishes.

• The released quantity of rinse aid is not sufficient. Ad- just the rinse aid level to a higher level.

• The quality of the rinse aid can be the cause. The dishes are wet. • For the best drying performance activate the option XtraDry and set AirDry .

• The programme does not have a drying phase or has a drying phase with low temperature.

• The rinse aid dispenser is empty.

• The quality of the rinse aid can be the cause.

• The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid and multi-tablets together. The interior of the appliance is wet.

• This is not a defect of the appliance. it is caused by the humidity in the air that condenses on the walls. Unusual foam during washing. • Use the detergent for dishwashers only.

• There is a leak in the rinse aid dispenser. Contact an Authorised Service Centre. Traces of rust on cutlery. • There is too much salt in the water used for washing. Refer to "The water softener".

• Silver and stainless steel cutlery were placed together. Avoid to put silver and stainless steel items close to- gether. There are residues of deter- gent in the dispenser at the end of the programme.

• The detergent tablet got stuck in the dispenser and therefore was not completely washed away by water.

• Water cannot wash away the detergent from the dis- penser. Make sure that the spray arm is not blocked or clogged.

• Make sure that items in the baskets do not impede the lid of the detergent dispenser from opening. Odours inside the appliance. • Refer to "Internal cleaning". Limescale deposits on the ta- bleware, on the tub and on the inside of the door.

• The level of salt is low, check the refill indicator.

• The cap of the salt container is loose.

• Your tap water is hard. Refer to "The water softener".

• Even using multi-functional tabs use salt and set re- generation of the water softener. Refer to "The water softener".

• If lime scale deposits still remain, clean the appliance with appliance cleaners which are particularly suitable for this purpose.

• Try different detergent.

• Contact the detergent manufacturer. www.aeg.com48Problem Possible cause and solution Dull, discoloured or chipped tableware.

• Make sure that only dishwasher-safe items are washed in the appliance.

• Load and unload the basket carefully. Refer to basket loading leaflet.

• Place delicate items in the upper basket. Refer to "Before first use", "Daily use" or "Hints and tips" for other possible causes.

Refer to the rating plate for other values.

If the hot water comes from alternative source of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

14. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
