USER MANUAL Favorit 50KVI1P AEG

10. PROBLEEMOPLOSSING

Koud water of warm water

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.aeg.com Register your product for better service: www.aeg.com/productregistration Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice. ENGLISH 191. SAFETY INSTRUCTIONS Before the installation and use of the ap- pliance, carefully read the supplied in- structions. The manufacturer is not re- sponsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

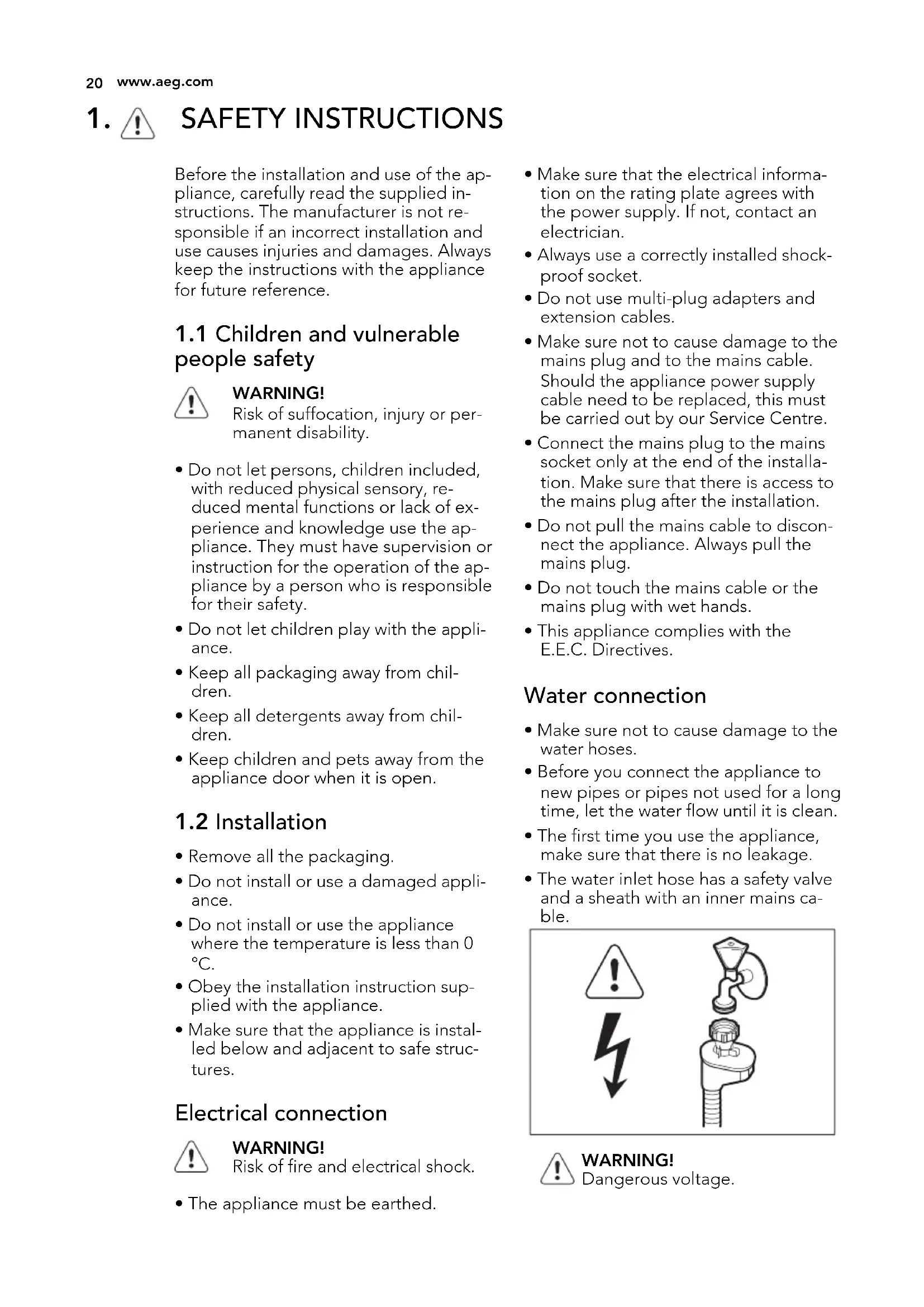

1.1 Children and vulnerable

people safety WARNING! Risk of suffocation, injury or per- manent disability.

• Do not let persons, children included, with reduced physical sensory, re- duced mental functions or lack of ex- perience and knowledge use the ap- pliance. They must have supervision or instruction for the operation of the ap- pliance by a person who is responsible for their safety.

• Do not let children play with the appli- ance.

• Keep all packaging away from chil- dren.

• Keep all detergents away from chil- dren.

• Keep children and pets away from the appliance door when it is open.

• Remove all the packaging.

• Do not install or use a damaged appli- ance.

• Do not install or use the appliance where the temperature is less than 0 °C.

• Obey the installation instruction sup- plied with the appliance.

• Make sure that the appliance is instal- led below and adjacent to safe struc- tures. Electrical connection WARNING! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical informa- tion on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shock- proof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.

• Connect the mains plug to the mains socket only at the end of the installa- tion. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to discon- nect the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug with wet hands.

• This appliance complies with the E.E.C. Directives. Water connection

• Make sure not to cause damage to the water hoses.

• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.

• The first time you use the appliance, make sure that there is no leakage.

• The water inlet hose has a safety valve and a sheath with an inner mains ca- ble. WARNING! Dangerous voltage.

www.aeg.com• If the water inlet hose is damaged, im- mediately disconnect the mains plug from the mains socket. Contact the Service to replace the water inlet hose.

• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments – Farm houses – By clients in hotels, motels and oth- er residential type environments – Bed and breakfast type environ- ments. WARNING! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.

• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal posi- tion.

• Do not keep the appliance door open without supervision to prevent to fall on it.

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.

• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.

• The appliance can release hot steam if you open the door while a programme operates.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not use water spray and steam to clean the appliance.

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and pets to get closed in the appliance.

TimeBeam is a light beam that shows, on the kitchen floor:

• The programme duration. It decreases with steps of one minute.

• The end of the programme (0:00).

• The time of the delay start. It decrea- ses with steps of one hour (24h, 23h...).

Indicators Indicators Description Salt indicator. This indicator is off while the programme oper- ates. Rinse aid indicator. This indicator is off while the programme operates. End indicator.

Programme Degree of soil Type of load Programme phases Options

Heavy soil Crockery, cut- lery, pots and pans Prewash Wash 70 °C Rinses Dry ÖKO PLUS Multitab

Normal soil Crockery and cutlery Prewash Wash 50 °C Rinses Dry Multitab

Fresh soil Crockery and cutlery Wash 60 °C Rinse Multitab

Normal soil Crockery and cutlery Prewash Wash 50 °C Rinses Dry ÖKO PLUS Multitab ENGLISH 23Programme Degree of soil Type of load Programme phases Options 6 Light soil Crockery and cutlery Wash 55 °C Rinses Multitab 7 Normal or light soil Delicate crock- ery and glass- ware Wash 45 °C Rinses Dry ÖKO PLUS Multitab

The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and quantity of the water, the energy consumption and the programme duration.

This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the temperature stays at 70 °C for at least 10 minutes.

This is the most silent washing programme. The pump works at a very low speed to decrease the level of noise. Because of the low speed, the programme duration is long.

With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. (This is the standard programme for test institutes). Consumption values Programme

www.aeg.com1) The water pressure and temperature, the variations of the mains supply, the options and the quantity of dishes can change the values. Information for test institutes For all the necessary information for test performance. send an email to: info.test@dishwasher-production.com Write down the product number (PNC) that is on the rating plate.

Activate or deactivate the op- tions before the start of a pro- gramme. You cannot activate or deactivate the options while a programme operates. If one or more options are set, make sure that the related indi- cators are on before the pro- gramme starts.

Activate this option only when you use the combi detergent tablets. This option deactivates the flow of rinse aid and salt. The related indicators are off. The programme duration can increase.

• Press Multitab, the related indicator comes on. If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Set the water softener to the highest

2. Make sure that the salt container and

the rinse aid dispenser are full.

3. Start the shortest programme with a

rinsing phase, without detergent and without dishes.

4. Adjust the water softener to the wa-

ter hardness in your area.

5. Adjust the released quantity of rinse

This option decreases the temperature in the drying phase. The energy con- sumption decreases by 25%. The dishes can be wet at the end of the programme.

• Press ÖKO PLUS, the related indica- tor comes on.

5.3 Acoustic signals

The acoustic signals operate when the appliance has a malfunction, when the adjustment of the level of the water soft- ener occurs and when the programme is completed. By default, the acoustic signals are on, but it is possible to deactivate them. How to deactivate the acoustic signals

1. Press the on/off button to activate

the appliance. Make sure that the ap- pliance is in setting mode, refer to ‘Setting and starting a programme’.

2. Press and hold, at the same time,

button and button until the indicators of buttons

The indicators of buttons

The indicator of button contin- ues to flash.

• The display shows the current set- ting. Acoustic signal on. Acoustic signal off.

Press button to change the set- ting.

5. Press the on/off button to deactivate

the appliance and to confirm the set- ting. ENGLISH 255.4 How to set the colour of the TimeBeam It is possible to change the colour of the TimeBeam to match the colour of the kitchen floor. There are 9 different col- ours available. It is also possible to deactivate the Time- Beam.

1. Press the on/off button to activate

the appliance. Make sure that the ap- pliance is in setting mode, refer to ‘Setting and starting a programme’.

2. Press and hold, at the same time,

button and button until the indicators of buttons

The indicators of buttons

The indicator of button contin- ues to flash.

• The display shows a number and the letter C. Each number is rela- ted to a different colour (0C = TimeBeam is deactivated).

To set a colour, press button again and again to go through the menu of colours. The different col- ours show on the kitchen floor.

5. Press the on/off button to deactivate

the appliance and to confirm the set- ting.

1. Make sure that the set level of the

water softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water authority to know the water hardness in your area.

4. Open the water tap.

5. Processing residues can stay in the

appliance. Start a programme to re- move them. Do not use detergent and do not load the baskets.

6.1 Adjusting the water softener

Do not use salt at this level. How to adjust the level of the water softener

1. Press the on/off button to activate

the appliance. Make sure that the ap- pliance is in setting mode, refer to “Setting and starting a programme”.

2. Press and hold, at the same time,

button and button until the indicators of buttons

The indicators of buttons , and go off.

The indicator of button con- tinues to flash.

• The acoustic signals operate, e.g. five intermittent acoustic signals = level 5.

• The display shows the current set- ting of the water softener, e.g. = level 5.

Press button again and again to change the setting.

5. Press the on/off button to deactivate

the appliance and to confirm the set- ting.

Turn the cap counterclockwise and open the salt container.

Put 1 litre of water in the salt con- tainer (only for the first time).

Remove the salt around the opening of the salt container.

Turn the cap clockwise to close the salt container. CAUTION! Water and salt can come out from the salt container when you fill it. Risk of corrosion. To pre- vent it, after you fill the salt con- tainer, start a programme. ENGLISH 276.3 Filling the rinse aid dispenser

Press the release button (D) to open the lid (C).

Remove the spilled rinse aid with an absorbent cloth to prevent too much foam.

Close the lid. Make sure that the re- lease button locks into position. You can turn the selector of the released quantity (B) between position 1 (lowest quantity) and position 4 (highest quantity).

1. Open the water tap.

2. Press the on/off button to activate

the appliance. Make sure that the ap- pliance is in setting mode, refer to ’Setting and starting a pro- gramme’.

• If the salt indicator is on, fill the salt container.

• If the rinse aid indicator is on, fill the rinse aid dispenser.

3. Load the baskets.

5. Set and start the correct programme

for the type of load and the degree of soil.

Put the detergent in the compart- ment (A) .

If the programme has a prewash phase, put a small quantity of deter- gent on the inner part of the appli- ance door.

If you use detergent tablets, put the tablet in the compartment (A).

Close the lid. Make sure that the re- lease button locks into position.

www.aeg.com7.2 Setting and starting a programme Setting mode The appliance must be in setting mode to accept some operations. The appliance is in setting mode when, after the activation the display shows 2 horizontal status bars. If the control panel shows other condi- tions, press RESET until the appliance is in setting mode. Starting a programme without delay start

1. Open the water tap.

2. Press the on/off button to activate

the appliance. Make sure that the ap- pliance is in setting mode.

3. Set the programme.

• The related programme number flashes in the display.

4. If you want, you can set the options.

5. Close the appliance door. The pro-

• If you open the door, the display shows the programme duration that decreases with steps of 1 mi- nute. Starting a programme with delay start

1. Set the programme.

2. Press the delay button again and

again until the display shows the de- lay time you want to set (from 1 to 24 hours).

• The delay time flashes in the dis- play.

• The delay indicator is on.

3. Close the appliance door. The count-

• If you open the door, the display shows the countdown of the delay start that decreases with steps of 1 hour. When the countdown is completed, the programme starts. Opening the door while the appliance operates If you open the door, the appliance stops. When you close the door, the ap- pliance continues from the point of inter- ruption. Cancelling the delay start while the countdown operates When you cancel a delay start, the appli- ance goes back to setting mode. You have to set the programme again.

1. Press RESET until the display shows 2

horizontal status bars. Cancelling the programme

1. Press RESET until the display shows 2

horizontal status bars. Make sure that there is detergent in the detergent dispenser be- fore you start a new programme. At the end of the programme When the programme is completed, an intermittent acoustic signal operates. The display shows 0 and the end indica- tor comes on.

1. Press the on/off button to deactivate

2. Close the water tap.

If you do not press the on/off button, the AUTO OFF device automatically deactivates the ap- pliance after some minutes. This helps to decrease the energy consumption. Important

• Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.

• First remove the items from the lower basket, then from the upper basket.

• There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more quickly than the dishes.

ENGLISH 298. HINTS AND TIPS

8.1 The water softener

Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these miner- als. The dishwasher salt keeps the water softener clean and in good conditions. It is important to set the right level of the water softener. This makes sure that the water softener uses the correct quantity of dishwasher salt and water.

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.

• The rinse aid helps, during the last rinsing phase, to dry the dishes with- out streaks and stains.

• Combi detergent tablets contain de- tergent, rinse aid and other added agents. Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.

• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tab- lets with long programmes. Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

8.3 Loading the baskets

Refer to the supplied leaflet with examples of the load of the bas- kets.

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pew- ter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.

• To remove easily remaining burned food, soak pots and pans in water be- fore you put them in the appliance.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.

• Make sure that glasses do not touch other glasses.

• Put the small items in the cutlery bas- ket.

• Put the light items in the upper bas- ket. Make sure that they do not move.

• Make sure that the spray arms can move freely before you start a pro- gramme.

8.4 Before starting a

programme Make sure that:

• The filters are clean and correctly in- stalled.

• The spray arms are not clogged.

• The position of the items in the bas- kets is correct.

• The programme is applicable for the type of load and for the degree of soil.

• The correct quantity of detergent is used.

• There is dishwasher salt and rinse aid (unless you use combi detergent tab- lets).

• The cap of the salt container is tight.

www.aeg.com9. CARE AND CLEANING WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains sock- et. Dirty filters and clogged spray arms decrease the washing re- sults. Make a check regularly and, if necessary, clean them.

9.1 Cleaning the filters

Turn the filter (A) counterclockwise and remove it.

To disassemble the filter (A), pull apart (A1) and (A2).

Remove the filter (B).

Wash the filters with water.

Before you put the filter (B) back, make sure that there are no residues of food or soil in or around the edge of the sump.

Make sure that the filter (B) is cor- rectly positioned under the 2 guides (C).

Assemble the filter (A) and put it back in filter (B). Turn it clockwise until it locks. An incorrect position of the filters can cause bad washing results and damage to the appliance.

9.2 Cleaning the spray arms

Do not remove the spray arms. If the holes in the spray arms are clog- ged, remove remaining parts of soil with a thin pointed object.

9.3 External cleaning

Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents.

9.4 Internal cleaning

If you regularly use short duration pro- grammes, these can leave deposits of grease and limescale inside the appli- ance. ENGLISH 31To prevent this, we recommend to run long duration programmes at least 2 times per month.

The appliance does not start or it stops during operation. Before you contact the Service, refer to the information that follows for a solu- tion to the problem. With some problems, the display shows an alarm code:

- The appliance does not fill with water.

- The appliance does not drain the water.

- The anti-flood device is on. WARNING! Deactivate the appliance before you do the checks. Problem Possible solution You cannot activate the appli- ance. Make sure that the mains plug is connected to the mains socket. Make sure that there is not a damaged fuse in the fuse box. The programme does not start. Make sure that the appliance door is closed. If the delay start is set, cancel the setting or wait for the end of the countdown. The appliance does not fill with water. Make sure that the water tap is open. Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority. Make sure that the water tap is not clogged. Make sure that the filter in the inlet hose is not clogged. Make sure that the inlet hose has no kinks or bends. The appliance does not drain the water. Make sure that the sink spigot is not clog- ged. Make sure that the drain hose has no kinks or bends. The anti-flood device is on. Close the water tap and contact the Service. After the checks are completed, activate the appliance. The programme contin- ues from the point of interruption. If the problem occurs again, contact the Service. If the display shows other alarm codes, contact the Service.

10.1 If the washing and drying

results are not satisfactory Whitish streaks or bluish layers on glasses and dishes

• The released quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position.

www.aeg.com• The quantity of detergent is too much. Stains and dry water drops on glasses and dishes

• The released quantity of rinse aid is not sufficient. Adjust the rinse aid se- lector to a higher position.

• The quality of the detergent can be the cause. Dishes are wet

• The programme is without a drying phase or with a low temperature dry- ing phase.

• The rinse aid dispenser is empty.

• The quality of the rinse aid can be the cause.

• The quality of the combi detergent tablets can be the cause. Try a differ- ent brand or activate the rinse aid dis- penser and use rinse aid together with the combi detergent tablets. Refer to ‘HINTS AND TIPS’ for other possible causes.

10.2 How to activate the rinse

1. Press the on/off button to activate

the appliance. Make sure that the ap- pliance is in setting mode, refer to “Setting and starting a programme”.

2. Press and hold, at the same time,

button and button until the indicators of buttons

The indicators of buttons

The indicator of button contin- ues to flash.

• The display shows the current set- ting. Rinse aid dispenser off. Rinse aid dispenser on.

Press button to change the set- ting.

5. Press the on/off button to deactivate

the appliance and to confirm the set- ting.

6. Adjust the released quantity of rinse

Cold water or hot water

Connect the water inlet hose to a water tap with a 3/4'' thread.

If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

ENGLISH 3312. ENVIRONMENT CONCERNS

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
