INSTALLATION

Before You Begin

Before you begin, always disconnect the battery negative terminal.

Important Notes

Before final installation, test the wiring connections to make sure the unit is connected properly and the system works.
- Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
- Consult with your nearest dealer if installation requires the drilling of holes or other modifications to your vessel.
- Install the unit where it does not interfere with driving and cannot injure passengers if there is a sudden or emergency stop.
- Avoid installing the unit where it will be subject to high temperatures from direct sunlight, hot air, or from a heater, or where it would be subject to excessive dust, dirt or vibration.

JMS2212

Wired Commander Mounting

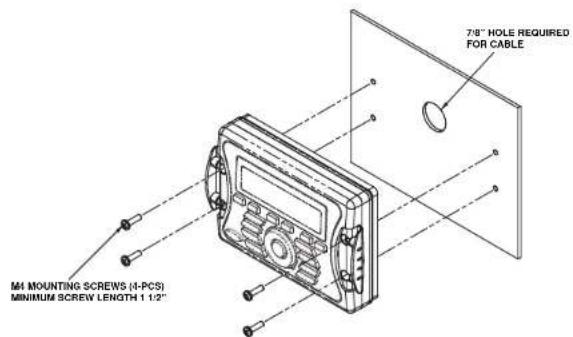

1. Choose a mounting area for the wired commander that is clean and flat, allowing the rear gasket to fully seal to the mounting surface.

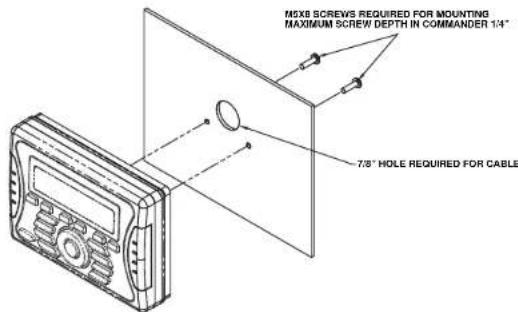

2. Secure the wired commander using either of the recommended mounting methods detailed in the diagrams below.

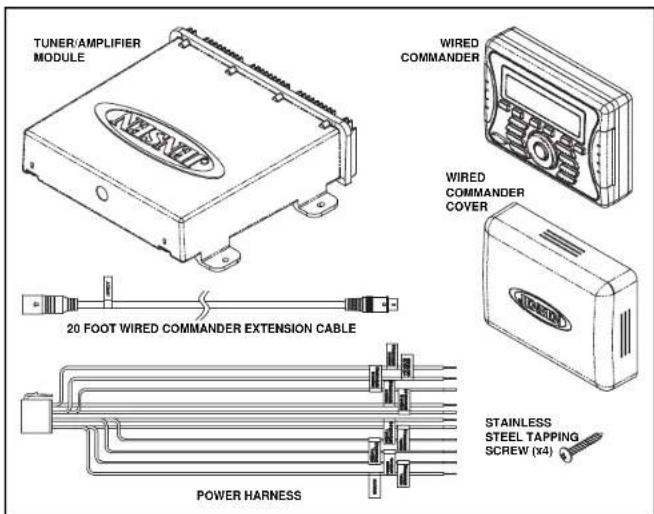

Hardware Kit Contents

Tuner/ Amplifier Mounting

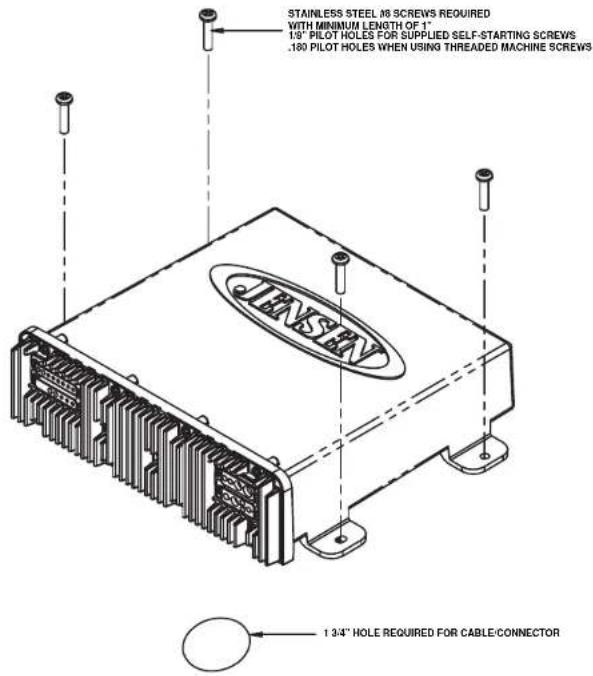

1. Choose a mounting area for the tuner/amplifier module that will provide plenty of ventilation to prevent the amplifier from overheating. The tuner/amplifier module can be mounted in the horizontal or vertical position. Please note that when mounting in vertical position, do not mount with the harness exit points facing straight up, as water can collect around the chassis in these areas.

1. Using the shortest length of the recommended size screws possible, mount the tuner/ amplifier as detailed in the diagram on the right.

2. Route the tuner/amplifier harness and cable throughout the vessel as required. Keep some slack in the harness/cables so it won't be too tight, as this can cause damage to the wires.

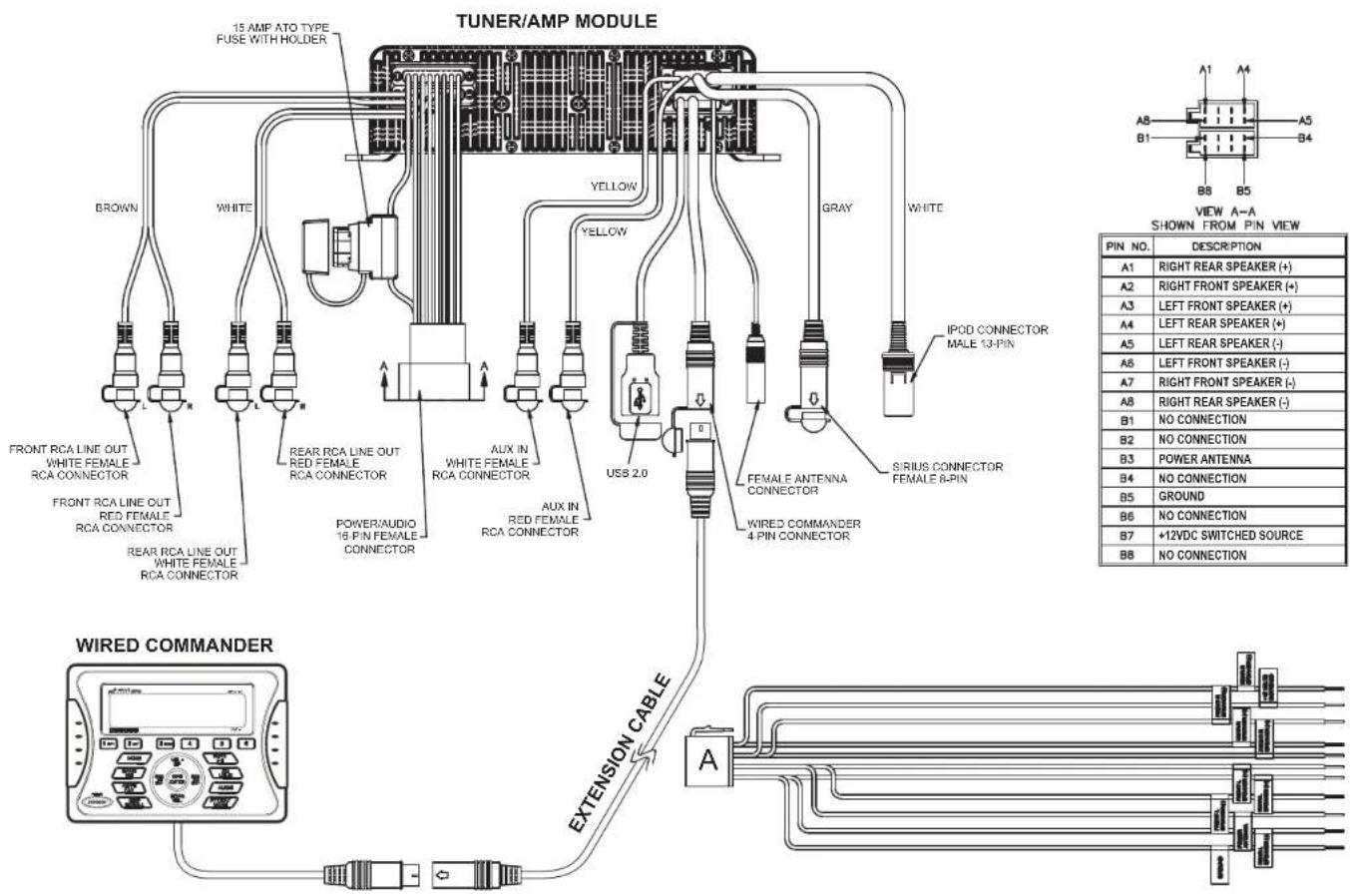

3. Follow the wiring diagram carefully and make certain all connections are secure and insulated with crimp connectors or electrical tape to ensure proper operation.

4. After completing the wiring connections, reconnect the negative terminal on the battery and turn the unit on to confirm operation (vessel accessory switch must be on). If the unit does not operate, disconnect battery, recheck all wiring and refer to the trouble-shooting guide located in the back of the manual.

Reconnect Battery

When wiring is complete, reconnect the battery negative terminal.

日日日

WIRING

JMS2212

BASIC OPERATION

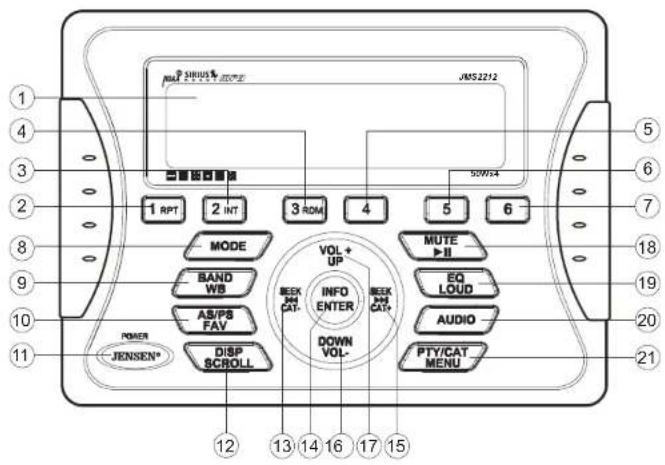

Power On/Off

Press the POWER button (11) to turn the unit on or off. The unit will resume the last mode (Tuner, Aux, etc.).

Volume Control

To increase the volume, press the VOL + button (17). To decrease the volume, press the VOL - button (16). The maximum volume level is "40". While adjusting the volume, the LCD displays a bar graph and numerical representation of the level.

Mute

Press the MUTE button (18) on the control panel to mute the audio output. Press MUTE again to restore the audio output to the previous level.

Mode

Press the MODE button (8) on the control panel to select a different mode of operation, as indicated on the display panel. Available modes include Tuner (AM/FM), SAT (SIRIUS), iPod, USB and Auxiliary.

NOTE: SIRIUS and iPod mode will be skipped if the module/device is not Installed.

Reset

The reset button should be activated for the following reasons:
- initial installation of the unit when all wiring is completed
- function buttons do not operate
- error symbol on the display
Use a ball point pen or thin metal object to press the RESET button, located on the tuner box.

You can recover factory default settings using the RESUME function located on the system menu. With "YES" flashing, press the MODE button (8) to activate.

Audio Menu

Press the AUDIO button (20) on the control panel to access the audio menu. You can navigate through the audio menu items by pressing the AUDIO button repeatedly. Once the desired menu item appears on the display, adjust that option by pressing the VOL +/- buttons (17, 16) within 5 seconds. The unit will automatically exit the audio menu after five seconds of inactivity. The following menu items can be adjusted.

Bass Level

Use the VOL +/- buttons to adjust the Bass level range from "-7" to "+"

Treble Level

Use the VOL +/- buttons to adjust the Treble level range from "-7" to "+"

Balance

Use the VOL +/- buttons to adjust the Balance between the left and right speakers from "L12" (full left) to "R12" (full right).

Fader

Use the VOL +/- buttons to adjust the Fader between the rear and front speakers from "R12" (full rear) to "F12" (full front).

日日日

JMS2212

System Menu

1. Press and hold the PTY/CAT/MENU button (21) for more than 2 seconds to enter the system menu. The first menu item, "Key Beep", will appear on the display.

2. Press the VOL +/- buttons (17, 16) repeatedly to navigate the system menu.

3. Press the INFO/ENTER button (14) to adjust the highlighted menu item.

4. Press the PTY/CAT/MENU button to exit the system menu.

The following items can be adjusted:

Key Beep (Click / Beep / Off): Turn the audible beep On/Off (heard when functions/ buttons are selected).

LCD Backlight (1-10): Adjust LCD brightness.

LCD Contrast (1-10): Adjust LCD contrast.

• Tuning Region (USA/EUROPE): Set frequency spacing for various regions.

• Preset-Only Tuning (On/Off)

• SIRIUS Satellite Radio (only appears when SIRIUS tuner is connected and in SIRIUS mode)

Clear Skipped Channels (Yes / No)

• Skipped Channels: List of Channels (Skipped / Visible)

• Set Lock Code:

• Locked Channels: List of Channels (Locked / Unlocked)

• Enable Song Seek (Yes / No)

• Edit Favorite Songs: List of Favorite Songs (Enable / Disable / Delete)

• iPod Auto-Select (On / Off): Choose "On" to automatically detect and playback iPod when connected or "Off" to use the MODE button (8) to select the iPod source.

Rear Aux Enable (On / Off): Turn on to allow the use of auxiliary audio input at the rear of the radio chassis.

• Battery Alarm (Off / On): When On, if the battery supply voltage drops below 10.8V, indicating a possible problem with the vessel's battery charging system, the radio will issue a low battery display warning and an audio beep once per minute. The warning and sound will continue until the unit is turned off or the voltage is restored to more than 10.8 Volts.

• Battery Auto-Off (Off / On)

• Reset To Defaults : Press the INFO/ENTER button (14) to return the JMS2212 to factory default set up values.

• Update Firmware : Press the INFO/ENTER button (14) to apply recent software updates.

Equalizer

Press the EQ/LOUD button (19) to choose one of the following pre-defined bass and treble curves: USER > FLAT > ROCK > CLASSICAL > POP.

Loudness

Press and hold the EQ/LOUD button (19) to toggle loudness on/off. When listening to music at low volumes, this feature will boost the bass and treble ranges to compensate for the characteristics of human hearing.

Auxiliary Input

To access an auxiliary device:

1. Connect the portable audio player to the AUX IN cables on the back of the radio.
2. Press the MODE button (8) to select "Auxiliary" mode.
3. Press MODE again to exit "Auxiliary" mode and access another mode.

Liquid Crystal Display (LCD)

The current frequency and activated functions are shown on the LCD panel (1).

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. The LCD display will return to normal when the temperature increases to a normal range.

Scroll

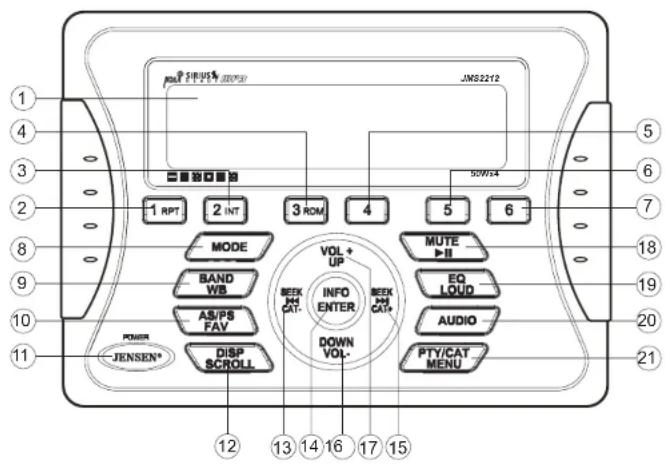

When the information is too long to be displayed on the LCD, press and hold the DISPI/ SCROLL button (12) to view the entire title. The information will scroll twice and then return to abbreviated text.

TUNER OPERATION

Select a Band

Press the BAND/WB button (9) to change between three FM bands and two AM bands. Press and hold the BAND/WB button to access the Weatherband (WB).

Manual Tuning

Press the SEEK >>| or << buttons (15, 13) to seek stations up/down step by step.

Auto Seek Tuning

Press and hold the SEEK >>| or << buttons (15. 13) to automatically seek the next or previous strong station.

NOTE: Seek tuning is not available for weather band channels. Use the up or down tuning buttons to manually select any of the seven available weather band channels.

Preset Stations

Six numbered preset buttons store and recall stations for each band.

Store a Station

Select a band (if needed), then select a station. Press and hold a 1-6 preset button for two seconds. The preset number will appear in the display.

Recall a Station

Select a band (if needed). Press a 1-6 preset button to select the corresponding stored station.

Automatically Store / Preset Scan (AS/ PS)

Automatically Store

Select an AM or FM band. Press and hold the AS/PS/FAV button (10) for more than 2 seconds to automatically select 18 strong stations (12 for AM). "Storing Presets" appears on the screen and the new stations replace any stations already stored.

Preset Scan

Select a band. Press AS/PS/FAV button (10) to scan stations stored in the current band. The unit will pause for 5 seconds at each preset station. Press AS/PS/FAV again to stop scanning when the desired station is reached.

RBDS Operation

This unit is equipped to display RBDS (Radio Broadcast Data Service) information when broadcast by the radio station.

NOTE: Radio stations broadcasting RBDS may not be available in your listening area.

In FM radio mode, press the PTY/CAT/MENU button (21) to access the PTY menu and choose from the following Program Type (PTY) options: ANY / News / Information / Sports / Talk / Rock / Classic Rock / Adult Hits / Soft Rock / Top 40 / Country / Oldies / Soft / Nostalgia / Jazz / Classical / Rhythm and Blues / Soft Rhythm & Blues / Foreign Language / Religious Music / Religious Talk / Personality / Public / College / Weather / Emergency Test / ALARM! ALARM!

To search for stations in a PTY category:

1. Press the PTY/CAT/MENU button (21) to view the current PTY category.
2. Press the SEEK >> or << buttons (15, 13) to move through the list of available categories and select the program type you wish to search.
3. After selecting the desired PTY, press the INFO/ENTER button (14) to search the band for broadcasts of this type. "PTY Search" is displayed while the tuner is searching.

NOTE: Performing a PTY search on "ANY" will Seek Tune and stop on any station broadcasting RBDS, regardless of the program type.

日日

JMS2212

Weather Band Operation

What is the NOAA Weather Radio/Weather radio Canada?

NOAA (National Oceanic and Atmospheric Administration) is a nationwide system that broadcasts local weather emergency information 24 hours a day via the National Weather Service (NWS) network. The U.S. network has more than 530 stations covering the 50 states as well as the adjacent costal waters, Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific Territories. Each local area has its own transmitting station and there are a total of seven broadcasting frequencies used. A similar system is available in Canada under the Weatherradio Canada service administered by Environment Canada.

Tuning to Weatherband

Press and hold the BAND:WB button (9) to access the Weatherband. The indication "WB" will appear on the display panel, along with the current number and channel indication: "WB-1", "WB-2", "WB-3", "WB-4", "WB-5", "WB-6" or "WB-7". The seven frequencies are shown in the following table:

Table 1: WB Frequencies

Frequency (MHz) Preset
162.400 2
162.425 4
162.450 5
162.475 3
162.500 6
162.525 -
162.550 1

The above table also shows which preset button will access the frequency. Note that one frequency cannot be accessed using a preset button. The frequency can only be reached using the tuning controls.

Use the SEEK >> or < buttons (15, 13) or the preset buttons to tune to each of the seven channels until you find the weatherband station broadcasting in your area.

How many stations can I expect to receive?

Since the broadcasts are local weather and information, the transmission power is usually very low (much less than standard AM or FM stations) so you will usually receive only one station unless you are on the edge of two or more broadcast signals. The most you will receive will be two or three, and that is rare.

Is it possible I won't receive any stations?

Depending on where you are located, there is a possibility you will receive only a very weak signal or none at all. Also, similar to AM and FM signals, weatherband signals are subject to surrounding conditions, weather, obstructions of the signal by hills or mountains, etc.

DIGITAL FILE PLAYBACK

If the user connects a USB mass storage device, the radio automatically powers on, if necessary, and switches to digital file playback mode and selects that physical media. The bottom left corner of the LCD displays the name of the source. Changing modes or turning off the radio pauses playback. Playback will resume exactly where paused when returning to digital file playback mode.

Inserting a USB Device

The wired USB connector is at the rear of the radio. Insert a USB device to automatically access USB mode and begin playback.

Controlling File Playback

Selecting Files

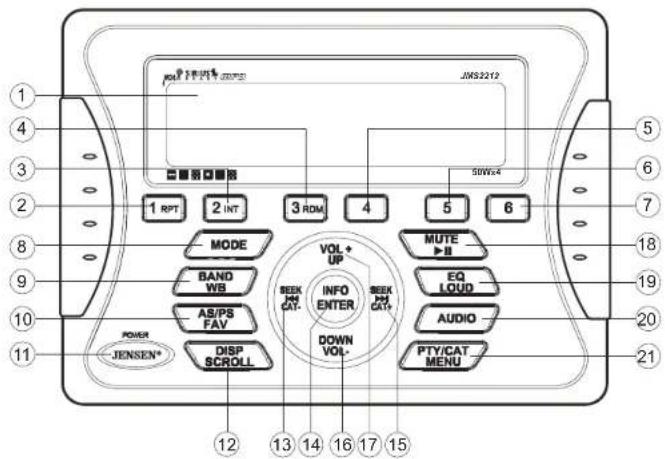

Press the SEEK >>| (15) or SEEK |<< button (13) to advance to the next track/file in the current folder. The selected track number will appear on the display. Press and hold the SEEK >>| or |<< button to fast forward or fast reverse. Playback resumes when the button is released.

Play/Pause

Press the MUTE/> button (18) to suspend playback. "Pause" is displayed on the screen. Press the MUTE/> button again to resume play.

Repeat Play

• Press the 1/RPT button (2) during disc play to repeat the current track.
• Press 1/RPT again to stop repeat play.

Previewing Tracks

Press the 2/INT button (3) to play the first 10 seconds of each track in the current folder sequentially. Press 2/INT again to stop Intro Scan and resume normal play at the current track.

Random Play

• Press the 3/RDM button (4) during disc play to play all tracks in the current folder in random, shuffled order.

• Press 3/RDM again to stop random play.

Folder Navigation (MP3 Only)

• Press the PTY/CAT/MENU button (21) to view a list of all songs in the current folder.
• Press the PTY/CAT/MENU button again to navigate up through the file structure.
• Press the VOL+/UP (17) and DOWN/VOL - (16) buttons to navigate the list.
• Press the INFO/ENTER button (14) to play the highlighted song or view files in the selected folder. Continue pressing INFO/ENTER until the desired file is selected.
  The unit will automatically exit the folder navigation menu after 5 seconds of inactivity.

MP3 Specifications

Notes on MP3 Playback

• Any directory that does not include an MP3 file is skipped
  Maximum number of folders: 512 (including skipped directories)
  Maximum number of fold levels: 12 Maximum number of (MPD) 500%
  Maximum number of MP3 files: 999
  Maximum number of characters for MP3 file name and folder name: 32
  Sampling frequency: 16KHz, 22.05KHz, 24KHz, 32KHz, 44.1KHz, 48KHz
• Bit rates: maximum 384 Kbps
  Maximum number of Characters of ID3 Tag:
  ID3 Tag version 1.0:32
  ID3 Tag version 2.x:32

File Playing Order

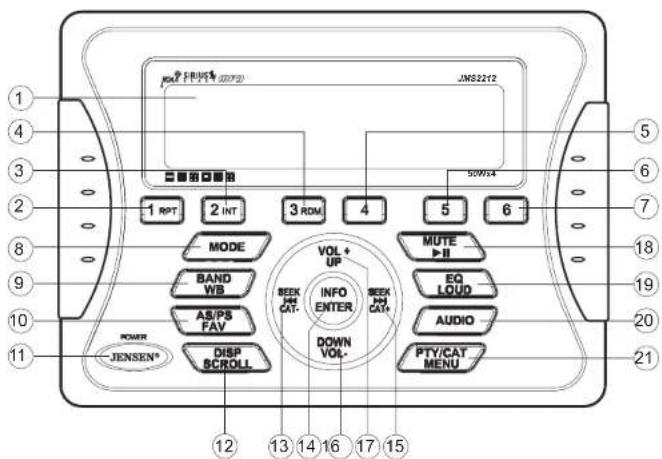

Files will be continually played sequentially within the current folder. To play songs in another folder, press the PTY/CAT/MENU button (21) twice to move up a folder level. Press the VOL +/UP (17) and DOWN/VOL - (16) buttons to navigate the list and then press the INFO/ENTER button (14) to access the selected song or folder.

You can set the order in which MP3/WMA are to be played by storing them with their file names beginning with play sequence numbers such as "01" to "99".

NOTE: SIRIUS is available in the US for subscribers with addresses in the continental US and is available in Canada for subscribers with a Canadian address. Required subscription plus compatible SIRIUS tuner and antenna are required and sold separately. To subscribe to SIRIUS Satellite Radio on the internet, visit sirius.com, or call 888-539-7474. Have your SIRIUS ID ready (SIRIUS ID is located on the back of the SIRIUS tuner or by tuning to Channel 0). SIRIUS programming is subject to change. Visit sirius.com for the most complete and up-to-date channel lineup and product information. "SIRIUS" and the SIRIUS dog logo and related marks are trademarks of Sirius Satellite Radio Inc. All rights reserved.

Switching to SI RUSatellite Radio (Requires optional SI RUStuner)

Press the MODE button (8) as many times as necessary to change the mode to SIRIUS radio mode.

Accessing your SI R I US RADIO ID

To display your SIRIUS radio ID, use the SEEK < button (13) to tune to channel "000". The screen will display "SIRIUS ID" with the SID displayed in the middle of the LCD screen. The SIRIUS radio ID is 12 characters long.

JMS2212

Selecting a Band

In SIRIUS mode, press the BAND/WB button (9) to access the SIRIUS user-preset channel groups in the following order: SR1, SR2, SR3.

Category Tuning

1. Press the PTY/CAT/MENU button (21) to access Category mode.
2. While in category mode, press SEEK >>/CAT+ or SEEK <</CAT- buttons (15, 13) to choose a category.
3. Press the VOL +/- buttons (17, 16) to choose desired channels in that category. (The current channel number within the chosen category will always be the default first channel tuned.)
4. Press the INFO/ENTER button (14) to play the highlighted channel and return to channel tuning mode.

Channel Up/Down Tuning

Press the SEEK |<>| buttons (13, 15) to search for a channel. Press and hold the SEEK buttons to fast search.

Direct Tuning Mode

1. Press and hold the INFO/ENTER button (14) to enter direct tuning mode.
2. Press VOL +/- buttons (17, 16) to change the first of three digits for the desired channel in the direct entry screen.
3. Press the INFO/ENTER button to confirm the entered digit and move to the second digit field.
4. Press VOL +- buttons to select the second digit.
5. Press the INFO/ENTER button to confirm the entered digit and move to the third digit field.
6. Press VOL +/- buttons to select the third digit.
7. Press the INFO/ENTER button to confirm the three digit channel and tune to the selected channel.

Storing Preset Channels

The preset buttons (1-6) can be used to store 6 channels, allowing convenient access to your favorite channels.

Programming Channels

1. Select the channel you want to store in memory.
2. Press and hold a 1-6 preset button until the corresponding preset button number appears.
3. Repeat steps 1 and 2 to program additional channels.

Preset Recall

Press one of the six preset buttons to directly select a preset channel stored in the current band.

Preset Scan

Press AS/PS/FAV button (10) to scan stations stored in all three user-preset channel groups (SR1, SR2 and SR3). The unit will pause for 10 seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached.

JMS2212

Preset Tuning

In Preset Tuning Mode, you can use the SEEK | / > | buttons (13, 15) to access all 18 preset stations in sequential order. Access preset tuning mode through the system menu. Set Preset-Only Tuning to "ON."

Alternate Display Mode

Press the DISP/SCROLL button (12) to change the display information between single and dual line text display. In dual line mode, both artist and title are available for viewing.

Press and hold the DISP/SCROLL button to scroll the Artist/Song Title information.

While in category tuning list mode, press the DISP/SCROLL button in sequence to change the display information from Channel Name, Artist, and Song Title.

Satellite Signal Strength

The display will indicate satellite reception strength as shown below

SignalStrengthStrengthDisplay
NoSignal	YX
Weak	Y.
Good	Y.I
Excellent	Y.II

Channel Lock

Access Channel Lock through the System Menu under the "SIRIUS Satellite Radio" menu. See "System Menu" on page 6.

1. Select "Set Lock Code."
2. No channels can be locked with the default 0000 code. To set the lock code:
   a. Press the VOL +/- buttons (17, 16) to enter the first digit of the default code.
   b. Press the INFO/ENTER button (14) to move to the next digit.
   c. Repeat above steps to enter all 4 digits of the default code
   d. Press the VOL +/- buttons to enter the first digit of the new code.
   e. Press the INFO/ENTER button to move to the next digit.
   f. Repeat above steps to enter all 4 digits.
   g. Repeat above steps to confirm the new code.
3. After setting a new four digit code, you can lock channels by entering the "Locked Channels" menu.
4. Upon entering the Locked Channels list, you will be prompted to enter your four digit code.
   a. Press the VOL +/- buttons to enter the first digit.
   b. Press the INFO/ENTER button to move to the next digit.
   c. Repeat above steps to enter all 4 digits.

5. After entering the code, you can navigate the list using the VOL +/- buttons to highlight the channels.

6. Press the INFO/ENTER button (14) to Lock (indicated by a icon) or Unlock (the selected channel.

Favorites (Song/ Artist Seek)

This feature lets you search for and store up to 15 Artist/Song combinations on SIRIUS Satellite Radio. To enable favorites notification, turn Enable Song Seek on under the "SIRIUS Satellite Radio." See "System Menu" on page 6.

1. Select "Enable Song Seek" from the "SIRIUS Satellite Radio" submenu on the System Menu.
2. Press the INFO/ENTER button (14) to select "Yes".

Select/Set Favorite Song or Artist

1. While the current song is playing, press and hold the AS/PS/FAV button (10).
2. Press the INFO/ENTER button (14) to select the Artist to be stored or press and hold the AS/PS/FAV button to select the Song to be stored.
   Next time the stored artist or song is played on SIRIUS Satellite Radio, you will be notified with an alert and can then choose to tune to the channel playing the Song or Artist.

Remove Favorite Song or Artist

The list of stored Artists/Songs can be managed through the System Menu under the "SIRIUS Satellite Radio" menu. See "System Menu" on page 6.

1. Select "Remove Favorites".
2. Select items to be removed from notification list.

JMS2212

iPod® OPERATION

This unit is equipped with an iPod ^9 ready function that will allow you to control your iPod (if compatible) using the control panel buttons. This unit is made for the following iPod models:

• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPod with video
  iPhone
  iPhone 3G
  iPhone 3GS

NOTE: Earlier model iPod's are not supported because they do not Implement the required control protocol. Also, the iPod Shuffle is not supported because it does not utilize the 30-pin Apple iPod Connector. These unsupported iPod models may be connected to the radio using the Auxiliary Inputs.

Accessing iPod Mode

The unit will automatically switch to iPod mode when an iPod is plugged into the iPod cable.

To return to the iPod menu from any other source, press the MODE button (8) on the control panel or remote control until "iPod" appears on the display.

Turning the iPod On/Off

The iPod power turns on automatically when an iPod is connected to 30-pin iPod cable, as long as the vehicle ignition is turned on. You can turn the iPod off by disconnecting it from the cable or by turning the ignition off. When the ignition is turned off, the iPod

will pause and then enter sleep mode after 2 minutes. While the iPod is connected, the power cannot be turned on or off from the iPod itself.

NOTE: The iPod will continuously recharge when connected to the unit, as long as the vehicle ignition is turned on.

Controlling Playback

Pausing Playback

During playback, press the MUTE/> button (18) to pause the iPod player. "Pause" will appear on the LCD. Press MUTE/> again to resume playback.

Repeat Play

During playback, press the 1/RPT button (2) to repeat the current song. "Repeat" will appear on the LCD. Press 1/RPT again to stop repeat playback.

Random Play

During playback, press the 3/RDM button (4) to play all songs in the current category in random order. Random play will begin once the current song has finished playing. "Shuffle" will appear on the LCD. Press 3/RDM again to stop random playback.

Selecting Tracks

During playback, press the SEEK|<|>>| buttons (13, 15) to play the previous or next track in the current category. Press the SEEK|< button (13) once to play the song from the start position or press SEEK|< twice to play the previous track.

Press and hold the SEEK | /> button (13, 15) to fast reverse/forward the song.

NOTE: If you press and hold the SEEK (</>>) button to change the current song to the previous/next song, you will exit fast reverse/backward mode.

Alternate Display Information

Press DISP/SCROLL button (12) to change the display information in the following order: ARTIST NAME > SONG TITLE > FOLDER NAME.

JMS2212

Playlist Search

Press the PTY/CAT/MENU button (21) to access Playlist selection mode. While in Category mode, press the VOL +/- buttons (17, 16) to choose file search by Playlist, Artist, Album, Genre, Song, Audiobook or Podcast. Press the INFO/ENTER button (14) to select the search mode. Use the VOL +/- buttons (17, 16) buttons to search the available files on the iPod. Press the INFO/ENTER button to play the selected song or file.

日

CARE AND MAINTENANCE

• Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits.
• Keep the product away from dust and dirt, which can cause premature wear of parts.
• Handle the product gently and carefully. Dropping it can damage circuit boards and cases, and can cause the product to work improperly.
• Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the product.
• Use and store the product only in normal temperature environments. High temperature can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts.

Ignition

The most common source of noise in reception is the ignition system. This is a result of the radio being placed close to the ignition system (engine). This type of noise can be easily detected because it will vary in intensity of pitch with the speed of the engine.

Usually, the ignition noise can be suppressed considerably by using a radio suppression type high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ this wire and resistor but it may be necessary to check them for correct operation.) Another method of suppression is the use of additional noise suppressors. These can be obtained from most CB/A radio or electronic supply shops.

Interference

Radio reception in a moving environment is very different from reception in a stationary environment (home). It is very important to understand the difference.

AM reception will deteriorate when passing under a bridge or when passing under high voltage lines. Although AM is subject to environmental noise, it has the ability to receive at great distance. This is because broadcasting signals follow the curvature of the earth and are reflected back by the upper atmosphere.

JMS2212

TROUBLESHOOTING

Symptom Cause	Solution
No power The vessel's accessory switch is not on	If the power supply is properly connected to the vessel's accessory terminal, switch the ignition key to "ACC"
	The fuse is blown Replace the fuse
No sound Volume is too low Adjust volume to audible level
			Wiring is not properly connected	Check wiring connections
The operation keys do not work	The built-in microcomputer is not operating properly due to noise	Press the RESET button
Cannot tune to radio station, auto-seek does not work	The antenna cable is not connected	Insert the antenna cable firmly
	The signals are too weak Select a station manually

SPECIFICATIONS

FM Radio

Frequency Coverage (USA) 87.5 to 107.9 MHz
Frequency Coverage (Europe) 87.5 to 108 MHz Sensitivity (S/N=30dB) 4μV
Image Rejection 45 dB
Stereo Separation. >25 dB

AM/MW

Frequency Range (USA). 530-1710 kHz
Frequency Range (Europe) 522-1620 kHz
Sensitivity (S/N=20dB) 36 dB

General

Operating Voltage DC 12 Volts

Grounding System Negative Ground

Speaker Impedance 4-8 ohms per channel

Tone Controls:

Bass (at 100 Hz) :±10 dB

Treible (at 10 kHz) : ±10 dB

Power Output 50w x 4

Current Drain. 15 Ampere (max.)

Commander Dimensions. .5.15" (W) x 1.2" (D) x 3.7" (H)

Tuner/Amp Dimensions. .8.35" (W) x 6.55" (D) x 2.4" (H)

JMS2212

Graves (a 100 Hz) :±10 dB

Agudos (a 10 kHz) :±10 dB

Operation Weather Band

Reproduction/Suspendre Reproduction

Allumer/ Eteindre I'ipod

Commander la reproduction

Suspendre la reproduction

Current Drain. 15 Ampere (max.)

Commandeur Dimensions. .5.15" (W) x 1.2" (D) x 3.7" (H)

Tuner/Amp Dimensions. 8.35" (W) x 6.55" (D) x 2.4" (H)

www.asaetelectronics.com

www.jensenmarinedirect.com

© 2011 ASA Electronics Corporation

v.021611
