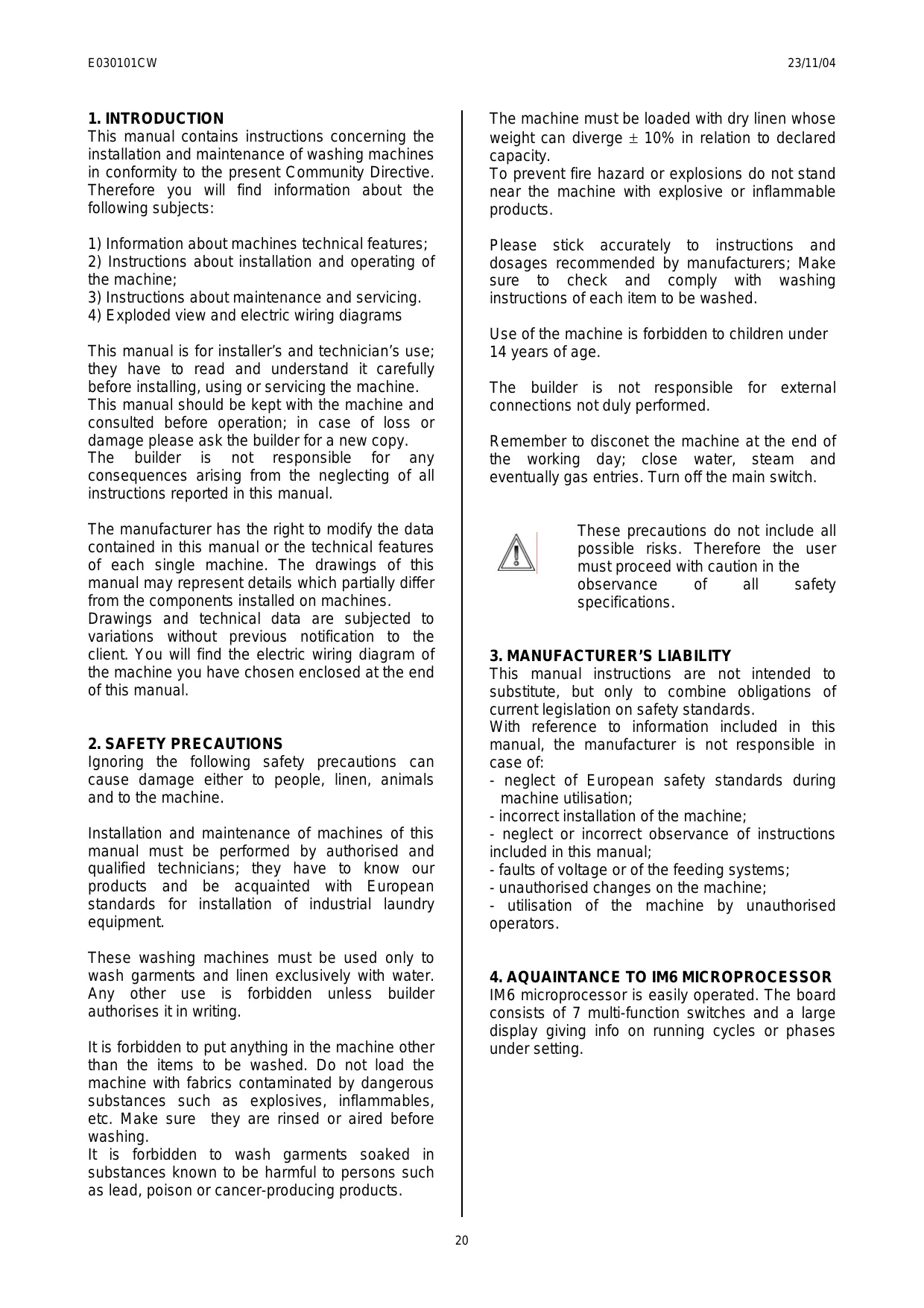

1. INTRODUCTION

This manual contains instructions concerning the installation and maintenance of washing machines in conformity to the present Community Directive. Therefore you will find information about the following subjects: The machine must be loaded with dry linen whose weight can diverge ± 10% in relation to declared capacity. To prevent fire hazard or explosions do not stand near the machine with explosive or inflammable products.

1) Information about machines technical features;

2) Instructions about installation and operating of

3) Instructions about maintenance and servicing.

4) Exploded view and electric wiring diagrams

Please stick accurately to instructions and dosages recommended by manufacturers; Make sure to check and comply with washing instructions of each item to be washed. Use of the machine is forbidden to children under 14 years of age. This manual is for installer’s and technician’s use; they have to read and understand it carefully before installing, using or servicing the machine. This manual should be kept with the machine and consulted before operation; in case of loss or damage please ask the builder for a new copy. The builder is not responsible for any consequences arising from the neglecting of all instructions reported in this manual. The builder is not responsible for external connections not duly performed. Remember to disconet the machine at the end of the working day; close water, steam and eventually gas entries. Turn off the main switch. The manufacturer has the right to modify the data contained in this manual or the technical features of each single machine. The drawings of this manual may represent details which partially differ from the components installed on machines. Drawings and technical data are subjected to variations without previous notification to the client. You will find the electric wiring diagram of the machine you have chosen enclosed at the end of this manual. These precautions do not include all possible risks. Therefore the user must proceed with caution in the observance all safety specifications.

3. MANUFACTURER’S LIABILITY

This manual instructions are not intended to substitute, but only to combine obligations of current legislation on safety standards. With reference to information included in this manual, the manufacturer is not responsible in case of: - neglect of European safety standards during machine utilisation; - incorrect installation of the machine; - neglect or incorrect observance of instructions included in this manual; - faults of voltage or of the feeding systems; - unauthorised changes on the machine; - utilisation of the machine by unauthorised operators.

2. SAFETY PRECAUTIONS

Ignoring the following safety precautions can cause damage either to people, linen, animals and to the machine. Installation and maintenance of machines of this manual must be performed by authorised and qualified technicians; they have to know our products and be acquainted with European standards for installation of industrial laundry equipment. These washing machines must be used only to wash garments and linen exclusively with water. Any other use is forbidden unless builder authorises it in writing.

4. AQUAINTANCE TO IM6 MICROPROCESSOR

IM6 microprocessor is easily operated. The board consists of 7 multi-function switches and a large display giving info on running cycles or phases under setting. It is forbidden to put anything in the machine other than the items to be washed. Do not load the machine with fabrics contaminated by dangerous substances such as explosives, inflammables, etc. Make sure they are rinsed or aired before washing. It is forbidden to wash garments soaked in substances known to be harmful to persons such as lead, poison or cancer-producing products.

E030101CW 23/11/04 show DELAIED START 00.00 delay is expressed in hour and minutes. Use switches + and – to introduce the wisehd delay (maximum 12 hours). Then push “START”. Display shows “WAIT Prg. 1” and count-down, at which end programme will automatically start. Delaied start may be interrupted by pushing “STOP”. In case of black out the counting down will restart from the point it has been interrupted.

5. SELECTING AN INSTALLED PROGRAMME

The Microprocessor IM6 contains 30 programmes in standard machines and 50 programmes in ICM machines. Programmes 1 to 8 have anlready been installed by manufacturer and may be modified or cancelled by users. Programmes 9 to 30/50 may be programmed and installed by users. Please see annex to check the composition of the programmes installed by manufacturer. In order to select one of the pre-set programmes, please turn on the machine, software version will shortly appear, display will then show “door open”. Load linen in the drum, close door; display will sho: “select programme”. Use switches + and – to scroll programmes. Programmes will be shown in sequence with no. (1,2,3 etc.) and dedicated linen i.e.: programme 5 – wool.

8. READING DISPLAY

After starting a programme, display will show continuous info on running cycles. mot. 1

On the first line following info may be read: - running pre-set motor. Pls remember that motor revolving may be pre-set in time, (mins, secs), direction of rotation (clockwise, anti-clockwise) and rotation speed (rpm). Running motor no. is 1. During the spin cycle the motor kind is not display as the drum tourning only clockwise. - Drum revolving speed, speed shown in the pic. is 40 rpm sign moves to show direction of rotation whether clockwise or anti-clockwise - Temperature shown in Celsius. Picture

6. STARTING A PROGRAMME

After selecting a programme as per §5, push “START”. Programme will start and will automatically bring all operations to end. will appear during shows 25°C. water heating flashing. Water level in the drum in centimetres. Picture shows 2 cms. Durino water loading, will appear flashing. 2nd line shows running programme, picture shows prg 1. In the display appears the chosen number programmes and eventually its comments. 3rd line shows following info: - Running cycle: picture shows pre-wash 1 - Remaning time to complete the

7. DELAIED START

It is possibile to delay programme start. Select programme as per §5, for example prg 1;to introduce delayed start press MENU. Display will

programme: near to the symbol , goes by time in hours, minutes and seconds (for ex. The cycle will end in 0 hour, 7 minutes and 24 seconds). The machine gets the inputs and memorie the installation conditions, for this reason the remaining time will be correct only after the first executions. Cycle count-down: running cycle time flows to zero. Count down times of all programmes have 60 minutes. E030101CW 23/11/04

9. SKIP & STOP

It is possibile to skip steps by pushing “+”. A quick push will allow a fast forward. A longer push will allow ti skip a full cycle; in this case, machine will stand-by until “START” . Programme no. will disappear and a parameter subject to alteration will appear; by pushing MENU more times, all parameters enabled to modifications will flow. “TEMP” “LIV” If you wish to interrupt programme, please push “STOP”. In this case, programme will be stopped and terminated. It will be possible to open the door once the safety self-controls will be carried out by the microprocessor. “VEL” “TIME” During these self-controls, display will show: “STOP –WAIT”. At the end of procedure, display will show “END” and it will be possible to open the door. mot. 1 modification of final temperature of running cycle modification of final water level of running cycle modification of drum revolving speed modification of running cycle times

10. SOAKING

It is possible to stop the phases of pre-wash, wash and rinse, in order to have a soak-wash. Drum will stop with water load as long as required. To activate soak-washing push “START” for 5 seconds. Display will show “SOAK” and its residual time flowing on. PREWASH 1 00:07:24 One or more parameters may NOT appear by pushing “MENU” if alteration of the parameter is not allowed in that moment (for instance it is not possibile to modify temperature if washer is spinning.) Moreover, every parameter has a range min./max. (i.e. it is not possibile to increase drum rotation to 99 rpm if machine is washing). To carry-out alterations, it is enough to push “+” and “-“ on the switch-board while parameter to be altered is displaied Every time “+” and “-“ are pushed, values will be increased or decreased. To speed-up alteration, please push on “+” and “-“.

MODIFYING LEVELS, TIMES, TEMPERATURES. It is possibile to alter such parameters during machine operations. Alterations will not affect the memory and will be cancelled at the end of programmes. If decisive alterations are required, please refer to programming. (see §16). Procedure to make these changements (instantly but temporary) here below: During machine operations, please push “MENU”.

12. DOOR OPENING

Door may be opened after microprocessor has carried-out safety self-controls; display will show “END”, please then push “DOOR OPENING” to release lock.

E030101CW 23/11/04 Display shows “PROGRAMME 1”. Push switches “+” o “-“ to scroll stored programmes until display shows the programme you are looking for “PROGRAMME 3”. Push “ENTER” to select it. Display shows “PRE-WASH 1”, being the first cycle of the selected programme. Use switches “+” & “-“ to scroll cycles composing the programme until display shows the cycle to be cancelled, i.e. “WASH 3” . Push “ENTER” to select. Display shows “ENTER FIRST””. Use swtiches “+” & “-“ to scroll commands until display shows “CANCEL”. Push “ENTER” to cancel cycle. Display shows “CYCLE CANCELLED: CONFIRMING?”. Push “ENTER” to confirm or “STOP” to cancel. Push then “MENU” more times to scroll upwards to other menus. Example 2: the requirement is to enter cycle RINSE1 after (or before) third cycle WASH3 in PROGRAMME 3 (see the par.29). Open door to enter programming. Display shows “OPEN DOOR”. Push “MENU”. Display shows “PASSWORD”. Push on “START” 6 times. Display shows “PROGRAMMES SETUP/MODIFICATION”. Push “ENTER”. Display shows “PROGRAMMe 1”. Use swithces “+” & “-“ to scroll stored programmes until display shows programme you are looking for, i.e.: “PROGRAMME 3”. Push “ENTER” to select it. Display shows “PRE-WASH 1” which is cycle no. 1 of selected programme. Use switches “+” & “-“ to scroll cycles composing programme, until display shows the cycle where you wish to enter the new one (fore or aft) i.e. “WASH 3”. Push “ENTER” to select it . Display shows “ENTER FORE”. Use switches “+” & “-“ to scroll commands until display shows “ENTER AFT [or FORE]”. Push “ENTER” to execute. Display will show the listing of present cycles in the library. Use switches “+” & “-“ to scroll available cycles until the name of the required cycle appears i.e. “RINSE 1” . Push “ENTER” to confirm. Push then MENU more times to scroll upwards to other menues. Example 3: it is required to substitute the 3rd cycle WASH 3 of programme 3 with cycle WASH 1 (see the par.29). Open door toh ave access to programming. Display shows “OPEN DOOR”. Push “MENU”. Display shows “PASSWORD”. Push 6 times on “START”. Display shows “PROGRAMMES SET UP/MODIFICATIONI”. Push “ENTER”. Display shows “PROGRAMME 1”. Use switches “+” & “-“ to scroll stored programmes until the required is reached i.e.“PROGRAMME 3”. Press “ENTER” to select. Display shows “PREWASH 1” first cycle of selected programme. Use switches If washer has no handles, it will be enough to push “DOOR OPENING” switch; if washer is a model with handle if the washing machine has not the handle, the door will open authomatically when the button “DOOR OPENING” is pushed. If door-glass has a handle, please open by rotating it or by pushing on its button, after pushing on door-opening switch after 8 seconds..

13. PROGRAMMING BASICALS

Please bear in mind the following, when setting up a new programme

A step is the basical element affected by parameters A cicle consists of steps in logical sequence A programme consists of cicles in logical sequence

14. PROGRAMMES

Installing a new programme means setting up A logical sequence of cicles. Our IM9 microprocessor has 30 (50 for ICM machines) programmes numbered in sequence (1,2,3, and so on); first 8 programmes are factory installed, (see §28, they may also be modified); programmes 9 to 30/50 are free.

15. MODIFYING AN EXISTING PROGRAMME

Possibile modifications: - Cancellation of one of the cycles - Storage of a cycle in the library of the existing cycles - Substitute one of the cycles in the sequence, with one from the library. - Example 1: in case we wish to cancel 3rd cycle (WASH 3)from PROGRAMME 3.( see the par.29) Open door-glass; display shows “OPEN DOOR”. Push “MENU”. Display shows “PASSWORD”. Push 6 times “START”. Display shows “PROGRAMMES CREATION/MODIFICATIONI”. Push “ENTER”.

E030101CW 23/11/04 “+” & “-“ to scroll cycles composing programme, until display shows cycle to be substituted for instance “WASH 3”. Push “ENTER” to select it. Display shows “ENTER FORE”. Use switches “+” & “-“ to scroll commando until display shows “MODIFY”. Push “ENTER” to enter substitution. Display shows listing of cycles existing in the library. Use switches “+” & “-“ to scroll available cycles, unitl the cycle to be entered will appear: “WASH 1”. Push “ENTER” to confirm. Push more times on “MENU” to scroll upwards to other menu. PREWASH 2, MODIFY”. As we have to proceed to insert one cycle just after the selected PREWASH 2, use the keys “+” or “-“ to select the operations, until on the display appears the operation “INSERT AFTER”. Push “ENTER”. On the display appears the list of cycles memorized in the library. Use the keys “+” or “-“ to select the cycles available until appears the name of the cycle to insert: “SPIN 1”. Push enter to insert the second cycle. On the display appears “PROGRAMME 9, SPIN 1, INSERT AFTER”. As we have to proceed to insert one cycle just after the SPIN 1 just inserted, push “ENTER”. On the display appears the list of cycles stored in the library. Use the keys “+” or “-“ to select the cycles available, until appears the cycle’s name to insert: “RINSE 3”. Push “ENTER” to insert the third cycle. On the display appears “PROGRAM 9, RINSE 3, INSERT AFTER”. As we have to proceed to insert one cycle just after the RINSE 3 just inserted, push “ENTER”. On the display appears the list of cycles stored in the library. Use the keys “+” or “-“ to select the cycles available, until appears the name of the cycle to insert “SPIN 3”. Push “ENTER” to insert the fourth cycle. On the display appears “ PROGRAM 9, SPIN 3, INSERT AFTER”. As we have to proceed to insert one of the cycles just after the SPIN 3 just insert, push “ENTER”. On the display appears the list of the cycles stored in the library. Use the keys “+” or “-“ to select the cycles available, until appears the name of the cycle to insert : “ ANTI-WRINKLE UNROLL 1”. Push “ENTER” to insert the fifth cycle. Push the key “MENU” more times to scroll upwards to other menus.

16. SET-UP OF A NEW PROGRAMME

Setting up a new programme is mainly the construction of a logical sequence of cycles chosen among those available in the library (see the par.30). In case of an unexisting cycle, yet necessary for a programme set-up, you will have to proceed with the creation of a new programme including the missing cycle. The new programme will have to be stored in the memory of an empty programme; being programmes 1 to 8 already installed, the first programme available will be no. 9. Example: it is required to set-up a new programme which will be numbered as 9 and made of: Cycle 1: PREWASH 2 Cycle 2: SPIN 1 Cycle 3: RINSE 3 Cycle 4: SPIN 3 Cycle 5 : ANTI-WRINKLE DE-ROLL To enter programming, open door, display will show “OPEN DOOR “ Push “MENU” Display shows “PASSWORD” Push “START” 6 times Display shows “SET-UP/MODIFY PROGRAMMES” Push “ENTER”. Display shows “PROGRAMME 1” . Use switches “+” & “-“ to scroll stored programmes until display shows the number of programme being implemented: “PROGRAMME 9 : FREE”, press “ENTER” to select it . Display appears “PROGRAM 9”. Push “ENTER” and verify that the program 9 is free. Display appears “ PROGRAM 9 FREE”. Push “ENTER” to start the programming. On the display appears one of the following operations; “ MODIFY”, “ INSERT BEFORE”, “INSERT AFTER”, “CANCEL”. Use the key “+” or “-“ on the keyboard until on the display appears the operation “ MODIFY”. Push “ENTER”. On the display appears list of cycles memorized in the library. Use the keys “+” or “-“ to select the cycles available until appears the name of the cycle to insert: “ PREWASH 2”. Push “ENTER” to insert the first cycle. On the display appears “ PROGRAMME 9,

17. PROGRAMME NAME

It is possible to give a specific name to every memorized programme, in order that it appears in any selection and execution phase. Example: you want to change the name of PROGRAMME 3. Open the door to enter in to programmation. “DOOR OPENED” appears in the display. Press “MENU”. Appears “PASSWORD”. Press six times “START”. Appears“CREATION/MODIFY PROGRAMMES”. Press “ENTER”. Appears “PROGRAMME 1”. Use “+” o “-“ untile appears what you have been looking for: “PROGRAMMA 3”. Press “DOOR OPENING”. Appears “PROG 3 ▓”. Use “+” o “-“ to move cursor in its left. Use STOP to cancel the text underlined by the cursor.Use “START” to activate cursor that will start to lighten.

E030101CW 23/11/04 scroll upwards to other menus. Example 2: it is required to enter a step of detergent loading in the cycle “WASH2”. To enter Programming, open door, display shows “DOOR OPEN”, press “MENU”, display shows “PASSWORD”, press 6 times “START”. Display shows “PROGRAMMES SETUP/MODIFICATION”. Use “+” & “-“ to scroll main menu until display shows “CYCLES SET-UP/MODIFICATION” press “ENTER”. Display shows “PRE-WASH”. Use “+” & “-“ to scroll all cycles until display shows “WASH”. Press “ENTER” until display shows “WASH1”. Use “+” & “-“ to scroll cycles until display shows “WASH2”. Press “ENTER”. Display shows “WASH2: STEP1 DRAIN”. Use “+” & “-“ to scroll steps in the sequenze until display shows “WASH2: STEP2 LOAD”. Press enter to select it, display shows “MODIFY”, use “+” & “-“ to scroll commands until display shows “ENTER AFT”, press “ENTER” to store new step. Display shows

“WASH2: STEP2 LOAD ENTER AFTER: DRAIN”

Use “+” & “-“ to scroll steps until display shows “DETERGENT”, press “ENTER” to confirm entry, then press “MENU” more times to scroll upwards to other menus. Example 3: It is required to modify water level in the water loading of cycle WASH 4. To enter programming, open door, display shows “DOOR OPEN”, press “MENU”, display shows “PASSWORD”, press 6 times “START”. Display shows “PROGRAMMES SET-UP/MODIFICATION” . Use “+” & “-“ to scroll main menu until display shows “CYCLES SET-UP/MODIFICATION. Press “ENTER”, display shows “PRE-WASH”. Use “+” & “-“ to scroll all cycles until display shows “WASH”, press “ENTER” , display shows “WASH1”, use “+” & “-“ to scroll stored cycles until display shows “WASH4” , press “ENTER”, display shows “WASH4: STEP 1 DRAIN”. Use “+” & “-“ to scroll steps in sequence, until display shows “WASH4 STEP2 LOAD”, press “ENTER” to select it, display shows “MODIFY”, press “ENTER” to modify step parameters. Display shows “WASH4 STEP2 LOAD MOTOR TYPE”. Use “+” & “-“ to scroll step parameters until display shows “WASH4: STEP2 LOAD LEVEL”. Press “ENTER”, display shows: “WASH4: STEP2 LOAD LEVEL 15 CM. Use “+” & “- “ to modify value parameter. Once required level is reached, please confirm by pressing “ENTER”. Display shows “STEP MODIFIED: CONFIRM?” Press “ENTER” to confirm or “STOP” to abort modification, press then “MENU” more times to scroll upwards to other menus. Example 4: It is required to modify temperature on heating step on cycle WASH2. To enter programming, open door: display shows “DOOR OPEN”, press “MENU”, display shows “PASSWORD”, then press 6 times on “START”, display shows Use “+” o “-“ to implent letters or numbers in the position the cursor is lighten. Press ENTER to stop the cursor and fixed the chosen cipher. Remember the name can be composed of 10 ciphers. Completed the writing pressing “MENU” several times, to go up in the superior menu.

18. CYCLES

Available cycles are the following 5: - pre-wash - wash - rinse - spin - unroll (anti-wrinkle) 40 cycles max each above mentioned operation may be implemented for a gross total of 200. Cycles will be identified by numbering, for instance: pre-wash1, pre-wash2,wash1, wash40, rinse1, rinse 36, spin3, spin33, and so on. Some are factory installed (and may be modified) And compose the existing library (see §30). During programming, some steps composing the cycle may not appear, meaning they are not Compatible with the running cycle, for example, it is not possibile to load detergents during spinning.

19. MODIFICATION OF AN EXISTING CYCLE

A cycle consists of a logical sequence of steps. Modification enables to: - cancel one of the steps in the sequence - enter one step within the ones already present in the sequence - modify steps parameters (see § 21) PLEASE NOTE THAT modifying a cycle will affect all programmes containing that cycle. Example 1: it is required to cancel Step 4 from WASH4. To start programming, open door, display shows “OPEN DOOR”, press “MENU”, display shows “PASSWORD”, press 6 times “START”, display shows “PROGRAMMES SETUP/MODIFICATION”. Use switches “+” & “-“ to scroll main menu until display shows “CYCLES SETUP/MODIFICATION, press “ENTER”. Display shows “PRE-WASH”, use switches “+” & “-“ to scroll all cycles until display shows “WASH”. Press “ENTER”, display shows “WASH1”, use switches “+” & “-“ to scroll stored cycles until display shows “WASH4”, press “ENTER”. Display shows “WASH4: STEP 1-DRAIN”. Use switches “+” & “-“ to scroll steps until display shows “WASH4: STEP 4 HEATING”, press “ENTER” to select it. Display shows “MODIFY”. Use “+” & “-“ to scroll commands until display shows “CANCEL”, press “ENTER” to cancel step. Display shows: “STEP CANCELLED: CONFIRM?” Press “ENTER” to confirm or “STOP” to abort cancellation. Press then “MENU” more times to

E030101CW 23/11/04 “PROGRAMMES SET-UP/MODIFY”. Use “+” & “-“ To scroll main menu until display shows “CYCLES SET-UP/MODIFY. Press. “ENTER”, display shows “PRE-WASH”. Use “+” & “-“ to scroll all cycles until display shows “WASH”. Press “ENTER”, display shows “ WASH1”, use “+” & “-“ to scroll cycles available until display shows “WASH2” . Press “ENTER”, display shows “WASH2”: STEP1 DRAIN”. Use “+” & “-“ to scroll steps in the sequence until display shows “WASH2 STEP4 HEATING” , press “ENTER” to select it. Display shows “MODIFY”. Press “ENTER” to modify step parameters. Display shows: “WASH2 STE4 HEATING MOTOR TYPE”. Use “+” & “-“ to scroll parameters until display shows WASH2: STEP4 HEATING TEMEPERATURE”. Press “ENTER”, display shows: STEP4 HEATING TEMP. 60° C”. Use “+” & “-“ to modify parameter value. Confirm new temp. data by pressing “ENTER”. Display shows “STEP MODIFIED: CONFIRM?” Press “ENTER” to confirm or “STOP” to abort modification. Press then “MENU” more times to scroll upwards to other menus. Example 5: it is required to modify the step of spin duration on cycle “SPIN3”. To enter programming, open door. Display shows “DOOR OPEN” , press “MENU” ,display shows “PASSWORD”, press 6 times on “START”. Display shows “PROGRAMMES SETUP/MODIFICATION”. Use “+” & “-“ to scroll main menu until display shows “SPIN”, press “ENTER”. Display shows “SPIN1”, use “+” & “-“ to scroll cycles available until display shows “SPIN3”. Press “ENTER”, display shows “SPIN3 : STEP 1 SPIN DURATION (40 RPM). Use “+” & “-“ to scroll steps in the sequence until display shows “SPIN3: STEP 3 SPIN DURATION (1000 rpm). Press “ENTER” to select it . Display shows “MODIFY”, press “ENTER” to modify step parameters. Display shows “SPIN3: STEP 3 SPIN DURATION DRUM SPEED”. Use “+” & “-“ to scroll step parameters until display shows “SPIN3 STEP3 SPIN DURATION TIME”. Press “ENTER”, display shows “SPIN3 STEP3 SPIN DURANTION 180 sec.” . Use “+” & “-“ to modify parameter value. When required time is reached, confirm with “ENTER”. Display shows “STEP MODIFIED: CONFIRM?. Press “ENTER” to confirm “STOP” to abort modification. Then press “MENU” more times to scroll upwards to other menus. new washing cycle will be WASH5. Also, pls bear in mind that cycles are composed by a step series. We may suppose that a washing cycle consists of the following steps: Step1 – water drain (up to 5 cms) Step2 – water load (up to 15 cms) Step3 – detergents load (i.e. 3 secs) Step4 – heating (i.e. up to 45° C) Step5 – washing duration (i.e. 5 mins) Suppose now during the cycle operation the motor be the n° 1 (see paragraph n° 31), and that the rotation speed be of 40 min./h. In this example, the machine, during the operation, behaves in the following way: it makes sure it does not have water inside the drum, then fill up the drum with water. It pours the detergent and proceed to the heating. Once it reaches the temperature wanted it flaps for about 5 minutes. We clarify that, before to start the programming, it is necessarily to have a clear idea on how it must be composed the new cycle and which are the operations that the machine has to execute. Then we start the programming of the new cycle inserting the step sequence wanted. To enter into the programming open the door. On the display appears “DOOR OPENED” . Press “ MENU”. On the display appears “PASSWORD”. Press 6 times “START”. On the display appears “CREATION/MODIFY PROGRAMMES”. Use the keys “+” or “-“ to select from the menu the operation “ CREATION/MODIFY CYCLES”. Press “ENTER”. On the display appears “PREWASH”. Use the key “+” or “-“ to select from the cycle menu the cycle that we want to create. In this case select “WASH”. Press “ENTER” to select. Display appears “WASH 1”. Use the key “+” or “-“ to select from the menu “ WASH 5”. Press “ENTER” to select. Display appears “ WASH 5; STEP 1; UNLOAD”. It could be possible now to use the key “+” or “-“ to select the operation from the step menu. However as the step wanted is already selected press “ENTER”. Display appears “WASH 5; STEP 1; UNLOAD TYPE MOTOR”. Use the key “+” or”-“ to select the step parameters. To modify one of the parameter value, press “ENTER” and use “+” or “-“ to increase or reduce the value. In this step modify the parameters TYPE MOTOR (same as 1), the drum speed (same as 40 rpm), the NIVEL (same as 5 cm) and the WDT (same for example to 3 minutes). When all parameters are programmed, press “MENU”. On the display appears “ STEP MODIFY: CONFIRM?”. Press

20. SET-UP OF A NEW CYCLE

Programming a new cycle is necessary when no such cycle as required is stored in the library of existing cycles. (see § 30) Example: a new washing cycle is required; pls make sure that no such cycle is already stored in terms of temperature, speed, levels and so on. Since 4 washing cycles are already stored, the

E030101CW 23/11/04 “ENTER” to confirm, or “STOP” to cancel. Display appears “ WASH 5: STEP 1: UNLOAD MODIFY Use “+” or “-“ to select “ WASH 5: STEP 1: UNLOAD INSERT AFTER”. Press “ENTER” to insert the second step. Display appears “ WASH 5: STEP 1: UNLOAD INSERT AFTER LOAD”. It could be possible now to use “+” or “-“ to select the operation from the step menu. However as the step wanted is already selected, press “ENTER”. Display appears “WASH 5: STEP 2: LOAD MODIFY”. Press “ ENTER”. Display appears “WASH 5: STEP 1: LOAD TYPE MOTOR”. Use “+” or “-“ to select the step parameters. To modify one of the parameters value press “ENTER” and use “+” or “-“ to increase or reduce the value. In this step modify the parameters TIPO MOTORE ( same as 1), DRUM SPEED ( same as 40 rpm), the level (same as, for example, to 15 minutes). When all parameters are programmed, press “MENU”. Display appears “STEP MODIFY: CONFIRM?”. Press “ENTER” to confirm, or “STOP” to cancel. On the display appears “ WASH 5: STEP 2: LOAD MODIFY”. Use “+” or “-“ to select “WASH 5: STEP 2: LOAD INSERT AFTER”. Press “ ENTER” to insert the third step. Display appears “ WASH 5: STEP 2: LOAD INSERT AFTER LOAD”. Use “+” or “-“ from the step menu select the step wanted “DETERGENT”; press “ENTER”. Display appears “ WASH 5: STEP 3: MODIFY DETERGENT”. Press “ENTER”. Display appears “WASH STEP DTERGENTS TIPO MOTORI”. Use “+” or “-“ to select the step parameters. To modify one of the parameters value, press “ENTER” and use “+” or “-“ to increase or reduce the value. In this step modify the parameters MOTOR TYPE ( same as 1), the DRUM SPEED (same as 40 rpm), put into active DETERGENT 1, the TIME (same as 30 seconds). Once all parameters are programmed, push “MENU”. On the display appears “ STEP MODIFIED: CONFIRM”. Press “ENTER” to confirm, or STOP” to cancel. Display appears “ WASH 5: STEP 3: DETERGENT MODIFIED”. Use “+” or “-“ to select the operation “ WASH 5: STEP 3: DETERGENT INSERT AFTER”. Press “ENTER” to insert the fourth step. Display appears “ WASH 5: STEP 3: DETERGENT INSERT AFTER LOAD”. Use “+” or “-“ to select the step wanted “HEATING”; press “ENTER”. Display appears “ WASH 5: STEP 4: “MODIFY HEATING”. Press “ENTER”. Display appears “WASH 5: STEP 4: HEATING TYPE MOTOR”. Use “+” or “-“ to select the step parameters. To modify one of the parameters value press “ ENTER” and use “+” or“-“ to increase or reduce the value. In this step modify the parameters TYPE MOTOR ( same as 1), the DRUM SPEED (same as 40 rpm), the temperature (same as 45°) and the WDT (same for example of 30 minutes). When all the parameters are programmed press “MENU”. Display appears “STEP MODIFIED :CONFIRM?”. Press “enter” to confirm, or “STOP” to cancel. Display appears “ WASH 5: STEP 2: LOAD MODIFY”. Use “+” or “-“ to select “WASH 5: STEP 2: LOAD INSERT AFTER”. Press enter to insert the third step. Display appears “WASH 5: STEP 2: LOAD INSERT AFTER LOAD”. Use “+” “-“ to select the step wanted “ DETERGENT”; Press “ENTER”. Display appears “WASH STEP DETERGENTS MODIFY”. Press “ENTER”. Display appears “WASH STEP DETERGENTS TYPE MOTOR”. Use “+” or “-“ to select the step parameters. To modify the parameter value press “ENTER” and use “+” or “-“ to increase or reduce the value. In this step modify the parameter TYPE MOTOR (same as 1), DRUM SPEED (same as 40 rpm), activation of DETERGENT 1, the TIME (same as 30 seconds). When all parameters are programmed, press “MENU”. Display appears STEP MODIFY: CONFIRM?”. Press “ENTER “ to confirm, or “STOP” to cancel. Display appears “WASH STEP DETERGENTS MODIFY”. Use “+” or “-“ to select “

WASH 5: STEP 3: DETERGENTS INSERT

AFTER”. Press “ENTER” to insert the fourth step. Display appears “WASH STEP DETERGENTS INSERT AFTER LOAD”. Use “+” or “-“ to select the step wanted “HEATING” press “ENTER”. Display appears “WASH 5: STEP 4: HEATING MODIFY”. Press “ENTER”. On the display appears “WASH 5: STEP 4: HEATING TYPE MOTOR Use “+” or”-“ to select the step parameters. To modify one of the parameters value, press “ENTER” and use “+” or “-“ to increase or reduce the value. In this step modify the parameters TYPE MOTOR (same as 1), DRUM SPEED (same as 40 rpm) the TEMPERATURE (same as 45°) and the WDT (same for example to 30 minutes). Once all the parameters are programmed, press “MENU”. Display appears “STEP MODIFY: CONFIRM? Press “ENTER” to confirm or “STOP” to cancel. Display appears “WASH STEP DETERGENTS MODIFY”. Use “+” or “-“ to select “WASH 5 STEP 4: HEATING INSERT AFTER”. Press “ENTER “ to insert the fifth step. Display appears “WASH 5: STEP 4: HEATING

E030101CW 23/11/04 rotating speed in rpm COLD W. INLET: when activated fresh water will flow through cold water inlet valve into drum - HOT W. INLET: when activated warm water will flow through hot water inlet into drum - SOFTNER: when activated, water will Flow through the 3rd compartment of soap box - DETERGENT 1: when activated cold Water will flow through 1st compartment of soap box; in case of washer equipped with detergent pumps, pump No. 1 will turn - DETERGENT 2: when activated warm Water will flow through 2nd compartment of soap box; in case of washer equipped with more pumps (at least 2), pump 2 will turn - DETERGENT 3: in case of washer equipped with at least 3 pumps, pump No. 3 will turn - DETERGENT 4: in case of washer equip Ped with at least 4 pumps, pump no. 4 will turn - FREE 1: is one free relay, activable inside of one generic step - FREE 2: is one free relay, activable inside of one generic step - DETERGENT PUMP: 1,2,3,4,5,6,7,8: in case of washer equipped with more than 4 pumps, pumps 5,6,7,8,9,10,11,12 will turn - LOAD BALANCE: when activated, 5 cms of cold water will be let in, warm water will then be let in; both inlet valves will be open until correct levels and temperatures will be reached - LEVEL: end step for water level in the drum (in cms) EXAMPLE 1: loading step with level parameter of 15 cms: washer will keep on loading water until such level of water in the drum is reached INSERT AFTER LOAD”. Use “+” or “-“ to select from the step menu the step wanted “WASH”; press “ENTER”. Display appears “WASH 5: STEP 5: WASH MODIFY”. Press “ENTER”. On the display appears “WASH 5: STEP 5: WASHING TYPE MOTOR”. Use “+” or “-“ to select the step parameters. To modify one of the parameters value, press “ENTER” and use “+” or “-“ to increase or reduce, the value. In this step modify the parameters TYPE MOTOR (same as 1), DRUM SPEED (same as 40 rpm), the TIME (same as 5 minutes). When all the parameters are programmed, press “MENU”. On the display appears “STEP MODIFY: CONFIRM?”. Press “ENTER” to confirm, or “STOP” to cancel. Display appears “WASH 5: STEP 4:WASHING MODIFY”. Now cycle programming is completed with the 5 steps.Press “MENU” more times to scroll upwards to other menus.

21. STEPS

Steps are of nine kinds and are herebelow listed with their meanings: -DRAIN : drains water up to a programmable level (in cms) or for a pprgrammable time - LOAD: loads water up to a programmable level or for a programmable time - COOLING: provides for water drain up to desired level and lets in fresh water up to a max. programmable level. Procedure is eventually repeated until required temperature is reached. - HEATING: provides for water heating until required water temperature is reached - WASHING DURATION: provides for drum revolving on programmable time and temp. basis - DETERGENTS: provides for detergents loading on quantity and time of loading basis - SPREADING DURATION: provides to spread linen around drum (at 100 rpm with closed drain valve) on programmable time basis - SPIN DURATION: provides for spinning (up to 1000 rpm with closed drain valve) on programmable time basis. - GENERIC: is one step without specifications that permits the use of all suitable relay. EXAMPLE 2: drain step with level parameter of 5 cms, drain valve will be open until such level is reached. A total of 430 steps may be stored. Setting up a new step mean means completing it with its parameters. Steps set in a logical sequence, compose a cycle. (see § 18). Min. level: is required only when a step of cooling is activated and designs water level to be reached when draining warm water. Max. level: is required only when a cooling is activated and designs a water level to be reached when loading cold water.

22. STEP PARAMETERS

Parameters used for building a new step are: - MOTOR TYPE: is the designation of a washing rotation in terms of revolving speed, clockwise and anti-clockwise sense and interval - DRUM SPEED: is the designation of drum Lapse: is required only with a cooling step and designs the temperature decreasing speed in °C. EXAMPLE: cooling step and its parameters. Max. level 25 cms, min. level 10 cms, temperature 40° C, lapse 5° C. Washer starts

E030101CW 23/11/04 menu, until display shows “SET-UP/MODIFY MOTOR TYPE” . Press “ENTER”, display shows “MOTOR TYPE 1”. Use “+” & “-“ to scroll motor types until display shows “MOTOR TYPE 5” , press “ENTER” to select. Use “+” & “-“ to scroll motor types parameters. To modify a parameter value press “ENTER” and use “+” & “-“ to increase or decrease. In this motor type, modify parameters as per example: FORWARD (20 secs.) INTERVAL (10 secs), BACKWARDS (20 secs.). When all parameters are programmed, press “MENU” more times to scroll upwards to other menus. cooling down by draining warm water down to 10 cms level, loading then cold water up to 25 cms, keeping temp. alteration under control within a range of 5° C cooling per minute. TEMPERATURE: is end step (in ° C) EXAMPLE 1: heating step for temperature parameter of 90° C elements will heat up to above 90°C EXAMPLE 2: cooling step for temperature parameter of 30°C, cooling will keep on until water temp. will be under 30°C Time is end step in seconds. EXAMPLE 1: loading step for detergent 1; parameter is time, 30 seconds: detergent will be loaded for 30 secs

25. LANGUAGE SWITCH

Our microprocessori s set up in several languages. To select a language, pls open door “, display shows “DOOR OPEN”, press “MENU”, display shows “PASSWORD”, press 6 times on “START”, display shows “ PROGRAMMES SETUP/MODIFICATION. Use “+” & “-“ to scroll main menu until display shows “LINGUA”. Press “ENTER” to select. Use “+” & “-“ to choose available languages and “ENTER” to confirm language choice. Press “MENU” more times to scroll upwards to other menus. EXAMPLE 2: step is spin duration, parameter is time 5 mins.: spinning will last 5 mins. WDT: watch-dog time= max. allowed time to complete step (in minutes) example: loading step has level parameter in 15 cms. of water with 30 mins. WDT. 15 cms of water will be loaded within 30 mins., if not, alarm will ring. PLEASE NOTE that during programming, some parameters may not appear if they are not compatible to the related step (i.e. in a step of spinning duration, temperature does not appear).

26. CONNECTION TO PERSONAL COMPUTER

Wizard software may connect your PC to our micorprocessor. In this case washer must be equipped with serial gate RS232 (9 pins – optional) to be connected by means of a cable (as option) with following specs: - 3 strand cable with net - 9 pins serial gate RS 232 –female plugs on both cable ends - designation as A & B for cable ends connect pin 2 on end A to pin 3 on B connect pin 3A to 2B connect pin 5A to 5B make a connection among the pin 1,4,6 and anothe one among the pin 7,8 connect cable-net to 5A Directions for usage of Wizard are included in “HELP” of its software 23.MOTOR TYPES Motor Type is a step parameter; motor types available are 16, identified by numbering: 1,2,3,4, and so on. First 4 are factory-stored in the microprocessor (see § 30) and may anyway be modified. Motor types are free from 5 to 15 MOTOR TYPE NO. Main specs composing Motor Type are: clockwise and Anti-clockwise rotation (in seconds), interval time. Motor type “NO” does not have rotations times. If selected, the motor does not turn for all the step. PLS NOTE that not all steps have motor as a parameter. For instance linen distribution and spinning only turn clockwise.

24. SET-UP/MODIFICATION OF MOTOR TYPES

Modifying a motor type means modifying rotation and interval times in a step parameter. PLEASE NOTE that when modifying a motor type, all programmes containing that motor type will be affected. Example: set-up/modification of motor type 5 to consist of: 20 secs clockwise rotation, 10 secs interval, 20 secs anti-clockwise rotation. To enter programming, open door, display shows “DOOR OPEN”, press “MENU”, display shows “PASSWORD”, press 6 times on “START”. Display shows “SET-UP/MODIFY PROGRAMMES”. Use “+” & “-“ to scroll main

27. MODEM COMMUNICATION

Some washing machine models are equipped with modem. This instrument allows the communication, with non mobile telephone connection, between the microprocessor IM6 and a remote PC. On remote PC install the modem driver following the instruction of “Rapid Guide”, supplied with the machine. The connection on the machine must be carried out as follow: - turn off the machine through the general main switch - make a bridge between the modem serial

23/11/04 door (RS232 at nine pins female) and the washing machine serial door (RS232 at nine pins male), with the supplied cable (figure 5). Connect a non mobile telephone line (remove it from a telephone) to the telephone modem line (see figure 4). Attention the correct pin is the left one. Connect the pin to the electric power to alimentation modem (see figure 2). Connect the pin to the electric power supply of the modem power pack, and the power pack to the plug (230V, 50Hz). Turn on the modem though the general main switch (figure nr.1) the modem is on when turned up. Trun on the machine though the main general switch. END H20 – is displaied when water level is above 5 cms at the end of a programme. Alert will be reset after draining. INVERTER LOCKED When the inverter is blocked, if the drum does not run , switch off the machine, through the general switch and wait for some seconds before restarting it on. If the drum runs regurarly waith for the end of the programme. With the starting of the new programme the message disappears. If the message often appears, call the Technical assistance. MAINTENANCE when the machine has done the sufficient number programmes to demand a checking. (1000 for default). Call the technical service. When the connections are completed, supply power to the machine. On remote PC, set up the “WIZARD” program and select the modem communication clicking on the icon: DOOR OPEN – is displaied when machine has opened door POWER FAIL – is diplaied if electricity supply is interrupted. It is enough to press “START” UNBAL – is displaied when linen load is unbalanced; in this case a balancing cycle will restart spinning for three more times, after which spinning will be skipped and programme will start from the following cycle Fill in the communication parameters windows and click on “CLOSE” to initiate the telephone communication. When the connection is completed, it is possible to implement all the normal programming and diagnosis operation, illustrated on the previous paragraphs, from the remote PC. The same system is done for machines with GSM. For the SMS information call the installer technician. SELECT PROGRAMME – is displaied when door is open; microprocessor and machine will stand by until a programme is chosen

29. STORED PROGRAMMES

Please note below-listed factory programmes:

28. MESSAGES ON DISPLAY

Here below please find listing of display messages. PLEASE NOTE that all servicing must be carried out by authorized service staff. ALL1 - is displaied when motor over-heating occurs. To reset it is enough to switch machine off.; call assistance for help. ALL2 - door opened during operation. To reset just turn-off machine; call assistance for help. ALL3 – temperature probe failure: call assistance for help ALL4 – max. allowed step time expired: call assistance for help. ALL5 – max allowed time for water drain expired: call assistance for help ALL10 – one or more side-panels of the machine are open END – washing programme is over; safety controls are being carried-out for door lock release END TEMP is displaied when water temperature is above 40° C at the end of a programme. Alert will be reset with water temp. below 40° C

30. STORED CYCLES

Please note below listed factory installed cycles: PRE-WASH 1 3 minutes pre-wash, with cold water load, 30 secs. soap load through 1st compartment of soap box or from detergent pump No. 1 water heated up to 40° C. Type motor 1. PRE-WASH 2 5 minutes pre-wash, cold water load, 30 secs. detergent load through 1st compartment of soap box or from detergent pump no. 1 if installed. No heating. Type motor 1. WASH 1 5 minutes washing with balanced linen load, detergent loaded for 30 secs. through second soap box compartment or from pump no. 2 if installed. Water heated up to 90°C. Type motor 1. WASH 2 5 mins. Washing with balanced linen load; detergent loaded 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated to 60°C. Type motor 1. WASH 3 5 mins. washing with balanced linen load, detergent loaded for 30 secs.through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated to 40° C. Type motor 1. WASH 4 5 mins. washing with balanced linen load: detergent loaded for 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated to 30° C. Type motor 1. WASH 5 3 mins. washing with cold water load; detergent loaded for 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated 30°.Type motor 6. WASH 6 5 mins. washing with balanced linen load:

E030101CW 23/11/04 detergent loaded for 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated to 90°C. Final cool-down. Type motor 1. 3 mins. rinse with cold water up to 18 cms level Type motor 1 RINSE 3 3 mins. rinse with cold water up to 18 cms level detergent loaded for 30 secs. through 3rd soap compartment Type motor 1 WASH 7 10 mins. washing with balanced linen load: detergent loaded for 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated to 90°C. Final cool-down. Type motor 1. RINSE 4 3 mins. rinse with cold water loaded up to 18 cms level. Motor type 6 Type motor 1 WASH 8 8 mins. washing with balanced linen load: detergent loaded for 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated to 60°C. Type motor 1. RINSE 5 3 mins. rinse with cold water loaded up to 18 cms level; detergent loaded 30 secs. through 3rd soap compartment. Motor type 6 Type motor 1 UNROLL 1 Unroll 1 minute. Type motor 4. WASH 9 5 mins. washing with balanced linen load: detergent loaded for 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated to 75°C. Final cool-down. *NOTE: in low spin washing machines, the maximum speed is 500 rpm. WASH 10 8 mins. washing with balanced linen load: detergent loaded for 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Water heated to 45°C. Type motor 1.

31. STORED MOTOR TYPES

Please note below listed factory installed motor types: MOTOR TYPE 1 Clockwise rotation: 24 secs Interval: 6 secs Anti-clockwise rotation: 24 secs WASH11 3 mins. washing with balanced linen load: detergent loaded for 30 secs. through 2nd soap compartment or from detergent pump no. 2 if installed. Type motor 1. MOTOR TYPE 2 Clockwise rotation: 15 secs Interval: 15 secs. Anti-clocwise rotation: 15 secs MOTOR TYPE 3 Clockwise rotation: 20 secs. Interval: 10 secs Anti-clockwise: 20 secs. SPIN 2* 2 mins. spinning at 500 rpm SPIN 3* 1 min. spinning at 500 rpm followed by 3 mins. at 1000 rpm. MOTOR TYPE 4 Clockwise rotation: 5 secs Interval: 5 secs Anti-clockwise rotation: 5 secs MOTOR TYPE 5 Clockwise rotation: 10 secs Interval: 20 secs Anti-clockwise rotation: 10 secs SPIN 5* 2 min. spinning at 350 rpm. SPIN 6* 1 min. spinning at 500 rpm followed by 2 mins. at 750 rpm. MOTOR TYPE 6 Clockwise rotation: 2 secs. Interval: 20 secs Anti-clockwise: 2 secs. RINSE 1 3 mins. rinse with 7 cms level warm water and cold water level up to 18 cms Type motor 1

32. PRESSOSTAT REGULATION

If there is a problem with pressostat (wrong reading of the real water level) it is possible to RINSE 2

E030101CW 23/11/04 regulate it. Machine on, door open, without linen and water, but in stand by, pressat the same time “+” and “-“ for more than 5 seconds. The display shows "REGULATION". Press START and regulation is done. If you don’t press START, you go out from the regulation without doing it. Off the machine with the emergency button.
